    Products / Fiber Optic Cables / MTP/MPO Cables / MTP/MPO OS2 Single Mode Trunk Cables / 103147
    Product image
    Product image

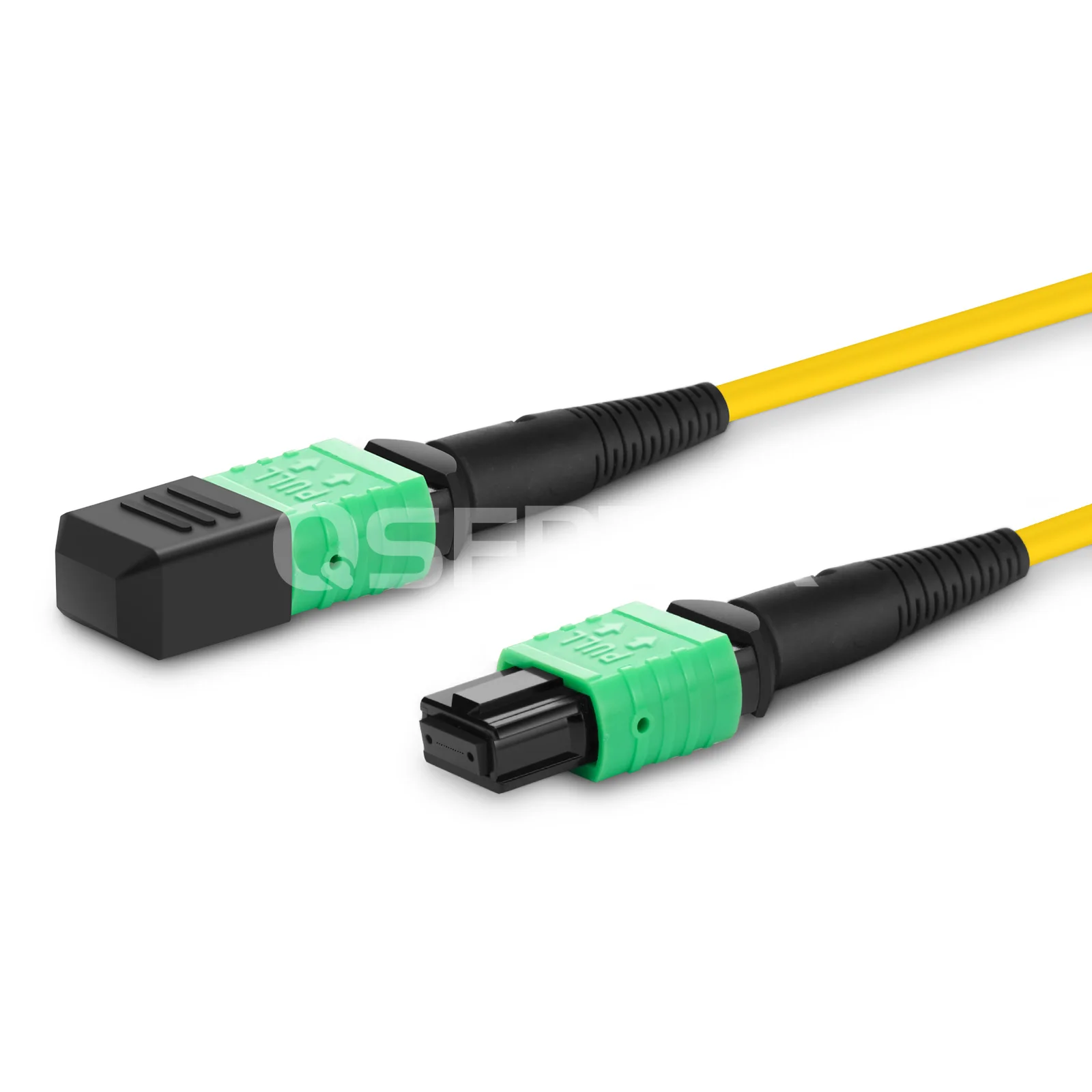

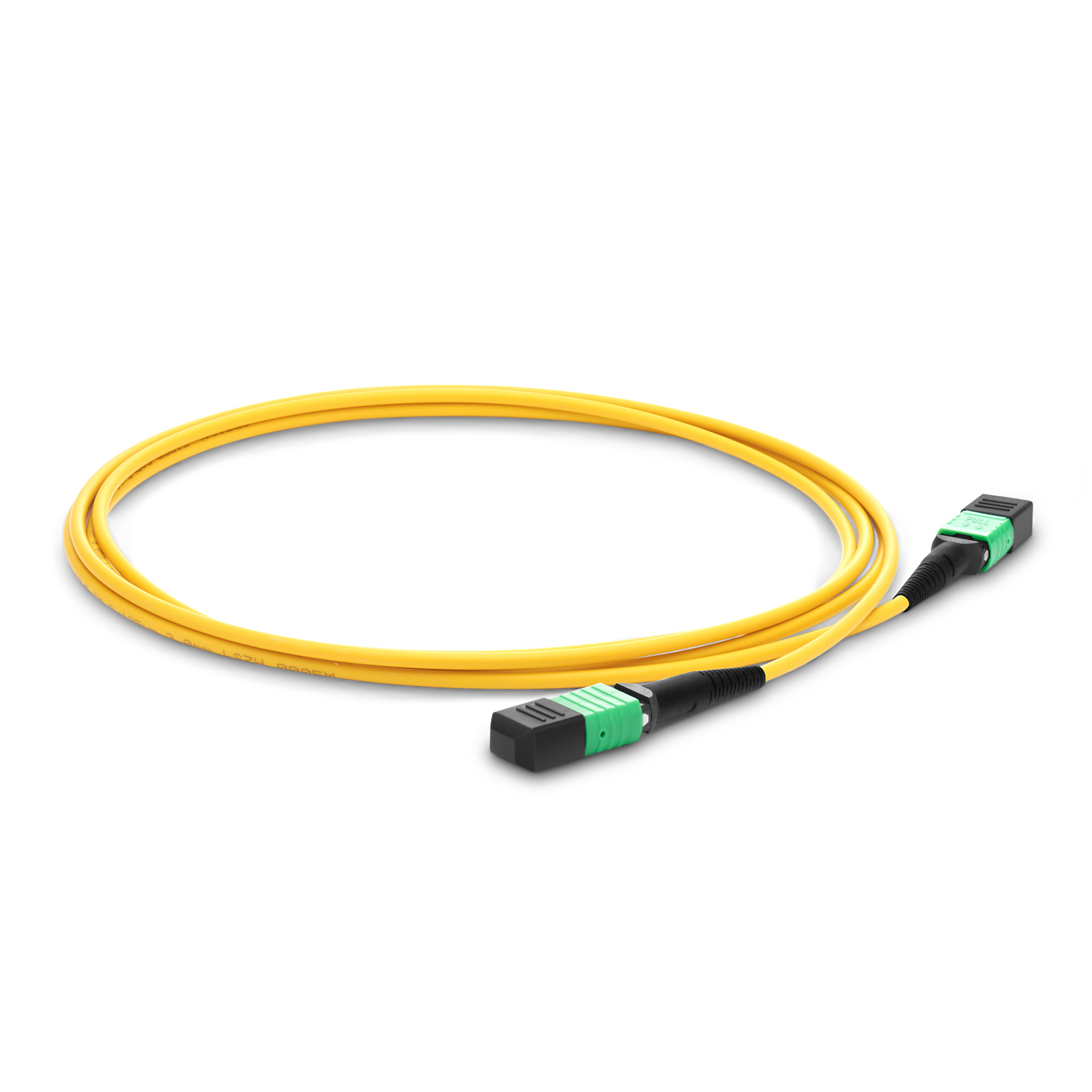

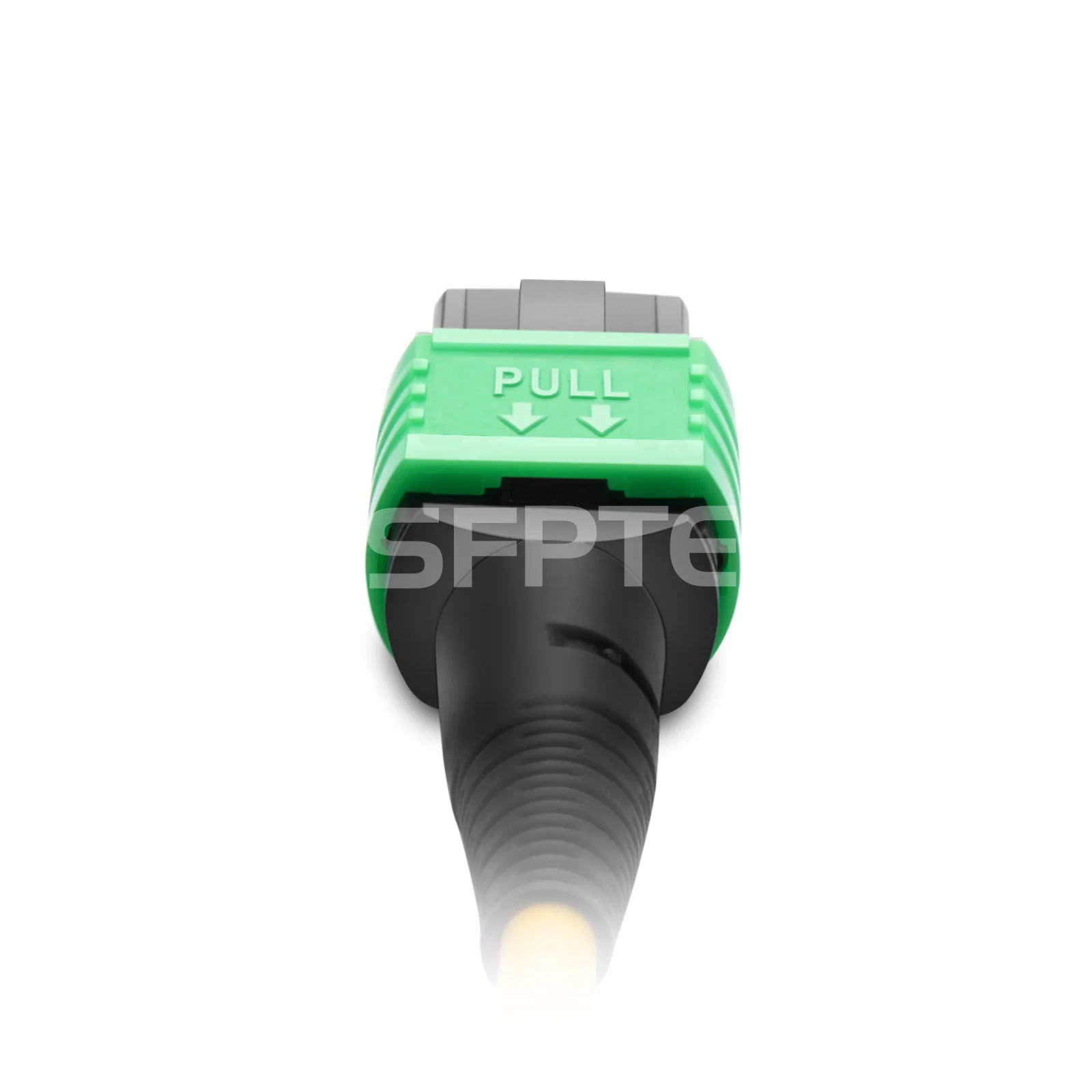

    1m (3ft) MPO-24 APC (Female) to MPO-24 APC (Female) OS2 Singlemode Elite Trunk Cable, 24 Fibers, Type B, LSZH, Yellow

    Product No: 103147
    0 Reviews
    9.1K Sold
    $52.80
    Series
    Length
    80 in real-time stock, 22Oct, 2026

    Buy switch & cables for free shipping. Cables alone are not eligible.

    Contact sales for more free shipping policies

    3-Year Warranty 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Flexible 10mm Min. Bend Radius.
2. With 0.35dB low insertion loss.
3. LSZH Jacket, reduces smoke by over 50% during combustion, significantly cuts toxic gas emissions, flame-retardant and environmentally friendly.
4. Optimized for patching within a cabinet.
5. Meticulous design and standard testing ensure stable high-speed data transmission.
    See more

    Specifications

    1m (3ft) MPO-24 APC (Female) to MPO-24 APC (Female) OS2 Singlemode Elite Trunk Cable, 24 Fibers Jumper, Type B, LSZH, Yellow



    The 24 fibers MPO trunk cable provides a worry-free and cost-effective solution for high-density cabling for its connector delivering up to 12 times the density of a standard duplex fiber optic cable connector. This MPO female to MPO female OS2 single mode trunk cable is specially optimized for long-distance transmissions, data centers and telecommunications systems applications.



    Connector A MPO Female Connector B MPO Female
    Fiber Count 24 Fibers Fiber Type OS2 SMF 9/125μm
    Polish Type APC to APC Cable Material LSZH
    Armoured No Wavelength 1310/1550nm
    Insert Loss ≤0.35dB Return Loss ≥60dB
    Cable Diameter 3.0mm Tensile Strength 80/150N (Long/Short Term)
    Min. Bend Radius
    (Fiber Core)    		 10mm Min. Bend Radius
    (Fiber Cable)    		 20/10D (Dynamic/Static)
    Attenuation (dB/km) ≤0.32 at 1310nm, ≤0.18 at 1550nm Polarity Type B
    Operating Temperature -10℃~+70℃ Storage Temperature -40℃~+85℃
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    Hot

    1m (3ft) MTP-12 UPC (Female) to MTP-12 UPC (Female) OM4 Multimode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Magenta

    $47.60
    11.8K Sold
    79 Reviews
    Hot

    LC UPC to LC UPC Duplex OS2 2.0mm LSZH Fiber Optic Patch Cable 1m

    $3.16
    10.4K Sold
    79 Reviews
    Hot

    1m (3ft) MTP-16 APC (Female) to MTP-16 APC (Female) OS2 Singlemode Elite Trunk Cable, 16 Fibers, Type B, LSZH, Yellow

    $162.68
    10.2K Sold
    79 Reviews
    Hot

    1m (3ft) MTP-16 APC (Female) to MTP-16 APC (Female) OM4 Multimode Elite Trunk Cable, 16 Fibers, Type B, LSZH, Magenta

    $84.30
    10.1K Sold
    79 Reviews
    Hot

    LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 1m

    $3.16
    10.0K Sold
    79 Reviews
    Hot

    1m (3ft) CS UPC to CS UPC Duplex OS2 2.0mm Fiber Optic Patch Cable, LSZH, for 200G/400G/800G Connections

    $26.73
    9.9K Sold
    79 Reviews
    Hot

    1m (3ft) MTP-12 APC (Female) to MTP-12 APC (Female) OS2 Singlemode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Yellow

    $68.60
    9.5K Sold
    79 Reviews
    Hot

    LC UPC to LC UPC Simplex OS2 2.0mm PVC Fiber Optic Patch Cable 1m

    $1.69
    9.2K Sold
    79 Reviews

    1m (3ft) MTP-12 APC (Female) to MTP-12 APC (Female) OM4 Multimode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Magenta

    $47.60
    12.0K Sold
    79 Reviews

    1m (3ft) MPO-12 UPC (Female) to MPO-12 UPC (Female) OM3 Multimode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Aqua

    $11.70
    11.9K Sold
    79 Reviews

    1m (3ft) MPO-24 UPC (Female) to MPO-24 UPC (Female) OM3 Multimode Elite Trunk Cable, 24 Fibers, Type B, LSZH, Aqua

    $29.20
    11.7K Sold
    79 Reviews

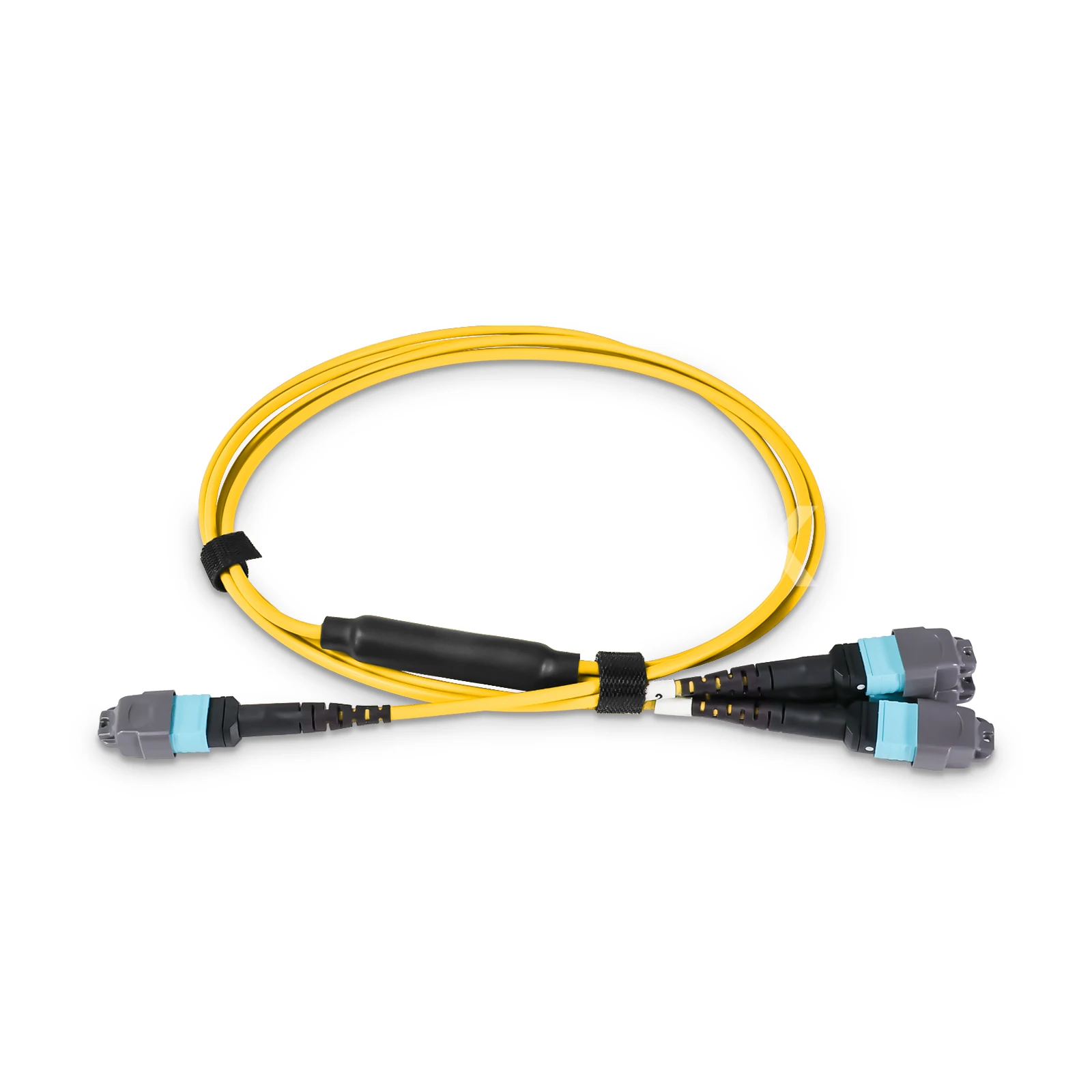

    1m (3ft) 1× 24 MTP Female to 2× 12 MTP OS2 9/125 Single Mode Elite Conversion Cable, 24 Fibers, Type B, LSZH

    $119.16
    11.6K Sold
    79 Reviews

    FC UPC to FC UPC Simplex OS2 2.0mm LSZH Fiber Optic Patch Cable 1m

    $1.69
    11.5K Sold
    79 Reviews

    1m (3ft) MPO-12 UPC (Female) to MPO-12 UPC (Female) OM4 Multimode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Magenta

    $12.60
    11.4K Sold
    79 Reviews

    1m (3ft) MTP-8 UPC (Female) to 4x LC UPC Duplex OM4 Multimode Elite Breakout Cable, 8 Fibers, Type B, LSZH, Magenta

    $34.10
    11.3K Sold
    79 Reviews

    SC UPC to ST UPC Duplex OS2 2.0mm LSZH Fiber Optic Patch Cable 1m

    $3.16
    11.3K Sold
    79 Reviews

    SC UPC to SC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 1m

    $3.16
    11.1K Sold
    79 Reviews

    1m (3ft) MPO-12 APC (Female) to MPO-12 APC (Female) OS2 Singlemode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Yellow

    $15.60
    11.0K Sold
    79 Reviews

    1m (3ft) 1× 24 MTP Female to 3× 8 MTP OS2 9/125 Single Mode Elite Conversion Cable, 24 Fibers, Type B, LSZH

    $140.23
    11.0K Sold
    79 Reviews

    1m (3ft) MTP-24 UPC (Female) to 12x SC UPC Duplex OM4 Multimode Elite Breakout Cable, 24 Fibers, Type B, LSZH, Magenta

    $80.30
    10.9K Sold
    79 Reviews

    Features

    • 0.35dB Max. IL
      Designed for low insertion loss links, flexible and robust.
    • 10mm Min. Bend Radius
      Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
    • 80/150N (Long/Short Term) Tensile Strength
      Extremely tensile resistant to prevent cable breakage and extend service life.
    • LSZH Jacket
      Low smoke, low toxicity, low corrosion, and high flame retardant.

    Applications

    Related Products:

    MPO-24 APC (Female) to MPO-24 APC (Female) OS2 Singlemode Elite Trunk Cable

    Product details

    Excellent Transmission Stability Ensured by Superior Craftsmanship



    With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.





    High-Performance Fiber with Superior Durability



    This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.



    Flexible High-Density Cabling Solutions



    Excellent bend radius minimizes space wastage, optimizes cable management, improves deployment speed, simplifies cable management, and reduces installation costs.





    Maintain Performance by Cleaning Fiber



    Ensure high reliability and performance connections by maintaining clean fiber end-faces.

    Questions & Answers

    • All (6)
    • What distinguishes between male and female MTP connectors?
      MTP connectors are categorized as male or female. The male variant of the connector features pins, while the female version lacks pins. To establish a connection, pins are matched with non-pinned counterparts. Thus, when employing adapters to link two cables, it's essential to have one male and one female connector.
    • What are the advantages of LSZH cable jacket？
      LSZH cable jackets, or "Low Smoke Zero Halogen" cable jackets, offer key benefits. They emit minimal smoke and toxic fumes during fires, reducing health risks. They also limit environmental impact by decreasing halogen gas release. LSZH jackets are essential in confined spaces and comply with safety regulations.
    • Will the MTP-12 (Female) trunk cable work with my JNP-QSFP-100G-PSM4 optical module?
      Yes, they can work well together.
