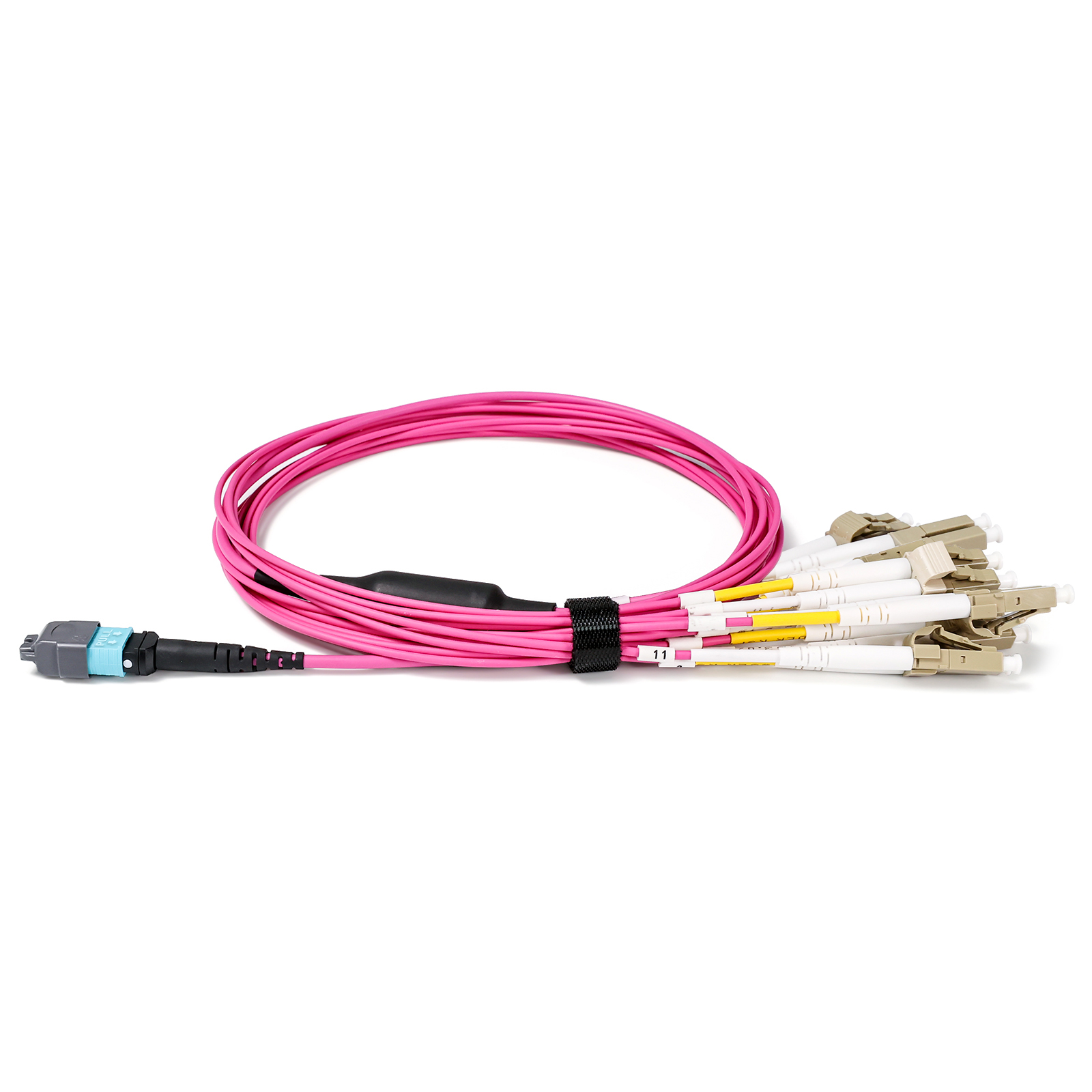

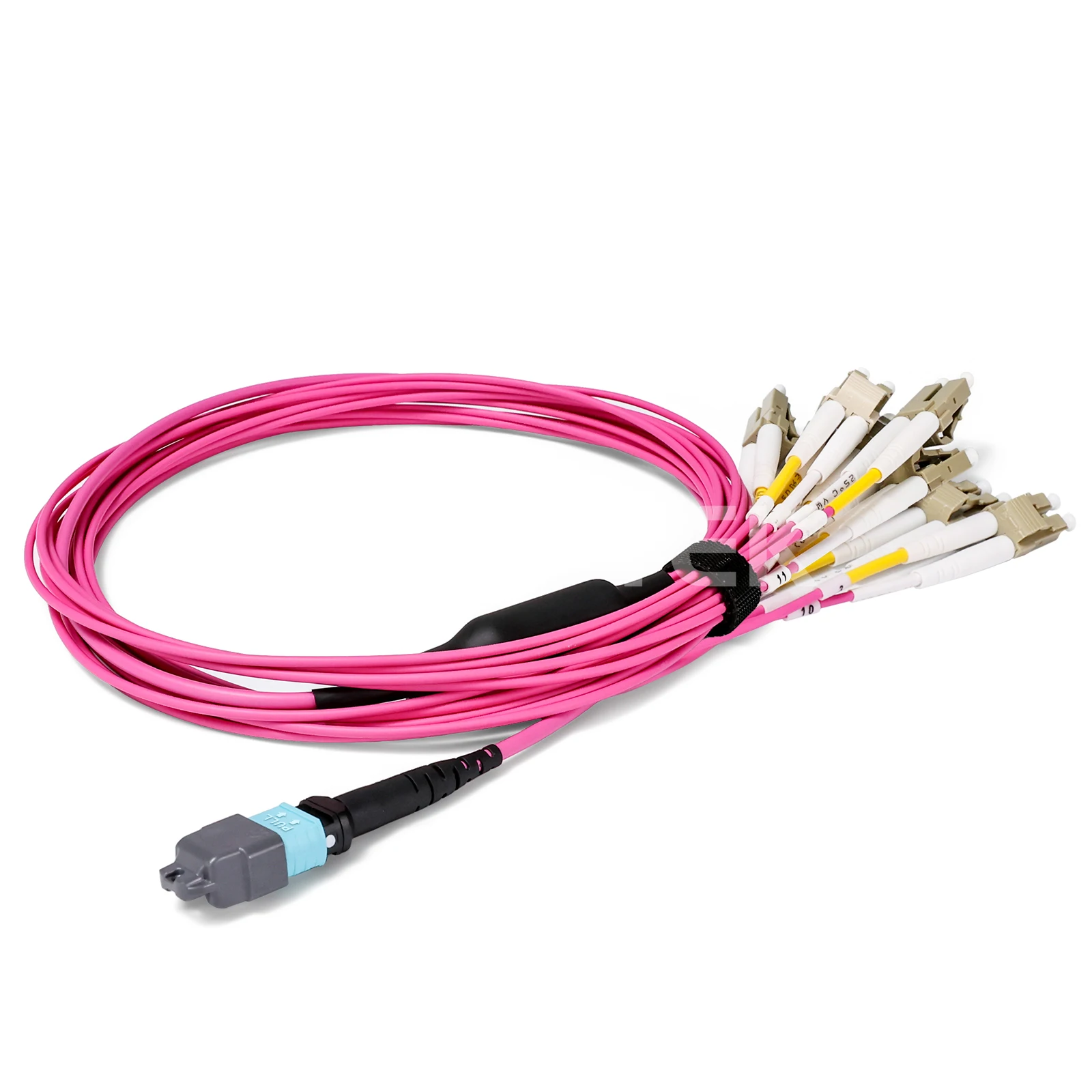

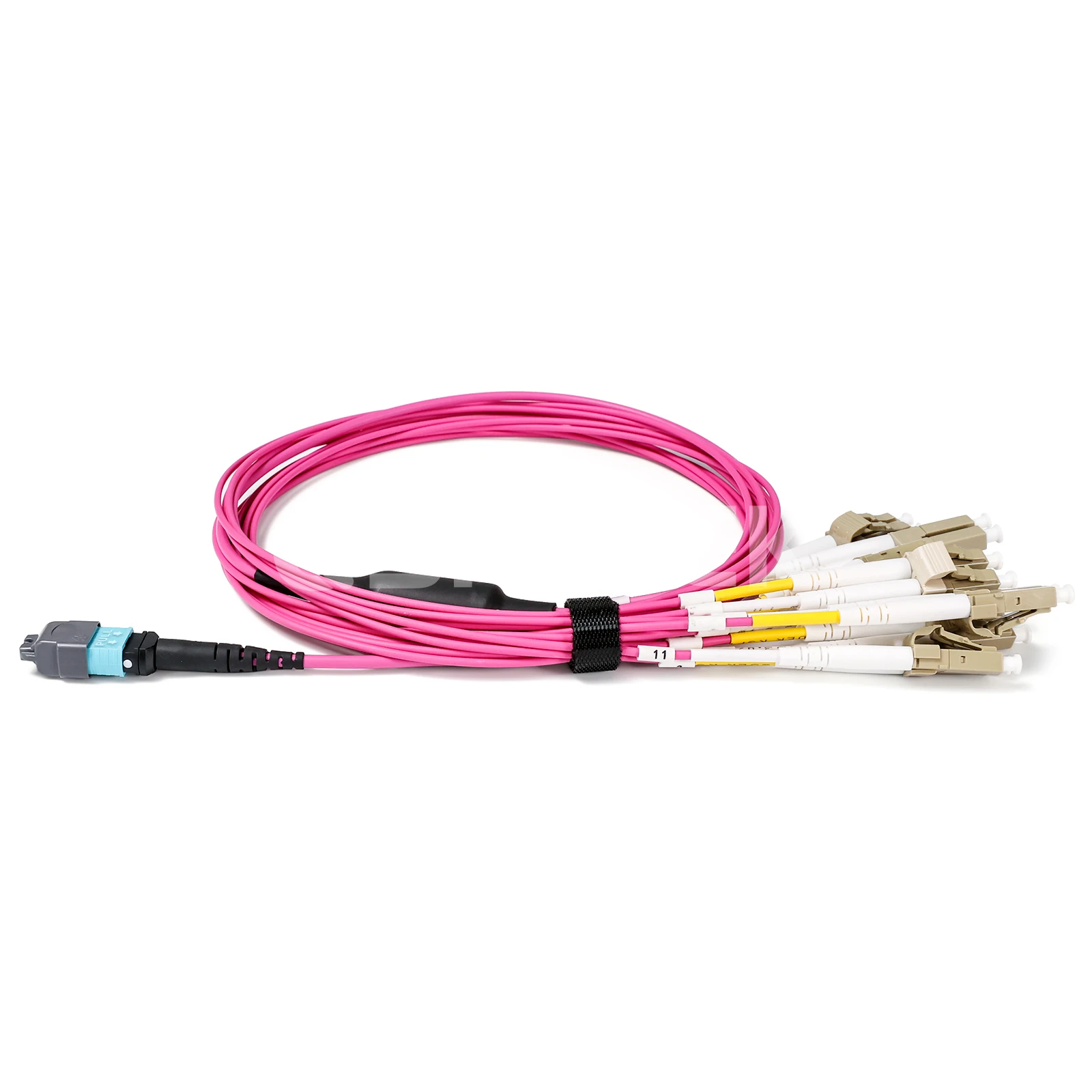

    12m (39ft) MPO-16 APC (Female) to 8x LC UPC Duplex OM4 Multimode Elite Breakout Cable, 16 Fibers, Type B, LSZH, Magenta

    Product No: 103090
    8 Reviews
    1.1K Sold
    US$ 67.20
    Series
    Length
    43 in real-time stock, 23 Jun, 2026

    Buy switch & cables for free shipping. Cables alone are not eligible.

    Contact sales for more free shipping policies

    3-Year Warranty 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Flexible 7.5mm Min. Bend Radius
2. With 0.35dB low insertion loss
3. LSZH Jacket, reduces smoke by over 50% during combustion, significantly cuts toxic gas emissions, flame-retardant and environmentally friendly
4. Optimized for 400G QSFP-DD SR8 to 50G SFP56 SR interconnect
5. Meticulous design and standard testing ensure stable high-speed data transmission
    See more

    Specifications

    12m (39ft) MPO-16 APC (Female) to 8x LC UPC Duplex OM4 Multimode Elite Breakout Harness Cable, 16 Fibers, Type B, LSZH, Magenta

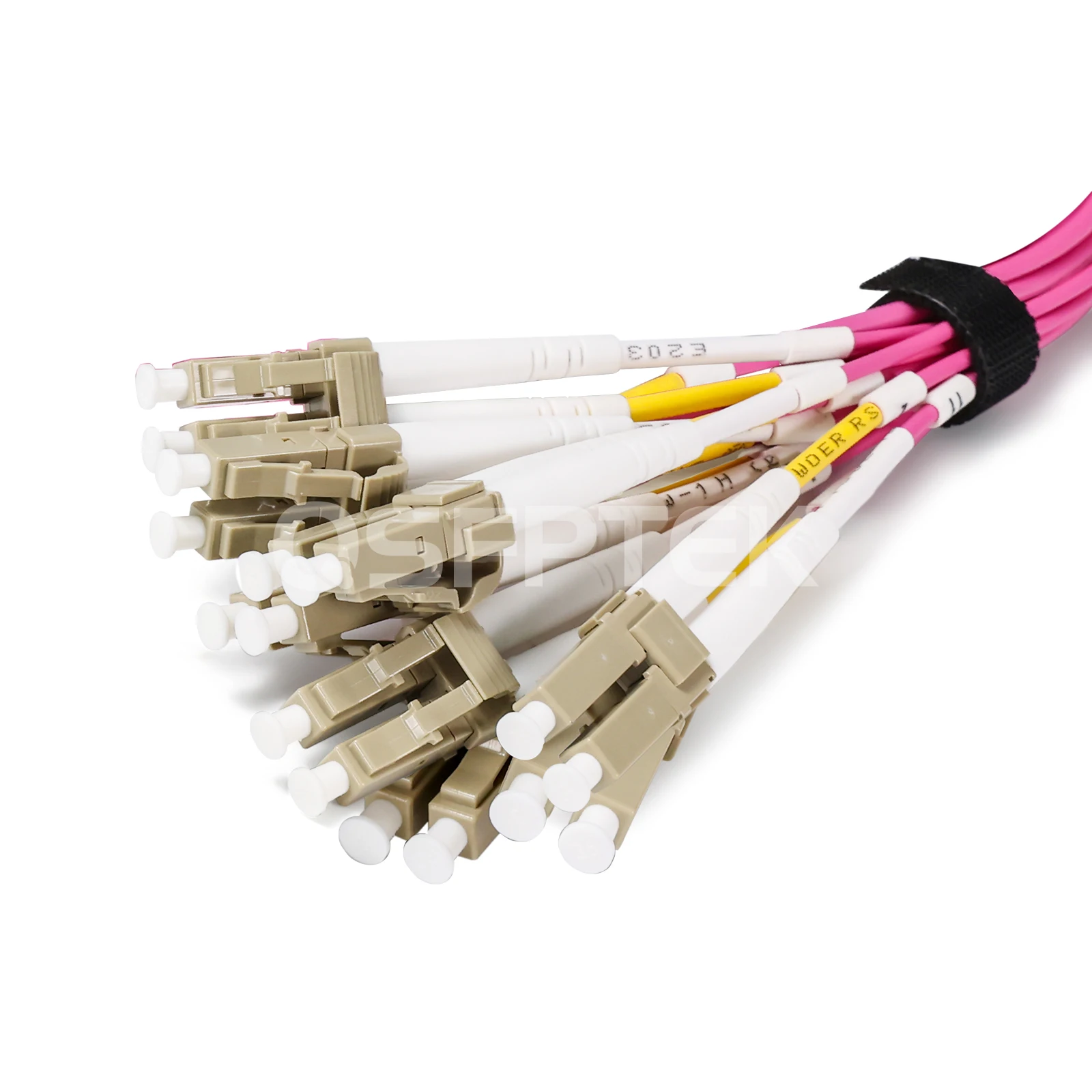

    The MPO-16 multimode MPO to LC breakout cable converts an MPO connector to 8x LC duplex connectors, providing a cost-effective high-density cabling solution for scenarios where rack space saving and cable management is in concern. This 16 fibers MPO to 8 LC OM4 breakout cable is typically used for patching within a cabinet in data centers applications. It is specially optimized for 400G QSFP-DD SR8 to 50G SFP56 SR interconnect, which allow legacy network smoothly migration to 400G. The 16 fiber MPO-LC harness OM4 cable supports up to 400G data transfer and meet future-proof network requirements.



    Connector A MPO Female Connector B MPO Female
    Fiber Count 16 Fibers Fiber Type OM4 MMF 50/125μm
    Polish Type APC to UPC Cable Material LSZH
    Armoured No Wavelength 850/1300nm
    Insert Loss ≤0.35dB Return Loss ≥30dB
    Cable Diameter 3.0mm Tensile Strength 80/150N (Long/Short Term)
    Min. Bend Radius (Fiber Core) 7.5mm Min. Bend Radius (Fiber Cable) 20/10D (Dynamic/Static)
    Attenuation (dB/km) ≤2.3 at 850nm, ≤0.6 at 1300nm Polarity Type B
    Operating Temperature -10℃~ to 70℃ Storage Temperature -40℃ to +85℃



    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Features

    • 0.35dB Max. IL
      Designed for low insertion loss links, flexible and robust.
    • 7.5mm Min. Bend Radius
      Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
    • 80/150N (Long/Short Term)
      Extremely tensile resistant to prevent cable breakage and extend service life.
    • LSZH Jacket
      Low smoke, low toxicity, low corrosion, and high flame retardant.

    Applications

     Connection 1: 400G-SR8 to 8x 50G SR Breakout Connectivity:

    Connection 1: 400G-SR8 to 8x 50G SR Breakout Connectivity

    Product details

    Excellent Transmission Stability Ensured by Superior Craftsmanship

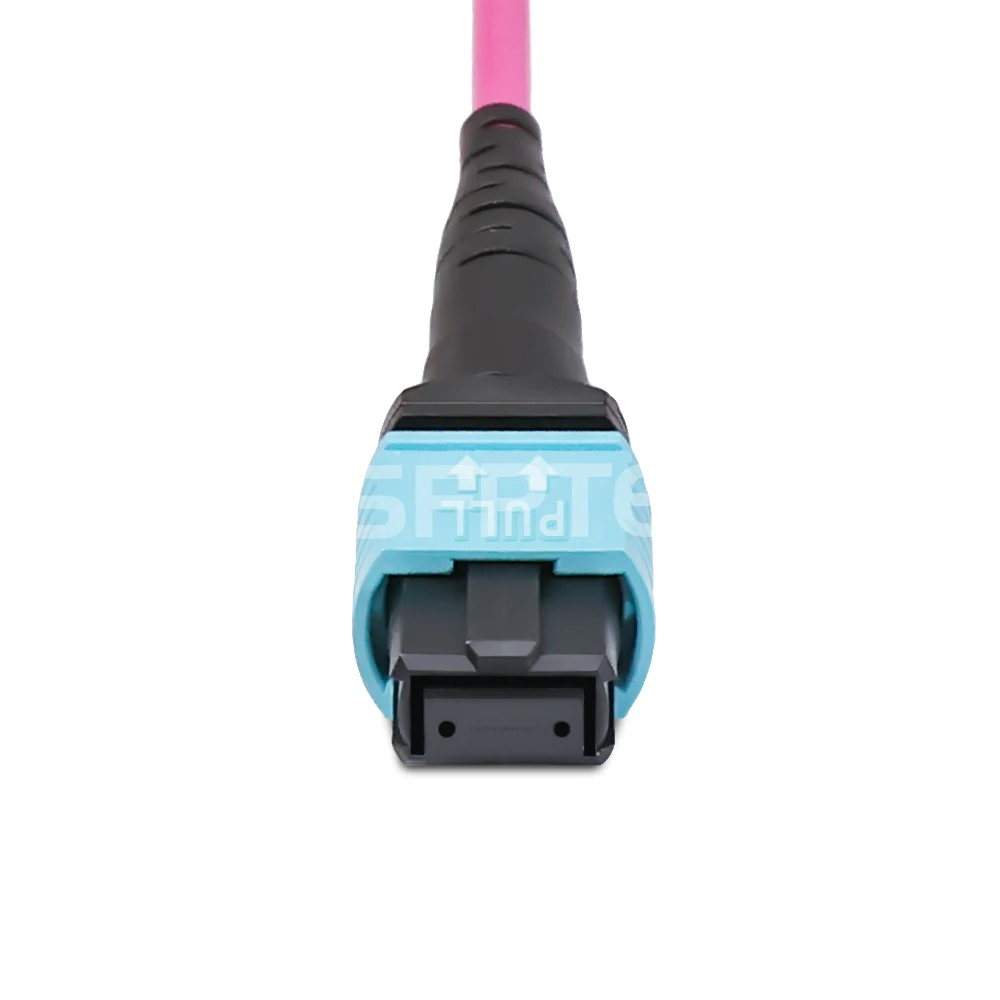

    These cables prioritize attention to detail and high-quality construction. Additionally, MPO-16 connectors adopt optimized design and precise manufacturing processes, effectively reducing signal loss during optical transmission, ensuring the stability and reliability of data transmission.








    High-Performance Fiber with Superior Durability



    This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.






    Reliable Transmission Quality with Carrier-Grade Cables



    Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.







    Maintain Performance by Cleaning Fiber



    Ensure high reliability and performance connections by maintaining clean fiber end-faces.
