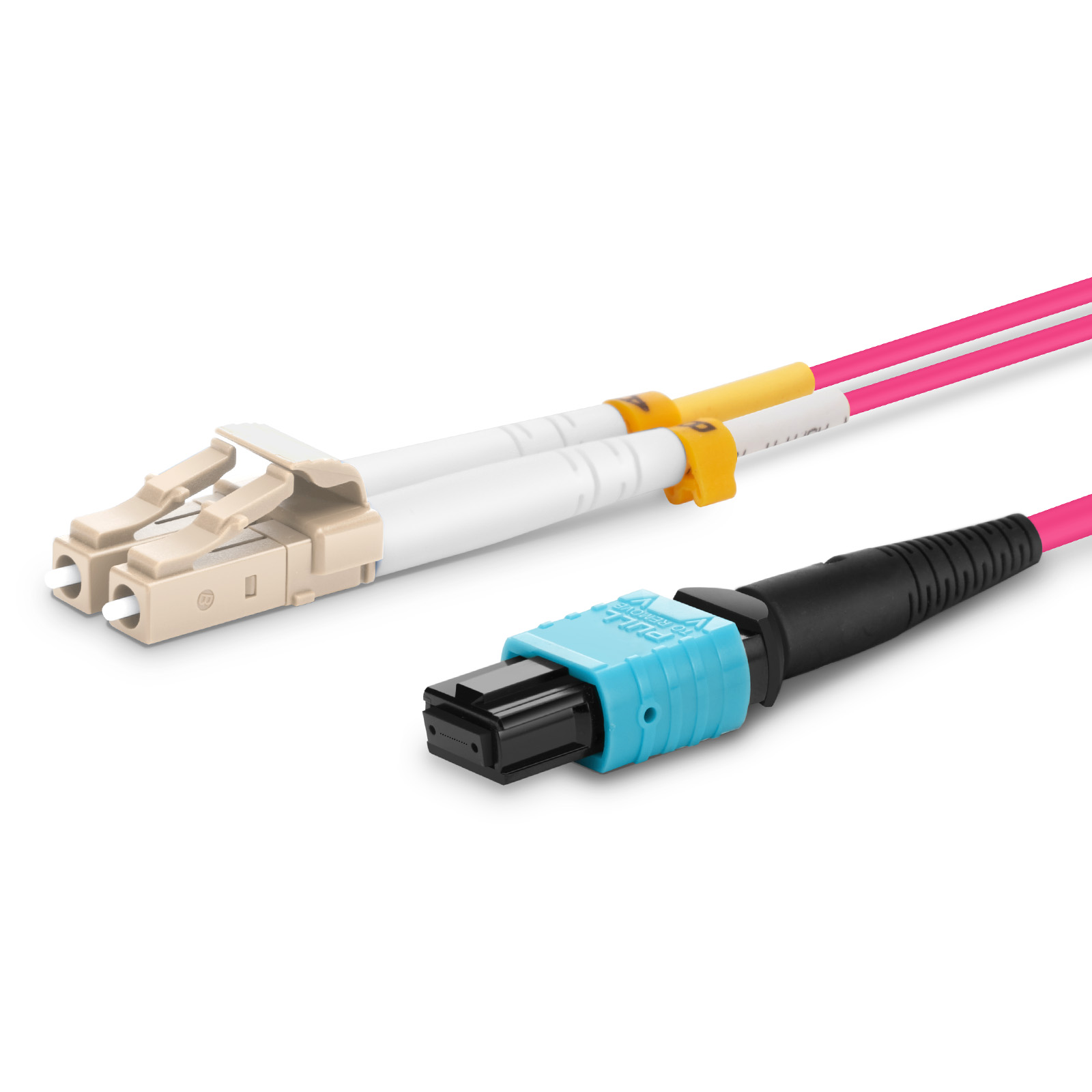

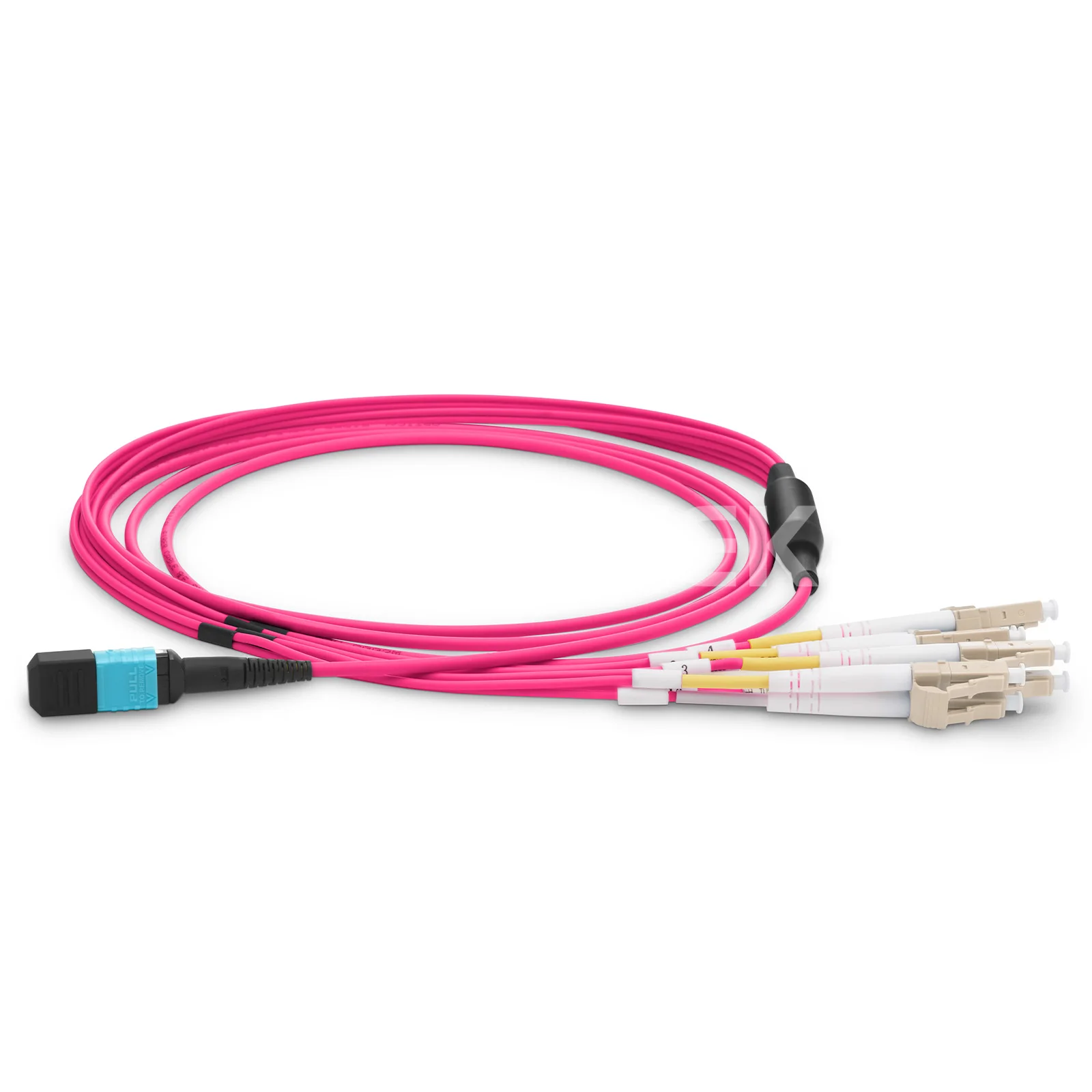

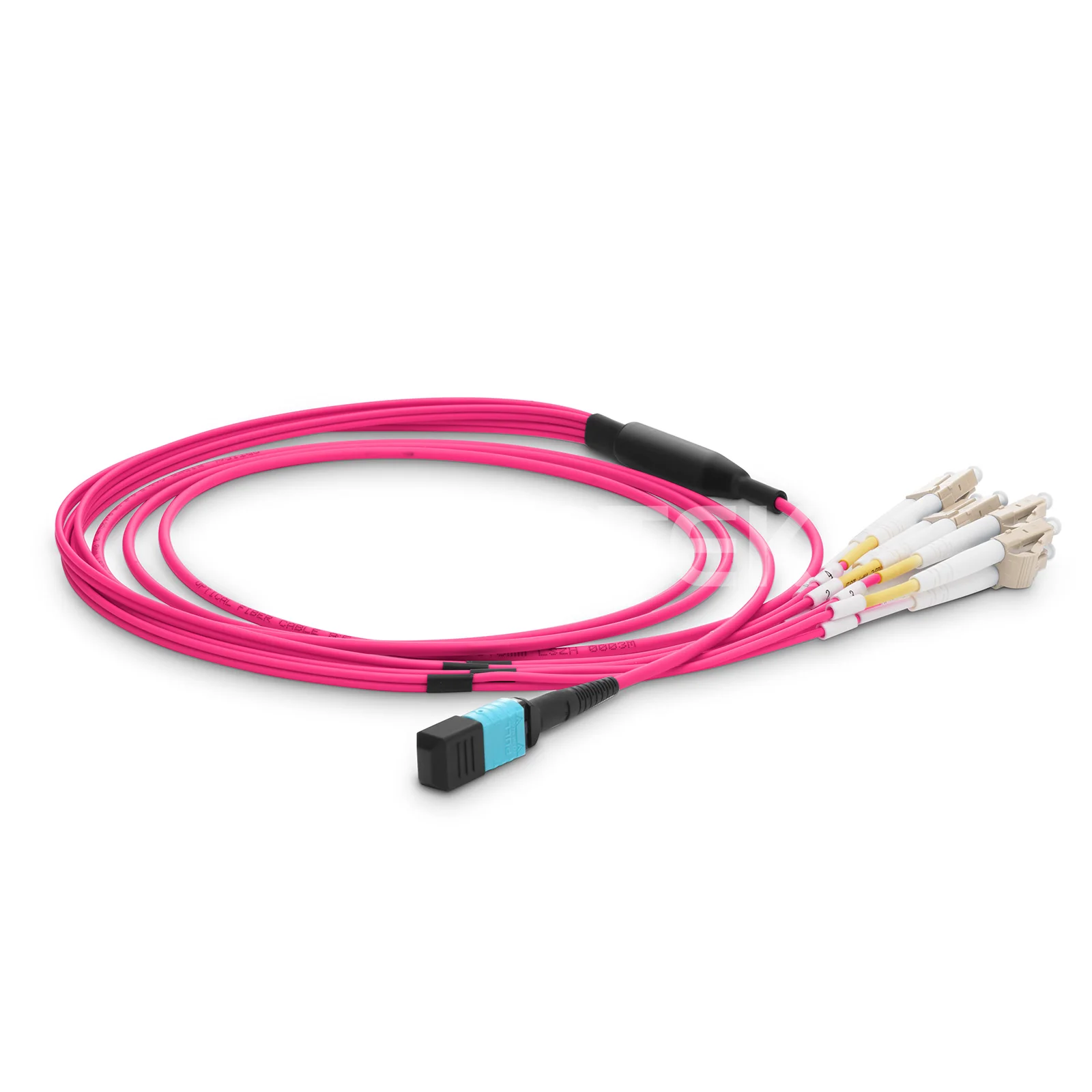

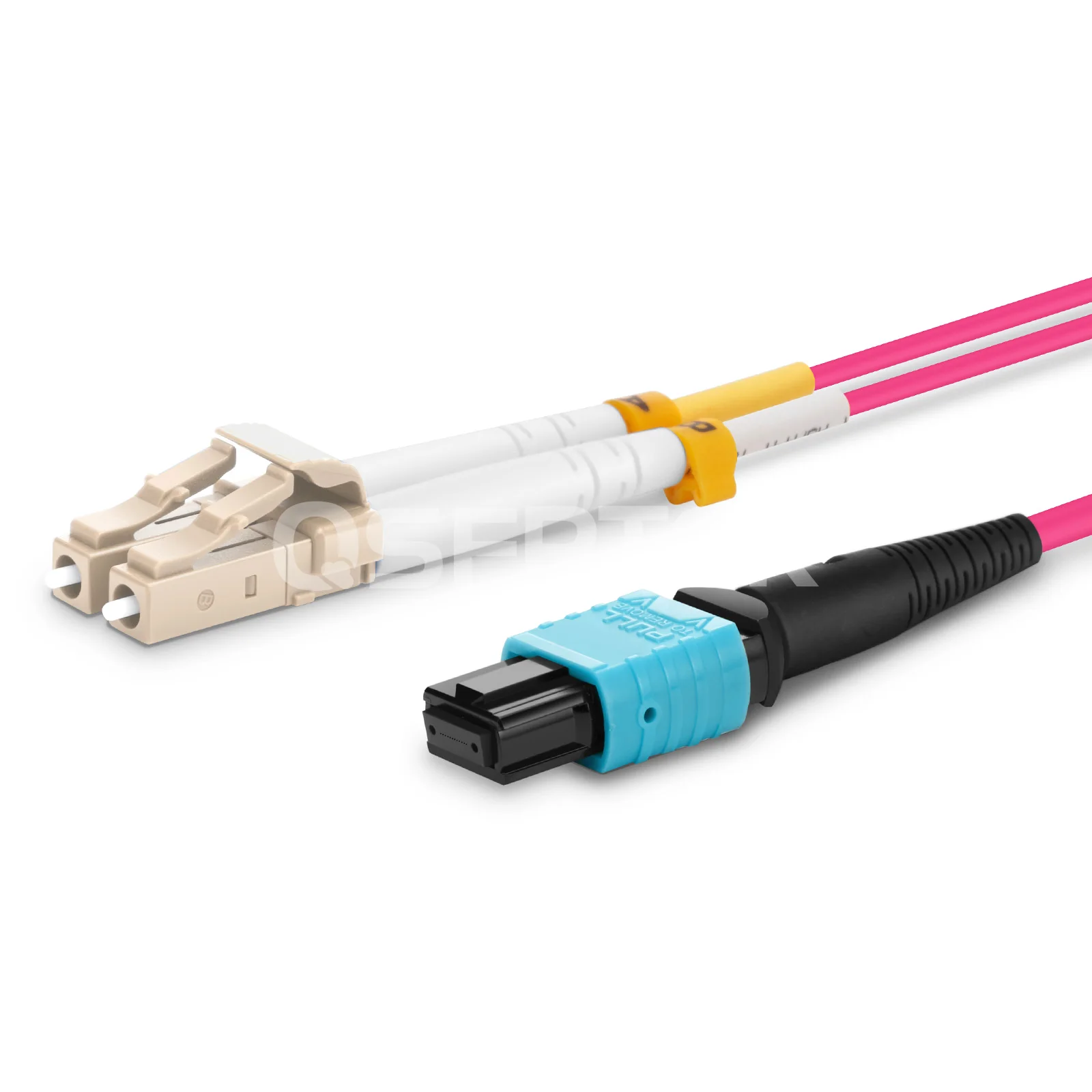

12m (39ft) MTP Female to 4 LC UPC Duplex 8 Fibers Type B Plenum (LSZH) OM4 50/125 Multimode Elite Breakout Cable

Product No :100839
US$ 54.20
Series
Length
39 in real-time stock, 19Jun, 2025

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

-
+
Add to Cart Bulk Order Quotes
1. LSZH Jacket
2. Flexible 10mm Min. Bend Radius
3. Optimized for 40G/100G/200G/400G Transmission
4. MTP Connector with 12 Fibers
5. Compliant with ROSH 2.0 and MCD
See more

Specifications

12m (39ft) MTP Female to 4 LC UPC Duplex 8 Fibers Type B Plenum (LSZH) OM4 50/125 Multimode Elite Breakout Cable



The MTP breakout cable provides a worry-free and cost-effective solution for high-density cabling to convert an MTP connector to an LC duplex connector. This MTP female to 4 LC UPC Duplex OM4 multimode breakout cable is specially optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP28 SR optics direct connection, data centers, and telecommunications systems applications.



Connector A:

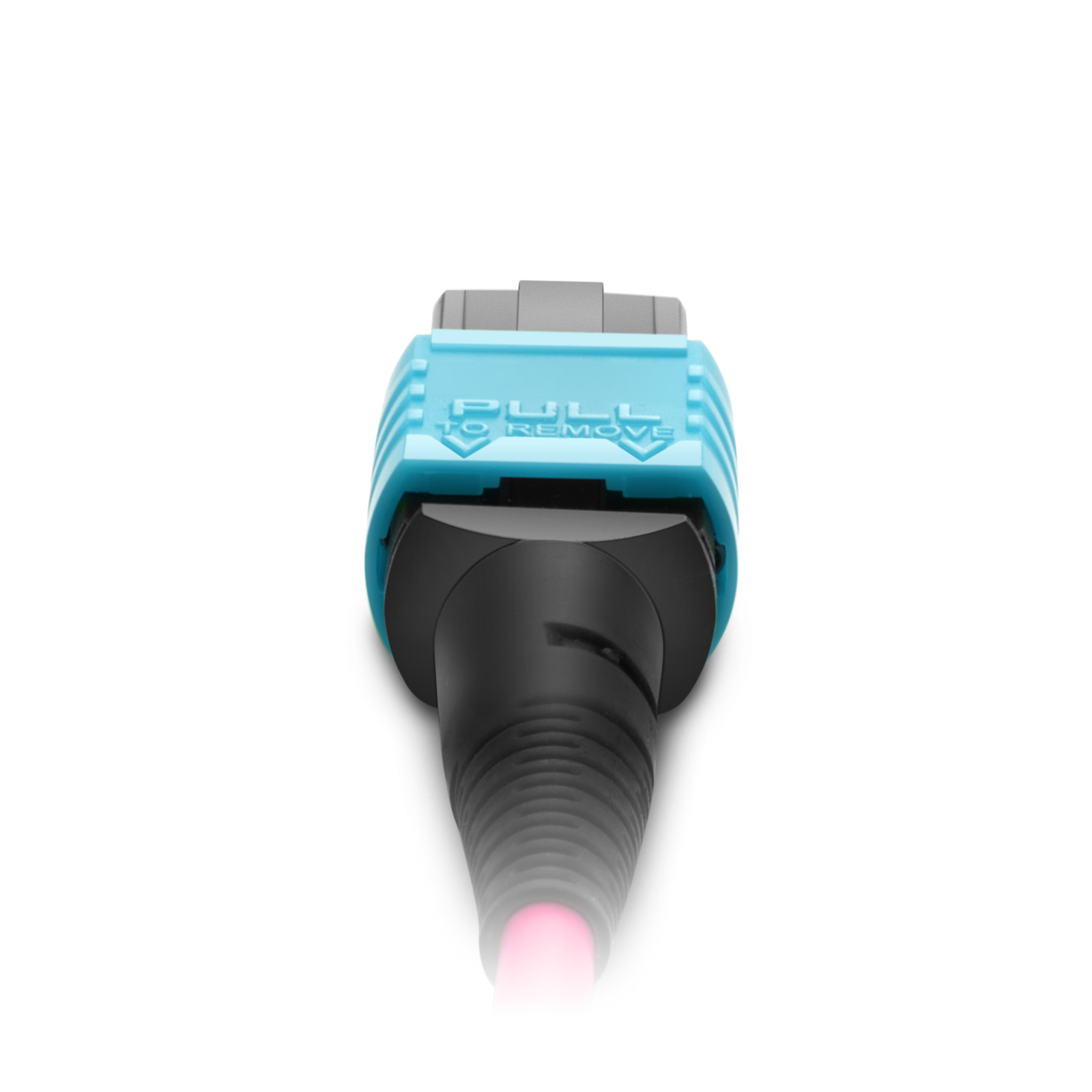

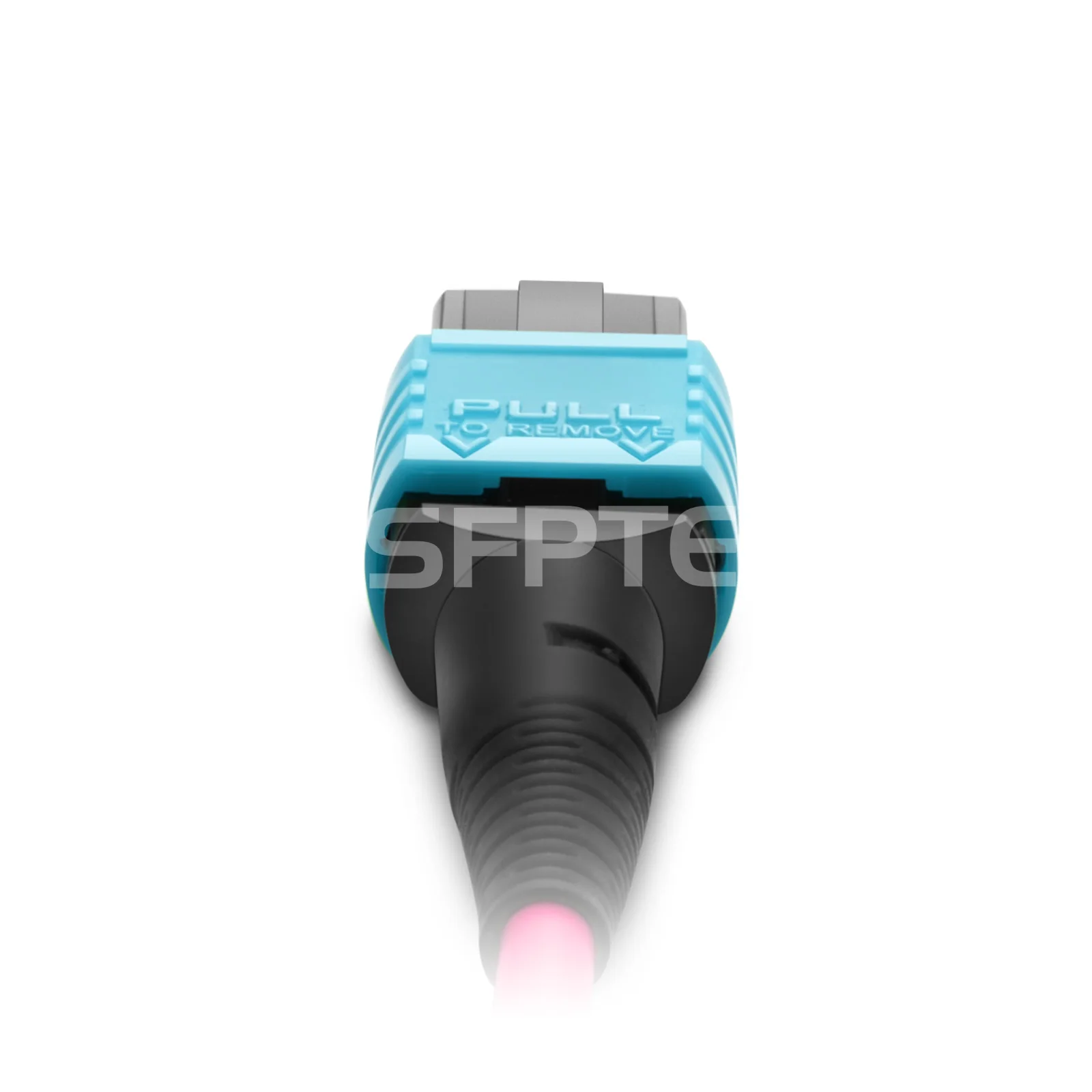

MTP Female

Connector B:

LC UPC Duplex

Fiber Count:

8 Fibers

Fiber Type:

OM4 50/125μm

Polish Type:

UPC to UPC

Wavelength:

850nm/1300nm

Armoured:

No

Cable Material:

LSZH

MTP Connector Insert Loss:

 0.35dB

Return Loss:

≥30dB

Trunk Diameter:

3.0mm

Fan-Out Diameter:

2.0mm

Min. Bend Radius (Fiber Cable) Dynamic:

10mm

Min. Bend Radius (Fiber Cable) Static:

10mm

Operating Temperature:

-20~+70℃

Storage Temperature:

-40~+80℃
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 10mm Min. Bend Radius
    Allow tighter cable bends for slack storage and routing.
  • 0.35dB Max. IL
    Always provide stable signal and realize flexible system design.
  • LSZH Jacket
    Low smoke, low toxicity, low corrosion, and high flame retardant.

Applications

Connection 1:

MTP Breakout OM4 Connection 1

Related Products:

S5300-48M6X, 48-Port Gigabit Ethernet L3 Switch, 24 xGE RJ45, 24 xGE SFP Ports, with 6 x10GE SFP+, Support Stacking

S5300-48T6X, 48-Port Gigabit Ethernet L3 Switch, 48 xGE RJ45, with 6 x10GE SFP+, Support Stacking

S7300-48X2Q4C, 48-Port Gigabit Ethernet L3 Campus SFP+ Switch, 48 x10GE SFP+, with 2 x40GE QSFP+ and 4 x100GE QSFP28 Uplinks, Support Stacking

Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module

Cisco QSFP-40G-SR4 Compatible 40GBASE-SR4 QSFP+ 850nm 150M DDM MTP/MPO MMF Optical Transceiver Module

Connection 2:

100G to 40G Breakout Connection

Related Products:

S7600-48Y8C, 48-Port Ethernet L3 Data Center Switch, 48 x25Gb SFP28, 8 x100Gb QSFP28, Support MLAG, VXLAN

Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m Optical Transceiver Module

Cisco SFP-25G-SR-S Compatible 25GBASE-SR SFP28 850nm 100M optical transceiver Module

Product details

Excellent Transmission Stability Ensured by Superior Craftsmanship



With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.



MTP Breakout OM4





High-Performance Fiber with Superior Durability



This fiber offers exceptional performance and is ideal for high-density cabling due to its excellent bending and compression resistance.







Reliable Transmission Quality with Carrier-Grade Cables



Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.



MTP Breakout OM4 Transmission



Optimizing Network Upgrade Solutions for Superior Efficiency



Simply the network configuration enables migration from 10G to 40G effortlessly, ensuring low insertion loss and perfect performance.



Maintain Performance by Cleaning Fiber



Ensure high reliability and performance connections by maintaining clean fiber end-faces.

Fiber Clean
