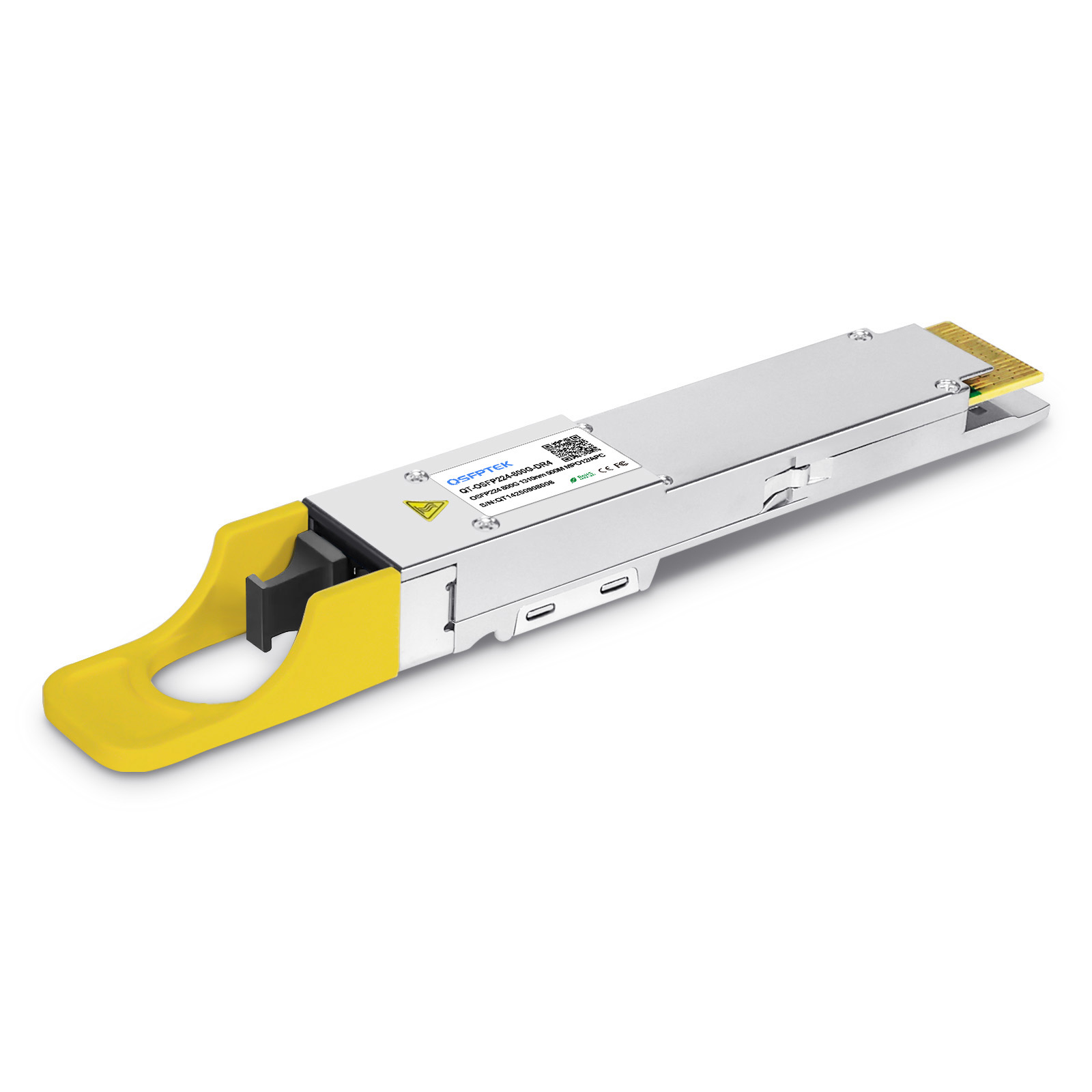

    NVIDIA/Mellanox MMS4A20-XM800 (980-9IAT0-00XM00) Compatible 800GBASE-DR4 OSFP224 RHS/Flat Top PAM4 1310nm 500m DOM MTP/MPO-12 SMF InfiniBand XDR Opitcal Transceiver Module Used in ConnectX-8 Adapters

    Product No: 103646
    16 Reviews
    19 Sold
    US$ 1,299.00
    Compatible
    Transceivers type
    8 in real-time stock, 15 Jun, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Supports 1.6T up to two 800G links for switch to adapter
2. 4x 200G-PAM4 electrical to 4x 200G-PAM4 optical interfaces in parallel
3. Support InfiniBand XDR
4. EML + PIN Laser
5. Max power consumption ≤16W
    See more

    Specifications

    NVIDIA/Mellanox MMS4A20-XM800 Compatible 800G OSFP224 DR4 4x 200G PAM4 Optical Transceiver Module (1310nm, 500m, Single-Port MPO-12/APC Connector, SMF, 0℃ to +70℃, DDM)



    The NVIDIA/Mellanox MMS4A20-XM800 Compatible QT-OSFP224-800G-DR4 supports a maximum data rate of 850Gbps. It enables the fiber link of 500m over single-mode fiber (SMF) with MTP/MPO-12 APC connectors. 800G OSFP224 DR4 supports InfiniBand XDR protocol, adopting the Pulse Amplitude Modulation of 4-channels denoted as 200G-PAM4.

    This transceiver is compliant with IEEE 802.3dj, OSFP MSA Specification Rev 5.1, and CMIS Rev 5.2. The DDM (digital diagnostics monitoring) function is supported on the 800G optic transceiver to achieve real-time operating parameters monitoring.



    The MMS4A20-XM800 800G OSFP224 DR4 module supports the XDR 800Gb/s InfiniBand protocol. With a flat top design, it is used to link the Quantum-X800 QM3x00 switches using Twin-port OSFP224 2x800Gb/s transceivers to the dual 800Gb/s ConnectX-8 mezzanine card in liquid cooled system and ConnectX-8 PCIE cards. QSFPTEK NVIDIA InfiniBand compatible optics are 100% tested in NVIDIA InfiniBand host devices, ideal for InfiniBand NDR end-to-end systems



    Part Number QT-OSFP224-800G-DR4 Vendor Name QSFPTEK
    Form Factor Single-port OSFP224-RHS/Flat Top Max Data Rate 850 Gbps (8x 106.25 Gbps)
    Wavelength 1310nm Distance 500m
    Connector MPO-12 APC Cable Type SMF
    Transmitter Type EML Receiver Type PIN
    TX Power -3.3 to +4dBm Receiver Sensitivity < -6.3dBm
    Power Consumption ≤16W Modulation Format 4x 200G-PAM4 electrical to 4x 200G-PAM4 optical Parallel
    Extinction Ratio 3.5dB CDR (Clock and Data Recovery) TX and RX Built-in DSP
    Application ConnectX-8 mezzanine card in liquid cooled system and ConnectX-8 PCIE cards MTBF 3289474 Hours
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols IEEE 802.3dj, OSFP MSA Specification Rev 5.1, CMIS Rev 5.2 Warranty 1 Year
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Features

    • 1. Advanced Technology
      Features PAM4 modulation technology and built-in DSP chip.
    • 2. Best Price and High Quality
      Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.
    • 3. Protocols
      Complies with IEEE 802.3dj, OSFP MSA Specification Rev 5.1, CMIS Rev 5.2.
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

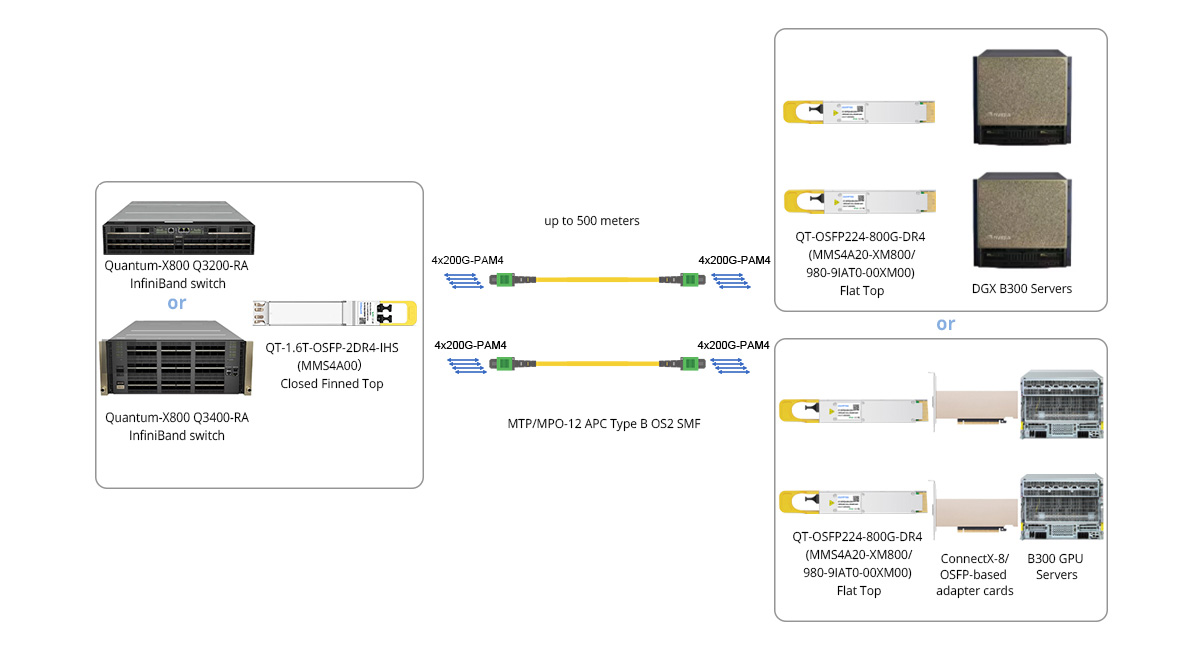

    Scenario 1: Twin-port 1.6T (2x 800G) XDR Switch to 2x 800G Links for Servers



    Twin-port 1.6T (2x 800G) XDR Switch to 2x 800G Links for Servers

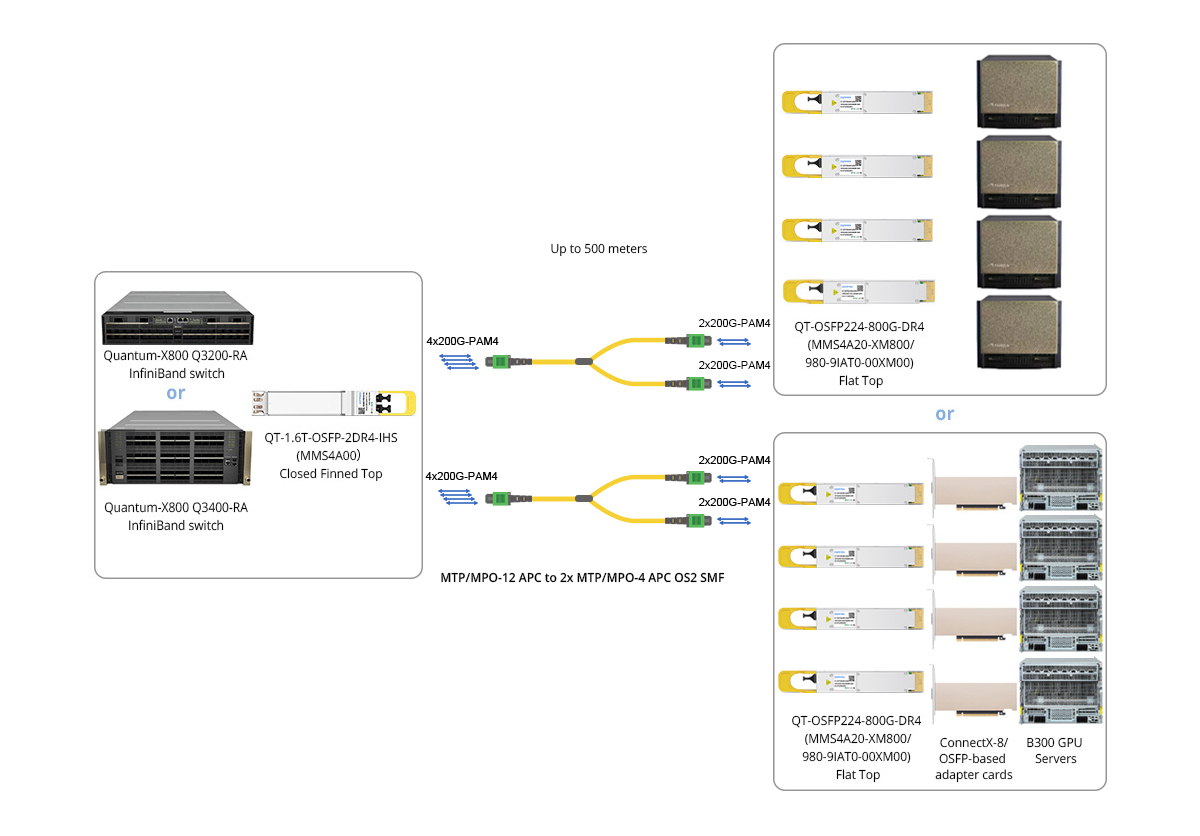

    Scenario 2: Twin-port 1.6T (2x 800G) XDR Switch to 4x 400G ConnectX-8 Adapters

    Twin-port 1.6T (2x 800G) XDR Switch to 4x 400G ConnectX-8 Adapters

    Product details

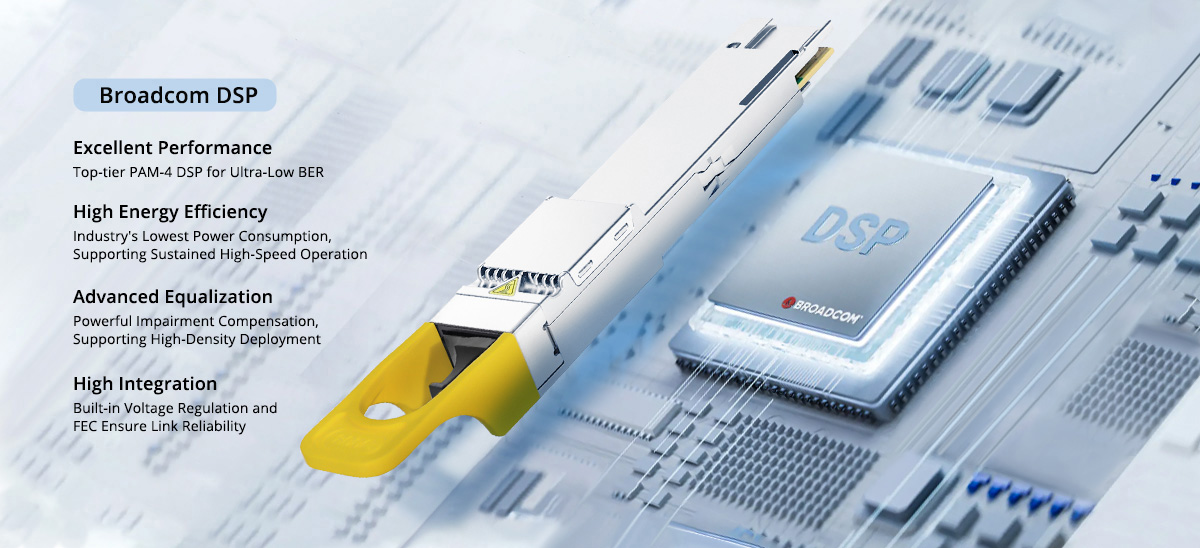

    Broadcom DSP Chip Reshapes 800G High-Speed ​​Interconnect



    This 800GBASE-DR4 OSFP224 module utilizes Broadcom's top-tier PAM-4 DSP chip combines ultra-low bit error rate with the industry's lowest power consumption. It uses advanced equalization technology to compensate for optical impairments and integrates FEC functions to ensure link reliability, providing core support for high-speed data centers and AI clusters.

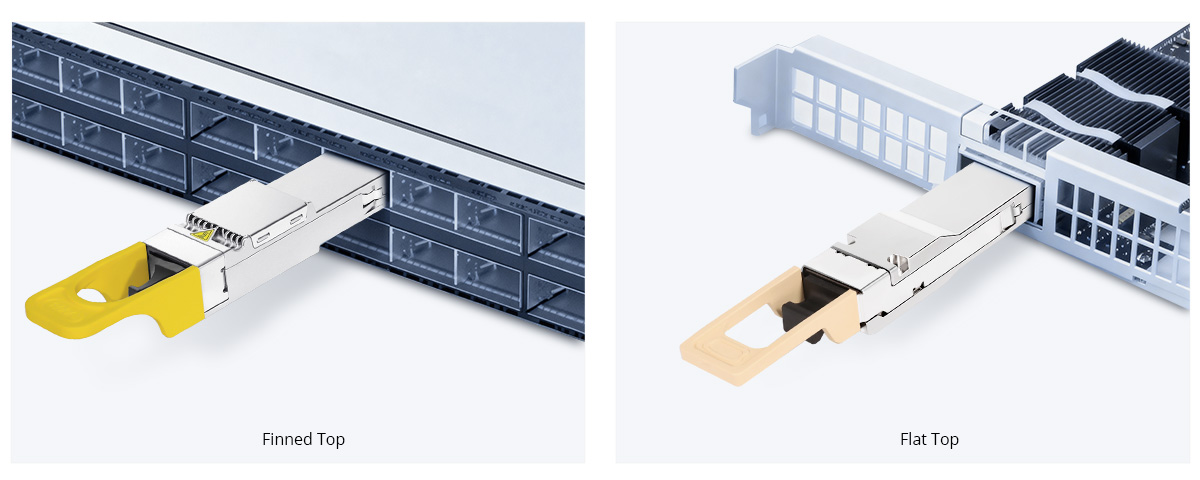

    Flat-top Design for Liquid Cooled Systems



    Finned-top modules feature a heat sink on the top of transceiver or its laser. With superior thermal management, they are ideal for switches requiring efficient heat dissipation in long-term stable operation, such as Quantum-2 InfiniBand switch and the Spectrum-4 Ethernet switch.



    Flat-top optics are used for adapters and Data Processing Units (DPUs), including the ConnectX-8 InfiniBand adapter in liquid cooled system and ConnectX-8 PCIE cards. Flat-top design can maximum optical coupling and transmission efficiency.







    Undergoes Comprehensive Performance Testing to Guarantee Optimal Reliability



    The QSFPTEK test center conducts complete testing procedures with advanced professional test equipment, including BER test, eye diagram test, Optical Spectrum test, jitter test, etc. Each module has been stringently tested by world-class test devices from Keysight and Anritsu to guarantee flawless operation and optimal reliability.



    Performance test devices
