    Home / Products / Transceivers / NVIDIA InfiniBand Transceivers / 1.6T/800G OSFP InfiniBand XDR / 103762

    NVIDIA/Mellanox MMS4A00-XM/MMS4C10 (980-9IAH0-00XM00/980-9IAU0-00XM00) Compatible 1.6T DR8 Twin-port OSFP224 RHS/Flat Top PAM4 1310nm 500m Dual MPO-12/APC SMF DDM InfiniBand XDR Optical Transceiver Module for Liquid-Cooled Switches

    Product No: 103762
    17 Reviews
    16 Sold
    US$ 2,179.00
    Compatible
    Transceivers type
    9 in real-time stock, 25 Jun, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Support Ethernet and InifiniBand
2. Support 2x 800GBASE-DR4 breakout applications, no breakout cables required
3. Higher bandwidth EML transmitter and PIN PD receiver, Class 1 Laser
4. Hot-pluggable OSFP1600 form factor with dual MPO-12/APC connectors
5. Support 1.6Tb/s aggregate bit rate
6. Two wire serial Interface with digital diagnostic monitoring
7. Compliant with IEEE802.3dj D1p3:1.6TBASE-DR8 optical interface and IEEE802.3dj D1p3:1.6TAUI-8 C2M electrical interface
8. Compliant with OSFP MSA Specification Rev 5.1 RHS type 2 housing with Dual MPO-12/APC receptacle
9. Compliant with CMIS Rev 5.3
10. Complies with EU Directive 2011/65/EU (RoHS compliant)
    See more

    Specifications

    NVIDIA/Mellanox MMS4A00-XM/MMS4C10 (980-9IAH0-00XM00/980-9IAU0-00XM00) Compatible 1.6T DR8 (2x 800G DR4) OSFP224 Flat Top PAM4 Twin-port Optical Transceiver Module (1310nm, 500m, 2x MPO-12/APC Connectors, SMF, 0℃ to +70℃, DDM)



    NVIDIA/Mellanox MMS4A00-XM/MMS4C10 (980-9IAH0-00XM00/980-9IAU0-00XM00) compatible 1.6T OSFP224 DR8 Twin-port 2x 800G DR4 transceiver module supports a max data rate of 1600 Gbps. It enables the fiber link of 500m over single-mode fiber (SMF) with dual MPO-12 APC connectors. QSFPTEK manufactured 1.6T 2x DR4 OSFP complies with IEEE802.3dj D1p3:1.6TBASE-DR8 optical interface, IEEE802.3dj D1p3:1.6TAUI-8 C2M electrical interface, OSFP MSA Specification Rev 5.1 RHS type 2, CMIS Rev 5.3 and EU Directive 2011/65/EU (RoHS compliant).



    DDM (digital diagnostics monitoring) function is supported on the 1.6T fiber optic transceiver to achieve real-time operating parameters monitoring. Adopting the Pulse-amplitude Modulation (PAM4) modulation, the DR8 OSFP224 achieves 1600 Gigabit Ethernet through 8 channels 200G PAM4.



    The 1.6T DR8 OSFP supports both Ethernet and InfiniBand XDR end-to-end systems. Designed for supercomputing and HPC, this 1.6T OSFP transceiver is widely used for linking two switches up to 500 meters or to connect the 1.6T end to two breakout 800G switches or adpter cards for compute servers or storage infrastructure. Besides, OSFP-RHS with flat-top design is used in Quantum-3 liquid-cooled switches.



    Part Number QT-1.6T-OSFP-2DR4-RHS Vendor Name QSFPTEK
    Form Factor Twin-port OSFP-RHS/Flat Top Max Data Rate 1600 Gbps
    Wavelength 1310nm Distance 500m
    Connector Dual MTP/MPO-12/APC Cable Type SMF
    Transmitter Type EML Receiver Type PIN PD
    TX Power -3.3 to 4 dBm Receiver Sensitivity < -6.3 dBm
    Packaging Technology COB (Chip on Board) Packaging Receiver Overload 4 dBm
    Power Consumption < 30W Modulation Format 8x 200G-PAM4 electrical to Dual 4x 200G-PAM4 optical Parallel
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols IEEE802.3dj D1p3, OSFP MSA Rev 5.1, CMIS Rev 5.3 and EU Directive 2011/65/EU (RoHS compliant) Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Features

    • 1. Advanced Technology
      Features PAM4 modulation technology and built-in DSP chip.
    • 2. Best Price and High Quality
      Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.
    • 3. Protocols
      Complies with IEEE802.3dj D1p3, OSFP MSA Rev 5.1, CMIS Rev 5.3 and EU Directive 2011/65/EU.
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

    Scenario 1: 1.6T XDR Switch to 1.6T XDR Switch Direct Connectivity:



    Scenario 1: 1.6T XDR Switch to 1.6T XDR Switch Direct Connectivity





    Scenario 2: 1.6T XDR Switch to 2x 800G NIC Breakout Connectivity:



    Scenario 2: 1.6T XDR Switch to 2x 800G NIC Breakout Connectivity

    Product details

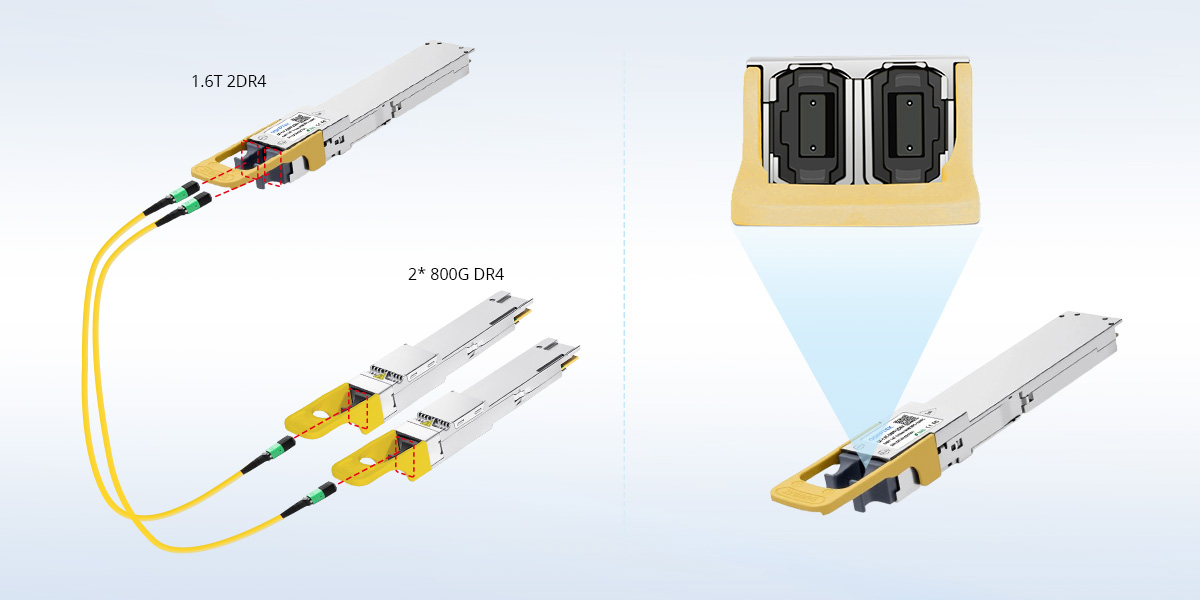

    Twin-port Design, No Breakout Cables Required



    This 1.6T-OSFP-2DR4 is a hot-swappable twin-port OSFP form-factor with dual MPO-12/APC connectors. This design enables it to directly link to another twin-port optical module for 1.6T to 1.6T connectivity. Each of the two MPO-12/APC connectors can also connect to an independently single-port MPO-12/APC transceiver via a standard MTP/MPO-12 APC to MTP/MPO-12 APC OS2 SMF for 1.6T to 2x 800G breakout connectivity, without needing breakout cables.



    Twin-port Design, No Breakout Cables Required





    1.6T Optical Transceivers Contrast Table



    Part Number

    QT-1.6T-OSFP-2DR4

    QT-1.6T-OSFP-2FR4


    NVIDIA Part Number

    MMS4A00

    -

    Data Rate

    2x 800Gb/s

    2x DR4

    2x 800Gb/s

    2x FR4

    Form Factor

    Twin-port OSFP (Flat top)

    Twin-port OSFP (Flat top)

    Optical Connector

    Dual MPO-12/APC

    Dual Duplex LC/UPC

    Cable Type

    MTP/MPO-12/APC OS2 SMF

    LC UPC Duplex OS2 SMF

    Wavelength

    1310nm

    1271nm, 1291nm, 1311nm and 1331nm

    Reach

    500m

    2km

    Modulation

    8x 200G-PAM4 Electrical to Dual

    4x 200G-PAM4 Optical Parallel

    8x 200G-PAM4 Electrical to Dual 4x 200G-PAM4 Optical Multiplexed

    Transmitter + Receiver Type

    EML + PIN PD

    EML + PIN PD

    Max Power Consumption

    30W

    30W

    Application

    1.6T and 2x 800G breakout

    Ethernet and InifiniBand

    Quantum-3 liquid-cooled switches

    1.6T

    Ethernet and InifiniBand

    Quantum-3 liquid-cooled switches
