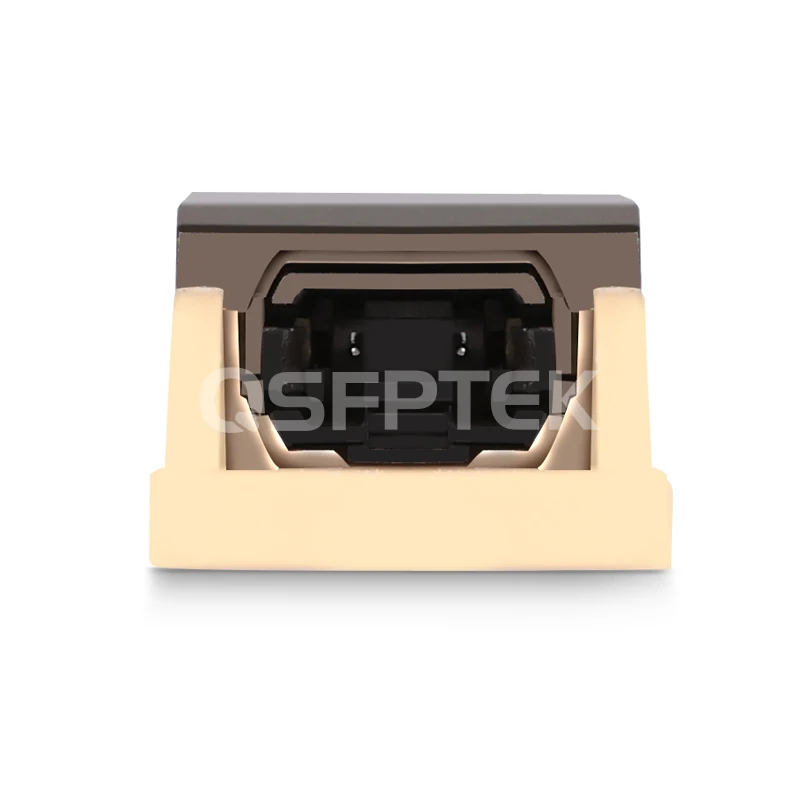

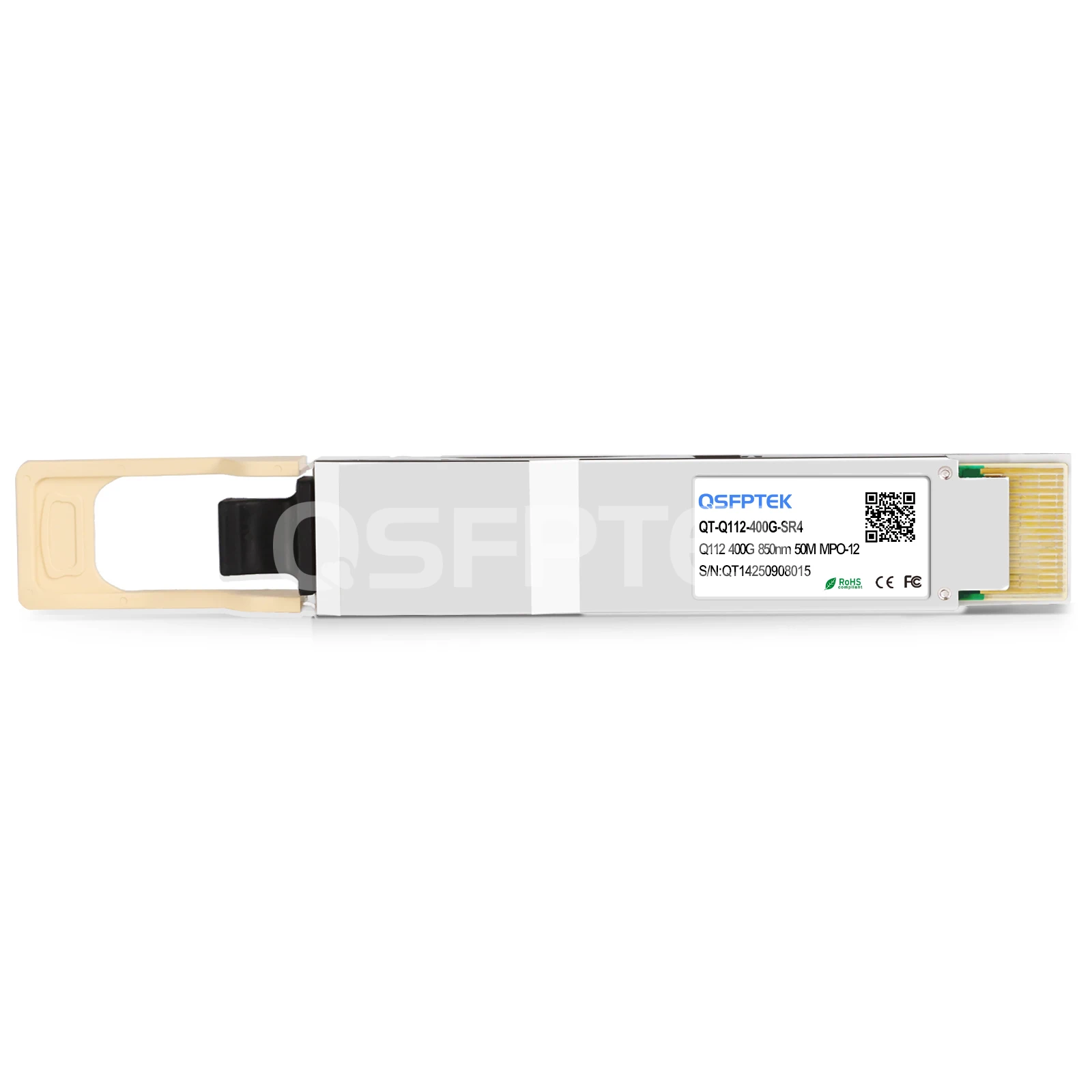

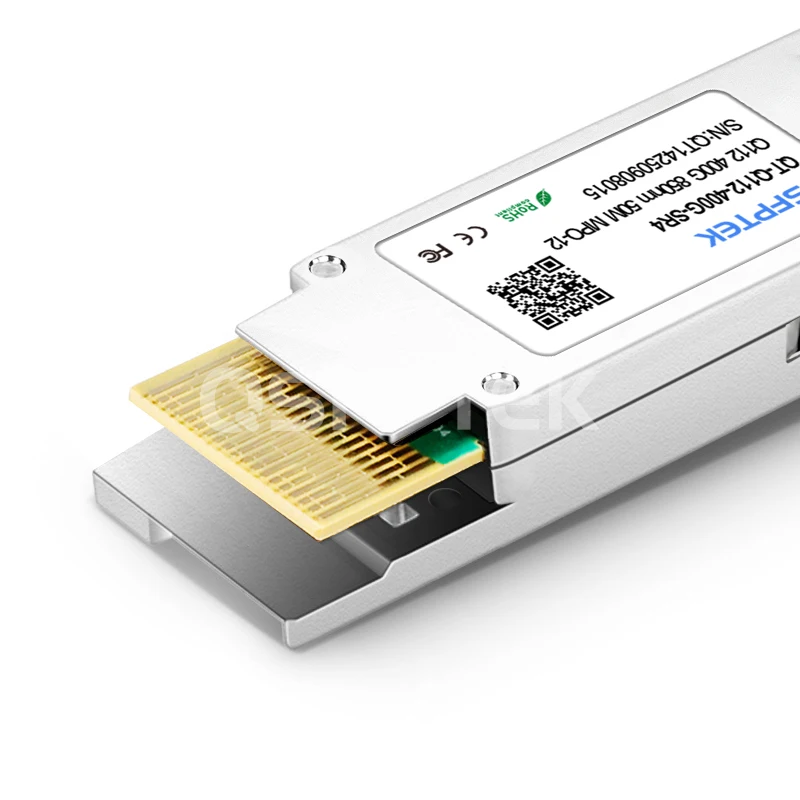

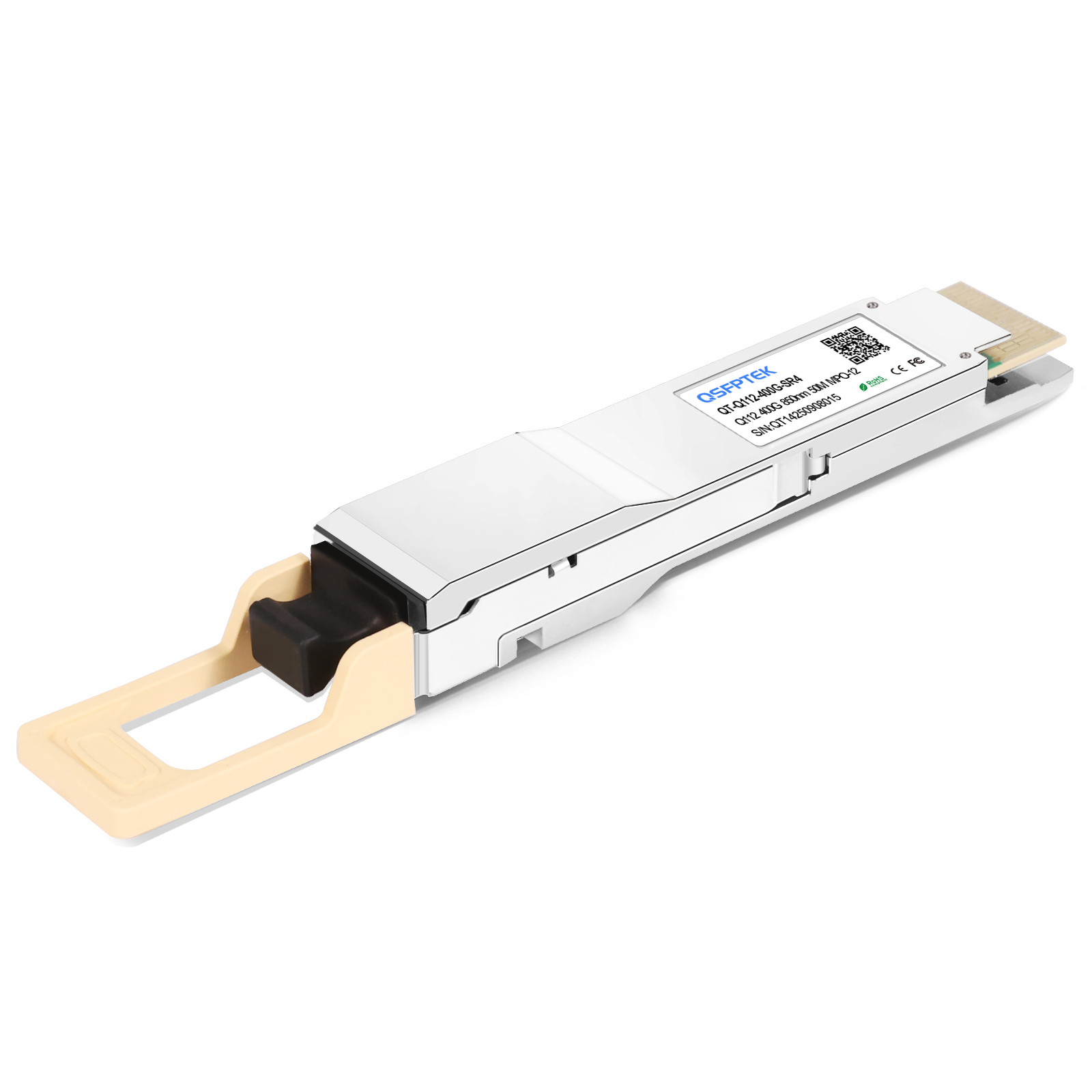

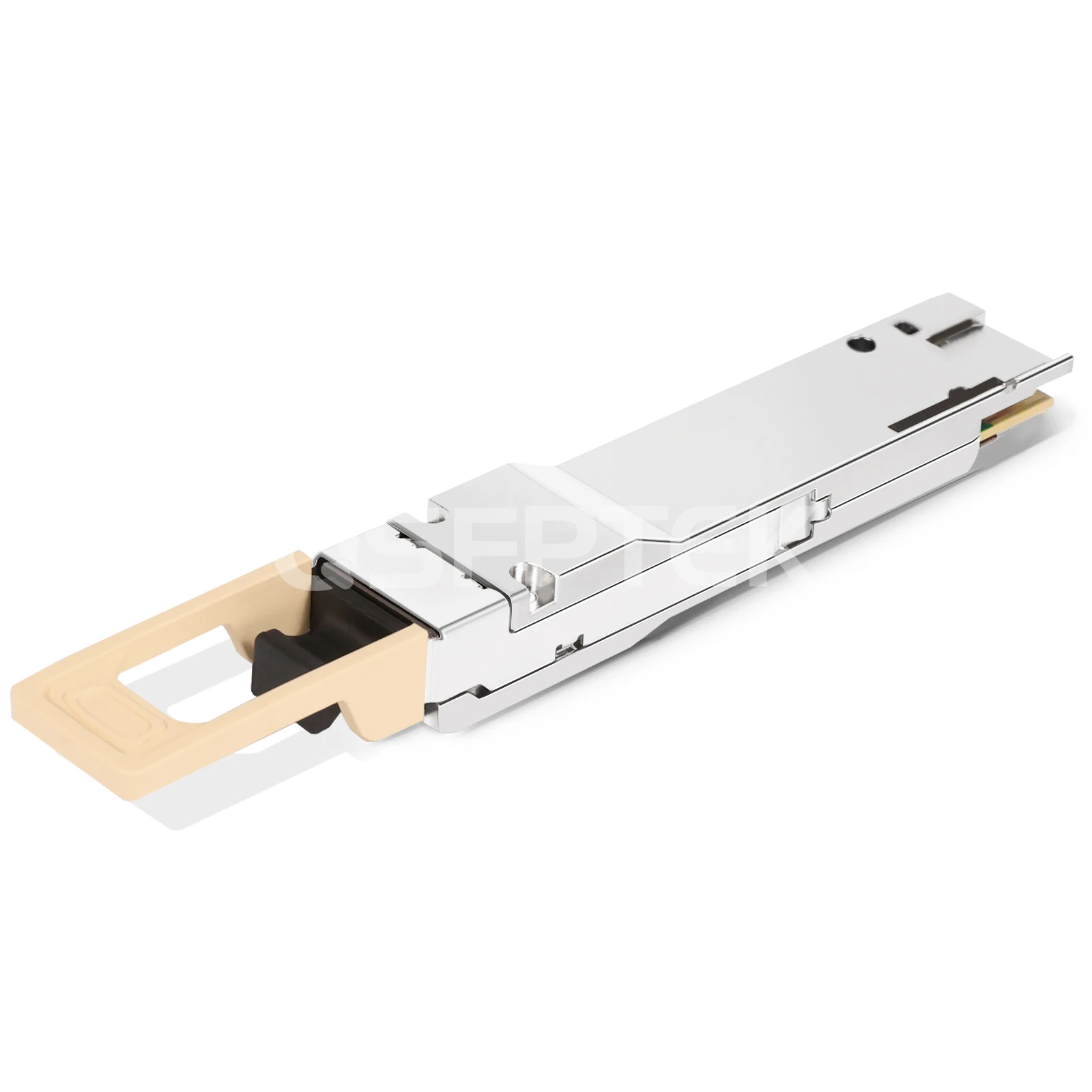

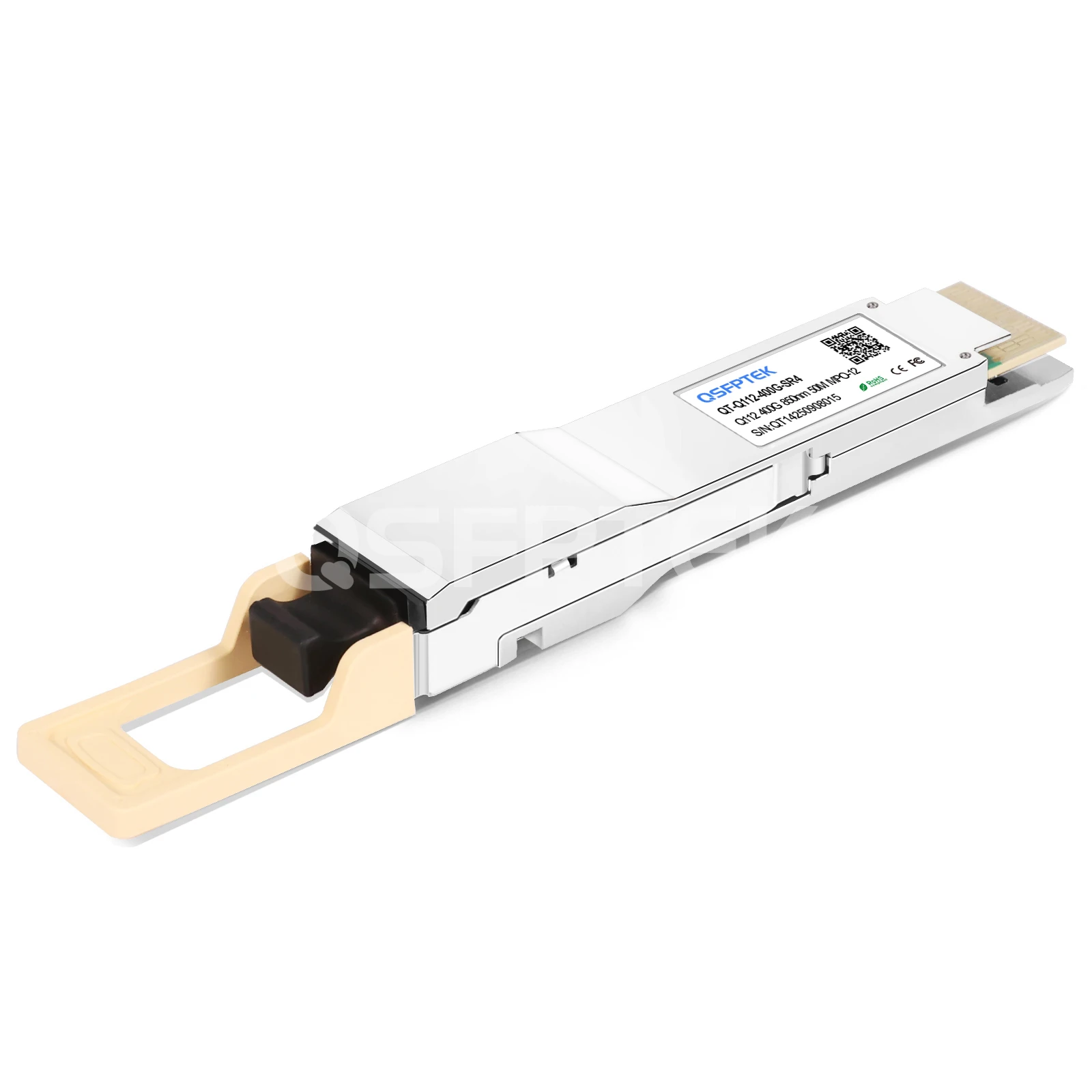

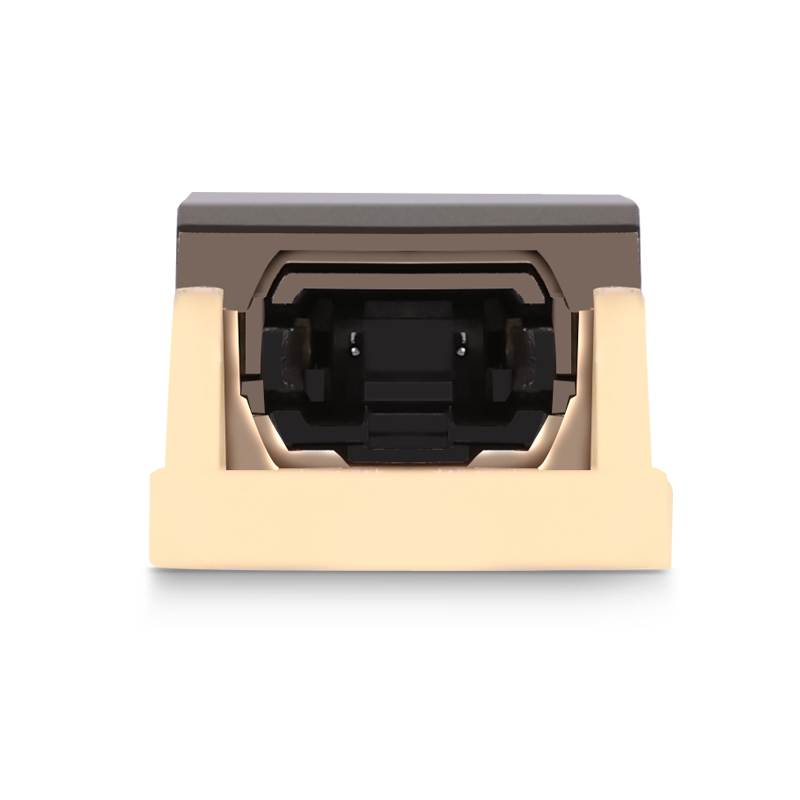

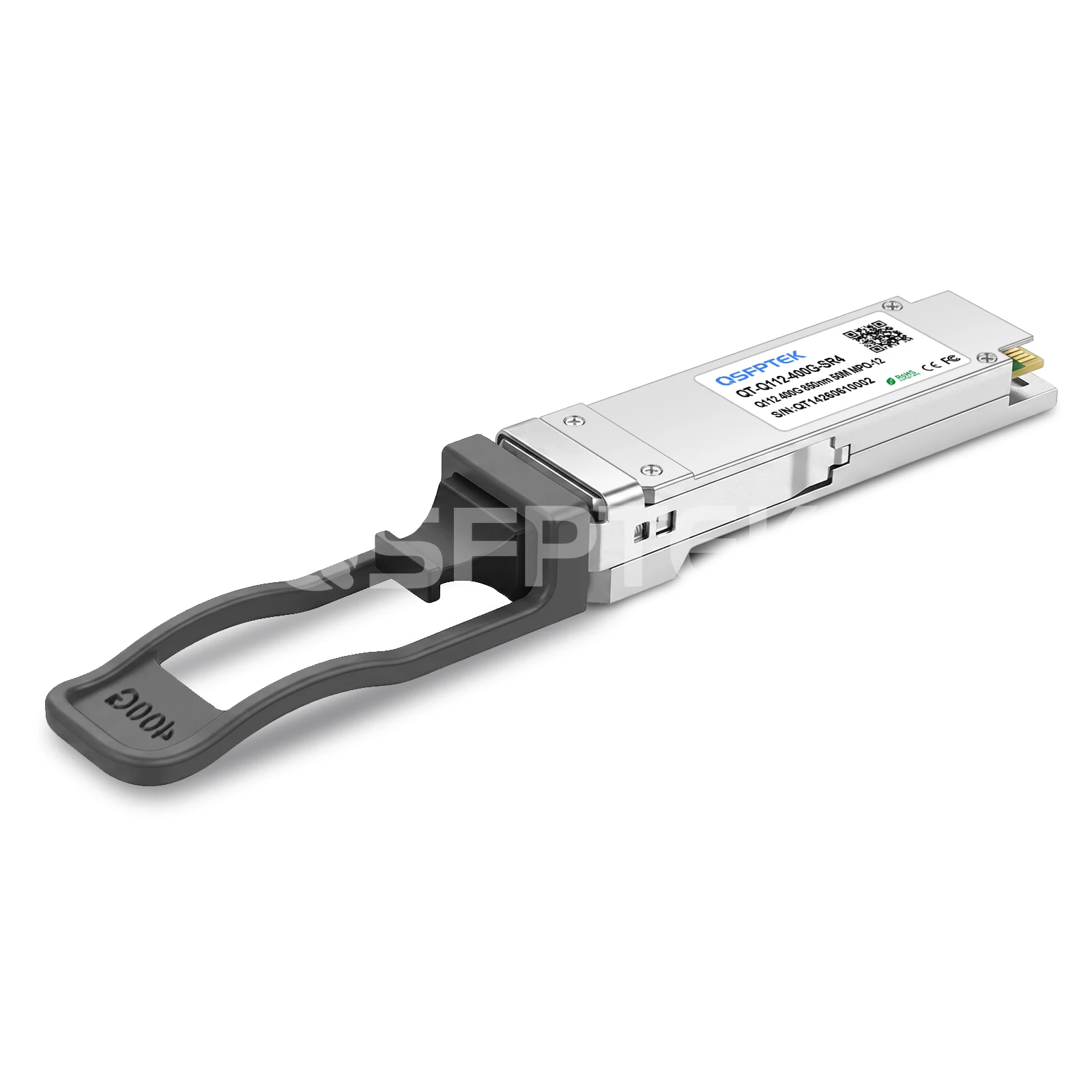

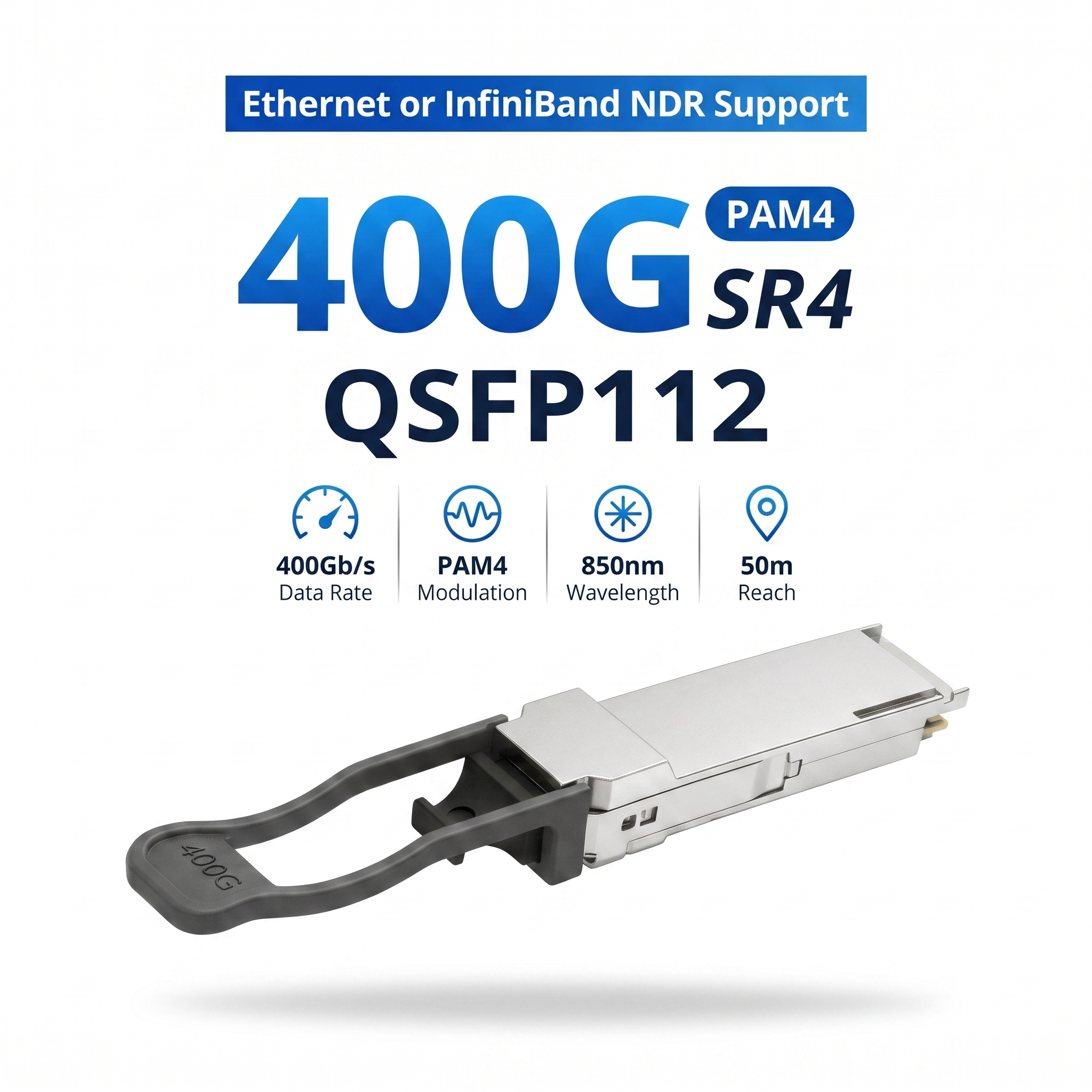

    NVIDIA/Mellanox MMA1Z00-NS400 (980-9I693-00NS00) Compatible 400GBASE-SR4 QSFP112 RHS/Flat Top PAM4 850nm 50m DOM MPO-12/APC MMF Optical Transceiver Module Support both Ethernet and InfiniBand NDR Used in ConnectX-7 Adapters or BlueField-3 DPUs

    Product No: 103833
    4 Reviews
    198 Sold
    US$ 459.00
    Compatible
    Transceivers type
    28 in real-time stock, 08 Jun, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Support both InfiniBand NDR (IB) and Ethernet (ETH)
2. Support 800G to 2x 400G and 4x 200G breakout applications
3. Built-in Broadcom DSP chip
4. Max power consumption ≤9W
5. VCSEL transmitter and PIN PD receiver
    See more

    Specifications

    NVIDIA/Mellanox MMA1Z00-NS400 Compatible 400G QSFP112 SR4 PAM4 Optical Transceiver Module (850nm, 50m, MPO-12 APC Connectors, MMF, 0℃ to +70℃, DOM)



    The NVIDIA/Mellanox MMA1Z00-NS400 Compatible 400GBASE-SR4 QSFP112 transceiver module supports a max data rate of 425Gbps. It enables the fiber link of 50m over MMF with MPO-12 APC connectors. QSFPTEK manufactured SR4 QSFP112 complies with 400G InfiniBand NDR, QSFP112 MSA, CMIS Rev 5.0, RoHS, IEEE 802.3df-2024 4x100GBASE-SR1/2x200GBASE-SR2/1x400GBASE-SR4 optical interface and 4x100GAUI-1/2x200GAUI-2/1x400GAUI-4 C2M electrical interface. DDM function is supported on the 400G fiber optic transceiver to achieve real-time operating parameters monitoring. Adopting the Pulse-amplitude Modulation (PAM4) electrical and optical modulation, the Short Reach 4-channel (SR4) QSFP112 achieves 400 Gigabit Ethernet through 4-channels of 100G-PAM4.



    This 400G SR4 QSFP112 supports both InfiniBand NDR (IB) and Ethernet (ETH). While not for use in switches, it is designed for insertion into 400Gb/s ConnectX-7/QSFP112-based PCIe-bus network cards or BlueField-3/QSFP112 Data Processing Units (DPUs) to twin-port 800G transceivers in 2x400G IB/EN switches. Its most typical application scenario is: A pair of single-port flat top 400G SR4 QSFP112 (MMA1Z00-NS400) is independently connected to one of the connectors of the twin-port  800G 2x400G 2SR4 OSFP (MMA4Z00-NS) module in a Quantum-2 InfiniBand or Spectrum-4 Ethernet switch. The MMA1Z00-NS400 400G module can operate in either 400Gb/s or 200Gb/s speed modes, depending on the number of connected fiber optic cables. This allows for corresponding connectivity scenarios of 800G to 2x 400GBASE-SR4 and 4x 200GBASE-SR4 breakout applications, respectively.



    Part Number QT-Q112-400G-SR4 Vendor Name QSFPTEK
    Form Factor Single-port QSFP112-RHS/Flat Top Max Data Rate 425 Gbps (4x 106.25 Gbps)
    Wavelength 850nm Distance 50m
    Connector MPO-12/APC Cable Type MMF
    Transmitter Type VCSEL Receiver Type PIN PD
    TX Power -4.6 to +4dBm Receiver Sensitivity < -6.4dBm
    Packaging Technology COB (Chip on Board) Packaging Receiver Overload 4 dBm
    Power Consumption ≤9W Modulation Format 4x 100G-PAM4 electrical to 4x 100G-PAM4 optical Parallel
    Extinction Ratio >2.5dB CDR (Clock and Data Recovery) TX and RX Built-in CDR
    Application ConnectX-7 Adapters or BlueField-3 DPUs MTBF 1420071 Hours (@40°C, 90% CL)
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols QSFP112 MSA Specification Rev2.0, IEEE 802.3df-2024 and CMIS Rev5.0 Warranty 5 Years
    Quality Certifications

    Features

    • 1. Advanced Technology
      Features with PAM4 modulation technology, DSP chip and COB packaging technology.
    • 2. Best Price and High Quality
      Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.
    • 3. Protocols
      QSFP112 MSA Specification Rev2.0, IEEE 802.3df-2024 and CMIS Rev5.0 standard
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

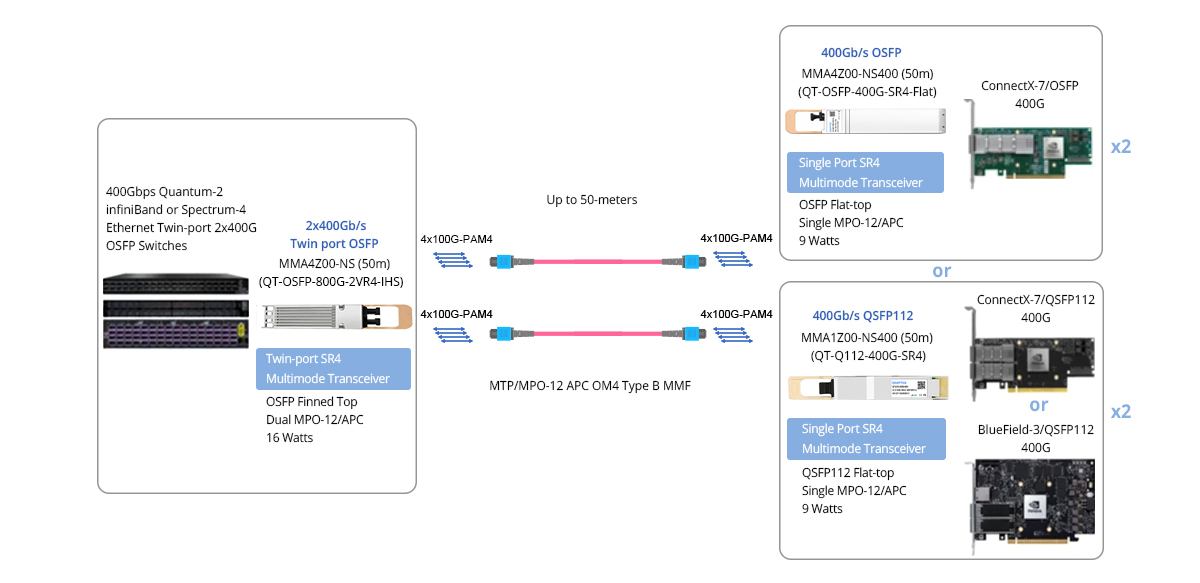

    Scenario 1: Twin-port 2x400G OSFP IB/EN Switch to 2x 400G ConnectX-7/QSFP112 or BlueField-3/QSFP112 DPUs Connectivity

    Twin-port 2x400G OSFP IB/EN Switch to 2x 400G ConnectX-7/QSFP112 or BlueField-3/QSFP112 DPUs Connectivity

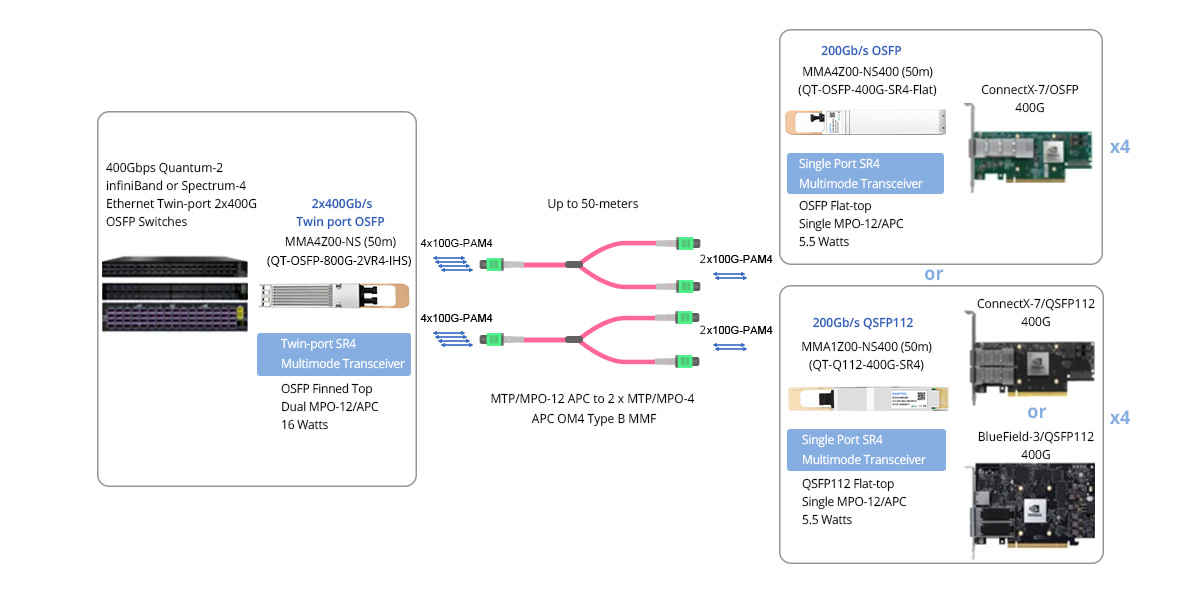

    Scenario 2: Twin-port 2x400G OSFP IB/EN Switch to 4x 200G ConnectX-7/QSFP112 or BlueField-3/QSFP112 DPUs Connectivity

    Twin-port 2x400G OSFP IB/EN Switch to 4x 200G ConnectX-7/QSFP112 or BlueField-3/QSFP112 DPUs Connectivity




    Product details



    Undergoes Comprehensive Performance Testing to Guarantee Optimal Reliability



    The QSFPTEK test center conducts complete testing procedures with advanced professional test equipment, including BER test, eye diagram test, Optical Spectrum test, jitter test, etc. Each module has been stringently tested by world-class test devices from Keysight and Anritsu to guarantee flawless operation and optimal reliability.



    Performance test devices
