    NVIDIA/Mellanox MMA4Z00-NS Compatible 800GBASE-SR8 (2xSR4) Twin-port OSFP IHS/Open Finned Top PAM4 850nm 50m Dual MPO-12/APC DDM MMF InfiniBand NDR Optical Transceiver Module for Quantum-2 InfiniBand and Spectrum-4 Ethernet Air-Cooled Switches

    Product No: 202922
    50 Reviews
    3.5K Sold
    US$ 599.00
    Compatible
    Transceivers type
    52 in real-time stock, 17 Jun, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Built-in Broadcom DSP chip
2. Support InfiniBand NDR (IB) and Ethernet (ETH)
3. Used in Quantum-2 air-cooled switch, Support breakout to 2/4 ConnectX-7/BlueField-3
4. Power consumption < 14W

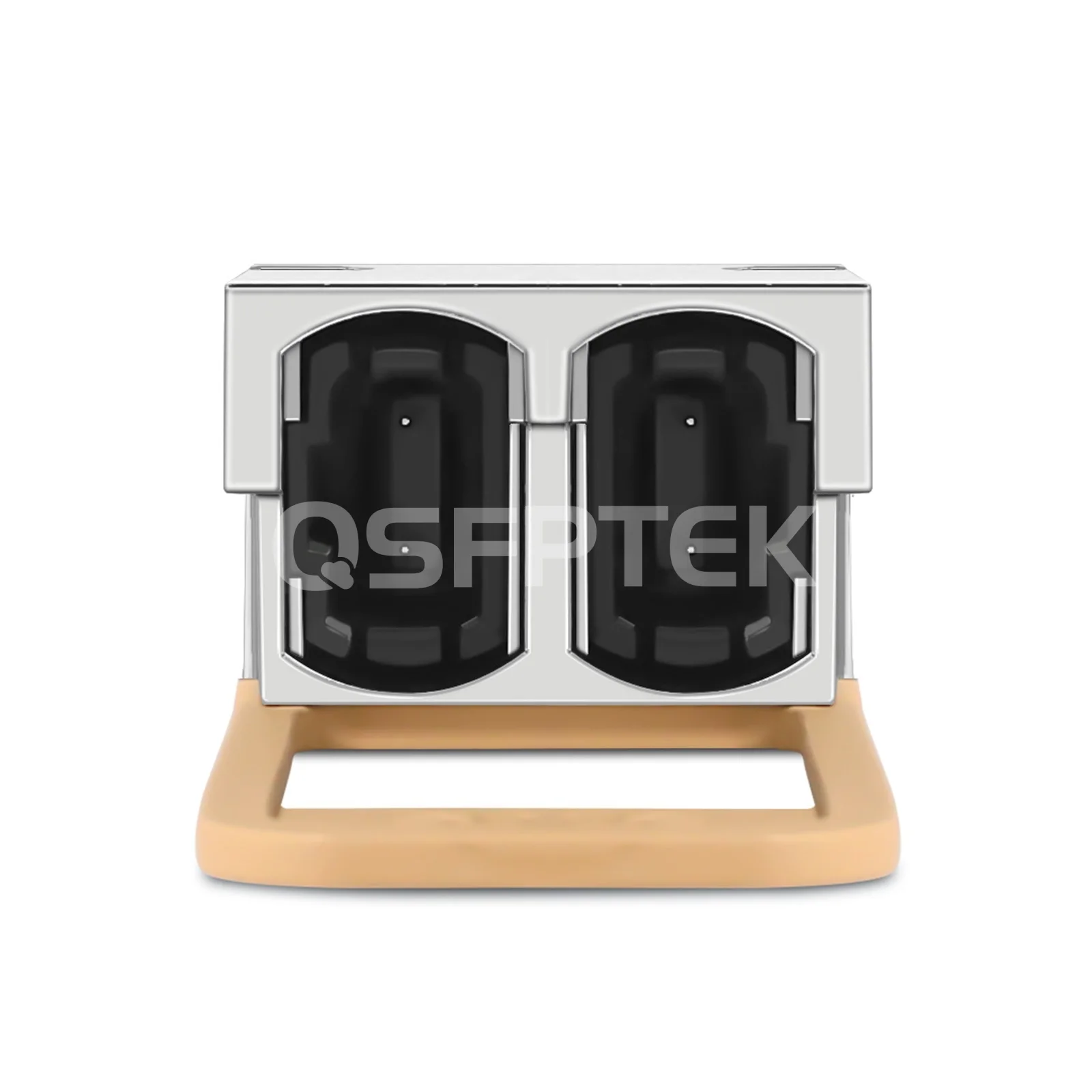

5. Hot-pluggable OSFP with dual MPO-12/APC connectors
    See more

    Specifications

    NVIDIA/Mellanox MMA4Z00-NS Compatible 800GBASE-SR8 (2x400G SR4) OSFP IHS/Open Finned Top PAM4 InfiniBand NDR Optical Transceiver Module (850nm, 50m, 2x MPO-12/APC Connectors, MMF, 0℃ to +70℃, DDM)



    NVIDIA/Mellanox MMA4Z00-NS Compatible 800G OSFP SR8 (2x400G SR4) transceiver module supports a max data rate of 850Gbps. It enables the fiber link of 50m over multi-mode fiber (MMF) with dual MPO-12 APC connectors. QSFPTEK manufactured 800GBASE-SR8 (2x 400GBASE SR4) OSFP complies with IEEE 802.3-2022 8x100GBASE-VR1 optical interface, IEEE 802.3ck-2022 8x100GAUI-1 C2M electrical interface, OSFP MSA Specification Rev 5.0 Type 2, CMIS Rev 5.0.



    DDM (digital diagnostics monitoring) function is supported on the 800G fiber optic transceiver to achieve real-time operating parameters monitoring. Adopting the Pulse-amplitude Modulation (PAM4) modulation, the SR8 OSFP achieves 800 Gigabit Ethernet through 8x 106.25 PAM4. The 800G SR8 OSFP supports Infiniband (IB) and Ethernet (ETH) protocols. With an open finned top design, the OSFP-IHS is used in Quantum-2 InfiniBand and Spectrum-4 Ethernet air-cooled switches to switches, ConnectX-7 and BlueField-3 DPUs. QSFPTEK NVIDIA InfiniBand compatible optics are 100% tested in NVIDIA InfiniBand host devices, ideal for InfiniBand NDR end-to-end systems



    Part Number QT-OSFP-800G-2VR4-IHS Vendor Name QSFPTEK
    Form Factor Twin-port OSFP-IHS/Open Finned Top Max Data Rate 850Gbps (8x 106.25Gbps)
    Wavelength 850nm Distance 50m
    Connector Dual MTP/MPO-12/APC Cable Type MMF
    Transmitter Type VCSEL Receiver Type PIN PD
    TX Power -4.6 to 4 dBm Receiver Sensitivity < -6.4 dBm
    Packaging Technology COB (Chip on Board) Packaging Receiver Overload 4 dBm
    Power Consumption < 14W Modulation Format 8x 100G-PAM4 electrical to Dual 4x 100G-PAM4 optical Parallel
    Extinction Ratio ＞2.5dB CDR (Clock and Data Recovery) TX and RX Built-in CDR
    Application Quantum-2 InfiniBand and Spectrum-4 Ethernet Air-Cooled Switches MTBF 1667165 Hours (@55°C, 60% CL)
    1117873 Hours (@55°C, 90% CL)
    970038 Hours (@70°C, 60% CL)
    650429 Hours (@70°C, 90% CL)
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols IEEE 802.3-2022, IEEE 802.3ck-2022, OSFP MSA, CMIS Rev 5.0 Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Applications

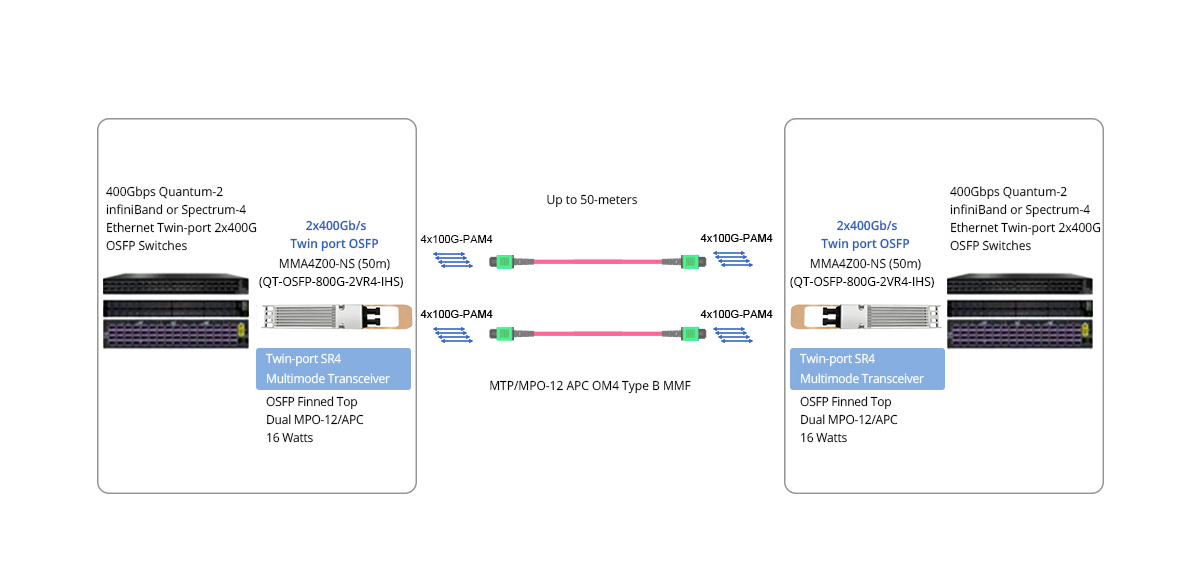

    Scenario 1: Twin-port 800G (2x400G) OSFP IB/ETH Switches Direct Connectivity or to Two Switches at 400Gb/s

    Twin-port 800G (2x400G) OSFP IB/ETH Switches Direct Connectivity or to Two Switches at 400Gb/s

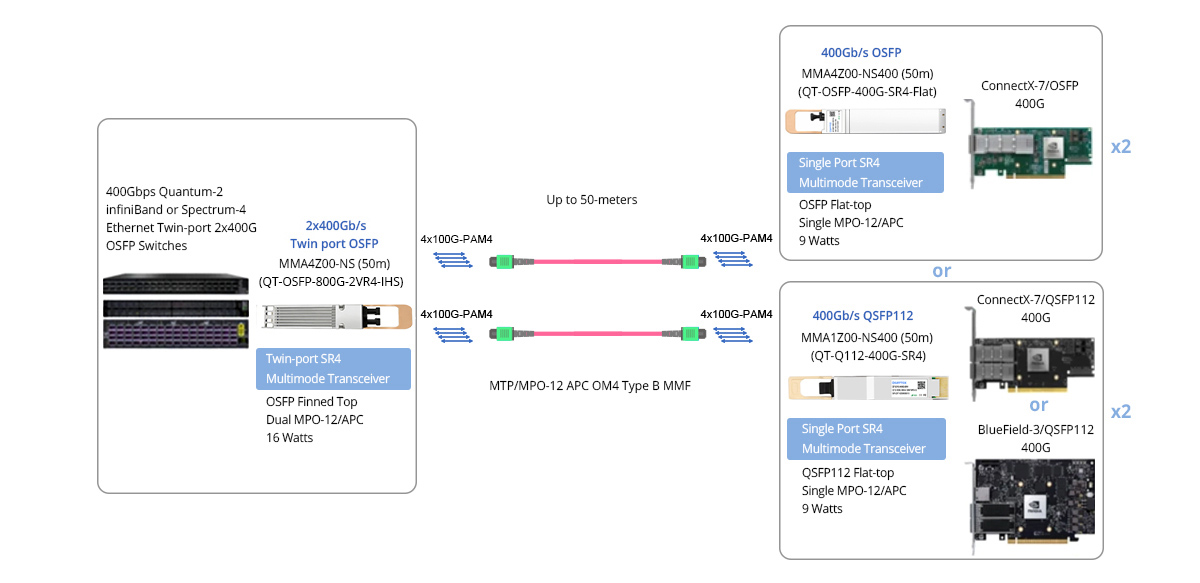

    Scenario 2: Twin-port 800G (2x400G) OSFP IB/ETH Switch to 2x400G ConnectX-7 and/or BlueField-3

    Twin-port 800G (2x400G) OSFP IB/ETH Switch to 2x400G ConnectX-7 and/or BlueField-3

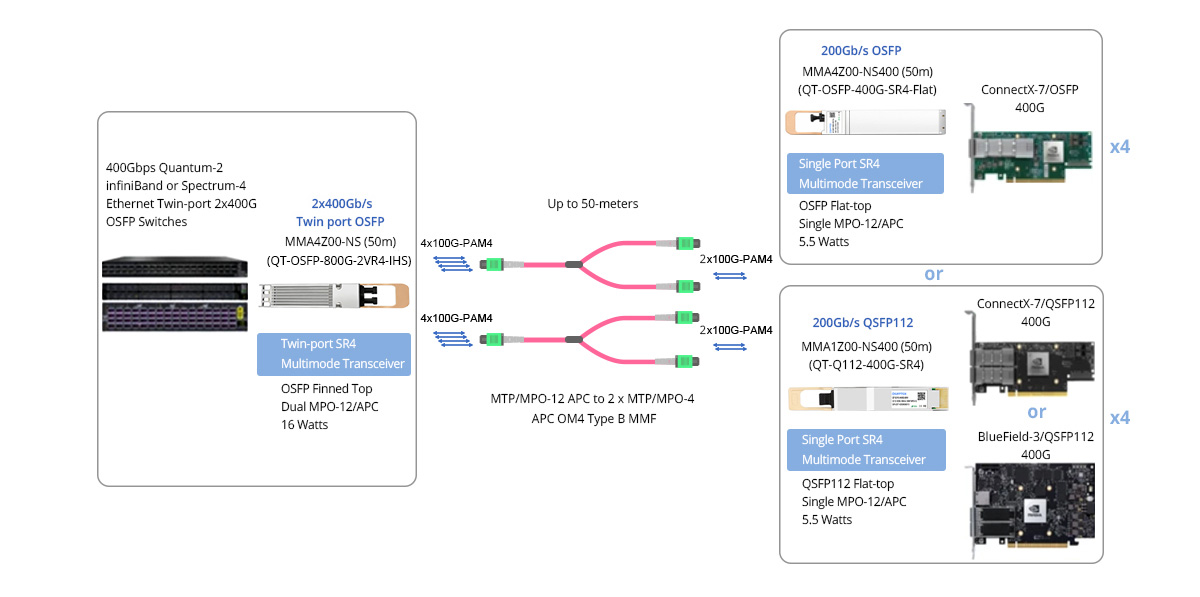

    Scenario 3: Twin-port 800G (2x400G) OSFP IB/ETH Switch to 4x 200G ConnectX-7 and/or BlueField-3

    Twin-port 800G (2x400G) OSFP IB/ETH Switch to 4x 200G ConnectX-7 and/or BlueField-3




    Product details

    100% Verified in the NVIDIA InfiniBand Environment to Ensure Interoperability



    Every 800G OSFP 2SR4 module undergoes rigorous compatibility tests and simulated transmission tests on the original NVIDIA Quantum-2 switches in the InfiniBand environment to ensure optics-to-device interoperability and perfect operation.

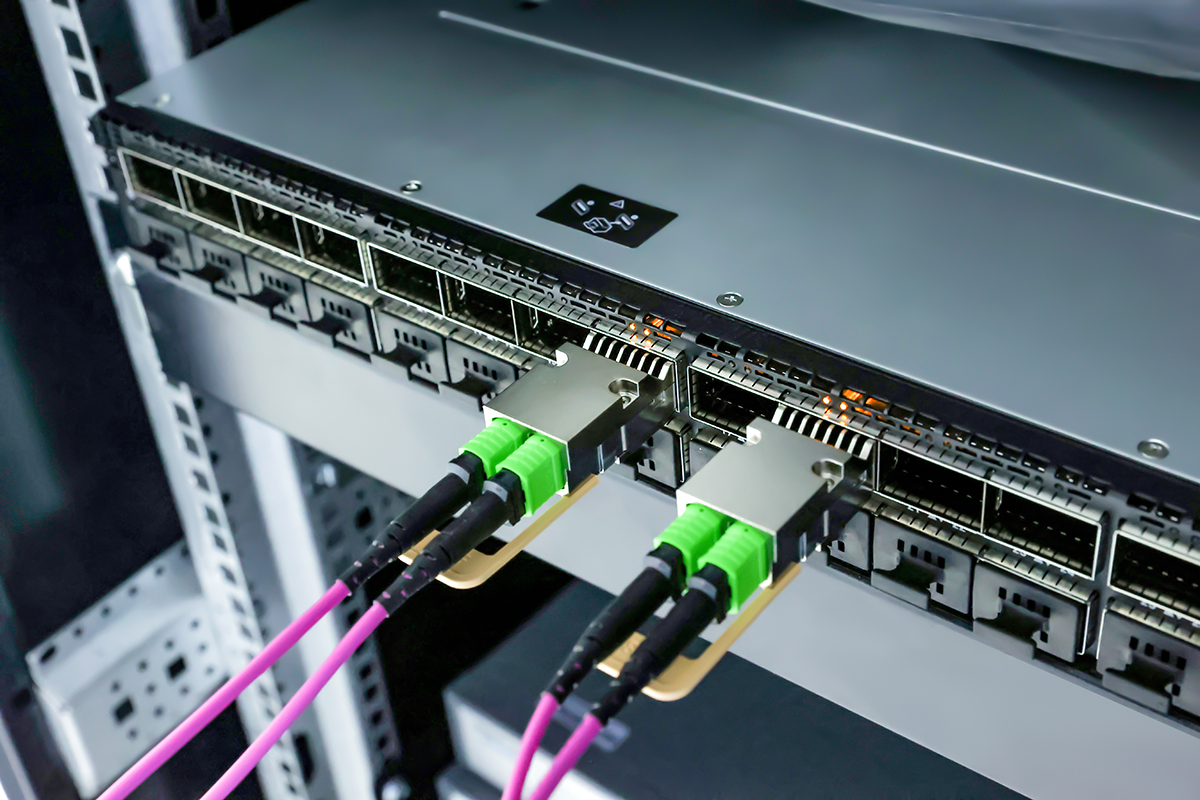

    QT-OSFP-800G-2VR4-IHS compatibility test on NVIDIA QM9700



    Undergoes Comprehensive Performance Testing to Guarantee Optimal Reliability



    The QSFPTEK test center conducts complete testing procedures with advanced professional test equipment, including BER test, eye diagram test, Optical Spectrum test, jitter test, etc. Each module has been stringently tested by world-class test devices from Keysight and Anritsu to guarantee flawless operation and optimal reliability.



    Performance test devices





    Select a Proper Heat Dissipation Design for Your Needs

    Open Finned Top vs Closed Finned Top vs Flat Top

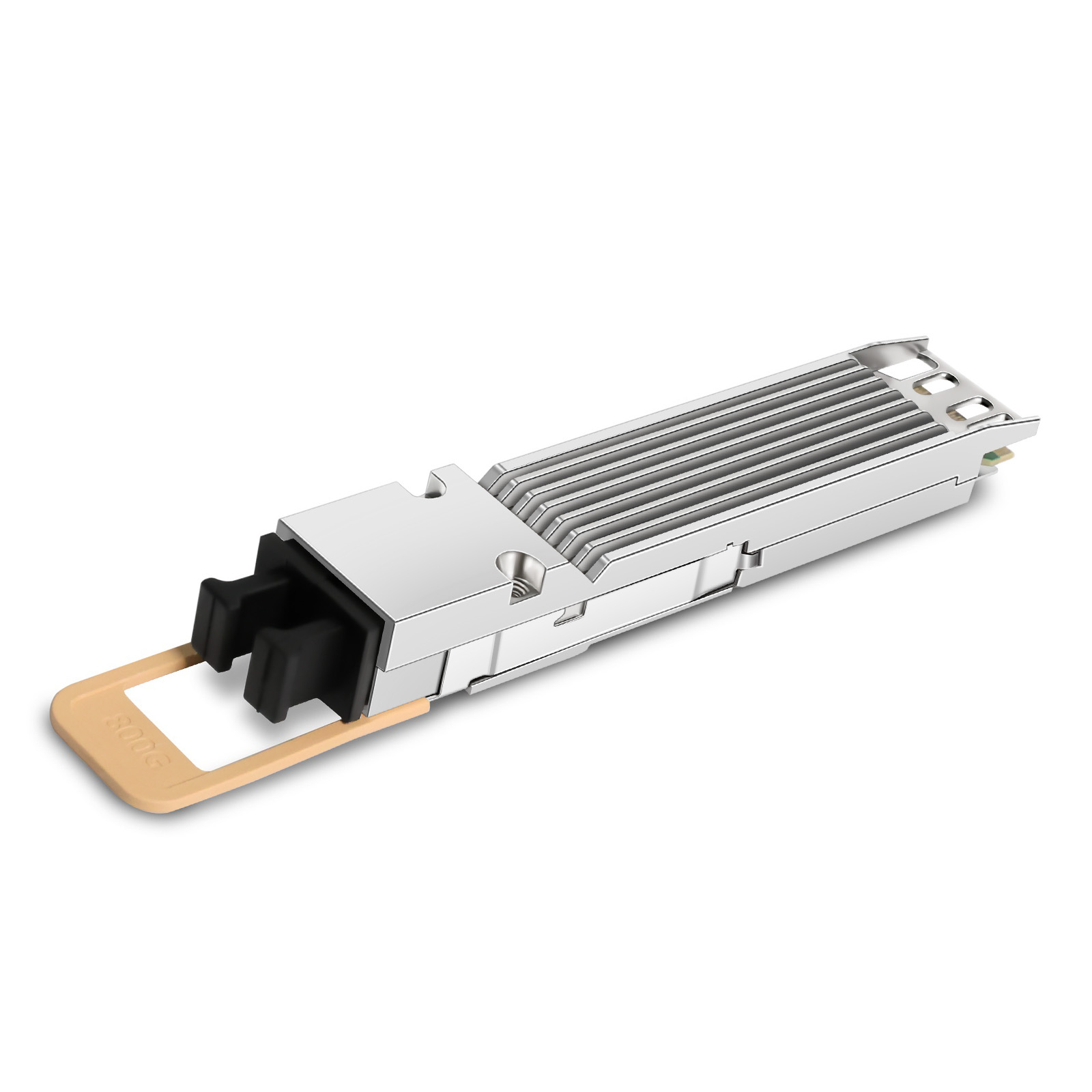

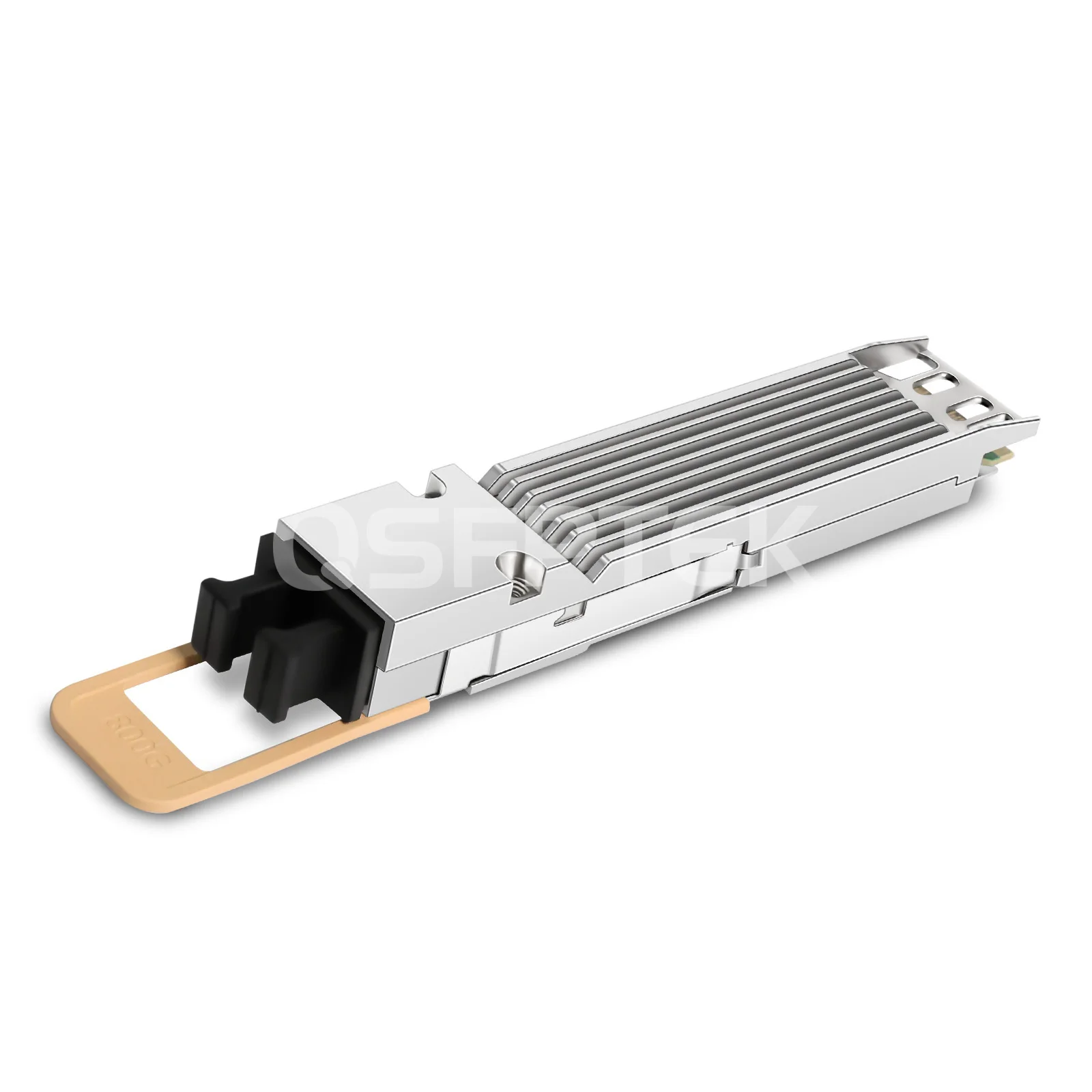

    Open Finned Top 800G OSFP optics with Integrated Heat Sink (IHS) design are used only in Quantum-2 InfiniBand or Spectrum-4 Ethernet air-cooled switches. Closed Finned Top 800G OSFP optics with Integrated Heat Sink (IHS) design are used for both Quantum-2 InfiniBand or Spectrum-4 Ethernet air-cooled and liquid-cooled systems. Flat top 800G OSFP optics with Riding Heat Sink (RHS) design are used in Liquid-cooled and DGX H100 Cedar7 Systems.
