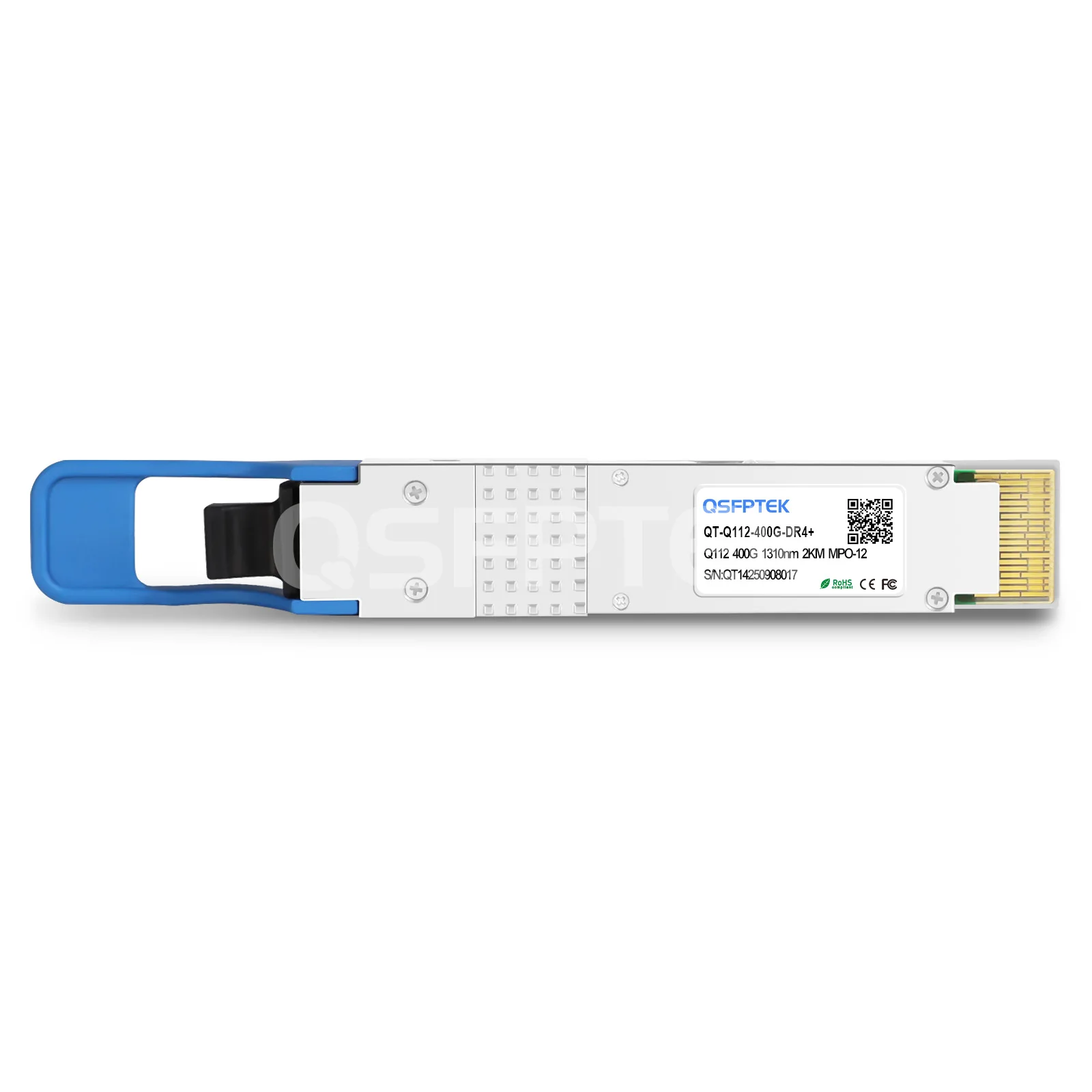

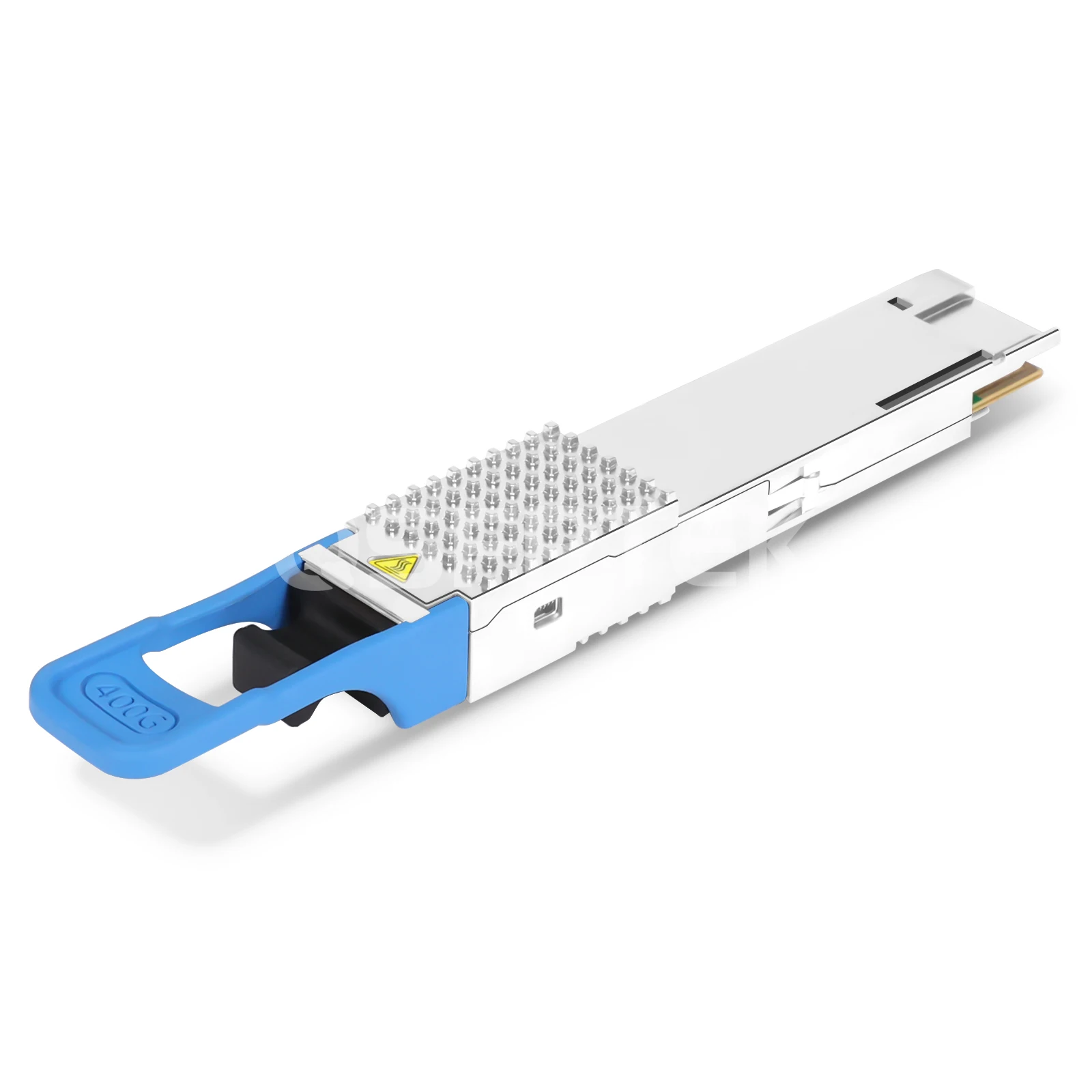

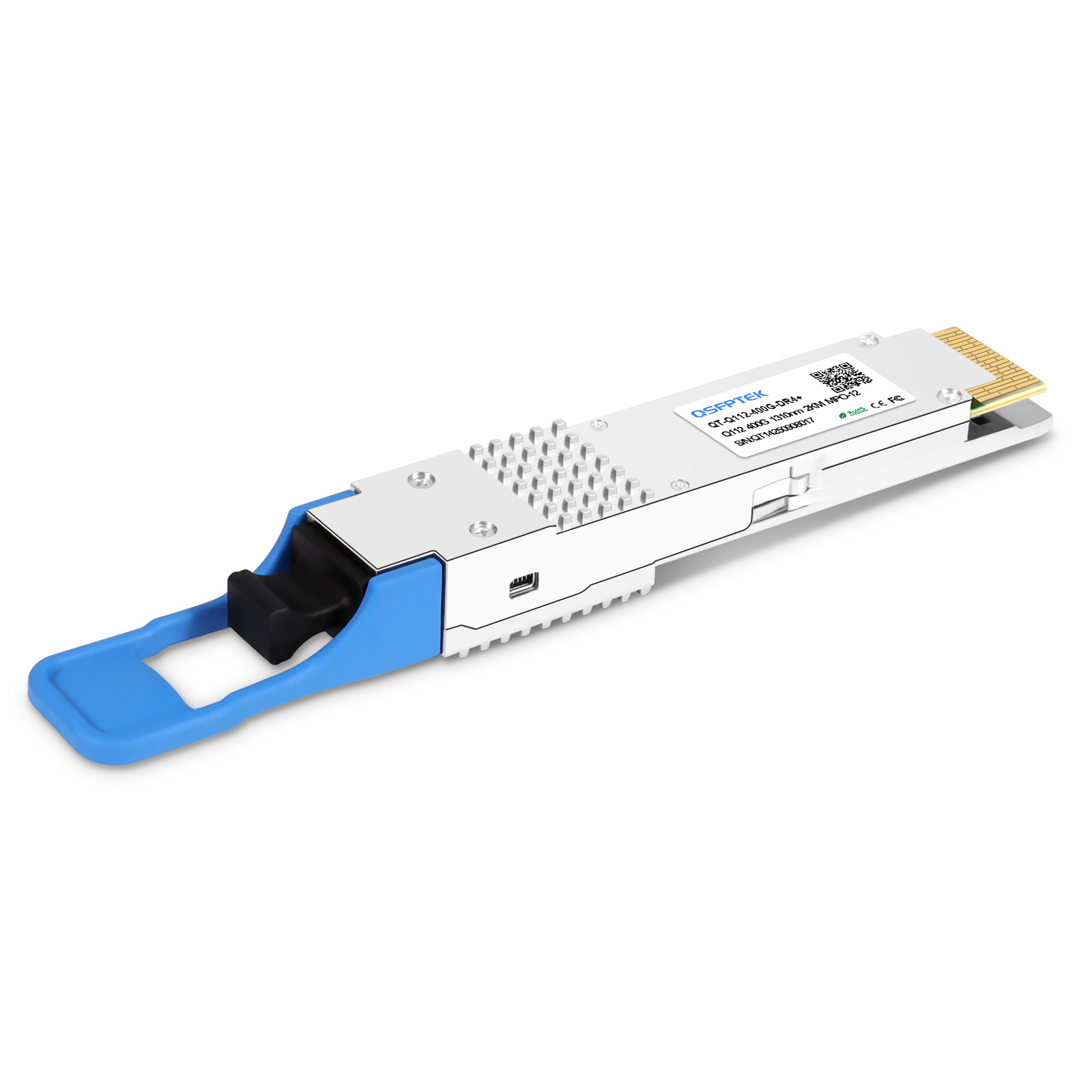

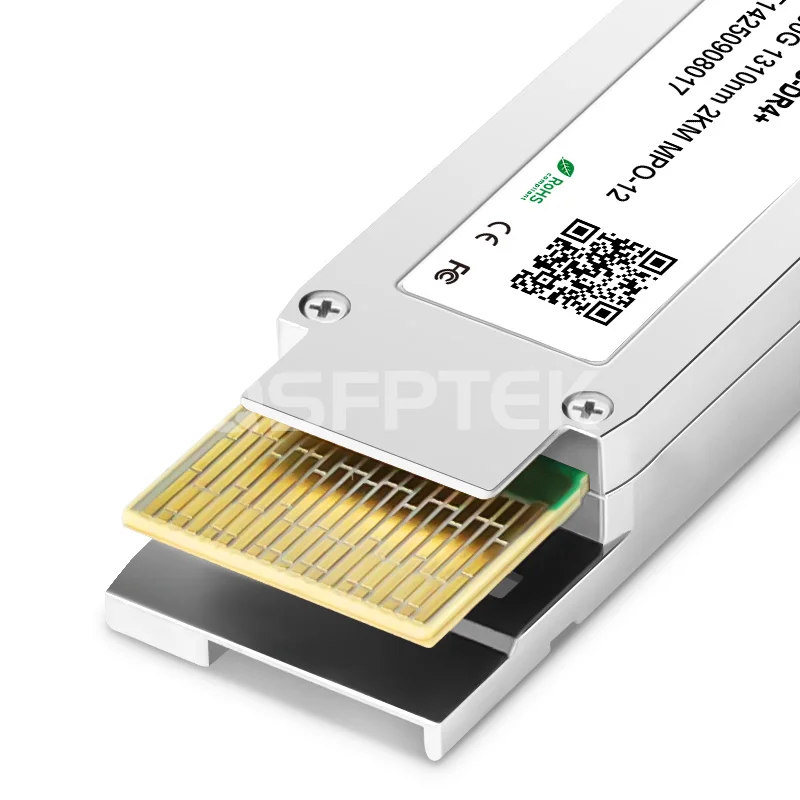

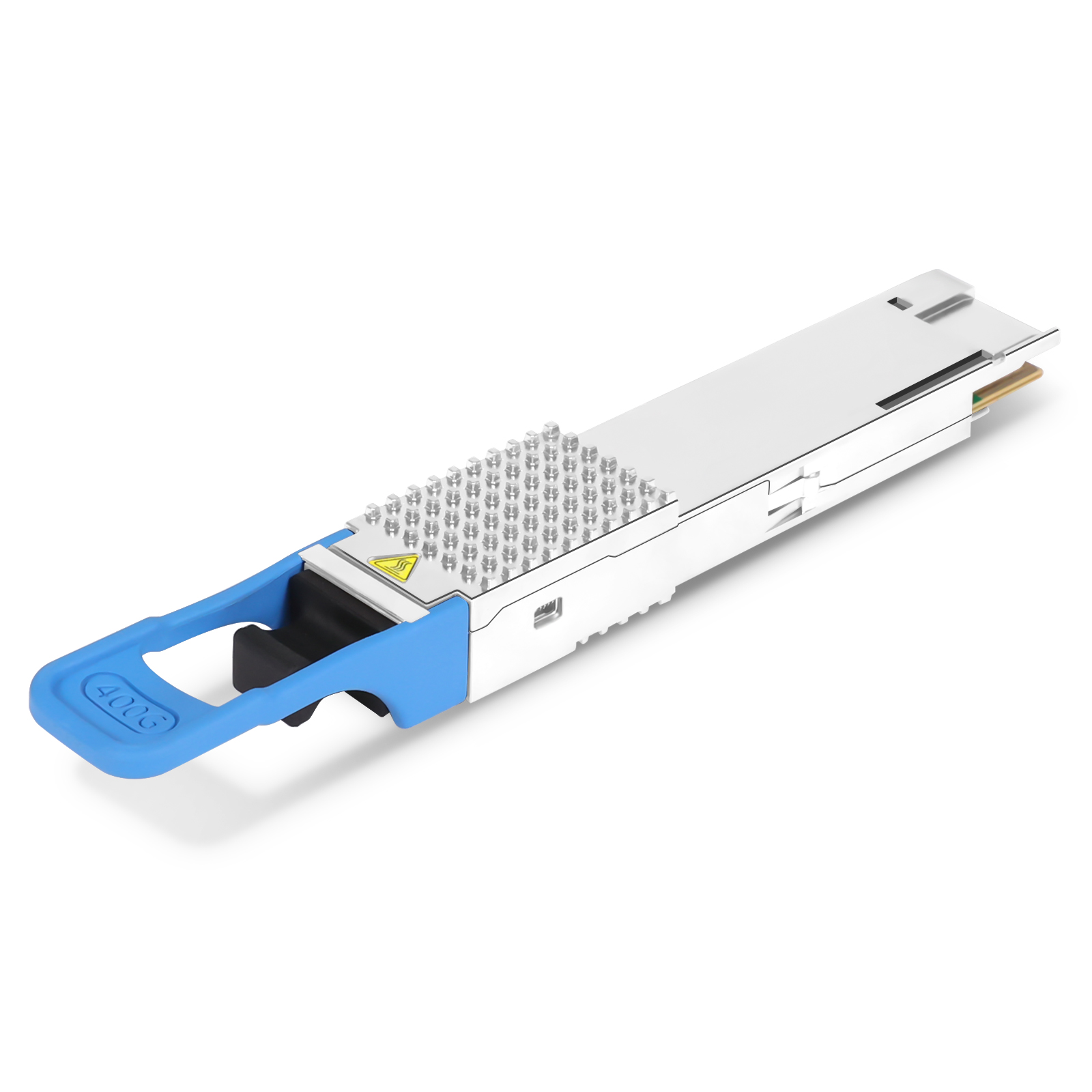

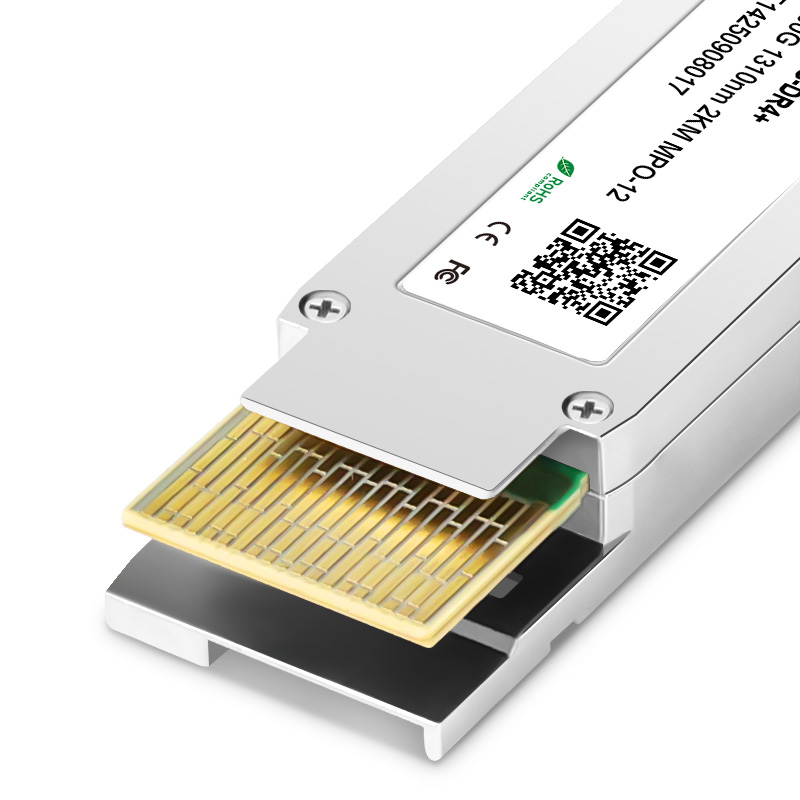

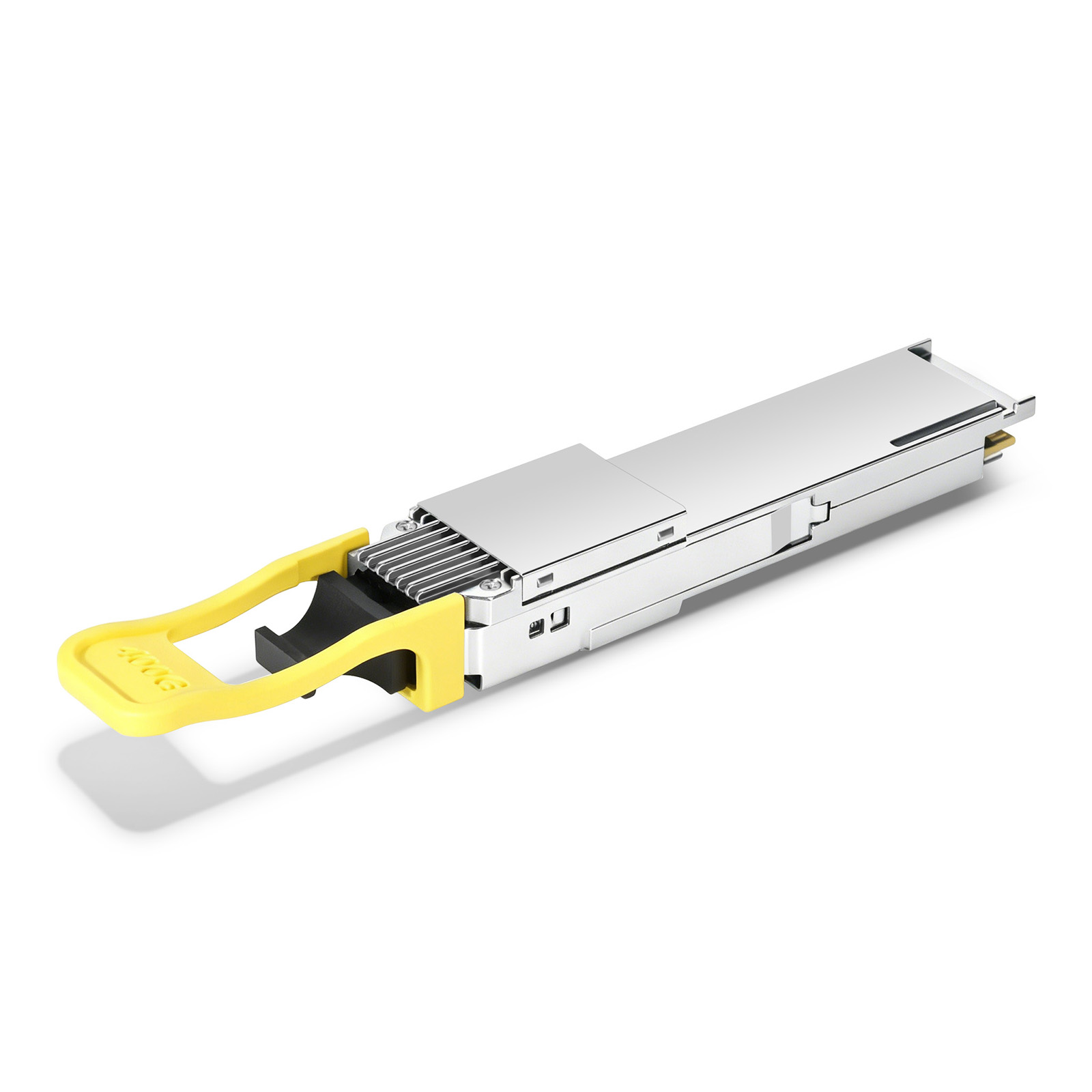

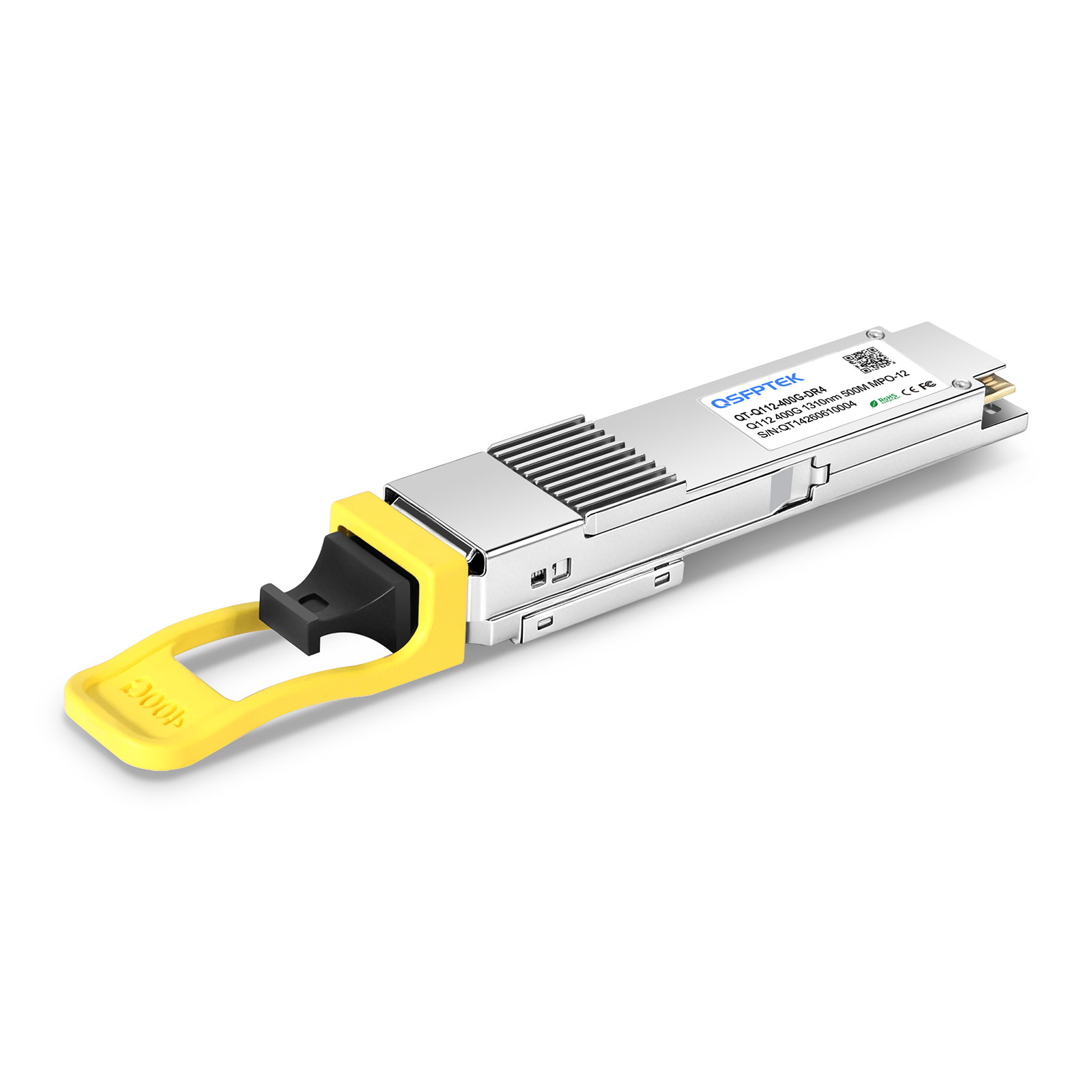

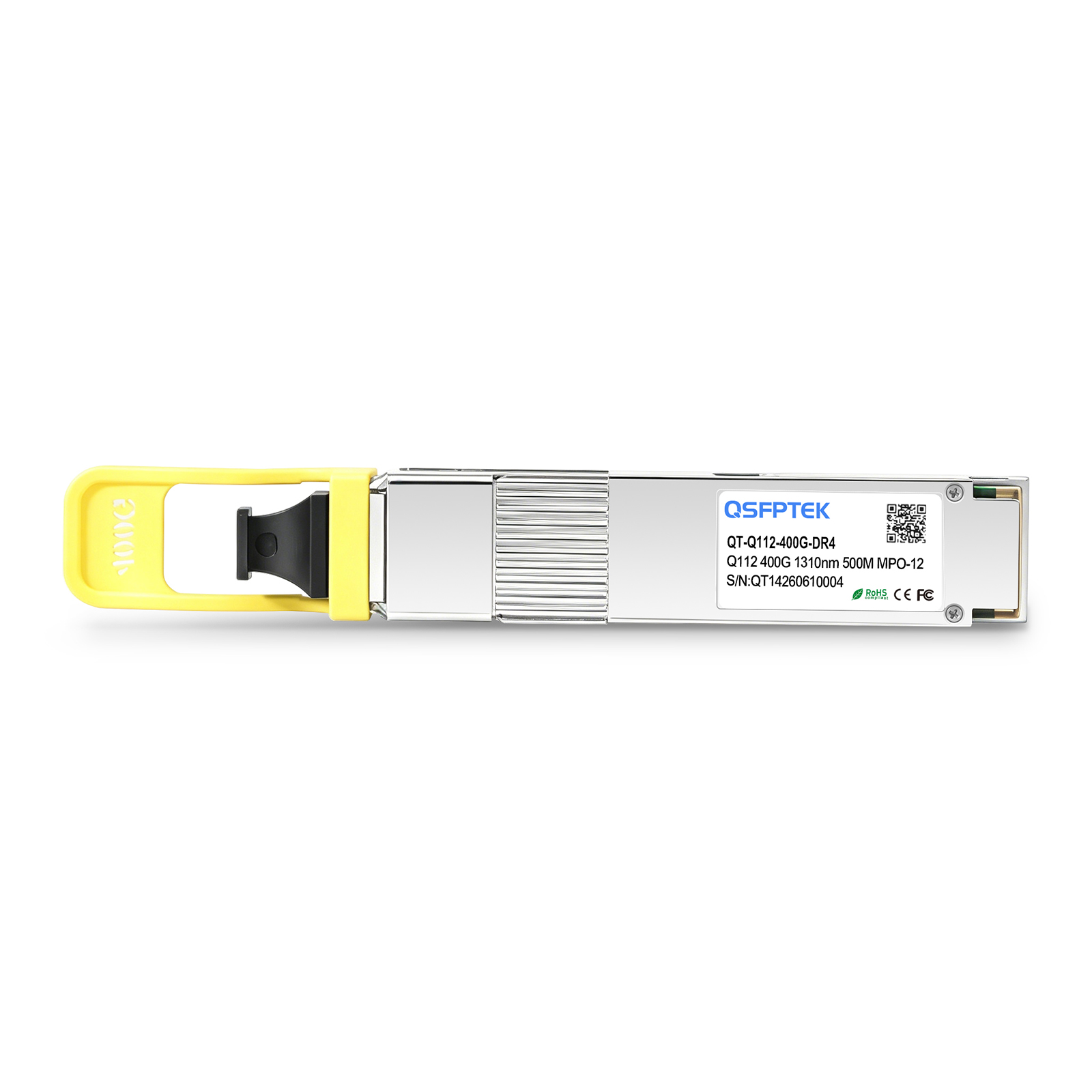

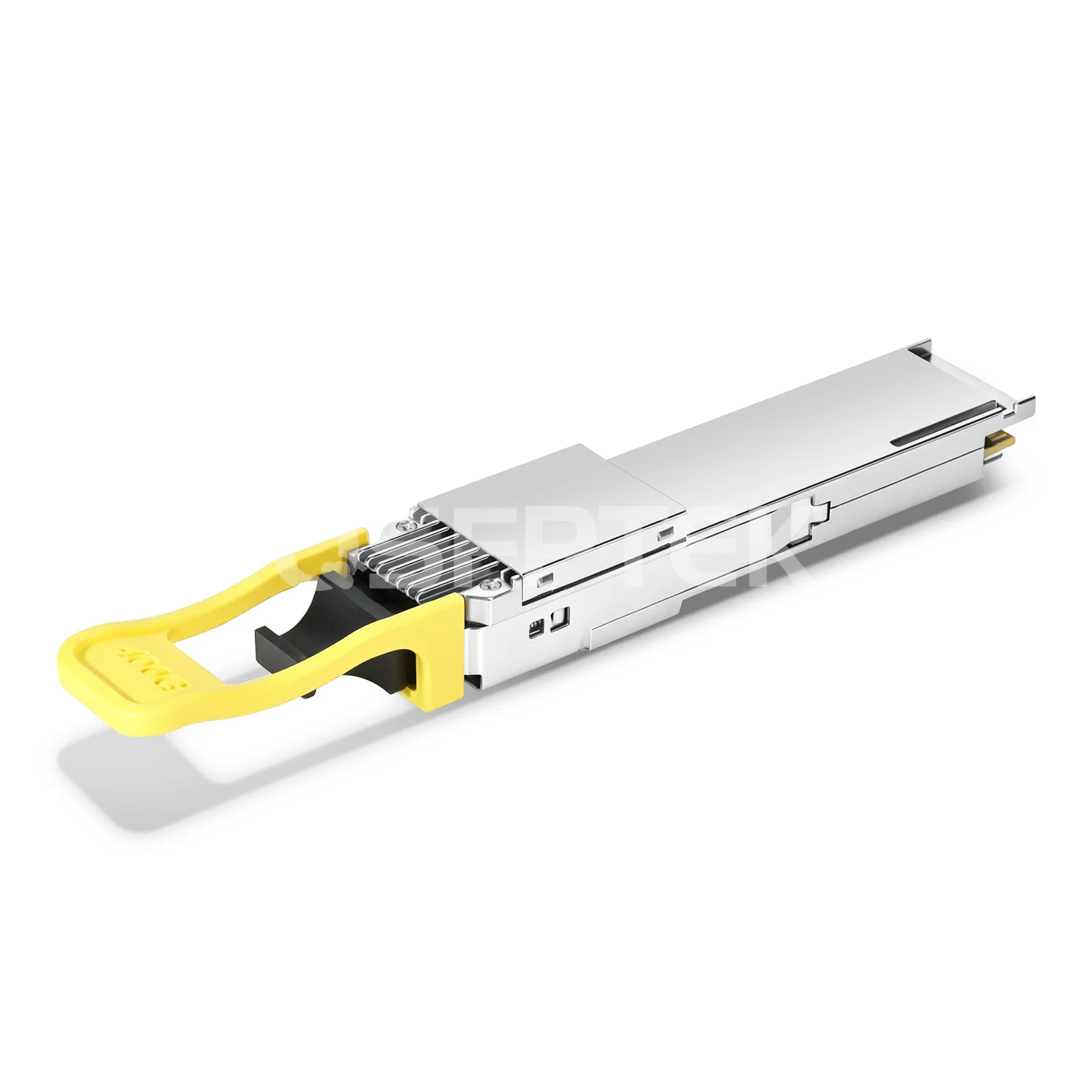

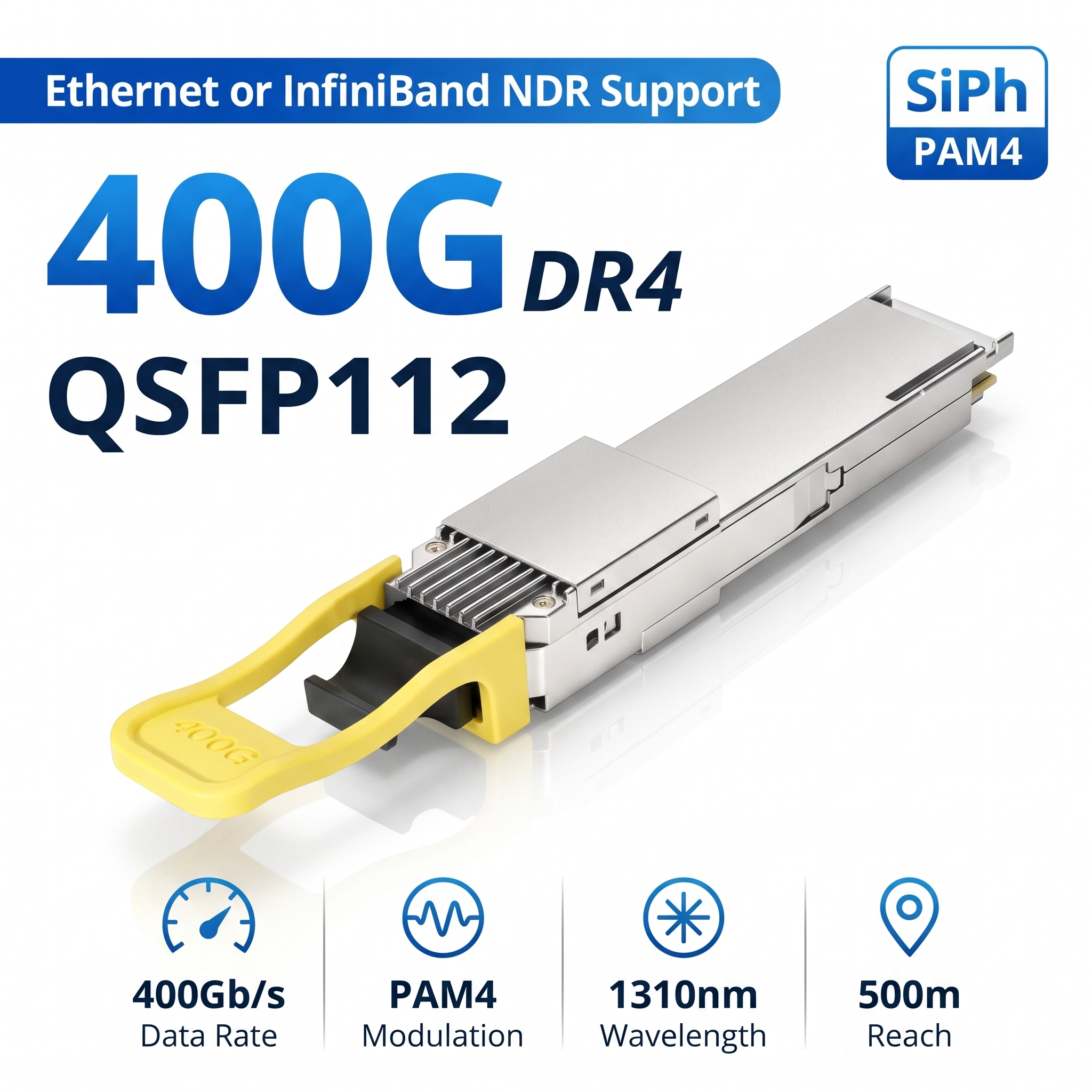

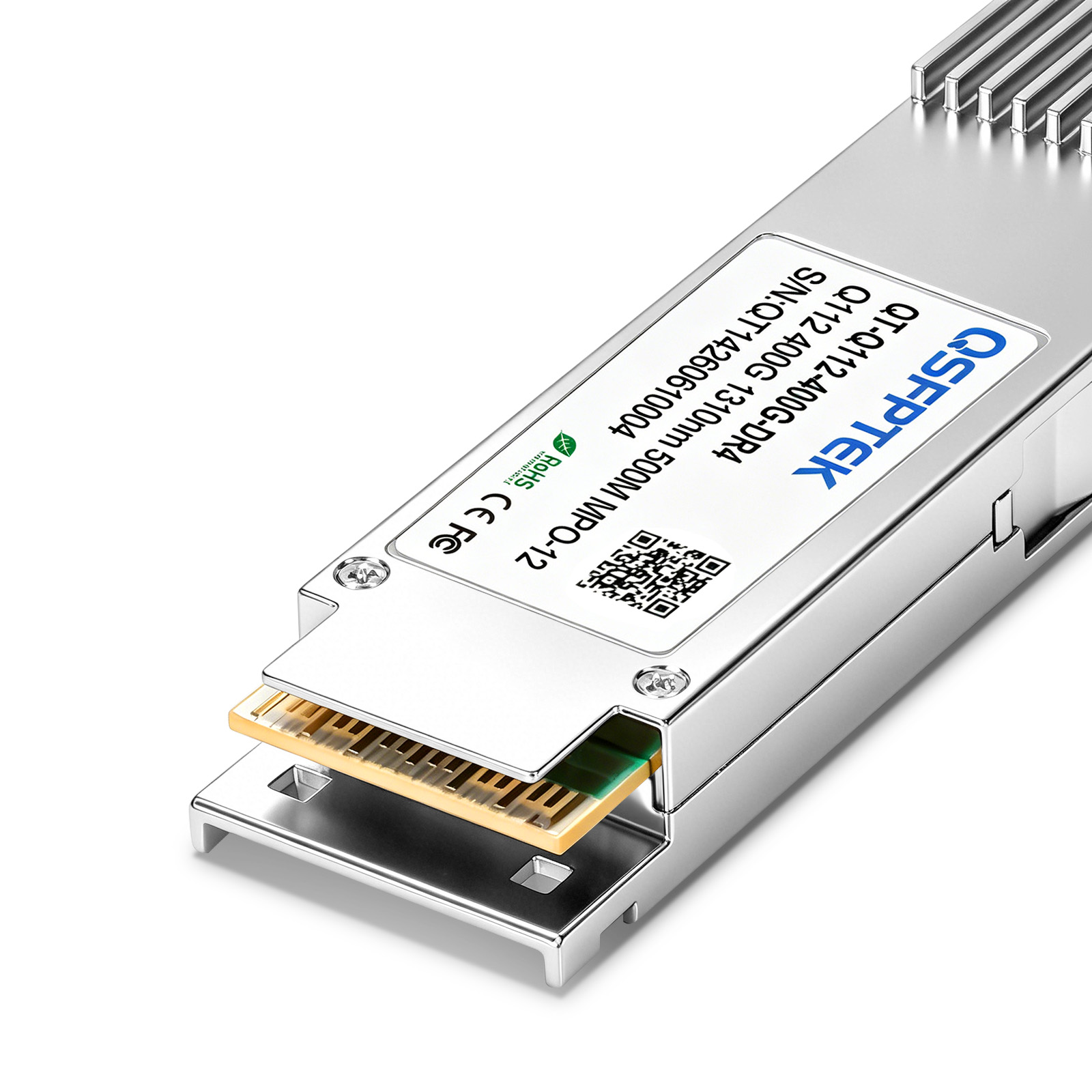

    NVIDIA/Mellanox MMS1X00-NS400 (980-9I068-00NM00) Compatible 400GBASE-DR4 QSFP112 RHS/Flat Top PAM4 1310nm 500m DDM MPO-12/APC SMF Optical Transceiver Module Support both Ethernet and InfiniBand NDR Used in ConnectX-7 Adapters or BlueField-3 DPUs

    Product No: 103834
    0 Reviews
    28 Sold
    US$ 599.00
    Compatible
    Transceivers type
    9 in real-time stock, 08 Jun, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Support both InfiniBand NDR (IB) and Ethernet (ETH)
2. Support 800G to 2x 400G and 4x 200G breakout applications
3. Built-in Broadcom DSP chip
4. Max power consumption ≤10W
5. EML transmitter and PIN PD receiver
    See more

    Specifications

    NVIDIA/Mellanox MMS1X00-NS400 Compatible 400G QSFP112 DR4 InfiniBand NDR Optical Transceiver Module (1310nm, 500m, MPO-12 APC Connector, SMF, 0℃ to +70℃, DDM)



    The NVIDIA/Mellanox MMS1X00-NS400 Compatible 400GBASE-DR4 QSFP112 transceiver module supports a max data rate of 425Gbps. It enables the fiber link of 500m over SMF with an MPO-12 APC connector. QSFPTEK manufactured 400GBASE-DR4 QSFP112 complies with QSFP112 MSA Rev2.0, IEEE802.3ck standard 400GAUI-4 C2M electrical interface, IEEE 802.3 standard 400GBASE-DR4 optical interface, CMIS Rev5.0, etc. DDM function is supported on the 400G fiber optic transceiver to achieve real-time operating parameters monitoring. Adopting the Pulse-amplitude Modulation (PAM4) electrical and optical modulation, the Datacenter Reach 4-channel (DR4) QSFP112 achieves 400 Gigabit Ethernet through 4-channels of 100G-PAM4.



    This 400G DR4 QSFP112 supports both InfiniBand NDR (IB) and Ethernet (ETH). While not for use in switches, it is designed for insertion into 400Gb/s ConnectX-7/QSFP112-based PCIe-bus network cards or BlueField-3/QSFP112 Data Processing Units (DPUs) to twin-port 800G transceivers in 2x400G IB/EN switches. Its most typical application scenario is: A pair of single-port flat top 400G DR4 QSFP112 (MMS1X00-NS400) is independently connected to one of the connectors of the twin-port  800G 2x400G 2DR4 OSFP (MMS4X00-NS) module in a Quantum-2 InfiniBand or Spectrum-4 Ethernet switch.



    Part Number QT-Q112-400G-DR4 Vendor Name QSFPTEK
    Form Factor Single-port QSFP112-RHS/Flat Top Max Data Rate 425 Gbps (4x 106.25 Gbps)
    Wavelength 1310nm Distance 500m

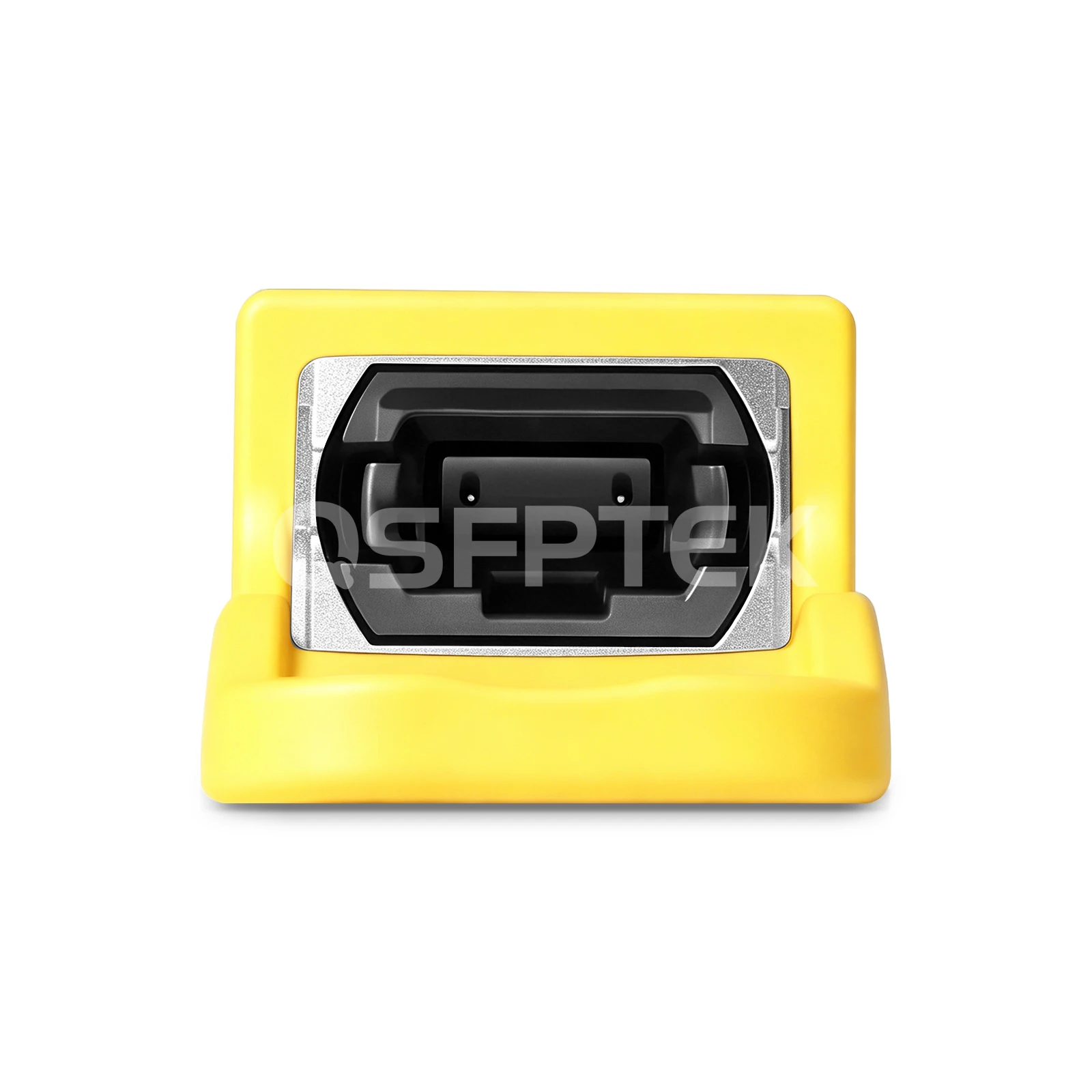

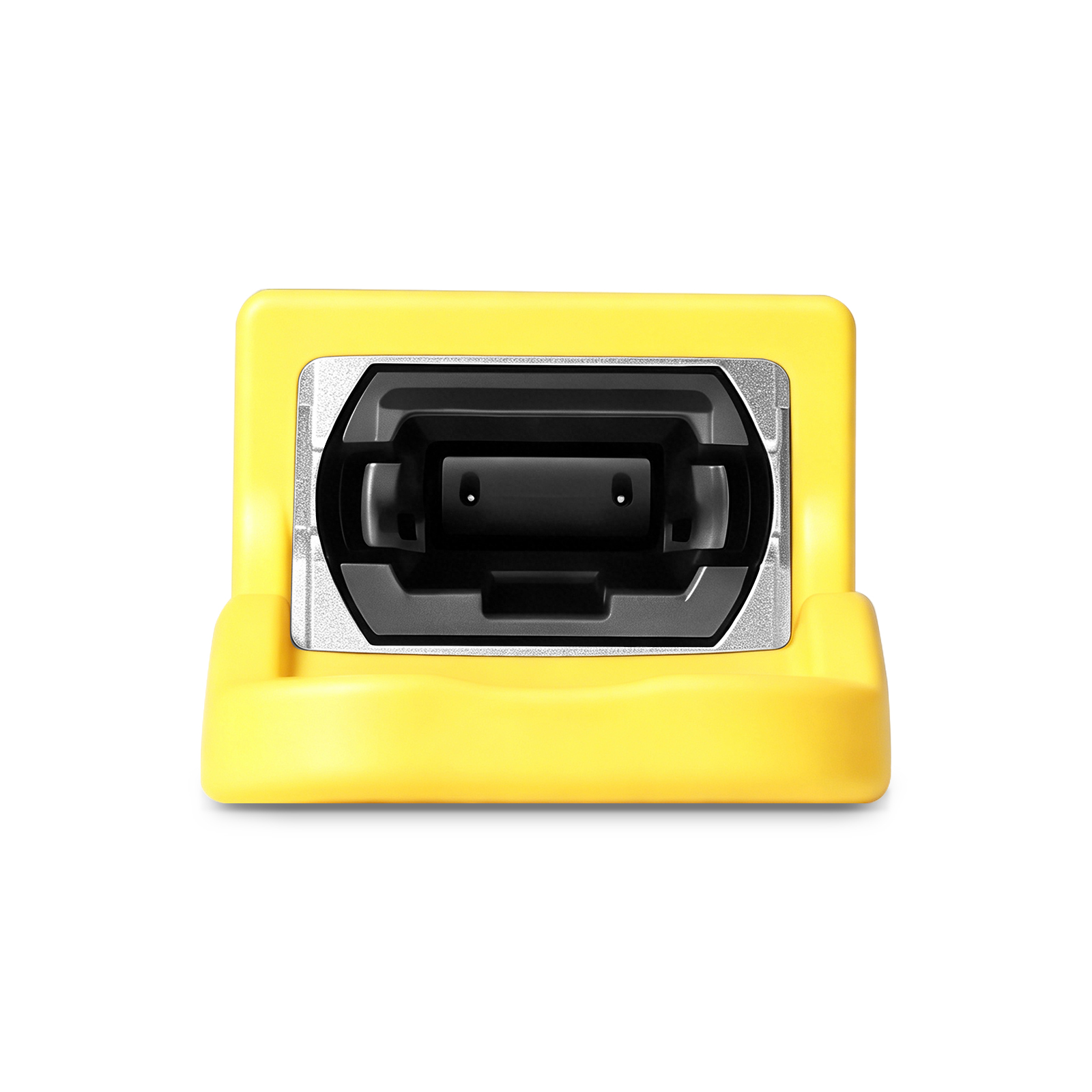

    Connector MPO-12/APC Cable Type SMF
    Transmitter Type EML Receiver Type PIN PD
    TX Power -2.9 to +4dBm Receiver Sensitivity < -5.9dBm
    Packaging Technology COB (Chip on Board) Packaging Receiver Overload 4 dBm
    Power Consumption ≤10W Modulation Format 4x 100G-PAM4 electrical to 4x 100G-PAM4 optical Parallel
    Extinction Ratio >3.5dB CDR (Clock and Data Recovery) TX and RX Built-in CDR
    Application ConnectX-7/QSFP112 Adapters or BlueField-3/QSFP112 DPUs MTBF 1×10⁻¹² (@25℃/40℃/50℃, Full Load)
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols QSFP112 MSA Specification Rev2.0, IEEE 802.3ck and CMIS Rev5.0 Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Features

    • 1. Advanced Technology
      Features with PAM4 modulation technology, DSP chip and COB packaging technology.
    • 2. Best Price and High Quality
      Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.
    • 3. Protocols
      Compliant with 400G InfiniBand NDR, QSFP112 MSA Rev2.0, IEEE802.3ck, CMIS Rev5.0 standard.
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

    Scenario 1: Twin-port 800G (2x400G) OSFP IB/ETH Switch to 2x 400G ConnectX-7 or BlueField-3

    Twin-port 800G (2x400G) OSFP IB/ETH Switch to 2x 400G ConnectX-7 or BlueField-3



    Scenario 2: Twin-port 800G (2x400G) OSFP IB/ETH Switch to 4x 200G ConnectX-7 or BlueField-3

    Twin-port 800G (2x400G) OSFP IB/ETH Switch to 4x 200G ConnectX-7 or BlueField-3

    Product details



    Undergoes Comprehensive Performance Testing to Guarantee Optimal Reliability



    The QSFPTEK test center conducts complete testing procedures with advanced professional test equipment, including BER test, eye diagram test, Optical Spectrum test, jitter test, etc. Each module has been stringently tested by world-class test devices from Keysight and Anritsu to guarantee flawless operation and optimal reliability.
