    Products / Transceivers / 400G/800G/1.6T Ethernet Transceivers / 400G OSFP / 202893
    Product image
    Product image

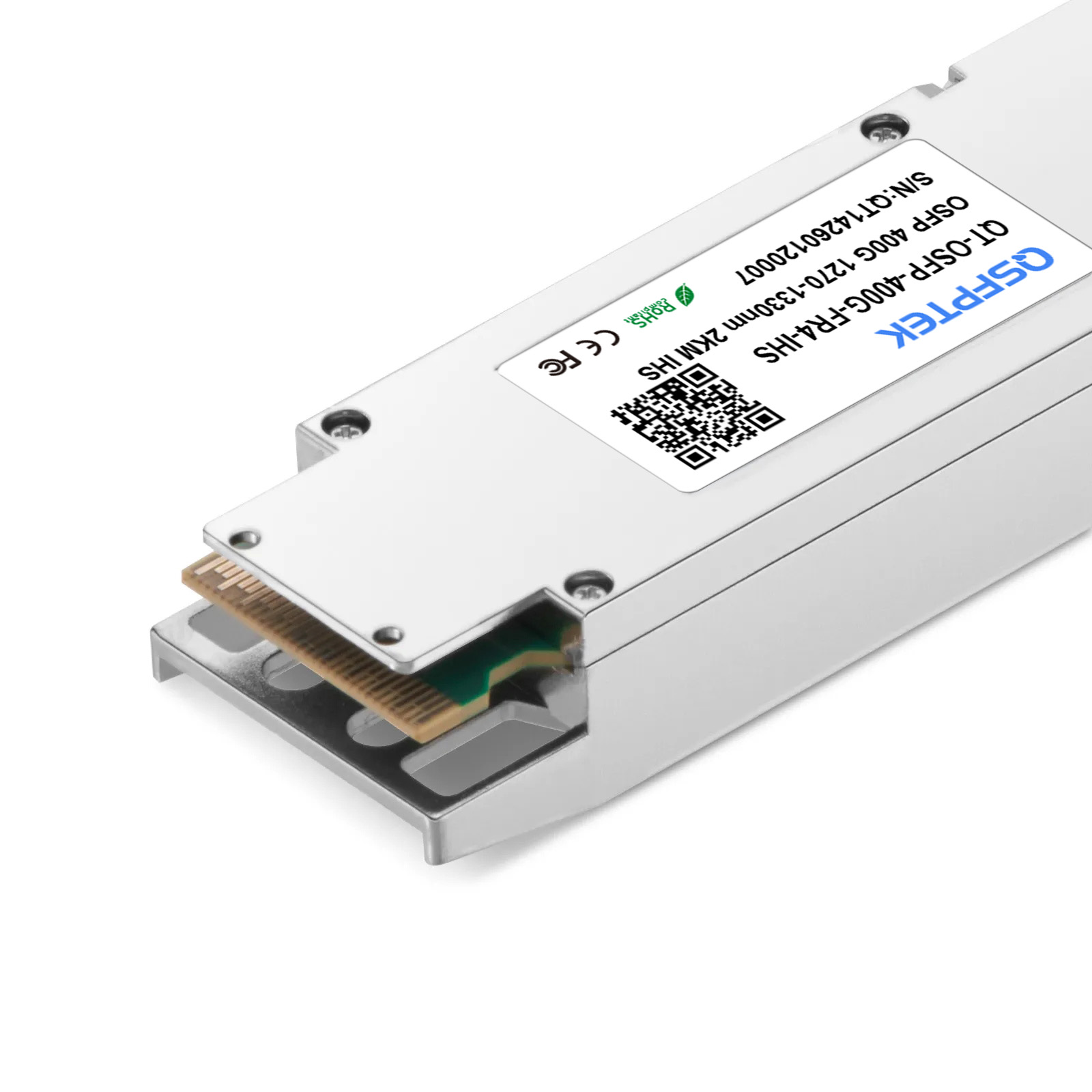

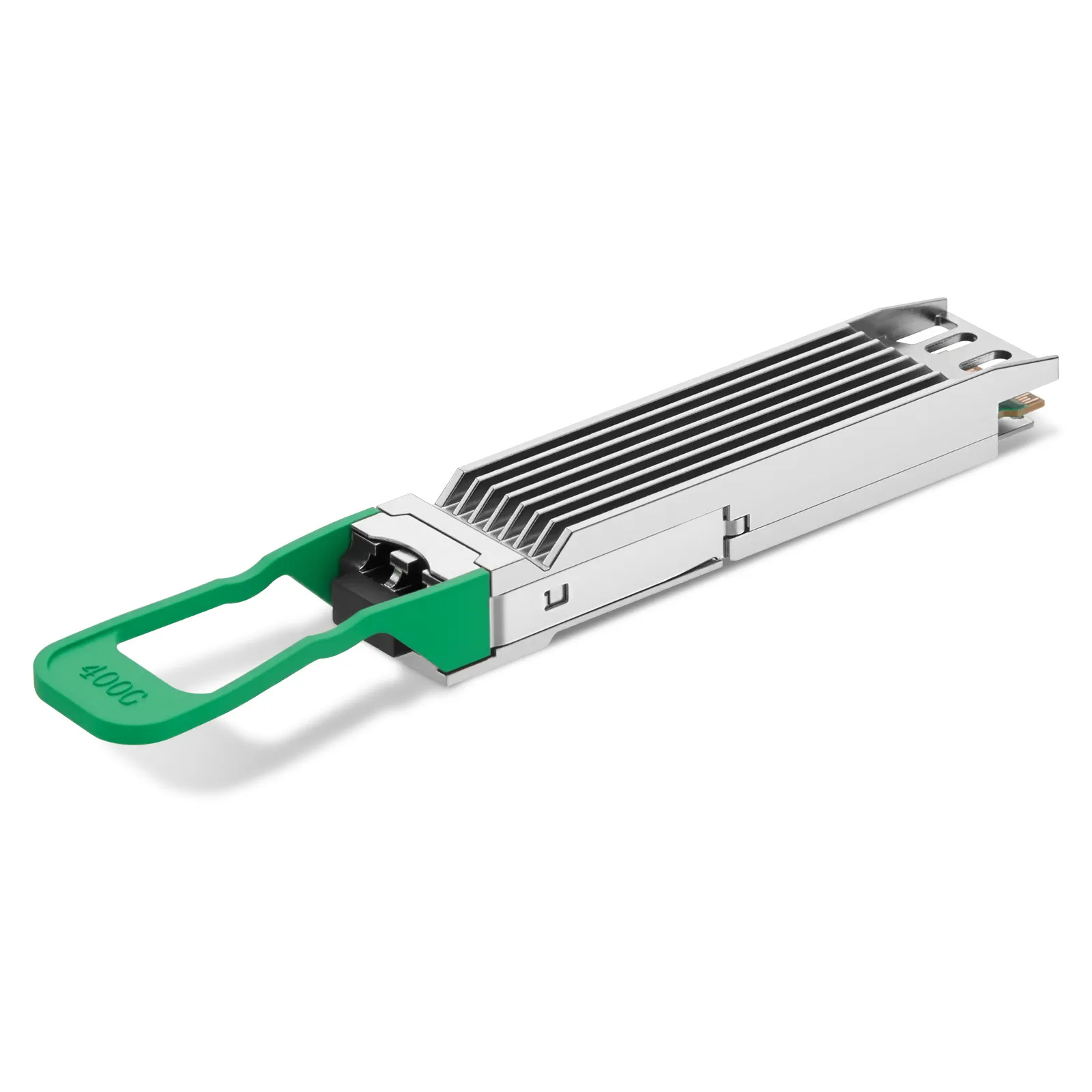

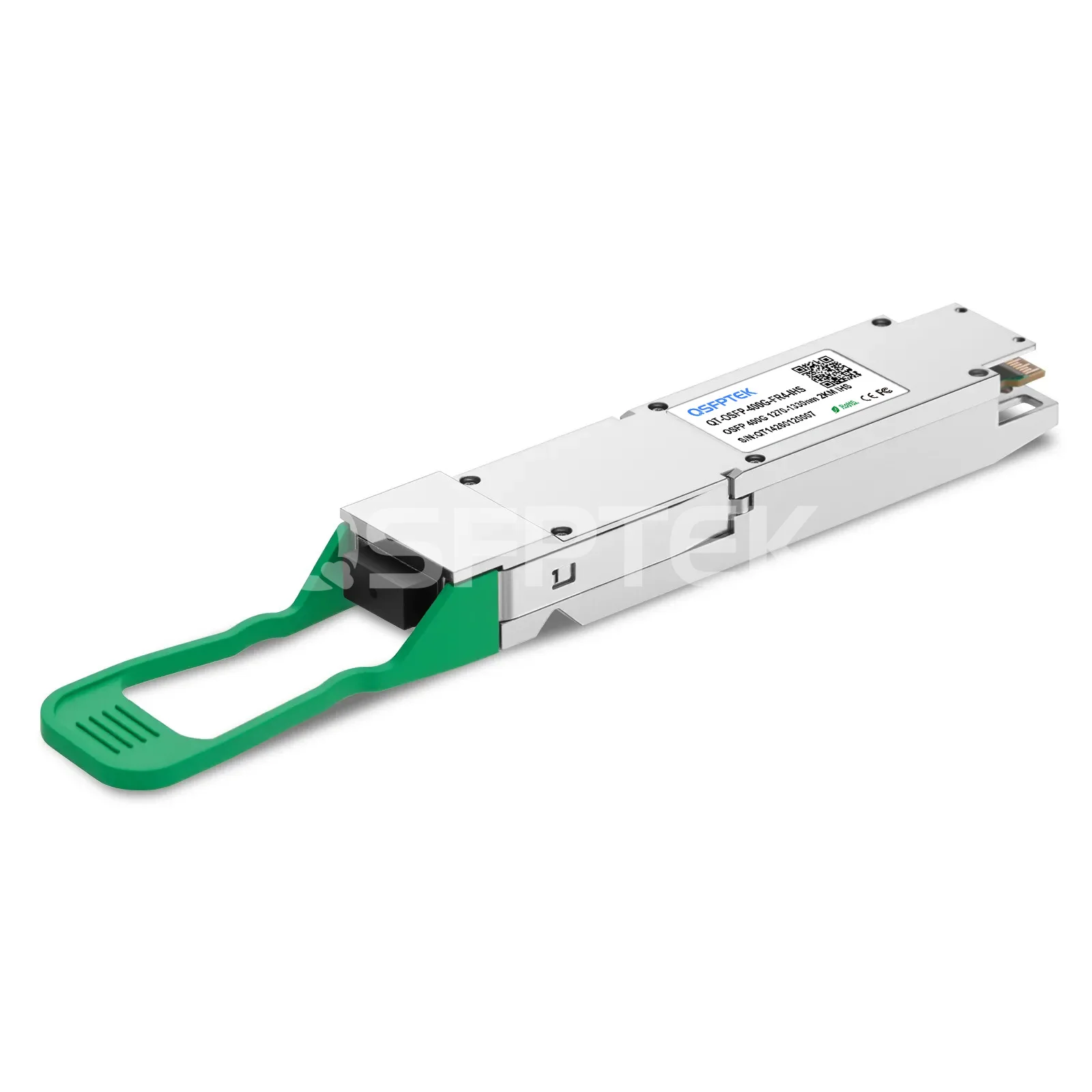

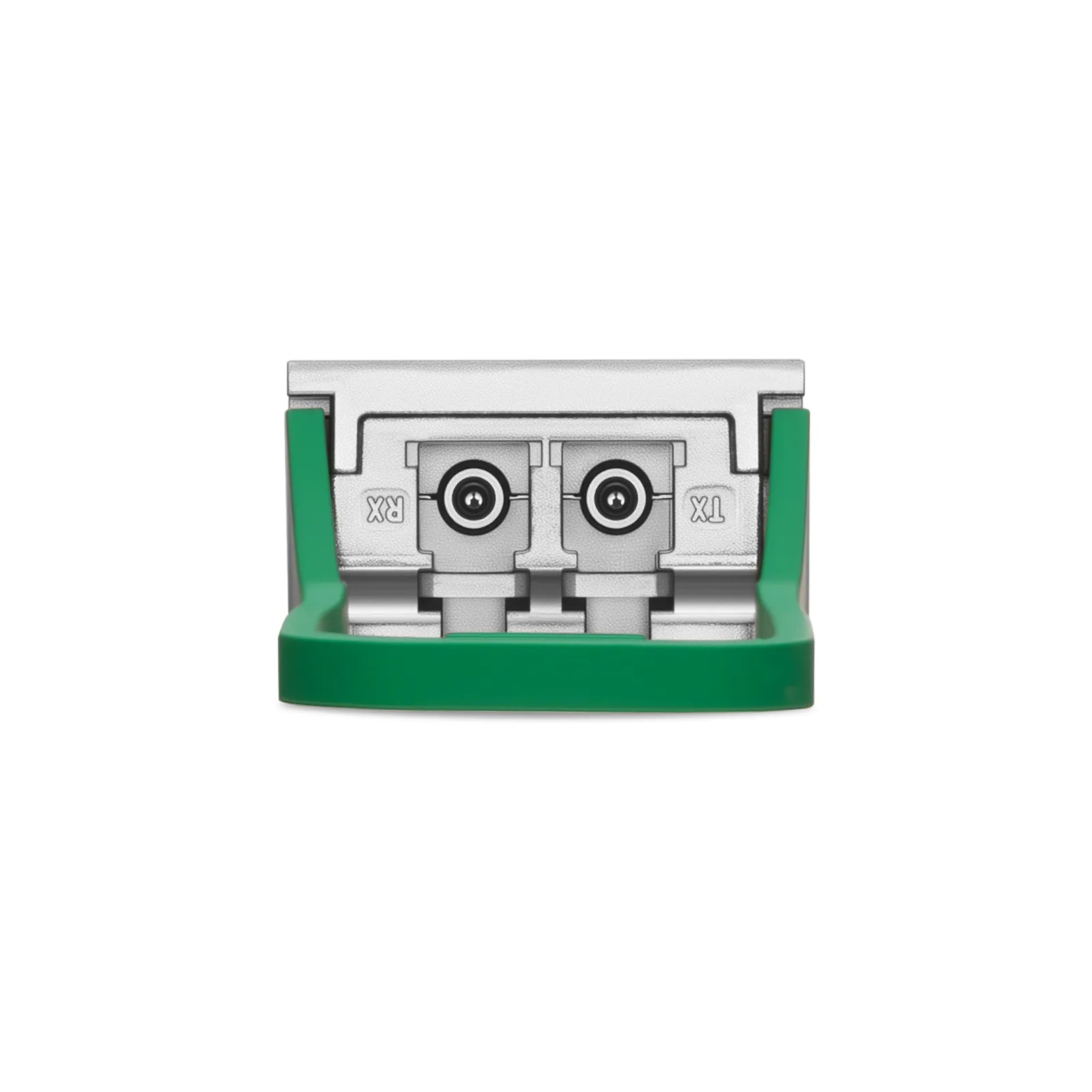

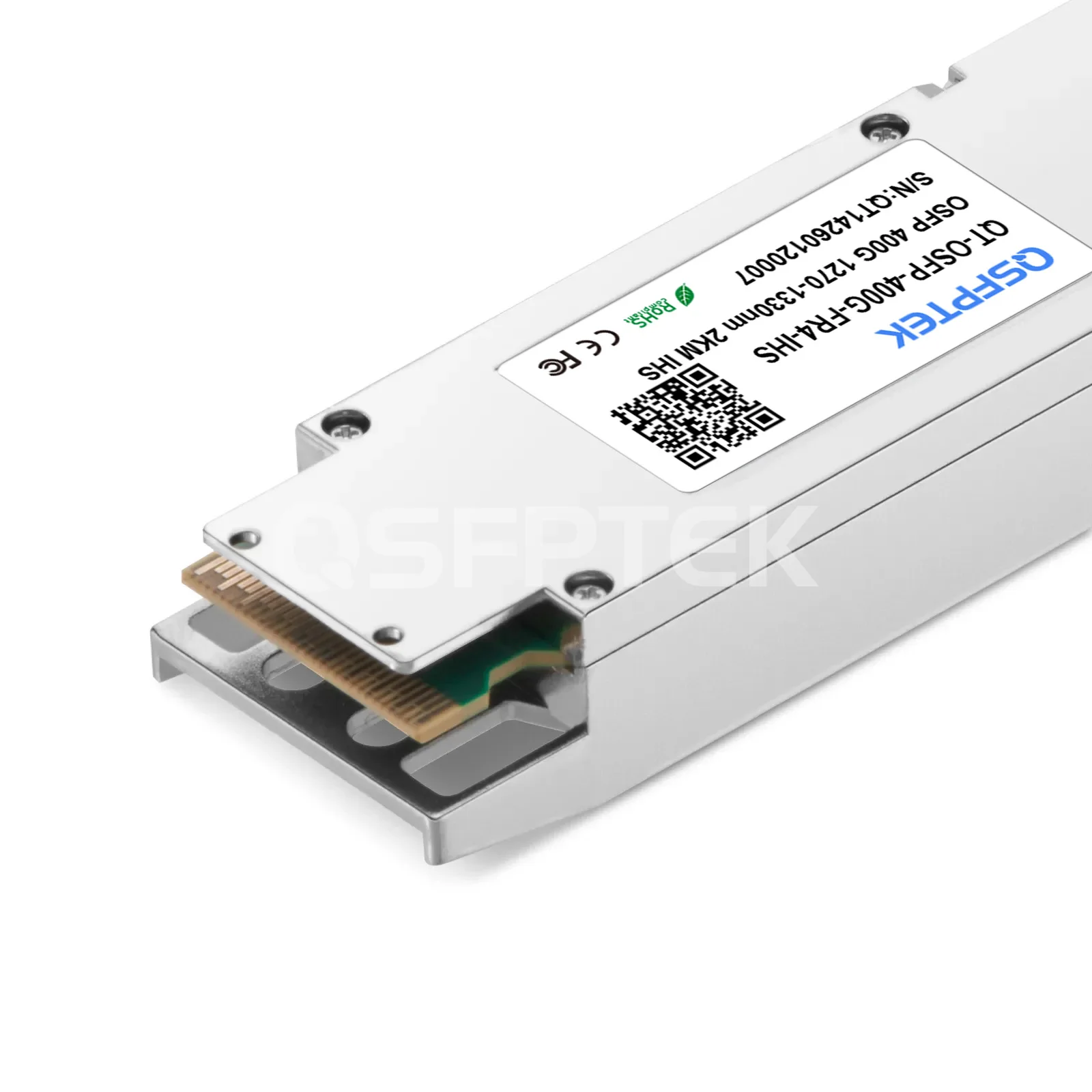

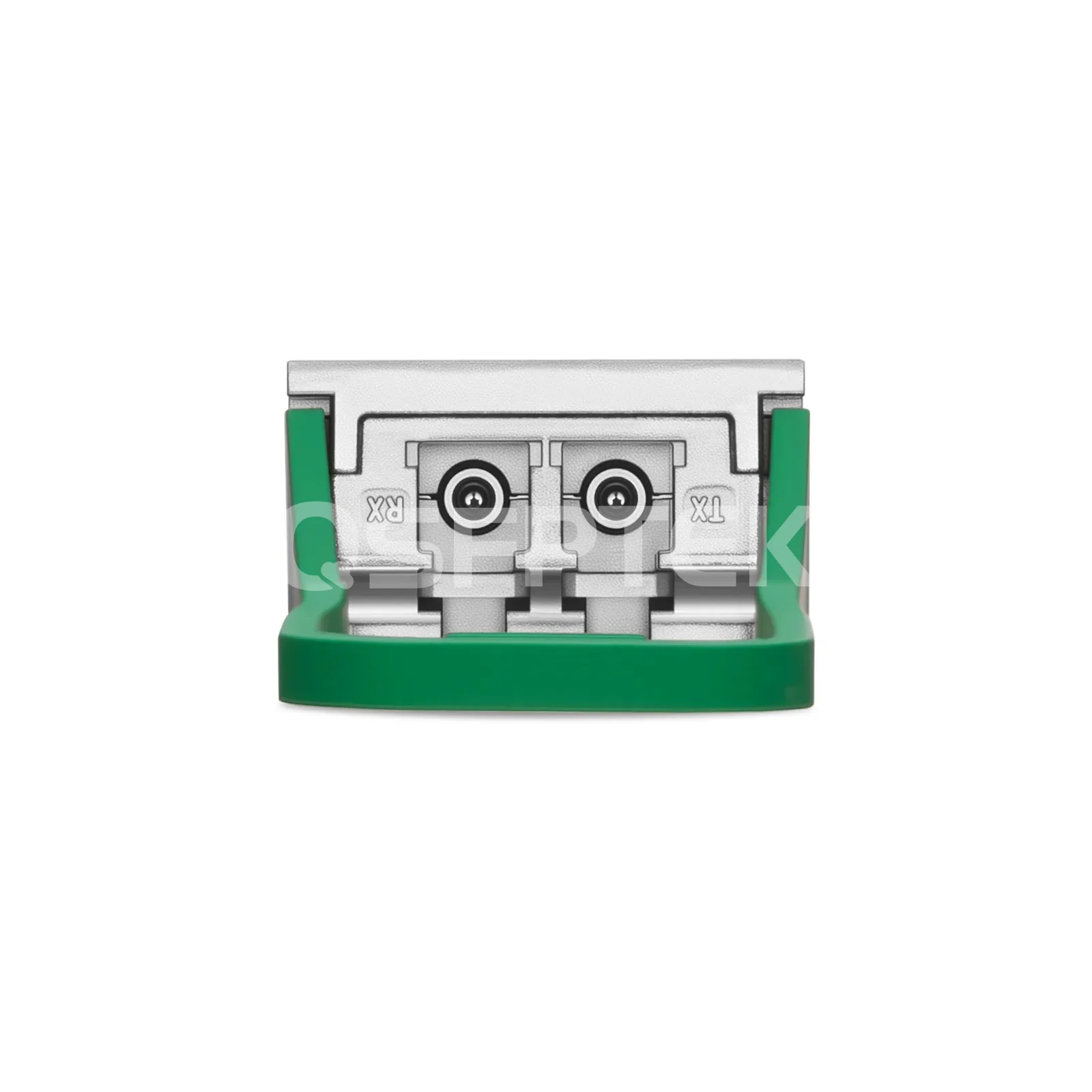

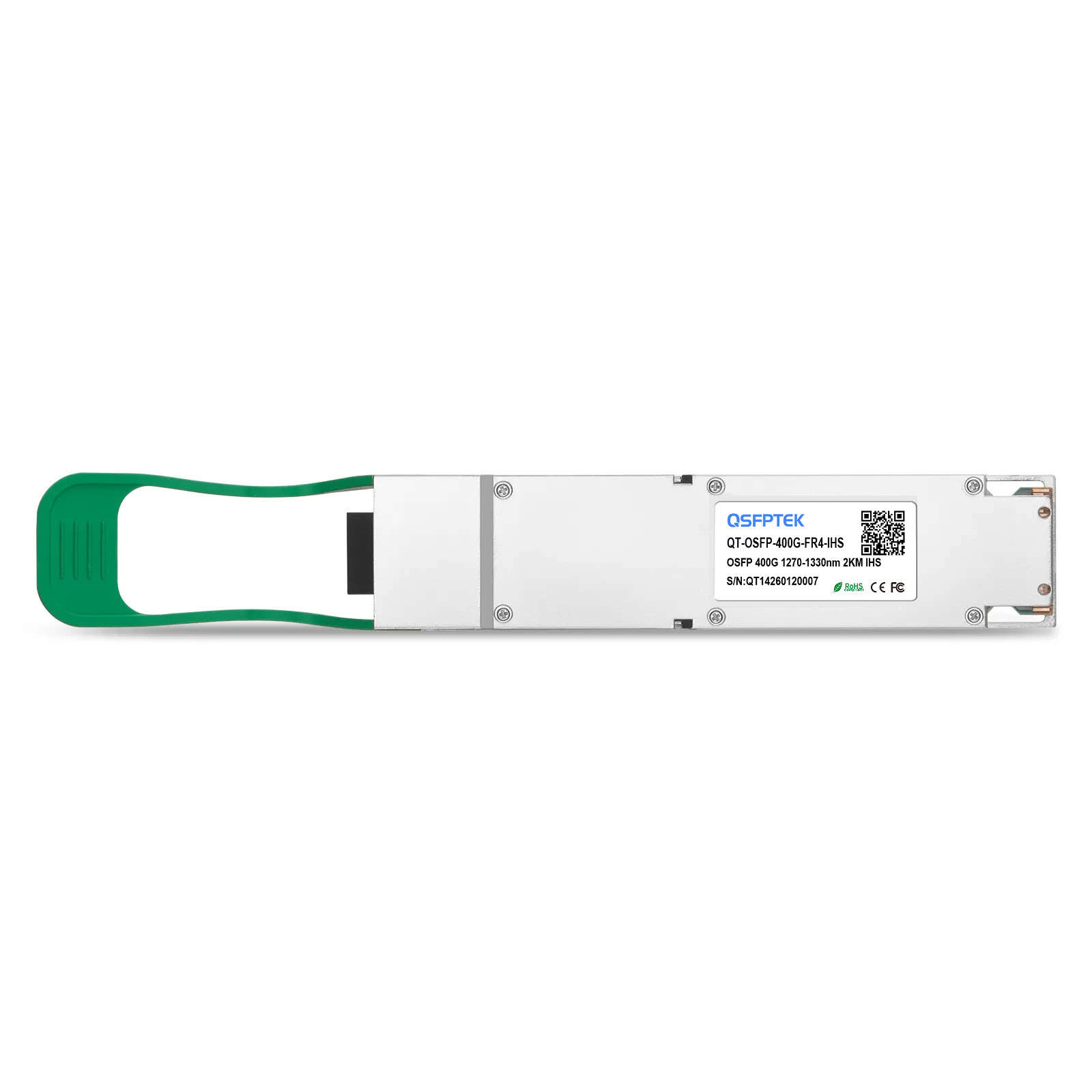

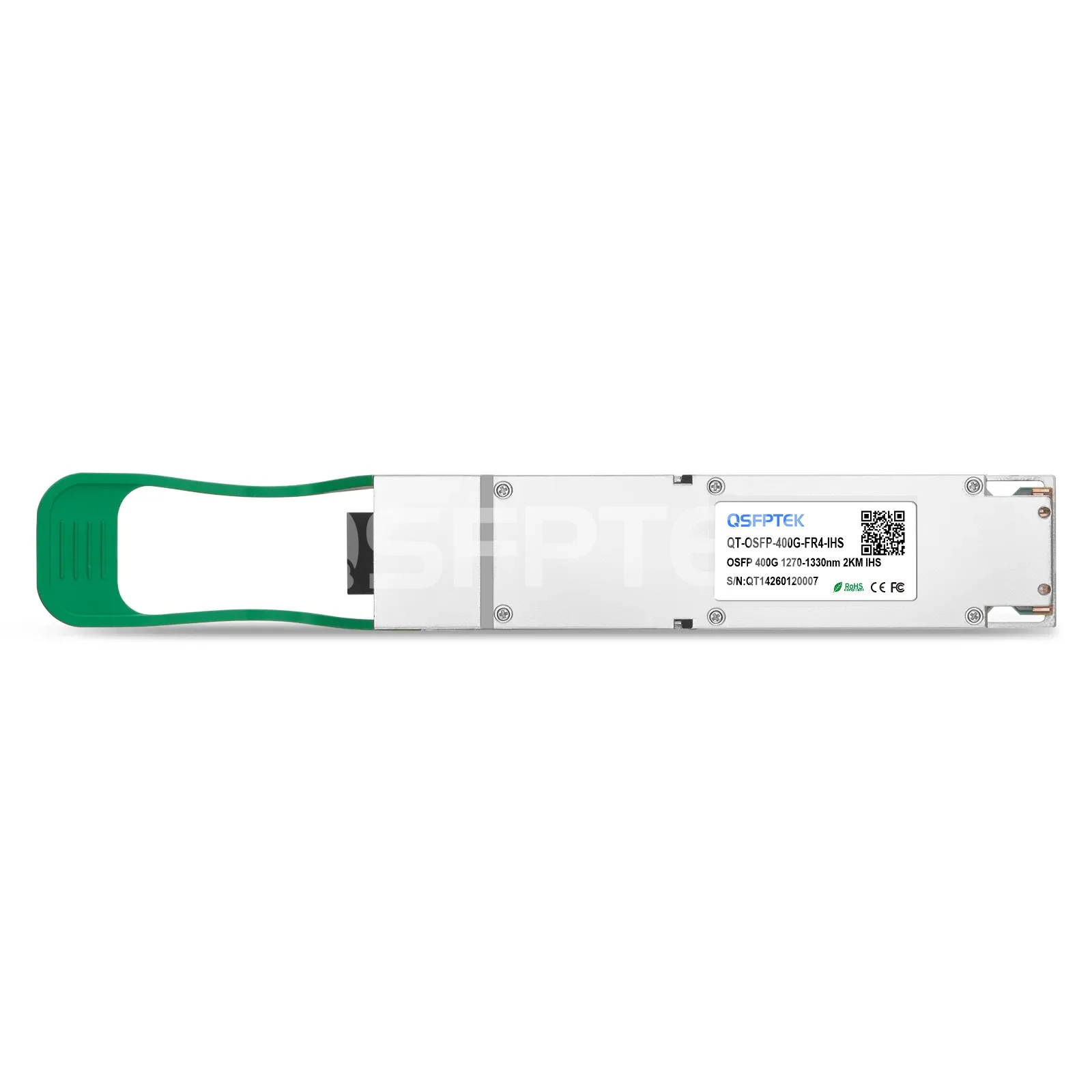

    Arista Networks OSFP-400G-FR4 Compatible 400GBASE-FR4 OSFP IHS/Finned Top PAM4 1310nm 2km DDM Duplex LC/UPC SMF Ethernet Optical Transceiver Module

    Product No: 202893
    0 Reviews
    0 Sold
    $989.90
    Compatible
    Transceivers type
    2 in real-time stock, 23Oct, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. OSFP-IHS for Ethernet (ETH) air-cooled switches
2. Enable easy 100G to 400G upgrades with no change to the fiber
3. Low latency, low power consumption, and high reliability
4. CWDM EML transmitter + PIN PD receiver
5. Hot-pluggable OSFP with Duplex LC/UPC connector
6. Max. data rate 425Gbps up to 2km over SMF
7. Max power dissipation < 10W
    See more

    Specifications

    Arista Networks OSFP-400G-FR4 Compatible 400GBASE-FR4 OSFP IHS/Finned Top PAM4 Optical Transceiver Module (1310nm, 2km, Single-Port Duplex LC/UPC Connector, SMF, 0℃ to +70℃, DDM)



    The Arista OSFP-400G-FR4 compatible 400GBASE-FR4 OSFP is a finned top transceiver module for use in 400 Gigabit Ethernet links up to 2km over OS2 singlemode fiber (SMF). The OSFP-IHS designed with Integrated Heat Sink (IHS) is for Ethernet air-cooled switches. It supports a max data rate of 425 Gbps with a single 4-channel duplex LC/UPC optical connector. Adopting the Pulse-amplitude Modulation (PAM4) electrical and optical modulation, the Fixed Reach 4-channel (FR4) OSFP achieves 400 Gigabit Ethernet through 4-channels of 100G-PAM4. QSFPTEK manufactured FR4 OSFP complies with 400G Ethernet, OSFP MSA, CMIS 4.0, RoHS, IEEE 802.3cu, IEEE 802.3bs. The DDM (digital diagnostics monitoring) function is supported on the 400G fiber optic transceiver to achieve real-time operating parameters monitoring.



    Part Number QT-OSFP-400G-FR4-IHS Vendor Name QSFPTEK
    Form Factor Single-port OSFP-IHS/Finned Top Max Data Rate 425Gbps (4x 106.25Gbps)
    Wavelength 1271nm,1291nm,1311nm,1331nm Distance 2km
    Connector Duplex LC/UPC Cable Type SMF
    Transmitter Type CWDM EML Receiver Type PIN PD
    TX Power -3.2 to 4.4 dBm Receiver Sensitivity < -7.2 dBm
    Packaging Technology COB (Chip on Board) Packaging Receiver Overload 4.4 dBm
    Power Consumption ≤10W Modulation Format 8x 50G-PAM4 electrical to 4x 100G-PAM4 optical CWDM4 Serial Multiplexed
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols 400G Ethernet, OSFP MSA, CMIS 4.0, RoHS, IEEE 802.3cu, IEEE 802.3bs Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    Hot

    LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 1m

    $3.16
    10.0K Sold
    79 Reviews
    Hot

    LC UPC to LC UPC Duplex OS2 2.0mm LSZH Fiber Optic Patch Cable 1m

    $3.16
    10.4K Sold
    79 Reviews

    Arista OSFP-800G-2FR4 Compatible 2x 400GBASE FR4 Twin-port OSFP IHS/Closed Finned Top PAM4 1270 to 1330nm 2km DDM Dual Duplex LC/UPC SMF Optical Transceiver Module

    $1255.50
    117 Sold
    37 Reviews

    Features

    • 1. Advanced Technology
      Features PAM4 modulation technology and built-in DSP chip.
    • 2. Best Price and High Quality
      Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.
    • 3. Protocols
      Compliant with 400G Ethernet, OSFP MSA, CMIS 4.0, RoHS, IEEE 802.3cu, IEEE 802.3bs.
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Product details

    Comprehensive Testing



    Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.



    performance test equipment



    Questions & Answers

    • All (12)
    • 400G OSFP (6)
    • 400G QSFP-DD (2)
    • QT-OSFP-400G-SR8 (3)
    • QT-OSFP-400G-DR4 (1)
    • QT-OSFP-400G-SR4 (1)
    • Can I plug an OSFP optical module to a QSFP-DD port?
      No. QSFP-DD and OSFP are two different form factors and they have completely different shapes and sizes. You can only use one kind of form factor in the corresponding system, for example, if you use OSFP system, then you must use OSFP transceiver and cable.
    • Can I plug a QSFP28 optical module to a OSFP port?
      Yes, but you need to use an adapter. When inserting a QSFP28 module into an OSFP port, the OSFP port must be configured for 100G instead of 400G transmission rate
    • What 400G form-factors does QSFPTEK support?
      QSFPTEK support OSFP and QSFP-DD form factor. QSFPTEK 400G platform can offer OSFP and QSFP-DD variants, OSFP form factor include OSFP-400G-LR8, OSFP-400G-DR4, OSFP-400G-SR8, QSFP-DD form factor include QSFP-DD-DR4, QSFP-DD-FR4, QSFP-DD-SR8, QSFP-DD-LR8, QSFP-DD-ER8, QSFP-DD-4x100G-LR.
