    Products / Transceivers / 400G/800G/1.6T Ethernet Transceivers / 400G OSFP / 103840
    Product image
    Product image

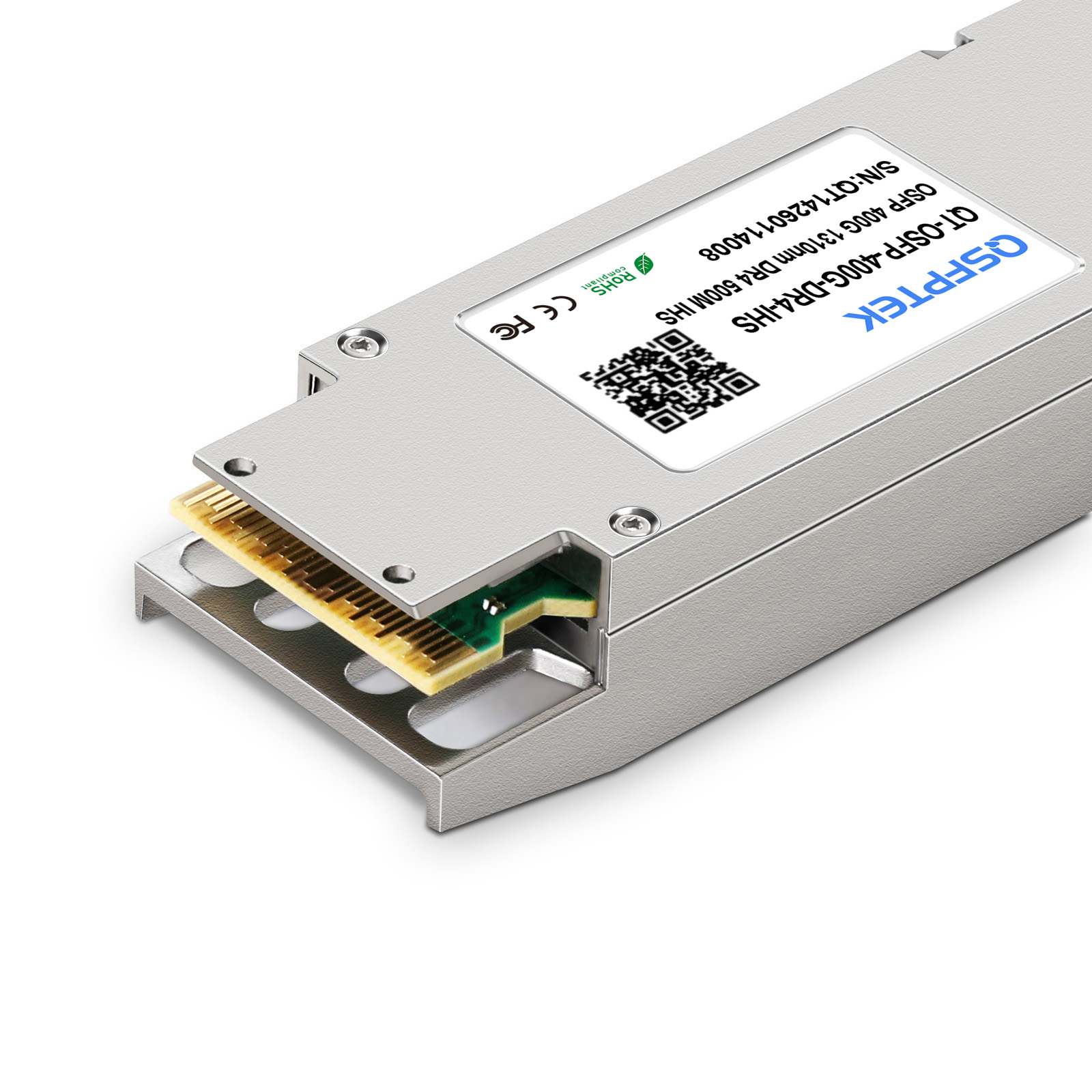

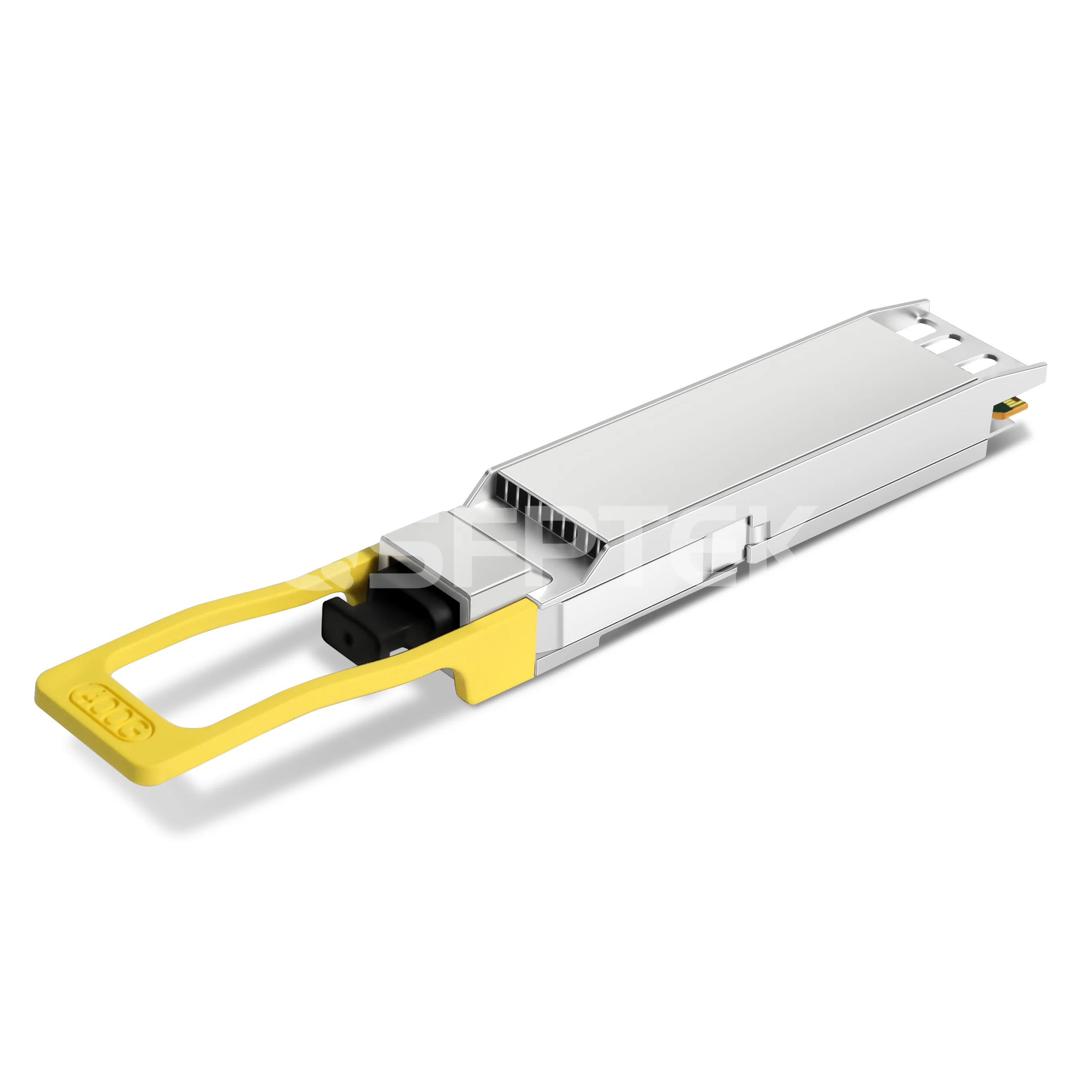

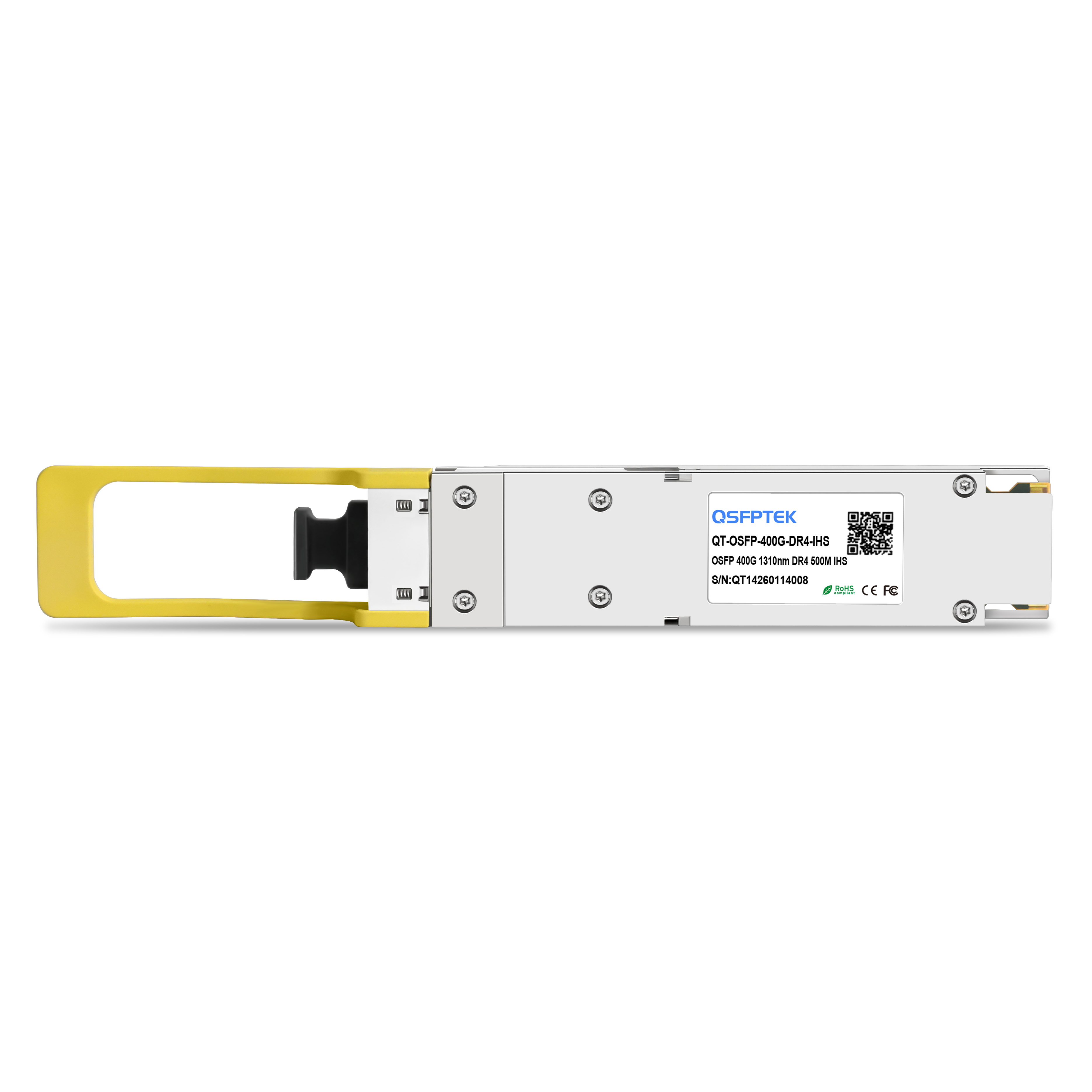

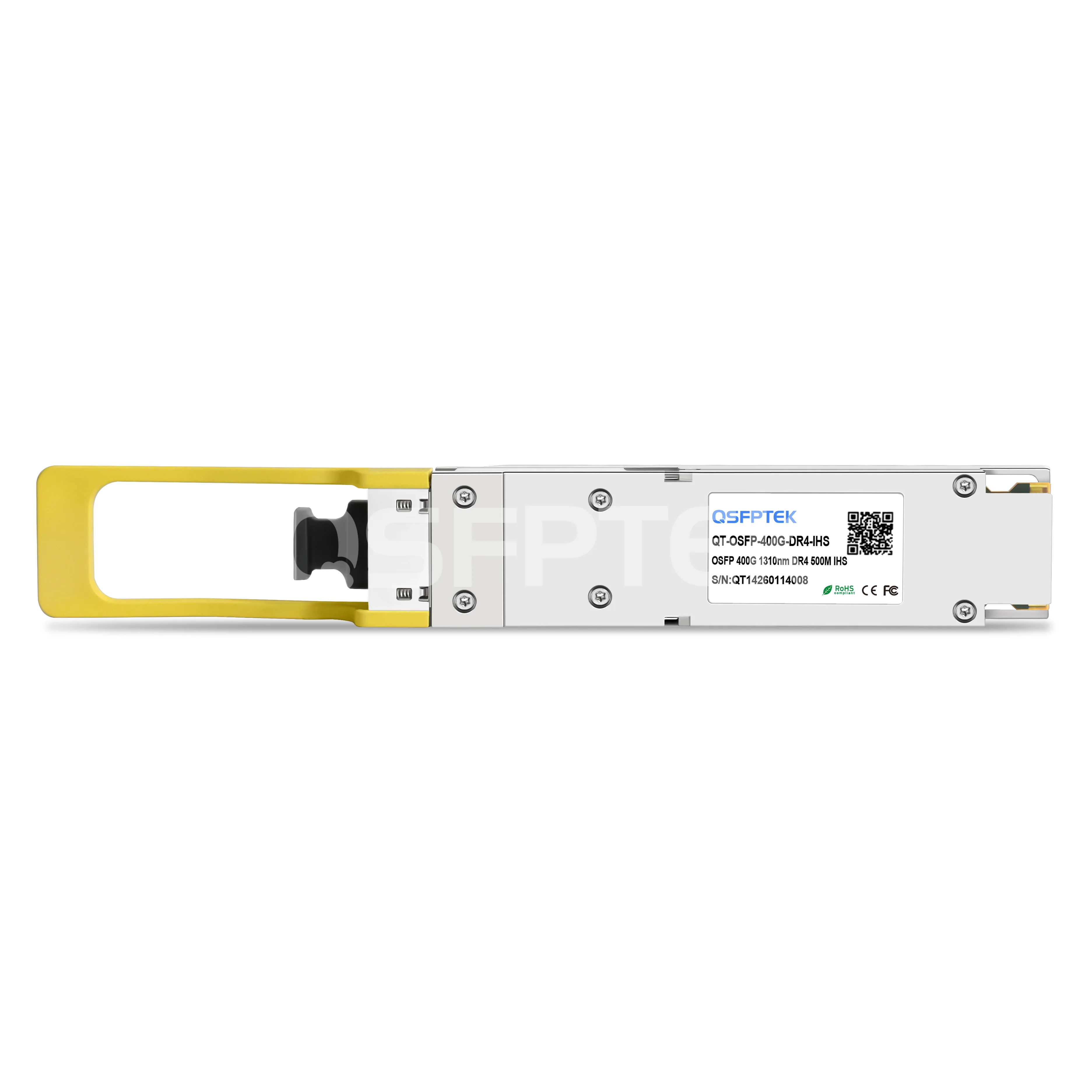

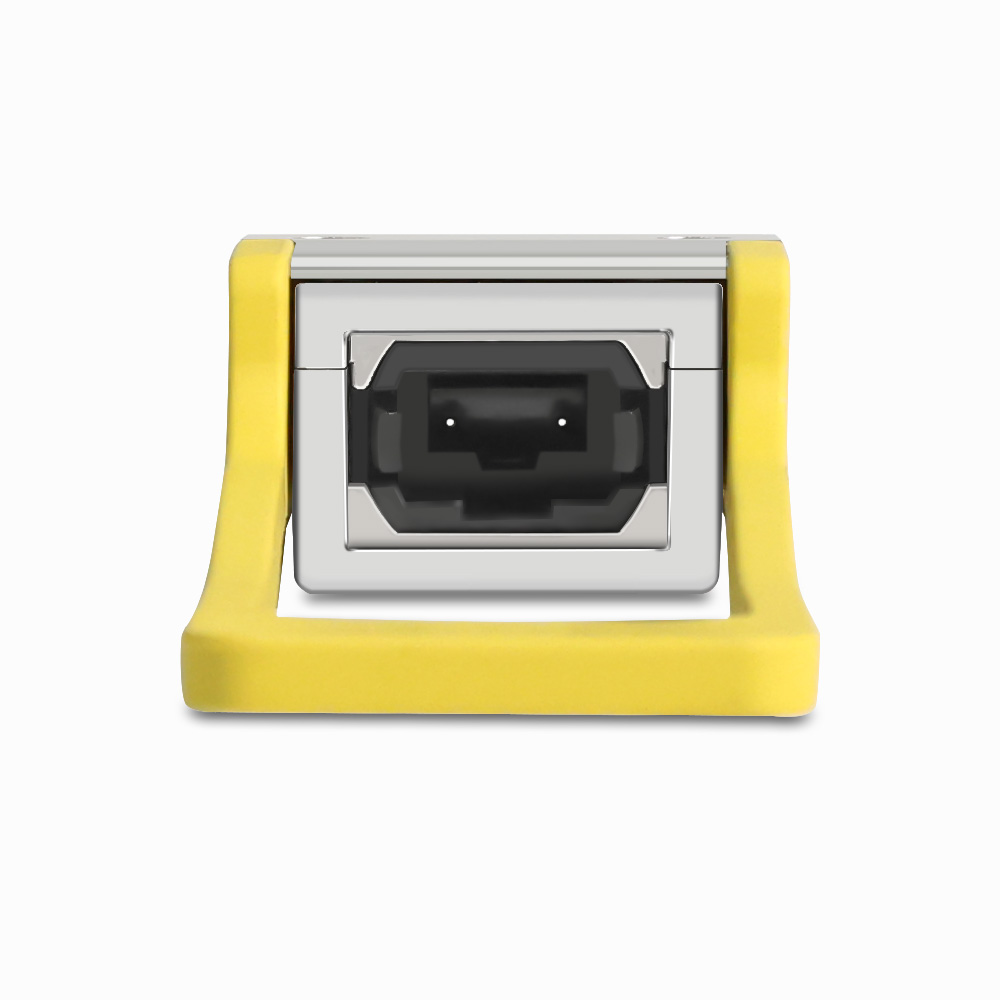

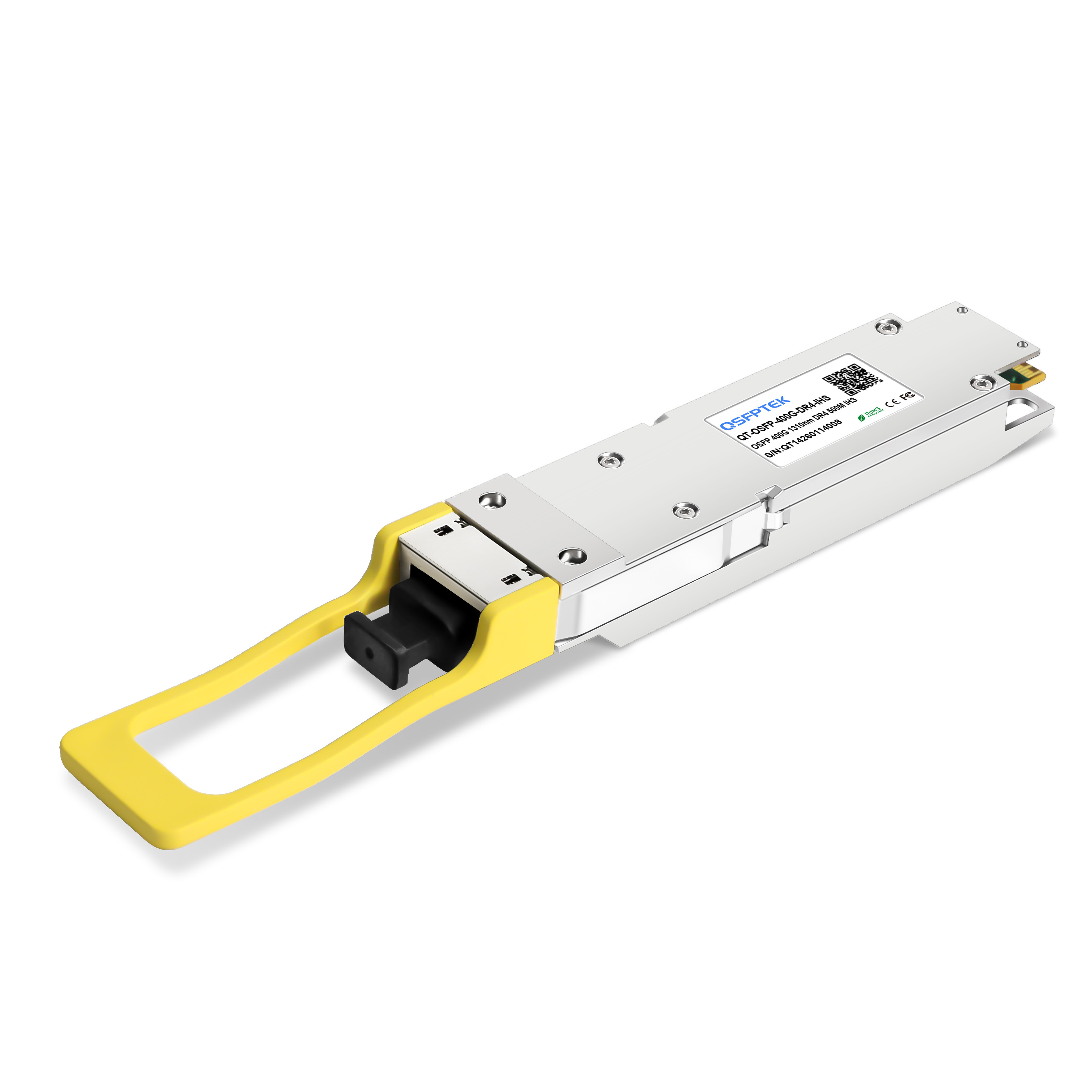

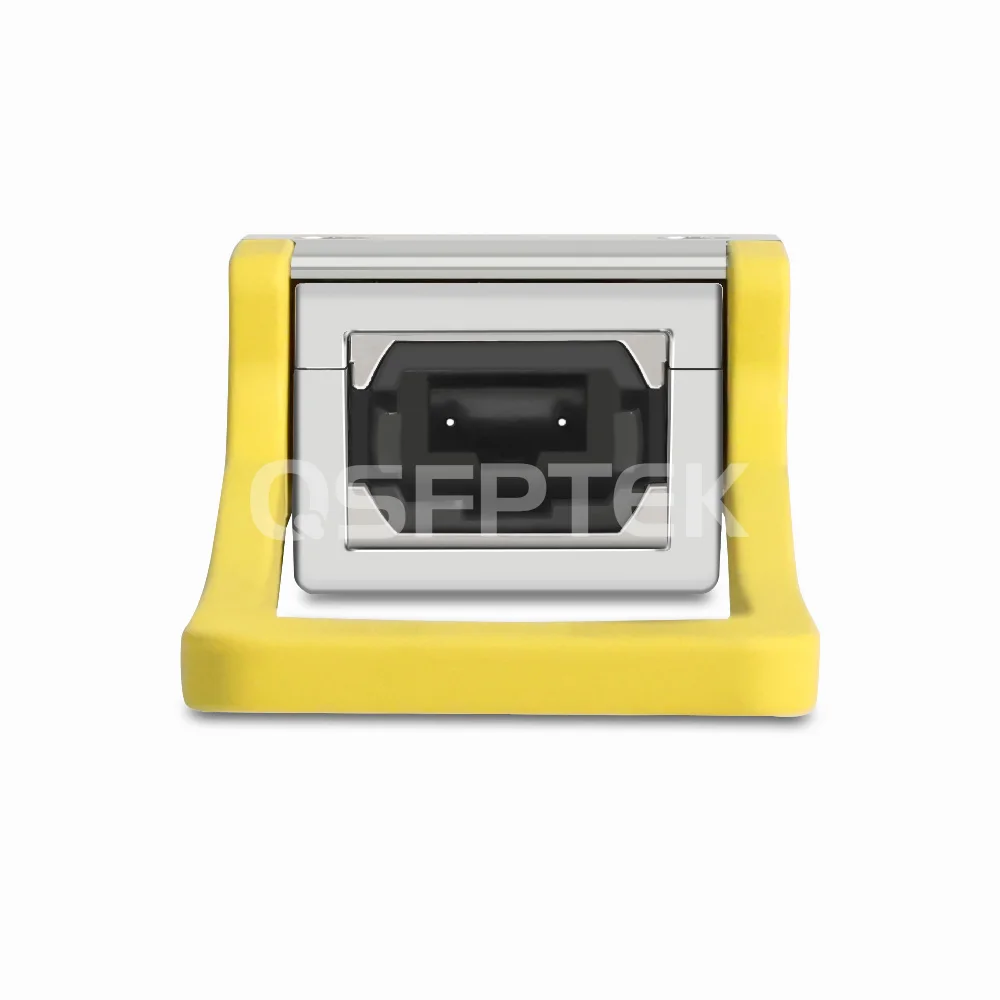

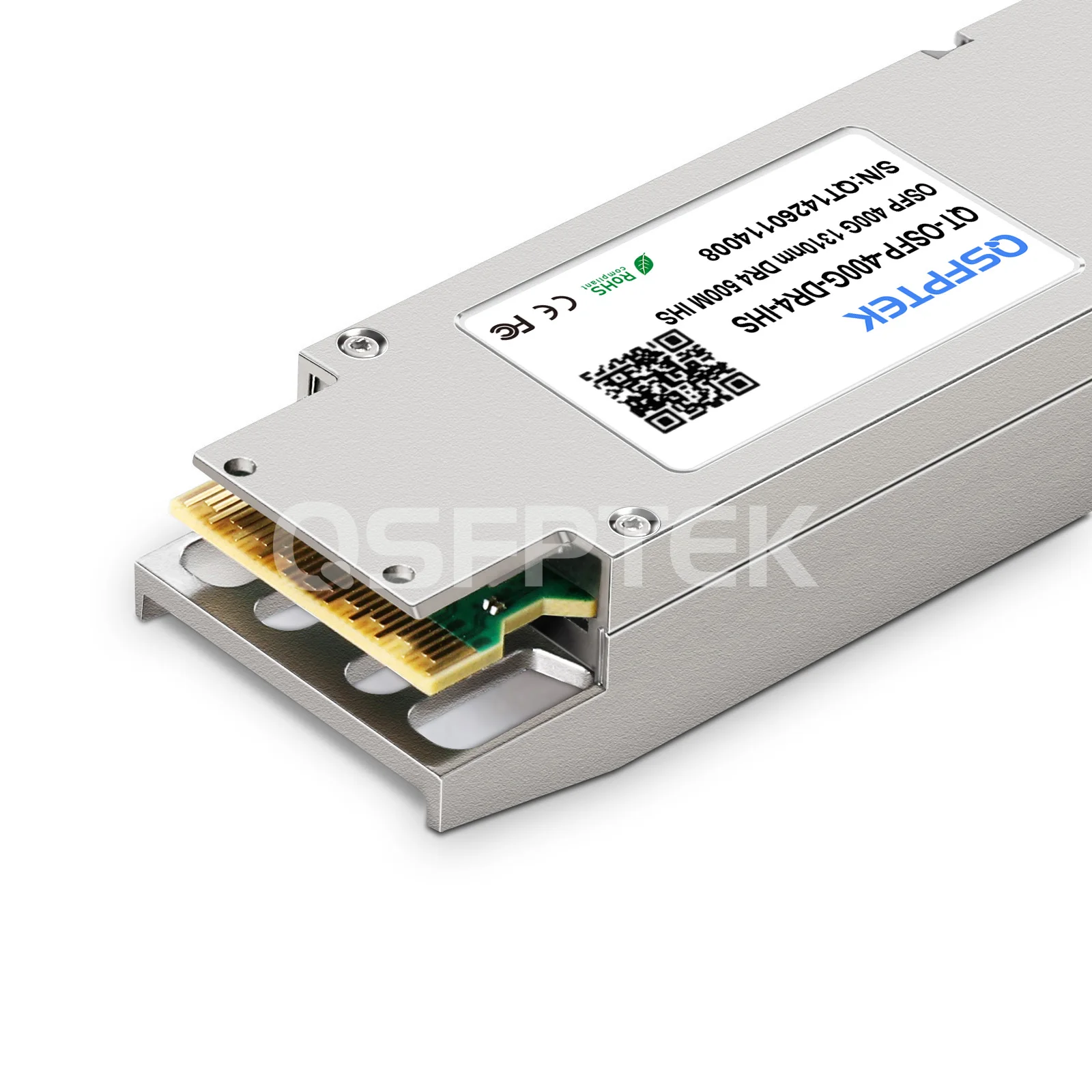

    Arista Networks OSFP-400G-DR4 Compatible 400GBASE-DR4 OSFP IHS/Closed Finned Top PAM4 1310nm 500m DDM MPO-12/APC SMF Ethernet Optical Transceiver Module, Support Breakout to 4 x 100G-DR

    Product No: 103840
    0 Reviews
    0 Sold
    $499.00
    Compatible
    Transceivers type
    24 in real-time stock, 23Oct, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. For Ethernet (ETH) applications
2. Support 400G to 4x 100GBASE-DR breakout
3. EML transmitter + PIN PD receiver
4. Hot-pluggable OSFP with MPO-12/APC connector
5. Max. data rate 425Gbps up to 500m over SMF
6. Max Power dissipation < 8W
    See more

    Specifications

    Arista Networks OSFP-400G-DR4 Compatible 400GBASE-DR4 OSFP Closed Finned Top PAM4 Optical Transceiver Module (1310nm, 500m, Single-Port MPO-12/APC Connector, SMF, 0℃ to +70℃, DDM)



    The Generic compatible 400GBASE-DR4 OSFP is a closed finned top transceiver module designed with Integrated Heat Sink (IHS) for use in 400 Gigabit Ethernet links up to 500m over OS2 singlemode fiber (SMF). It supports a max data rate of 425 Gbps with a single 4-channel MPO-12 APC optical connector. Adopting the Pulse-amplitude Modulation (PAM4) electrical and optical modulation, the Datacenter Reach 4-channel (DR4) OSFP achieves 400 Gigabit Ethernet through 4-channels of 100G-PAM4. QSFPTEK manufactured DR4 OSFP complies with 400G Ethernet, OSFP MSA, CMIS 4.0, RoHS, IEEE 802.3bs. The DDM (digital diagnostics monitoring) function is supported on the 400G fiber optic transceiver to achieve real-time operating parameters monitoring.



    The 400G DR4 OSFP-IHS is for Ethernet air-cooled switches and support 400G to 4x 100GBASE-DR breakout application.



    Part Number QT-OSFP-400G-DR4-IHS Vendor Name QSFPTEK
    Form Factor Single-port OSFP-IHS/Closed Finned Top Max Data Rate 425Gbps (4x 106.25Gbps)
    Wavelength 850nm Distance 500m over G.652 SMF
    Connector MTP/MPO-12/APC Cable Type MMF
    Transmitter Type EML Receiver Type PIN PD
    TX Power -2.9 to 4 dBm Receiver Sensitivity < -5.9 dBm
    Packaging Technology COB (Chip on Board) Packaging Receiver Overload 4 dBm
    Power Consumption ≤8W Modulation Format 8x 50G-PAM4 electrical to 4x 100G-PAM4 optical Parallel
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols 400G Ethernet, OSFP MSA, CMIS 4.0, RoHS, IEEE 802.3bs Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    Hot

    1m (3ft) MTP-12 APC (Female) to MTP-12 APC (Female) OS2 Singlemode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Yellow

    $68.60
    9.5K Sold
    79 Reviews

    1m (3ft) MPO-12 APC (Female) to MPO-12 APC (Female) OS2 Singlemode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Yellow

    $15.60
    11.0K Sold
    79 Reviews

    3m (10ft) MTP-8 APC (Female) to 4x LC UPC Duplex OS2 Singlemode Elite Breakout Cable, 8 Fibers, Type B, LSZH, Yellow

    $51.56
    2.2K Sold
    18 Reviews

    3m (10ft) MPO-8 APC (Female) to 4x LC UPC Duplex OS2 Singlemode Elite Breakout Cable, 8 Fibers, Type B, LSZH, Yellow

    $25.06
    2.5K Sold
    18 Reviews

    Cisco QSFP-100G-DR-S Compatible 100GBASE-DR Single Lambda QSFP28 1310nm 500m LC Duplex SMF DDM Optical Transceiver Module

    $189.90
    886 Sold
    11 Reviews

    Intel E810-CAM2 Based Network Interface Card, 100G Dual Port QSFP28, PCIe 4.0 X 16, Half & Full Bracket

    $521.90 $799.00
    128 Sold
    1 Reviews

    Features

    • 1. Advanced Technology
      Features PAM4 modulation technology and built-in DSP chip.
    • 2. Best Price and High Quality
      Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.
    • 3. Protocols
      Compliant with 400G Ethernet, OSFP MSA, CMIS 4.0, RoHS, IEEE 802.3bs.
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

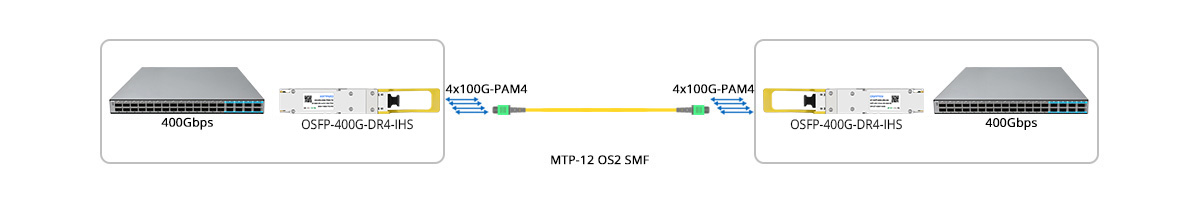

    Scenario 1: 400G to 400G Direct Connectivity

    400G to 400G Direct Connectivity

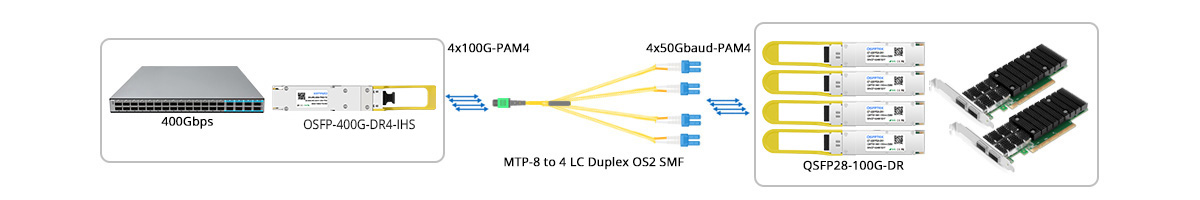

    Scenario 2: 400G to 4x 100G-DR Breakout Connectivity

    400G to 4x 100G-DR Breakout Connectivity

    Product details

    Comprehensive Testing



    Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.





    Questions & Answers

    • All (12)
    • 400G OSFP (6)
    • 400G QSFP-DD (2)
    • QT-OSFP-400G-SR8 (3)
    • QT-OSFP-400G-DR4 (1)
    • QT-OSFP-400G-SR4 (1)
    • Can I plug an OSFP optical module to a QSFP-DD port?
      No. QSFP-DD and OSFP are two different form factors and they have completely different shapes and sizes. You can only use one kind of form factor in the corresponding system, for example, if you use OSFP system, then you must use OSFP transceiver and cable.
    • Can I plug a QSFP28 optical module to a OSFP port?
      Yes, but you need to use an adapter. When inserting a QSFP28 module into an OSFP port, the OSFP port must be configured for 100G instead of 400G transmission rate
    • What 400G form-factors does QSFPTEK support?
      QSFPTEK support OSFP and QSFP-DD form factor. QSFPTEK 400G platform can offer OSFP and QSFP-DD variants, OSFP form factor include OSFP-400G-LR8, OSFP-400G-DR4, OSFP-400G-SR8, QSFP-DD form factor include QSFP-DD-DR4, QSFP-DD-FR4, QSFP-DD-SR8, QSFP-DD-LR8, QSFP-DD-ER8, QSFP-DD-4x100G-LR.
