    Products / Network switches / Media Converters / Copper to Fiber Media Converters / 202925
    Product image
    Product image

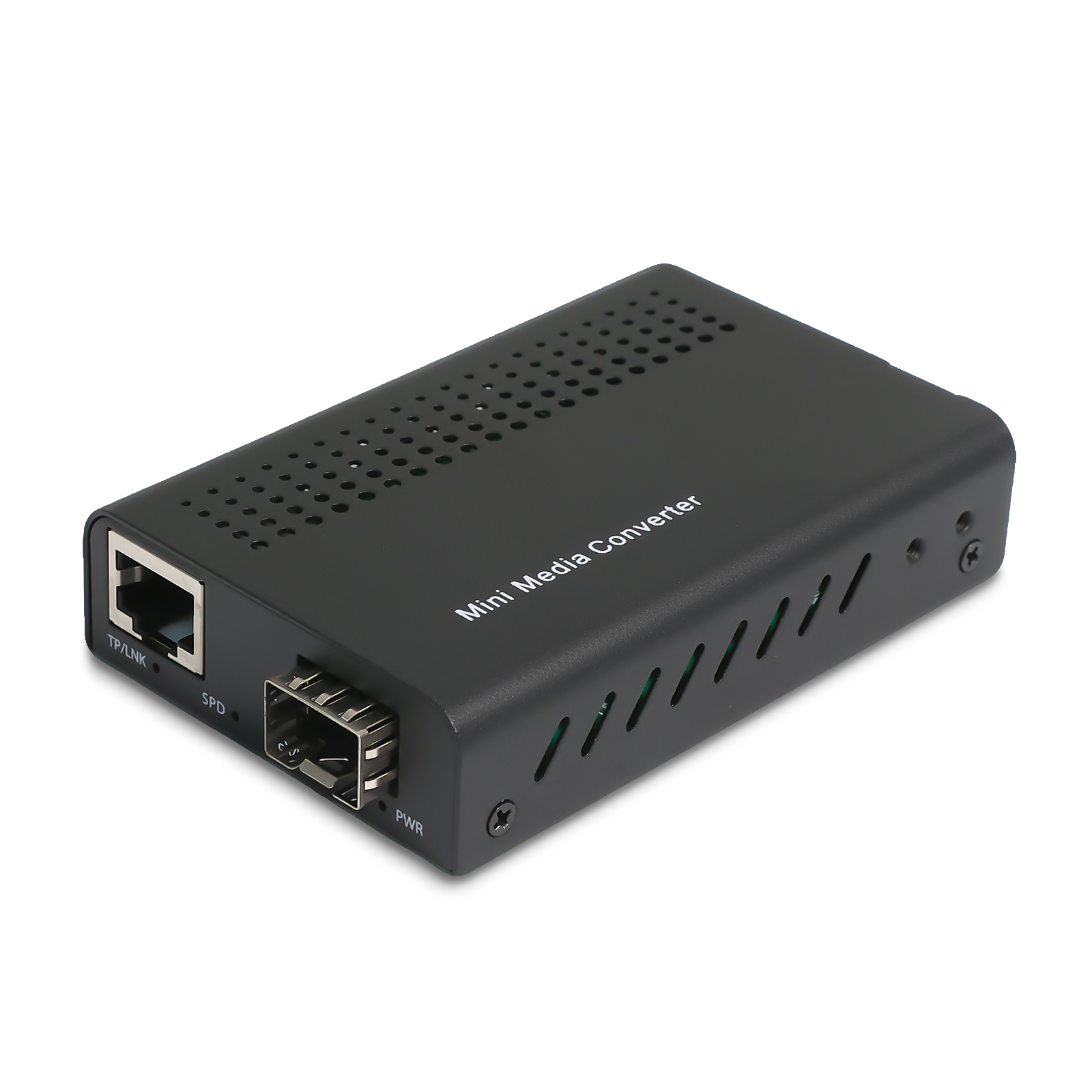

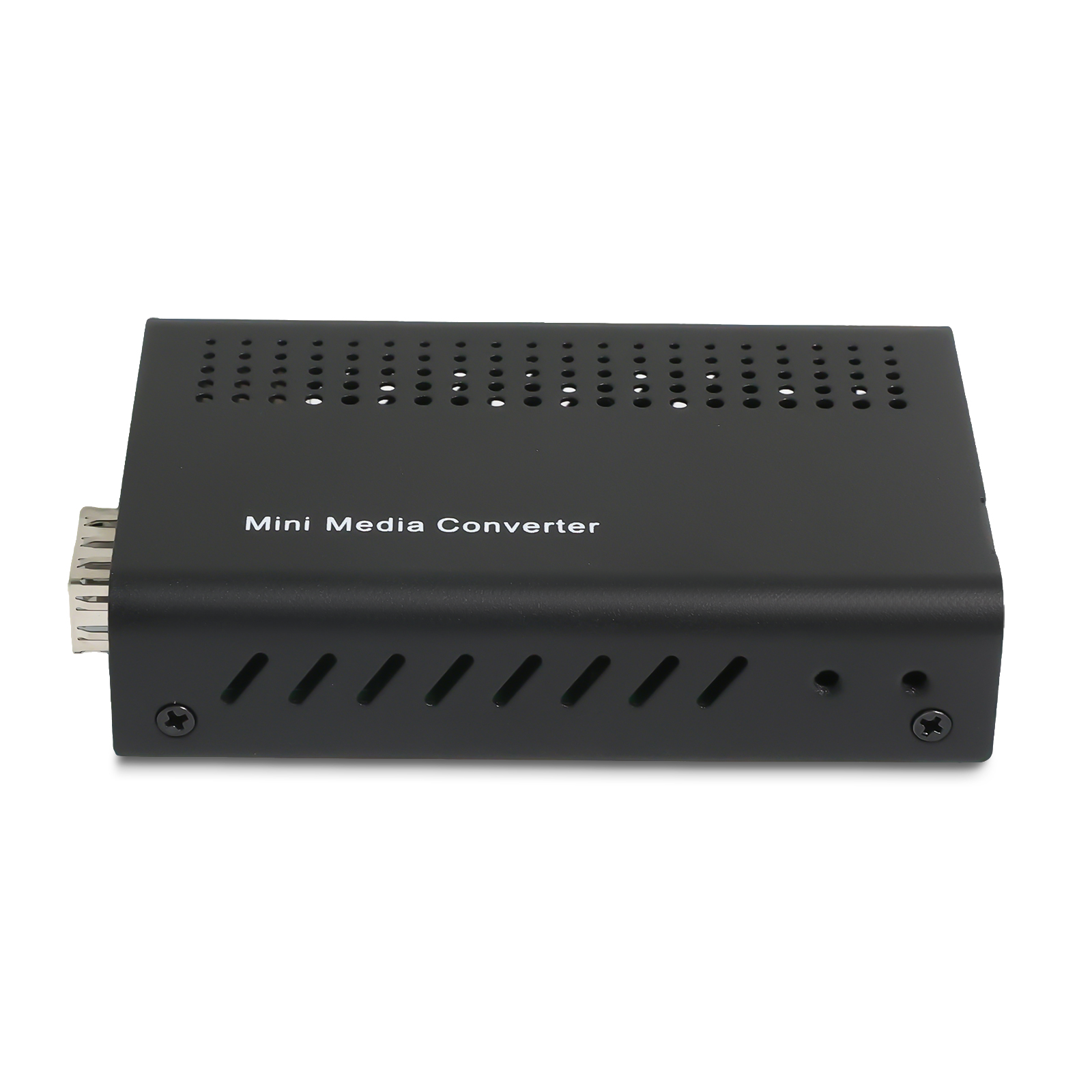

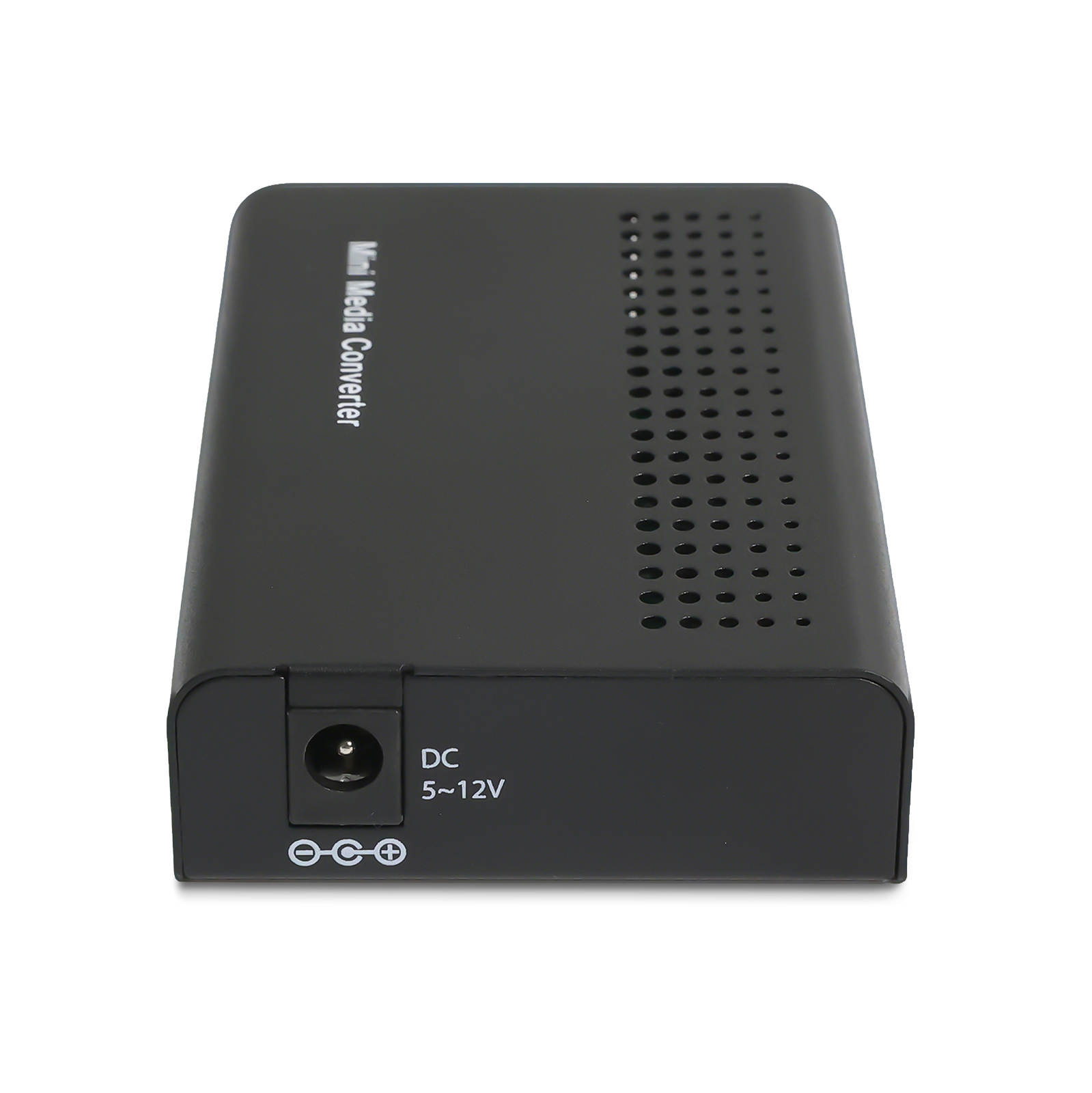

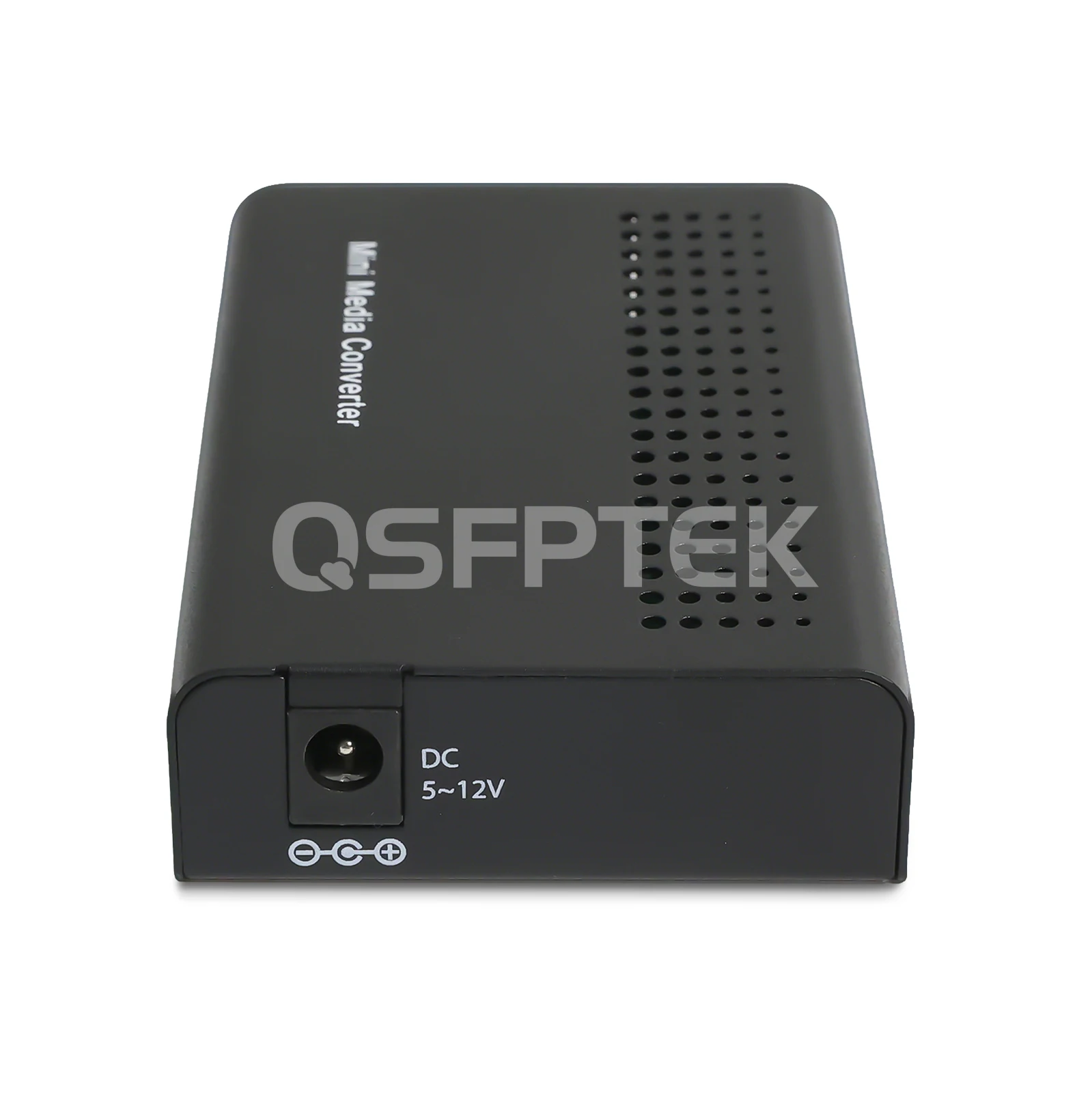

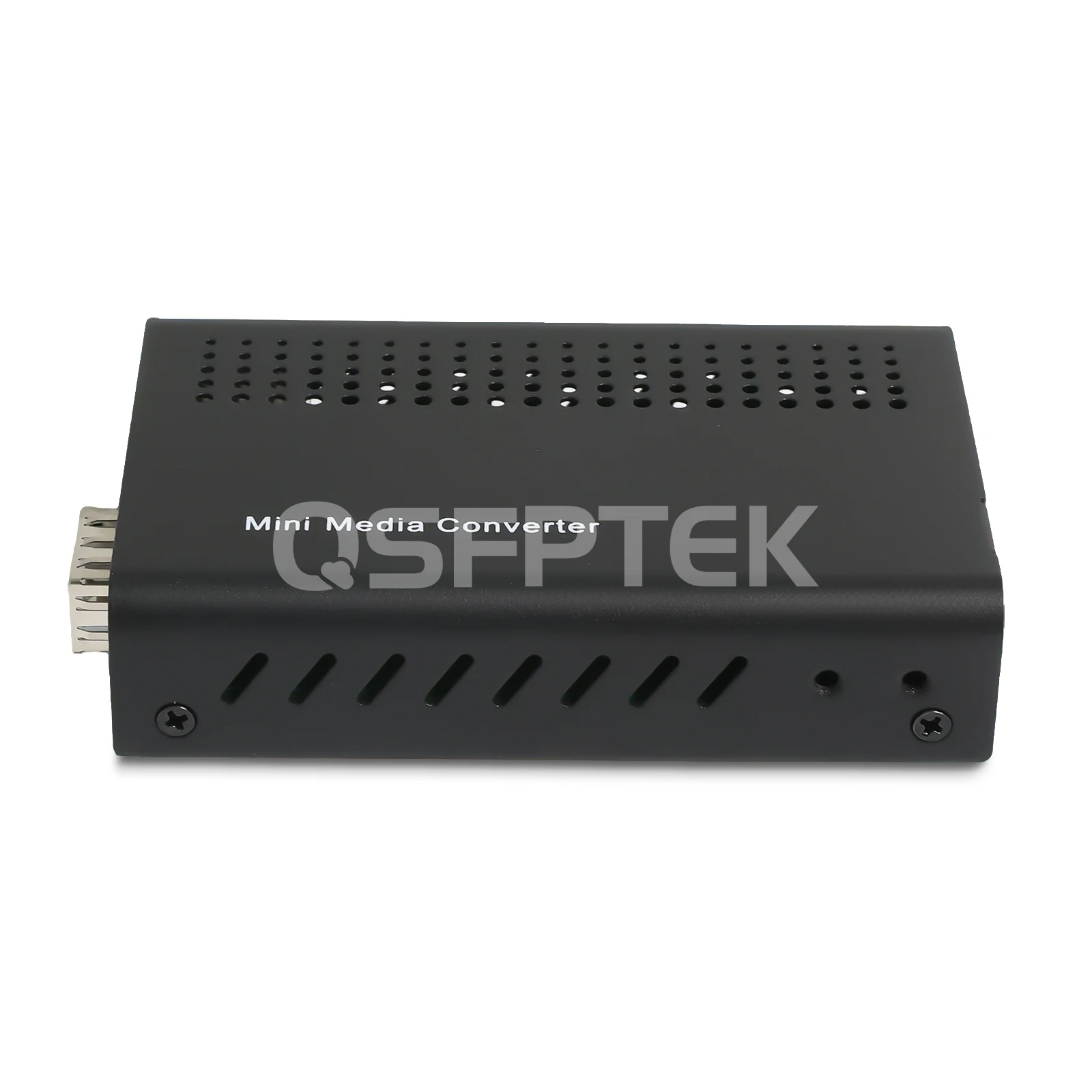

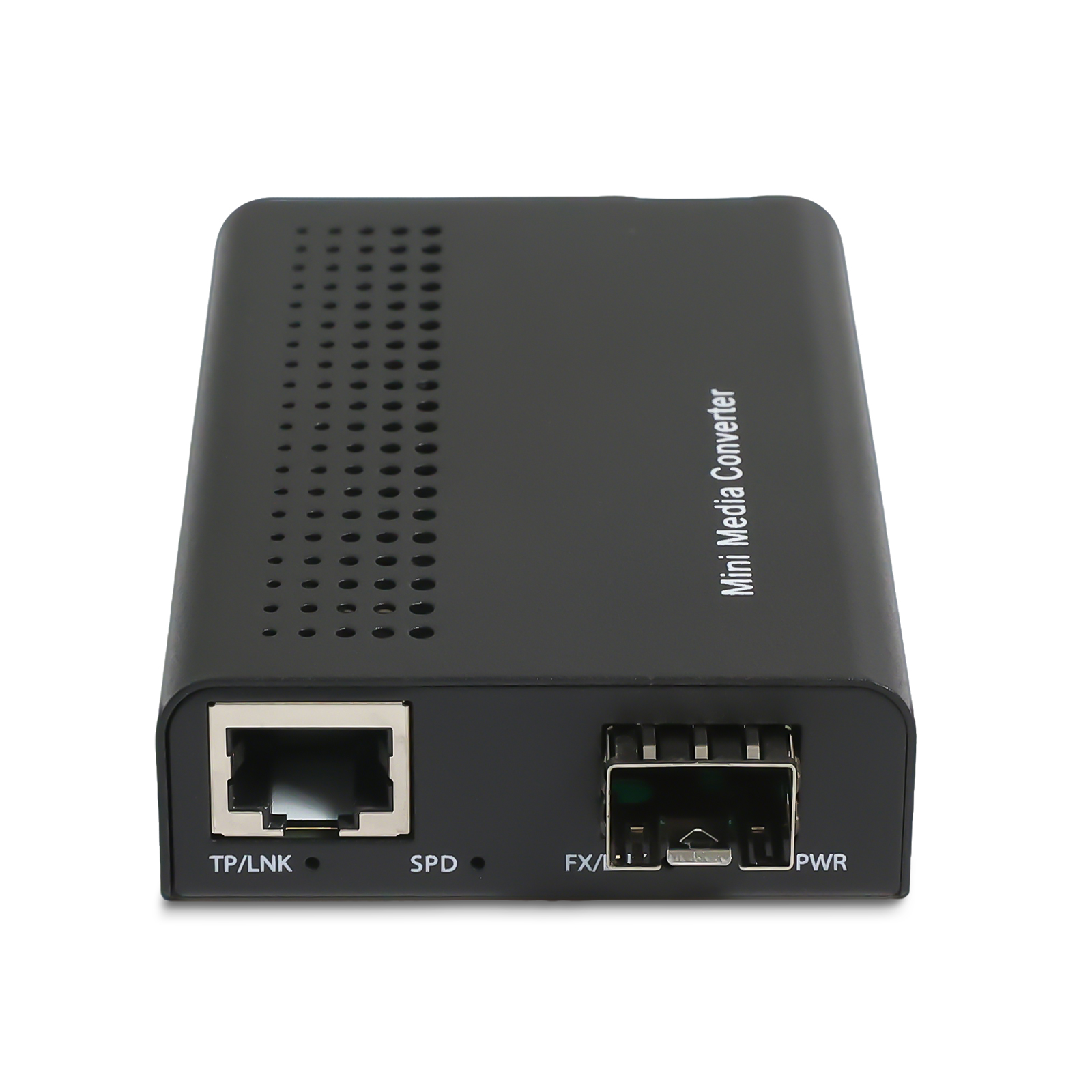

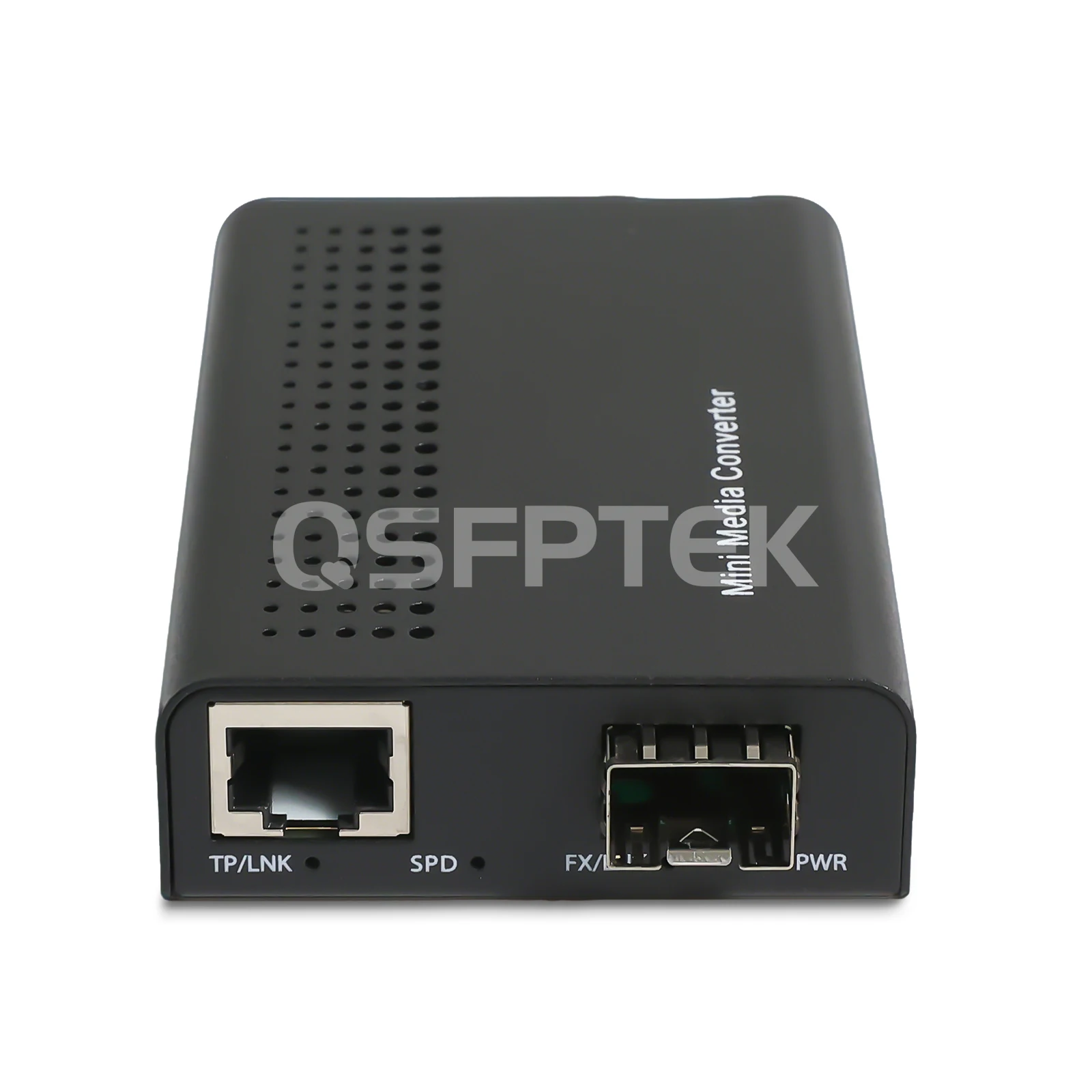

    QT-2.5G-UMC-1S1T, 1x 10/100/1000M/2.5GBase-TX RJ45 to 1x 1000M/2.5GBase-FX SFP Slot 2.5G Ethernet Mini Media Converter, DC 5~12V

    Product No: 202925
    0 Reviews
    0 Sold
    $51.90
    Series
    Models
    10 in real-time stock, 28Oct, 2026
    1-Year Warranty 14-Day Returns 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Supports 10/100/1000/2.5GBase-T to 1G/2.5GBase-X.
2. Compatible with SM/MM fiber and SC/LC/ST/FC connectors.
3. Meets IEEE 802.3, 802.3u/ab/z/bz specifications.
4. Auto-MDI/MDIX, rate auto-negotiation, store-and-forward or cut-through.
5. Supports LFP, ALS (SFP), with wide 5–12V power input.
    See more

    Specifications

    2.5G Ethernet Network Mini Media Converter (1x 10/100/1000M/2.5GBase-T RJ45 to 1x 1000M/2.5GBase-X SFP)



    This 2.5G fiber to copper Ethernet mini media converter is configured with a 1x 10/100/1000M/2.5GBase-T RJ45 port and a 1000M/2.5GBase-X SFP port. It is used to contact the RJ45 port switch with the SFP port switch by transferring the copper network to a fiber network and extending the transmission distance of the copper network system at speeds of 2.5Gbps. Media converters are widely used in structured cabling systems to interconnect fiber optic cabling systems with existing copper cables.

    Ports

    1x 100M/1G/2.5GBase-T RJ45 1x 2.5GBase-X SFP

    Standards and Protocols

    IEEE 802.3 10Base-T, IEEE 802.3 100Base-T, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z

    Cable Type (Fiber)

    Multimode 50/125µm, 62.5/125µm

    Single-mode 9/125µm

    Cable Type (Copper)

    UTP Cat 5, 5e, 6, 7 Cable (Maximum 100m)

    EIA/TIA-568 100Ω STP (Maximum 100m)

    LED Indicators

    TP/LNK, SPD, FX/LNK, PWR

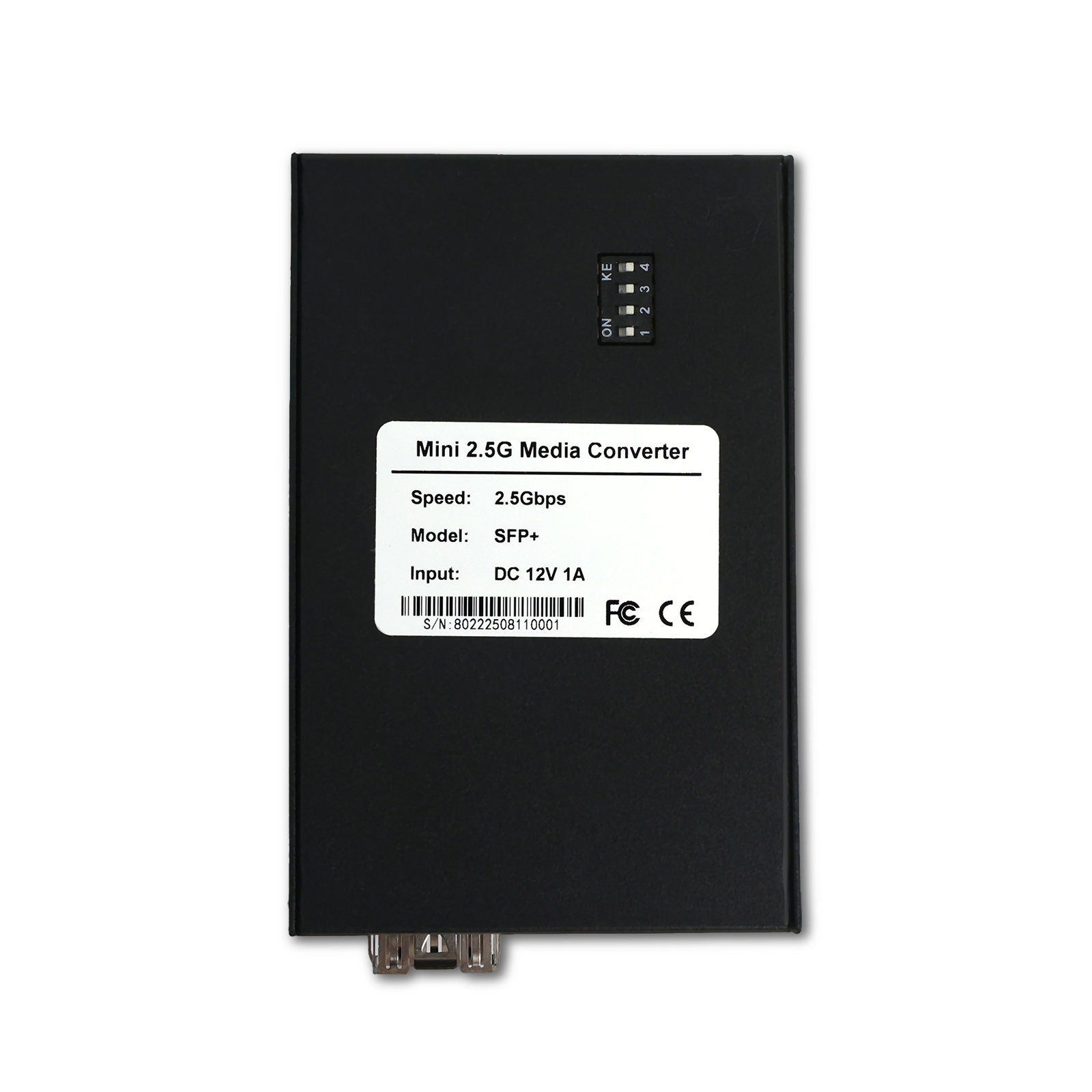

    DIP Switch

    LFP/ ALS/ FX Speed/FX Reset

    Power Consumption

    Full-load<3W

    Material

    IP30 Iron case

    Installation mode

    Rack mounted/Desktop/wall-mountable

    Dimensions (HxWxD)

    0.79''x2.36''x3.54'' (20x60x90mm)

    MTBF (hrs)

    50,000Hrs

    Weight

    120g

    Operating Temperature

    0°C to 50°C

    Storage Temperature

    -20°C to 70°C

    Relative Humidity

    5%~90% (Non-condensation)

    Warranty

    3 years



    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Features

    • 1. Compact IP30 metal enclosure designed for industrial and space-limited environments.
    • 2. Ultra-low power consumption (<3W) for efficient and stable long-term operation.
    • 3. Flexible DIP switch configuration for link control, speed setting, and fault management.
    • 4. Supports desktop, rack, and wall mounting for versatile deployment scenarios.

    Product details

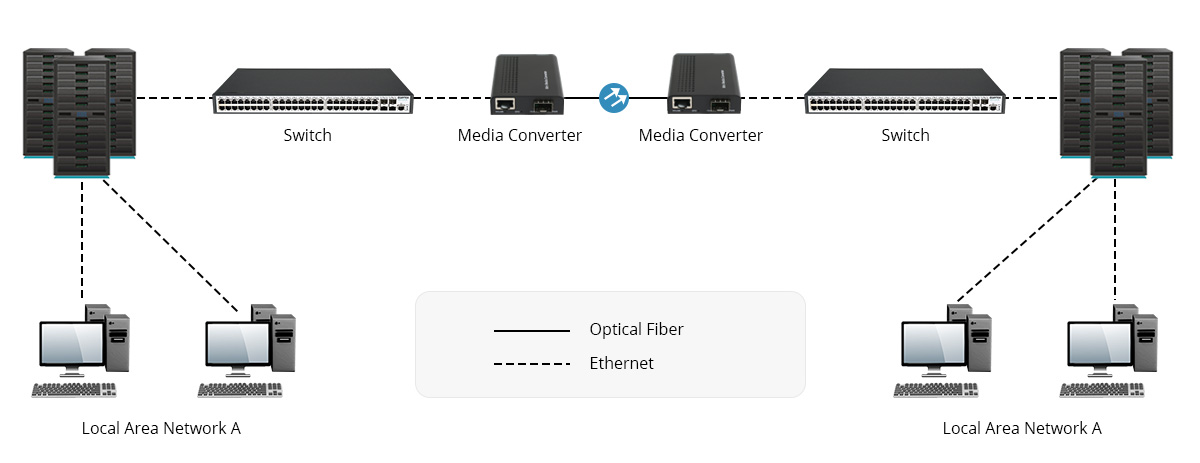

    Flexible signal extension and conversion



    By utilizing media converters and fiber optic cables, the link can be extended to longer distances, allowing for the migration of the network to fiber while leveraging the existing copper cable infrastructure.

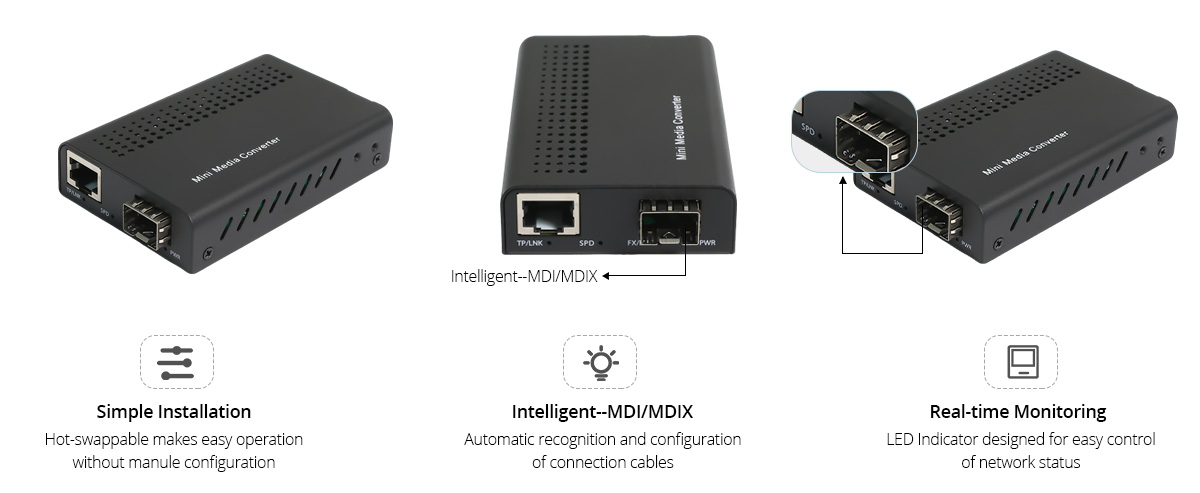

    Easy and Efficient Operation



    Hot-swappable design, plug-and-play. Easy to install and troubleshoot, no additional configuration is required for connectivity.

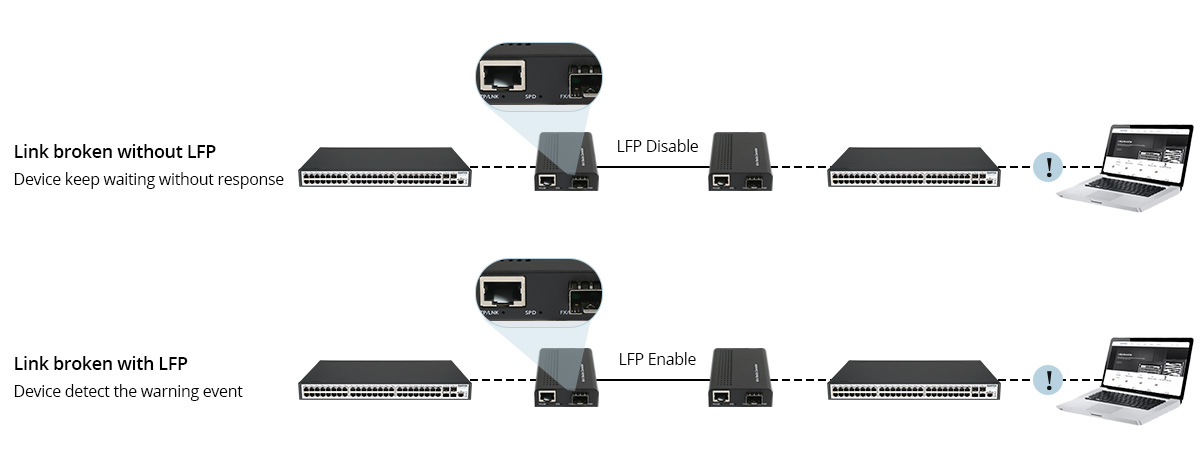

    LFP Rapid Alarm Link Failure



    LFP (Link Fault Pass-through) functionality enables quick detection of failed links within a short timeframe, minimizing potential losses caused by link failures.





    Questions & Answers

    • All (5)
    • Can this transceiver be used with Cat6 cables?
      Certainly, as long as it has an RJ45 connector.
    • Can this media converter accurately transmit LACP packets?
      The media converter functions as a Copper-to-Fiber converter, extending transmission distances. LACP packets primarily handle link aggregation traffic within the device. In principle, transmission should proceed without any issues.
    • Does this transceiver have any requirements for the brand of the optical module?
      No, It is generic, can be adapted with multi brands of transceivers.
