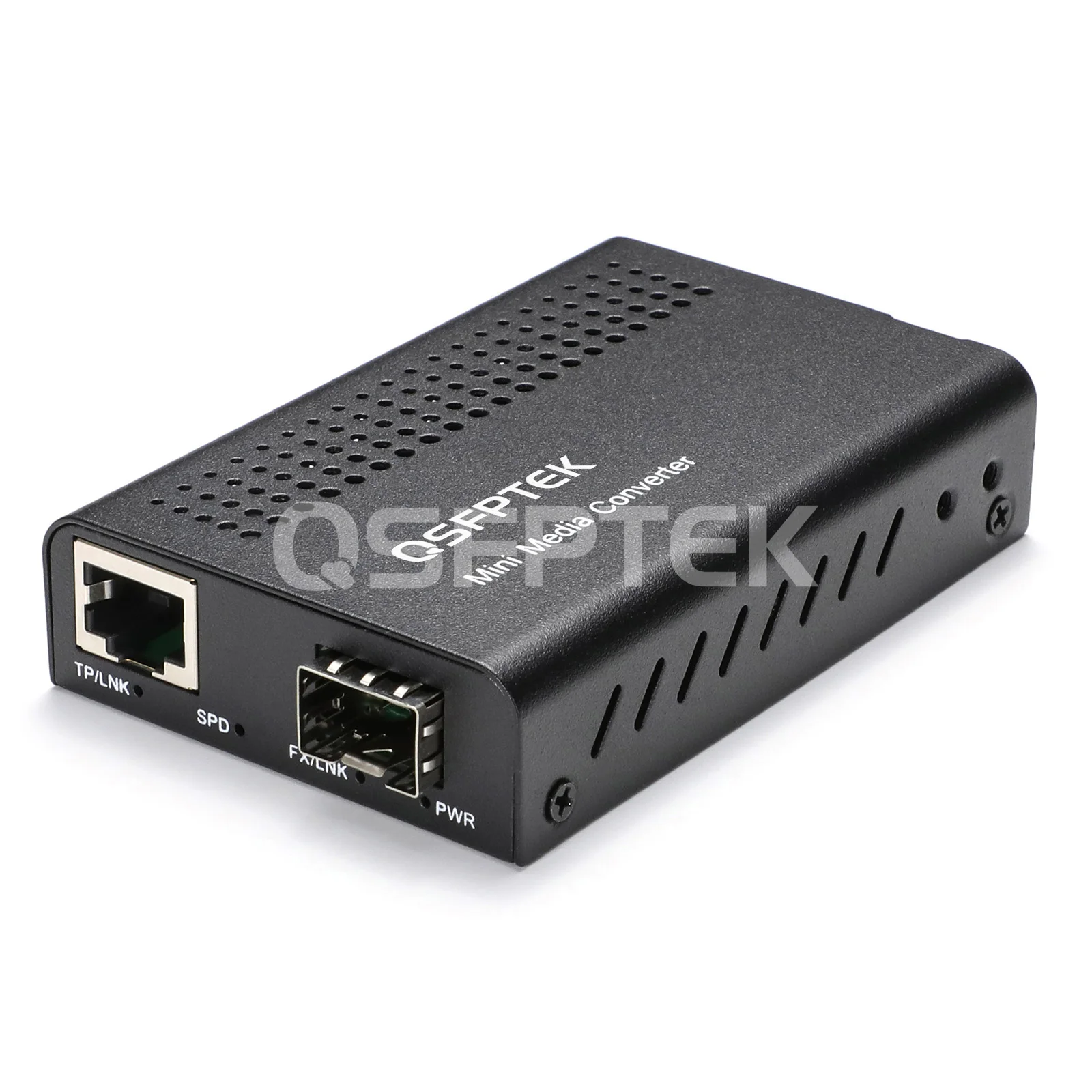

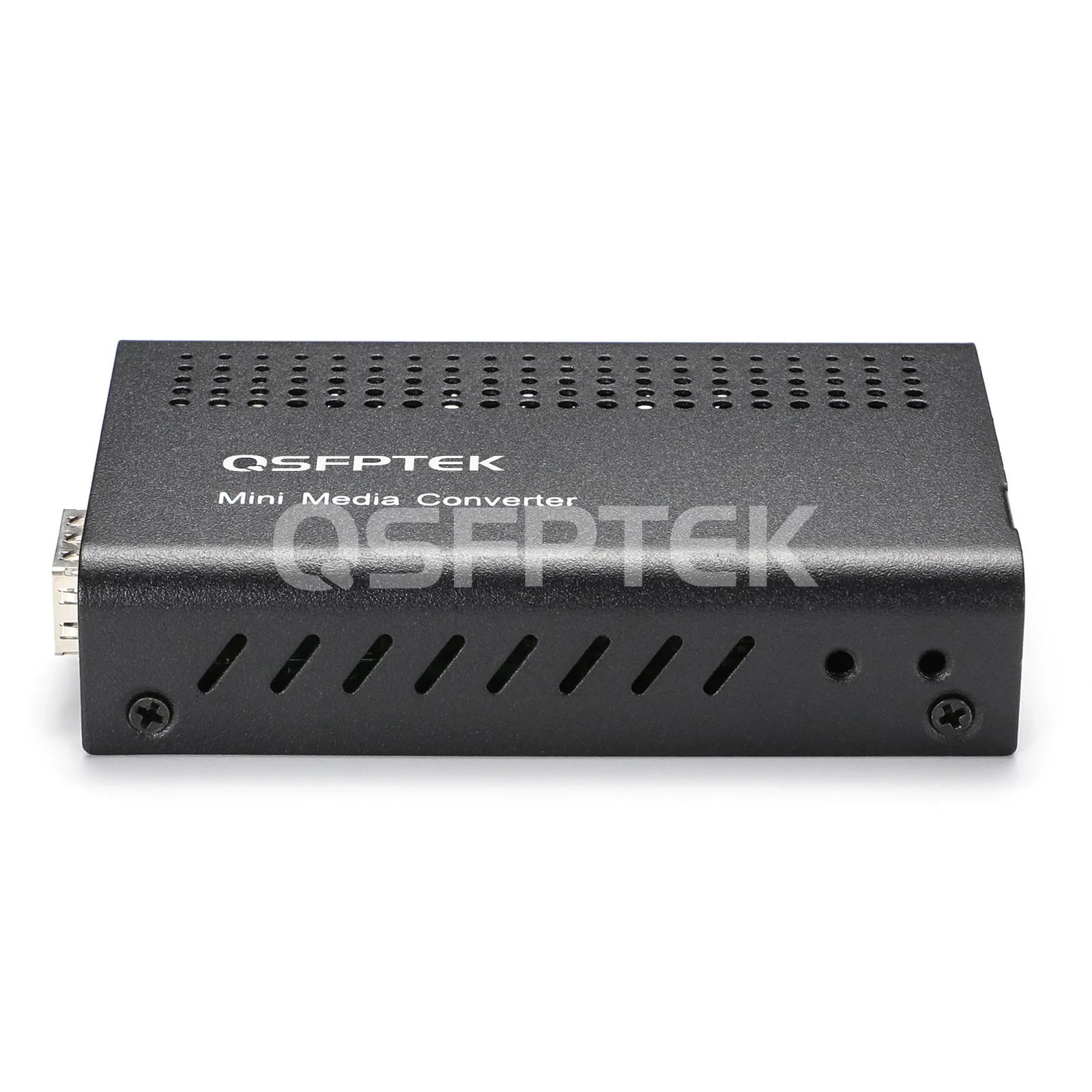

Mini Unmanaged 1x 10/100/1000Base-T RJ45 to 1x 1000Base-X SFP Slot Gigabit Ethernet to Fiber Media Converter, AC 100V~240V or DC 5~12V optional

Product No :99868
US$ 21.90  US$ 29.90
100 in stock
1. Mini Size, Dimensions 0.79''x2.36''x3.54'' (20x60x90mm)
2. Supporting Auto-MDI/MDIX
3. Support IEEE 802.3x Flow Control, LFP/ALS Function & FX Speed are Optional
4. Support 1U 12 Slots Chassis & Stand-alone Use
5. Equipped with LED Indicates Diagnostic & DIP-switch Configurations Status
See more +

Specifications

1x 10/100/1000Base-T RJ45 to 1x 1000Base-X SFP Slot Mini Gigabit Ethernet Media Converter(1G, SFP to RJ45, AC or DC)



The Mini Unmanaged Gigabit Ethernet to Fiber Media Converter can provide a flexible and cost-effective solution for enterprise customers and data centers to convert Ethernet or other communication protocols by copper (CATx/UTP)-to-fiber or fiber-to-fiber connections. It is generally used in pairs in MAN and LAN to insert a fiber segment into copper networks to increase the transmission distance. QSFPTEK also offers Media Converter Chassis, the 1U height 12 slots media converter rack mount chassis specially designed for accommodating chassis-based mini Media Converters.

The media converters are compatible with a wide range of SFP transceivers, such as 100Base SFP, 1G BIDI SFP, 1G CWDM SFP, 1G DWDM SFP transceiver modules, etc. Furthermore, QSFPTEK also provides other versions of 1g media converter with built-in optical module, the transmission distance is from 2km to 40km, and LC or SC connector types can be selected.



Ports

1 x Gigabit SFP Port
1 x 10/100/1000M RJ45 Port (Auto MDI/MDIX)

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,IEEE 802.3z, IEEE 802.3x

Cable Type (Fiber)

Multimode 50/125µm, 62.5/125µm
Single-mode 9/125µm

Cable Type (Copper)

UTP Cat 5, 5e, 6 Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)

LED Indicators

TP/LNK,1000M, FX/LNK, PWR

DIP Switch

LFP/ ALS/ FX Speed/FX Reset

Power Consumption

Full-load<3W

Jumbo Frame

12k

Operation Mode

10/100Mbps for Half/Full duplex
1000Mbps for Full Duplex

Dimensions (HxWxD)

0.79''x2.36''x3.54'' (20x60x90mm)

MTBF (hrs)

>50,000Hrs

Latency

1us

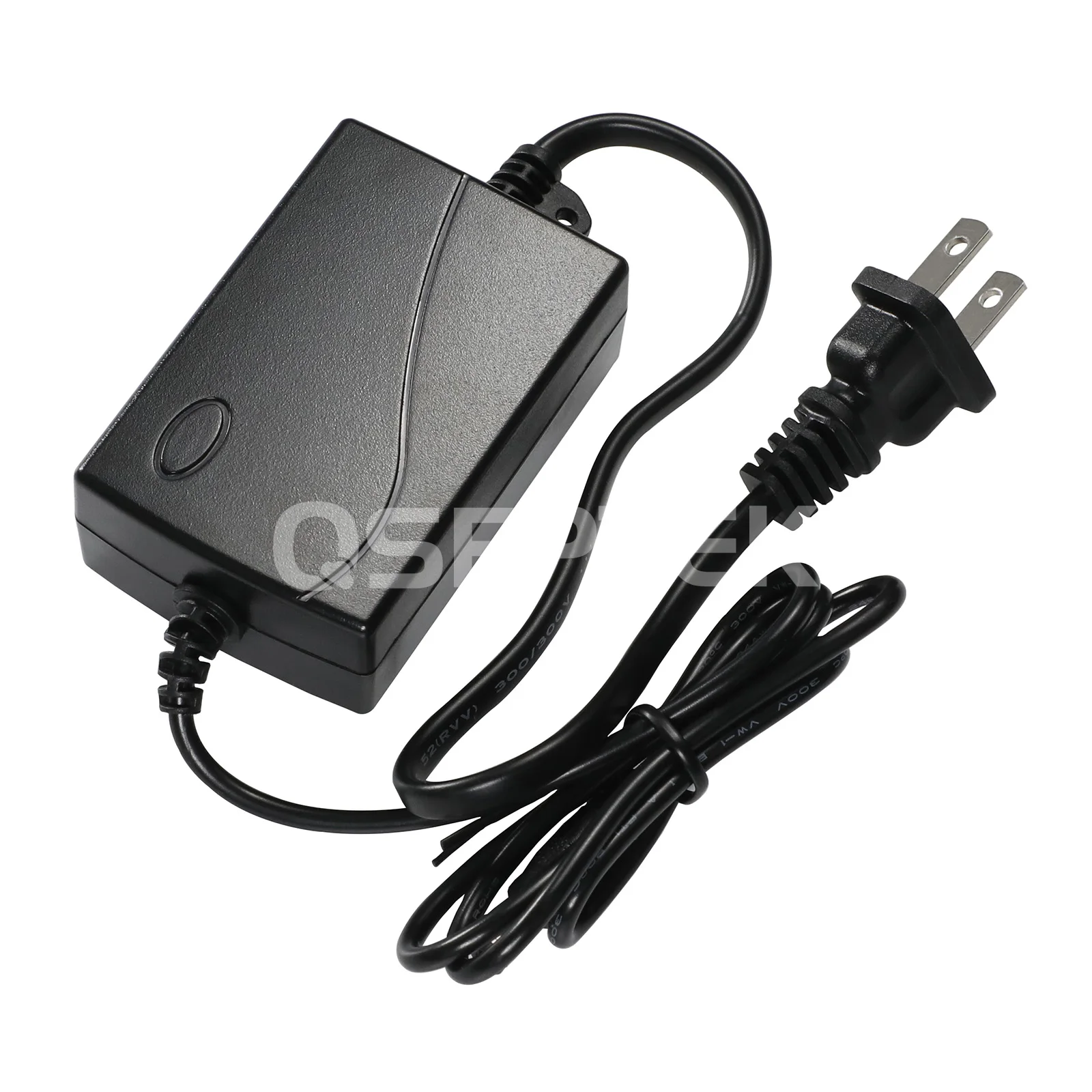

External Power

AC 100V~240V

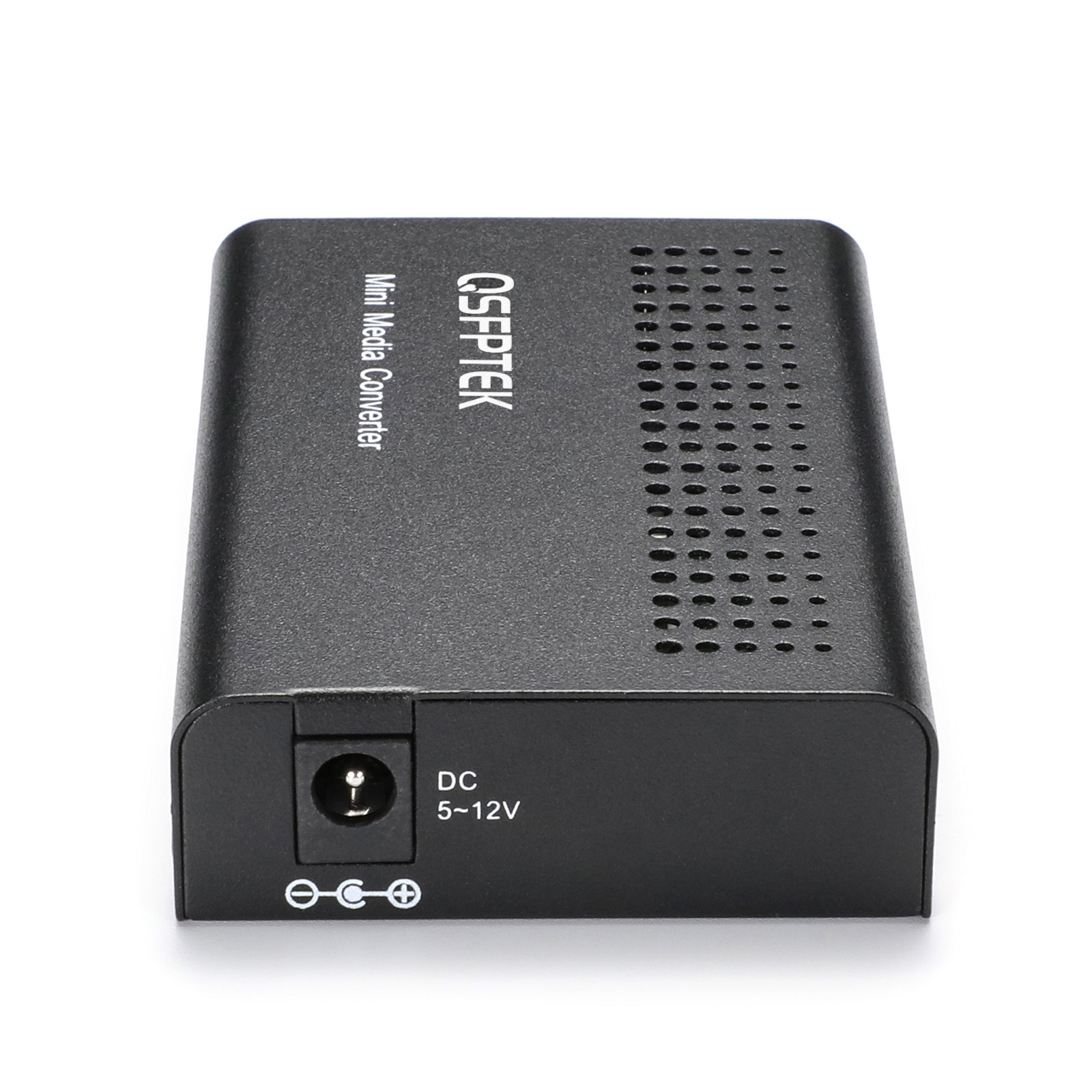

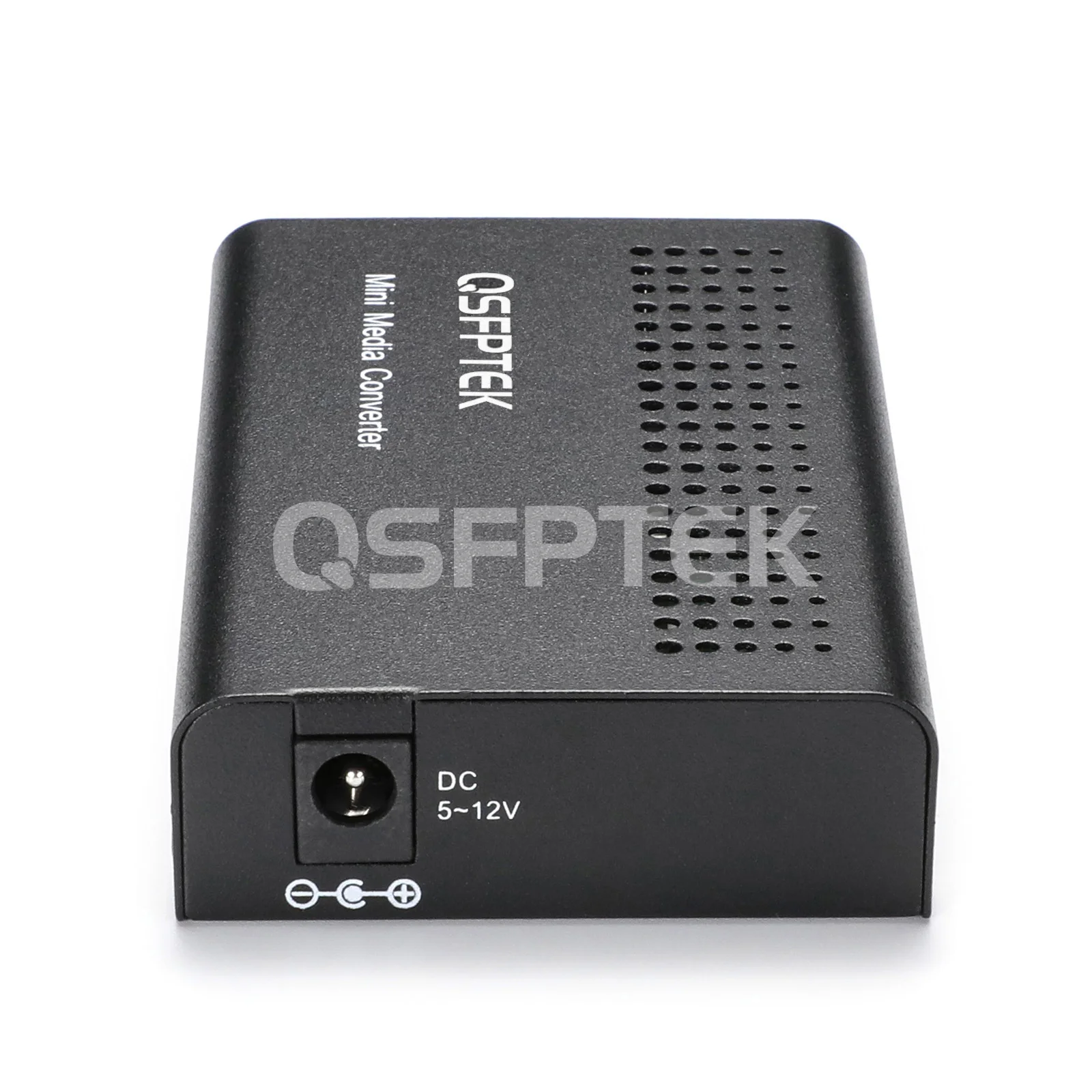

Input Power

DC 5-12V

Operating Temperature

0°C to 50°C

Storage Temperature

-20°C to 85°C

Relative Humidity

5%~90% (Non-condensation)

Warranty

2 years



Quality Certifications

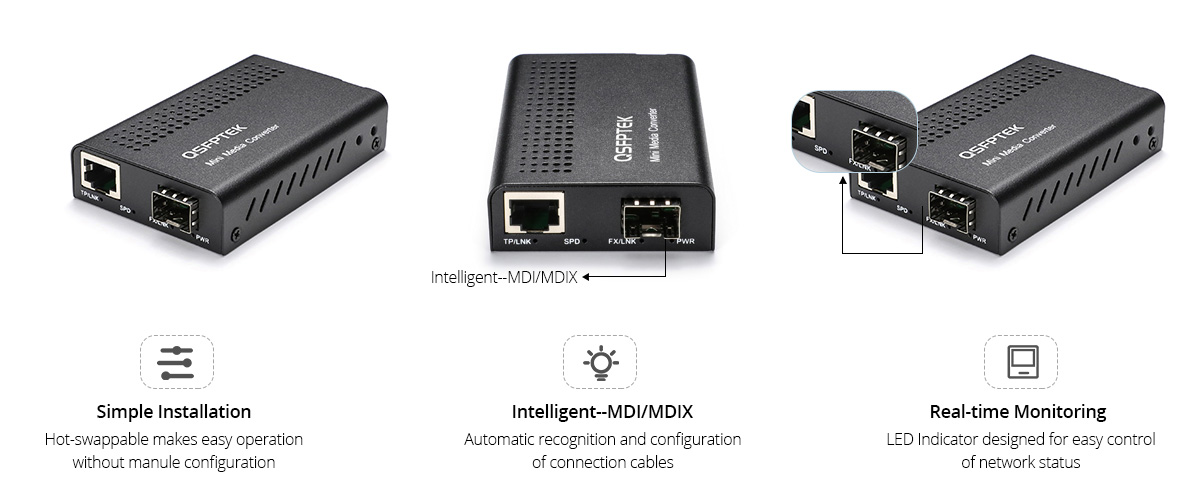

Features

Applications

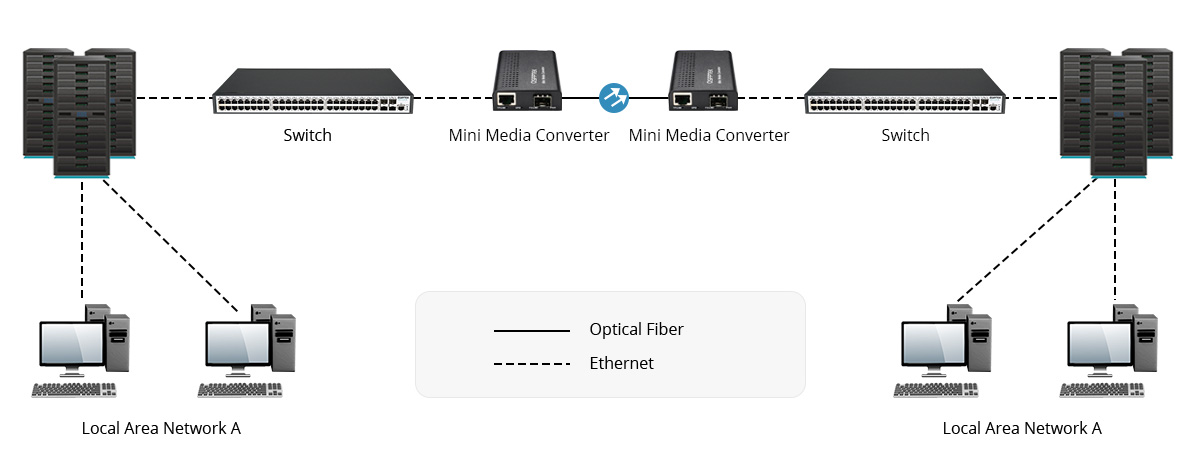

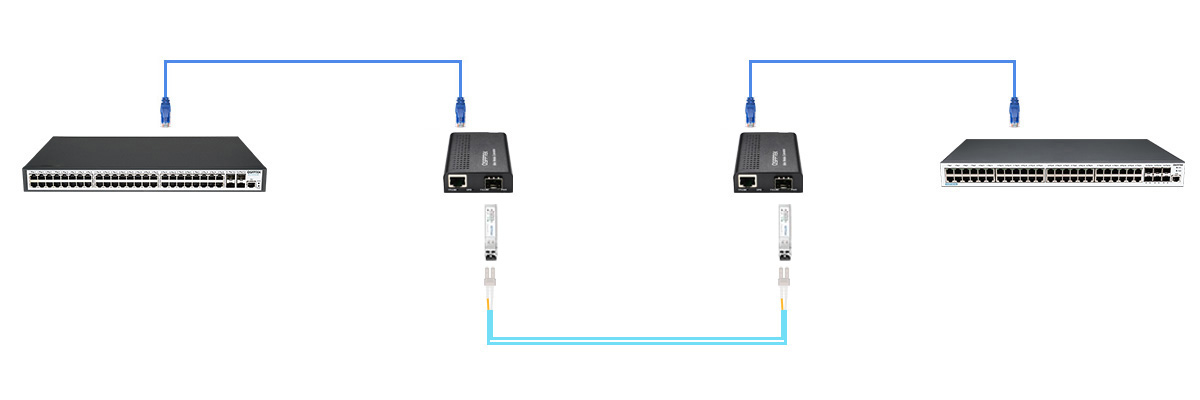

Convert and Extend Signals

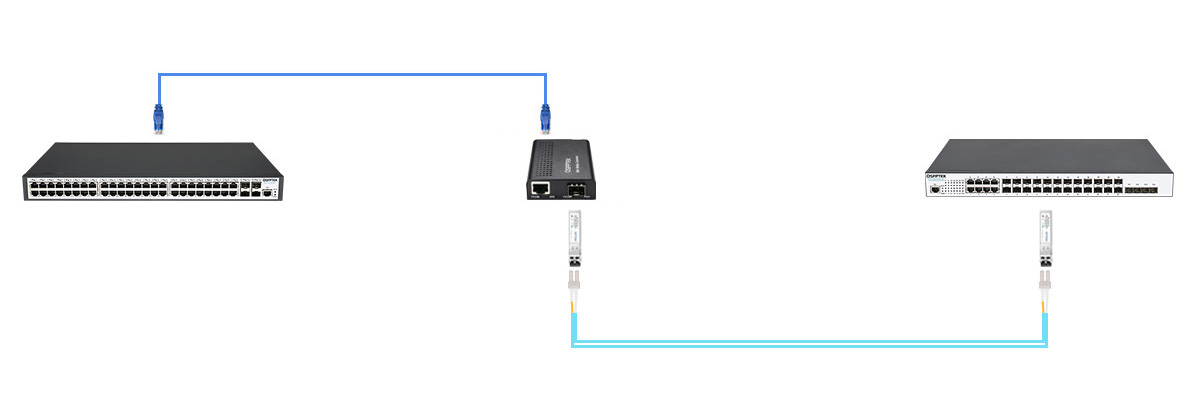

The 1000BASE-X SFP to RJ45 Ethernet Converter extends links over greater distances with fiber optic cable, solving the problem that the transmission distance using the copper cable is limited to 100meters.



Questions & Answers

more+
  • Does this transceiver have any requirements for the brand of the optical module?
    No, It is generic, can be adapted with multi brands of transceivers.
  • Does the 1g sfp to rj45 converter support all VLANS?
    Yes, but you can't configure it.
  • Can this be used with 1g bd sfp? such as T1310/R1490 Bidirectional SFP module.
    Yes, it is. The media converter can support a wide range of transceiver modules, including BIDI SFP, CWDM SFP, DWDM SFP.
See more +

Customer Reviews

Write a Review
Write a Review
  • Owen3 United States of America
    2022-02-16

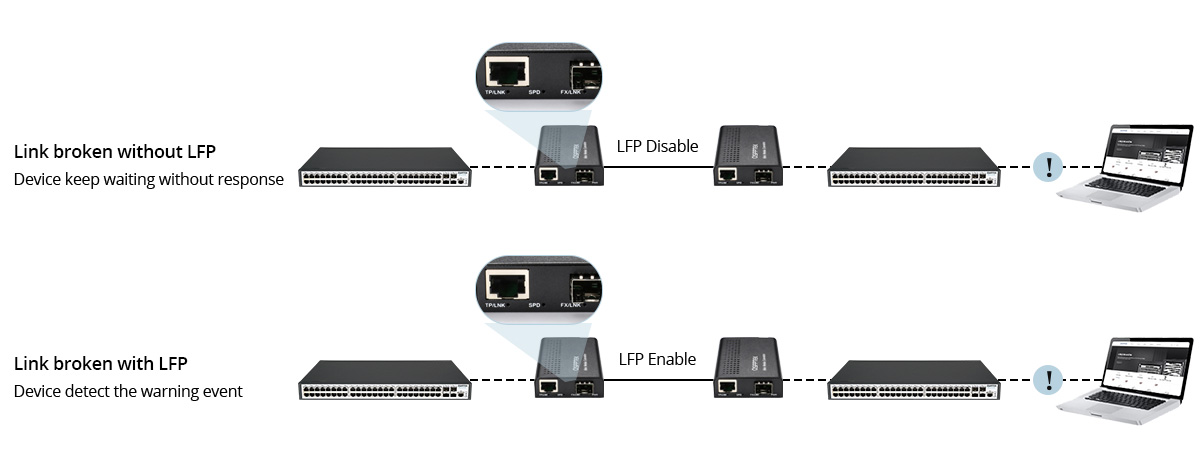

    Plug and play, no more configuration required. The LFP function allows me to monitor the LAN, process accidental link issues the first time. btw, they don't list network switches, if there are, I will buy one for a try.

    Models1XRJ45 to 1xSFP

    SeriesMini Unmanaged Converter

    0

    0

  • Barado 022 Germany
    2021-12-28

    When I began to ask about this product, Talia helped me and provided a good solution, so I decided to buy it and test it.

    Network switches Models1XRJ45 to 1xSFP

    Network switches SeriesMini Unmanaged Converter

    0

    0

Datasheet

  • 1x 101001000Base-T RJ45 to 1x 1000Base-X SFP Slot Mini Gigabit Ethernet Media Converter.pdf
