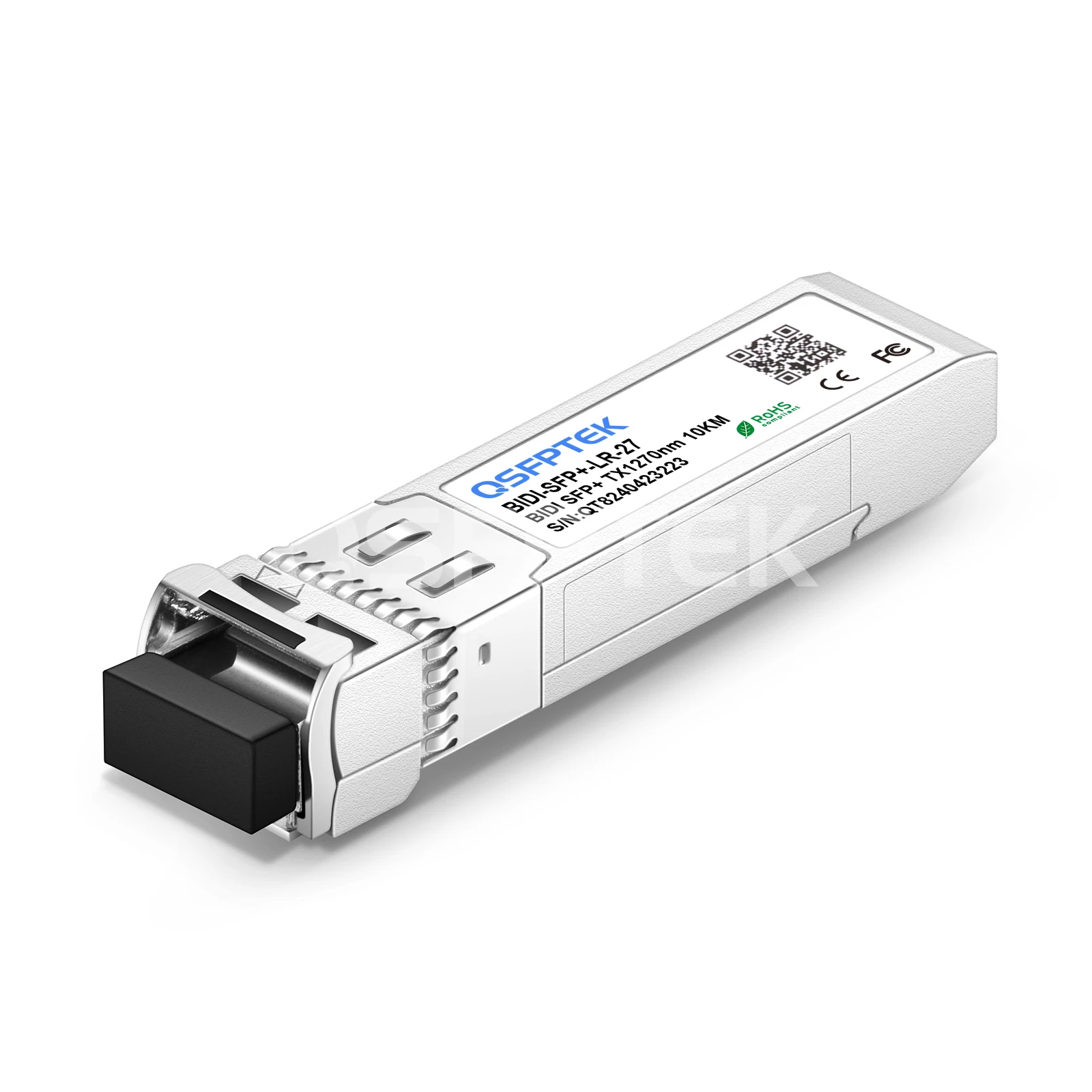

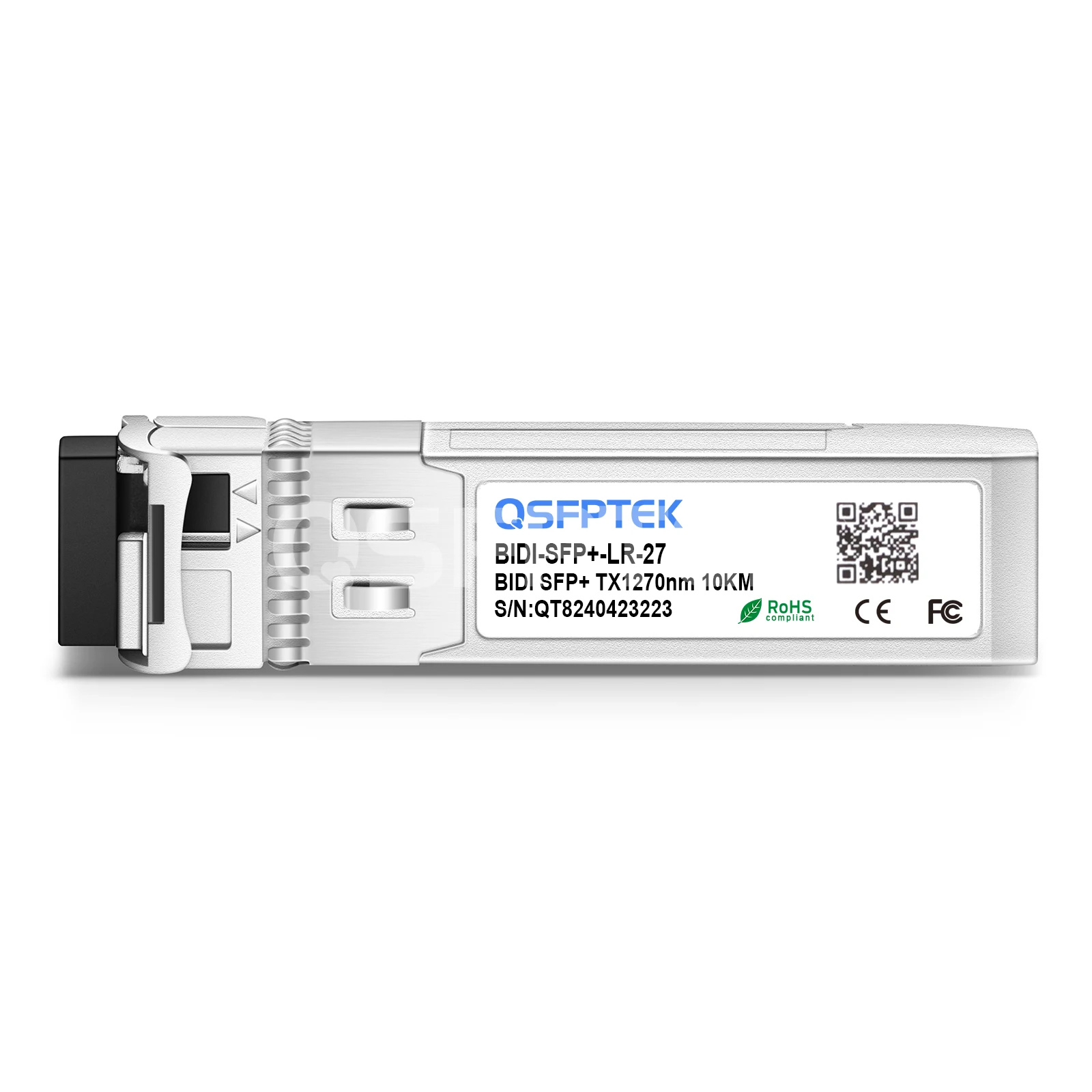

Cisco SFP-10G-BXU Compatible 10GBASE-BX10-U BiDi SFP+ 1270nm-TX/1330nm-RX 10km DDM LC SMF Transceiver

Product No :28731
US$ 18.90  US$ 31.90

Specifications

Cisco SFP-10G-BXU Compatible 10GBASE-BX10-U BiDi SFP+  Transceiver Module (SMF, 1270nm-TX/1330nm-RX,10km, LC, DDM)



The Cisco SFP-10G-BXU compatible SFP+ optical transceiver is equipped with an LC simplex connector, reaching a link up to 10km over G.652. This 10G BiDi SFP+ transceiver, featured with carrying information in both directions via a single strand, can double your network capacity and save your cable resources. QSFPTEK manufactured 10GBASE-BX BiDi SFP+ transceiver module is compliant with SFP+ MSA, IEEE 802.3ae, SFF-8431. Besides, DDM (digital diagnostics monitoring) function is supported on the 10G fiber optic transceiver to achieve real-time operating parameters monitoring. It's also fully compatible with almost all OEM devices.



Model Name: SFP-10G-BXU Vendor Name: QSFPTEK
Form Factor: SFP+ Data Rate: 10Gbps
Wavelength: 1270nm-TX/1330nm-RX Distance: 10km
Connector: LC Simplex Cable Type: OS2 SMF
Transmitter Type: DFB Receiver Type: PIN
TX Power: -5~0dBm Receiver Sensitivity: <-14dBm
Power Consumption: <1W Modulation Format: NRZ
DDM: Support Bit Error Ratio (BER): 1E-12
Protocols: Fast Ethernet, Gigabit Fibre Channel, MSA Compliant, SFF-8472 Warranty: 3 Years

Quality Testing Program
Quality Certifications

Features

  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.
  • 3. Protocols
    Compliant with IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432.
  • 2. Double Your Network Capacity
    One strand is used to carry information in both directions.
  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.

Product details

Save 50% On Fiber Resources



BiDi SFP+ module allows data transmitting and receiving over one single fiber, greatly saving network fiber resources and costs.








Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



QSPFTEK LAB All Brands Switches Show






Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



QSFPTEK Test Rack






Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.



QSFPTEK Test Devices



;jsessionid=05F3060A8A48445329918EC111319D31

Questions & Answers

more+
  • Do BiDi modules have to be used in pairs, should I buy both -U & -D models?
    I suggest purchasing in pairs since BIDI modules typically require usage in pairs.
  • Is this Cisco 10G BiDi module compatible with Cisco Nexus 93180YC-FX?
    Certainly, the Cisco 10G BIDI is well-suited for your requirements. I've employed it with my Cisco Nexus 93180YC-FX, and it performed flawlessly.
  • What is the main difference between the BIDI module and the conventional optical module, and why do I need to choose a BIDI transceiver?
    The primary difference from traditional duplex optical modules is that the BiDi optical module operates as a simplex module. Importantly, it should be emphasized that BiDi modules must be deployed in pairs.
See more

Customer Reviews

Write a Review
Sign in to write a review
Write a Review

5 stars

29 Reviews

4 stars

1 Reviews

3 stars

0 Reviews

2 stars

0 Reviews

1 stars

0 Reviews

Reviews with images

See all photos

Read reviews that mention

  • ALL (16)
  • Speed (2)
  • Premium Service (2)
  • Warranty (2)
  • Matched Cables (1)
  • Shopping Experience (1)
  • Plug-and-Play (3)
  • Batch Order Discount (1)
  • Repurchse (1)
  • Stable (2)
  • High Reliability (1)
  • DDM (2)
  • Upgrade (2)
  • Customer Support (4)
  • Good Price (2)
  • Auto-Negotiation (1)
  • Fast Delivery (1)
  • Power Consumption (1)
  • Compatibility (6)
  • Carlson United States of America
    2023-04-10

    The 10G transceiver module was used for the 10 km extension. it works with max power consumption1w, that's really energy saving design, the pull ring design allows for easy extraction, I like the products.

    Transceivers typeSFP-10G-BXU | 10KM, 1270nm/1330nm

    CompatibleCisco

    Verified Purchase

    Helpful

    0

  • Calvin United States of America
    2023-03-31

    I bought this BIDI module for the first time. At first I didn't know that this kind of module needs to be used in pairs. After the account manager reminded me, I realized that I bought it wrong. Very good service and guidance. I was concerned about their compatibility with my N9K-C9396PX, so I asked them to test it for me. After the test they showed me the test report. I received my purchase a while back and they worked great on my switch, it was a great shopping experience.

    Transceivers typeSFP-10G-BXU | 10KM, 1270nm/1330nm

    CompatibleCisco

    Verified Purchase

    Helpful

    0

  • Cary United States of America
    2023-03-31

    I bought two 10G BIDI optical modules from QT for testing, and I am very satisfied with the test results. The sales person recommended me the correct compatible and everything worked as expected. I will be buying some 20km and 40km modules next, will need more later.

    Transceivers typeSFP-10G-BXU | 10KM, 1270nm/1330nm

    CompatibleCisco

    Verified Purchase

    Helpful

    0

  • Bruce United States of America
    2023-03-31

    My device is Aruba 6200F CX, and I'm looking for a module that can transmit over a long distance while saving as much fiber as possible because cable management is a big issue. With the recommendation of my account manager, I chose this module. It can use a single fiber for long-distance data transmission, which is exactly what I was looking for.

    Transceivers typeSFP-10G-BXU | 10KM, 1270nm/1330nm

    CompatibleCisco

    Verified Purchase

    Helpful

    0

  • Humphrey Lucia United States of America
    2023-03-28

    We've experienced no issues with connectivity or data transfer speeds, and the build quality seems top-notch. Highly recommend!

    Transceivers typeSFP-10G-BXU | 10KM, 1270nm/1330nm

    CompatibleCisco

    Verified Purchase

    Helpful

    0

  • Theodoric United States of America
    2023-03-25

    This is a very cost-effective 10G BIDI module. It has low power consumption and can transmit data bidirectionally with only one fiber, which reduces the cost of fiber usage and improves deployment efficiency. Tested his transmission quality after purchase and it works as expected, plug and play, no additional configuration required.

    Transceivers typeSFP-10G-BXU | 10KM, 1270nm/1330nm

    CompatibleCisco

    Verified Purchase

    Helpful

    0

  • Roberto V United States of America
    2023-03-13

    our company is well known for network solution service, we have a great demand for transceivers, thanks for Talia's command and bought one pc first, you just use 50%fiber resource reaching links up to 10km, it's also fully compatible with almost all OEM devices, that's good.

    Transceivers typeSFP-10G-BXU | 10KM, 1270nm/1330nm

    CompatibleCisco

    Verified Purchase

    Helpful

    0

  • Heloise United States of America
    2023-02-25

    We have implemented a router that needed to be connected to an HPE switch. QSFPTEK supplied us with a media converter, a BiDi SFP, and an SM fiber optic cable. The media converter was used to facilitate the optical and electrical conversion, and it was truly plug-and-play - no adjustments to the dip switch were necessary. We encountered no issues with the router and the QSFPTEK products were a perfect match for our existing cables.

    Transceivers typeSFP-10G-BXU | 10KM, 1270nm/1330nm

    CompatibleCisco

    Verified Purchase

    Helpful

    0

  • Scott F United States of America
    2022-11-21

    Good product with a wide range of compatibility and affordable pricing. I had no issues installing and getting these SFPs to work. Excellent product for the cost!

    Transceivers typeSFP-10G-BXU | 10KM, 1270nm/1330nm

    CompatibleCisco

    Verified Purchase

    Helpful

    0

  • Freda Julia United States of America
    2022-11-18

    The material used is very good. It has been tested on my Cisco switch after being recommended by colleagues and friends, and it is perfectly compatible.

    Transceivers typeSFP-10G-BXU | 10KM, 1270nm/1330nm

    CompatibleCisco

    Verified Purchase

    Helpful

    0

Resources

  • SFP-10G-BX 10KM TX1270-RX1330 Datasheet.pdf
