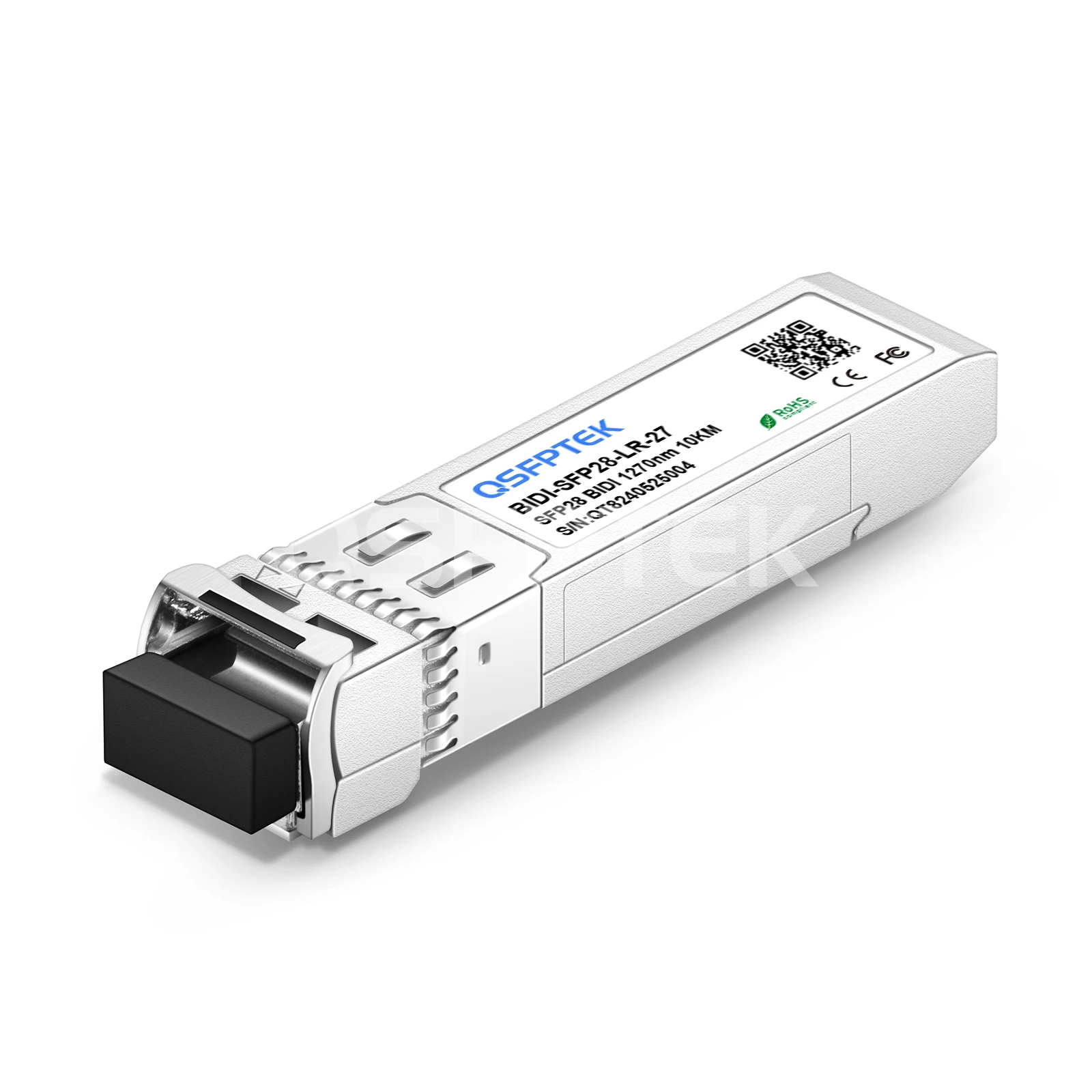

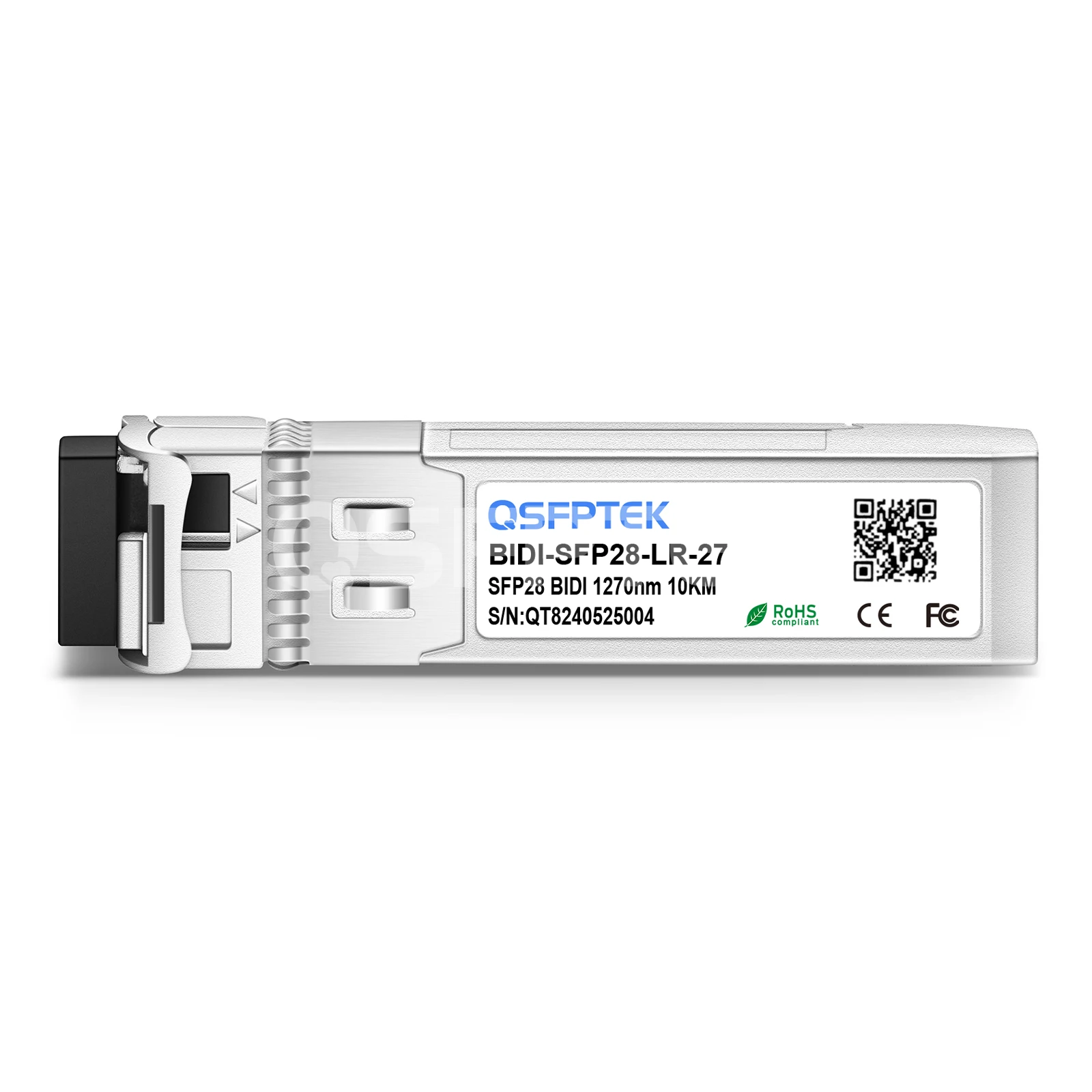

Juniper Networks SFP28-25G-BX Compatible 25GBASE-BX10-U SFP28 1270nm-TX/1330nm-RX 10km Optical Transceiver Module

Product No :99163

US$ 36.90 ~~US$ 49.88~~

Compatible

Cisco Huawei Juniper Arista Mellanox Brocade Generic

Transceivers type

SFP28-25G-BX-U-JU | 10km, 1270nm/1330nm SFP28-25G-BX-D-JU | 10km, 1330nm/1270nm

1000 in stock

Free Shipping over US$ 84.9

US/EU Warehouses in stock

14-day Return and Refund

Bulk Order Quotes Shop Online

1. Rate: 25G; Connector: Simplex lC
2. DFB+PIN; Low Power Consumption <1.2W
3. Applied in Data Center and Campus Network
4. Fully Compatible with 100+ Vendors
5. SFP28 MSA Compliant

Specifications

Juniper Networks SFP28-25G-BX Compatible 25GBASE-BX10-U SFP28 Optical Transceiver Module (SMF, 1270nm-TX/1330nm-RX, 10km, LC, DDM)

The Juniper Networks SFP28-25G-BX compatible 25G SFP28 optical transceiver is equipped with an LC simplex connector, reaching a link up to 10km over G.652. 25G BiDi module can double your network capacity and save your cable resources, for one strand is used to carry information in both directions. QSFPTEK manufactured 25GBASE-BX SFP28 transceiver module is compliant with SFP28 MSA, CPRI, and eCPRI standards. Besides, DDM (digital diagnostics monitoring) function is supported on the 25G fiber optic transceiver to achieve real-time operating parameters monitoring. This 25G SFP28 transceiver is fully compatible with almost all Juniper devices.

Model Name:	SFP28-25G-BX	Vendor Name:	QSFPTEK
Form Factor:	SFP28	Data Rate:	25Gbps
Wavelength:	1270nm-TX/1330nm-RX	Distance:	10km@OS2
Connector:	LC Simplex	Cable Type:	OS2 SMF
Transmitter Type:	DFB BiDi	Receiver Type:	PIN
TX Power:	-5~2dBm	Receiver Sensitivity:	<-18dBm
Power Consumption:	<1.2W	Modulation Format:	NRZ
DDM:	Support	Bit Error Ratio (BER):	1E-12
Protocols:	SFP28 MSA, CPRI, eCPRI	Warranty:	3 Years

Quality Certifications

Features

1. High Reliablility and Best Price

Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
2. Double Your Network Capacity

One strand is used to carry information in both directions.
3. Protocols

Compliant with SFP28 MSA, CPRI, eCPRI.
4. Quality Certifications

Backed by CE, FCC, ROSH, ISO9001.

Applications

25G Bidirectional (BiDi) SFP28 module interconnection over a single fiber

Product details

Save 50% On Fiber Resources

25G BiDi SFP28 module allows data transmission and receiving over one single fiber, greatly saving network fiber resources and costs.

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.

transceiver compatibility tests

Tested in The Host Device to Prove Interoperability

Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.

Comprehensive Testing

Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

Questions & Answers

more+

Can this 25G transceiver run at 10G? On your product page, I see it is connected with OM3/OM4 cables, but I only have OM2 cables, can I use OM2 directly?

I'm sorry. It can only work at 25Gbps. However, you can use the OM2 cables to connect this 25G transceiver, but pls know the transission distance would be less than 100m over OM2 cables.
Is it compatible with my Cisco C9500 series switch?

You need to check whether the device is equipped with sfp28 ports or not by youself. Or tell us the specific switch model name (like C9500-48Y-4C) and then we'll check it for you. If the swich has bulit-in sfp28 ports, there will be no issue.
Have undergone any test programs? If yes, what are they?

This module usually has the following tests: Normal/High Temperature Testing, Power Testing, Eye Diagram Testing, Sensitivity Testing, DDM Monitoring and Ping Package Testing.
