Managed vs Unmanaged Switch: How to Choose?

Are you considering upgrading your network infrastructure, but are uncertain which switch type would be the most suitable for your requirements? This article will examine the distinctions between managed and unmanaged switches to enable you to make an informed decision. By analyzing the characteristics, advantages, and disadvantages of managed vs unmanaged switches, we will help you identify which switch type can meet your specific needs.



The Benefits of Managed vs. Unmanaged Switches



A managed switch is a type of network switch that is configured and controlled by a network administrator. This allows Ethernet devices to connect with each other and provides the ability to configure, manage, and monitor the local area network (LAN) traffic. Managed switches are typically more expensive than unmanaged switches, but they offer advanced features such as VLANs, Quality of Service (QoS), and port mirroring. These features allow network administrators to prioritize network traffic and optimize network performance.



However, for networks with varying sizes and requirements, there are lightly managed switches, also known as smart switches, available in the market. These switches offer some management features, although not as comprehensive as those found in managed switches. Smart switches are a cost-effective alternative for users who do not require all of the features of a fully managed switch but still want some level of control and management over their network. They can be ideal for small and medium-sized businesses that need to manage their network traffic but have limited budgets.



One of the benefits of smart switches is that they are easier to set up and use than managed switches, making them more accessible to non-technical users. They also offer advanced features such as Quality of Service (QoS), link aggregation, and virtual LANs (VLANs), which can help improve network performance and security. However, they may not have features such as SNMP (Simple Network Management Protocol) support, which is commonly found in managed switches.



Overall, the choice between a managed switch and a smart switch depends on the specific needs and requirements of the network. For large and complex networks, a managed switch is usually the better option, while for smaller networks with limited budgets, a smart switch can be a viable alternative.



Here are the different advantages of managed and unmanaged switches:



Managed Switch:



• With a managed switch, there is greater control and customization available.

• It is possible to manage traffic flows, configure Quality of Service (QoS), create port security, and activate additional advanced capabilities.

• For businesses or enterprises that require detailed control over their network traffic, a managed switch is the ideal solution.



Unmanaged Switch:



• An unmanaged switch is a device that is easy to use, as it requires no configuration and is a plug-and-play component.

• Although it lacks the same degree of control as a managed switch, it also makes the operation more convenient.

• Small businesses or home networks that do not require advanced features may find an unmanaged switch to be a suitable option.



The Differences Between Managed And Unmanaged Switches?



As its name implies, a managed switch has several crucial distinctions from an unmanaged switch. With a managed network switch, network administrators have the ability to control, manage, and prioritize LAN traffic, providing flexibility. On the other hand, an unmanaged switch functions as a plug-and-play device, allowing LAN devices to communicate with each other without any need for user intervention. To comprehend the key differences between these two network switches, consider the following important points.



Flexibility in configuration



Managed switches offer customers the flexibility to customize, design, and filter their LANs. They allow users to efficiently manage traffic and create new LANs while also separating smaller devices. Additionally, the advanced features of managed switches enable users to recover data in case of device or network failure.



In contrast, unmanaged switches are straightforward to use, but their pre-installed configuration limits the ability to make changes to the network. As a result, new businesses with minimal data exchange requirements tend to use them more often.



Network performance



Unmanaged Ethernet switches, also known as plug-and-play switches, come equipped with built-in QoS services that make them easy to set up and use. In contrast, managed switches allow for channel prioritization, enabling performance control by monitoring all devices connected to the LAN through protocols such as Simple Network Management Protocol (SNMP).



Managed switches employ a user-friendly graphical interface that leverages SNMP to analyze the current performance of network devices. Additionally, SNMP enables remote administration of connected devices and network management without requiring physical intervention on the switch.



Features for safety



Managed switches offer advanced features that facilitate the prompt identification and neutralization of active threats, while also enabling the control and protection of data. On the other hand, unmanaged switches provide basic security through a port locking feature that helps prevent direct tampering with the device, ensuring basic security measures are in place.



Costs



Unmanaged network switches are generally less expensive compared to managed switches due to their simpler features and functionality. Managed switches are typically more expensive because they come equipped with advanced features.

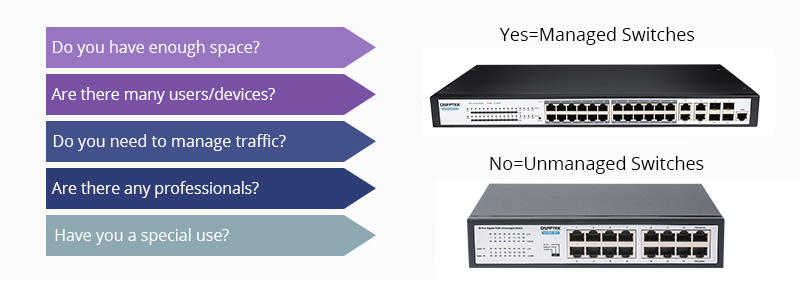

Which More Fits Your Needs: Managed vs. Unmanaged Switches?



Selecting the appropriate switch is crucial for achieving optimal performance and security in any network, whether it serves as the backbone or access. However, with a vast array of options available in the market, it can be challenging to determine the most suitable one for your specific needs. Ultimately, the choice depends on your particular requirements.





If you have a small network with basic needs, an unmanaged switch could suffice, but for larger networks or advanced features like QoS or VLAN support, a managed switch would be a superior choice. To make the correct decision, consider the following recommendations:

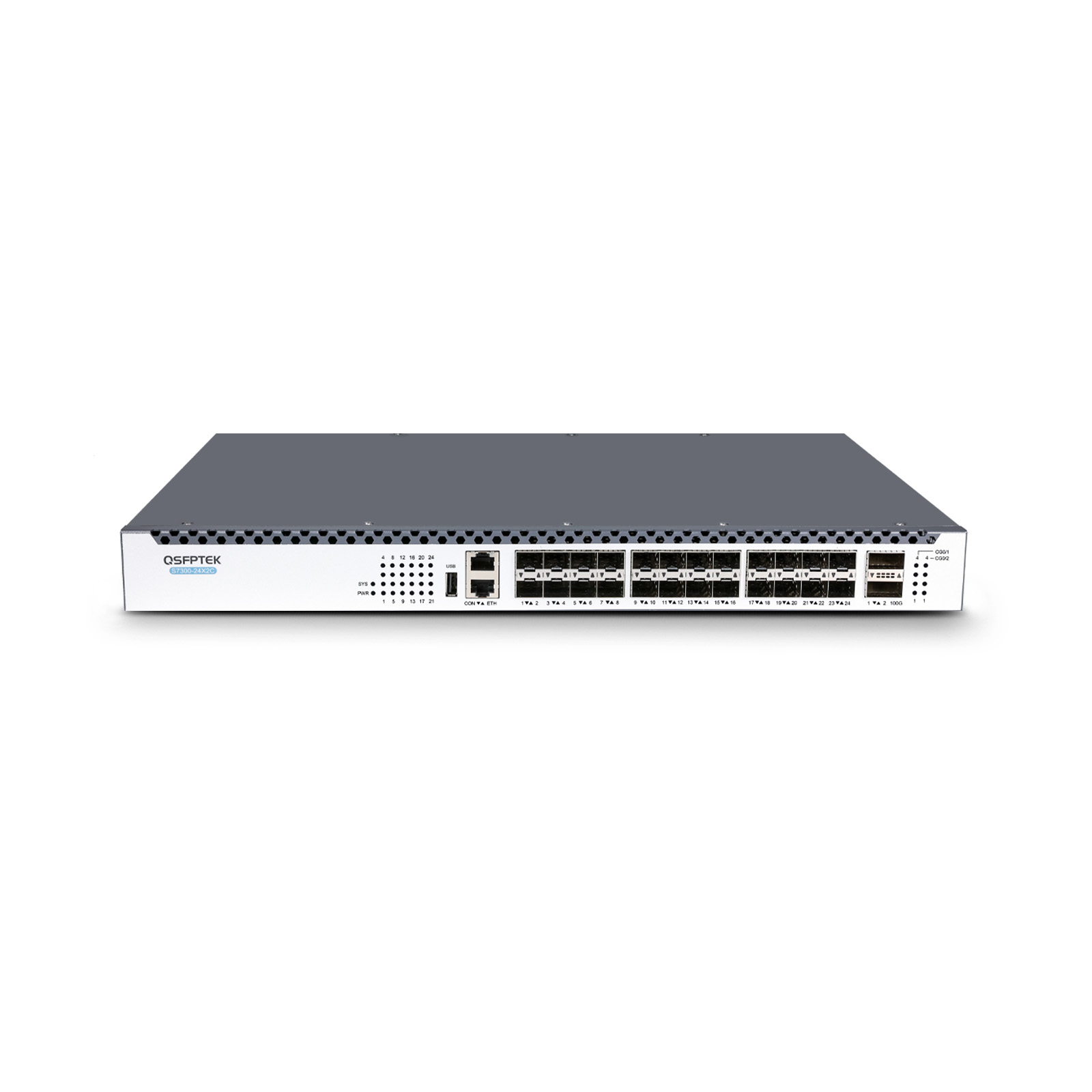

Consider the scalability of your network and business. If growth is expected, it may be necessary to invest in managed network switches that can be configured and scaled as needed. For small networks with intricate setups, a 1G managed switch like the S5300-24T4S may suffice. However, if you have a medium or large enterprise with a complex network architecture, a 10G managed switch such as the S7300-24X2C would be a more suitable option.

If you're on a budget and looking to save money initially, the unmanaged switch is a more suitable option, as it offers good efficiency and speed. On the other hand, if you often require large data transfers, a managed switch is a better choice.



In situations where the network traffic is minimal and the information being transmitted is sensitive and should not be altered, opting for managed switches is the ideal security measure.



Conclusion



Before deciding between a managed vs unmanaged switch, it's essential to determine the level and extent of network management required. Managed switches provide a broader range of features and customization options compared to unmanaged switches, but they can also be more expensive. On the other hand, unmanaged switches are more affordable but lack some of the advanced capabilities of managed switches. Ultimately, both types of switches can deliver dependable performance as long as they meet your requirements for speed, security, scalability, and cost-effectiveness.
