S5300-24T4S, 24-Port Gigabit Ethernet L2+ Managed Switch, 24x 10/100/1000BASE-T RJ45 Ports, with 4x 1G SFP Uplinks, Fanless

Product No :100488
157 Reviews
188 Solds
US$ 203.90  US$ 255.00
Series
Models
76 in real-time stock, 09Jul, 2025
US/EU/Global warehouses in stock | Free Shipping | 5-Year Warranty | 14-Day Return & Exchange
-
+
Add to Cart Bulk Order Quotes
1. A fanless design ensures low power consumption and silent operation
2. Rich L2+ Features: Static Routing, RIP, OSPF, etc.
3. Supports QinQ, IPv6, VLAN, etc.
4. Supports IGMP-Snooping and MVR Multicast Routing
5. Supports LACP, ERPS, ISSU, STP, RSTP, MSTP for Reliability
6. Anti-attack from DDoS and TCP/UDP Flood, and IEEE 802.1x, Radius, Tacacs+ for Security+
7. Supports Port Isolation and ACL, QoS, and DHCP-Snooping for Access and Traffic Control
8. Supports CLI/WEB/Telnet/SSH/SSL/SNMP management
9. Carrier-Level Ethernet Access Switch for carrier's IP MAN and enterprise networks
See more

Specifications

S5300-24T4S, 24-Port Gigabit Ethernet L2+ Managed Switch, 24x 10/100/1000BASE-T RJ45 Ports, with 4x 1G SFP Uplinks, Fanless



The S5300-24T4S is a managed L2+ access switch with 24x 10/100/1000BASE-T RJ45 ports and 4x 100/1000M SFP uplink ports, supporting OSPF. With a fanless design, this layer 2+ switch ensures silent operation and delivers a low-power and noiseless solution for power-saving and noise-sensitive environment deployment. Effortlessly control and manage the switch through both CLI and WEB interfaces. The S5300-24T4S 24-port switch is an excellent choice for SMBs and noise-sensitive spaces, such as working offices, homes, libraries, schools, etc.



Part Number S5300-24T4S Vendor Name QSFPTEK
Ports 24x 10/100/1000BASE-T RJ45 | 4x 1G SFP Packet Buffer 512 KB
Switching Capacity 56 Gbps Forwarding Rate 42 Mpps
MAC Address 8K ARP Table 384
VLAN IDs 4K Jumbo Frame 9K
Flash Memory 16 MB RAM 128 MB
Noise 0 dbM Fan Fanless
Input Voltage 100 to 240 VAC, 50Hz±10% Power Supply 1 built-in AC power supply (default)
Stackability None MTBF > 50,000 Hours
Dimensions (H x W x D) 44 x 440 x 210 mm
(1.73 x 17.32 x 8.27")		 Weight 2.2 kg
Operating Temperature -10 to 45℃ (14 to 113℉) Warranty 5 Years
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 1. IPv6
    Supports IPv4/IPv6 dual-stack, IPv6 routing, IPv6 neighbor discovery, ICMPv6, IPv6-based Telnet, Ping, Traceroute, ACL.
  • 2. Security+
    Anti-attack from DDoS and TCP/UDP Flood, and IEEE 802.1x, Radius, Tacacs+ for Security+
  • 3. Reliability
    Supports LACP, ERPS, ISSU, STP, RSTP, MSTP.
  • 4. Management
    Supports CLI, WEB, Telnet, FTP, SSH, SSL, SNMP.

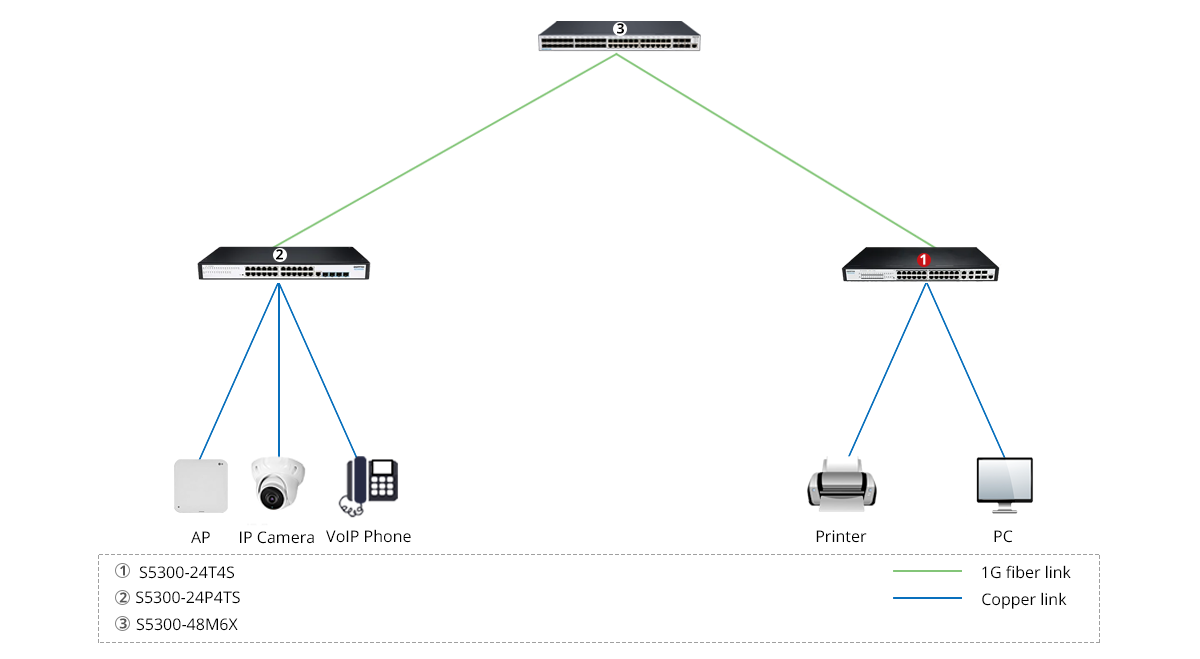

Applications

Converged Wired and Wireless Solution:




Related Products:

Network switches:

S5300-48M6X 48-Port Stackable L3 Switch, 24x 1G RJ45, 24x 1G SFP with 6 x 10Gb SFP+ Uplinks

S5300-24P4TS 24 x Gigabit  L2+ Switch, 24 x PoE+ Ports @370W, with 4 x 1Gb RJ45/SFP Combo Uplinks, Support OSPF



1G fiber link:

Cisco GLC-SX-MM Compatible 1000BASE-SX SFP 850nm 550m DOM LC MMF Transceiver Module

1m LC UPC to LC UPC Duplex OM4 Multimode Fiber Patch Cable



Copper link:

Cat6 Network Ethernet Patch Cable Snagless Unshielded (UTP), PVC CM, Blue





Product details

High-Performance L2+ Gigabit Access Switch



S5300-24T4S has 24x 1G RJ45 ports and 4x 1G SFP ports, providing high-density and converged copper and fiber connections.

With a switching capacity of 56 Gbps and a forwarding rate of 42 Mpps, it also meets high-performance requirements at the layer 2+ access.







Fanless Design for Noise-Sensitive Environment



S5300-24T4S features a fanless design for ultra-silent operation.

It is energy-saving and caters to noise-sensitive environments, such as working offices, homes, libraries, schools, etc.







S5300 Series L2+ Switches



Model

S5300-8T2S

S5300-8P2S

S5300-24T4S

S5300-24P4TS


RJ45 Ports

8x 10/100/1000BASE-T

8x 10/100/1000BASE-T

24x 10/100/1000BASE-T

24x 10/100/1000BASE-T

Fiber Ports

2x 1G SFP

2x 1G SFP

4x 1G SFP

4x 1G RJ45/SFP Combo

PoE

Not Support

IEEE 802.3af/at

Not Support

IEEE 802.3af/at

Management Layer

L2+ Managed

L2+ Managed

L2+ Managed

L2+ Managed

Power Supply

1 Built-in AC Power Supply

1 Built-in AC Power Supply

1 Built-in AC Power Supply

1 Built-in AC Power Supply

Fan

Fanless

Fanless

Fanless

3 Built-in Fans

Data Link Layer

QinQ, GVRP

QinQ, GVRP

QinQ, GVRP

QinQ, GVRP

Routing

Static routing, RIP, OSPF

Static routing, RIP, OSPF

Static routing, RIP, OSPF

Static routing, RIP, OSPF

Security

IGMP Snooping, DHCP Snooping, DAI, Port security

IGMP Snooping, DHCP Snooping, DAI, Port security

IGMP Snooping, DHCP Snooping, DAI, Port security

IGMP Snooping, DHCP Snooping, DAI, Port security

IPv6

IPv4/v6 dual stack

IPv4/v6 dual stack

IPv4/v6 dual stack

IPv4/v6 dual stack

Reliability

QoS, ISSU

QoS, ISSU

QoS, ISSU

QoS, ISSU
