Unraveling Multiplexing Technologies: A Deep Dive into WDM, TDM, and SDM

Multiplexing Technologies Overview

Multiplexing stands as the cornerstone of optical fiber communication infrastructure expansion. It empowers the transmission of numerous independent signals within a single communication channel, optimizing channel utilization. Through multiplexing, multiple signals coexist within the same transmission medium, leveraging distinct parameters or dimensions to ensure simultaneous transmission without mutual interference.

Presently, the prevailing networking multiplexing technologies comprise wavelength division multiplexing (WDM), time division multiplexing (TDM), frequency division multiplexing (FDM), and code division multiplexing (CDM). The subsequent discussion will delve into a comprehensive introduction of these technologies.

What is Wavelength Division Multiplexing?

Wavelength Division Multiplexing (WDM) is an optical networking multiplexing technique that increases bandwidth capacity by merging multiple optical carrier signals and transmitting at a single optical fiber using different wavelengths. Each signal, operating at WDM wavelengths, remains independent of any specific protocol or speed. WDM technology facilitates bidirectional communication concurrently over a single optical fiber, streamlining network infrastructure into a unified virtual optical fiber network. This consolidation eliminates the necessity for multiple fiber types and services, consequently bolstering bandwidth and reducing networking expenses through fiber requirement reduction.

The Wavelength Division Multiplexing (WDM) system encompasses two distinct wavelength patterns: Coarse Wave Division Multiplexing (CWDM) and Dense Wavelength Division Multiplexing (DWDM). CWDM and DWDM utilize multiple light wavelengths on a single fiber but diverge in wavelength spacing, channel quantities, and the capability to amplify multiplexed signals in optical space. Within a WDM system, diverse optical signals are amalgamated (multiplexed) at one end of the optical fiber and then separated (demultiplexed) into distinct channels at the opposite end.

What is Time Division Multiplexing?

Time Division Multiplexing (TDM) involves partitioning various signals into time slots and transmitting them sequentially according to these slots. In optical communication, Optical Time-Division Multiplexing (OTDM) is a network TDM variant that capitalizes on the time resolution of optical pulses to achieve time-division multiplexing of optical signals.

OTDM specifically multiplexes multiple low-bit-rate optical channels within a set electrical clock period, thus augmenting transmission speed. This process involves dividing the time frame into slots, each designated for a message signal, with low-speed channels synchronized to specific positions. By temporally segmenting and interleaving different optical channels based on time, OTDM effectively achieves the networking multiplexing of multiple signals.

Optical pulse width is typically reduced to accommodate more channels within a fixed clock period. This reduction creates additional bit rate room, thereby decreasing crosstalk between channels and leading to increased dispersion over longer distances due to the shorter pulse width. Consequently, transform-limited pulse generation and dispersion slope compensation are essential to mitigate the dispersion effect on Optical Time-Division Multiplexing (OTDM).

What is Space Division Multiplexing?

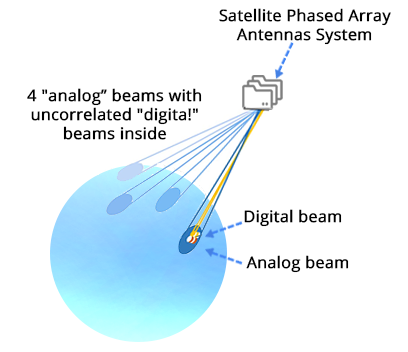

Space Division Multiplexing (SDM) is a technology harnessing spatial dimensions to deliver diverse data streams through parallel spatial channels concurrently. This approach is commonly utilized in multi-input multi-output (MIMO) systems, which utilize at least two antennas at both the transmitter and receiver ends. MIMO signal processing is extensively utilized in contemporary coherent optical transmission systems featuring polarization division multiplexing (PDM) over standard single-mode fibers. Employing strategies utilizing multi-core and multi-mode fibers will enable the realization of extended long-haul transmission distances and high-speed data rates with high-density SDM.

The advent of space division multiplexing technology represents a fresh avenue for enhancing the capacity of optical cable transmission systems. In recent years, ongoing research has been into incorporating this technology into submarine optical cables to broaden transmission capacity.

Compare WDM, TDM, and SDM Expansion Methods

SDM

The SDM method approach linearly enhances transmission capacity by adding optical fibers, leading to a proportional increase in transmission equipment.

Optical cable manufacturing technology has reached a high level of maturity with the widespread use of multi-core band optical cables. Advanced optical fiber connection technology has simplified construction processes. However, increasing the number of optical fibers inevitably complicates cable layout and maintenance. If the existing optical cable tunnels need more fibers, additional cables must be laid to expand capacity, leading to escalated engineering costs and inefficient utilization of fiber bandwidth resources. Constantly laying new fibers is impractical for expanding communication networks, especially considering the challenges in accurately estimating initial project demands and fiber requirements. Consequently, the capacity expansion method in SDM is severely limited.

TDM

TDM is also a widely adopted method for expanding capacity, such as multiplexing from the primary group to the fourth group of traditional PDH and the current SDH standards, including STM-1, STM-4, STM-16, and STM-64. This technology effectively boosts the capacity of optical transmission information through duplication, significantly reducing circuit costs in equipment and lines. Additionally, it simplifies the extraction of specific digital signals from data streams via this networking multiplexing technique, making it particularly suitable for networks employing self-healing ring protection strategies.

However, the TDM MUX method comes with two drawbacks. Firstly, upgrades impact services. To achieve higher rate levels, complete replacement of network interfaces and equipment is necessary, causing interruptions to equipment during the upgrade process. Secondly, rate upgrades lack flexibility. For instance, in SDH systems, if there's a need for two 155Mbit/s channels within a system operating at a line rate of 155Mbit/s, the only option is to upgrade the system to 622Mbit/s, even if two 155Mbit/s channels remain idle.

Currently, higher-rate TDM equipment comes at a premium cost, and the 40Gbit/s TDM equipment has reached the electronic component's rate limit. Even at the 10Gbit/s rate, non-linear effects in various optical fibers present transmission limitations.

While TDM MUX technology is commonly employed for capacity expansion by incrementally upgrading system rates, limitations imposed by components and line features become apparent as rates approach certain levels, prompting the exploration of alternative solutions.

In both SDM and TDM-based transmission networks for capacity expansion, traditional PDH or SDH technology, involving the transmission of optical signals on a single wavelength, is typically utilized. However, this method results in significant underutilization of optical capacity, as the bandwidth of optical fiber far exceeds that of the single-wavelength channel currently employed. Consequently, concerns arise regarding network congestion while considerable network resources remain underutilized.

WDM

Wavelength Division Multiplexing (WDM) optimally employs the expansive bandwidth within low-loss bands of single-mode fibers for transmitting data. This is achieved by amalgamating optical signals of varying rates (wavelengths). These digital signals conveyed through optical signals of different wavelengths, can either share the same rate and protocol format or possess distinct rates and protocols. Network capacity can be tailored to user demands by incorporating additional wavelength features. WDM technology effectively mitigates fiber dispersion and non-linear effects for rates under 2.5Gb/s, meeting diverse transmission capacity and distance requirements. However, WDM's drawback lies in its reliance on numerous fiber components, elevating the probability of failures.

Conclusion

This article introduces three prevalent multiplexing technologies in optical communication: WDM, TDM, and SDM. These networking multiplexing technologies are pivotal in facilitating efficient data transmission.

Of these multiplexing technologies, WDM stands out as the most widely utilized in optical communication. Combining these techniques within fiber optic networks is often recommended for optimal transmission performance.
