S7300-48TE4X2Q, 48-Port Multi-Gigabit Ethernet L3 Switch,48x 100M/1000M/2.5GBASE-T, with 4x 1G/10G SFP+ and 2x 40G QSFP+ Uplink Ports, Support BGP

Product No :100504
US$ 1021.90  US$ 1399.00
100 in stock
1. 48x 100M/1000M/2.5GBASE-T, 4x 1000M/10G SFP+ and 2x 40G QSFP+ uplink ports.

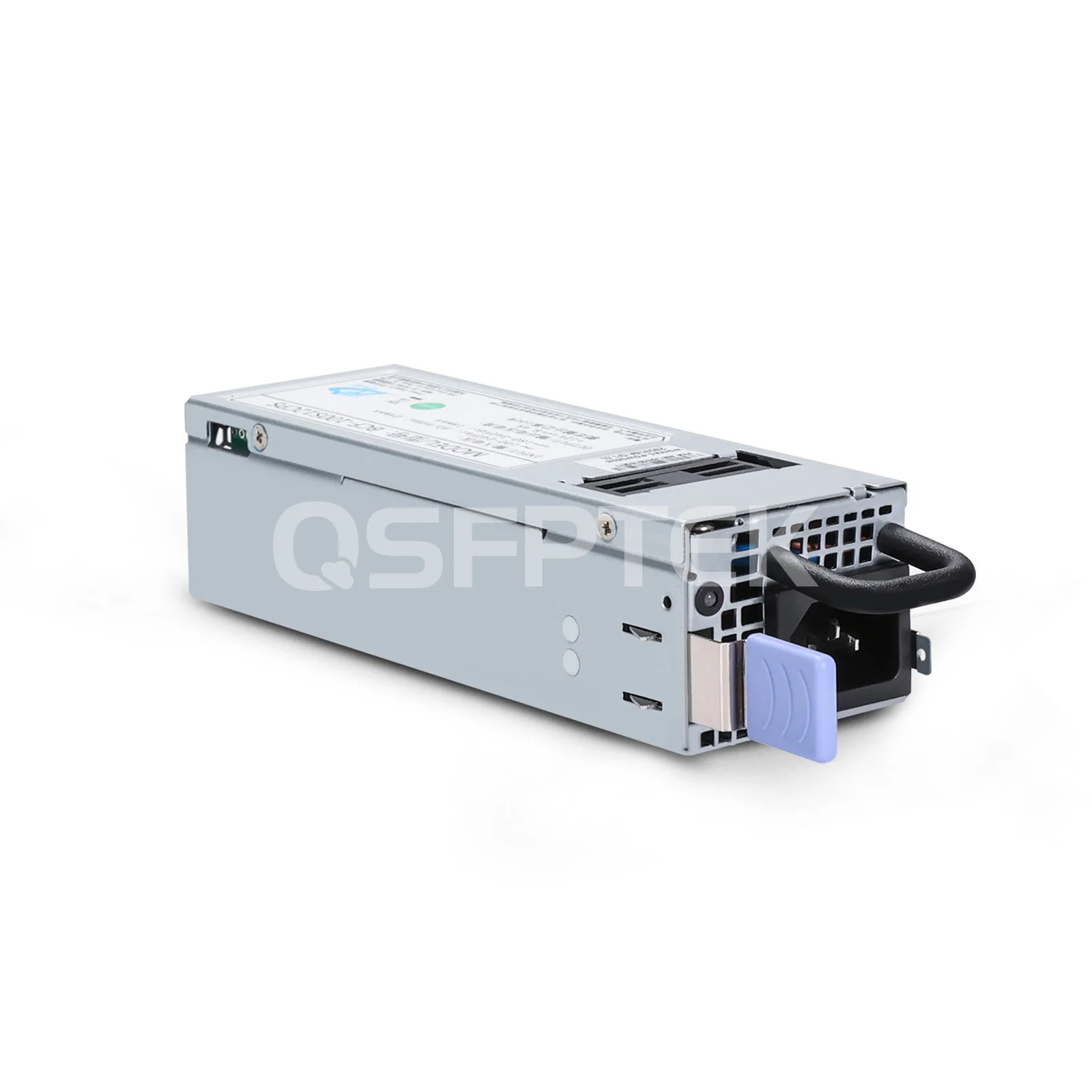

2. Two power modules for 1+1 power redundancy and load sharing.
3. 4 smart fans support front-to-back airflow.
4. Support comprehensive Layer 3 features with advanced L3 routing protocols support including OSPF, BGP, RIP, etc.
5. Support STP/RSTP/MSTP/VRRP/LACP/ERPS/BFD for high reliability.
6. Support QoS/ACL/DHCP/DoS for high security.
See more

Specifications

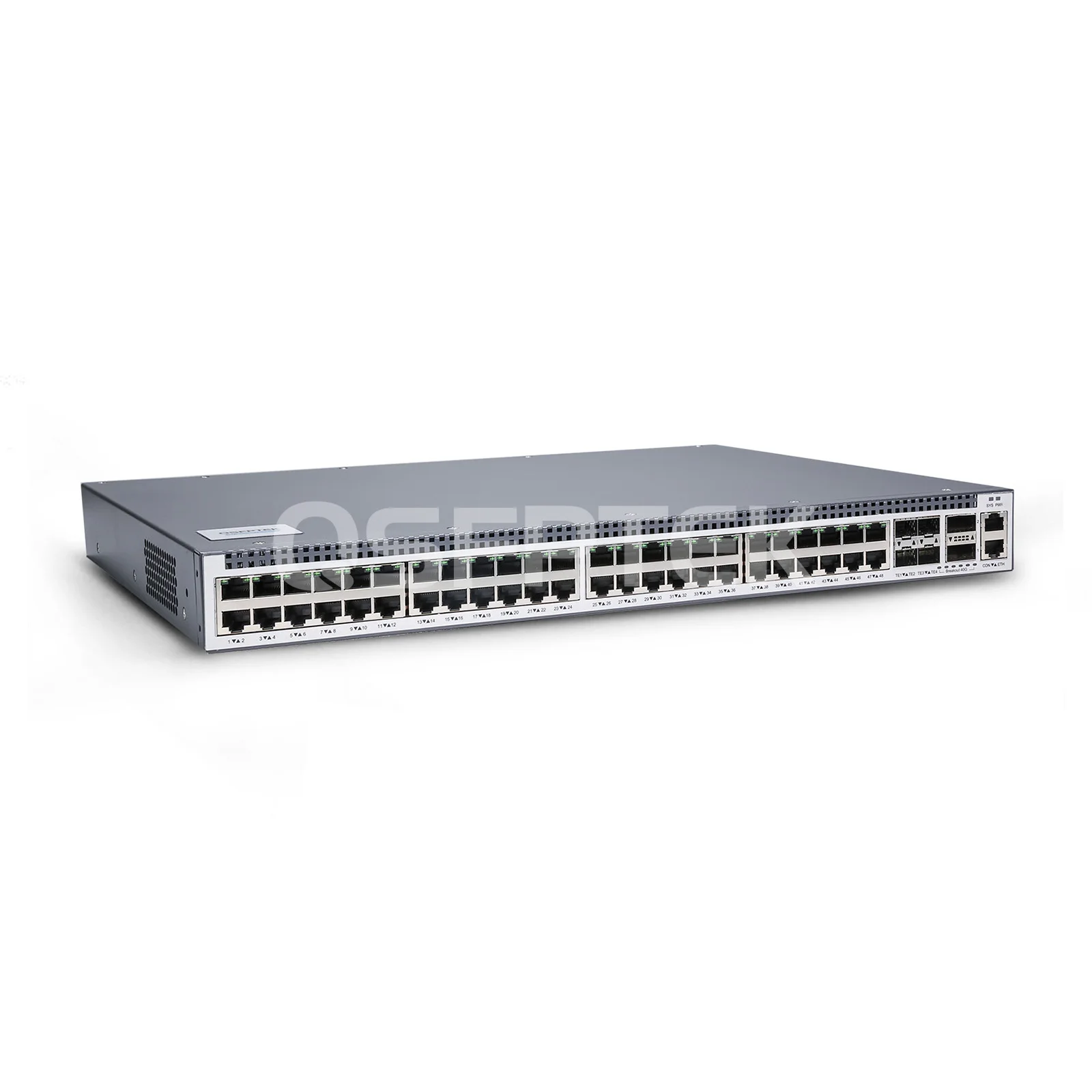

S7300-48TE4X2Q, 48-Port Multi-Gigabit Ethernet L3 Switch,48x 100M/1000M/2.5GBASE-T, with 4x 1G/10G SFP+ and 2x 40G QSFP+ Uplinks



QSFPTEK S7300-48TE4X2Q multi-gigabit L3 switch has 48x 100M/1000M/2.5GBASE-T RJ45, 4x 10G and 2x 40G uplink ports. It delivers 600 Gbps switching capacity and 360 Mpps forwarding rate. 48 2.5GBASE-T RJ45 ports that help businesses cost-effectively expand their networks with multi-gigabit speeds over existing Cat5e or better cabling. It supports mature IPv6 features, comprehensive security and reliability features, simple to deploy and manage. It can be used as an ideal and cost-effective access or aggregation layer switch for campus networks.



Ports

48x 100M/1000M/2.5GBASE-T RJ45 | 4x 1000M/10G SFP+ | 2x 40G QSFP+

Packet Buffer

4.5 MB

Switching Capacity

600 Gbps

Forwarding Rate

360 Mpps

MAC Address

131072

ARP Table

4096

VLAN IDs

4094

Jumbo Frame

16105 bytes

FLASH

4096 MB

RAM

2048 MB

Airflow

Front-to-Back

Fan Number

4 build-in fans

Power Required

AC: 100 to 240V AC, 50-60Hz

DC: -36 to -72V

Power Supply

2

Dimensions (H×W×D)

4.4 x 44.0 x 30cm

(1.73 x 17.3 x 11.8 in.)

Weight

5.3kg

Operating Temperature

0°~45°C (32°~113°F)

Warranty

5 Years

Features

  • Convenient Management

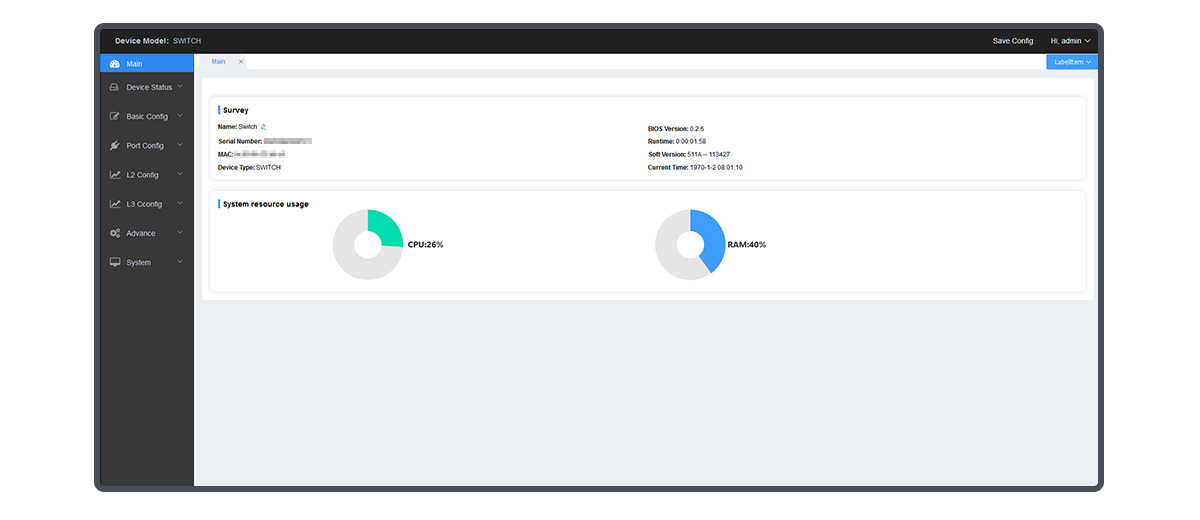

    Support console, SNMP v1/v2/v3, CLI, web management, Telnet, SSH2.0, SSL, OAM, etc. to make management more convenient.
  • High Reliability
    Support QoS, ACL, DoS attack prevention, and DHCP snooping to ensure high security.
  • Comprehensive Layer 2/3 Functionality
    Support comprehensive L2 and L3 features, including L2 switching, L2 multicast, QoS, advanced L3 routing, OSPF, BGP, Bidirectional Forwarding Detection (BFD), and L3 multicast, etc.
  • Mature IPv6 Technology
    Support IPv6 protocol suite, IPv6 neighbor discovery, ICMPv6, path MTU discovery, DHCPv6, etc. It enables a smooth transition from IPv4 to IPv6 network.

Applications

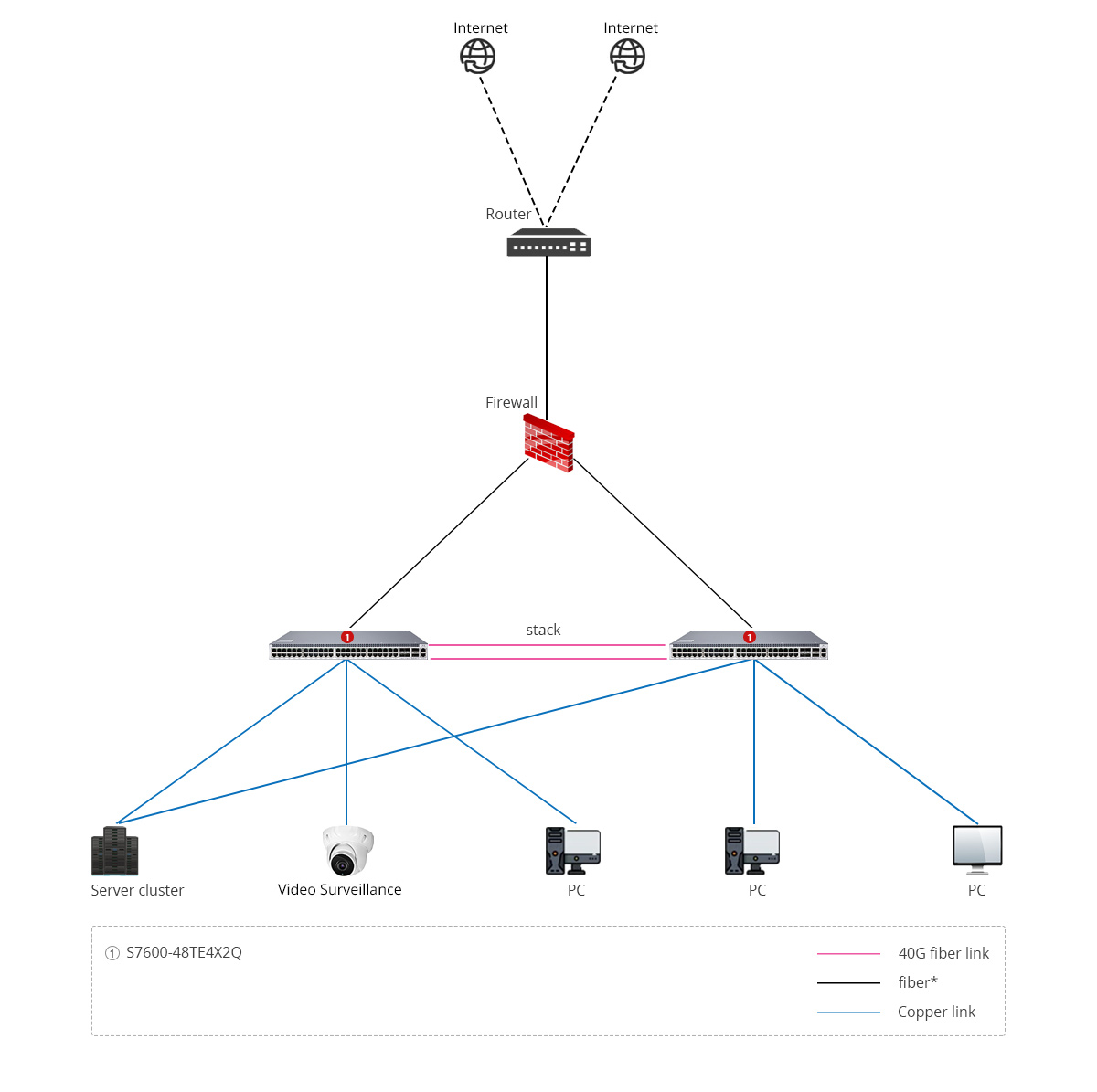

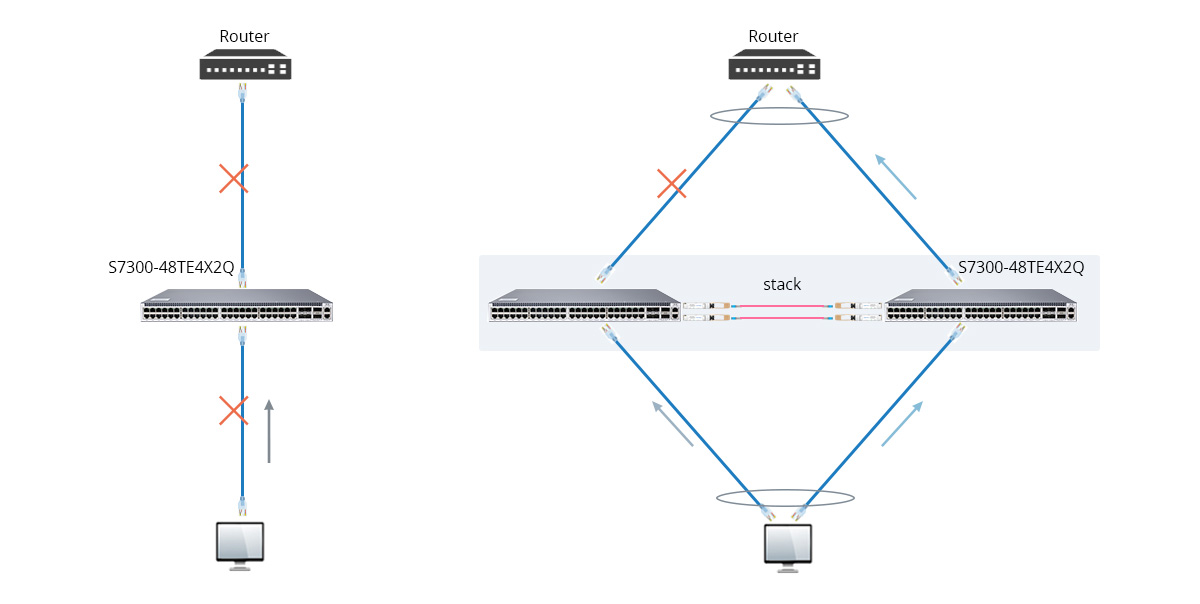

Scenario 1:

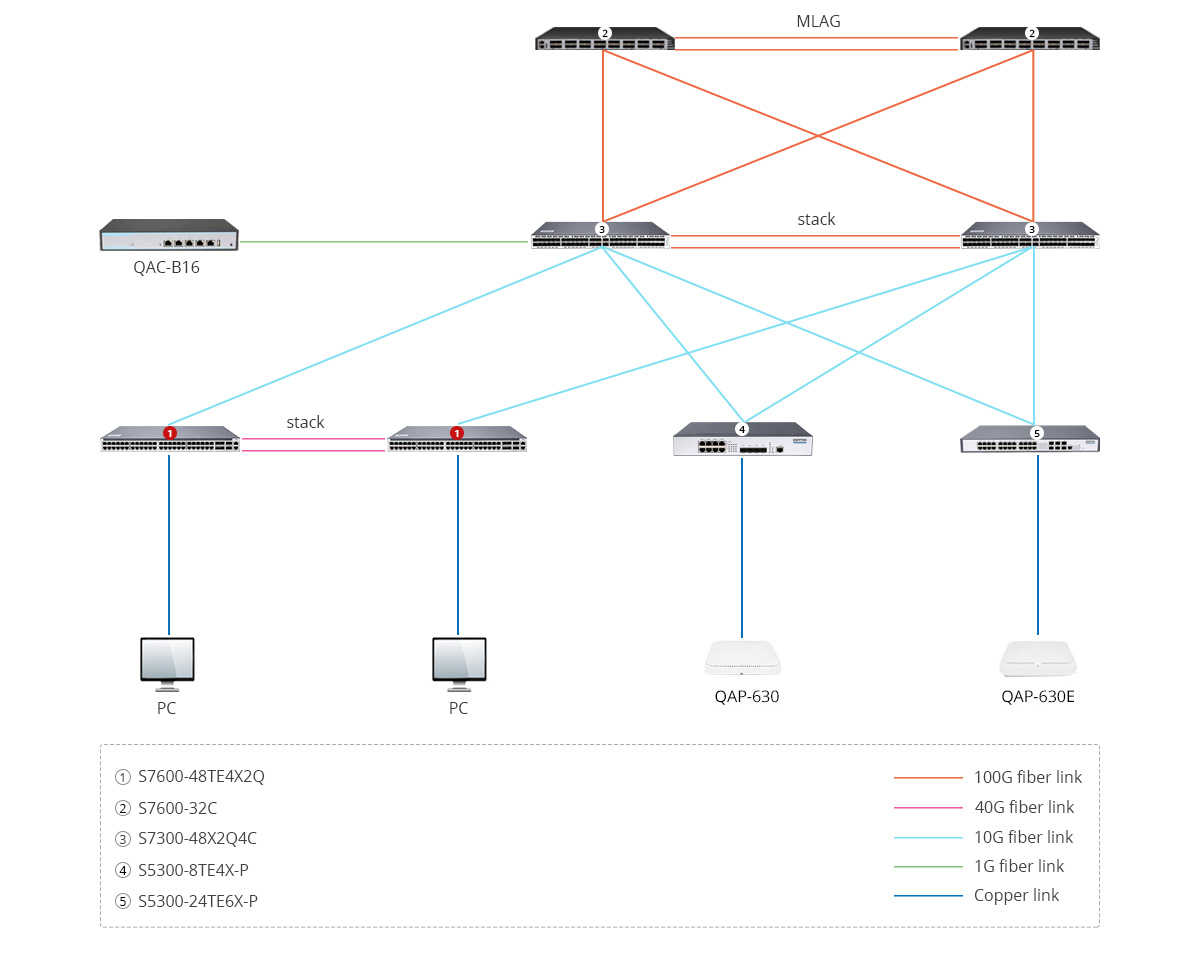

Scenario 2:

Scenario 3:

Related Products:



10G SFP+ Optical Transceiver Modules



40G QSFP+ Optical Transceiver Modules



LC to LC Fiber Optic Patch Cables



MTP Fiber Optic Cables



S7300-48X2Q4C, 48-Port Ethernet L3 Campus Switch, 48x 10Gb SFP+, with 2x 40Gb QSFP+ and 4x 100Gb QSFP28 Uplinks, Stackable

Product details

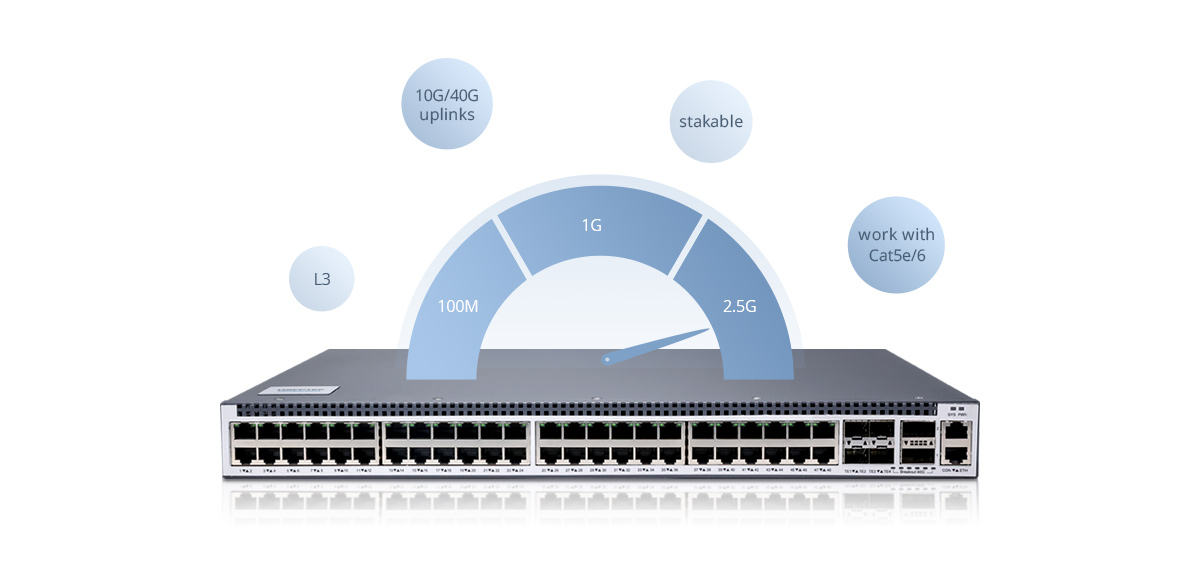

High-Density Multi-Gigabit Access Capability with 10G/40G Uplinks



S7300-48TE4X2Q 48-port switch provides multi-gigabit 48x 100M/1000M/2.5GBASE-T RJ45 ports, allowing for high-density multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling. 4x 10G and 2x 40G uplink ports provide 10G/40G high bandwidth to the backbone. Its 600 Gbps switching capacity and 360 Mpps forwarding rate also help to ensure smooth and reliable data transfers.






Effectively Expand Your Networks to 2.5G



S7300-48TE4X2Q equipped with 48 2.5GBASE-T RJ45 ports that help businesses cost-effectively expand their networks with multi-gigabit speeds over existing Cat5e or better cabling, especially suitable for the scenario of WIFI6 and next-generation multi-rate LAN wired networks.

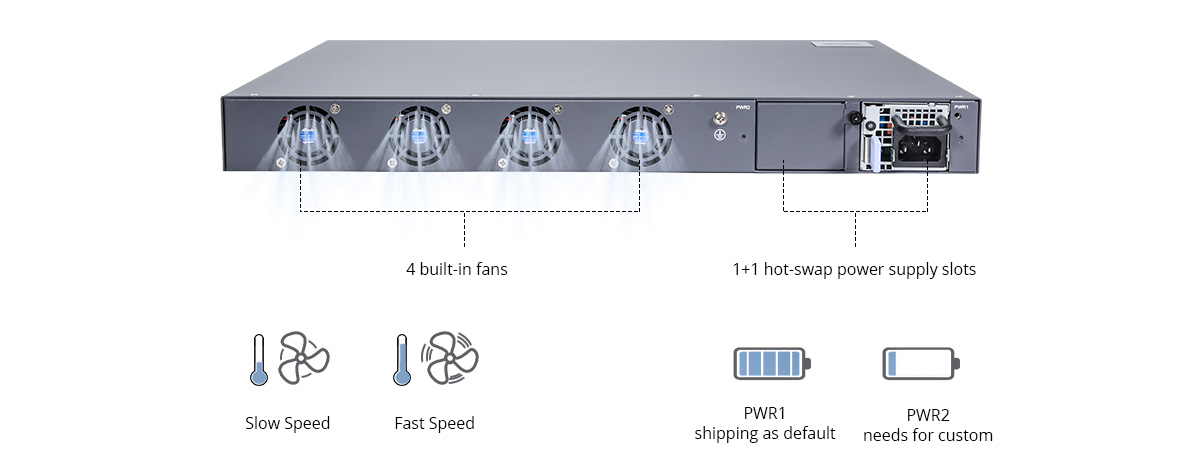

Intelligent FAN Design, Energy-Saving Technology



S7300-48TE4X2Q switch features four smart fan designs and front-to-back airflow that optimizes air circulation inside the rack. This design meets heat dissipation requirements in equipment rooms. Two power modules for 1+1 power redundancy and load sharing. Real-time power consumption monitoring technology reduces power consumption and O&M costs.

Questions & Answers

more+
  • The power supply specification on this page is only 100V-240V AC, can I use DC power supply on S5300-48M6X?
    Yes, S5300-48M6X supports DC: -36~-72V input voltage.
  • When one of the stacked units goes down, does it affect the entire stacked unit?
    No. When the master device in the stacked unit goes down, the standby device will be scheduled as the master device according to the preset master standby order. When the master device comes back into operation, the unit automatically resets itself as the master device and there will be no business interruption. It also supports BFD bi-directional link detection to achieve 50ms-level fault detection and service recovery, which greatly improves the reliability of the network.
  • Do S5300 Series Switches Support CLI or WEB Management?
    Yes, QSFPTEK S5300-48T6X and S5300-48M6X swtitches support CLI, Telnet, SSH, SSL, SNMP, WEB management.
See more

Customer Reviews

Write a Review
Write a Review

Total score

(105 Reviews)

5 stars

104 Reviews

4 stars

1 Reviews

3 stars

0 Reviews

2 stars

0 Reviews

1 stars

0 Reviews

  • Jaydev R. United States of America
    2023-03-23

    I recently purchased two S5300-24T4S switches from qsfptek and had a great experience. Their website provided a lot of information, but I still had some questions that were quickly and thoroughly answered by a knowledgeable sales rep. I was thrilled to find out that the switches were in stock, which was a major advantage for me. After my purchase, I was assigned an account manager who has been incredibly helpful with any technical questions that I have had. As for the switches themselves, they have exceeded my expectations in terms of performance and functionality. Overall, my experience with qsfptek has been fantastic, and they are now my go-to supplier for network equipment.

    Models 24x 1G RJ45, 4x 1G SFP | L2+

    Series1G/10G Switches

    0

    0

  • Laurence United States of America
    2023-03-20

    Purchasing from Amazon is my first choice at the beginning, but it seems prices are expensive because of the high commission, so I have to quit, was pleasantly surprised by the performance of the S7300-24X2C, delivering full 10G speed rate, you can also adjust the fan speed Intelligently

    Models24x 10GB SFP+, 2x 100Gb QSFP28 Uplink | L3

    Series1G/10G Switches

    0

    0

  • Edmond United States of America
    2023-03-20

    QT is a reliable team for a good choice, The whole shopping process from inquiry to after-sales service makes me feel comfortable. this switch is designed with many advantages including enough 48 ports, strong switching capacity, and a high-speed forwarding rate, fully compatible with my device, In a word, I am very satisfied with it.

    Models48x 100M/1000M/2.5GBASE-T RJ45, 4x 1G/10G SFP+ and 2x 40G QSFP+ Uplink | L3

    Series1G/10G Switches

    0

    0

  • Brendan United States of America
    2023-03-20

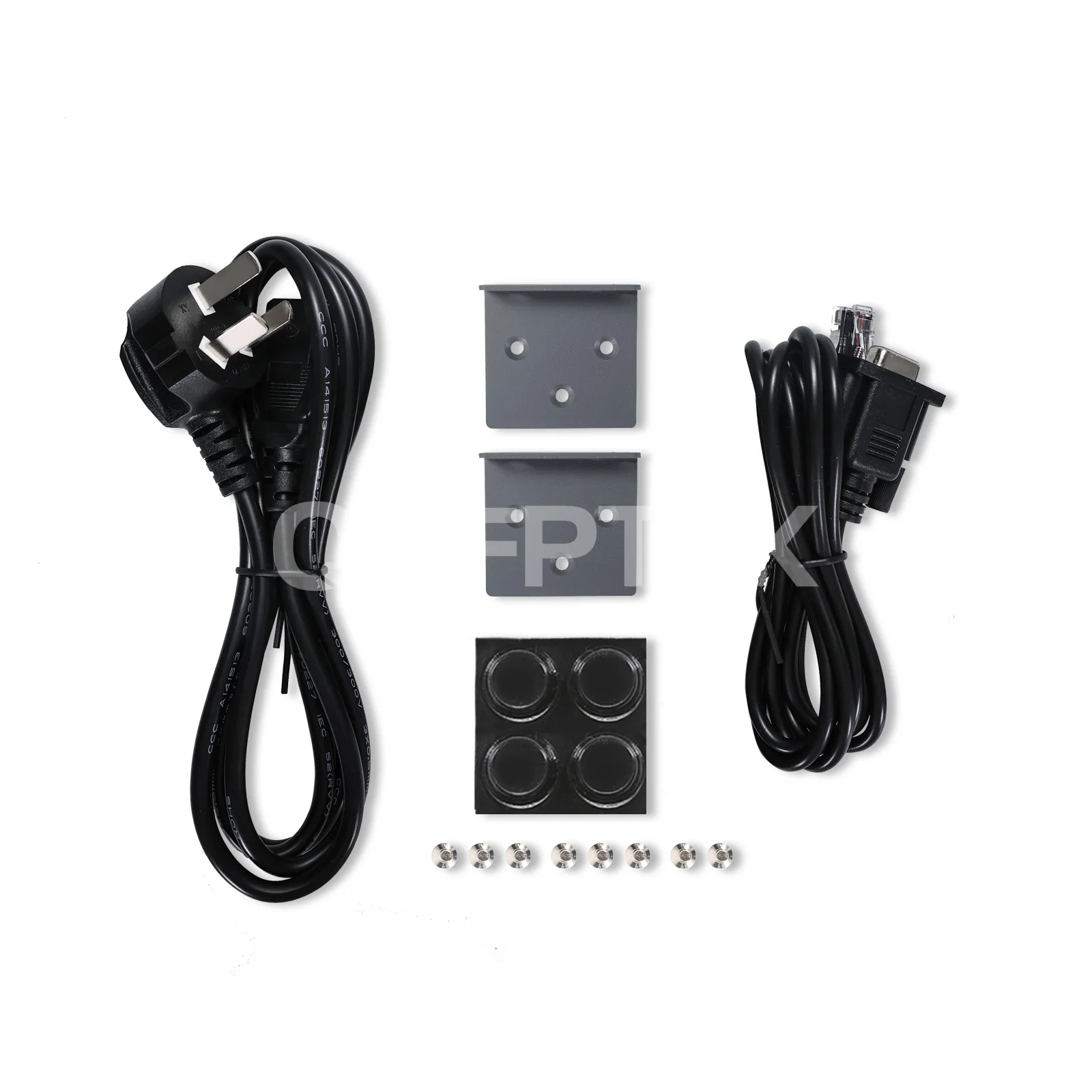

    As an access layer switch, it completely exceeded all my expectations. It is very similar to Cisco in configuration and works very well, the important thing is our technician gives high praise of it, there are also 1*console cable, 2*power cord, 1*grounding cable, 2*rack mount bracket, 6*screw, 4*rubber pad. Complete accessories!
