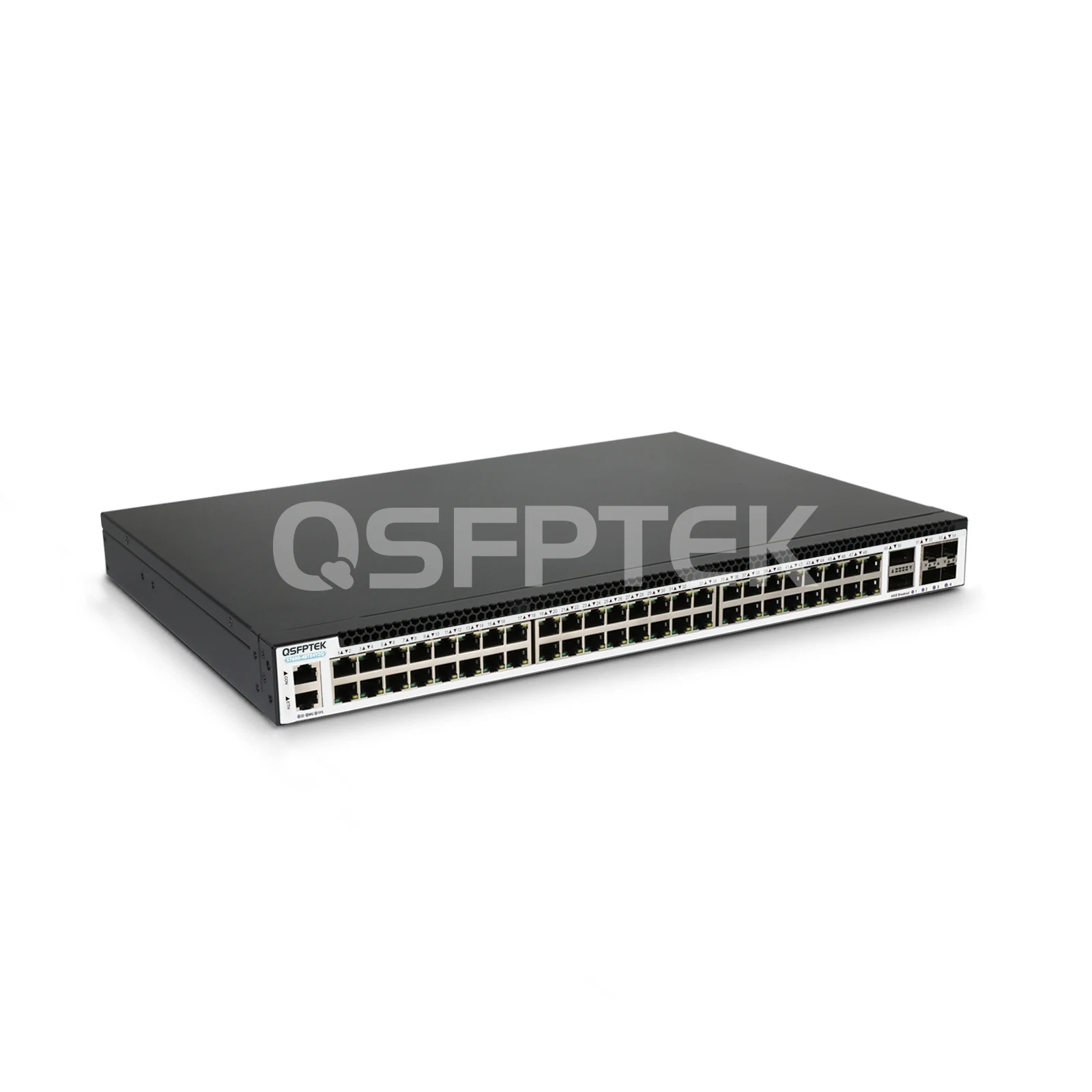

S7600-48TE4Y2Q, 48-Port Ethernet L3+ Multi-Gigabit Switch, 48x 100M/1000M/2.5GBASE-T RJ45 Ports, with 4x 25G SFP28 and 2x 40G QSFP+ Uplinks, Support MLAG, VXLAN

Product No :102528
US$ 1399.00  US$ 1699.00
Series
100 in stock
20 in the U.S. Warehouse, 20 in the EU Warehouse | Free Shipping | 5-Year Warranty | 14-Day Return & Exchange ;jsessionid=8E13FD599658D9C209C5D0F2B611D926
-
+
1. 48x auto-negotiation 3-speed 100M/1000M/2.5GBASE-T RJ45 ports for Ethernet access.
2. 4x 25G SFP28 and 2x 40G QSFP+ ports for uplinks.
3. 2x 40G QSFP+ uplinks can be split to 8x 10G ports, applied to 40G to 10G breakout solutions.
4. 4 smart built-in fans support front-to-rear airflow.
5. RDMA reduces latency and CPU consumption.
6. Support Data Center features including PFC, ECN, NVGRE, VXLAN, GENEVE, VARP, EVPN, GRE, and IPFIX.
7. Support MLAG (Multi-Chassis Link Aggregation) for Networking Reliability.
8. Support LACP, ECMP, VRRP, VARP, STP, RSTP, MSTP to protect the network traffic all around effectively.
See more

Specifications

S7600-48TE4Y2Q, 48-Port Ethernet L3+ Multi-Gigabit Switch, 48x 100M/1000M/2.5GBASE-T RJ45 Ports, with 4x 25G SFP28 and 2x 40G QSFP+ Uplinks, Support MLAG, VXLAN



QSFPTEK S7600-48TE4Y2Q 48-port multi-gigabit switch is designed with 48x 100M/1000M/2.5GBASE-T RJ45 ports, 4x 25G SFP28 and 2x 40G QSFP+ uplink ports. This access layer network switch delivers a 600 Gbps switching capacity and 446.40 Mpps forwarding rate to meet high-performance requirements. This 2.5G switch offers high-density 2.5GBASE-T interfaces directly connecting 2.5G devices, such as 2.5G gaming computers, 4K video, desktops, etc.

As an L3+ access managed network switch, it supports leading edge data center features such as MLAG for high-reliability and VXLAN, EVPN, NVGRE, GENEVE tunnel technology for virtual networking, which makes it widely used for HCI networks, enterprise data centers, and metro L2 ring network.


Part Number

S7600-48TE4Y2Q

Vendor Name

QSFPTEK

Ports

48x 100M/1000M/2.5GBASE-T RJ45 | 4x 25G SFP28 | 2x 40G QSFP+

Packet Buffer

9 MB

Switching Capacity

60Gbps

Forwarding Rate

446.40 Mpps

MAC Address

98304

ARP Table

12288

VLAN IDs

4094

Jumbo Frame

9600

IPv4 Routes

57344

IPv6 Routes

4096

FLASH

8 GB (eMMC)

Memory

2 GB

Latency

660ns

Airflow

Front-to-Back

Power Supply

1 built-in AC power supply (default)

Fan Number

4 built-in smart fans

NDP Capacity

2048

MTBF

>50000 Hours

Operating Temperature

0° to 45°C (32° to 113°F)

Weight

4.1 kg

Dimensions (H x W x D)

44 x 442 x 290 mm

(1.73 x 17.4 x 11.42″)

Warranty

5 Years


Quality Testing Program
Quality Certifications

Features

  • Multiple Data Center Features
    Support data center features including MLAG/VXLAN/EVPN/VARP/PFC.
  • Convenient and Secure Management
    Support SNMP v1/v2/v3, CLI, web management, Telnet and FTP connection, OAM, SSH2.0, SSL, etc. to offer easy management. Support QoS, ACL, and DHCP Snooping to ensure high security.
  • Complete Layer 2/3 Functionality
    Support complete L2 and L3 features, including L2 switching, L2 multicast, QoS, advanced L3 routing, OSPF, BGP, Bidirectional Forwarding Detection (BFD), and L3 multicast, etc.
  • Green and Energy-efficient Technology
    Intelligent FAN design and real-time power consumption monitoring technology for power and O&M cost savings.

Applications

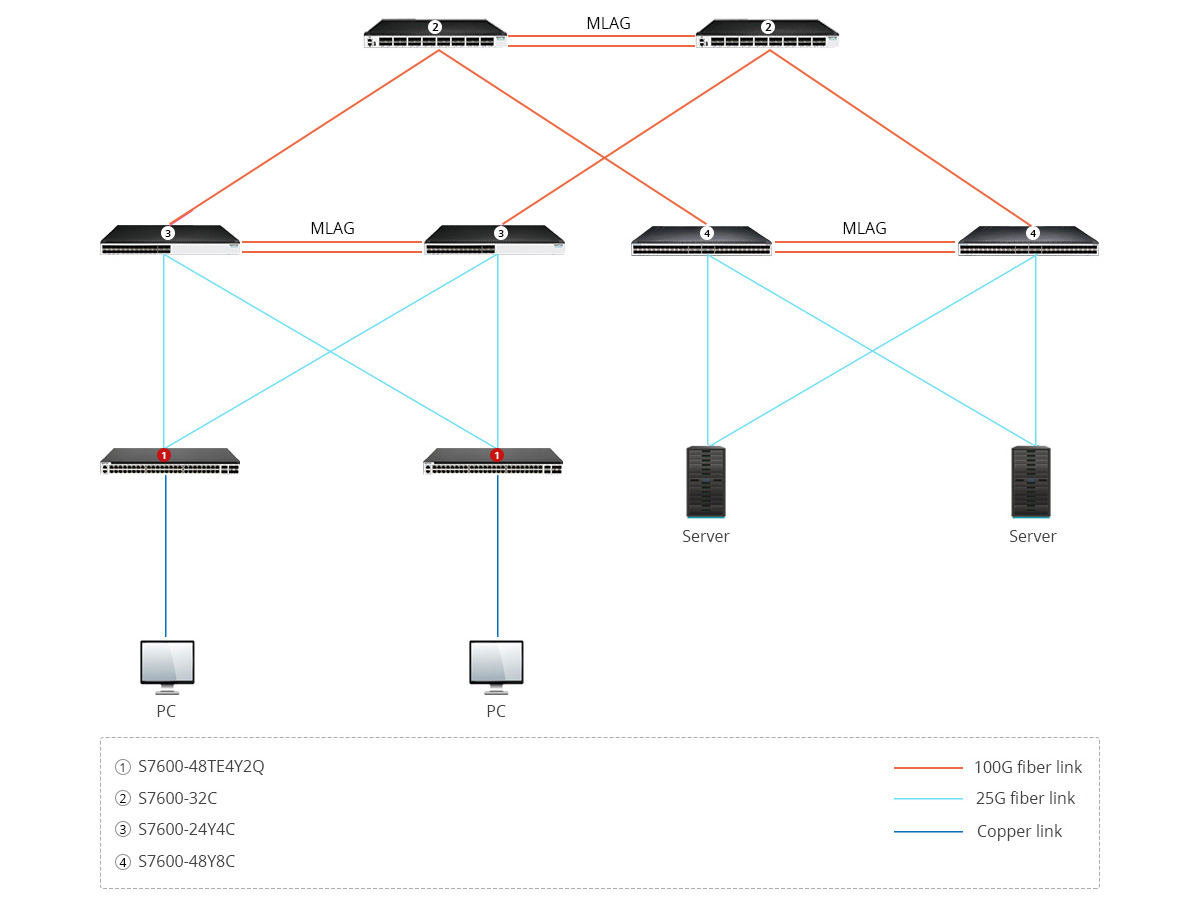

Large and Medium Campus Network Solution



Related Products:



Network Switches:

S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24x 25G SFP28, with 4x 100G QSFP28 Uplinks

S7600-48Y8C, 48-Port Ethernet L3 Switch, 48x 25G SFP28, 8x 100G QSFP28

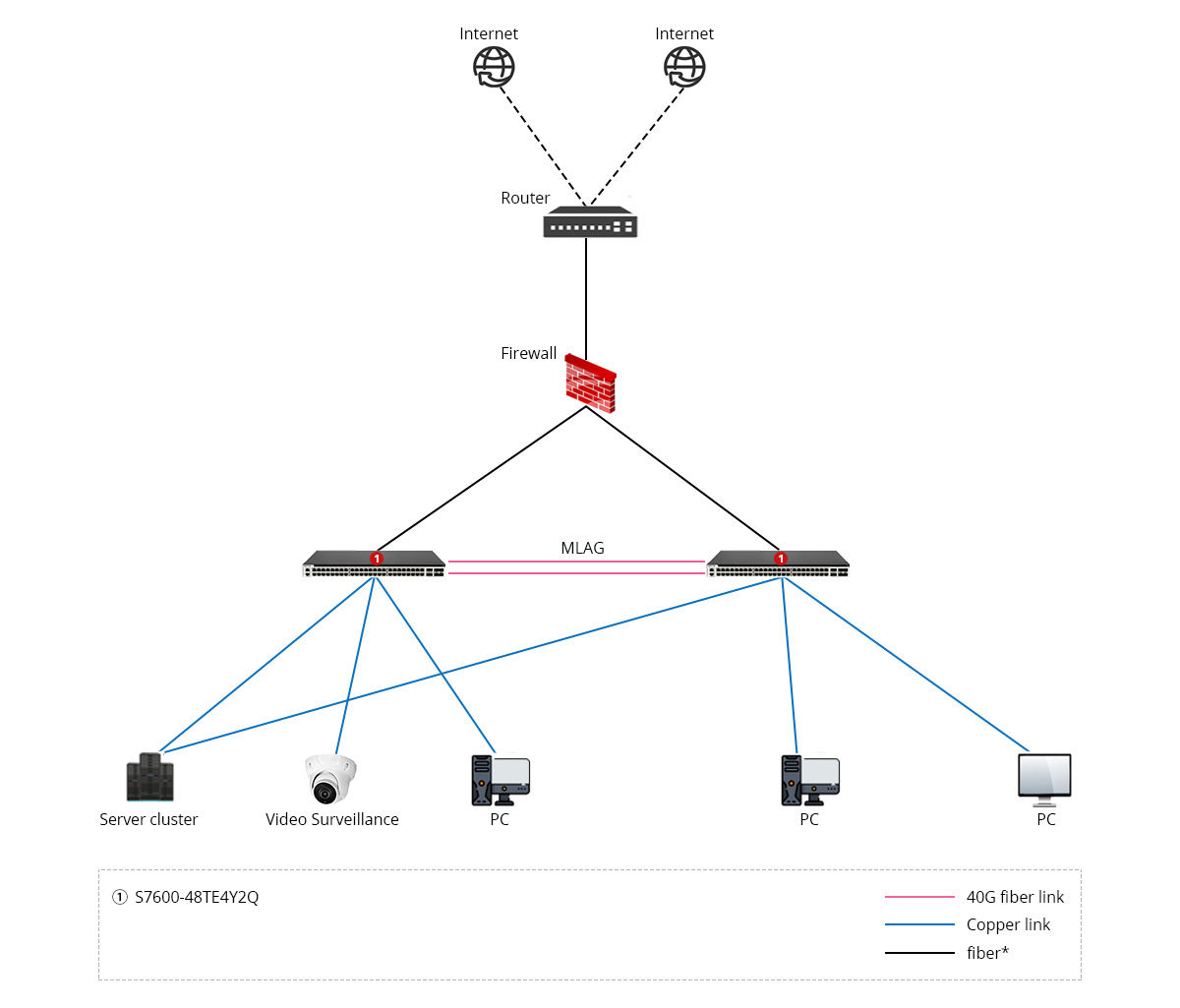

E-Sports Cybercafes Network Solution

Related Products:



40G fiber link:

40G QSFP+ SR4

OM4 MTP Trunk Cable



fiber*: The black line represents the optical fiber. The specific fiber type depends on the user's application scenario.

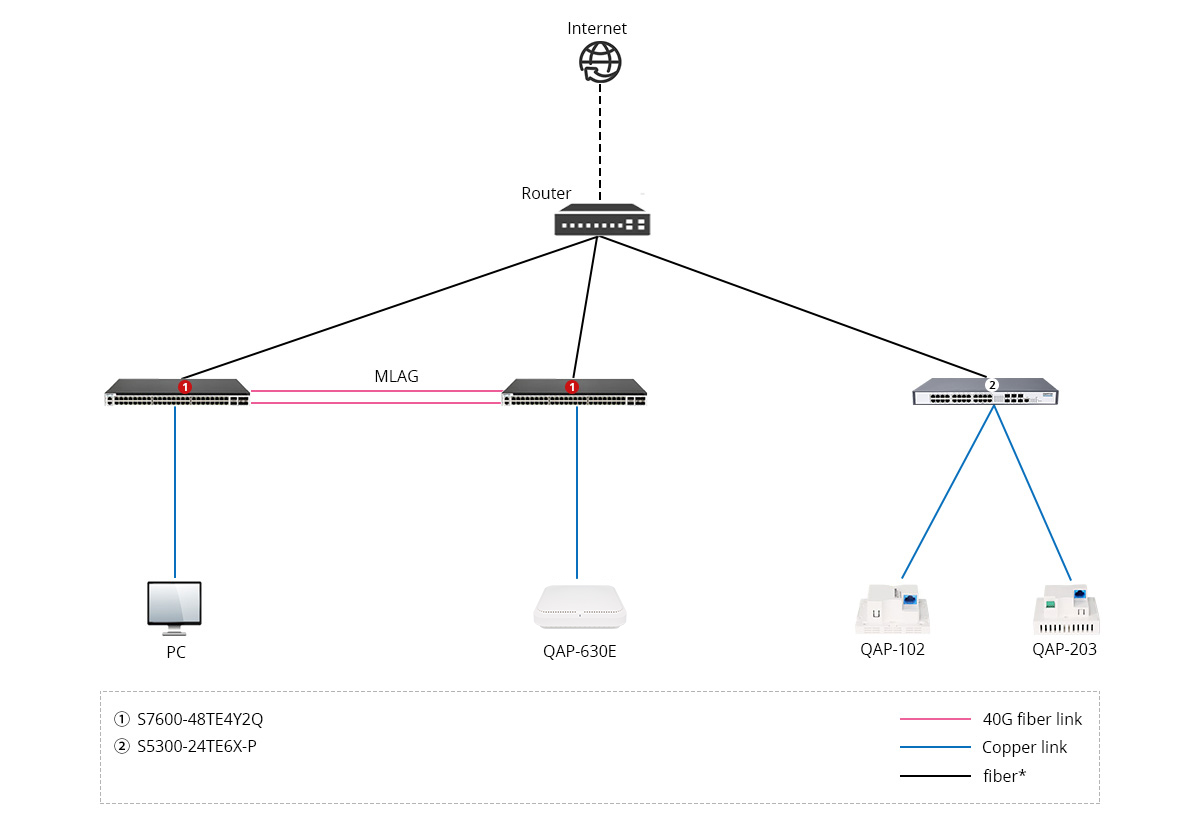

E-Sports Hotel Network Solution



Related Products:

Network Switches:

S5300-24TE6X-P, 24-Port Ethernet L3 Multi-Gigabit PoE Switch for SMBs



40G fiber link:

40G QSFP+ SR4

OM4 MTP Trunk Cable



fiber*: The black line represents the optical fiber. The specific fiber type depends on the user's application scenario.

Product details

Bask in the Brilliance of High-density 2.5G Efficiency and 25G/40G Flexibility



Easily upgrade your network to 2.5Gbps without rewiring, saving costs. The 48x 2.5GBASE-T ports offer enhanced gigabit speeds for diverse devices like 2.5G NAS, 2.5G Server, 2.5G PCIe adapters, 2.5G gaming computers, 4K video, desktops, etc.



The uplink ports add 25G and 40G fiber connection availability and 2x 40G QSFP+ uplinks can be split into 8x 10G ports, making it ideal for 25GE, 40GE, and 40G to 10G breakout solutions. The diverse port combination increases the switch's adaptability and makes it well-suited for various network configurations, contributing to its overall versatility and utility.

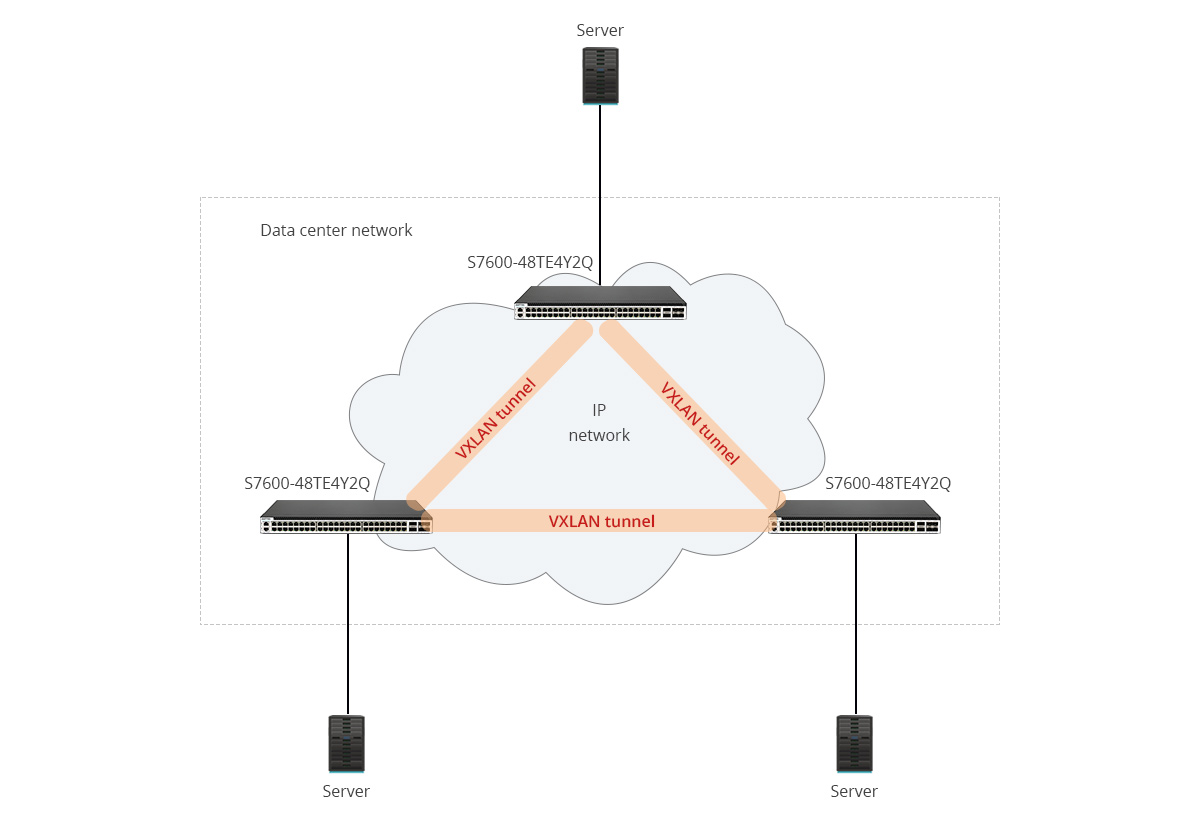

Experience the Leading Data Center Technology - VXLAN



Leverage VXLAN technology to create Layer 2 virtual networks and virtual tunnels over IP networks, enabling seamless data migration across geographies and data centers. Gain unprecedented resource allocation flexibility.



VXLAN

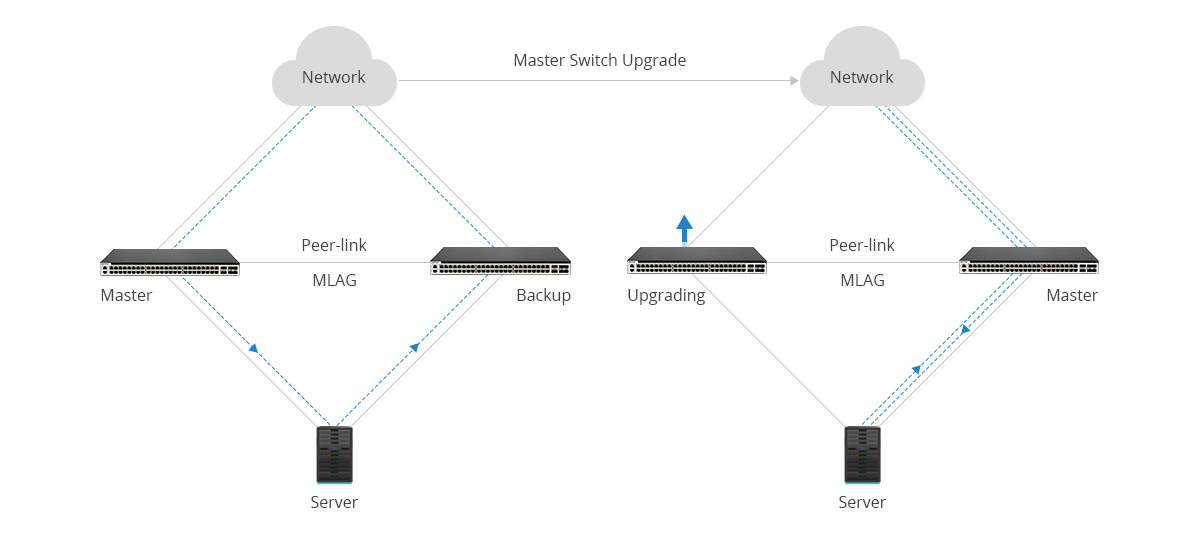

MLAG Ensures Equipment Reliability and Link Redundancy



MLAG (Multi-Chassis Link Aggregation) aggregates links across different devices to achieve device-level redundancy and high-reliability network solutions.





ECN and PFC Ensure Lossless Transmission of End-To-End Data



RDMA(Remote Direct Memory Access) provides high throughput and ultra-low latency with low CPU overhead. Once end-to-end network connectivity is established, PFC(Priority Flow Control) and ECN (Explicit Congestion Notification) can be enabled to ensure lossless transport for RoCE traffic.

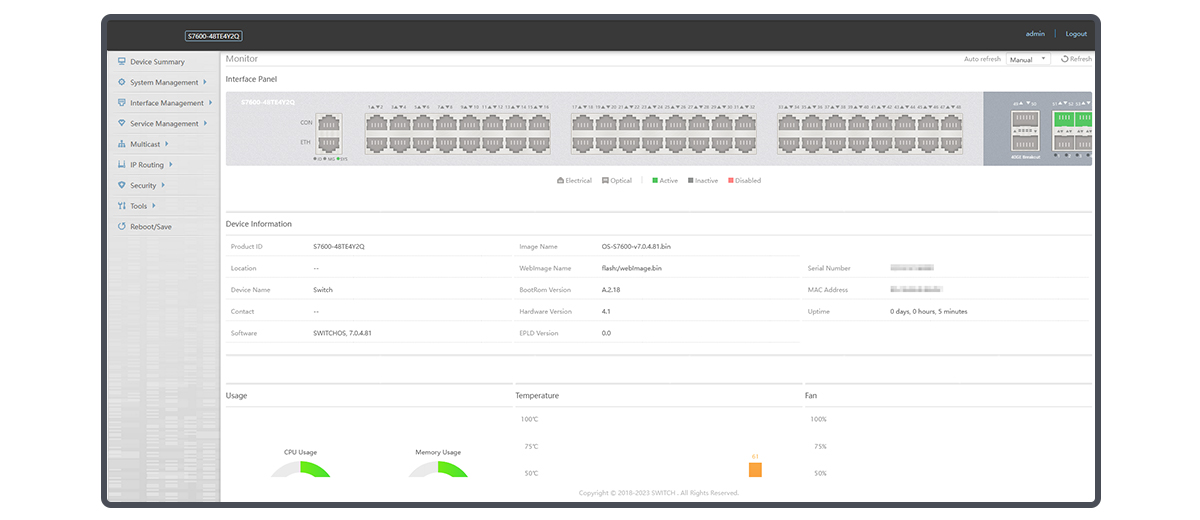

Easy Maintenance by Multiple Management Methods



It supports management methods such as SNMP v1/v2/v3, CLI (Command Line Interface), Web management, Telnet, and FTP connection, providing a more convenient experience for network operation and management. If you have any configuration questions, we can also provide free remote technical support.





QSFPTEK 2.5G Switches Options



Model S7600-48TE4Y2Q S7300-48TE4X2Q S5300-24TE6X-P S5300-8TE4X-P
RJ45 Ports 48x 100M/1000M/2.5GBASE-T RJ45 48x 100M/1000M/2.5GBASE-T RJ45 24x 100M/1000M/2.5GBASE-T RJ45 8x 100M/1000M/2.5GBASE-T RJ45
Fiber Ports 4x 25G SFP28 | 2x 40G QSFP+ 4x 10G SFP+ | 2x 40G QSFP+ 6x 10G SFP+ 4x 10G SFP+
PoE Not Support Not Support IEEE 802.3 af/at/bt IEEE 802.3 af/at/bt
Management Layer L3+ Managed L3 Managed L3 Managed L2+ Managed
Stack or MLAG MLAG 4 Units Stack 4 Units Stack 4 Units Stack
Power Supply 1 Built-in AC Power Supply 1 Hot-Swap AC Power Supply (default)
1+1 Redundant Power Slots, DC Optional
1 Built-in AC Power Supply 1 Built-in AC Power Supply
Fan 4 Built-in Fans 4 Built-in Fans 5 Built-in Fans 4 Built-in Fans
Data Link Layer VXLAN, QinQ, VPLS, L2VPN QinQ, GVRP QinQ, GVRP QinQ, GVRP
Routing RIP v1/v2, OSPF, BGP, IS-IS, L3VPN PIM, IGMP, Static, RIP, OSPF, BGP PIM, IGMP, Static, RIP, OSPF, BGP PIM, IGMP, Static, RIP, OSPF, BGP
Security IGMP snooping, MLD Snooping, Dot1x, Port Security IGMP Snooping, DHCP Snooping IGMP Snooping, DHCP Snooping, DAI, IPSG IGMP Snooping, DHCP Snooping, DAI, IPSG
IPv6 IPv6 Static routings, RIPng, BGP4+, OSPFv3, IS-IS, VRRPv3 Not Support IPv6 Static Routing, RIPng
OSPFv3, BGP4+
IPv6 Static Routing, RIPng
OSPFv3, BGP4+
Reliability MLAG, VRRP, MPLS LDP, BFD, SDN BFD, VRRP, QoS, MPLS BFD, VRRP, QoS, MPLS BFD, VRRP, QoS, MPLS
