Home / Products / Fiber Optic Cables / MTP/MPO Cables / MTP/MPO Multi Mode Trunk Cables / 99508

1m (3ft) MTP-12 UPC (Female) to MTP-12 UPC (Female) OM4 Multimode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Magenta

Product No :99508
79 Reviews
11.8K Solds
US$ 47.40
Series
Length
69 in real-time stock, 08Jul, 2025

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

-
+
Add to Cart Bulk Order Quotes
1. Flexible 7.5mm Min. Bend Radius
2. Optimized for 40G/100G/200G/400G Transmission
3. MTP Connector with 12 Fibers
4. Compliant with ROSH 2.0 and MCD
5. LSZH jacket
See more

Specifications

MTP-12 (Female) to MTP-12 (Female) OM4 Trunk Cable


The MTP trunk cable provides a worry-free and cost-effective solution for high-density cabling for its connector delivering up to 6 times the density of standard duplex fiber optic cable connector. This MTP female to MTP female OM4 multimode trunk cable is specially optimized for 40G QSFP+ SR4, 100G QSFP28 SR4 optics direct connection, data centers and telecommunications systems applications.





Connector A:

MTP Female

Connector B:

MTP Female

Fiber Count:

12 Fibers

Fiber Type:

OM4 MMF 50/125μm

Polish Type:

UPC to UPC

Wavelength:

 850nm

Armoured:

 No

Cable Material:

 LSZH

Insert Loss:

0.35dB

Return Loss:

≥30dB

Approximate Diameter:

3.0mm

Length:

0.5m/1m/1.5m/2m/3m/5m/7m/10m

Min. Bend Radius

(Fiber Core)

7.5mm

Min. Bend Radius

(Fiber Cable)

20/10D (Dynamic/Static)

Operating Temperature:

  -20℃~+70℃

Storage Temperature:

 -40℃~+80℃



Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 0.35dB Max. IL
    Designed for low insertion loss links, flexible and robust.
  • 7.5mm Min. Bend Radius
    Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
  • 6kg Tensile Strength
    Extremely tensile resistant to prevent cable breakage and extend service life.
  • LSZH Jacket
    Low smoke, low toxicity, low corrosion, and high flame retardant.

Applications

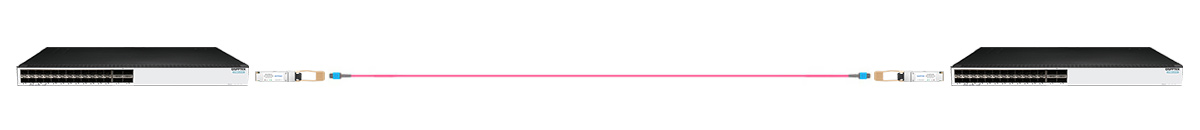

Connection 1:

Direct connect through MTP OM4 cable

Related Products:

S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24 x25GE SFP28, with 4 x100GE QSFP28 Uplinks, Support MLAG

Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m Optical Transceiver Module

5m (16ft) MTP-12 (Female) to MTP-12 (Female) OM4 Trunk Cable, 12 Fibers, Type B, Plenum (LSZH)

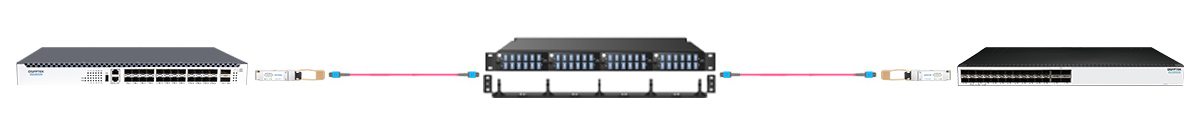

Connection 2:

Connect with Adapter Panel

Related Products:

S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24 x25GE SFP28, with 4 x100GE QSFP28 Uplinks, Support MLAG

S7300-24X2C, 24-Port Gigabit Ethernet L3 Campus Switch, 24 x10GE SFP+, with 2 x100GE QSFP28 Uplink, Support Stacking

Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m Optical Transceiver Module

1U 19" Modular Rack Mount Enclosure Unloaded, Holds up to 4 Fiber Adapter Panels, 96 Fibers (LC)

High-Density Fiber Adapter Panel With 12x LC UPC Duplex Blue Adapter 24x OS2 Single Mode Fibers Ceramic Sleeve

1U Horizontal Cable Management with 5 D-Rings, Rackmount, Single-Sided, 19 inch

5m (16ft) MTP-12 (Female) to MTP-12 (Female) OM4 Trunk Cable, 12 Fibers, Type B, Plenum (LSZH)

Product details

Excellent Transmission Stability Ensured by Superior Craftsmanship



With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.

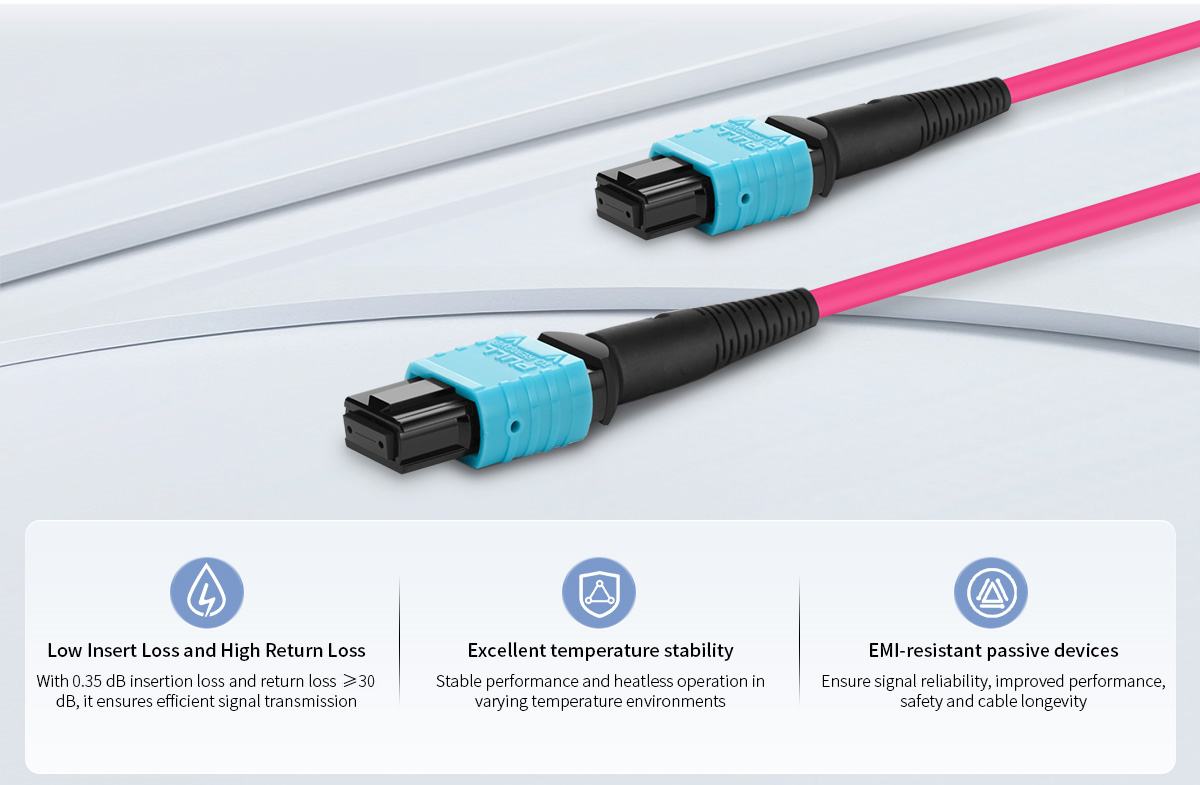

MTP Connector



High-Performance Fiber with Superior Durability



This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.

High-Performance Fiber with Superior Durability



Flexible High-Density Cabling Solutions



Excellent bend radius minimizes space wastage, optimizes cable management, improves deployment speed, simplifies cable management, and reduces installation costs.

High-Density Cabling Solutions



Spine-Leaf Architecture for Scalable Networks



Overcome network bottlenecks, minimize latency, and enhance bandwidth and scalability with the Spine-Leaf architecture, enabling larger network scales and facilitating future expansions.

Spine-Leaf Architecture for Scalable Networks



Maintain Performance by Cleaning Fiber



Ensure high reliability and performance connections by maintaining clean fiber end-faces.

MTP cables cleaner
