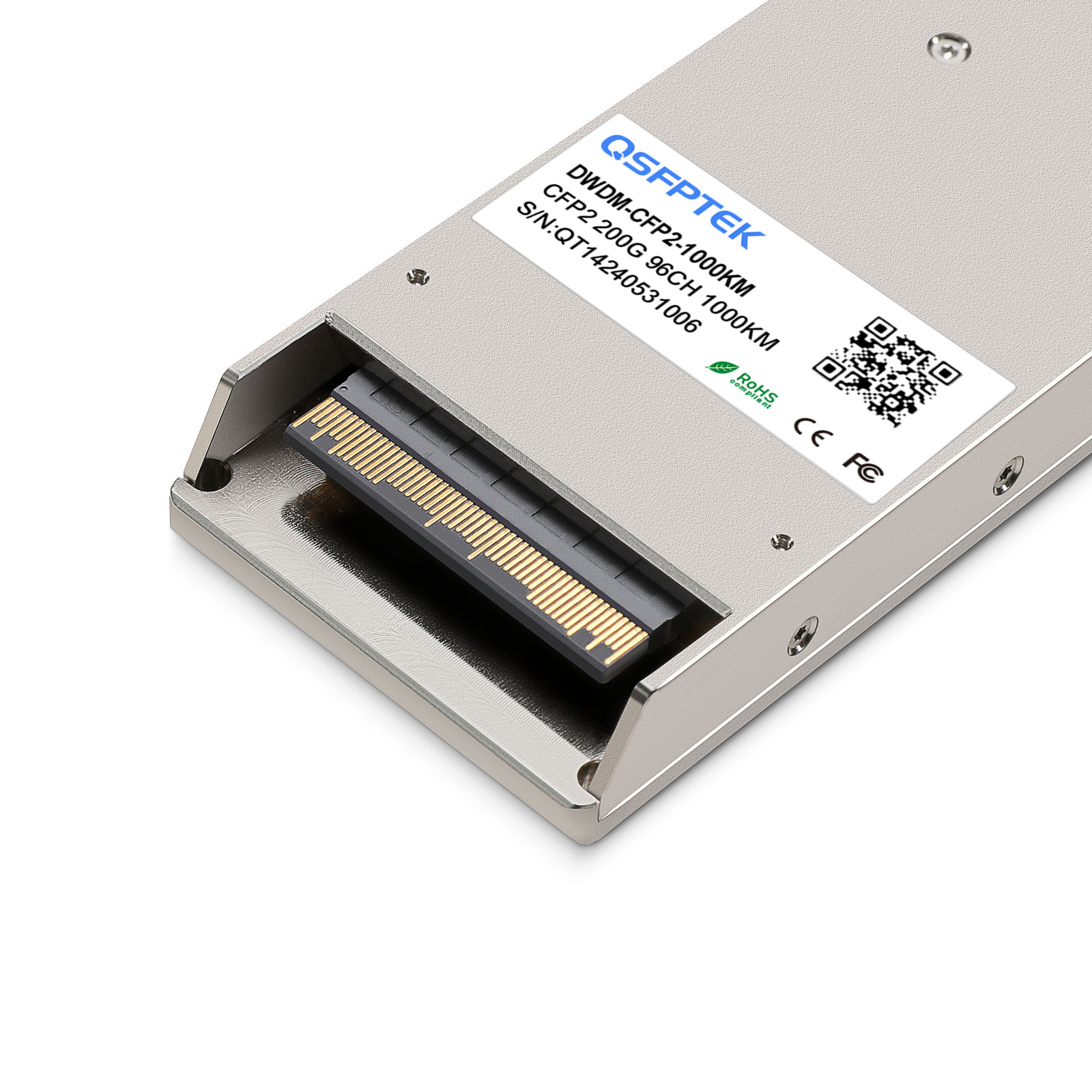

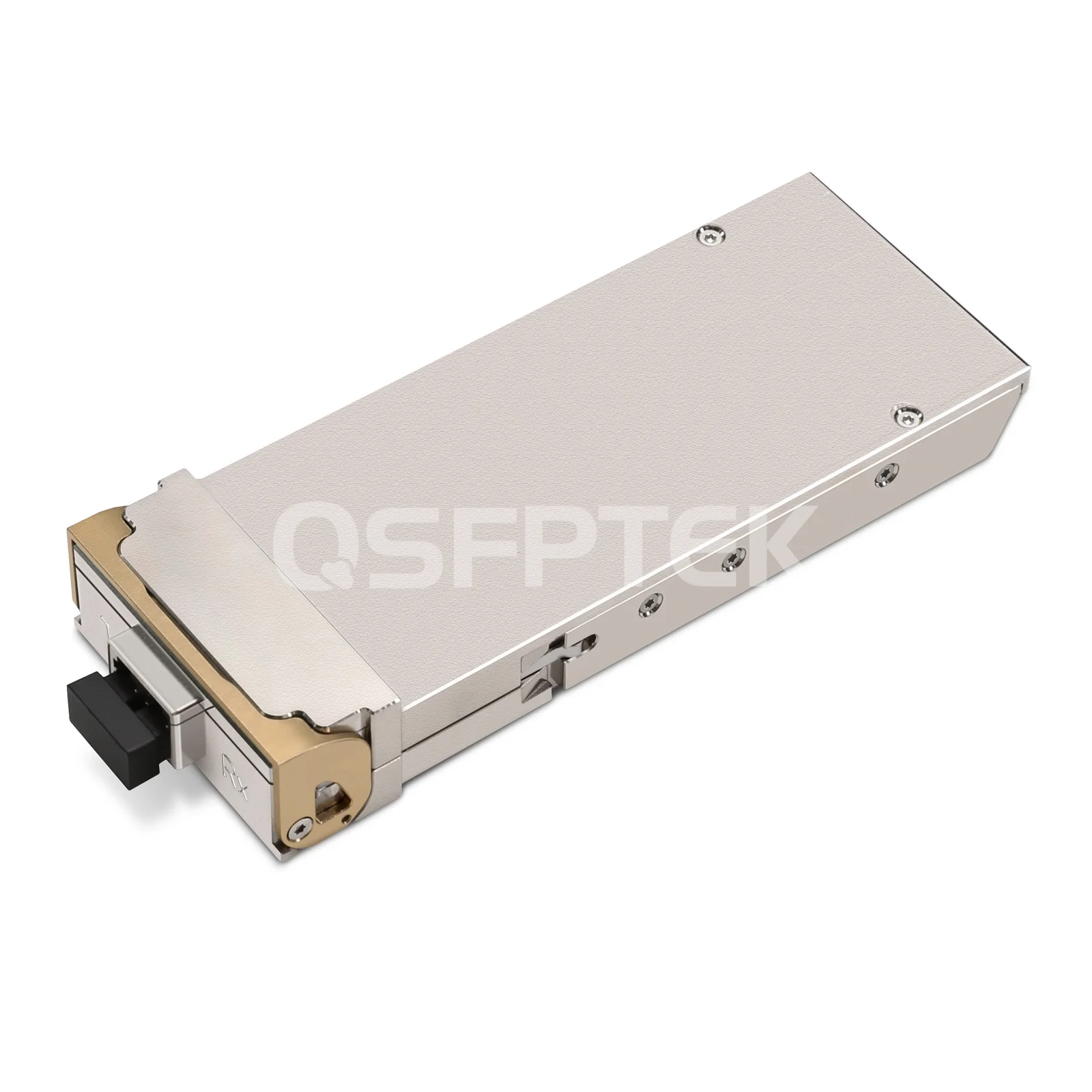

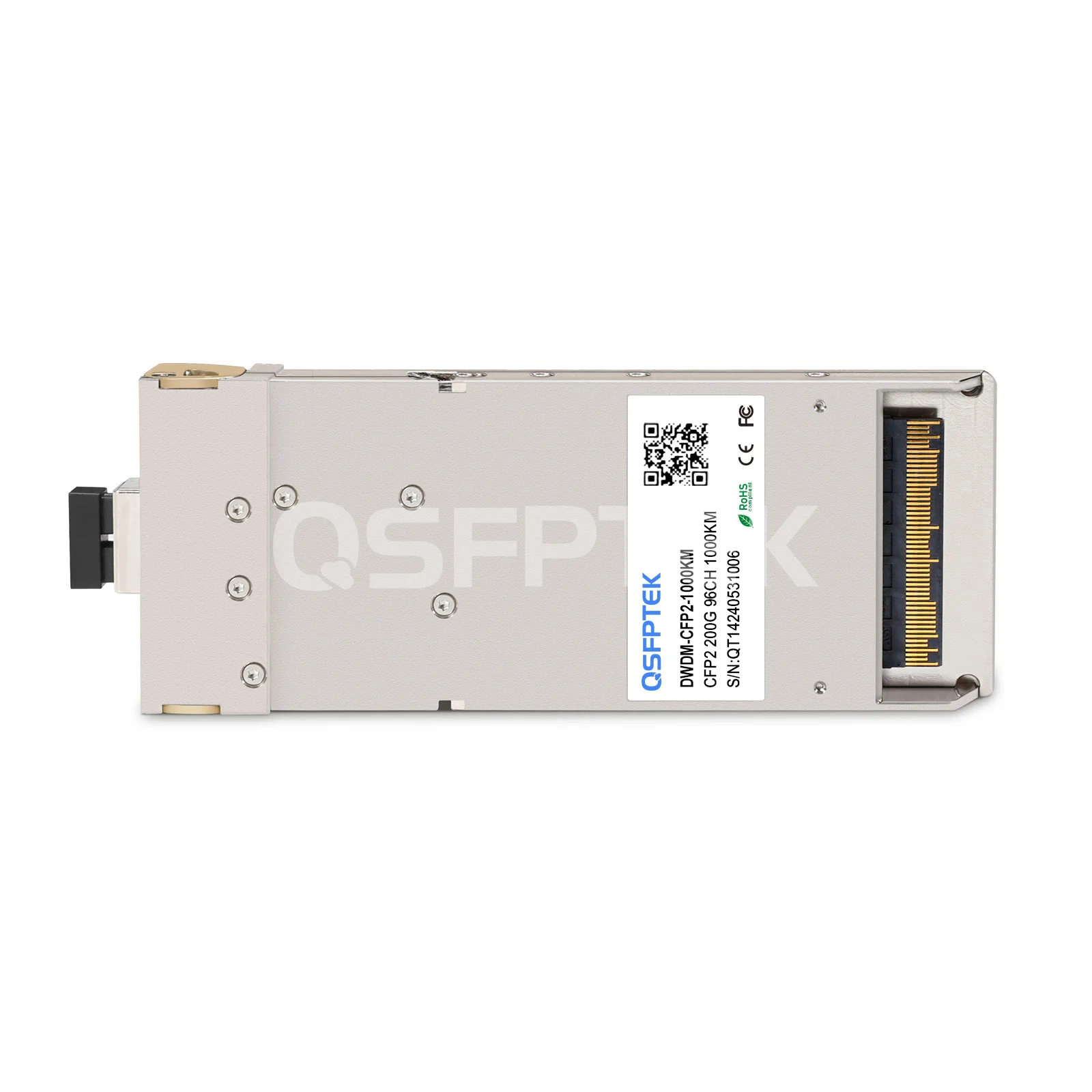

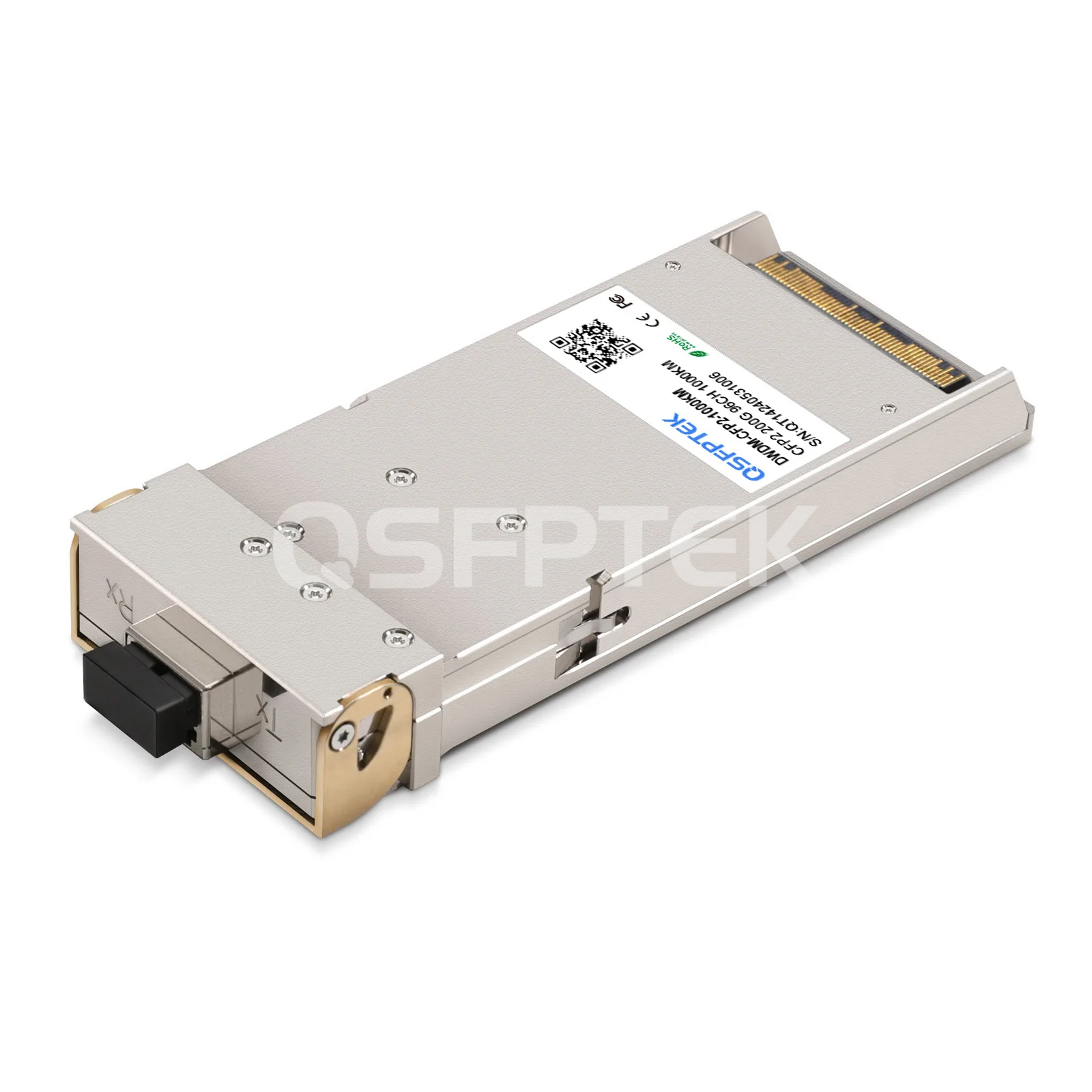

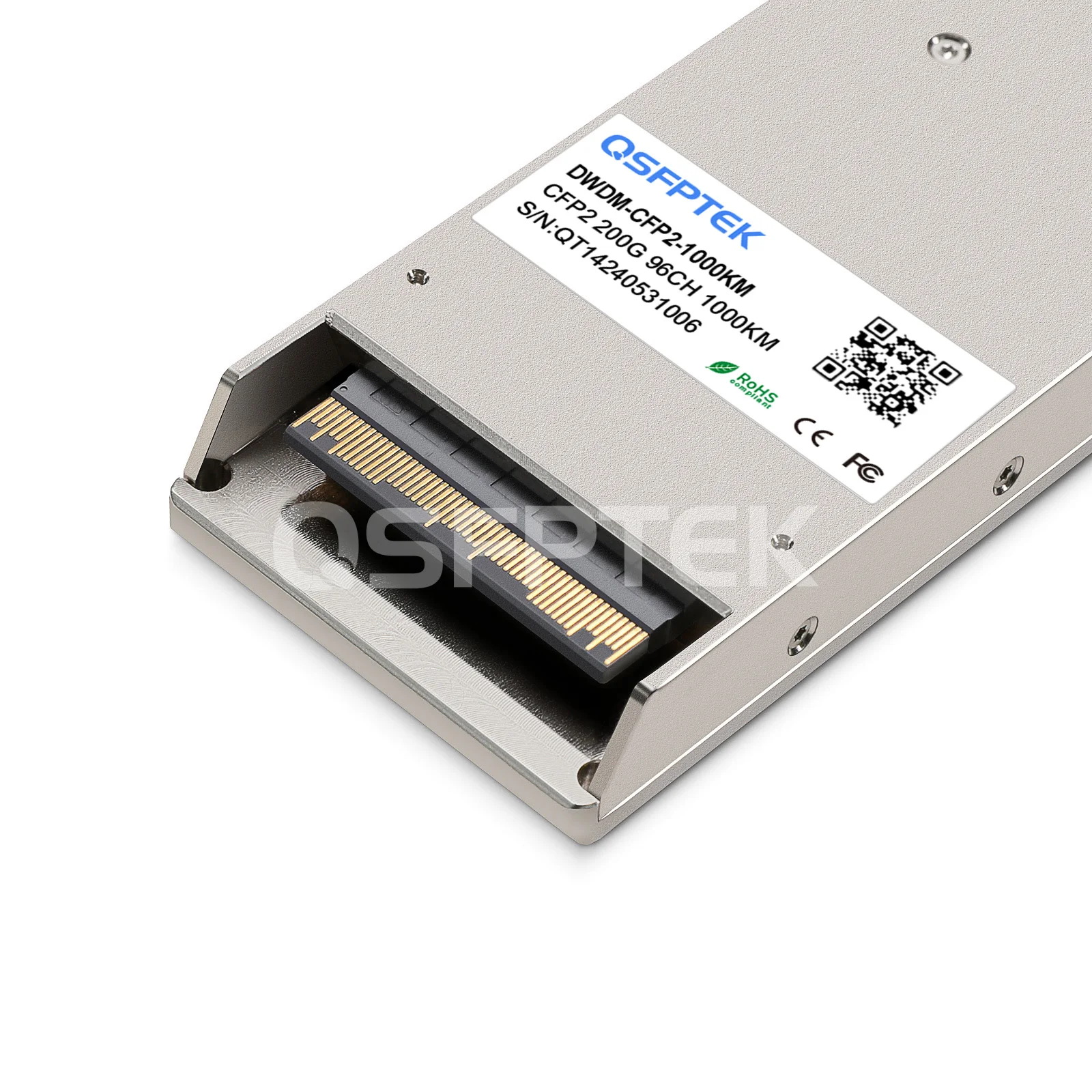

Generic Compatible 200G DWDM Tunable CFP2 DCO 1000km DOM Duplex LC SMF Transceiver Module

Product No :100531
US$ 6999.00  US$ 7899.00
Compatible
Transceivers type
462 in stock

Free Shipping over US$ 79.8

US/EU Warehouses in stock

14-day Return and Refund

;jsessionid=DD205E7E850BA1B7060A82525F0F649D
-
+
Add to Cart Bulk Order Quotes
1. Enabling SD FEC/G.709 FEC
2. Supporting ultra-high bandwidth up to 200Gbps
3. Tunable to 96 waves (50Ghz) in the C-band
4. Capable of long-haul transmission of up to 1200km
5. Appropriate for deployment in data center interconnects, metropolitan networks, and wide area networks.
See more

Specifications

Generic Compatible 200G DWDM Coherent CFP2-DCO Transceiver (1000km, LC Connector)



The CFP2-DCO coherent transceivers are capable of supporting flex-grid DWDM tuning and can provide 400GBase-DCO throughput over single-mode fiber (SMF) up to 80km using an LC connector. Additionally, these transceivers offer support for digital optical monitoring (DOM) which allows access to real-time operating parameters. These transceivers have been specifically designed for use in line-side trunk DWDM data center interconnect (DCI) as well as OTU4/OTUCn metro optical transport networks.



Part Number DWDM-CFP-200G-1000KM Vendor Name QSFPTEK
Form Factor CFP2 Max Data Rate 100/200Gbps
Grid Spacing 50GHz Frequency Range 190.7 to 196.65THz
Optical Channels 80/96 Tunable Wavelength CH13~CH60 (C-Band)
Transmission Protocols

200GbE/OTU4

 Max Cable Distance 1000KM

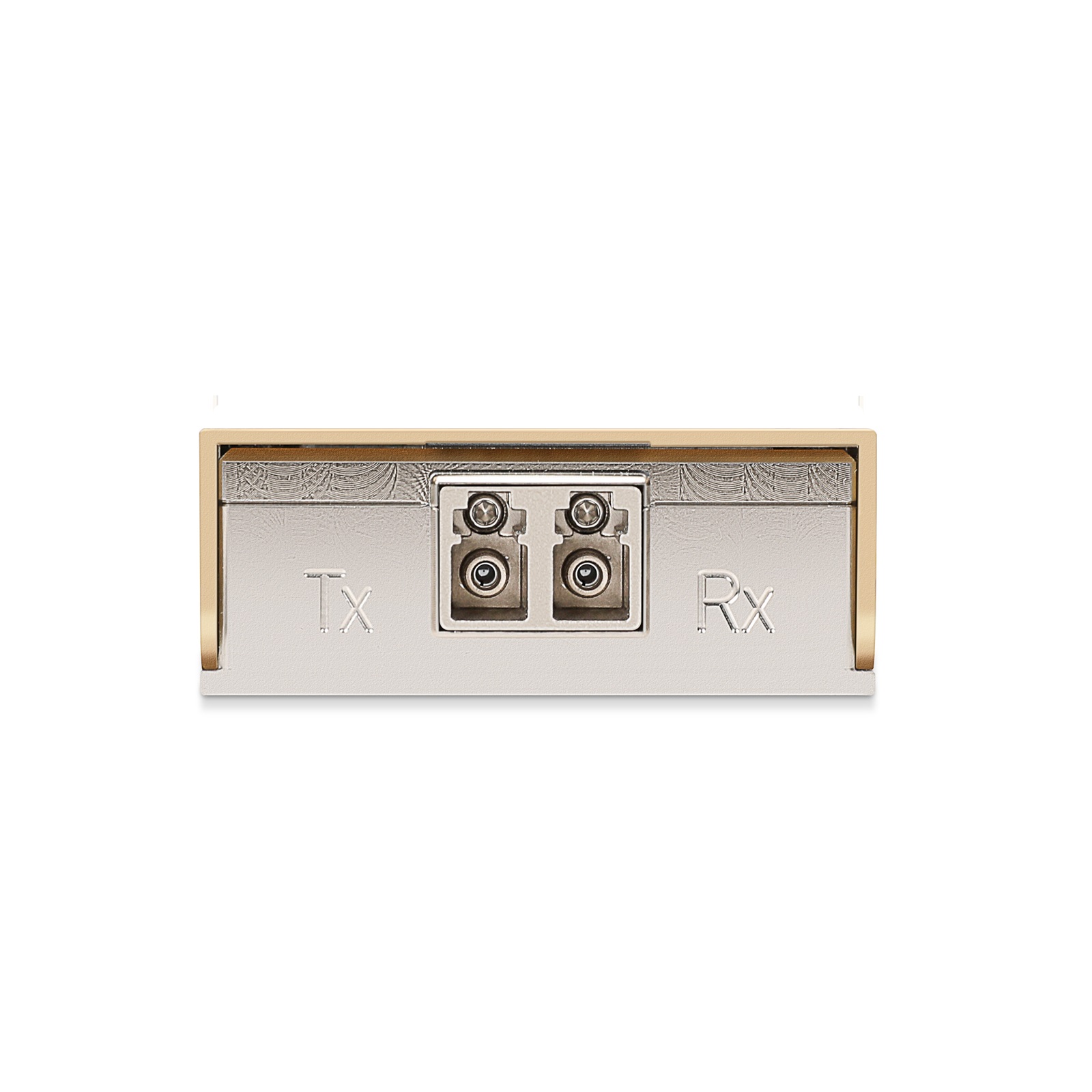

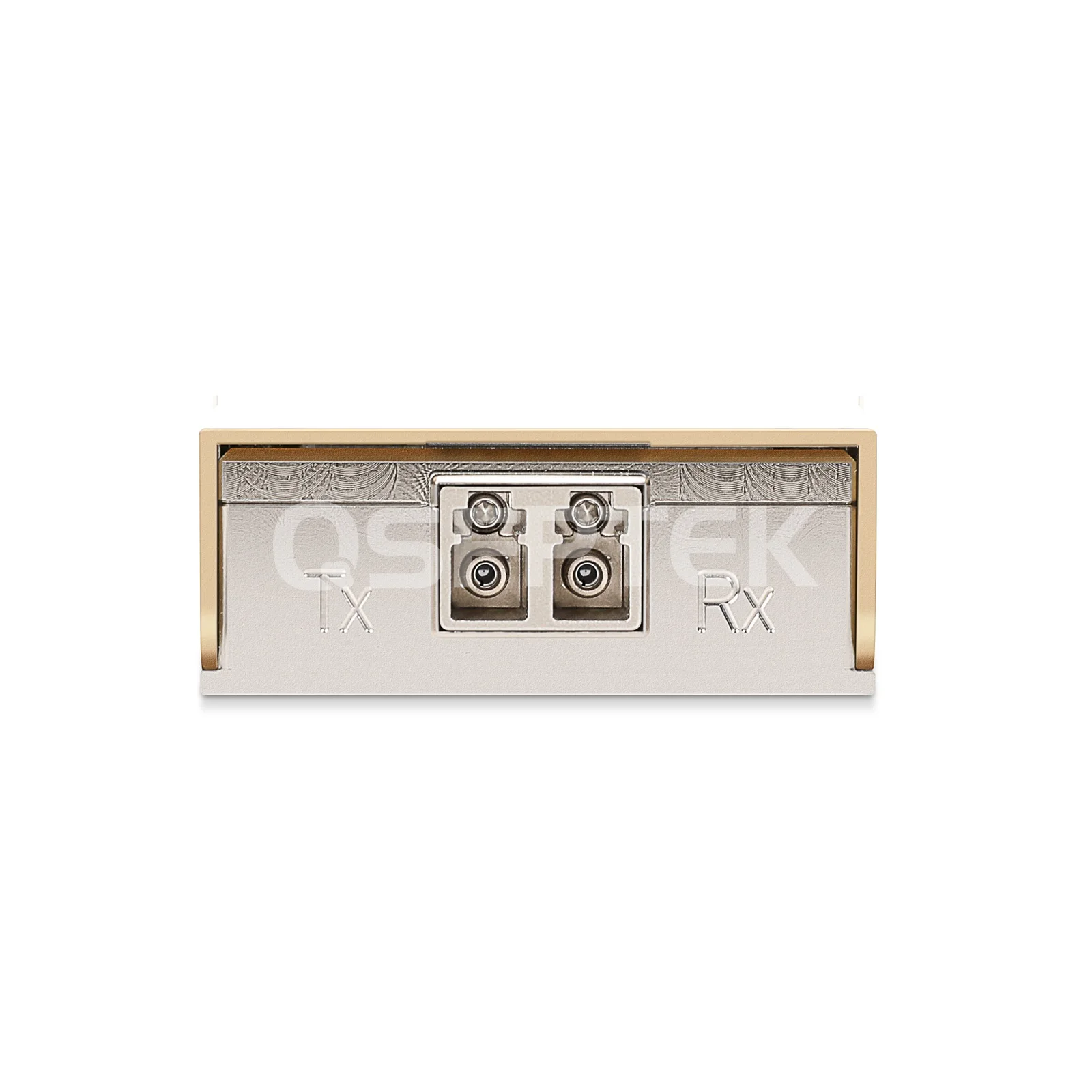

Connector Duplex LC Media SMF
Tx output power -15~1dBm Input Power Range -21~0dBm
Line Modulation DP-8QAM/16QAM Power Consumption ≤28W
Host FEC SD FEC, ITU-T G709 FEC Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols CFP2 MSA Hardware Specification 1.0 with modifications compliant, CFP MSA Management Interface Specification 2.2 with modifications compliant, IEEE 802.3bm, OIF CEI-28G VSR, OIF CEI-56G VSR PAM-4 Warranty 5 Years
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 1. Advanced Technology
    Features DP-8QAM/16QAM modulation technology and built-in inphi chip
  • 2. Best Price and High Quality
    Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.
  • 3. Protocols
    Compliant with IEEE 802.3 standards and CFP2 MSA standards.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

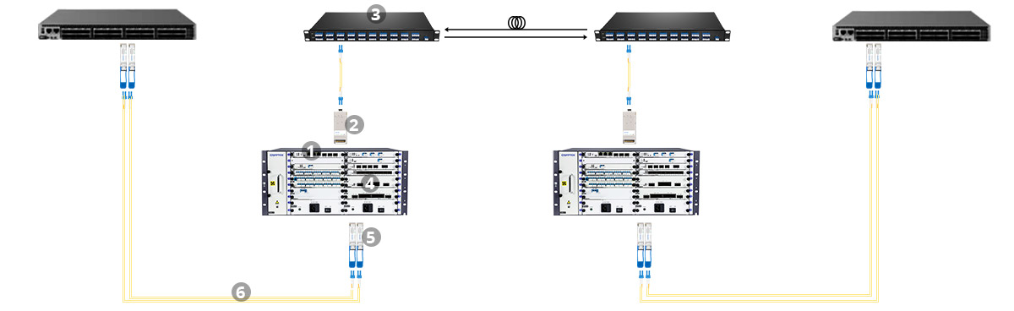

Applications

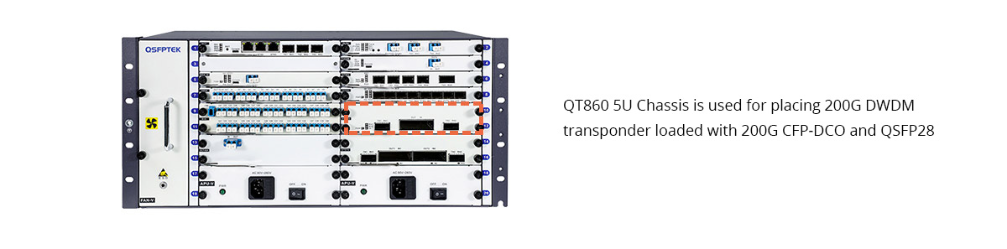

① QT860 Series 5U Managed Chassis Platform

② 100G/200G Tunable CFP2-DCO Coherent Transceiver

③ 40 Channels Passive DWDM Mux Demux

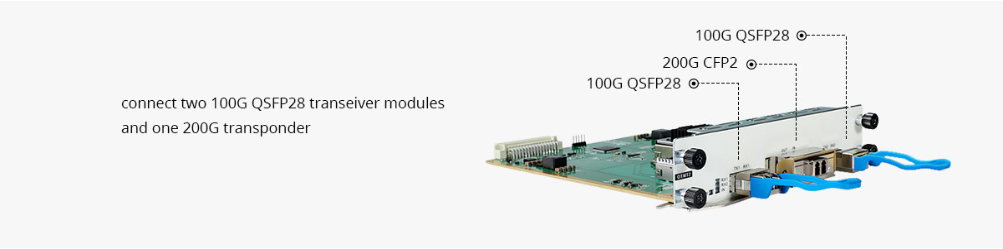

④ 200G OTN Muxponder, 2x QSFP28 to 1x CPF2

⑤ 100GBASE-LR4 QSFP28 1310nm 10km Optical Transceiver Module

⑥ LC UPC to LC UPC Duplex OS2 Fiber Optic Patch Cable

Product details

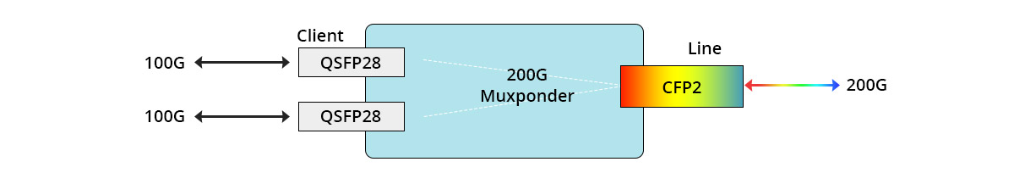

Support 2x 100G ↔ 200G Multiplexing/Demultiplexing

Convert two channels of 100G signal into one channel of 200G coherent DWDM optical signal (200G CFP2-DCO).

Questions & Answers

more+
  • What is the temperature grade of this product?
    The 100G CFP2-DCO is a commercial-grade temperature product that supports operating temperatures between 0 and 70℃.
  • What cable type is needed for 100G-DCO CFP2 transceiver?
    The QT 100G-DCO CFP2 module supports a link length of 2500 kilometers on standard single-mode fiber.
  • What is the maximum power consumption of 100G-DCO CFP2 transceivers?
    The maximum power consumption per QT 100G-DCO CFP2 module is 24W.
See more
