Customized 1000BASE-ZX SFP 80km Transceiver

Customized 1000BASE-ZX SFP 1550nm 80km Transceiver Module

Product No :100770

US$ {{customPrice}}

US$ 19.90 ~~US$ 24.88~~

336 in real-time stock, 11Dec, 2024

Free Shipping over US$ 79.8

US/EU/Global warehouses in stock

30-day Return and Refund

Add to Cart

1. Connector: Duplex LC; with DDM
2. Low Power Consumption <1W
3. Ideal for Campus network, Metro network, Long-Haul etc
4. Compatible with 200+ Vendors
5. Hot Pluggable SFP MSA Compliant

Specifications

Customized 1000BASE-ZX SFP Transceiver Module (SMF, 1550nm, 80KM, LC)

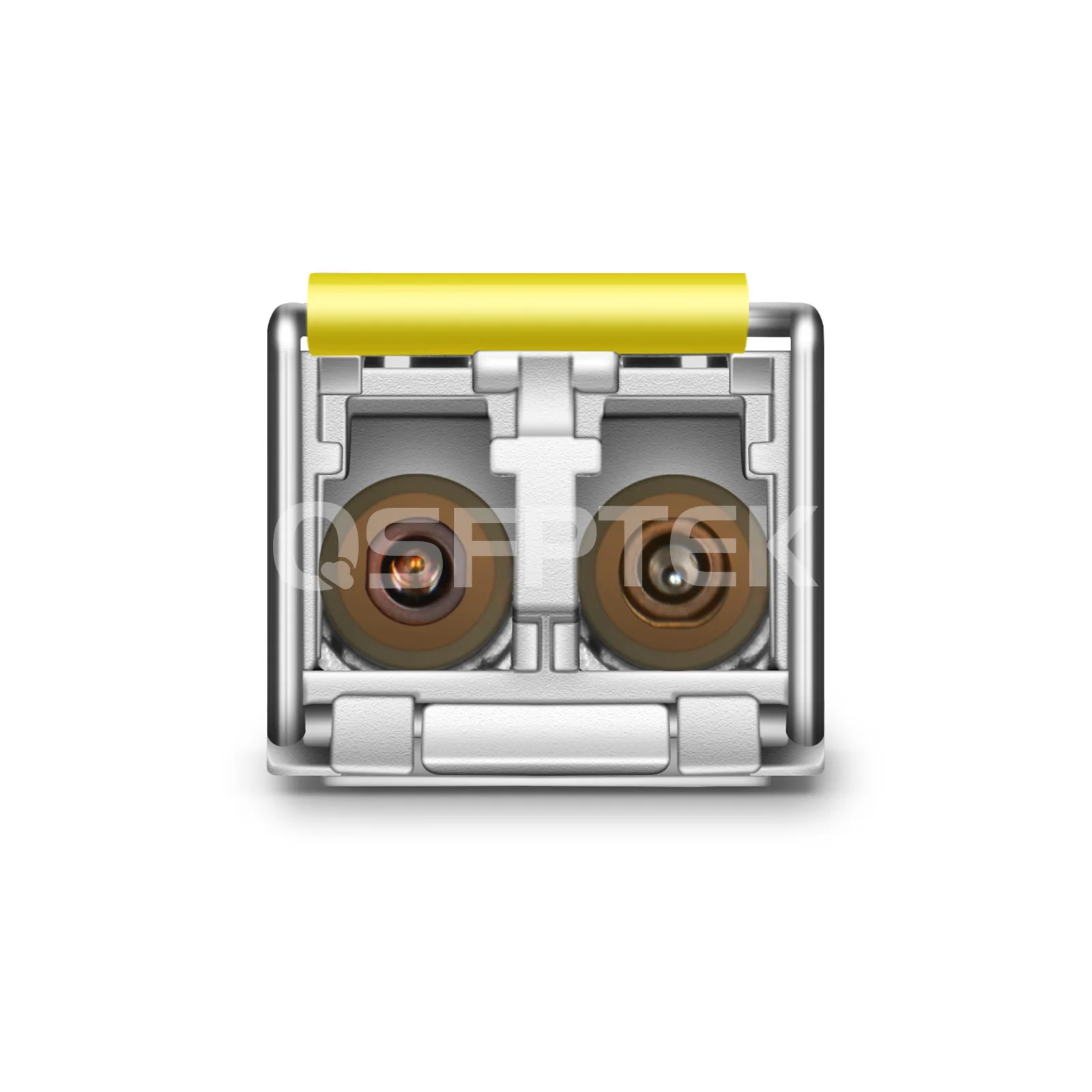

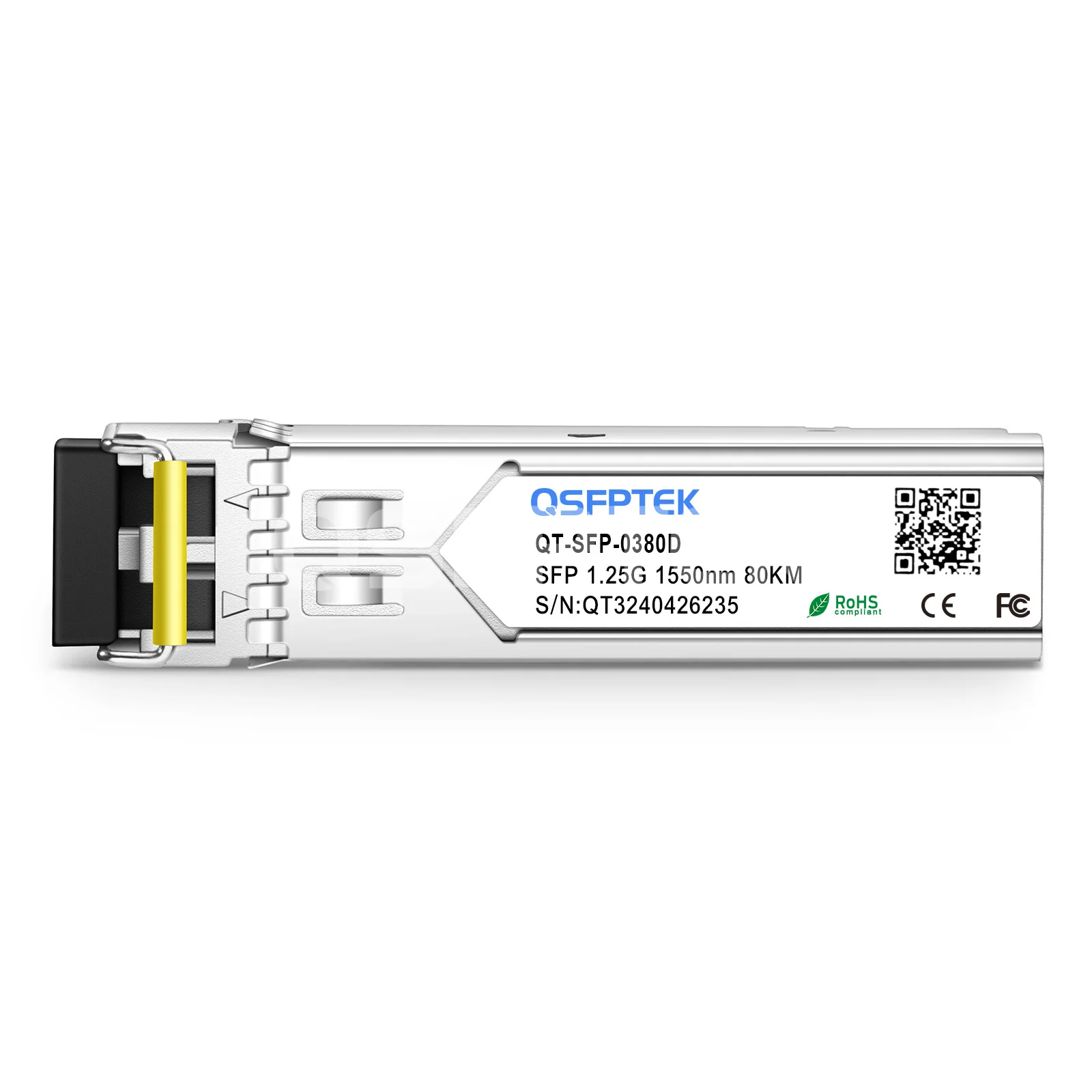

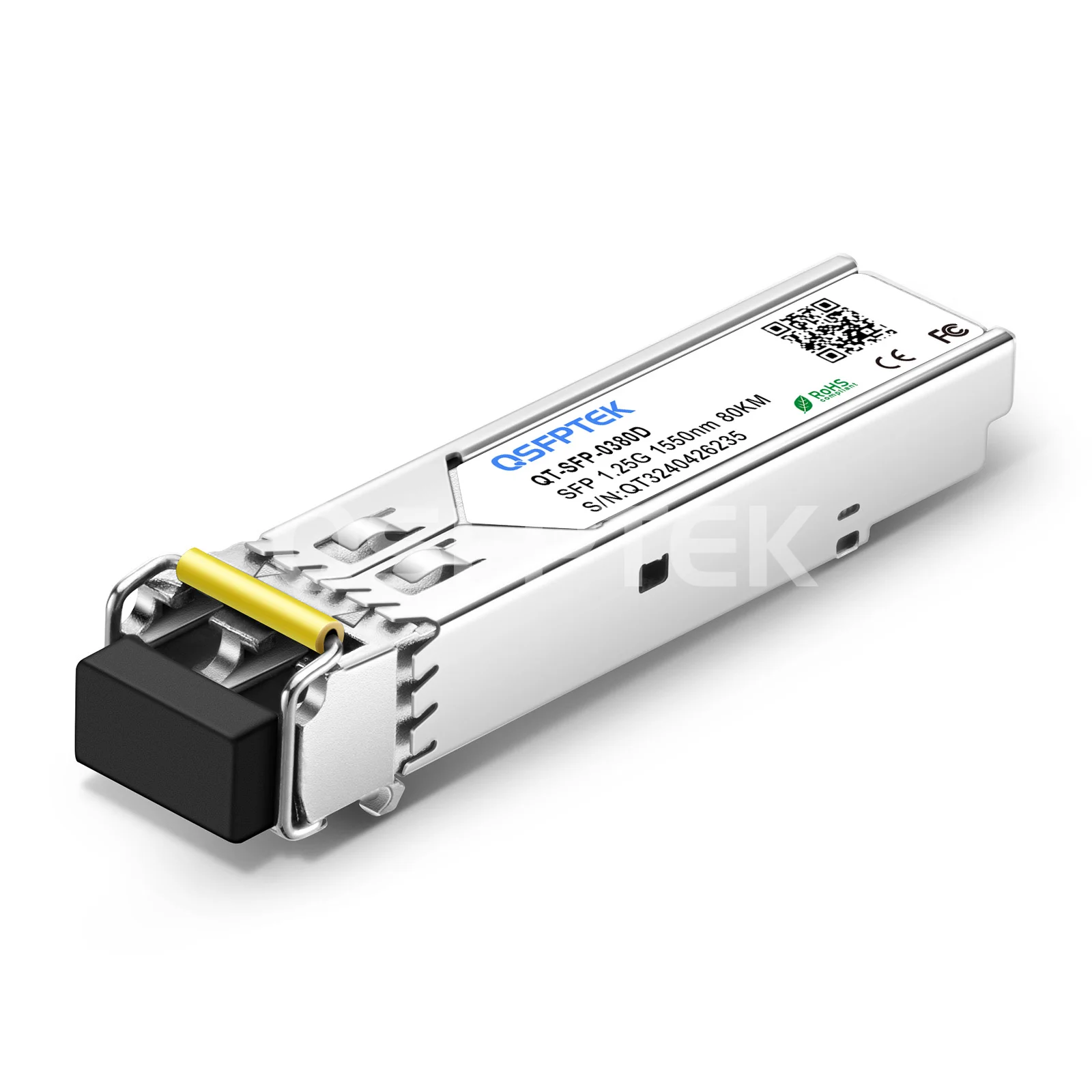

QSFPTEK Customized 1000BASE ZX SFP transceiver module is equipped with an LC duplex connector, which is high-performance, cost-effective, supporting 1.25Gbps data rate and 80KM transmission distance over single-mode fiber (SMF). QSFPTEK 1000BASE ZX transceiver is compatible with the IEEE 802.3z 1000BASE-ZX standard.

This compatible 1000BASE-ZX SFP fiber optic transceiver module consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. All QSFPTEK manufactured 1G SFP optical transceivers satisfy class I laser safety requirements.

Part Number	QT-SFP-0380D	Vendor Name	QSFPTEK
Form Factor	SFP	Data Rate	1.25Gbps
Wavelength	1550nm	Distance	80km
Connector	LC Duplex	Cable Type	OS2 SMF
Transmitter Type	DFB	Receiver Type	PIN
TX Power	0 ~ 5dBm	Receiver Sensitivity	< -24dBm
Power Consumption	< 1W	Modulation Format	NRZ
DDM	Support	Bit Error Ratio (BER)	1E-12
Protocols	SFF-8472 MSA Compliant, IEEE 802.3ah-2004	Warranty	5 Years

Quality Testing Program

Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Product details

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

single-mode 1G SFP compatibility test on multiple switches

Tested in The Host Device to Prove Interoperability

Every unit sold undergoes rigorous quality testing to ensure compatibility in the target switch environment and guarantee perfect operation.

QSFPTEK Test Rack

Comprehensive Testing

Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices.

QSFPTEK Performance test lab

1G Fiber SFP Model Contrast Table

Part Number	QT-SFP-0301D	QT-SFP-0302D	QT-SFP-0310D	QT-SFP-0320D	QT-SFP-0340D
Max. Data Rate	1.25Gbps	1.25Gbps	1.25Gbps	1.25Gbps	1.25Gbps
Wavelength	850nm	1310nm	1310nm	1310nm	1310nm
Max Distance	550m	2km	10km	20km	40km
Connector	LC Duplex	LC Duplex	LC Duplex	LC Duplex	LC Duplex
Media	MMF	SMF/MMF	SMF	SMF	SMF
Operating Temperature	0 to 70°C or -45 to +85℃	0 to 70°C or -45 to +85℃	0 to 70°C or -45 to +85℃	0 to 70°C or -45 to +85℃	0 to 70°C or -45 to +85℃
Part Number	QT-SFP-0340D	QT-SFP-0380D	QT-SFP-03100D	QT-SFP-03120D	QT-SFP-03150D
Max. Data Rate	1.25Gbps	1.25Gbps	1.25Gbps	1.25Gbps	1.25Gbps
Wavelength	1550nm	1550nm	1550nm	1550nm	1550nm
Max Distance	40km	80km	100km	120km	150km
Connector	LC Duplex	LC Duplex	LC Duplex	LC Duplex	LC Duplex
Media	SMF	SMF	SMF	SMF	SMF
Operating Temperature	0 to 70°C or -45 to +85℃	0 to 70°C or -45 to +85℃	0 to 70°C or -45 to +85℃	0 to 70°C or -45 to +85℃	0 to 70°C or -45 to +85℃
