    Home / Products / Fiber Optic Cables / Fiber Patch Cables / OS2 9/125 SMF Simplex / 101211

    Customized Simplex OS2 Single Mode Fiber Optic Patch Cable

    Product No :101211
    0 Reviews
    0 Solds
    US$ {{currency === 'EUR' ? customPriceEuro: customPrice}}
    US$ --

    {{hg.name}}

    9 in real-time stock, 11Jul, 2025

    30-Day Returns & Exchange

    Buy switch & cables for free shipping. Cables alone are not eligible.

    Contact sales for more free shipping policies

    -
    +
    Add to Cart
    1. Ultra-low Inset Loss≤ 0.25dB
2. G.652D, 10mm Min. Bend Radius
3. Durable for Indoor Use (e.g. Data Centers, Enterprise Networks, etc)
4. High Temperature Stability
5. Compliant with IEC-61754 and TIA-604
    See more

    Specifications

    Customized Simplex OS2 Single Mode Fiber Optic Patch Cable



    The 9/125μm OS2 SMF fiber optic patch cable, featured with ultra-low insert loss (0.36dB/km via 1310nm and 0.22dB/km via 1550nm), is specially optimized for 1G/10G/40G/100G/400G Ethernet connections. This single-mode fiber optic cable is widely applied in high-density application scenarios such as data centers, enterprise networks, telecommunication rooms, server rooms, etc., which helps to save rack space by a wide margin and maintain a neat cabling center.



    Fiber Count

    1 Fiber

    Fiber Type

    OS2 SMF 9/125μm

    Connector Type

    LC/SC/ST/FC

    Wavelength

    1310nm/1550nm

    Armoured

    No

    Cable Material

    PVC/LSZH

    Insert Loss

    0.25dB

    Return Loss

    ≥50dB

    Approximate Diameter

    2.0mm

    Length

    0.5m/1m/2m/3m/4m/5m/6m/7m/8m/10m/12m/15m/20m

    Min. Bend Radius (Fiber Cable) Dynamic

    10mm

    Min. Bend Radius (Fiber Cable) Static

    10mm

    Operating Temperature

    -20~+70°C

    Storage Temperature

    -40~+80°C



    Quality Certifications

    Features

    • Wide Application
      OS2 Single-mode fiber is specially designed for reliable, long-distance, Ethernet connectivity between switches, servers, routers, Firewalls, SFP+ transceivers, media converters, patch panels, and other SMF optical equipment.
    • Exceptional Transmission Performance
      Low insertion loss less than 0.25dB, return loss more than 50dB. Carrier-grade cable assemblies reduce bending loss to ensure good transmission performance.
    • Rigorously Quality Test
      Each OS2 Single-mode fiber is individually and rigorously tested to be within accurate optical insertion loss.
    • Quality Certifications
      Conforms with TIA/EIA-604, ITU-652.D, and IEC-61754 standards and complies with RoHS specifications.

    Applications

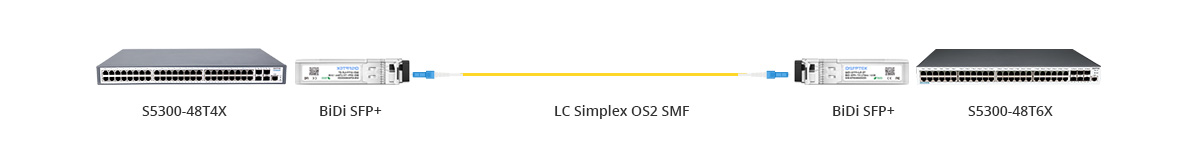

    Scenario 1:

    Efficiency Transmission with OS2 LC Patch CableRelated Products:

    S5300-48T6X, 48-Port Gigabit Ethernet L3 Switch, 48 xGE RJ45, with 6 x10GE SFP+, Support Stacking

    Cisco SFP-10G-BXD Compatible 10GBASE-BX10-D BiDi SFP+ 1330nm-TX/1270nm-RX 10km DDM LC SMF Transceiver

    LC UPC to LC UPC Simplex OS2 2.0mm PVC Fiber Optic Patch Cable 1m

    S5300-48T4X, 48-Port Gigabit Ethernet L2+ Switch, 48 xGE RJ45, with 4 x10GE SFP+, Support Stacking



    Scenario 2:

    LC to LC OS2 Fiber Optic Patch Cable Connectivity

    Related Products:

    S5300-48M6X, 48-Port Gigabit Ethernet L3 Switch, 24 xGE RJ45, 24 xGE SFP Ports, with 6 x10GE SFP+, Support Stacking

    Cisco Linksys MGBBX1D Compatible 1000BASE-BX BiDi SFP 1490nm-TX/1310nm-RX 20km LC Transceiver Module

    LC UPC to LC UPC Simplex OS2 2.0mm PVC Fiber Optic Patch Cable 3m

    S5300-24T4S, 24-Port Gigabit Ethernet L2+ Switch, 24 x10/100/1000BASE-T RJ45, with 4 x GE SFP, Fanless

    Product details

    Excellent Transmission Stability Ensured by Superior Craftsmanship



    With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission



    Excellent Transmission Stability Ensured by Superior Craftsmanship



    Reliable Transmission Quality with Carrier-Grade Cables



    Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.



    Reliable Transmission Quality with Carrier-Grade Cables

    Addressing Various Indoor Installation Requirements



    Perfect for network cabinet connectivity, ceiling wiring, and under-floor wiring within the data center environment.



    Addressing Various Indoor Installation Requirements
