    Products / Multiplexers / Mux Demux / CWDM Mux Demux / 102386
    Product image
    Product image

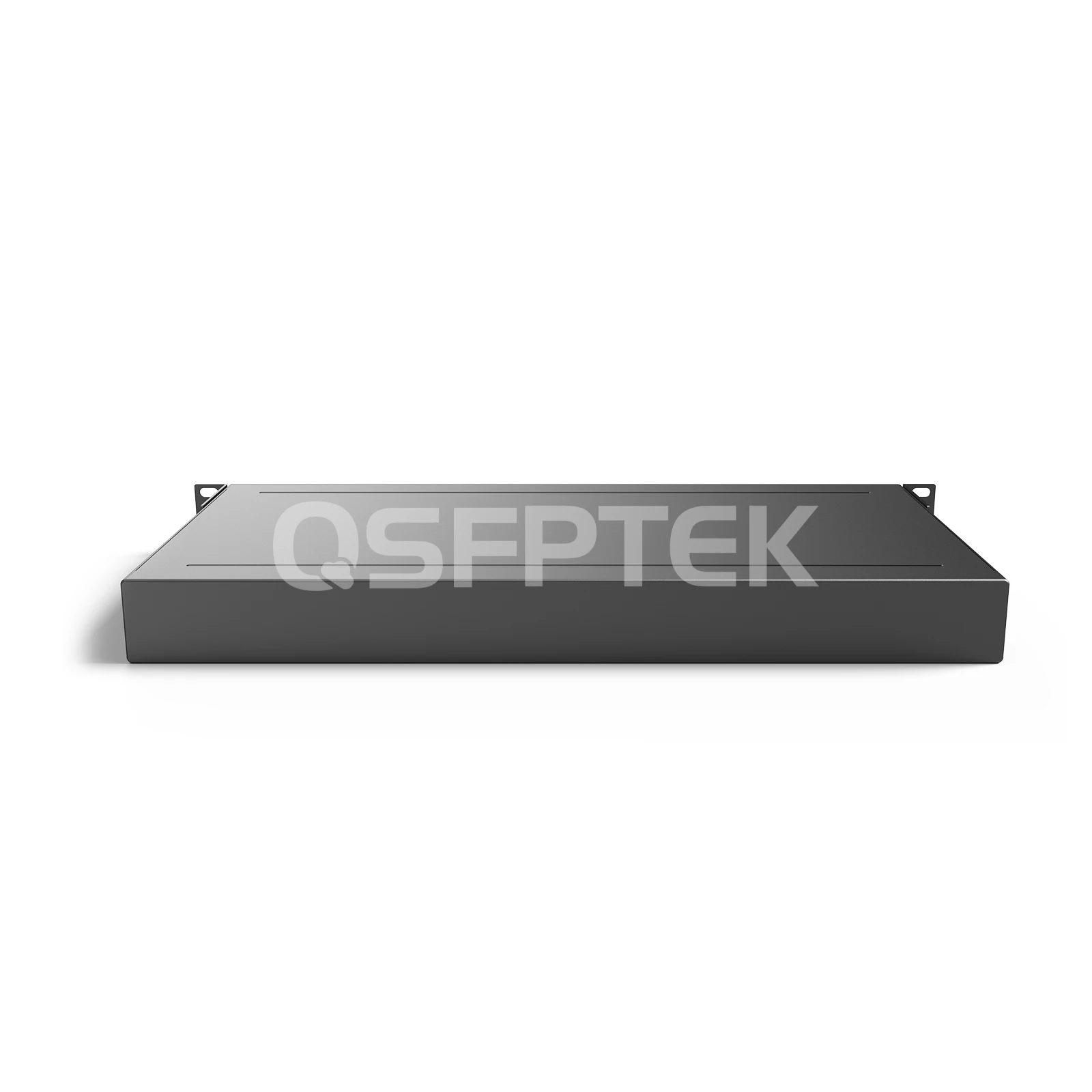

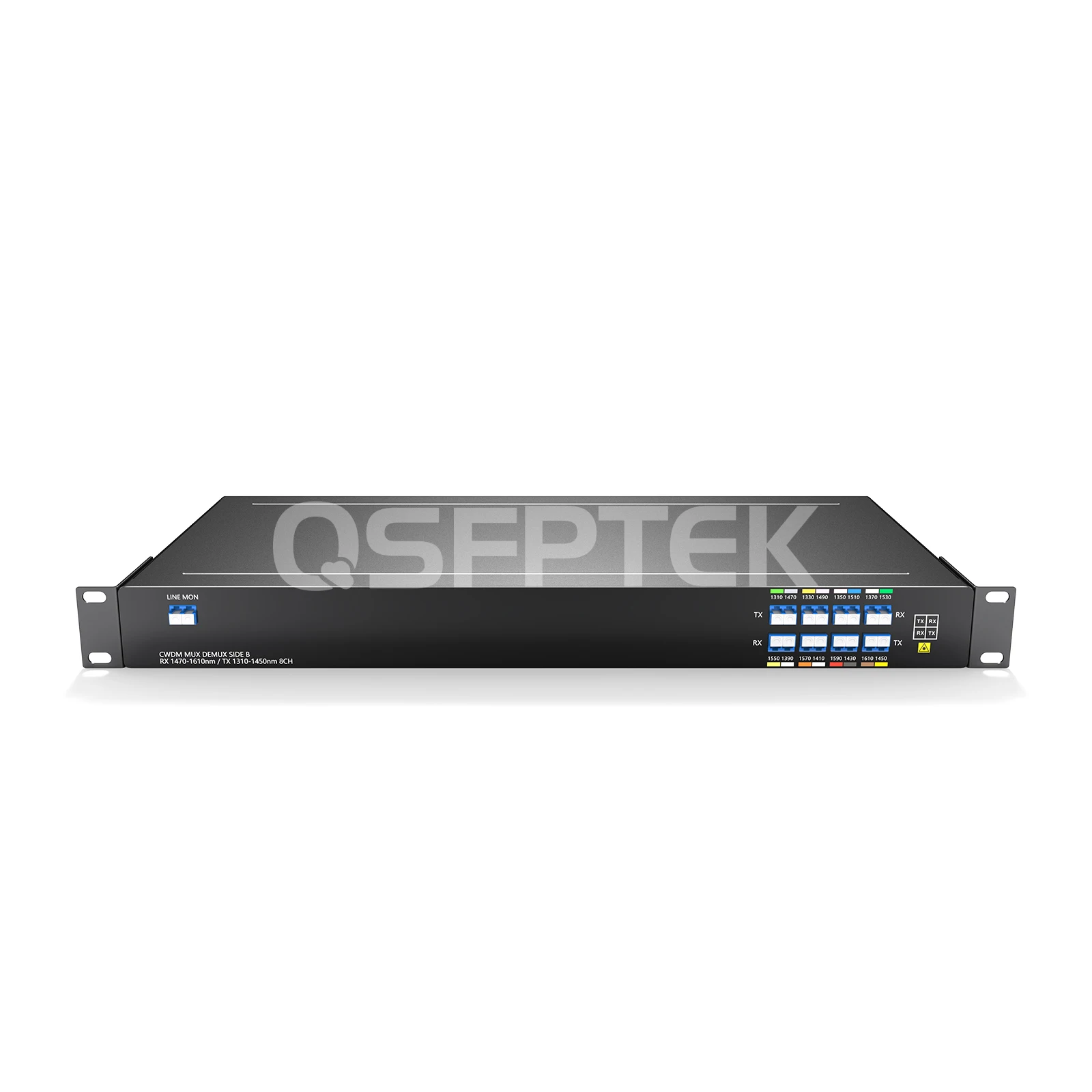

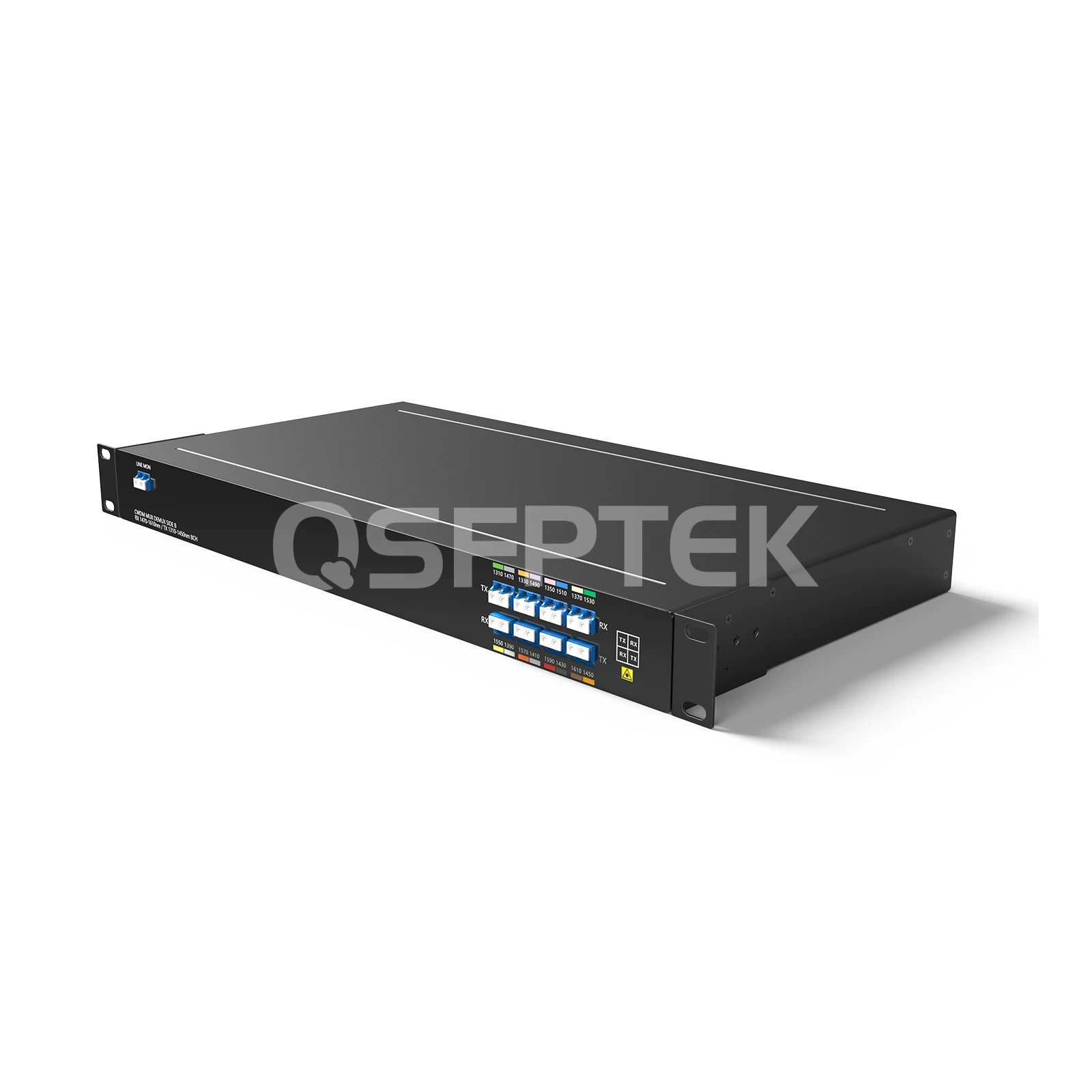

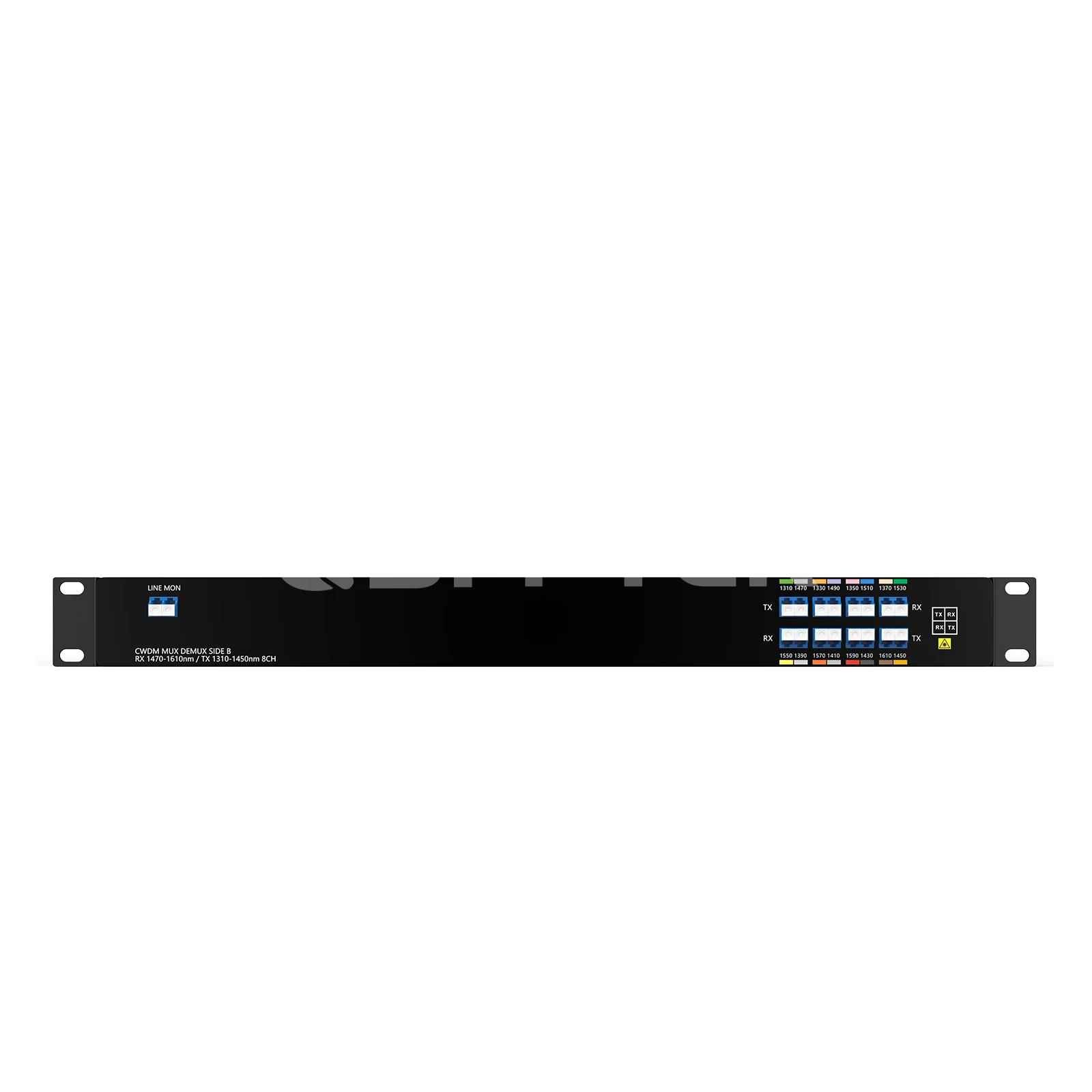

    8CH (16Waves) 1470-1610nm Single Fiber CWDM MUX DEMUX With Monitor Port LC/UPC, 1U Rack

    Product No: 102386
    1 Reviews
    91 Sold
    $183.90  $199.90
    Series
    Model
    125 in real-time stock, 02Nov, 2026
    3-Year Warranty 90-Day Returns 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. CWDM multiplexer and demultiplexer 8 channels over single SMF.
2. 100% Passive, no power supply and no temperature control required.
3. Low insert loss  ≤ 4.8dB.
4. Monitor Port for easy troubleshooting.
5. Utilized in metro, regional, and CWDM network environments.
    See more

    Specifications

    8CH (16Waves) Single Fiber CWDM MUX DEMUX With Monitor Port LC/UPC, 1U Rack



    Crafted by QSFPTEK, the Single Fiber 8-channel CWDM MUX/DEMUX covers wavelengths from 1470nm to 1610nm, supports 8 channels difference business in one core optical fiber for point-to-point transmission. It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries, where the optical fiber resource are rare.

    Part Number QT-1U-C84761EMB Installation Method 1U Rack Mount
    Wavelength 8 Channels 1470nm~1610nm Channel Spacing 20nm
    Channel Passband ±6.5nm Passband Ripple ≤ 0.2dB
    Insertion Loss ≤ 4.8dB Technology TFF (Thin Film Filter)
    Insertion Loss @ 1% Mon ≤ 26dB Link Loss ≤5.8dB
    Directivity ≥45dB Return Loss ≥45dB
    Polarization Mode Dispersion (PMD) ≤ 0.1ps Channel Isolation Adjacent ≥30dB
    Non-adjacent ≥ 45dB
    Polarization Dependent Loss (PDL) ≤ 0.3dB Operating Temperature -40 to 85°C (-40 to 185°F)
    Center Wavelength Accuracy ±0.05dB Storage Temperature -40 to 85°C (-40 to 185°F)
    Dimensions (H x W x D) 44 x 440 x 230mm Net Weight 3.5KG
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    Hot

    S7300-48X2Q4C, 48-Port Ethernet L3 Switch, 48x 10G SFP+, with 2x 40G QSFP+ and 4x 100G QSFP28 Uplinks, Support Stacking

    $2409.40 $2999.00
    123 Sold
    171 Reviews
    Hot

    QT860-CH5U15, 15 Slot 5U Managed Chassis Platform Unloaded for OTN Transmission

    $831.90 $899.00
    13 Sold
    1 Reviews

    Cisco CWDM-SFP10G-1310-20 Compatible 10G 1310nm CWDM SFP+ 20km DDM LC SMF Transceiver

    $48.00
    496 Sold
    4 Reviews

    Cisco CWDM-SFP10G-1470-20 Compatible 10G 1470nm CWDM SFP+ 20km DDM LC SMF Transceiver

    $159.00
    476 Sold
    4 Reviews
    Hot

    Cisco SFP-10G-SR-S Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module

    $8.90 $11.90
    14.3K Sold
    119 Reviews

    LC UPC to LC UPC Duplex OM4 2.0mm LSZH Multimode Fiber Optic Patch Cable 1m

    $3.16
    8.6K Sold
    79 Reviews
    Hot

    LC UPC to LC UPC Duplex OS2 2.0mm LSZH Fiber Optic Patch Cable 1m

    $3.16
    10.4K Sold
    79 Reviews

    Features

    • 1. Optimal Optical Performance
      Low optical insertion loss, zero electrical power, no temperature control requirements, and easy installation make the best-in-class operational efficiency.
    • 2. Widely Application Scenarios
      It works with colored transceivers and supports such applications as 1G/10G/25G/40G/100G Ethernet, SDH/SONET, and 8/4/2/1G Fiber Channel.
    • 3. Integrated with MON Port
      The monitor port allows easy troubleshooting without downtime.
    • 4. Quality Certifications
      Backed by CE, FCC, ISO9001, ISO14001.

    Applications

    Use CWDM Mux Demux for Multiple 10G CWDM Networks up to 10KM:QT-1U-C83145EMA and QT-1U-C84761EMB

    Product details

    Rich Ports for 8 Channels DWDM Mux Demux



    The 1470nm-1610nm channel port for CWDM traffic, monitor port for network link monitoring



    Basic Principles of DWDM Multiplexing and Demultiplexing



    The DWDM Mux Demux essentially combines multiplexing (Mux) and demultiplexing (Demux) functions. At the transmitting end, the Mux combines optical signals of different wavelengths into the same fiber for transmission; at the receiving end, the Demux separates these mixed multi-wavelength signals and restores them to their individual channels. The overall process is one of "merging" at one end and "demultiplexing" at the other, corresponding to each other.

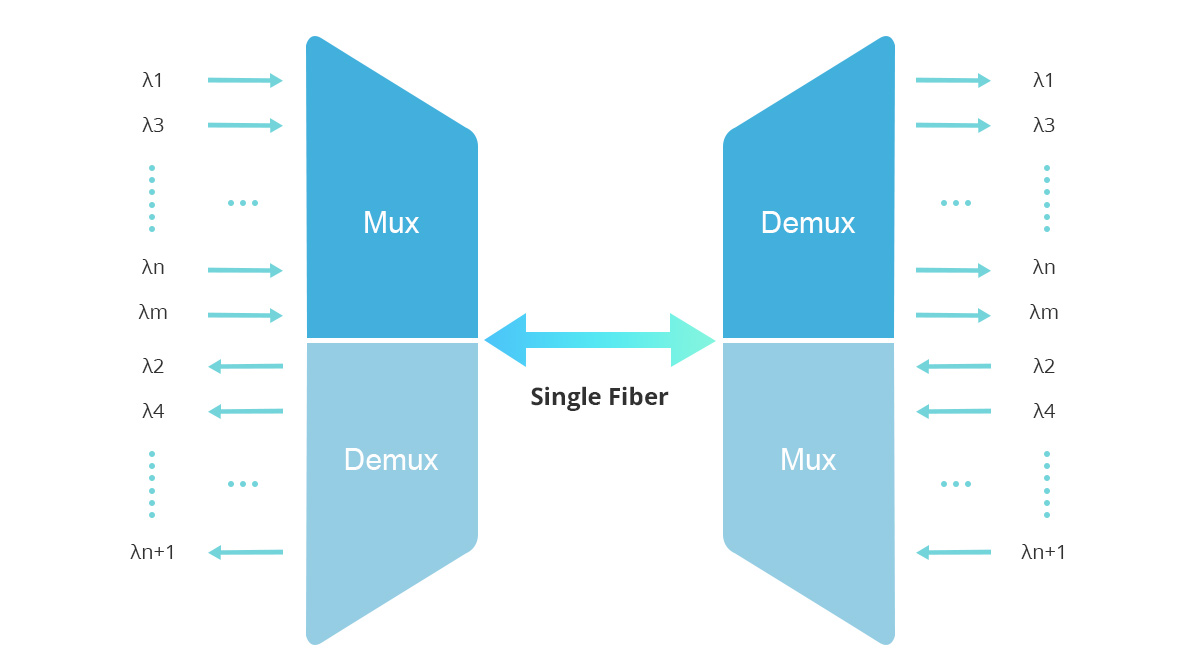

    Single Fiber Wavelength



      Maximize Your Fiber Resources with Passive WDM Network



    WDM technology enables diverse data transmissions over a single fiber, reducing the need for multiple dedicated fibers per service.

    It serves as a cost-effective network solution by optimizing the utilization of optical fibers.



       Comprehensive Network Solution Design for Free



    Individually crafted solutions meeting your specific requirements perfectly



    Questions & Answers

    • All (4)
    • Hello, can I customize my special CWDM MUX DEMUX? I don’t see the specific model I need on the website.
      Of course, our website provides a variety of customization options. We support the purchase of two models, FMU Plug-in and 1U Rack mount, provide 8/9CH bands, and support the selection of single-fiber or dual-fiber line types. Finally, for different function ports, we support the free selection of three function ports: 1310nm, Monitor and EXP Port.
    • How can I install these MUX DEMUX, do you have a operation manual?
      Yes, you can download this MUX DEMUX user guide to complete the installation, which includes the installation of FMU and 1U models.
    • Can I use this CWDM MUX DEMUX for my fiber channel networks?
      Yes, these CWDM MUX DEMUX supports application for 1G/10G/25G/40G/100G Ethernet, SDH/SONET, and 8/4/2/1G Fiber Channel

    Customer Reviews

    Write a Review
    Sign in to write a review
    Write a Review

    5 stars

    1 Reviews

    4 stars

    0 Reviews

    3 stars

    0 Reviews

    2 stars

    0 Reviews

    1 star

    0 Reviews

    Read reviews that mention

    • All (1)
    • Bruno United States of America
      2024-08-02

      I purchased this CWDM MUX DEMUX in a compact design that supports 19-inch rack mounting, making it easy to install and flexible in its configuration

      Model1U, 1470-1610nm, 4.8dB, Side B

      SeriesCWDM SF MUX/DEMUX

      Helpful

      0

    Resources

    • PDF Document
      QT-1U-C83145EMA and QT-1U-C84761EMB Datasheet.pdf
    • PDF Document
      Mux Demux & OADM User Guide.pdf
