Home / Products / Fiber Optic Cables / MTP/MPO Cables / MTP/MPO Breakout Cables / 102438

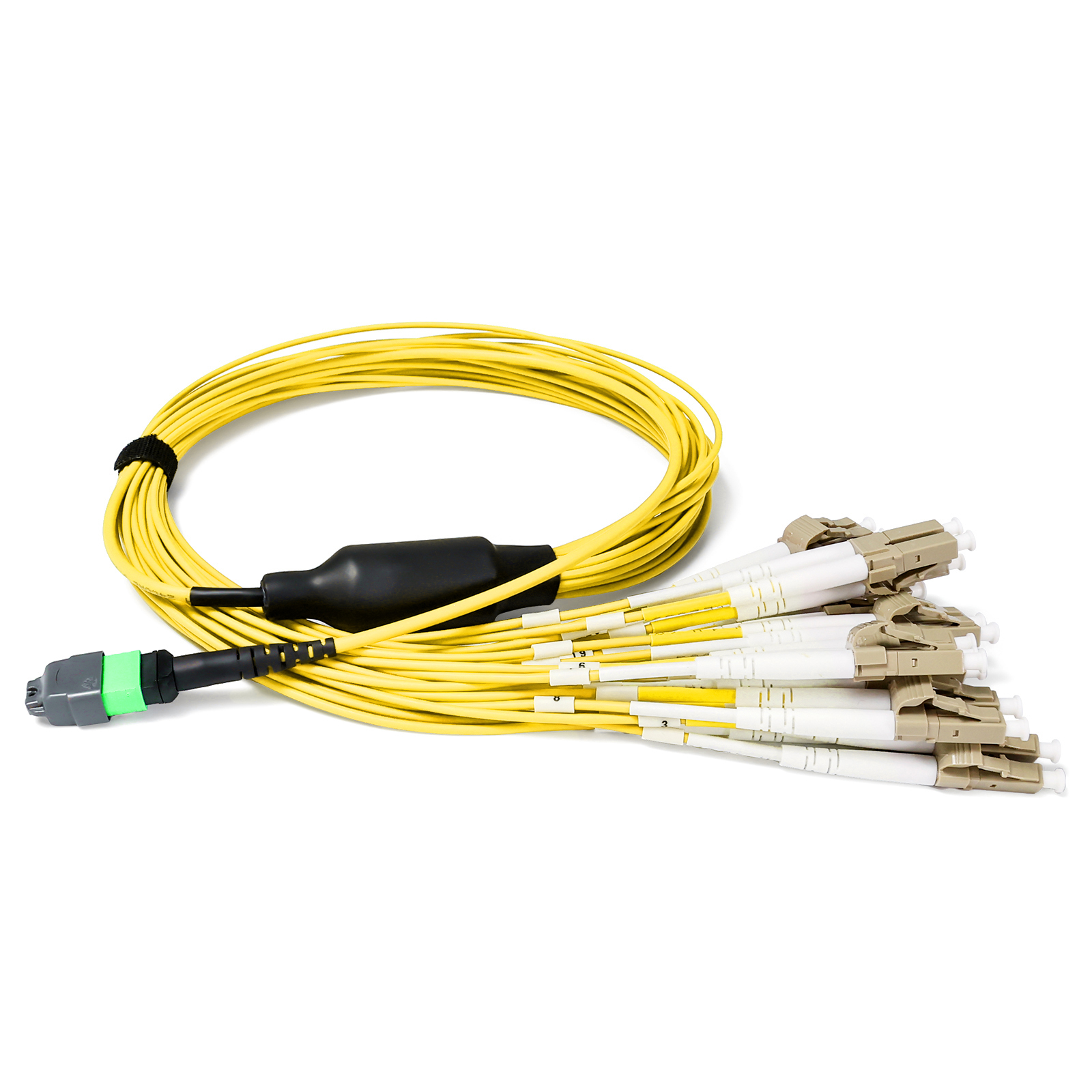

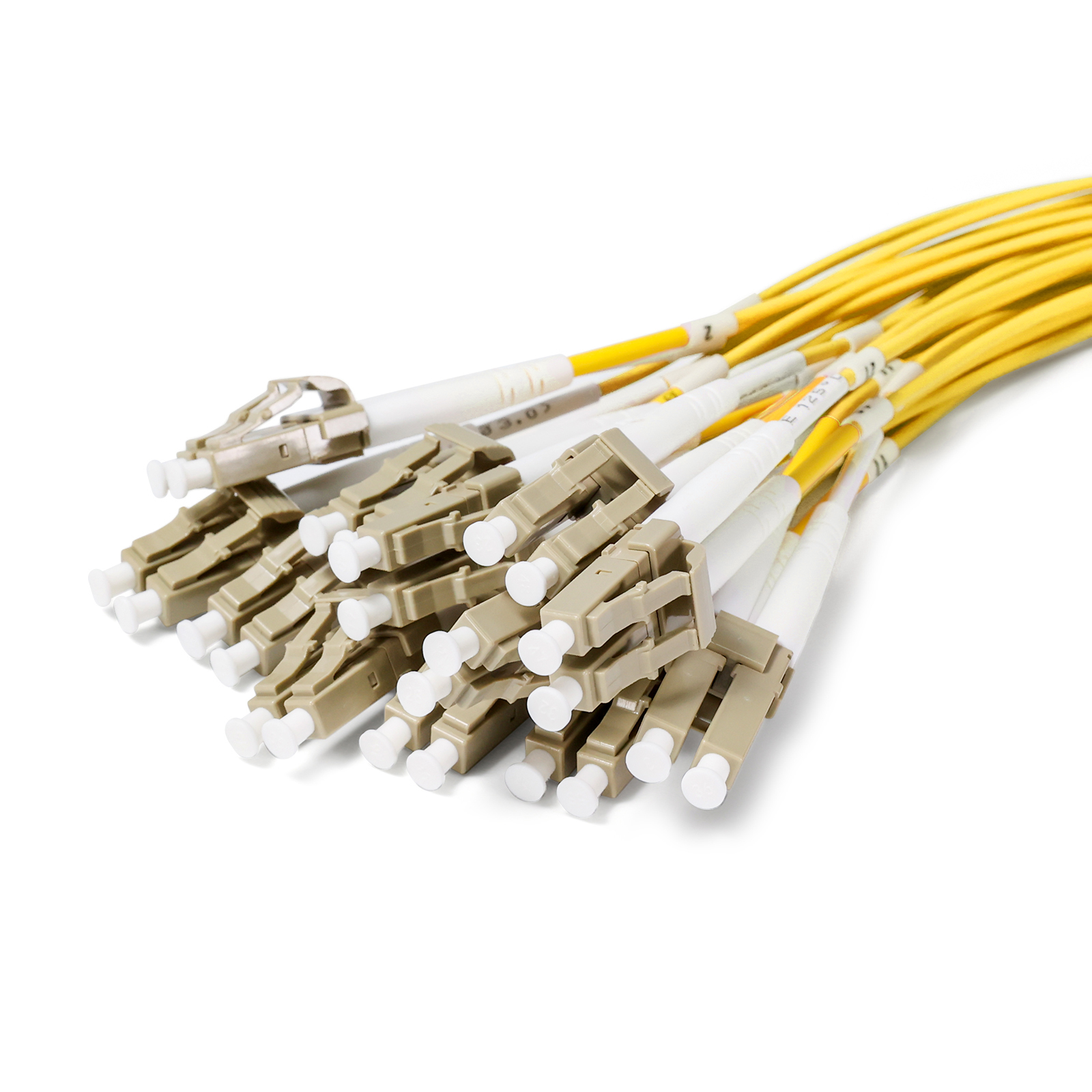

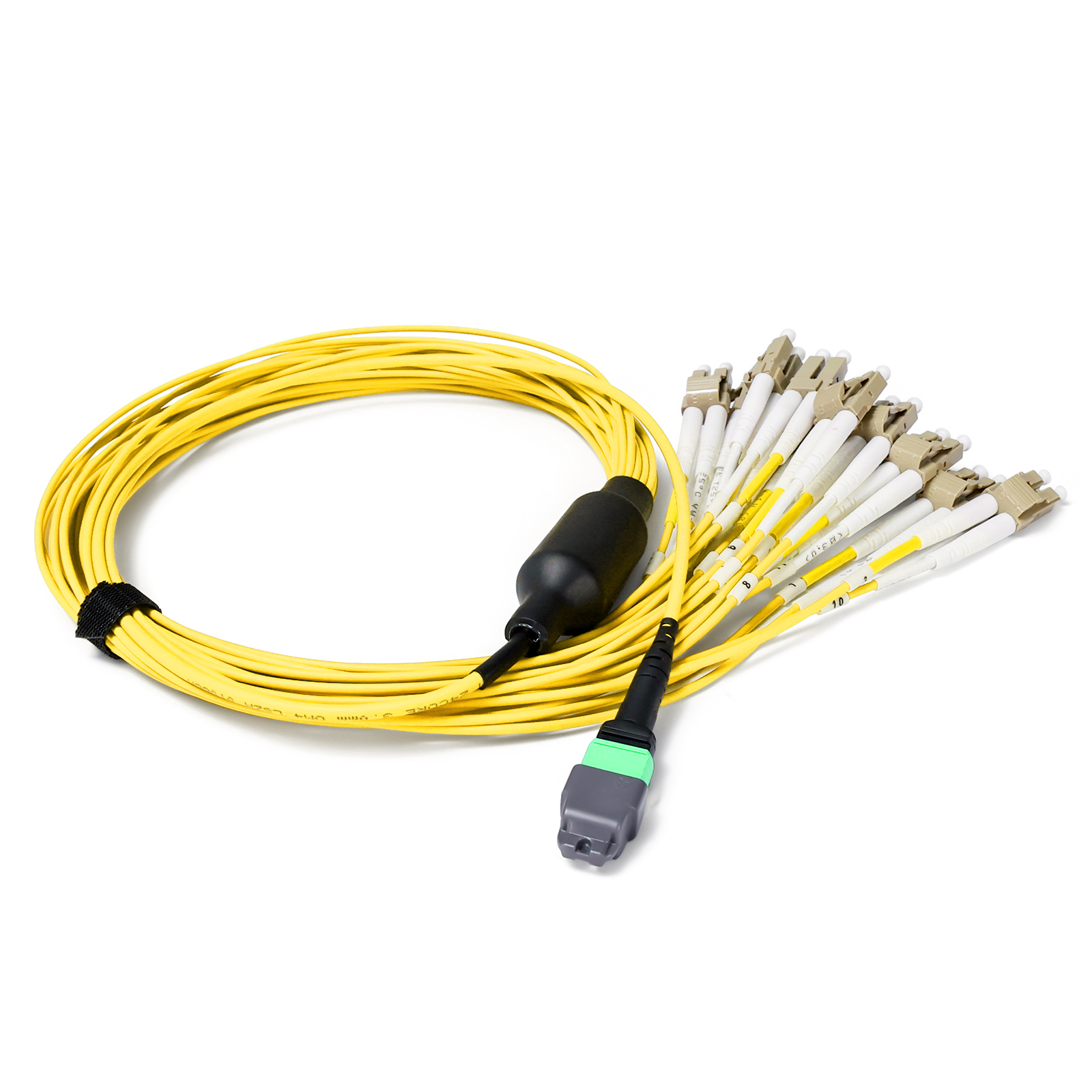

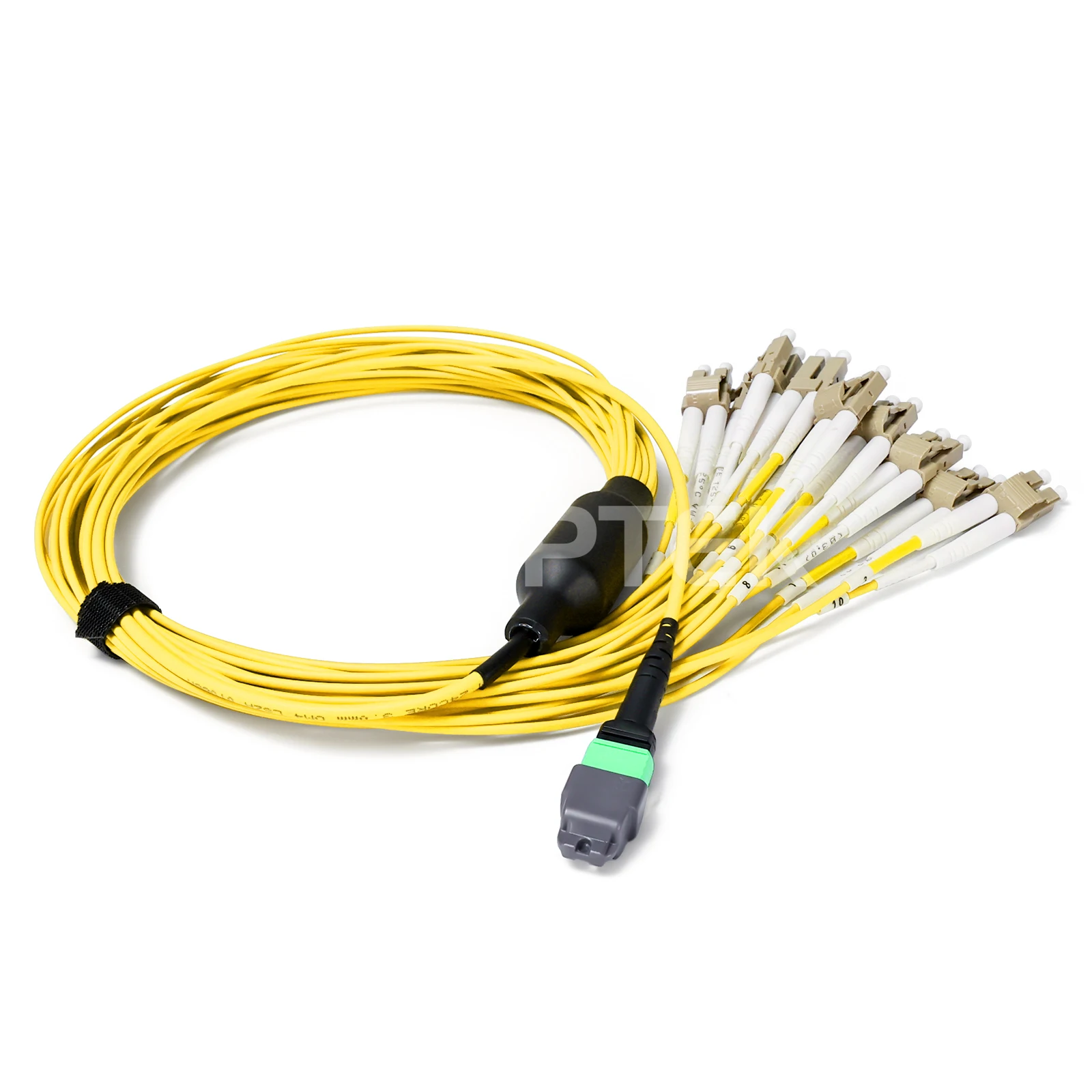

1m (3ft) MTP-24 APC (Female) to 12x LC UPC Duplex OS2 Singlemode Elite Breakout Cable, 24 Fibers, Type B, LSZH, Yellow

Product No :102438
79 Reviews
7.9K Solds
US$ 143.40
Series
Length
69 in real-time stock, 08Jul, 2025

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

-
+
Add to Cart Bulk Order Quotes
1. LSZH Jacket
2. Flexible 10mm Min. Bend Radius
3. Optimized for 100G/200G/400G Transmission
4. MTP Connector with 24 Fibers
5. Compliant with ROSH 2.0 and MCD
See more

Specifications

1m (3ft) MTP Female to 12 LC UPC Duplex 24 Fibers Type B Plenum (LSZH) OS2 9/125 Single Mode Elite Breakout Cable



The MTP breakout cable provides a worry-free and cost-effective solution for high-density cabling to convert an MTP connector to an LC duplex connector. This MTP female to 12 LC UPC Duplex OS2 single-mode breakout cable is used for connecting switches or MPO/MTP cassettes.

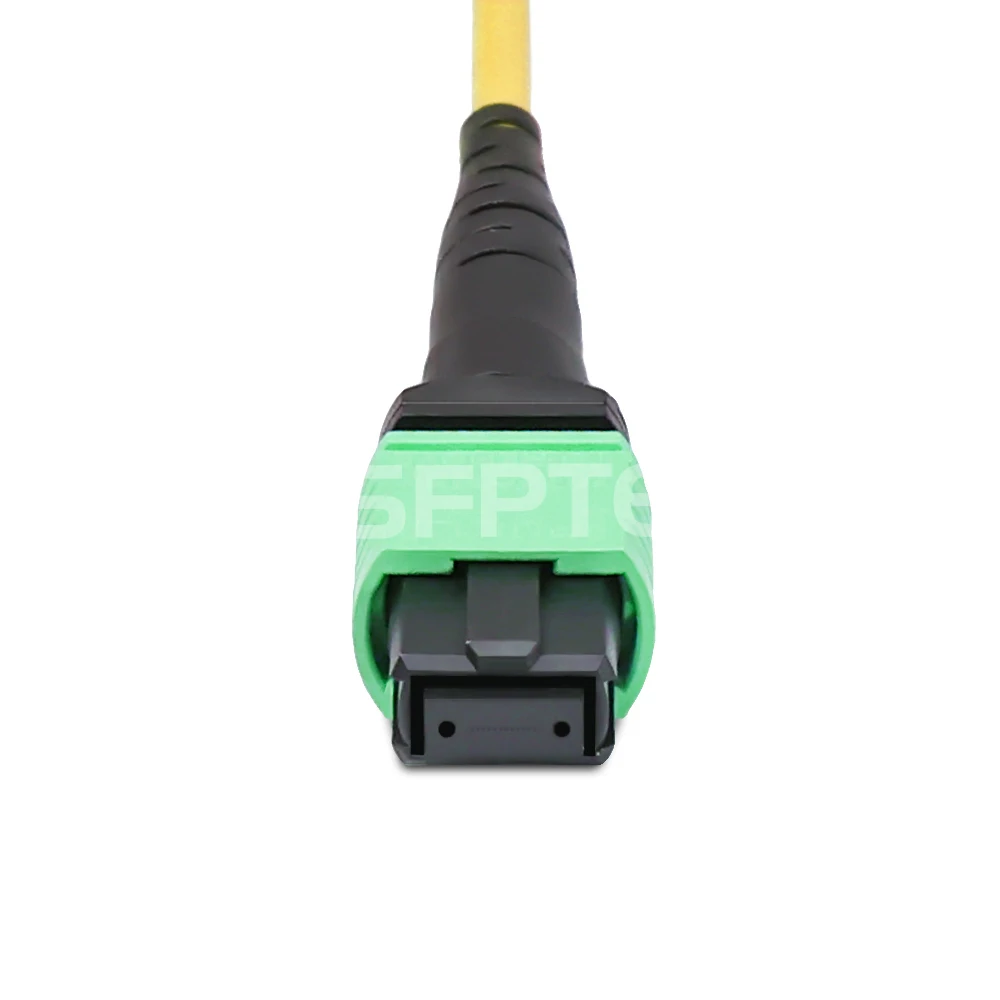

Connector A:

MTP Female

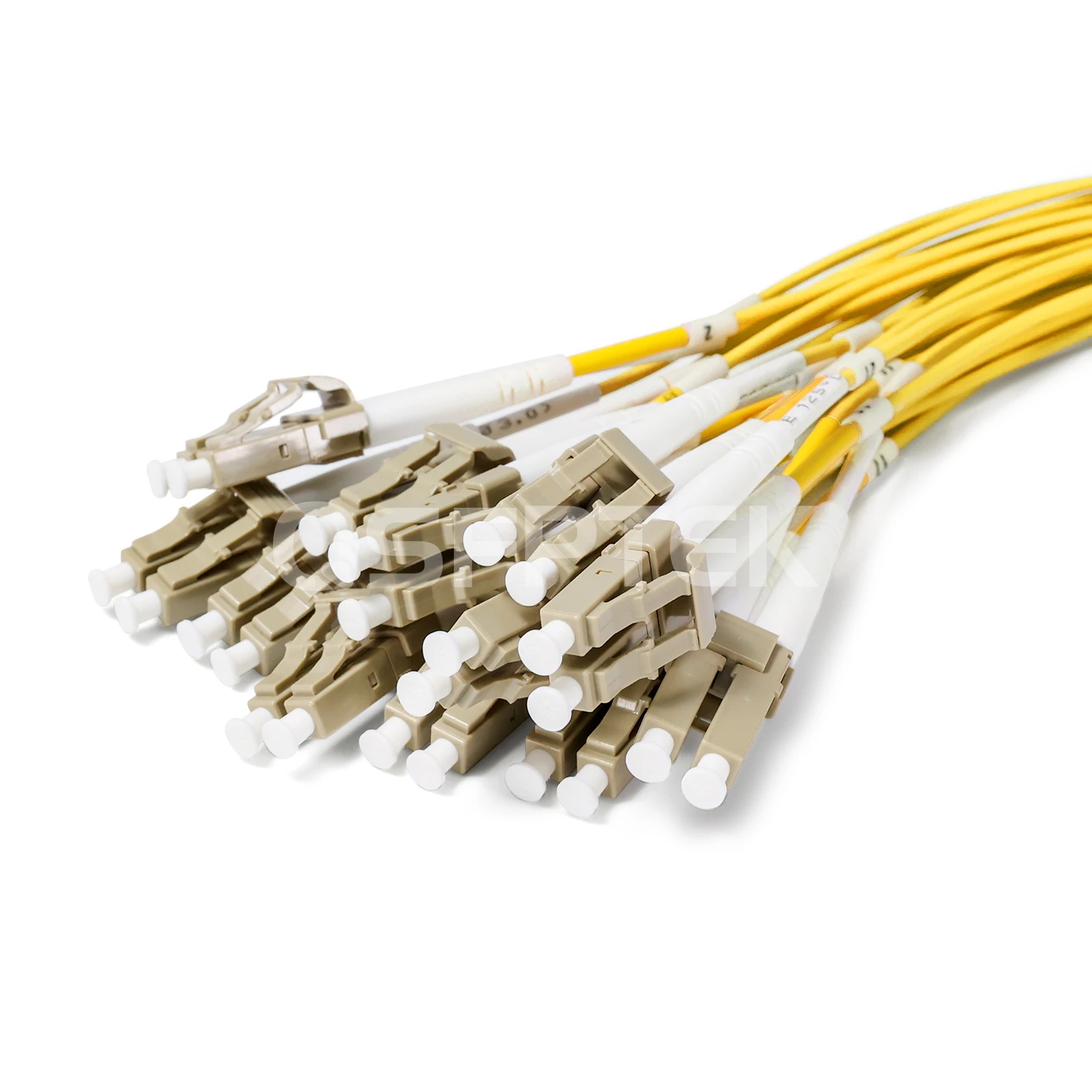

Connector B:

LC UPC Duplex

Fiber Count:

24 Fibers

Fiber Type:

OS2 9/125μm

Polish Type:

APC to UPC

Wavelength:

1310nm/1550nm

Connector:

LC Duplex

Cable Material:

LSZH

MTP Connector Insert Loss:

0.35dB

SC Connector Insert Loss:

0.2dB

Breakout Length:

1m

Return Loss:

≥60dB

Trunk Diameter:

3.0mm

Fan-Out Diameter:

2.0mm

Min. Bend Radius (Fiber Cable) Dynamic:

10mm

Min. Bend Radius (Fiber Cable) Static:

10mm

Operating Temperature:

-20~+70℃

Storage Temperature:

-40~+80℃



Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 10mm Min. Bend Radius
    Allow tighter cable bends for slack storage and routing.
  • 0.35dB Max. IL
    Always provide stable signal and realize flexible system design.
  • LSZH Jacket
    Low smoke, low toxicity, low corrosion, and high flame retardant.

Applications

Connection 1:

Related Products:

S7300-48X2Q4C, 48-Port Ethernet L3 Switch, 48x 10G SFP+, with 2x 40G QSFP+ and 4x 100G QSFP28 Uplinks, Support Stacking

Cisco SFP-10G-LR Compatible 10GBASE-LR SFP+ 1310nm 10km DOM LC SMF Transceiver

Product details

Excellent Transmission Stability Ensured by Superior Craftsmanship



With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.







Reliable Transmission Quality with Carrier-Grade Cables



Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.





Maintain Performance by Cleaning Fiber



Ensure high reliability and performance connections by maintaining clean fiber end-faces.
