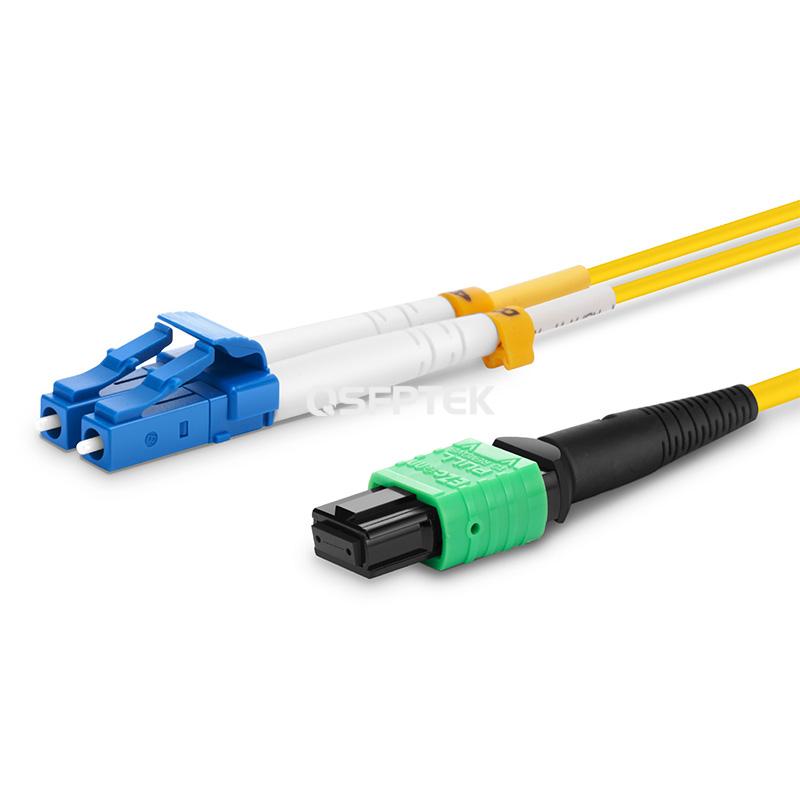

1m (3ft) MTP Female to 4 LC UPC Duplex 8 Fibers Type B Plenum (LSZH) OS2 9/125 Single Mode Breakout Cable

Product No :99674

US$ 43.65 ~~US$ 58.75~~

100pcs required

Series

MTP-LC OS2 MTP-LC OM4

Length

1M 2m 5M 7M

1000 in stock
Free Shipping via UPS over $99, delivered in 5 business days in the U.S.

Bulk Order Quotes Shop Online

1. LSZH Jacket
2. Flexible 7.5mm Min. Bend Radius
3. Optimized for 40G/100G/200G/400G Transmission
4. MTP Connector with 12 Fibers
5. Compliant with ROSH 2.0 and MCD

Specifications

1m (3ft) MTP Female to 4 LC UPC Duplex 8 Fibers Type B Plenum (LSZH) OS2 9/125 Single Mode Breakout Cable

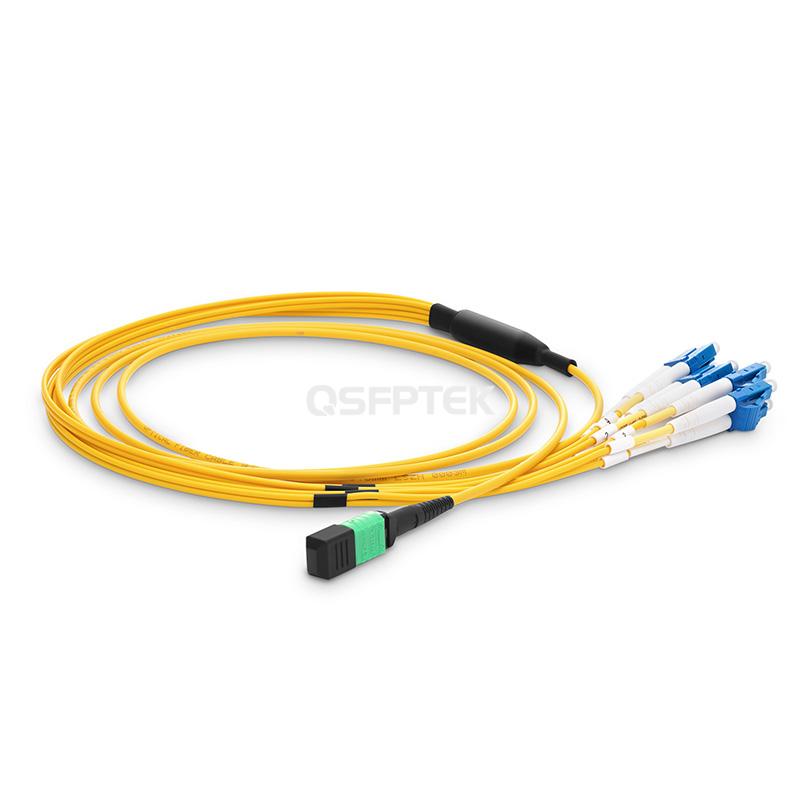

The MTP breakout cable provides a worry-free and cost-effective solution for high-density cabling to convert an MTP connector to an LC duplex connector. This MTP female to 4 LC UPC Duplex OS2 single-mode breakout cable is specially optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP PLR4 to 25G SFP28 LR optics direct connection, data centers, and telecommunications systems applications.

Connector A:	MTP Female	Connector B:	LC UPC Duplex
Fiber Count:	8 Fibers	Fiber Type:	OS2 9/125μm
Polish Type:	UPC to UPC	Wavelength:	1310nm/1550nm
Connector:	LC Duplex	Cable Material:	LSZH
MTP Connector Insert Loss:	0.35dB	LC Connector Insert Loss:	0.2dB
Breakout Length:	0.5m	Return Loss:	≥50dB
Trunk Diameter:	3.0mm	Fan-Out Diameter:	2.0mm
Min. Bend Radius (Fiber Cable) Dynamic:	10mm	Min. Bend Radius (Fiber Cable) Static:	10mm
Operating Temperature:	-20~+70	Storage Temperature:	-40~+80

Quality Certifications

Features

10mm Min. Bend Radius

Allow tighter cable bends for slack storage and routing.

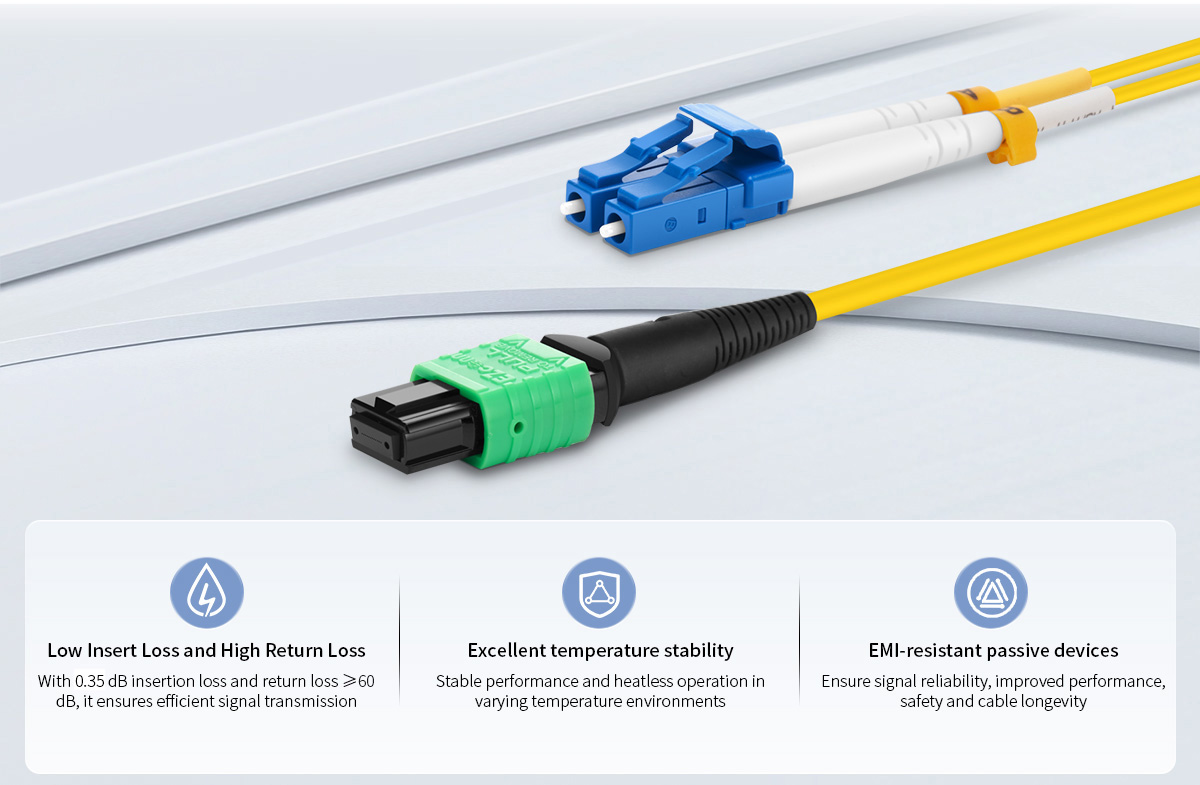

0.35dB Max. IL

Always provide stable signal and realize flexible system design.
LSZH Jacket

Low smoke, low toxicity, low corrosion, and high flame retardant.

Applications

10G-40G Direct Connection for Campus Network

Questions & Answers

more+

How many times can I mate/demate the MTP connector and still maintain good performance?

If the connector is always in a suitable operating environment and properly cleaned, it can still maintain the best performance after 1000 times of mate and demate.
What is the best area closest to the connector?

As I know, the boot is designed to bend and maintain direction from straight to 90°.
