1. LSZH Jacket 2. Flexible 10mm Min. Bend Radius 3. Optimized for 40G/100G/200G/400G Transmission 4. MTP Connector with 12 Fibers 5. Compliant with ROSH 2.0 and MCDSee more

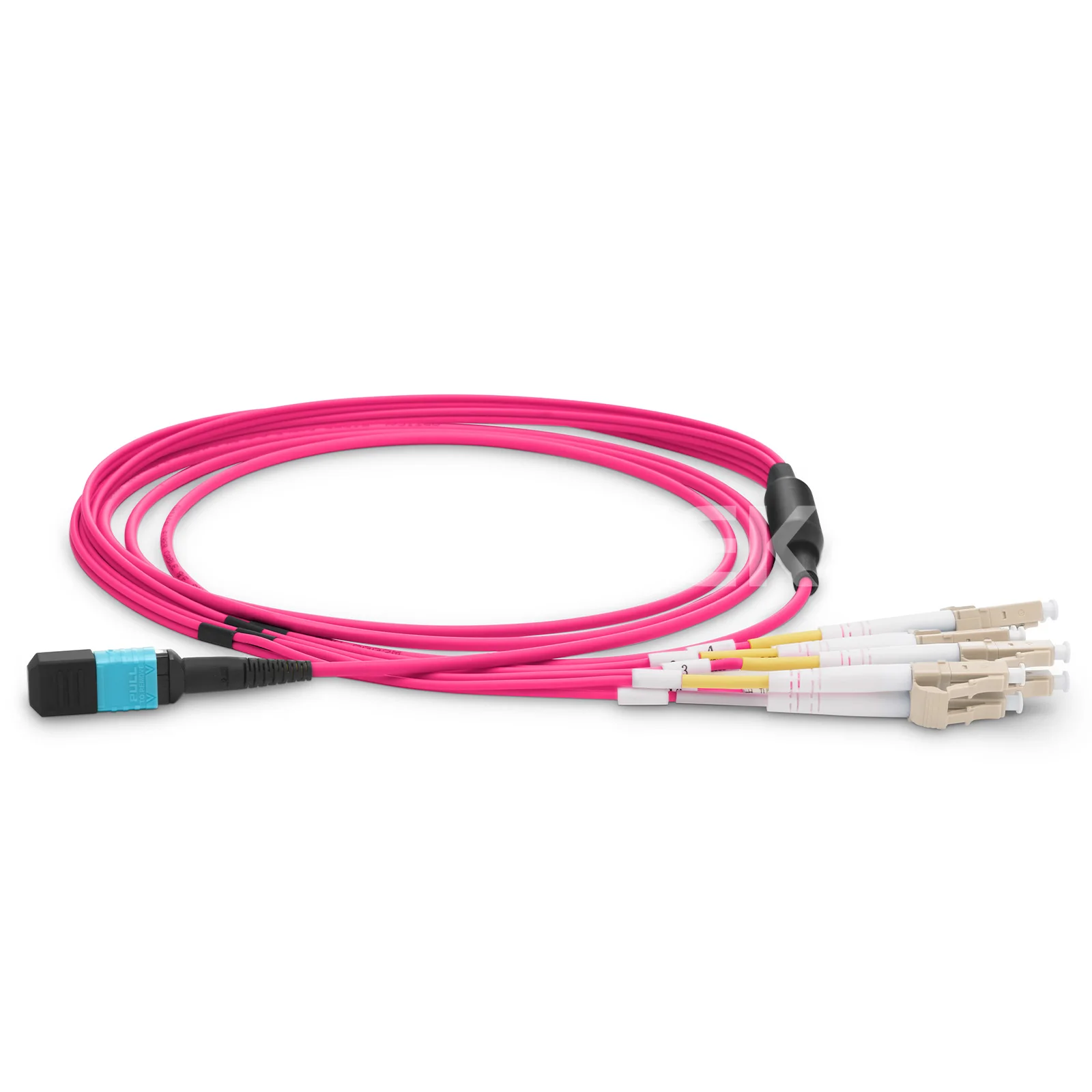

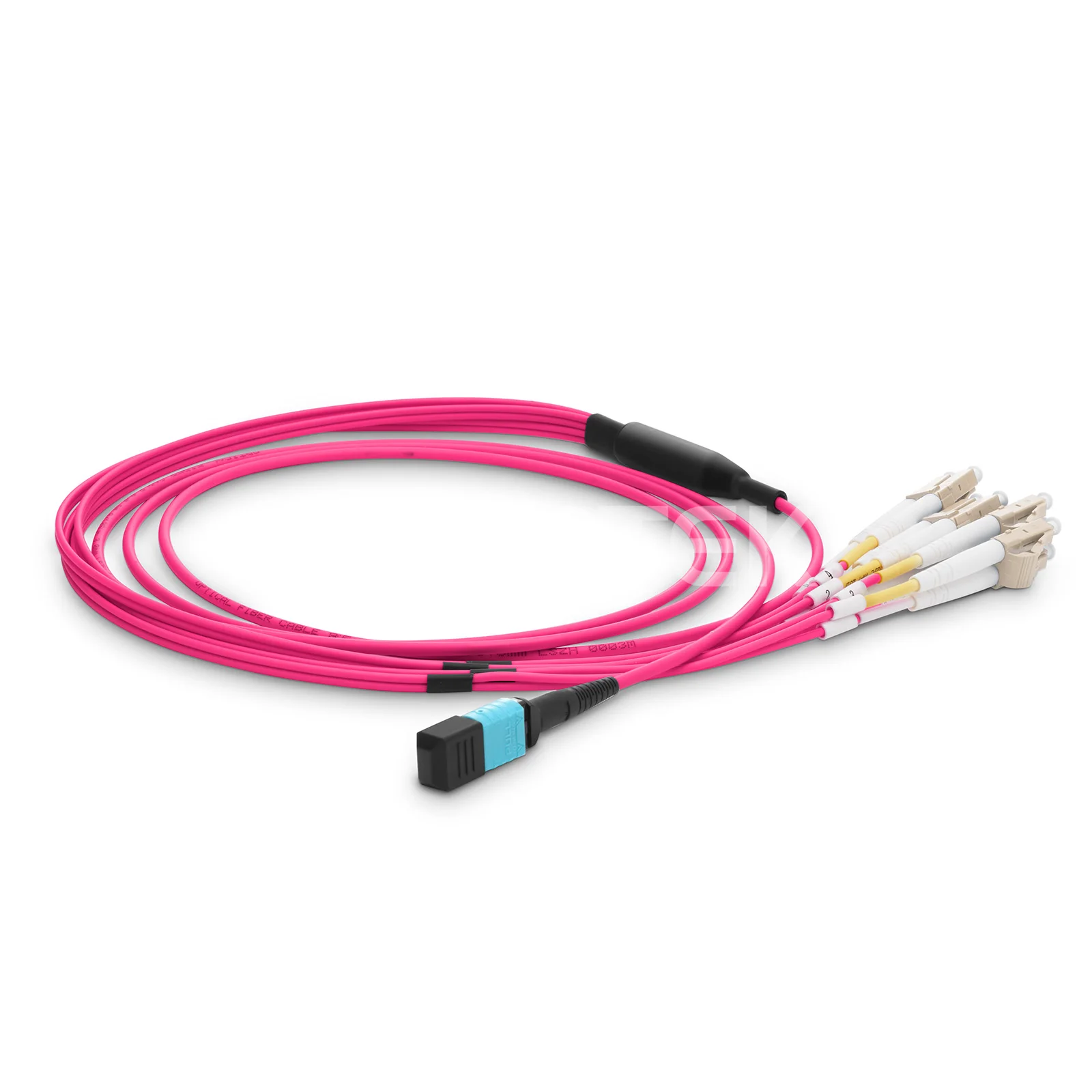

The MTP breakout cable provides a worry-free and cost-effective solution for high-density cabling to convert an MTP connector to an LC duplex connector. This MTP female to 4 LC UPC Duplex OM4 multimode breakout cable is specially optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP28 SR optics direct connection, data centers, and telecommunications systems applications.
|
Connector A: |
MTP Female |
Connector B: |
LC UPC Duplex |
|
Fiber Count: |
8 Fibers |
Fiber Type: |
OM4 50/125μm |
|
Polish Type: |
UPC to UPC |
Wavelength: |
850nm/1300nm |
|
Armoured: |
No |
Cable Material: |
LSZH |
|
MTP Connector Insert Loss: |
0.35dB |
Return Loss: |
≥30dB |
|
Trunk Diameter: |
3.0mm |
Fan-Out Diameter: |
2.0mm |
|
Min. Bend Radius (Fiber Cable) Dynamic: |
10mm |
Min. Bend Radius (Fiber Cable) Static: |
10mm |
|
Operating Temperature: |
-20~+70℃ |
Storage Temperature: |
-40~+80℃ |
Take a look at our test program to get the reliable and high-performance optical transceivers.
.svg)
.jpg!thumb)
.jpg!thumb)
.jpg!thumb)
Connection 1:
Connection 2:
With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.
This fiber offers exceptional performance and is ideal for high-density cabling due to its excellent bending and compression resistance.
Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.
Simply the network configuration enables migration from 10G to 40G effortlessly, ensuring low insertion loss and perfect performance.
Ensure high reliability and performance connections by maintaining clean fiber end-faces.
