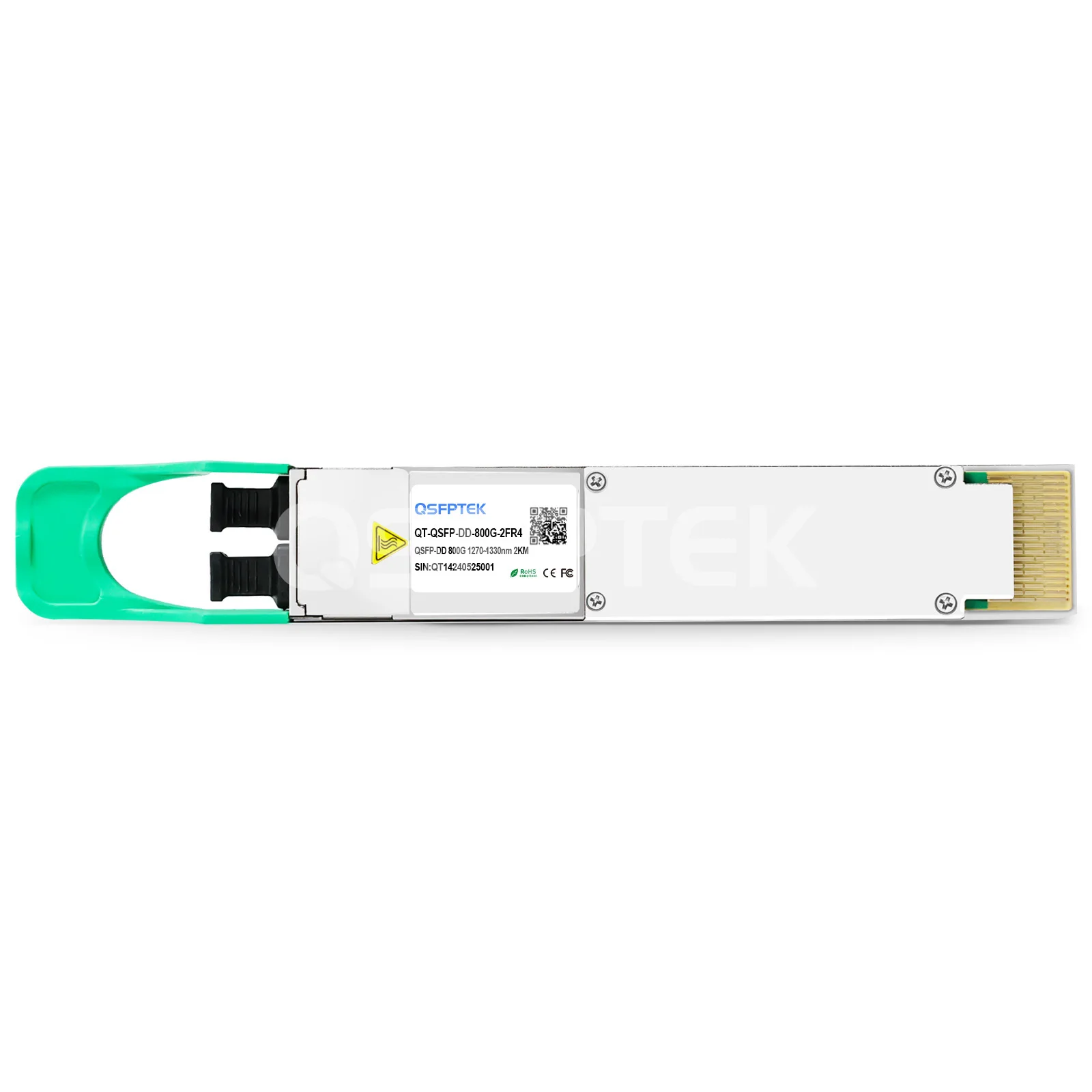

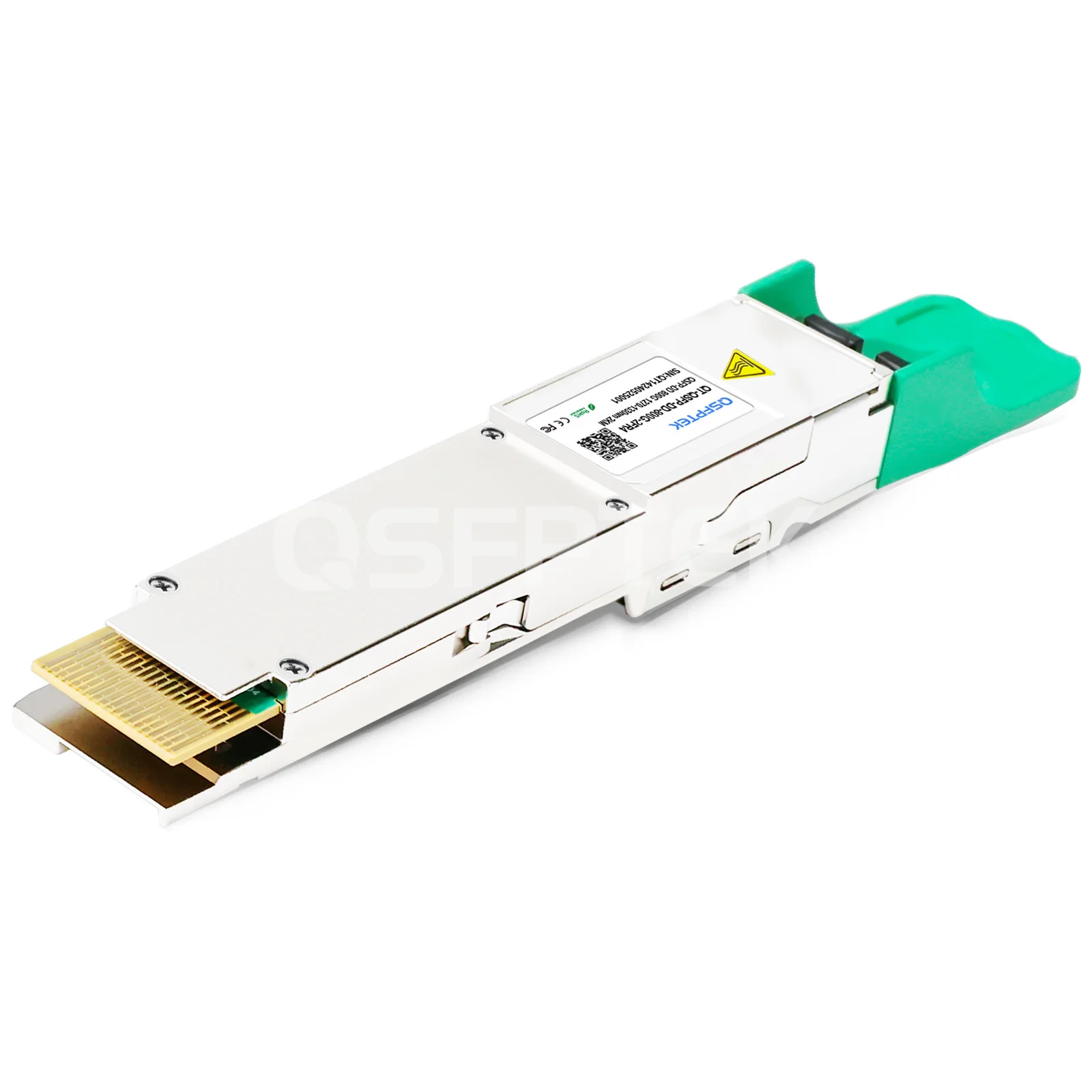

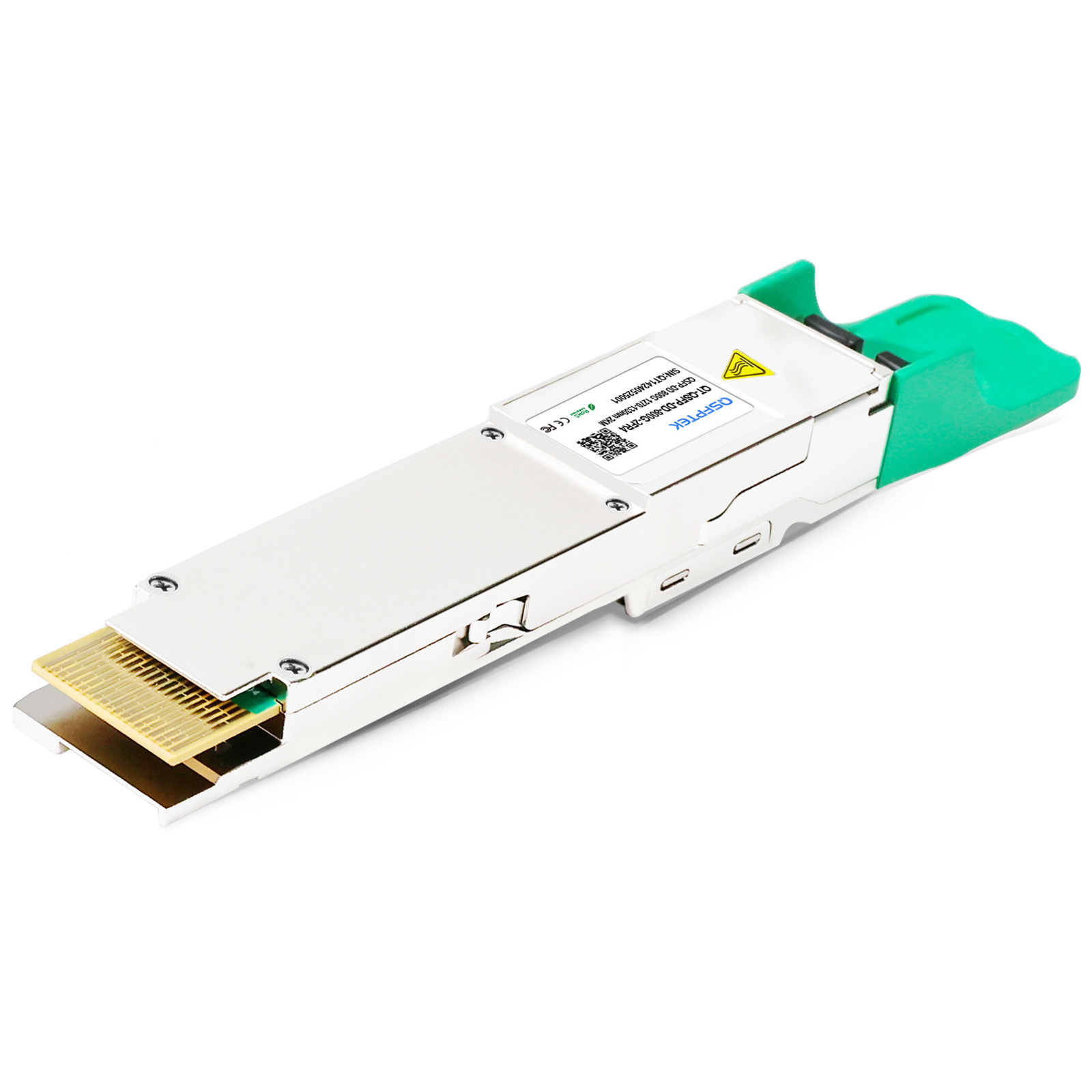

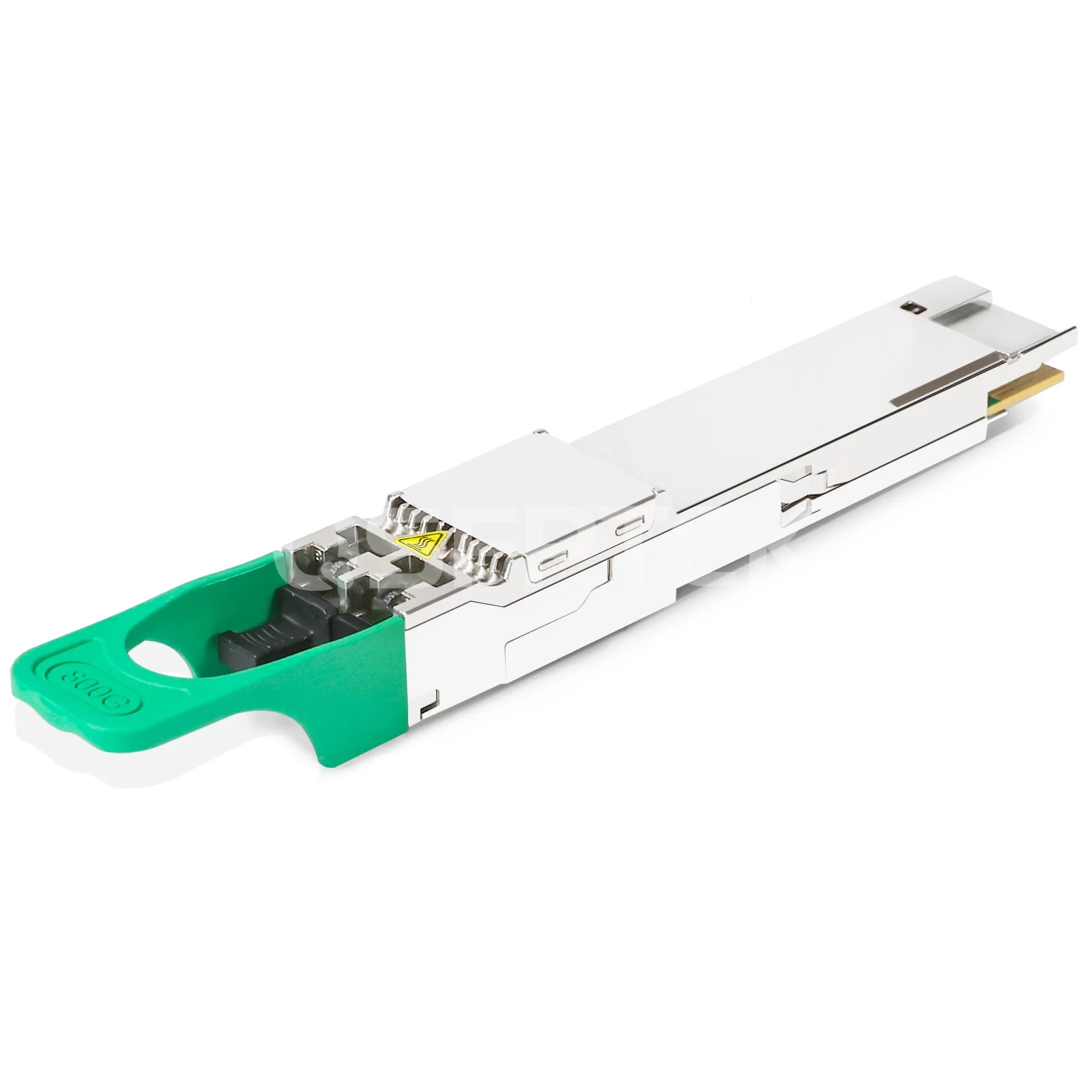

Cisco Compatible 800GBASE-2FR4 Twin-port QSFP-DD PAM4 1270 to 1330nm 2km DDM Dual Duplex CS/UPC SMF Optical Transceiver Module

Product No: 102577
20 Reviews
196 Sold
US$ 1,327.90
Compatible
5 in real-time stock, 04 Jun, 2026

Free Shipping over US$ 79.8

Global warehouses in stock

5-Year Warranty 1-Year Exchange
Warranty
Providing industry-leading limited lifetime warranty.
Please check our warranty policy for details.
Returns & Exchange
Exchanges caused by the customer's reasons will not be accepted.
Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
Please check our Return Policy for details.
-
+

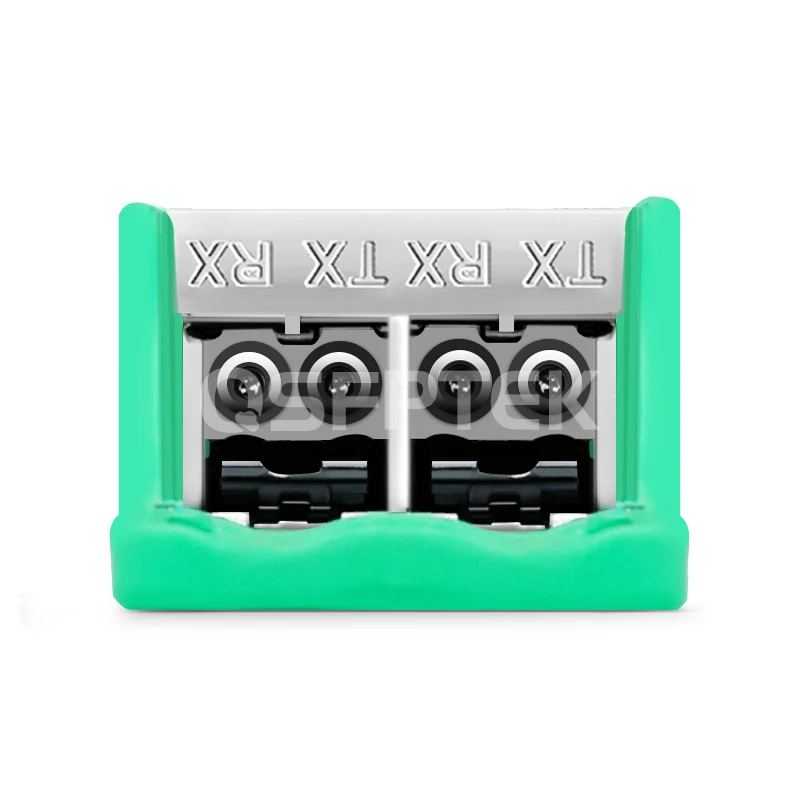

1. 8 optical channels, dual CS duplex connectors
2. Support 800G to 2x 400G-FR4 QSFP-DD application, no breakout cables required
3. 8x 106.25G PAM4 modulation
4. EML + PIN Laser
5. Max power consumption ≤18W
See more

Specifications

Cisco Compatible 2x 400GBASE FR4 QSFP-DD PAM4 Optical Transceiver Module (1271nm, 1291nm, 1311nm, 1331nm, 2km, Dual Duplex CS, SMF, 0℃ to +70℃, DDM)



Cisco Compatible 2x 400G FR4 QSFP-DD 800G transceiver module supports a max data rate of 850Gbps. It enables the fiber link of 2km over single-mode fiber (SMF) with dual duplex CS connectors. The 800 Gigabit Ethernet signal is carried over 4 wavelengths at 1271nm, 1291nm, 1311nm, and 1331nm. QSFPTEK manufactured  2x 400GBASE FR4 QSFP-DD complies with IEEE 802.3cu-2021, IEEE P802.3ck D3.0, QSFP-DD MSA HW Rev 6.01, CMIS Rev 5.0. DDM (digital diagnostics monitoring) function is supported on the 800G fiber optic transceiver to achieve real-time operating parameters monitoring. Adopting the Pulse-amplitude Modulation (PAM4) modulation, the FR4 QSFP-DD achieves 800 Gigabit Ethernet through 8x 106.25 PAM4 Retimed 2x400GAUI-4 C2M electrical interface. The 800G FR4 QSFP-DD is widely used for gigabit Ethernet, data centers, and 800G to 2x 400G applications.



Part Number QT-QSFP-DD-800G-2FR4 Vendor Name QSFPTEK
Form Factor QSFP-DD Max Data Rate 850 Gbps (8x 106.25 Gbps)
Wavelength 1271nm, 1291nm, 1311nm and 1331nm Distance 2km
Connector Dual CS Duplex Cable Type SMF
Transmitter Type EML Receiver Type PIN
TX Power -3.2-4.4dBm Receiver Sensitivity -7.7dBm
Power Consumption ≤18W Modulation Format PAM4
DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
Protocols IEEE 802.3cu-2021, IEEE P802.3ck D3.0, QSFP-DD800 MSA HW Rev 6.01, CMIS Rev 5.0 Warranty 1 Year
Quality Testing Program
Quality Certifications

Features

  • 1. Advanced Technology
    Features PAM4 modulation technology and built-in DSP chip.
  • 2. Best Price and High Quality
    Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.
  • 3. Protocols
    Complies with IEEE 802.3cu-2021, IEEE P802.3ck D3.0, QSFP-DD MSA HW Rev 6.01, CMIS Rev 5.0 standard.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

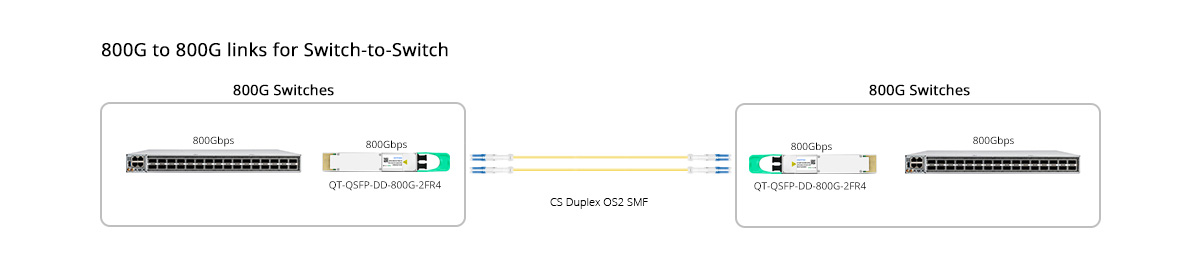

Scenario 1: 800G to 800G Direct Connectivity



QT-QSFP-DD-800G-2FR4 Scenario 1 800G to 800G Direct Connectivity

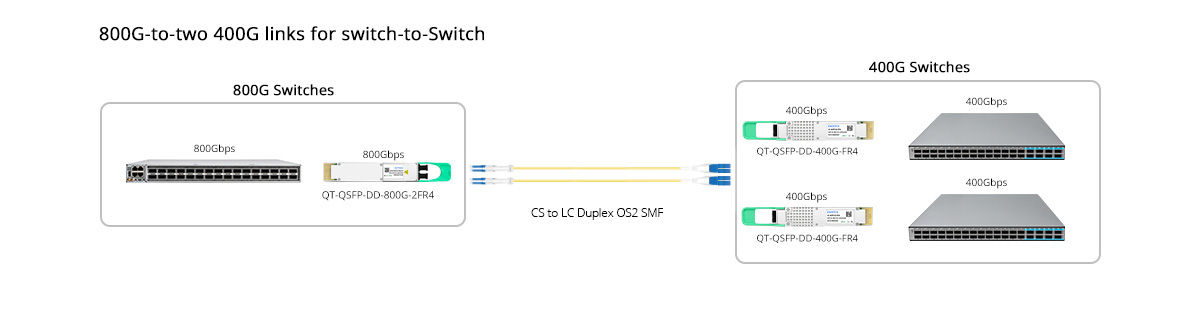

Scenario 2: 800G to 2x 400GE Connectivity



QT-QSFP-DD-800G-2FR4 Scenario 2 800G to 2x 400GE Breakout Connectivity



Product details

8x 100Gbps PAM4 Modulation Technology



Utilize 8x electrial lanes and 8x optical lanes modulated at 100G PAM-4 per lane. On the output side, it convert 8x 106.25Gb/s electrical signal to 8x 106.25Gb/s optical signals. On the receiver side, it convert 8x 100Gb/s optical signal to 8x 100Gb/s electrical signals.

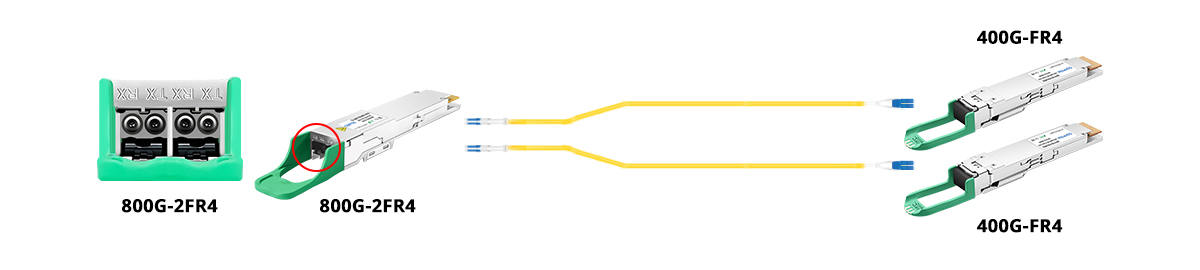

Easy 800G to 2x 400G breakout with OS2 SMFs

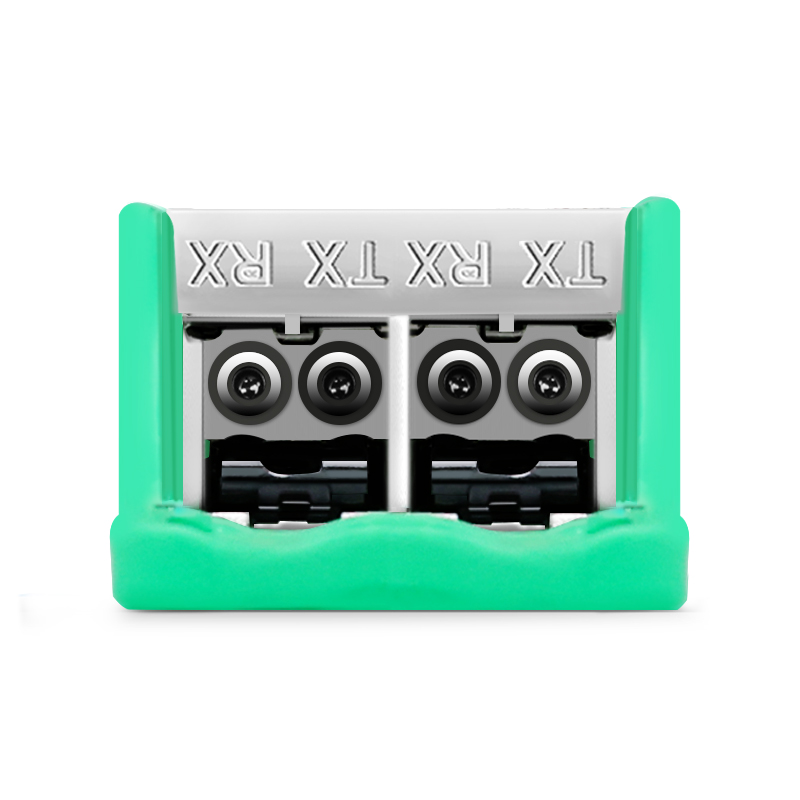

The QSFP-DD-800G-2FR4 module is designed with dual duplex CS connectors, while each connector can connect to a physically separate 400G FR4 module via a CS to LC OS2 duplex single-mode fiber. This enables 800G to 2x 400G breakout links without the need for using breakout fiber optic cables.








Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



QSPFTEK LAB All Brands Switches Show






Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



QSFPTEK Test Rack






Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.



QSFPTEK Test Devices






800G QSFP-DD Optical Transceivers Contrast Table



Part Number

QT-QSFP-DD-800G-SR8

QT-QSFP-DD-800G-2VR4

QT-QSFP-DD-800G-DR8

QT-QSFP-DD-800G-2DR4


Data Rate

800G

800G

800G

800G

Optical Connector

Single MPO-16/APC

Dual MPO-12/APC

Single MPO-16/APC

Dual MPO-12/APC

Cable Type

MMF

MMF

SMF

SMF

Wavelength

850nm

850nm

1310nm

1310nm

Reach

50m

50m

500m

500m

Modulation

PAM4

PAM4

PAM4

PAM4

Max Power Consumption

< 16W

< 16W

< 16.5W

< 18W

Application

800G to 800G, 800G to 2x400G breakout

800G to 800G, 800G to 2x400G breakout

800G to 800G, 800G to 2x400G breakout, 800G to 8x100G breakout

800G to 800G, 800G to 2x400G breakout

Matching Downlink  Transceivers

QT-QSFP-DD-SR4 (400G)

QT-Q112-400G-SR4

QT-OSFP-400G-SR4

QT-QSFP-DD-SR4 (400G)

QT-Q112-400G-SR4

QT-OSFP-400G-SR4


QT-QSFP-DD-DR4 (400G)

QT-Q112-400G-DR4

QT-OSFP-400G-DR4

QT-QSFP28-DR1

QT-QSFP-DD-DR4 (400G)

QT-Q112-400G-DR4

QT-OSFP-400G-DR4

Part Number

QT-QSFP-DD-800G-2XDR4

QT-QSFP-DD-800G-2FR4

QT-QSFP-DD-800G-2LR4






Data Rate

800G

800G

800G



Optical Connector

Dual MPO-12/APC

Dual Duplex CS/UPC

Dual Duplex LC/UPC



Cable Type

SMF

SMF

SMF



Wavelength

1310nm

1271nm, 1291nm, 1311nm and 1331nm

1271nm, 1291nm, 1311nm and 1331nm



Reach

2km

2km

10km



Modulation

PAM4

PAM4

PAM4



Max Power Consumption

< 18W

< 18W

≤ 18W



Matching Transceivers

QT-QSFP-DD-DR4+ (400G)

QT-Q112-400G-DR4+

QT-QSFP28-FR1

QT-QSFP-DD-FR4 (400G)

QT-Q112-400G-FR4

QT-OSFP-400G-FR4

QT-QSFP-DD-LR4 (400G)
QT-OSFP-400G-LR4



Application

800G to 800G, 800G to 2x400G breakout, 800G to 8x100G breakout

800G to 800G, 800G to 2x400G breakout

800G to 800G, 800G to 2x400G breakout
