    Home / Products / Transceivers / 400G/800G Ethernet Transceivers / 800G QSFP-DD / 203131

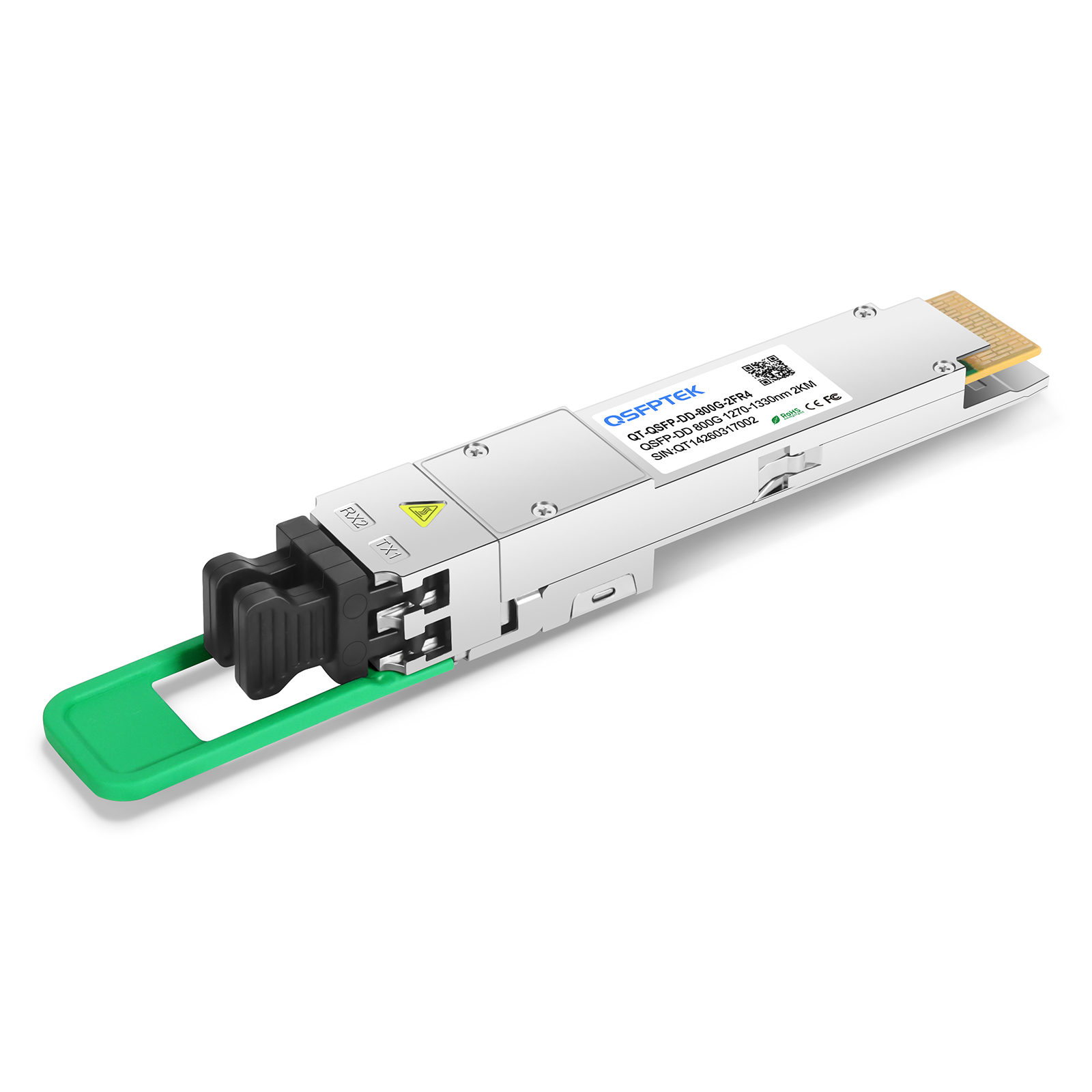

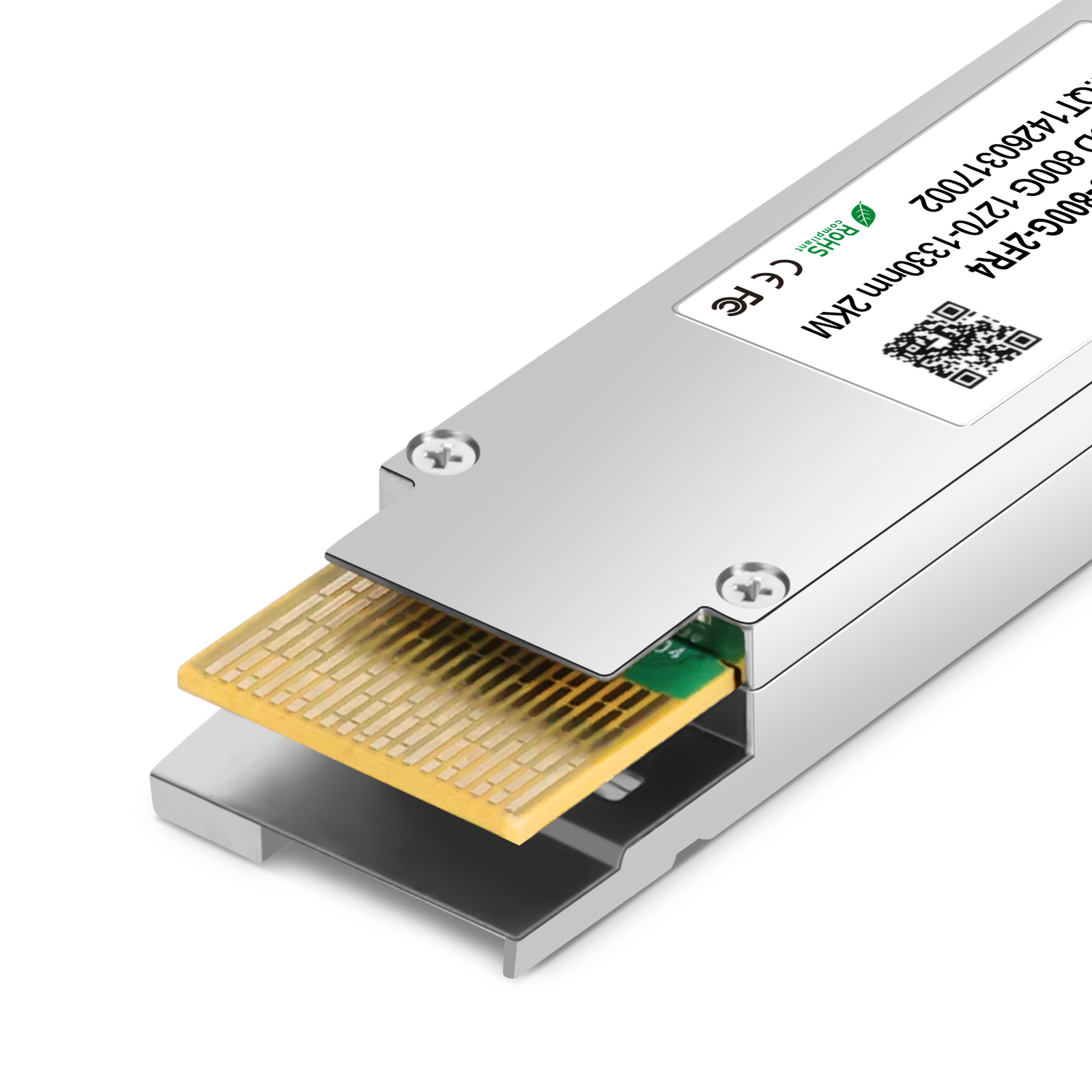

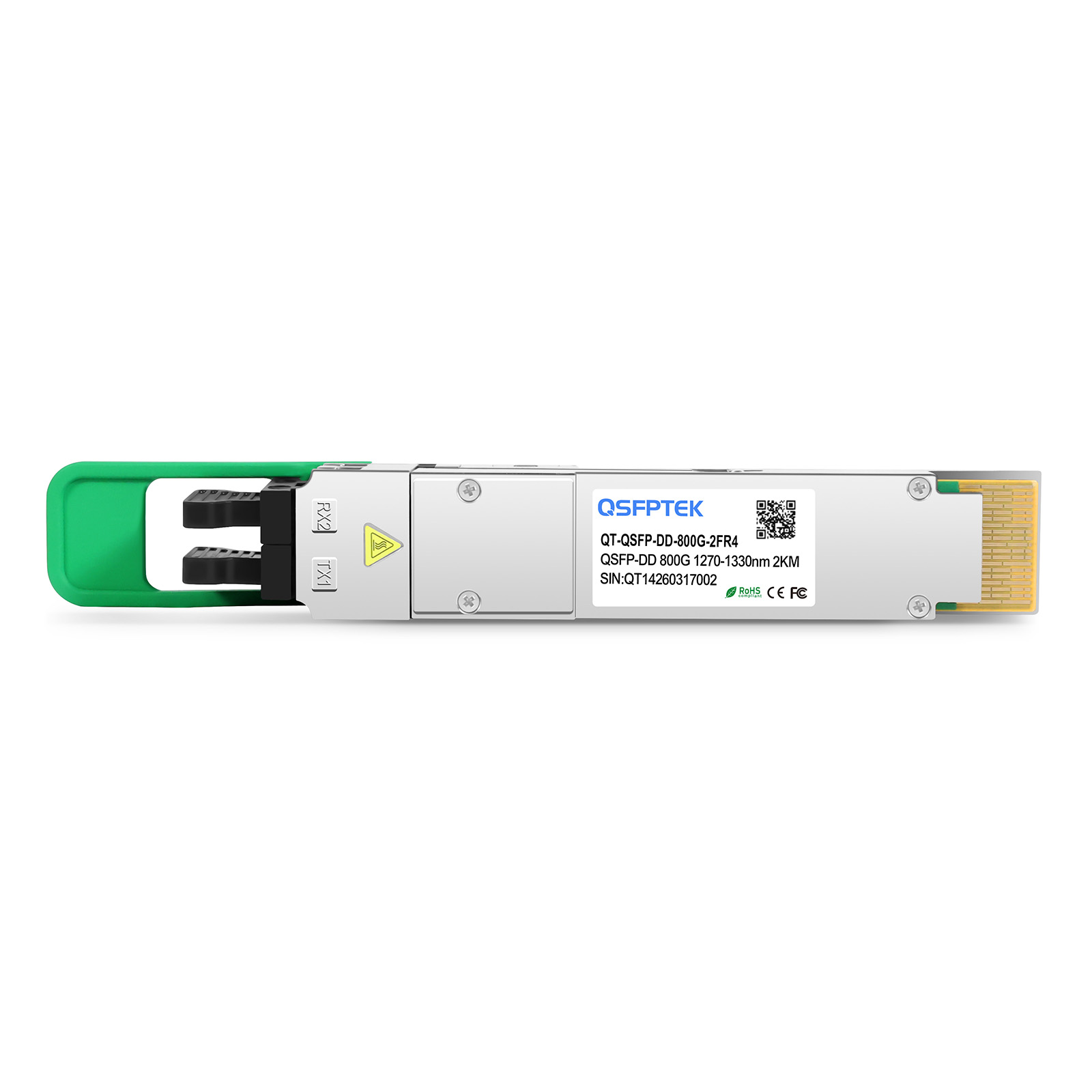

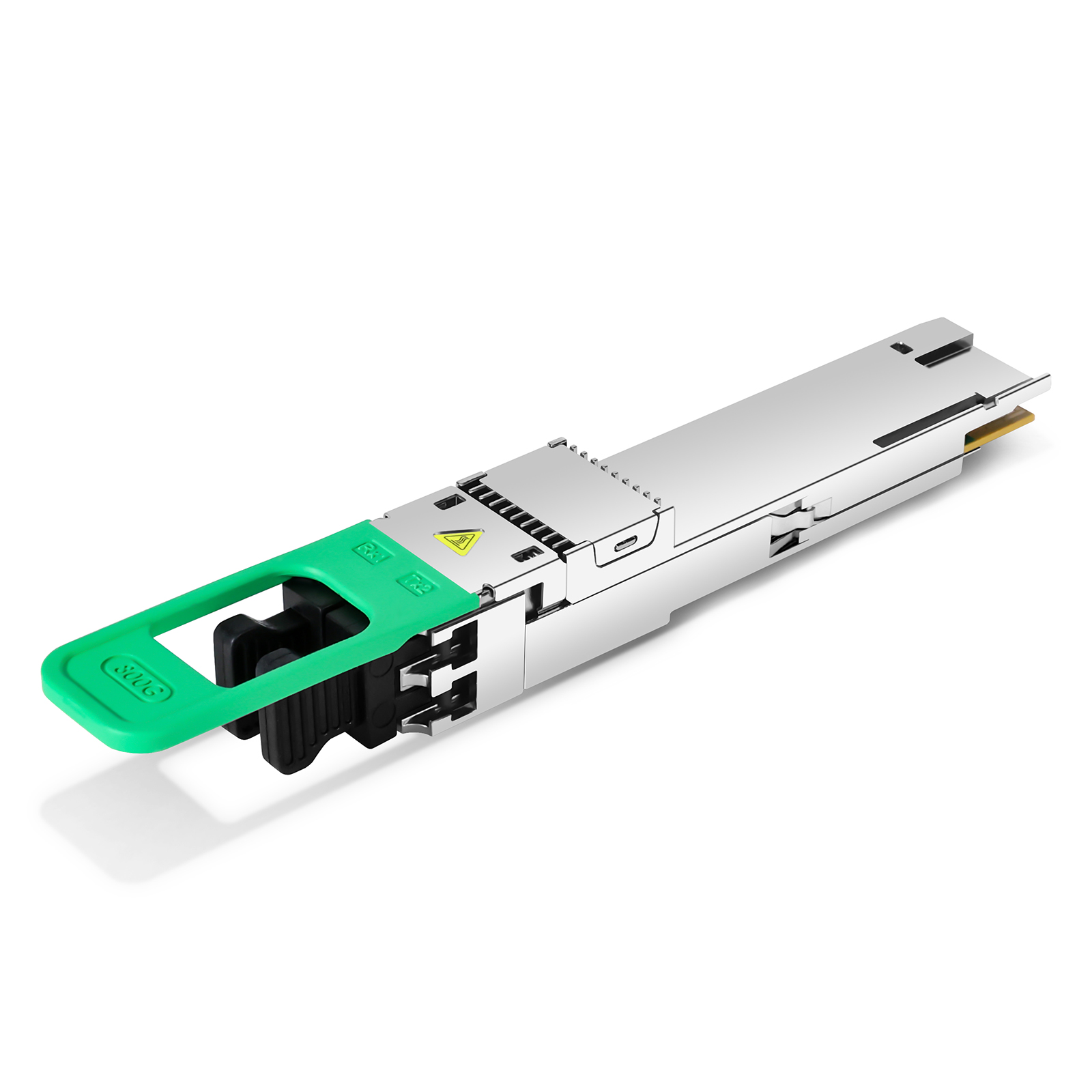

    Cisco QDD-2X400G-FR4 Compatible 800GBASE-2FR4 Twin-port QSFP-DD PAM4 1270 to 1330nm 2km DDM Dual Duplex LC/UPC SMF Optical Transceiver Module

    Product No: 203131
    6 Reviews
    280 Sold
    US$ 1,327.90
    Compatible
    Transceivers type
    18 in real-time stock, 03 Jun, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes

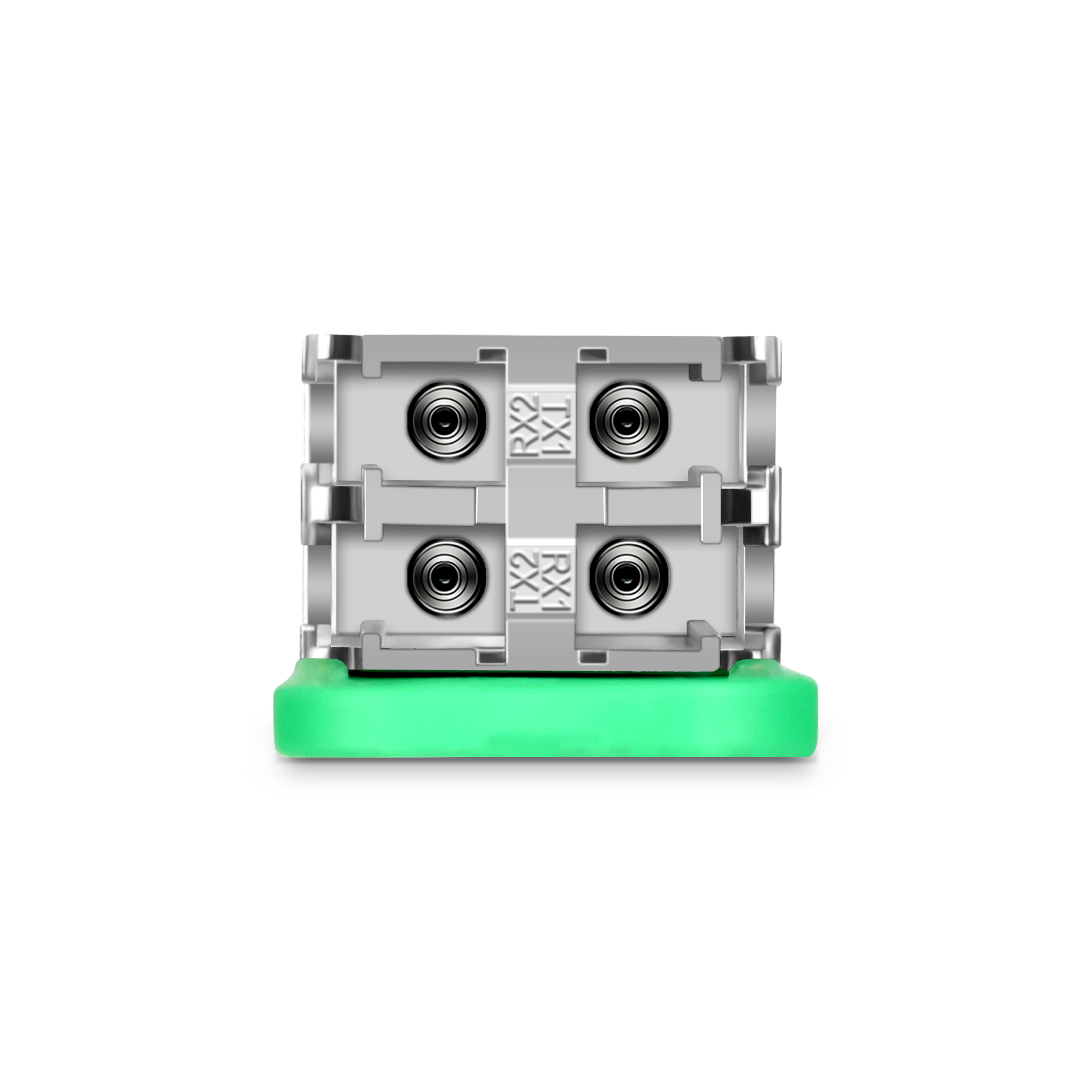

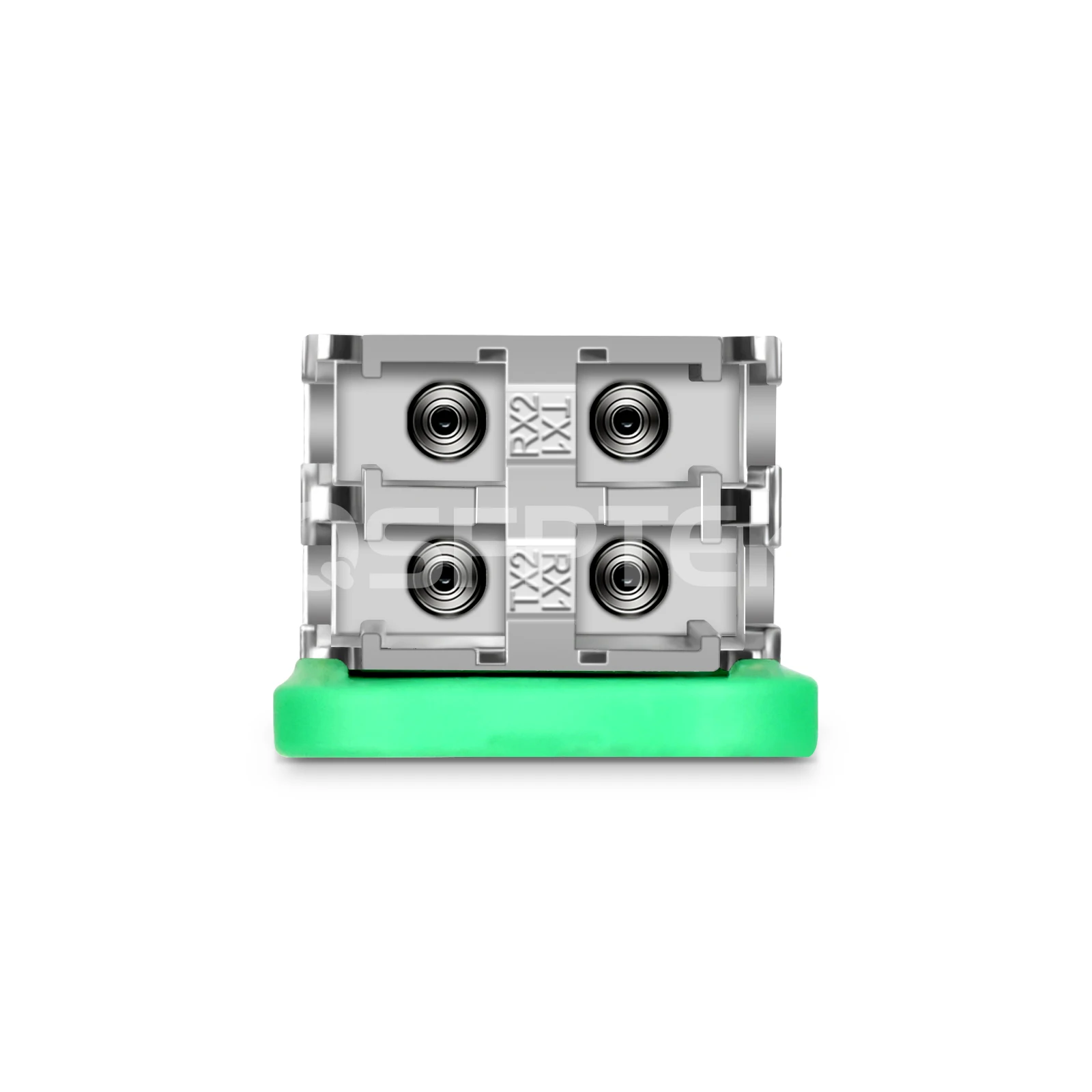

    1. 8 optical channels, dual duplex LC connectors
2. Support 800G to 2x 400G-FR4 QSFP-DD application, no breakout cables required
3. 8x 106.25G PAM4 modulation
4. EML + PIN Laser
5. Max power consumption ≤17W
    See more

    Specifications

    Cisco QDD-2X400G-FR4 Compatible 2x 400GBASE FR4 QSFP-DD PAM4 Optical Transceiver Module (1271nm, 1291nm, 1311nm, 1331nm, 2km, Dual Duplex LC, SMF, 0℃ to +70℃, DDM)



    Cisco QDD-2X400G-FR4 Compatible 2x 400G FR4 QSFP-DD 800G transceiver module supports a max data rate of 850Gbps. It enables the fiber link of 2km over single-mode fiber (SMF) with dual duplex LC connectors. The 800 Gigabit Ethernet signal is carried over 4 wavelengths at 1271nm, 1291nm, 1311nm, and 1331nm. QSFPTEK manufactured  2x 400GBASE FR4 QSFP-DD complies with IEEE 802.3cu-2021, IEEE P802.3ck D3.0, QSFP-DD MSA HW Rev 6.01, CMIS Rev 5.0. DDM (digital diagnostics monitoring) function is supported on the 800G fiber optic transceiver to achieve real-time operating parameters monitoring. Adopting the Pulse-amplitude Modulation (PAM4) modulation, the FR4 QSFP-DD achieves 800 Gigabit Ethernet through 8x 106.25 PAM4 Retimed 2x400GAUI-4 C2M electrical interface. The 800G FR4 QSFP-DD is widely used for gigabit Ethernet, data centers, and 800G to 2x 400G applications.



    Part Number QT-QSFP-DD-800G-2FR4-LC Vendor Name QSFPTEK
    Form Factor QSFP-DD Max Data Rate 850 Gbps (8x 106.25 Gbps)
    Wavelength 1271nm, 1291nm, 1311nm and 1331nm Distance 2km
    Connector Dual LC Duplex Cable Type SMF
    Transmitter Type EML Receiver Type PIN
    TX Power -3.2 to +4.4dBm Receiver Sensitivity -7.2dBm
    Power Consumption ≤17W Modulation Format PAM4
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols IEEE 802.3cu-2021, IEEE P802.3ck D3.0, QSFP-DD800 MSA HW Rev 6.01, CMIS Rev 5.0 Warranty 1 Year
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Applications

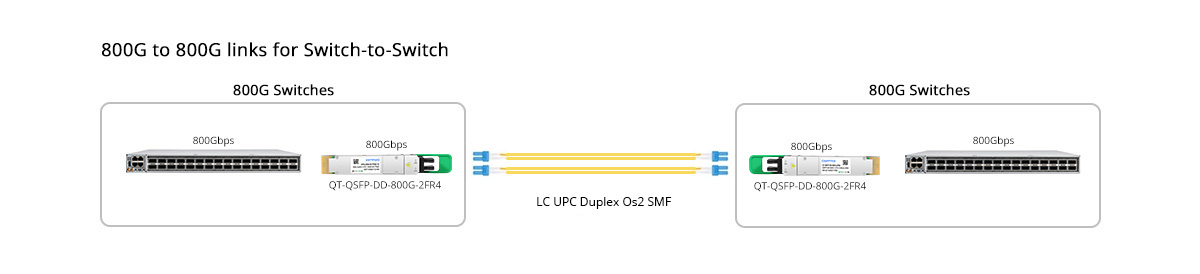

    Scenario 1: 800G to 800G Direct Connectivity



    QT-QSFP-DD-800G-2FR4 Scenario 1 800G to 800G Direct Connectivity

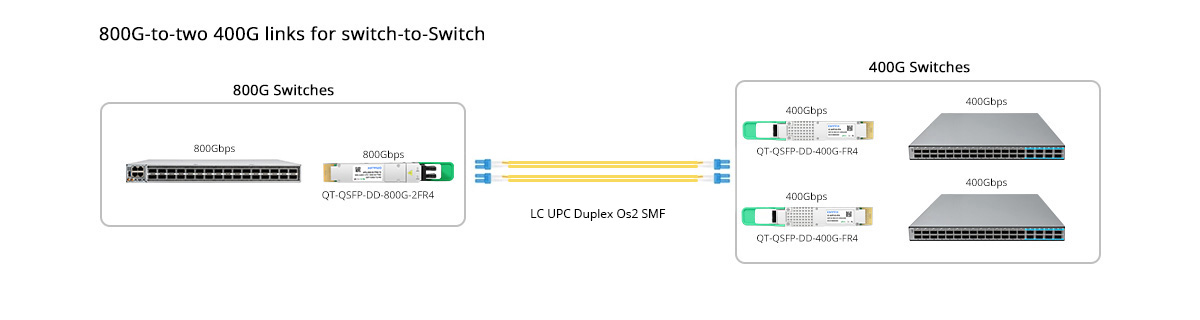

    Scenario 2: 800G to 2x 400GE Connectivity



    QT-QSFP-DD-800G-2FR4 Scenario 2 800G to 2x 400GE Breakout Connectivity



    Product details

    8x 100Gbps PAM4 Modulation Technology



    Utilize 8x electrial lanes and 8x optical lanes modulated at 100G PAM-4 per lane. On the output side, it convert 8x 106.25Gb/s electrical signal to 8x 106.25Gb/s optical signals. On the receiver side, it convert 8x 100Gb/s optical signal to 8x 100Gb/s electrical signals.

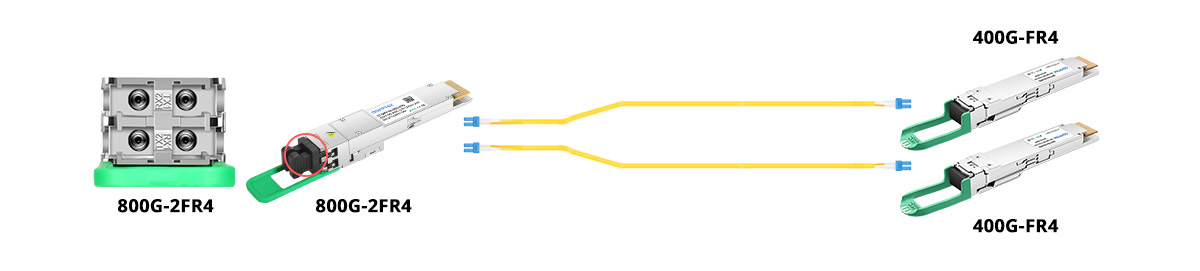

    Easy 800G to 2x 400G breakout with OS2 SMFs



    The QSFP-DD-800G-2FR4 module is designed with dual duplex LC connectors, while each connector can connect to a physically separate 400G FR4 module via an LC OS2 duplex single-mode fiber. This enables 800G to 2x 400G breakout links without the need for using breakout fiber optic cables.

     QSFP-DD 2FR4 BREAKOUT





    Various Switch Tests



    Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



    QSPFTEK LAB All Brands Switches Show





    Tested in The Host Device to Prove Interoperability



    Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.

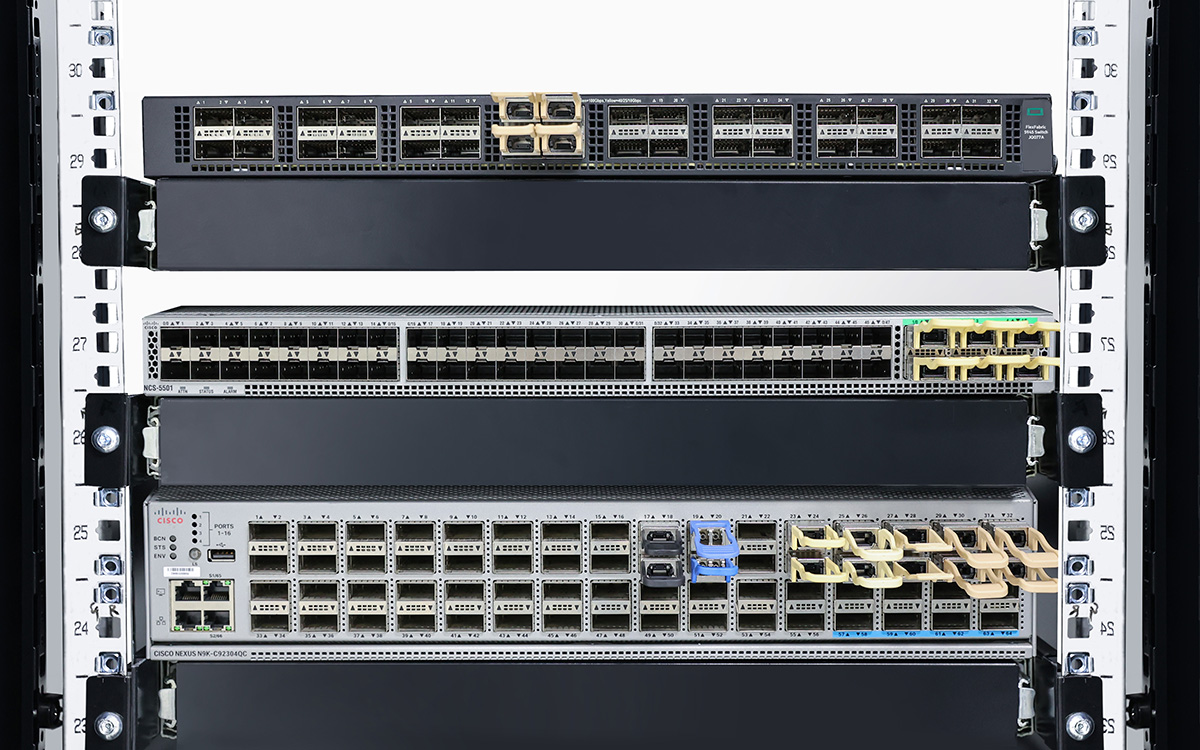

    QSFPTEK Test Rack





    Comprehensive Testing



    Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.



    QSFPTEK Test Devices





    800G QSFP-DD Optical Transceivers Contrast Table



    Part Number

    QT-QSFP-DD-800G-SR8

    QT-QSFP-DD-800G-2VR4

    QT-QSFP-DD-800G-DR8

    QT-QSFP-DD-800G-2DR4


    Data Rate

    800G

    800G

    800G

    800G

    Optical Connector

    Single MPO-16/APC

    Dual MPO-12/APC

    Single MPO-16/APC

    Dual MPO-12/APC

    Cable Type

    MMF

    MMF

    SMF

    SMF

    Wavelength

    850nm

    850nm

    1310nm

    1310nm

    Reach

    50m

    50m

    500m

    500m

    Modulation

    PAM4

    PAM4

    PAM4

    PAM4

    Max Power Consumption

    < 16W

    < 16W

    < 16.5W

    < 18W

    Application

    800G to 800G, 800G to 2x400G breakout

    800G to 800G, 800G to 2x400G breakout

    800G to 800G, 800G to 2x400G breakout, 800G to 8x100G breakout

    800G to 800G, 800G to 2x400G breakout

    Matching Downlink  Transceivers

    QT-QSFP-DD-SR4 (400G)

    QT-Q112-400G-SR4

    QT-OSFP-400G-SR4

    QT-QSFP-DD-SR4 (400G)

    QT-Q112-400G-SR4

    QT-OSFP-400G-SR4

    QT-QSFP-DD-DR4 (400G)

    QT-Q112-400G-DR4

    QT-OSFP-400G-DR4

    QT-QSFP28-DR1

    QT-QSFP-DD-DR4 (400G)

    QT-Q112-400G-DR4

    QT-OSFP-400G-DR4

    Part Number

    QT-QSFP-DD-800G-2XDR4

    QT-QSFP-DD-800G-2FR4

    QT-QSFP-DD-800G-2LR4






    Data Rate

    800G

    800G

    800G



    Optical Connector

    Dual MPO-12/APC

    Dual Duplex CS/UPC

    Dual Duplex LC/UPC



    Cable Type

    SMF

    SMF

    SMF



    Wavelength

    1310nm

    1271nm, 1291nm, 1311nm and 1331nm

    1271nm, 1291nm, 1311nm and 1331nm



    Reach

    2km

    2km

    10km



    Modulation

    PAM4

    PAM4

    PAM4



    Max Power Consumption

    < 18W

    < 18W

    ≤ 18W



    Matching Transceivers

    QT-QSFP-DD-DR4+ (400G)

    QT-Q112-400G-DR4+

    QT-QSFP28-FR1

    QT-QSFP-DD-FR4 (400G)

    QT-Q112-400G-FR4

    QT-OSFP-400G-FR4

    QT-QSFP-DD-LR4 (400G)
    QT-OSFP-400G-LR4



    Application

    800G to 800G, 800G to 2x400G breakout, 800G to 8x100G breakout

    800G to 800G, 800G to 2x400G breakout

    800G to 800G, 800G to 2x400G breakout
