    Products / Fiber Optic Cables / MTP/MPO Cables / MTP/MPO Multi Mode Trunk Cables / 103341
    Product image
    Product image

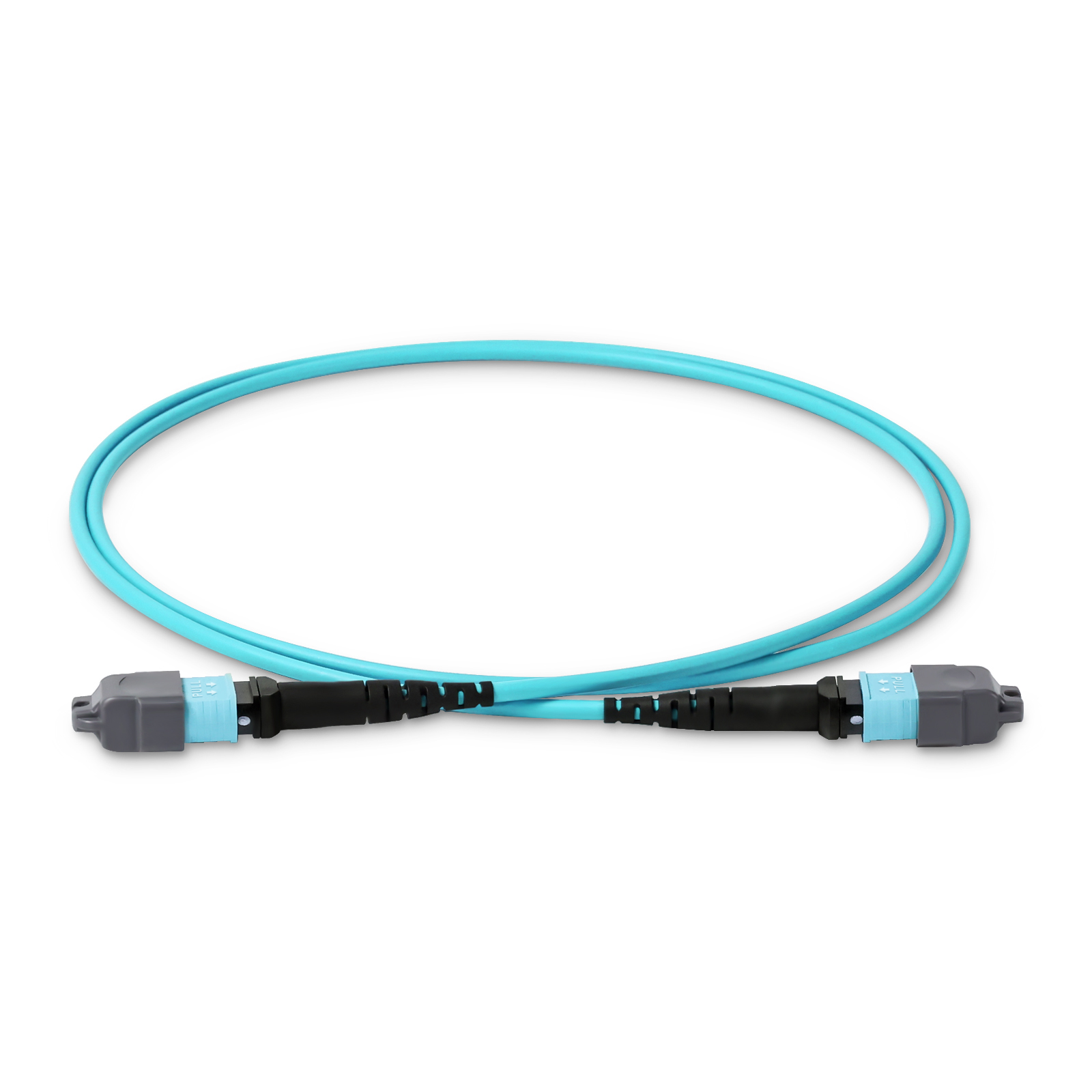

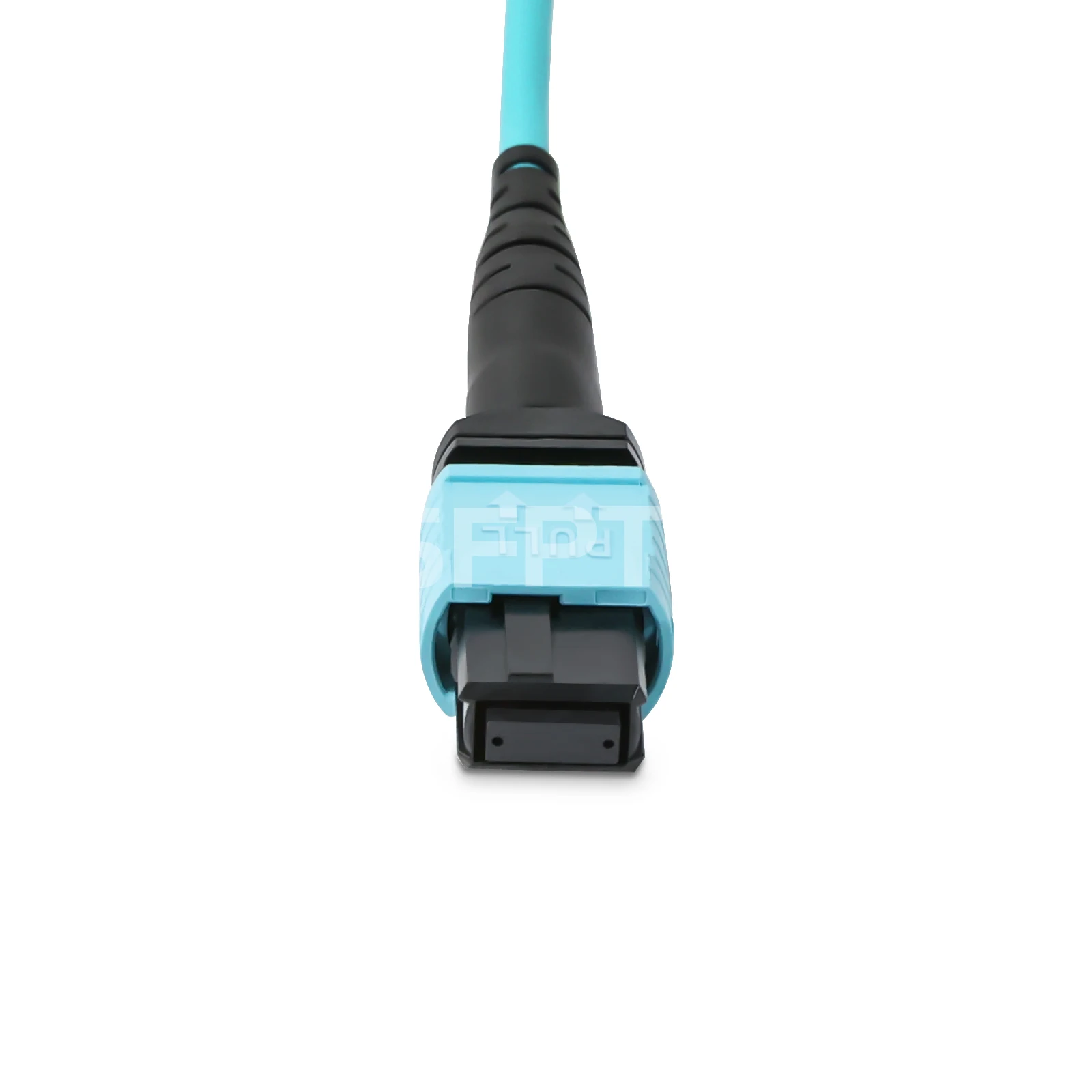

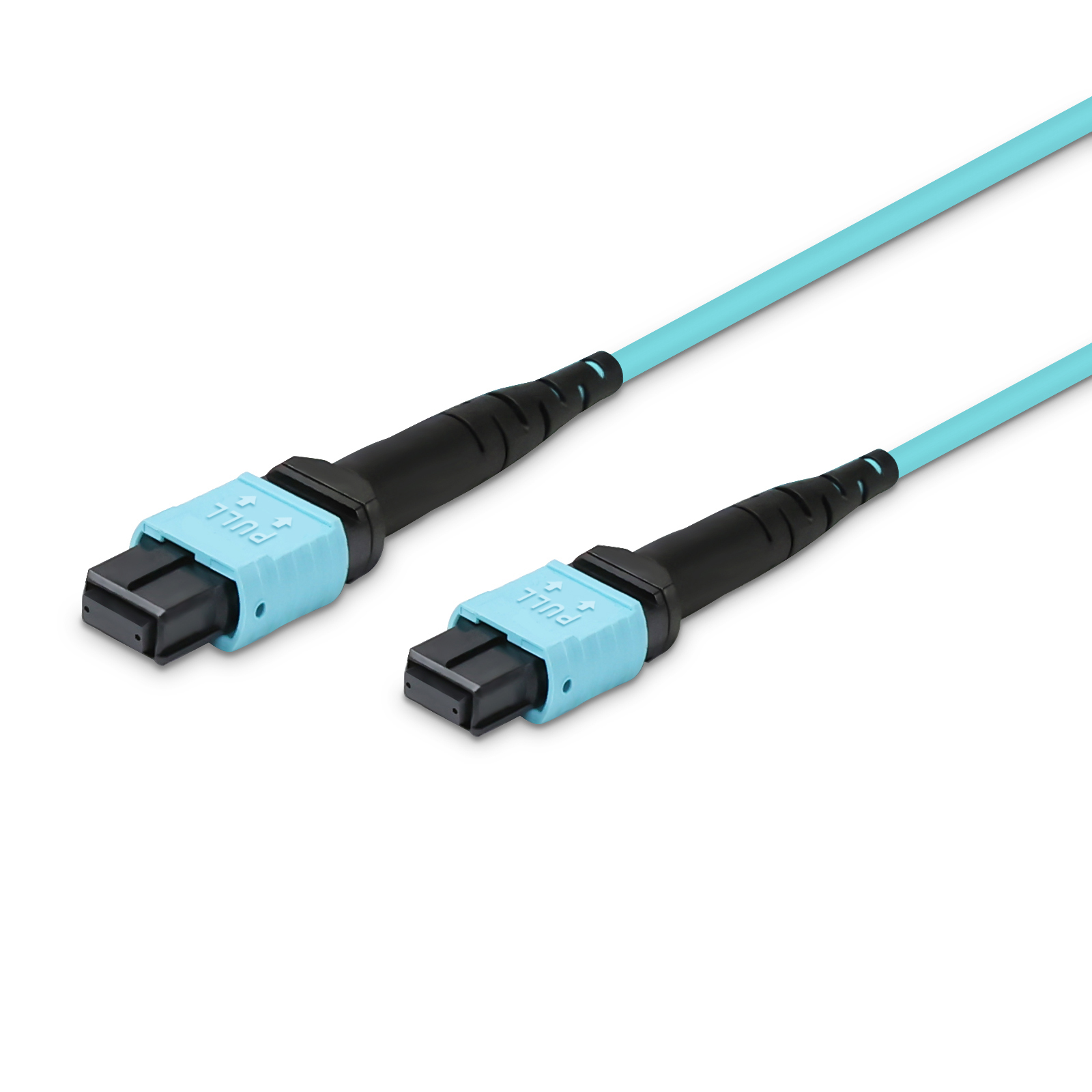

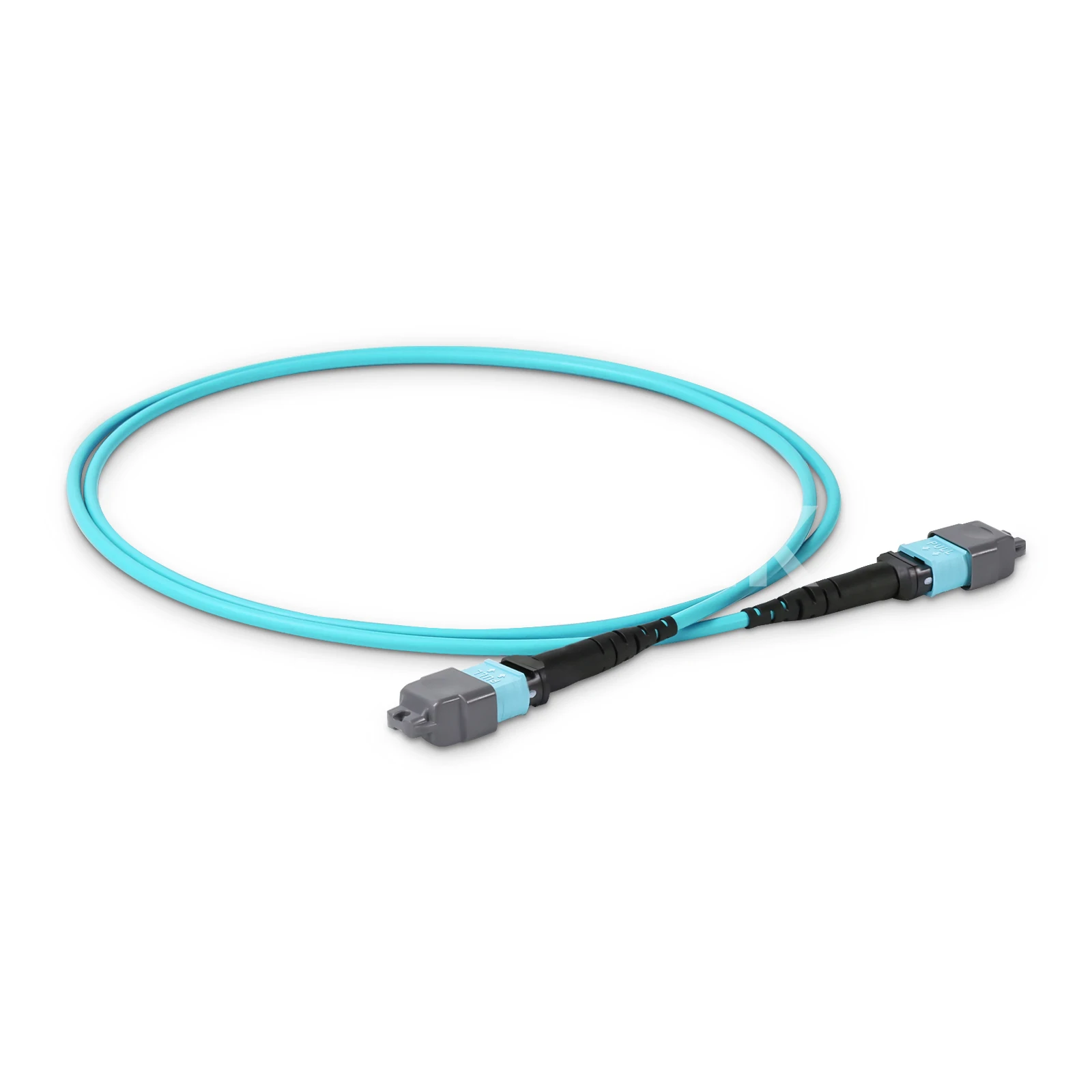

    15m (49ft) MPO-16 APC (Female) to MPO-16 APC (Female) OM3 Multimode Elite Trunk Cable, 16 Fibers, Type B, LSZH, Aqua

    Product No: 103341
    0 Reviews
    1.5K Sold
    $45.50
    Series
    Length
    50 in real-time stock, 23Oct, 2026

    Buy switch & cables for free shipping. Cables alone are not eligible.

    Contact sales for more free shipping policies

    3-Year Warranty 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Flexible 7.5mm Min. Bend Radius
2. With 0.35dB low insertion loss
3. LSZH Jacket, reduces smoke by over 50% during combustion, significantly cuts toxic gas emissions, flame-retardant and environmentally friendly
4. Full bandwidth ≥1500MHz·km at 850nm, ≥500MHz·km at 1300nm
5. Meticulous design and standard testing ensure stable high-speed data transmission
    See more

    Specifications

    15m (49ft) MPO-16 APC (Female) to MPO-16 APC (Female) OM3 Multimode Elite Trunk Cable, 16 Fibers Jumper, Type B, LSZH, Aqua



    The MPO trunk cable provides a worry-free and cost-effective solution for high-density cabling for its connector delivering up to 8 times the density of a standard duplex fiber optic cable connector. This 16 fibers MPO female to MPO female OM3 multimode mode trunk cable is specially optimized for 100G optics direct connection, data centers and telecommunications systems applications.



    Connector A MPO Female Connector B MPO Female
    Fiber Count 16 Fibers Fiber Type OM3 MMF 50/125μm
    Polish Type APC to APC Cable Material LSZH
    Armoured No Wavelength 850/1300nm
    Insert Loss ≤0.35dB Return Loss ≥30dB
    Cable Diameter 3.0mm Tensile Strength 80/150N (Long/Short Term)
    Min. Bend Radius (Fiber Core) 7.5mm Min. Bend Radius (Fiber Cable) 20/10D (Dynamic/Static)
    Attenuation (dB/km) ≤2.3 at 850nm, ≤0.6 at 1300nm Polarity Type B
    Max. Transmission Distance 300m Effective Bandwidth ≥2000MHz·km at 850nm
    Operating Temperature -10℃~ to 70℃ Storage Temperature -40℃ to +85℃



    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    Hot

    Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m MTP/MPO-12 MMF DDM Optical Transceiver Module

    $35.90 $59.90
    18.9K Sold
    160 Reviews

    Features

    • 0.35dB Max. IL
      Designed for low insertion loss links, flexible and robust.
    • 7.5mm Min. Bend Radius
      Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
    • 80/150N (Long/Short Term)
      Extremely tensile resistant to prevent cable breakage and extend service life.
    • LSZH Jacket
      Low smoke, low toxicity, low corrosion, and high flame retardant.

    Applications

    Connection 1:

    MPO-16 APC OM3 Direct Connect

    Product details

    Excellent Transmission Stability Ensured by Superior Craftsmanship



    With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.



    High-Performance Fiber with Superior Durability



    This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.



    Flexible High-Density Cabling Solutions



    Excellent bend radius minimizes space wastage, optimizes cable management, improves deployment speed, simplifies cable management, and reduces installation costs.



    Spine-Leaf Architecture for Scalable Networks



    Overcome network bottlenecks, minimize latency, and enhance bandwidth and scalability with the Spine-Leaf architecture, enabling larger network scales and facilitating future expansions.



    Maintain Performance by Cleaning Fiber



    Ensure high reliability and performance connections by maintaining clean fiber end-faces.

    Questions & Answers

    • All (6)
    • Hi, I just want to wonder what is the difference between MTP and MPO cables? I am always confused about the two cables.
      In fact, it is easy to distinguish them. The key difference between them lies in their different connectors. MTP trunk cables use MTP® connector, this is an enhanced version so that MTP cables have better mechanical designs and optical performances.
    • What is the maximum throughput?
      The maximum data throughput is 400G.
    • What's the difference between the male and female connectors of an MTP cable?
      The difference between the male and female connectors of an MTP cable lies in the position of the alignment key. The male connector features an alignment key located at the top, while the female connector has an alignment key positioned at the bottom.
