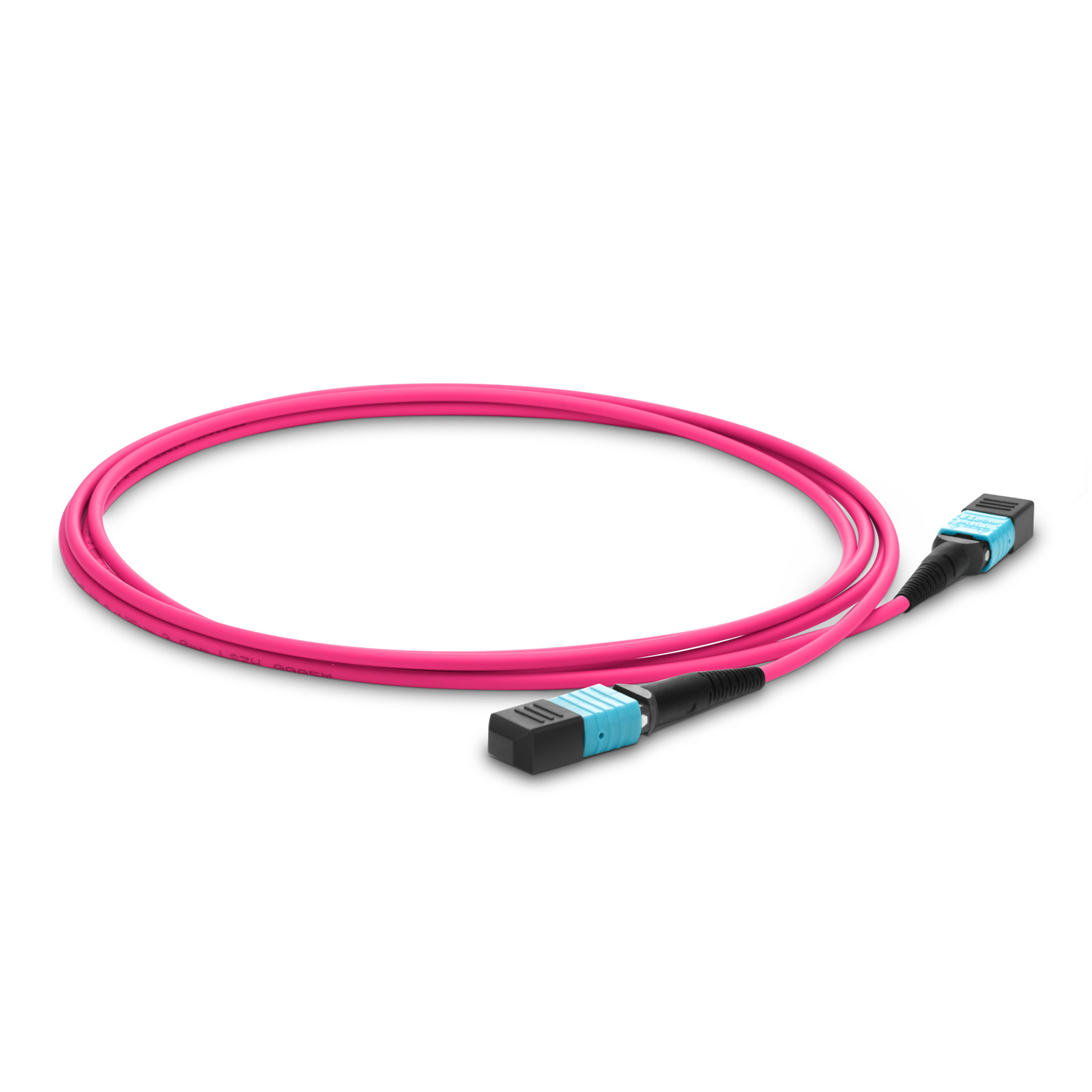

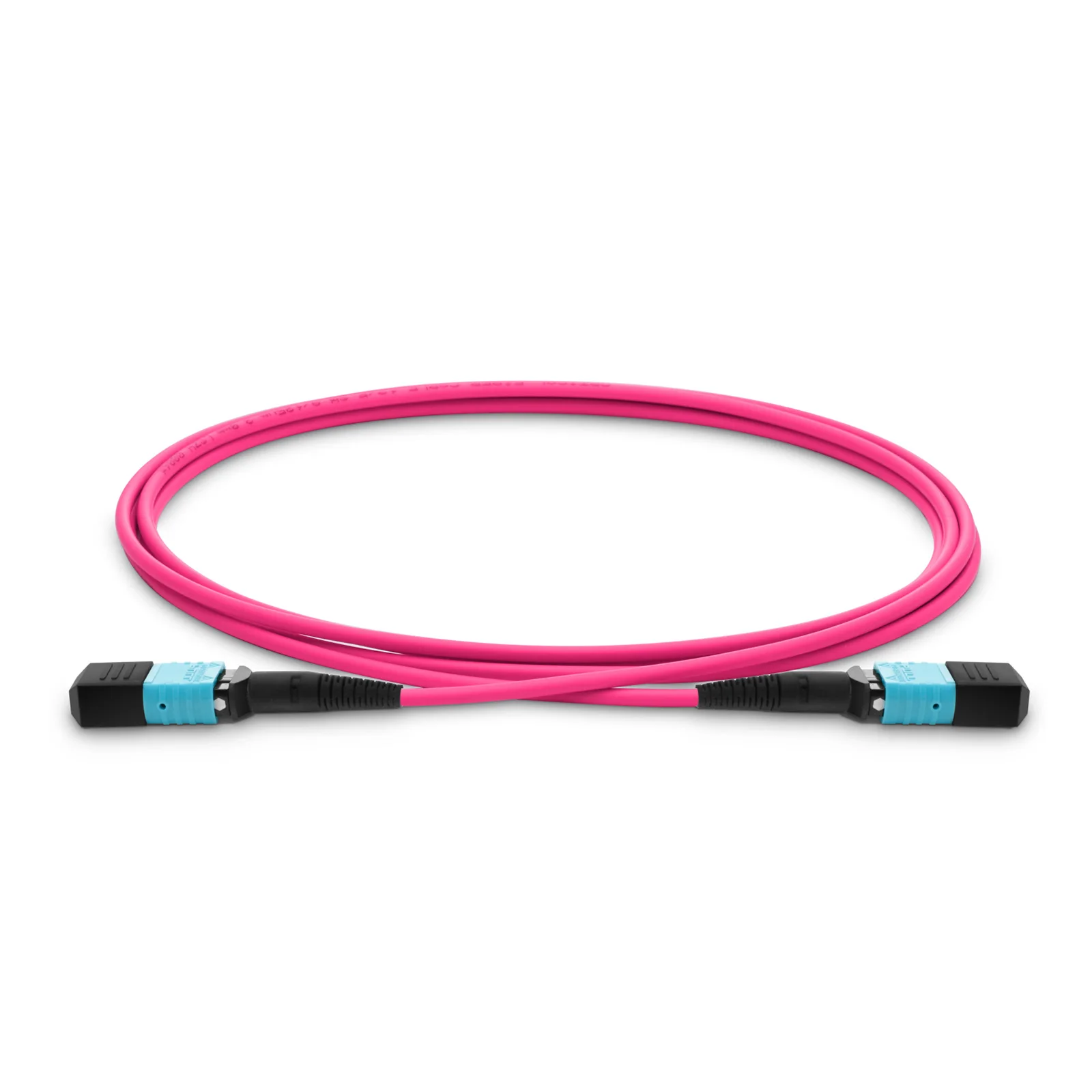

15m (49ft) MTP-12 (Female) to MTP-12 (Female) OM4 Elite Trunk Cable, 12 Fibers, Type B, Plenum (LSZH)

Product No :100804
US$ 73.20  US$ 78.00
948 in stock

497 In US Warehouse

591 In EU Warehouse

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

;jsessionid=CF285E6C1ED8665473FB9EFD5E3ED1F3
-
+
1. Flexible 7.5mm Min. Bend Radius
2. Optimized for 40G/100G/200G/400G Transmission
3. MTP Connector with 12 Fibers
4. Compliant with ROSH 2.0 and MCD
5. LSZH jacket
See more

Specifications

MTP-12 (Female) to MTP-12 (Female) OM4 Trunk Cable


The MTP trunk cable provides a worry-free and cost-effective solution for high-density cabling for its connector delivering up to 6 times the density of standard duplex fiber optic cable connector. This MTP female to MTP female OM4 multimode trunk cable is specially optimized for 40G QSFP+ SR4, 100G QSFP28 SR4 optics direct connection, data centers and telecommunications systems applications.





Connector A:

MTP Female

Connector B:

MTP Female

Fiber Count:

12 Fibers

Fiber Type:

OM4 MMF 50/125μm

Polish Type:

UPC to UPC

Wavelength:

 850nm

Armoured:

 No

Cable Material:

 LSZH

Insert Loss:

0.35dB

Return Loss:

≥30dB

Approximate Diameter:

3.0mm

Length:

0.5m/1m/1.5m/2m/3m/5m/7m/10m

Min. Bend Radius

(Fiber Cable) Dynamic:

10mm

Min. Bend Radius (Fiber Cable) Static:

10mm

Operating Temperature:

  -20℃~+70

Storage Temperature:

 -40℃~+80



Quality Testing Program
Quality Certifications

Features

  • 0.25dB Max. IL
    Designed for low insertion loss links, flexible and robust.
  • 10mm Min. Bend Radius
    Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
  • 6kg Tensile Strength
    Extremely tensile resistant to prevent cable breakage and extend service life.
  • LSZH Jacket
    Low smoke, low toxicity, low corrosion, and high flame retardant.

Product details

Excellent Transmission Stability Ensured by Superior Craftsmanship



With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.

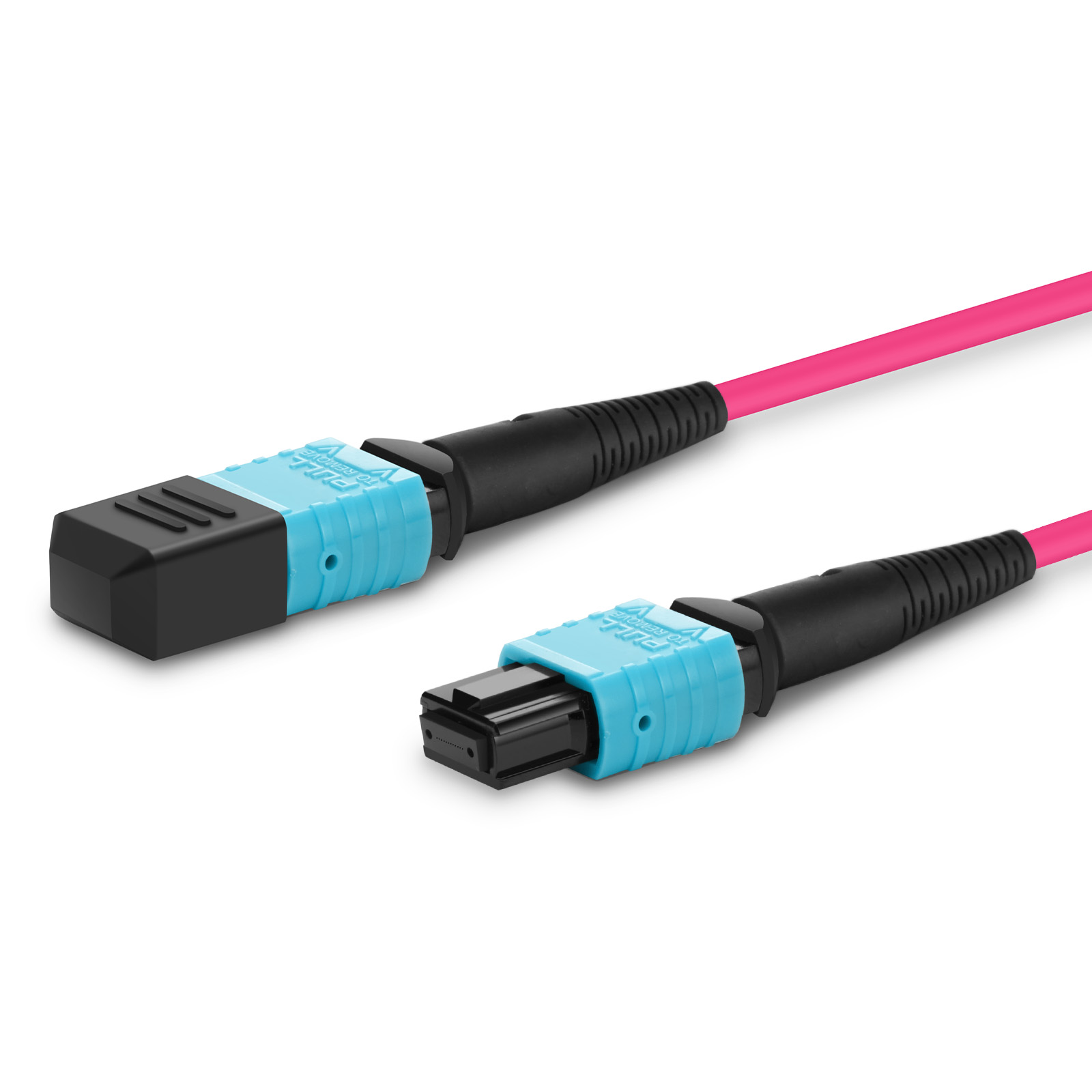

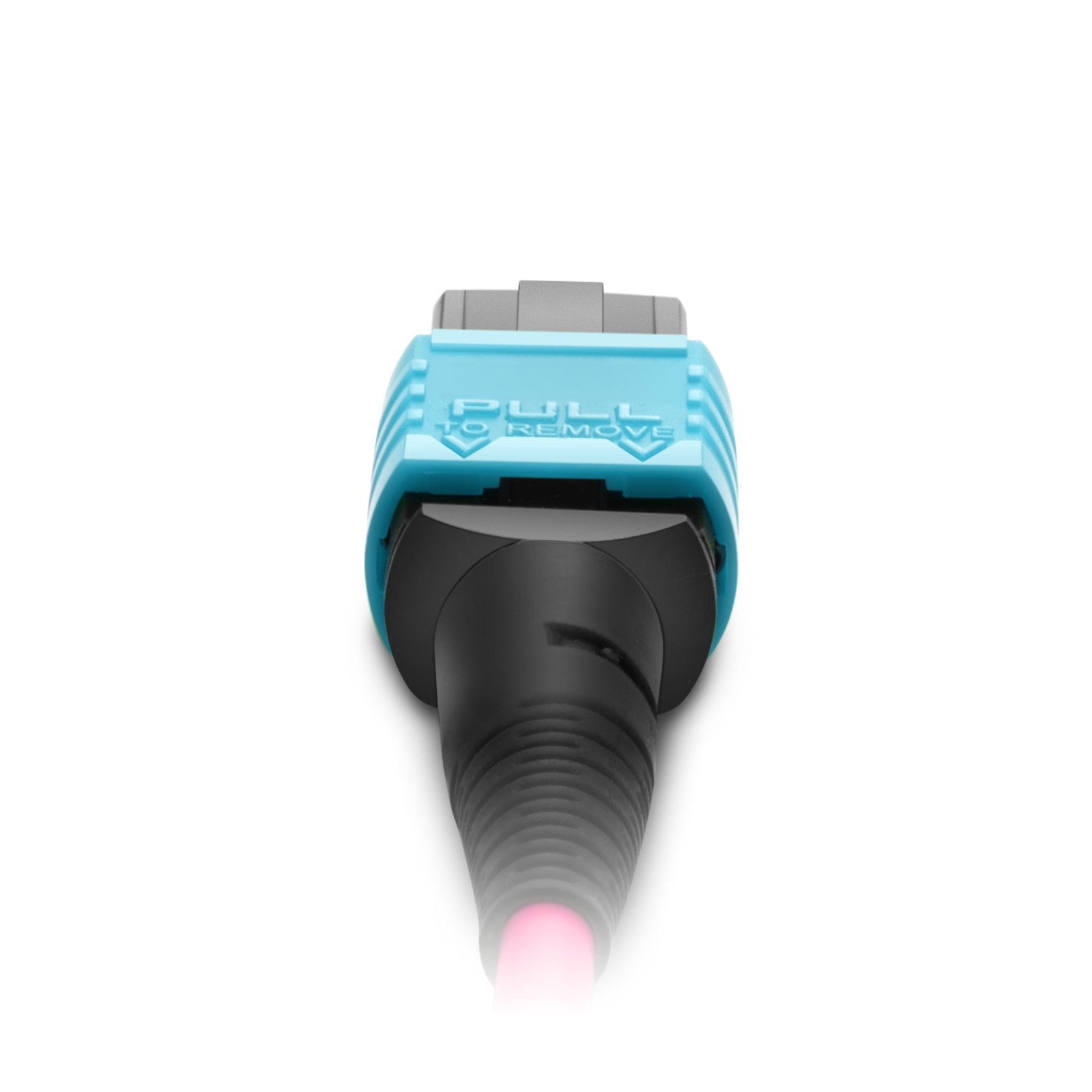

MTP Connector




High-Performance Fiber with Superior Durability



This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.

High-Performance Fiber with Superior Durability




Flexible High-Density Cabling Solutions



Excellent bend radius minimizes space wastage, optimizes cable management, improves deployment speed, simplifies cable management, and reduces installation costs.

High-Density Cabling Solutions




Spine-Leaf Architecture for Scalable Networks



Overcome network bottlenecks, minimize latency, and enhance bandwidth and scalability with the Spine-Leaf architecture, enabling larger network scales and facilitating future expansions.

Spine-Leaf Architecture for Scalable Networks




Maintain Performance by Cleaning Fiber



Ensure high reliability and performance connections by maintaining clean fiber end-faces.

MTP cables cleaner

;jsessionid=CF285E6C1ED8665473FB9EFD5E3ED1F3

Questions & Answers

more+
  • Does the fiber optic cable have a rated voltage?
    The fiber optic cable is a passive component used for the transmission of optical signals, and therefore, it does not have a rated voltage.
  • What is the warranty for this MTP cable?
    It has 3 months warranty.
  • What is the maximum throughput of this cable?
    This MTP cable supports a maximum throughput of 400G.
