    Products / Transceivers / 400G/800G/1.6T Ethernet Transceivers / 800G OSFP / 202938
    Product image
    Product image

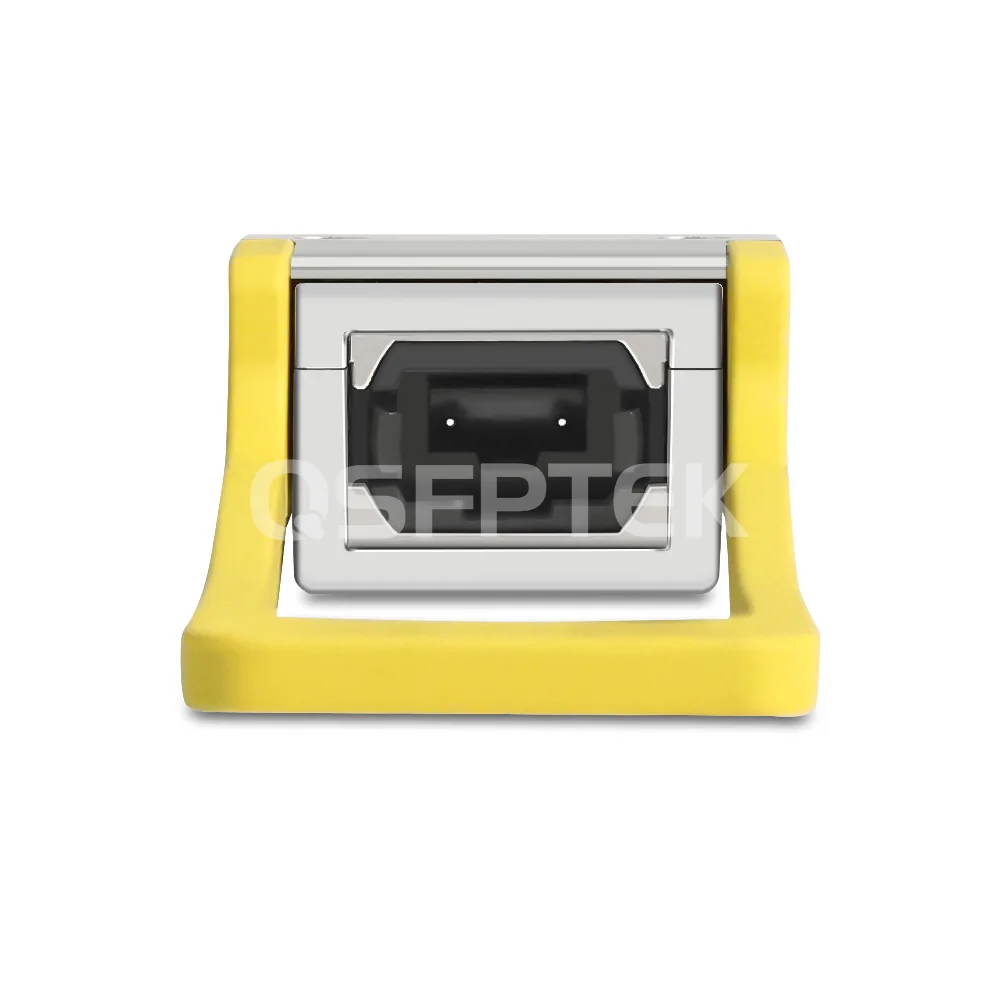

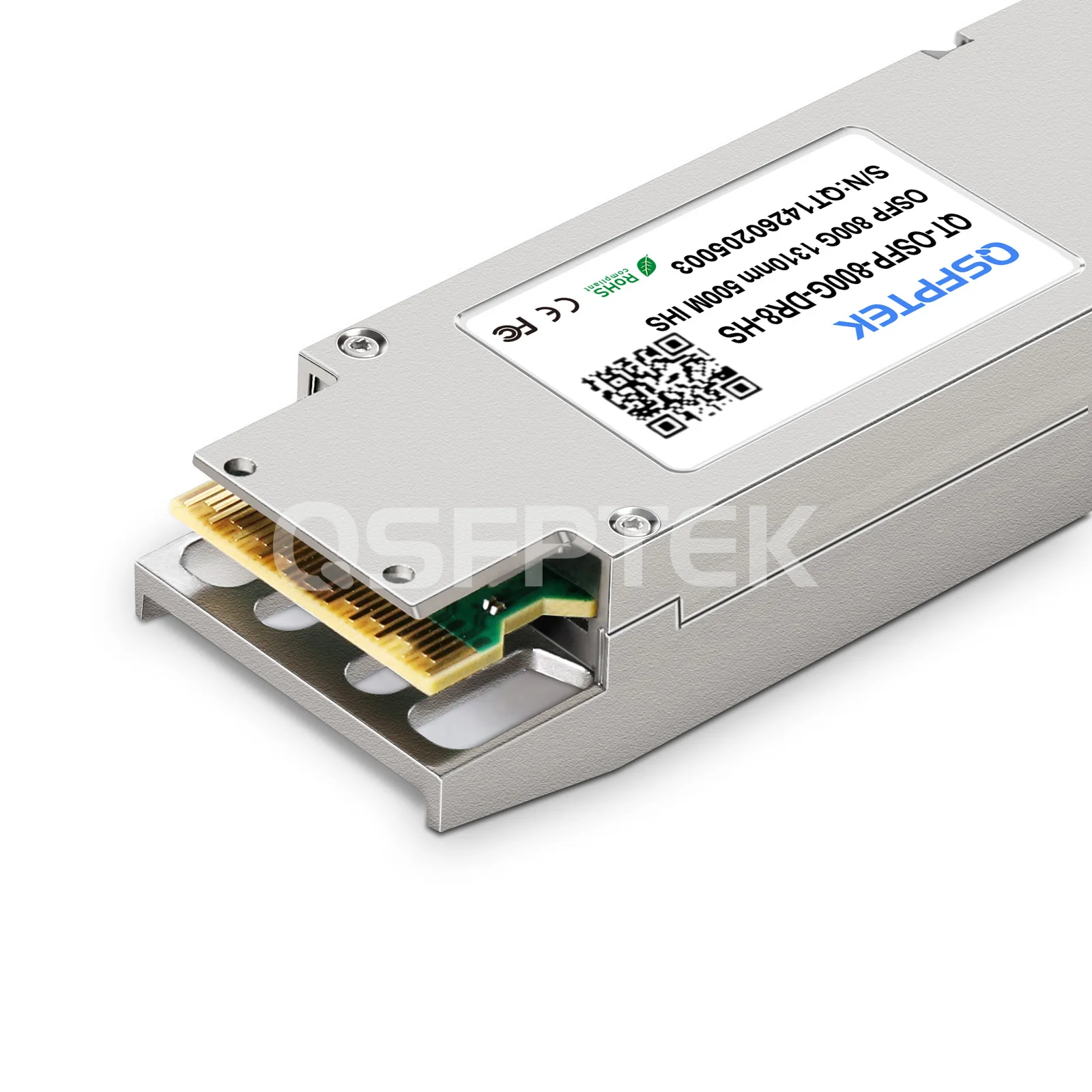

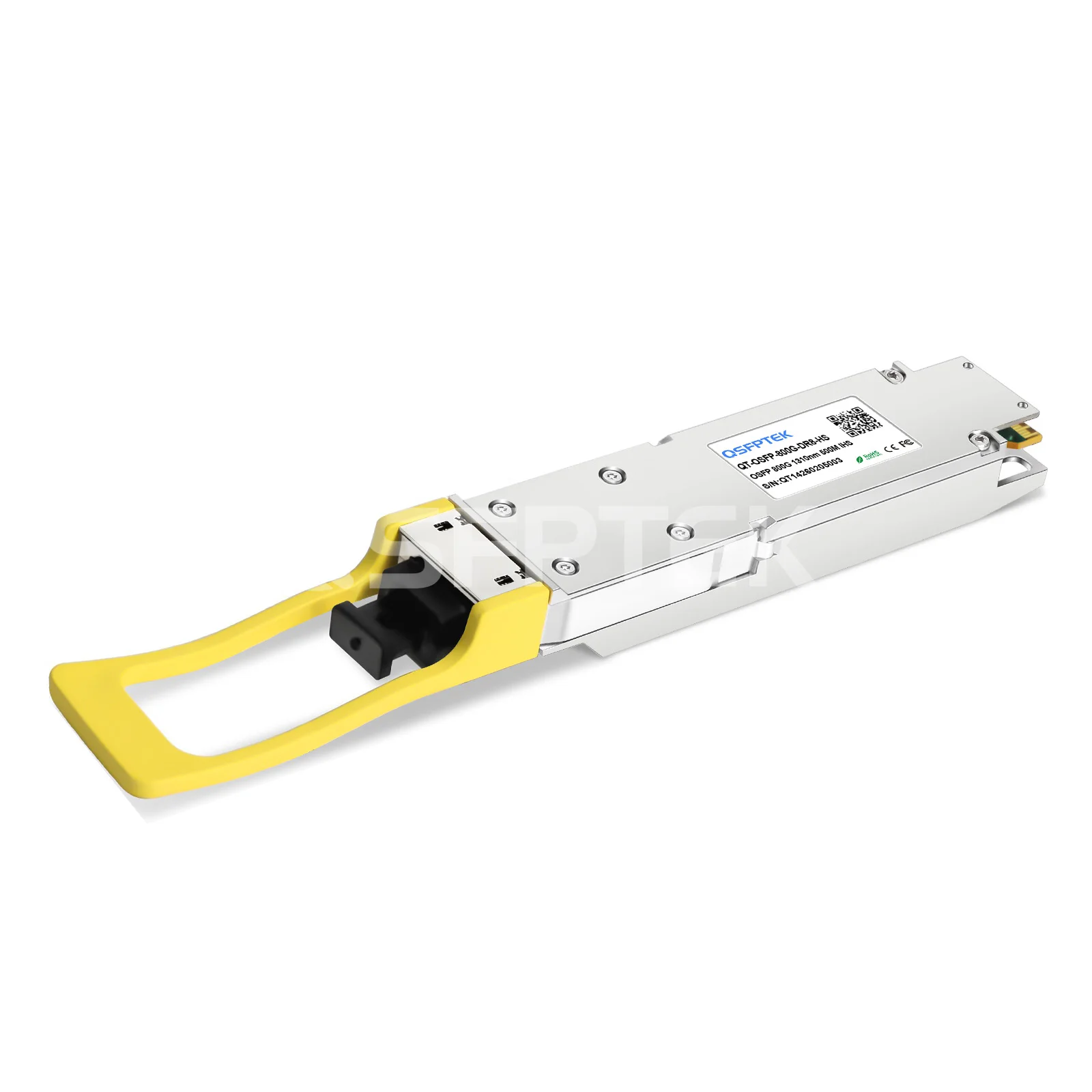

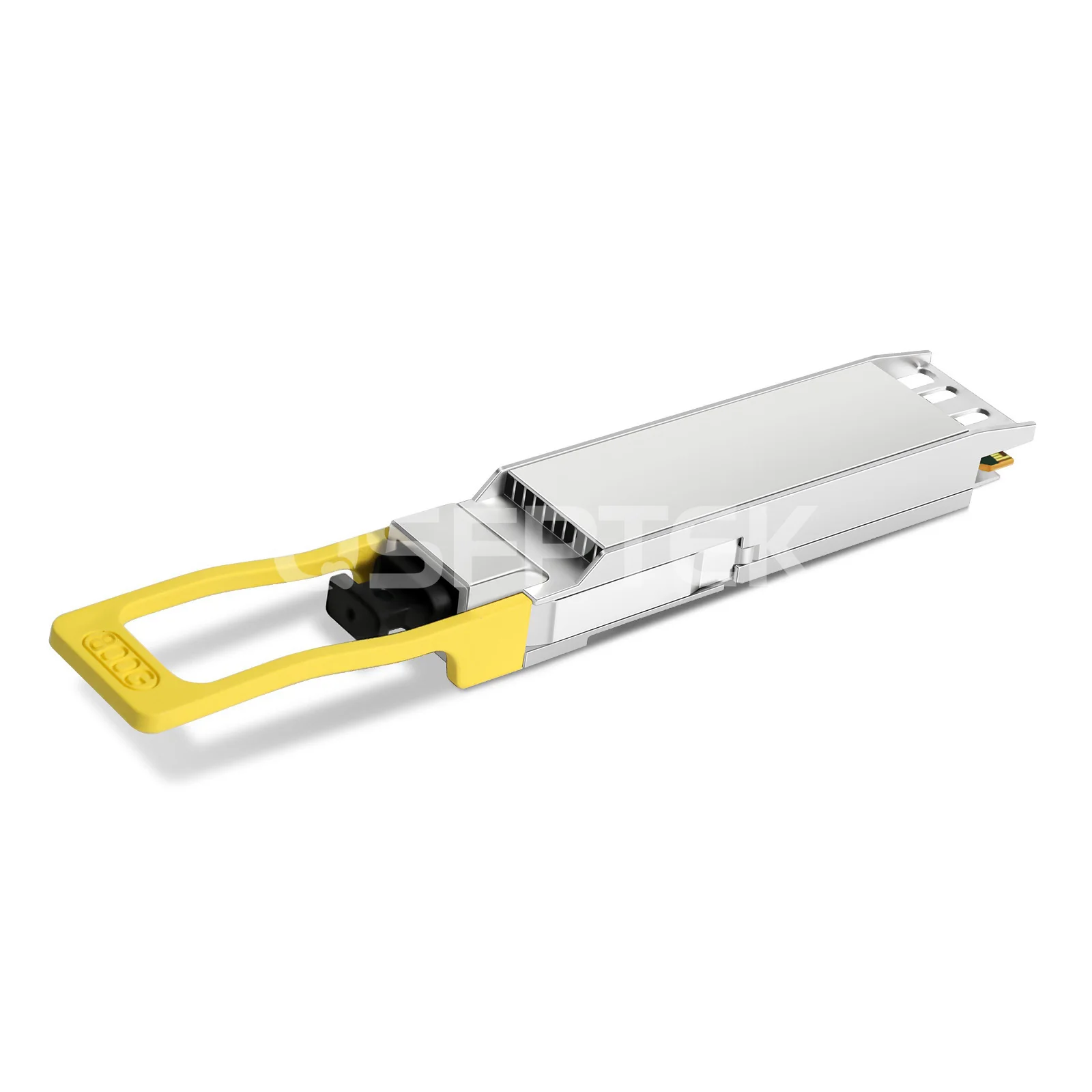

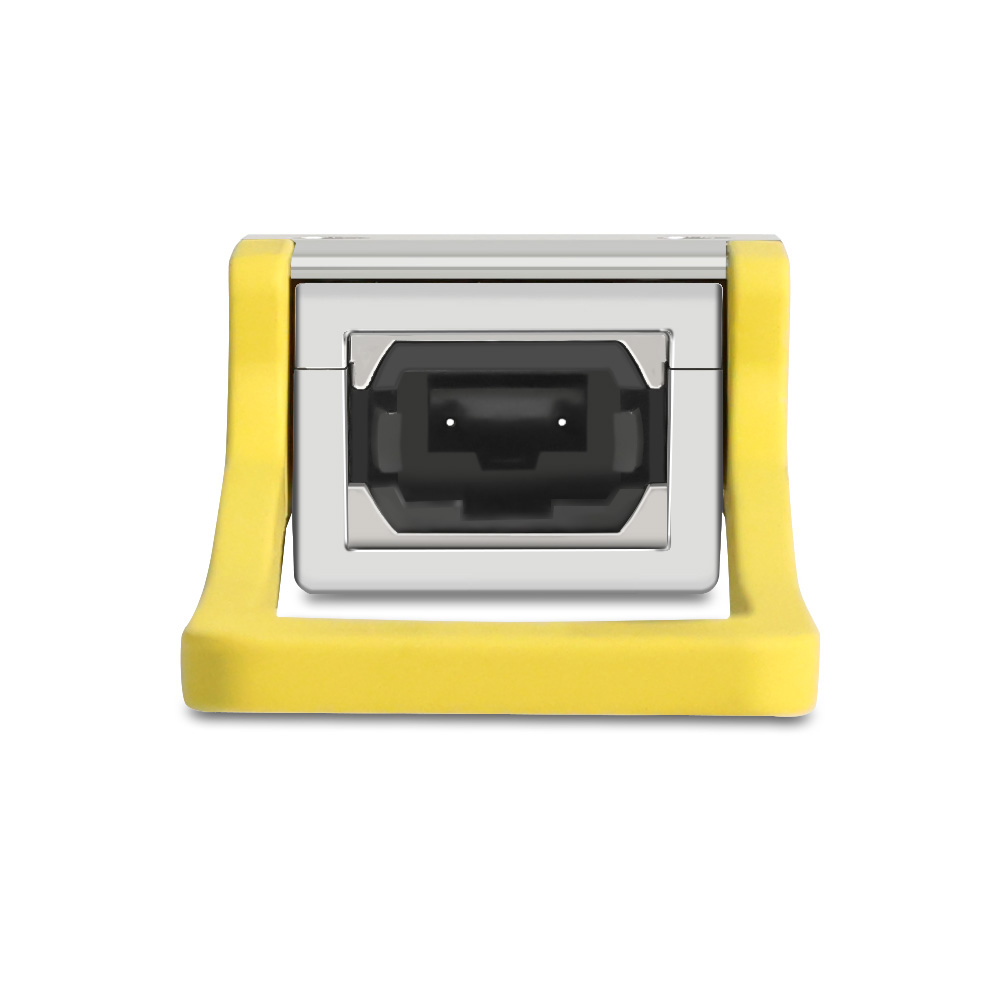

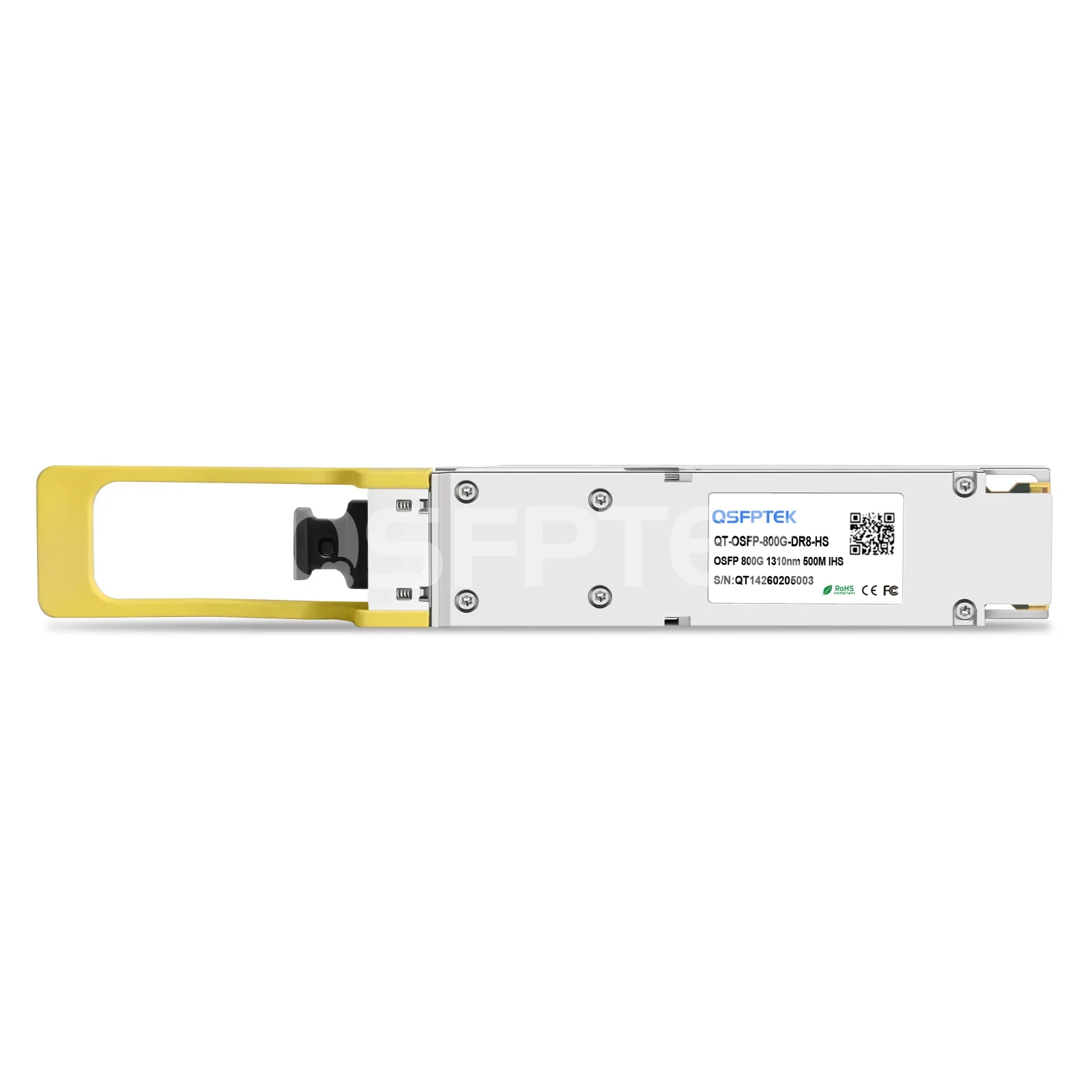

    Generic Compatible 800GBASE-DR8 OSFP IHS/Closed Finned Top PAM4 1310nm 500m MPO-16/APC DDM SMF Ethernet Optical Transceiver Module

    Product No: 202938
    0 Reviews
    4 Sold
    $888.90
    Compatible
    Transceivers type
    2 in real-time stock, 28Oct, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. 100% verified by the original
2. OSFP-IHS with integrated closed top heat sink
3. Support 800GBASE-DR8, 2x 400GBASE-DR4, 4x 200GBASE-DR2, and 8x 100GBASE-DR1
4. 8x 100G-PAM4 electrical and optical Parallel
5. Maximum power consumption <16W
    See more

    Specifications

    Generic Compatible 800G DR8 OSFP IHS/Closed Finned Top PAM4 Optical Transceiver Module (1310nm, 500m, an MPO-16/APC Connector, SMF, 0℃ to +70℃, DDM)



    Generic compatible 800G DR8 OSFP is an Ethernet transceiver module with an MPO-16 APC connector. It enables the fiber link of 500m at 800Gb/s over single-mode fiber (SMF). With the Pulse-amplitude Modulation (PAM4) modulation, the datacenter reach 8-channel (DR8) OSFP adopts 8-channels of 100G-PAM4 electrical and optical Parallel modulation.



    The 800G DR8 OSFP-IHS supports 800GBASE-DR8, 2x 400GBASE-DR4, 4x 200GBASE-DR2, and 8x 100GBASE-DR1 breakouts for links up to 500m in reach. QSFPTEK Ethernet compatible optics are 100% tested in original host devices.



    Part Number QT-OSFP-800G-DR8-IHS Vendor Name QSFPTEK
    Form Factor Twin-port OSFP-IHS/Closed Finned Top Max Data Rate 850Gbps (8x 106.25Gbps)
    Wavelength 1310nm Distance 500m
    Connector MPO-16/APC Cable Type SMF
    Transmitter Type EML Receiver Type PIN PD
    TX Power -2.9 to 4 dBm Receiver Sensitivity < -5.9 dBm
    Packaging Technology COB (Chip on Board) Packaging Receiver Overload 4 dBm
    Power Consumption <16W Modulation Format 8x 100G-PAM4 electrical and optical Parallel
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols OSFP MSA, IEEE 802.3ck, CMIS Rev 5.0 Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    Hot

    1m (3ft) MTP-16 APC (Female) to MTP-16 APC (Female) OS2 Singlemode Elite Trunk Cable, 16 Fibers, Type B, LSZH, Yellow

    $162.68
    10.2K Sold
    79 Reviews

    1m (3ft) MPO-16 APC (Female) to MPO-16 APC (Female) OS2 Singlemode Elite Trunk Cable, 16 Fibers, Type B, LSZH, Yellow

    $33.48
    10.2K Sold
    79 Reviews

    Applications

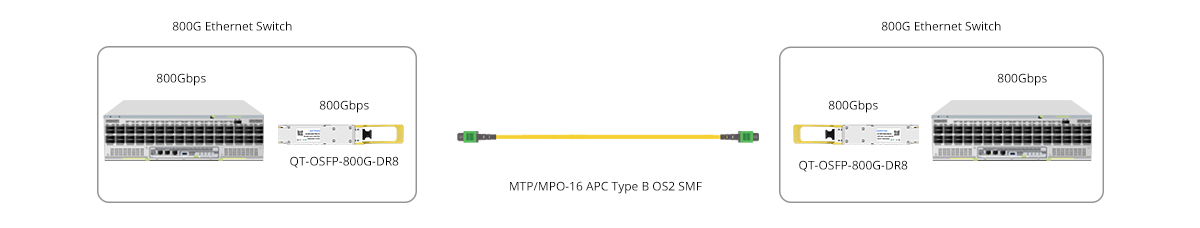

    800G-to-800G Link for Switch-to-Switch:

    800G-to-800G Link for Switch-to-Switch

    Questions & Answers

    • All (11)
    • QT-QSFP-DD-800G-2FR4 (3)
    • QT-OSFP-800G-2FR4 (2)
    • 400G OSFP (1)
    • QT-QSFP-DD-800G-DR8 (1)
    • QT-OSFP-800G-2DR4 (1)
    • I want to connect this QSFP-DD 800G 2FR4 module to my 400G switches, which 400G optics and fiber patch cable should I use?
      Hello, to connect the QSFP-DD 800G 2FR4 module to 400G switches, you can use QSFP-DD-400G-FR4 for 400G switches. Since QSFP-DD 800G 2FR4 has two duplex CS connectors while QSFP-DD-400G-FR4 has a single duplex LC connector, you should link QSFP-DD 800G 2FR4 to two QSFP-DD-400G-FR4 via two CS to LC Duplex OS2 single mode fiber. Please kindly check the application section of the product details page.
    • The 800G 2FR4 optical module has two separate connectors, can I use only one port of the module?
      Yes, if only one of the ports is used, the rate is 400G.
    • Can I plug 400G OSFP modules into 800G OSFP ports?
      Yes, 800G OSFP ports are backward compatible with 400G OSFP as long as the physical form factor is compatible.
