    Home / Products / Transceivers / 400G/800G Ethernet Transceivers / 800G OSFP / 103578

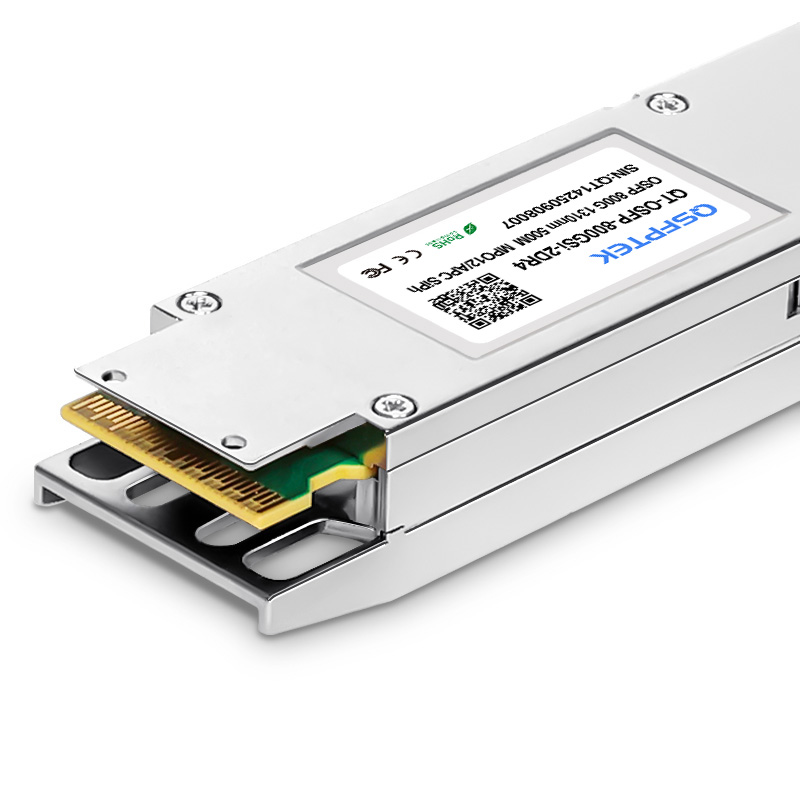

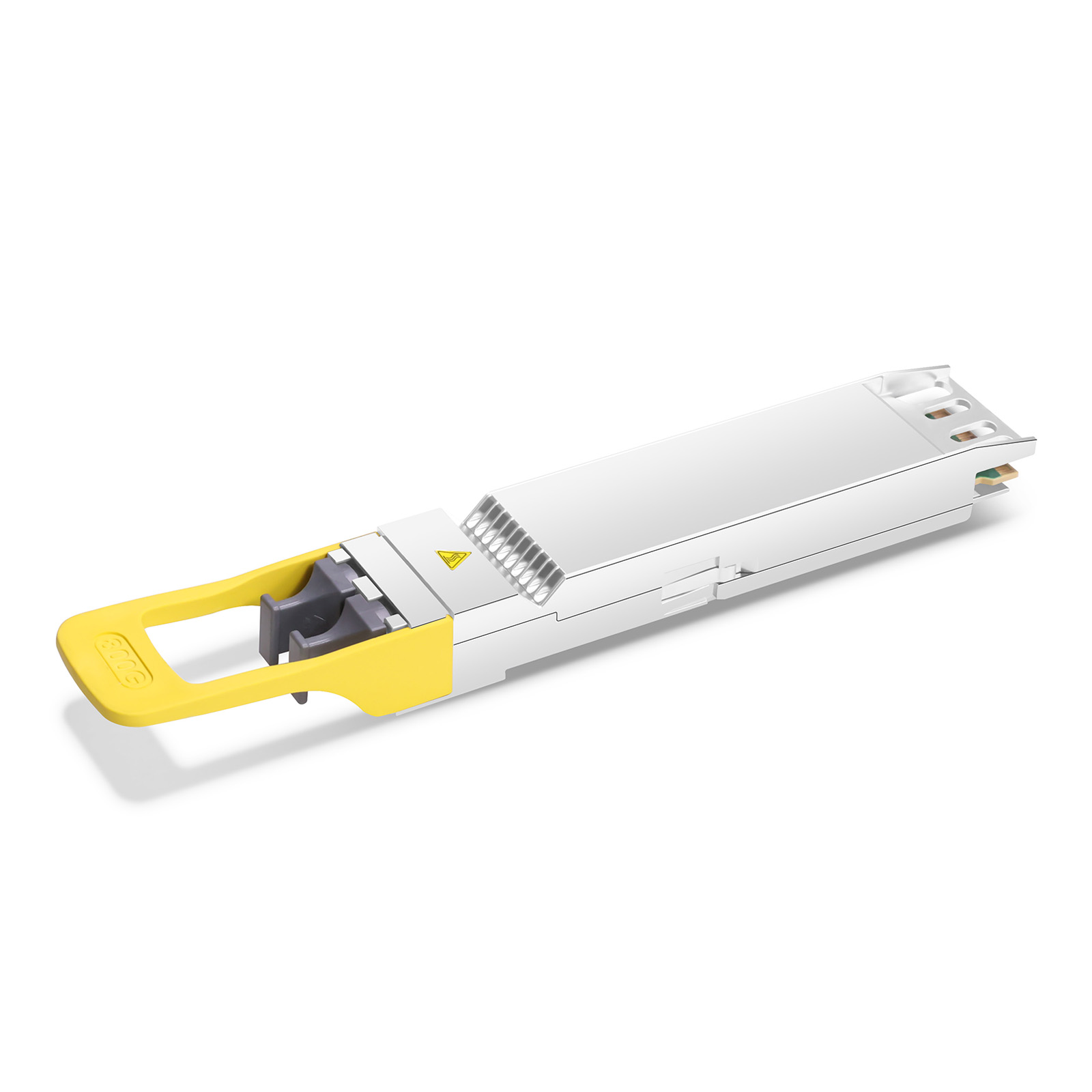

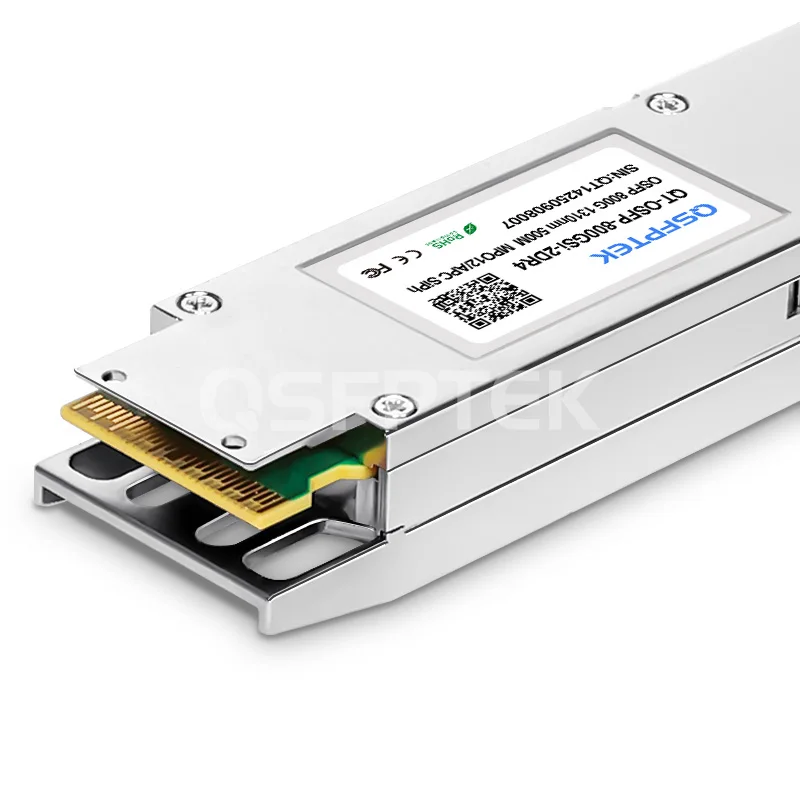

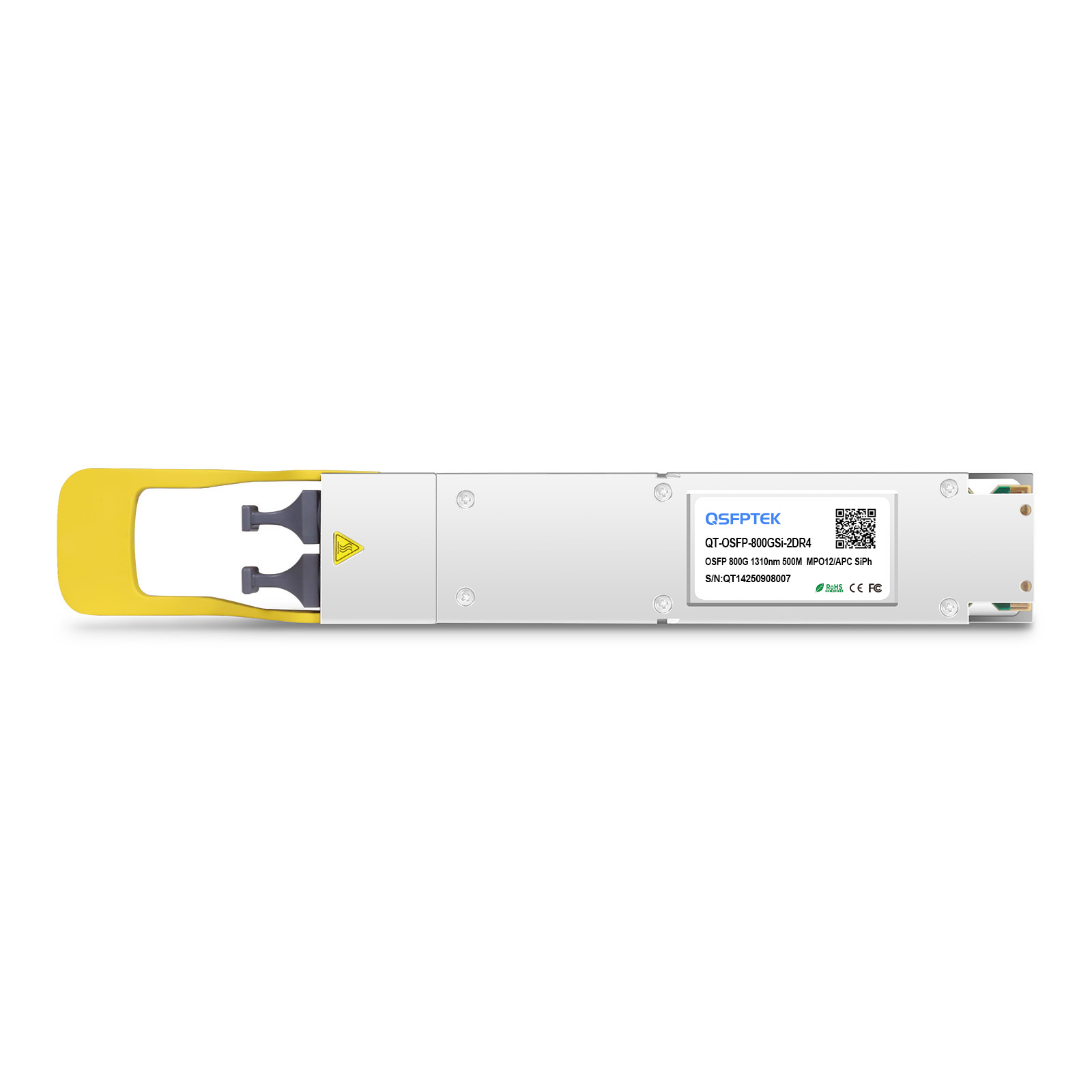

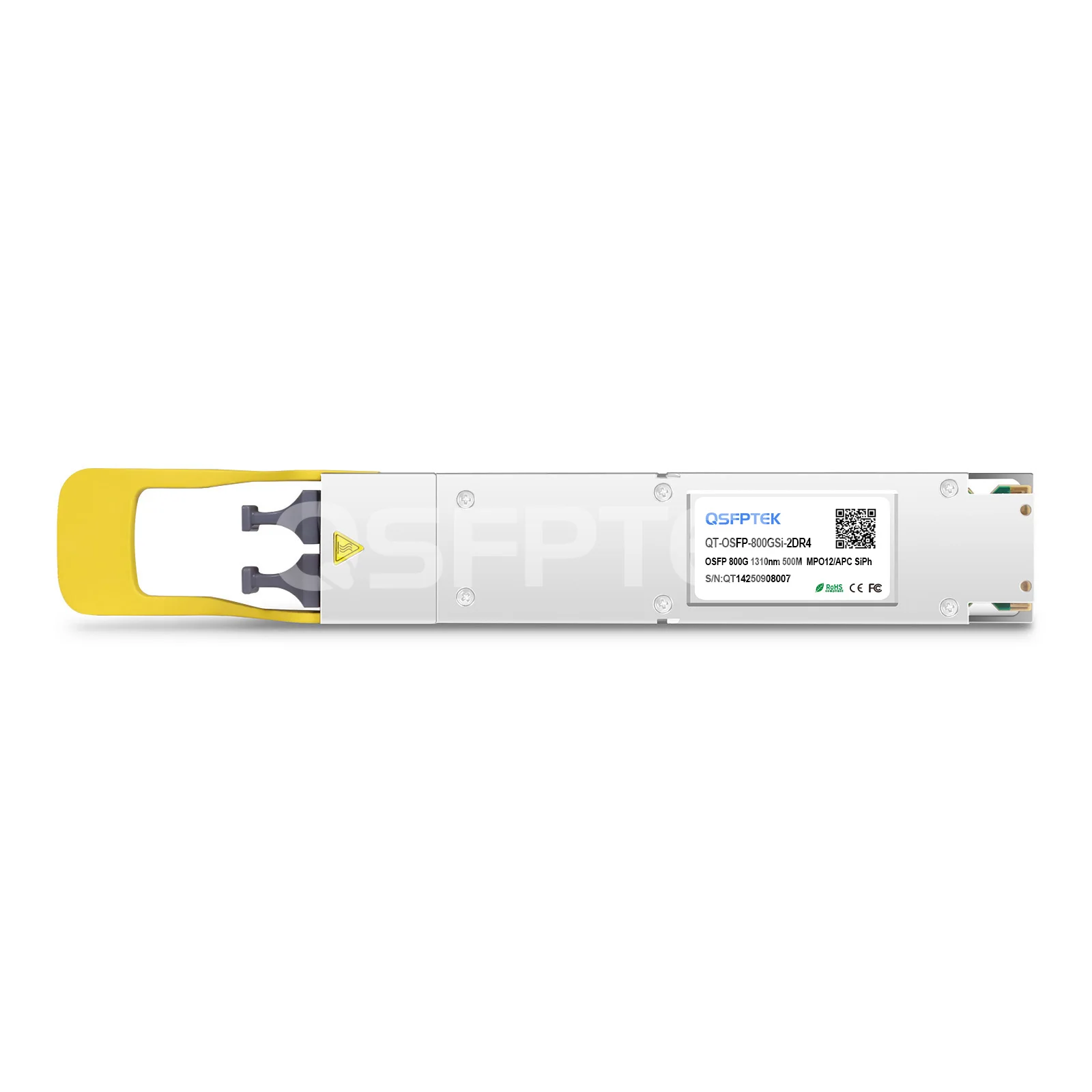

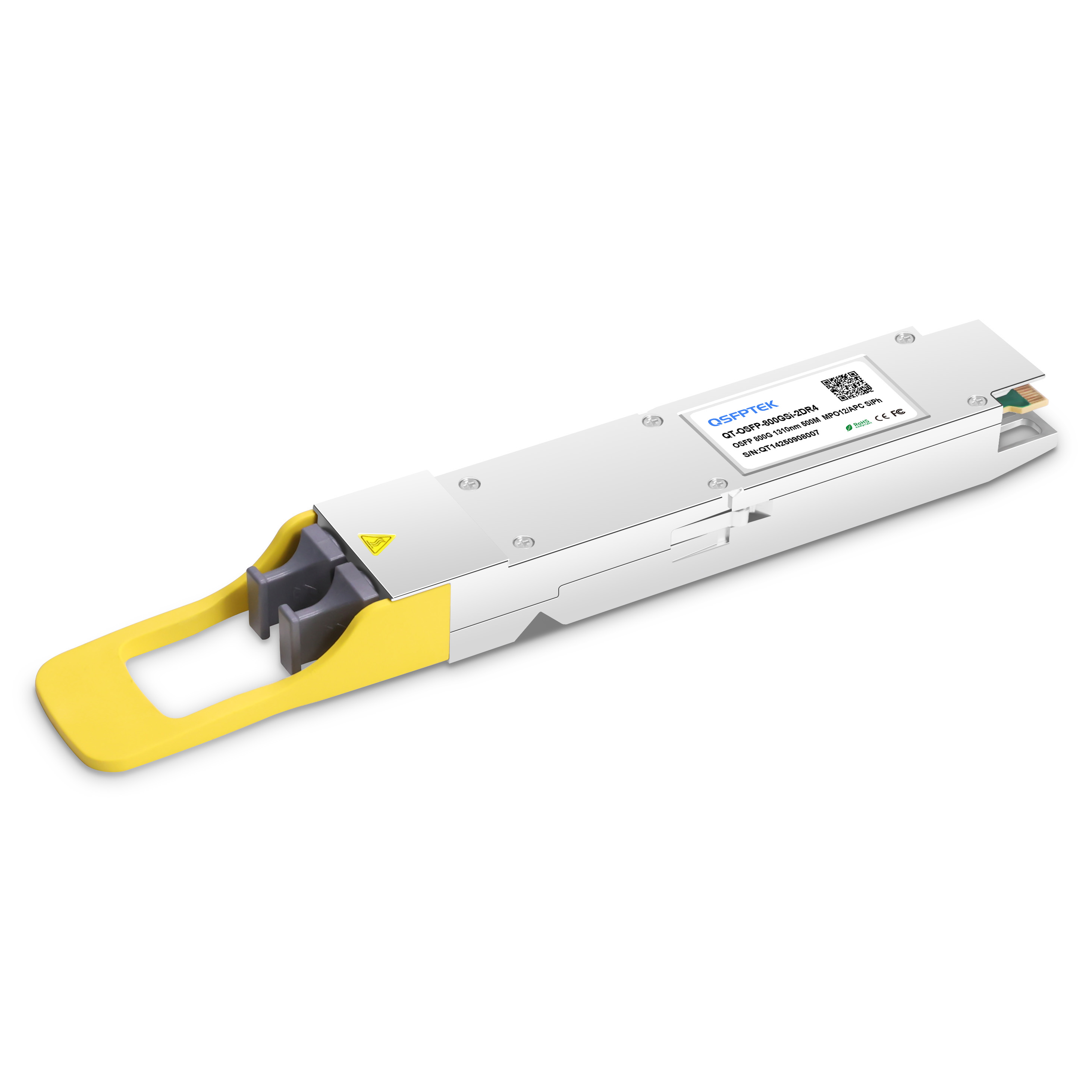

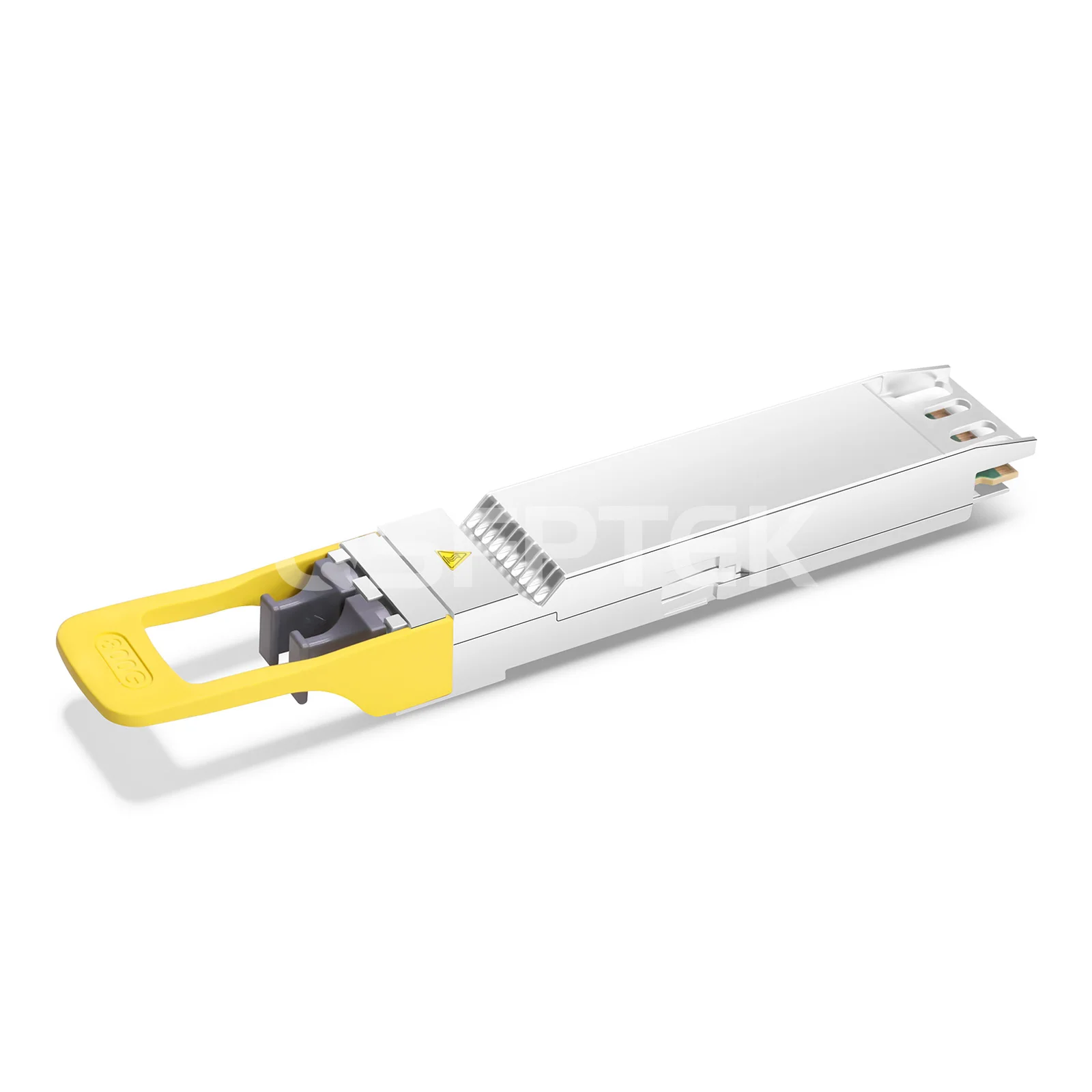

    Generic Compatible 800GBASE-DR8 (2x 400G DR4) SiPh Twin-port OSFP IHS/Closed Finned Top PAM4 1310nm 500m Dual MPO-12/APC DDM SMF Silicon Photonics Optical Transceiver Module

    Product No: 103578
    0 Reviews
    8 Sold
    US$ 699.00
    Compatible
    Transceivers type
    3 in real-time stock, 24 Jun, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Use SiPh chips that integrate diverse active & passive optoelectronic components, 3D packaging technology and Broadcom 7nm DSP chips
2. Meet the harshest external operating conditions including temperature, humidity and EMI interference
3. Provide high functionality and feature integration, accessible via a two-wire serial interface
4. Maximum link length of 500m G.652 SMF with KP-FEC
5. Data rate up to 850Gbps, Power consumption <16W

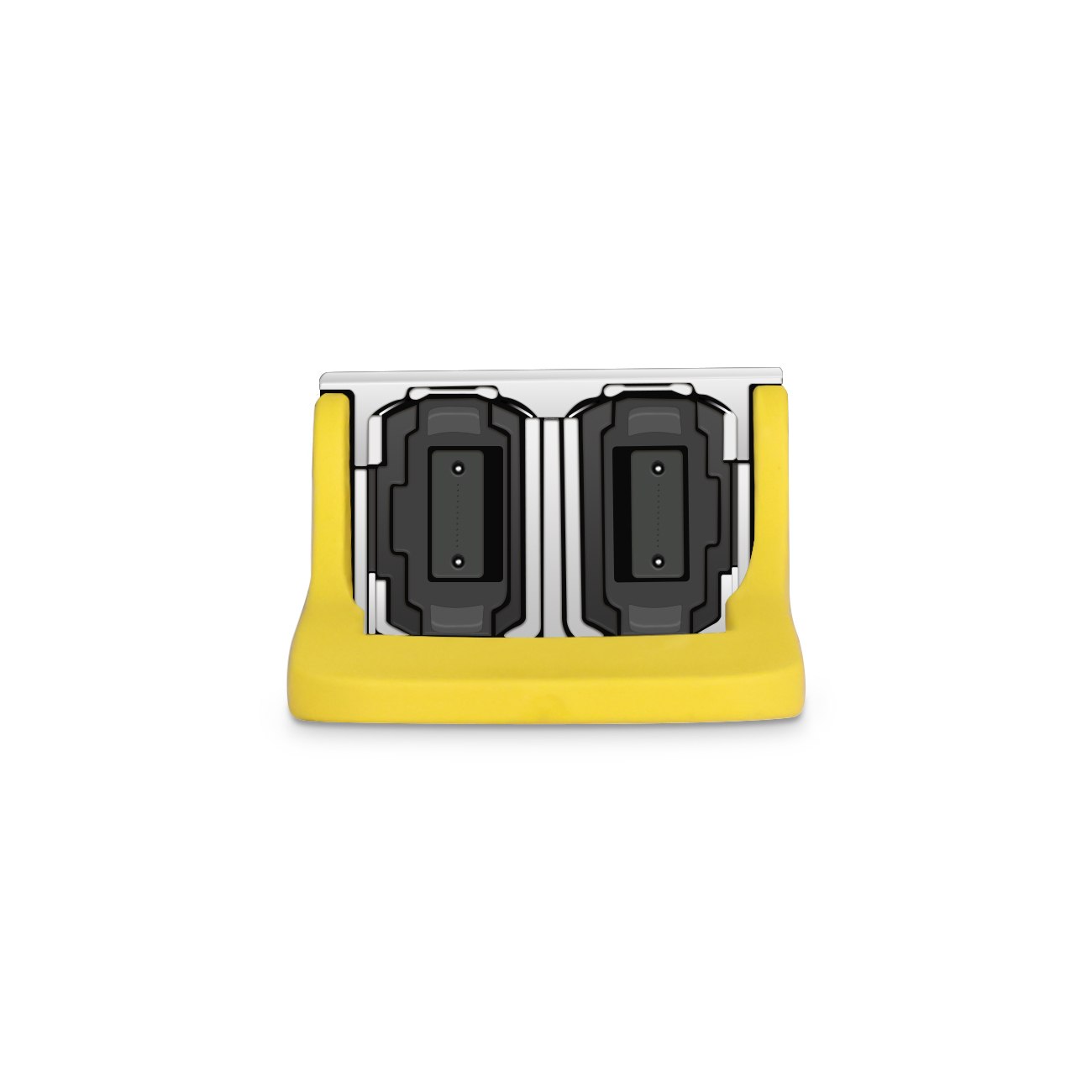

6. Hot-pluggable OSFP with dual MPO-12/APC connectors
7. Built-in digital diagnostic functions
8. 3.3V power supply voltage
9. OSFP MSA and CMIS, RoHS compliant
10. 8x106.25Gbps (53.125GBd PAM4) electrical interface & optical interface
    See more

    Specifications

    Generic Compatible 800GBASE-DR8 (2x400G DR4) SiPh (Silicon Photonics) OSFP Finned Top PAM4 Optical Transceiver Module (1310nm, 500m, Dual MPO-12 APC, SMF, 0°C to 70°C, DDM)



    Generic Compatible 800GBASE-DR8 (2x400G DR4) OSFP Silicon Photonics (SiPh) finned-top transceiver module supports a max data rate of 850Gbps. It enables the fiber link of 500m over single-mode fiber (SMF) with dual MPO-12 APC connectors. QSFPTEK manufactured  800GBASE-DR8 (2x 400GBASE DR4) OSFP LPO module complies with OSFP MSA and CMIS, 8x106.25Gbps (53.125GBd PAM4) electrical interface, 8x106.25Gbps (53.125GBd PAM4) optical interface, IEEE 802.3 and RoHS. DDM (digital diagnostics monitoring) function is supported on the 800G fiber optic transceiver to achieve real-time operating parameters monitoring. Adopting the Pulse-amplitude Modulation (PAM4) modulation, the DR8 OSFP achieves 800 Gigabit Ethernet through 8x 106.25 PAM4. The 800G DR8 OSFP is widely used for 800 gigabit Ethernet, 800G to 8x 100GBASE-DR, or 2x 400GBASE-DR4 breakout, and data center interconnect.



    SiPh transceiver module integrate key photonics  and functionality components into the SiPh chip, meeting the harshest external operating conditions including temperature, humidity and EMI interference of the latest network architectures in data centers. The SiPh module provides high functionality and feature integration, accessible via a two-wire serial interface.



    Part Number QT-OSFP-800GSi-2DR4 Vendor Name QSFPTEK
    Form Factor Twin-port OSFP Max Data Rate 850Gbps (8x 106.25Gbps)
    Wavelength 1310nm Distance 500m
    Connector Dual MTP/MPO-12/APC Cable Type SMF
    Transmitter Type SiPh Based Receiver Type SiPh Based
    TX Power -2.9 to 4 dBm Receiver Sensitivity <-5.9 dBm
    Packaging Technology 3D Packaging Receiver Overload 4 dBm
    Power Consumption <16W Modulation Format PAM4
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols OSFP MSA and CMIS, IEEE 802.3 and RoHS Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Applications

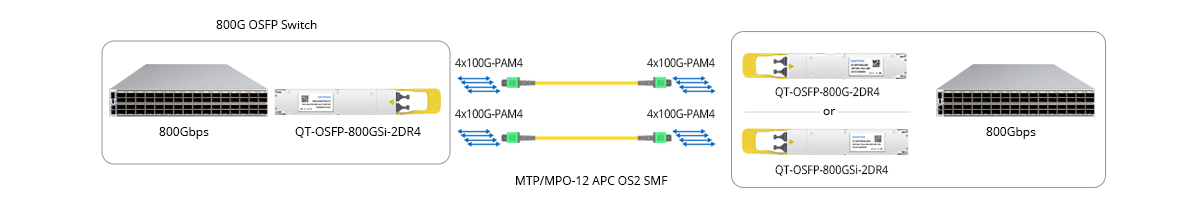

    Scenario 1: 800G to 800G Direct Connectivity

    Scenario 1: 800G to 800G Direct Connectivity

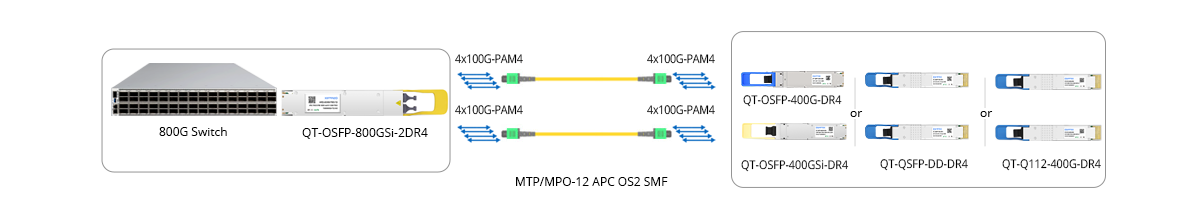

    Scenario 2: 800G to 2x 400GE Breakout Connectivity

    Scenario 2: 800G to 2x 400GE Breakout Connectivity

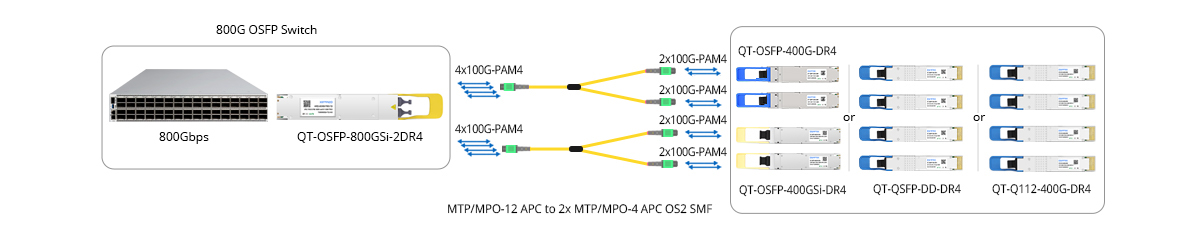

    Scenario 3: 800G to 200GE Breakout Connectivity

    Scenario 3: 800G to 200GE Breakout Connectivity

    Product details

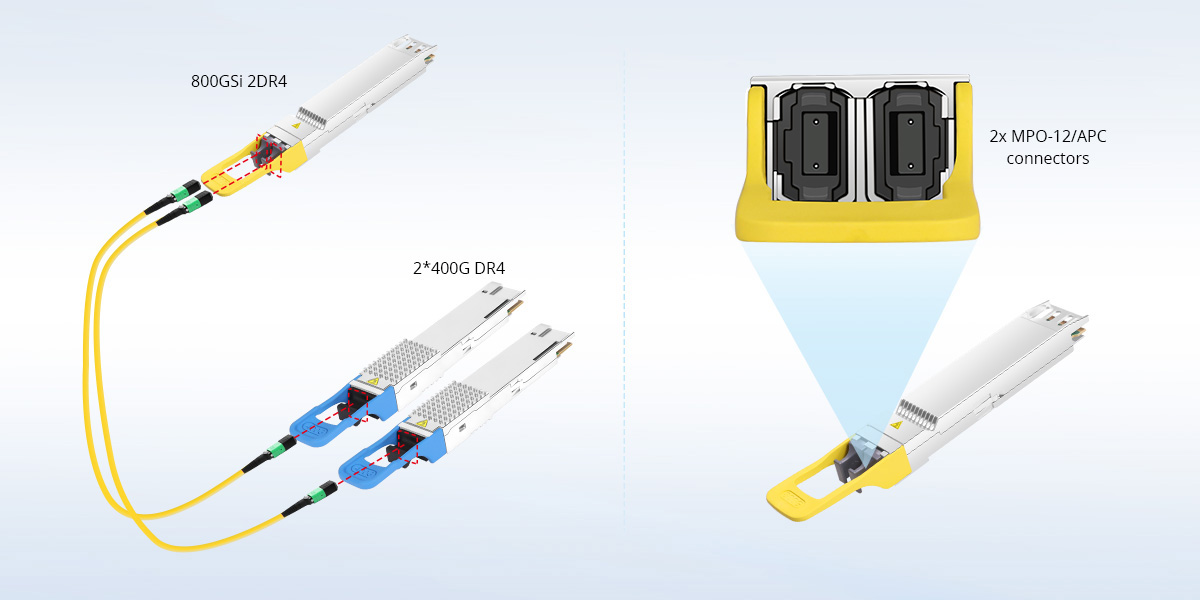

    Easy 800G to 2x 400G Breakout with OS2 SMFs

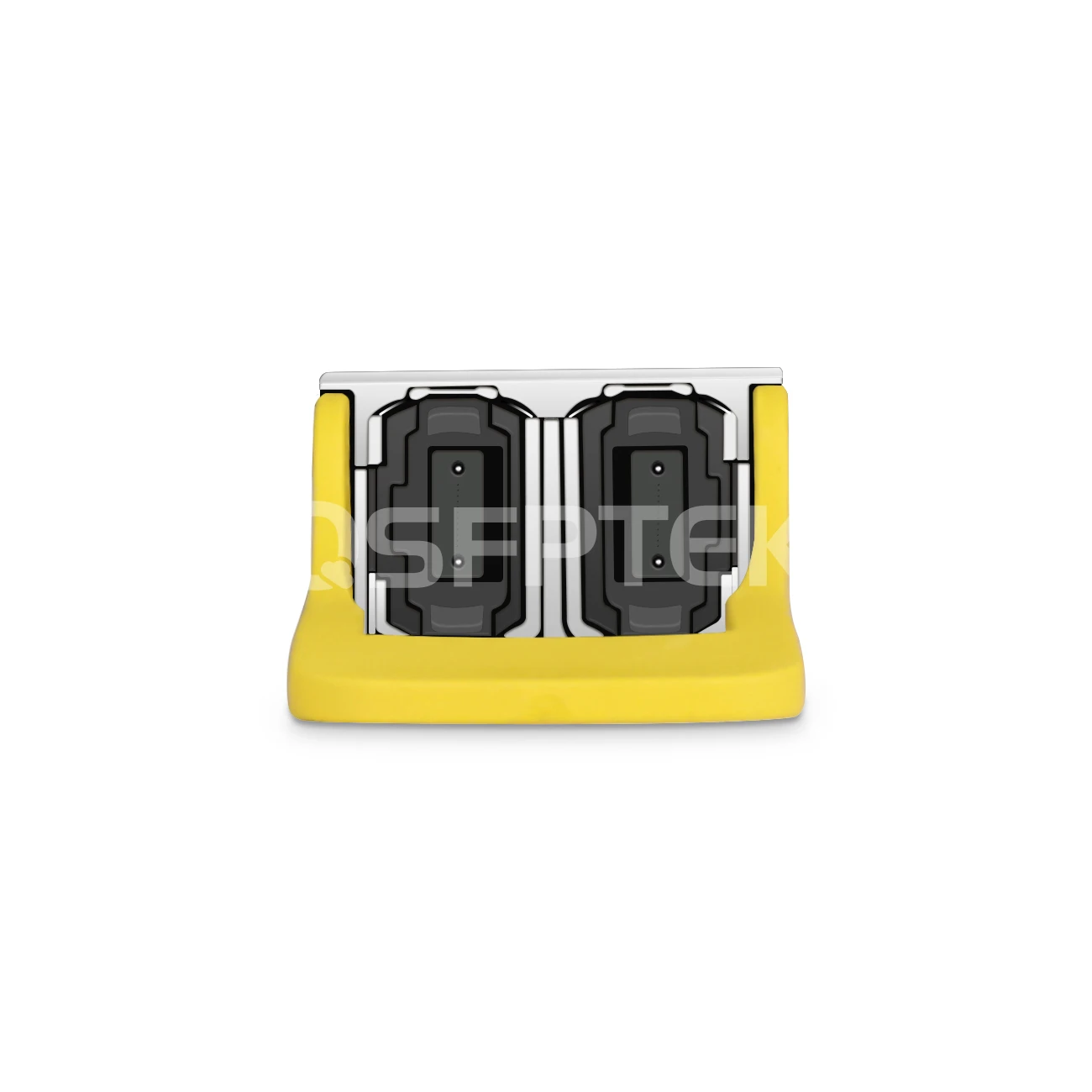

    The 800G OSFP 2DR4 SiPh module is designed with dual MPO-12/APC connectors, while each connector can connect to a physically separate 400G DR4 OSFP/QSFP-DD/QSFP112 module via an MTP/MPO-12 APC OS2 SMF. This enables 800G to 2x 400G breakout links without the need for using breakout fiber optic cables.



    Easy 800G to 2x 400G Breakout with OS2 SMFs

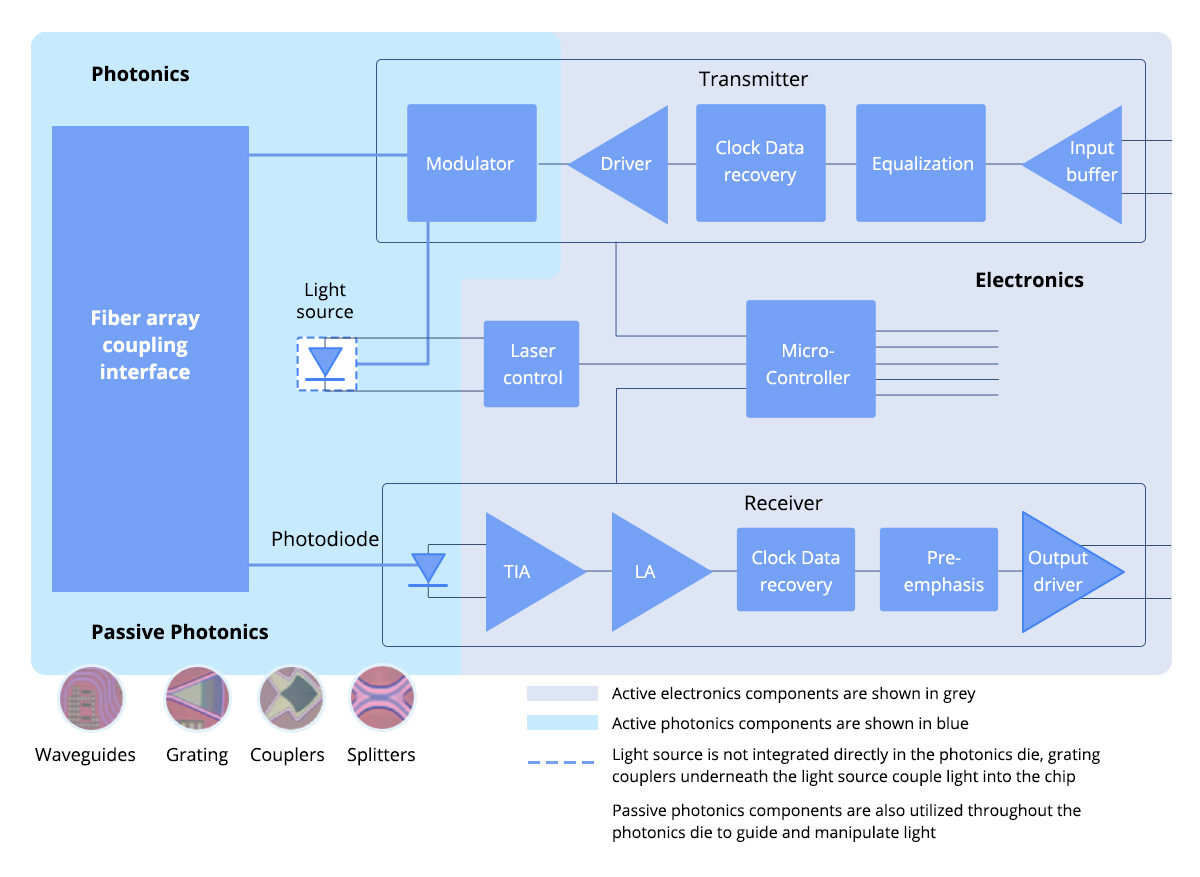

    Highly Integrated Low-power Interconnect Solution

    Silicon photonic modules achieve high integration, low cost, and low power consumption (reduced by nearly 40% compared to traditional solutions) through silicon-based optoelectronic integration technology. They support high-speed, long-distance transmission and are ideal for high-speed interconnects in AI and data centers.



    Highly Integrated Low-power Interconnect Solution





    8x 100Gbps PAM4 Modulation Technology

    Utilize 8x electrial lanes and 8x optical lanes modulated at 100G PAM-4 per lane. On the output side, it convert 8x 106.25Gb/s electrical signal to 8x 106.25Gb/s optical signals. On the receiver side, it convert 8x 100Gb/s optical signal to 8x 100Gb/s electrical signals.



    8x 100Gbps PAM4 Modulation Technology





    800G OSFP Optical Transceivers Contrast Table



    Part Number

    QT-OSFP-800G-2VR4

    QT-OSFP-800G-2SR4

    QT-OSFP-800G-2DR4

    QT-OSFP-800GSi-2DR4


    Data Rate

    800G

    800G

    800G

    800G

    Optical Connector

    Dual MPO-12/APC

    Dual MPO-12/APC

    Dual MPO-12/APC

    Dual MPO-12/APC

    Cable Type

    MMF

    MMF

    SMF

    SMF

    Wavelength

    850nm

    850nm

    1310nm

    1310nm

    Reach

    50m

    100m@OM4 MMF

    60m@OM3 MMF

    500m

    500m

    Modulation

    PAM4

    PAM4

    PAM4

    PAM4

    Max Power Consumption

    < 16W

    < 13.5W

    < 16.5W

    < 16W

    Matching Transceivers

    QT-OSFP-400G-SR4

    QT-QSFP-DD-SR4

    QT-Q112-400G-SR4

    QT-OSFP-400G-SR4

    QT-QSFP-DD-SR4

    QT-Q112-400G-SR4

    QT-QSFP-DD-DR4

    QT-QSFP28-DR1

    QT-OSFP-400G-SR4

    QT-QSFP-DD-SR4

    QT-Q112-400G-SR4

    Application

    800G to 800G, 800G to 2x400G breakout, 800G to 4x200G breakout

    800G to 800G, 800G to 2x400G breakout, 800G to 4x200G breakout

    800G to 800G, 800G to 2x400G breakout, 800G to 8x100G breakout

    800G to 800G, 800G to 2x400G breakout, 800G to 4x200G breakout

    Part Number

    QT-OSFP-800G-2DR4-LPO

    QT-OSFP-800G-2XDR4

    QT-OSFP-800G-2FR4

    QT-OSFP-800G-2LR4


    Data Rate

    800G

    800G

    800G

    800G

    Optical Connector

    Dual MPO-12/APC

    Dual MPO-12/APC

    Dual Duplex LC/UPC

    Dual Duplex LC/UPC

    Cable Type

    SMF

    SMF

    SMF

    SMF

    Wavelength

    1310nm

    1310nm

    1271nm, 1291nm, 1311nm and 1331nm

    1271nm, 1291nm, 1311nm, and 1331nm

    Reach

    500m

    2km

    2km

    10km

    Modulation

    PAM4

    PAM4

    PAM4

    PAM4

    Max Power Consumption

    < 8W

    < 16.5W

    ≤ 16.5W

    < 15W

    Matching Transceivers

    QT-OSFP-400G-SR4

    QT-QSFP-DD-SR4

    QT-Q112-400G-SR4

    QT-QSFP-DD-DR4+

    QT-QSFP-DD-FR4

    QT-QSFP-DD-LR4

    Application

    800G to 800G, 800G to 2x400G breakout, 800G to 4x200G breakout

    800G to 800G, 800G to 2x400G breakout

    800G to 800G, 800G to 2x400G breakout

    800G to 800G, 800G to 2x400G breakout
