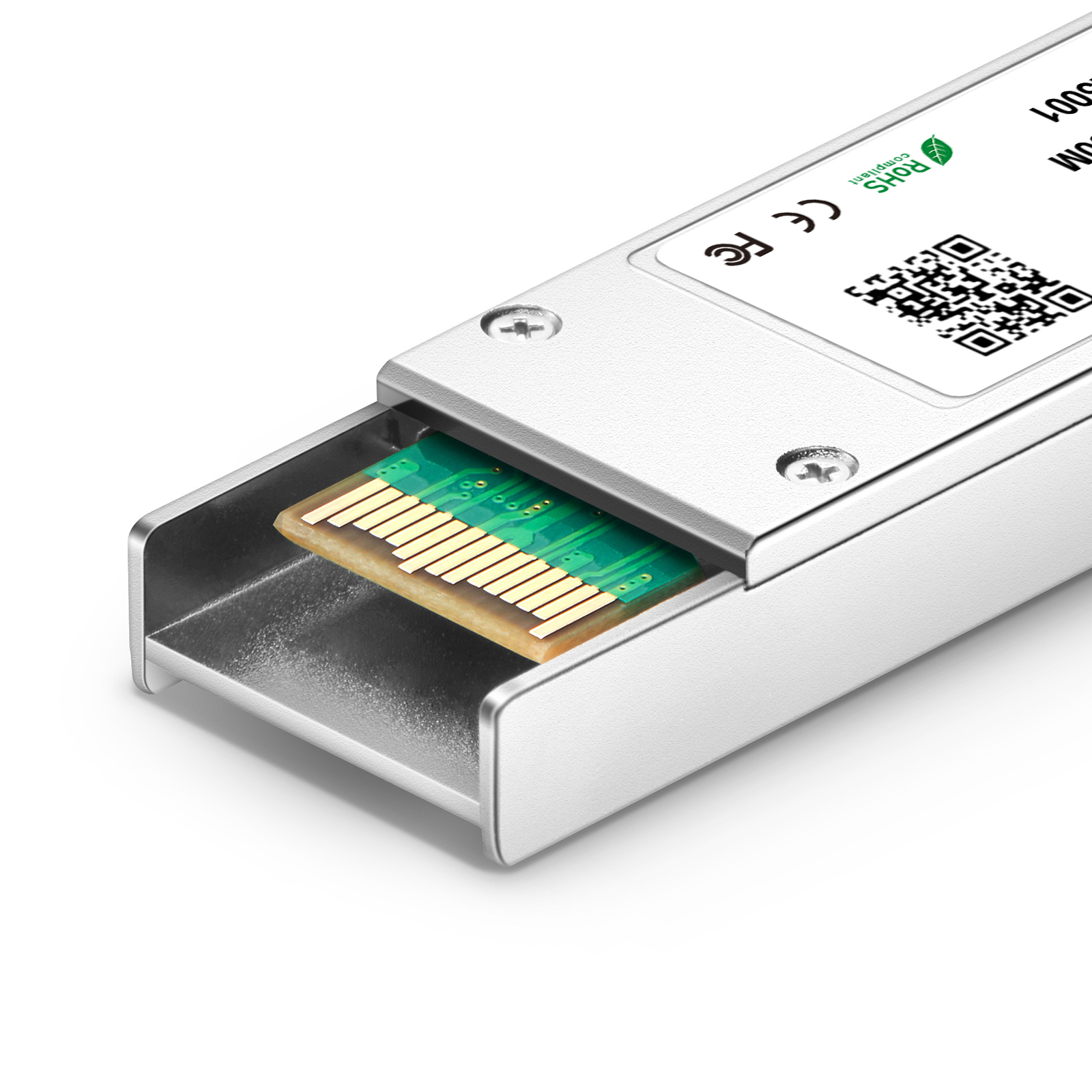

H3C XFP-SX-MM850 Compatible 10GBASE-SR XFP 850nm 300m Transceiver Module

Product No :25808
US$ 27.00  US$ 33.75
1000 in stock
Free Shipping over US$ 84.9 US/EU Warehouses in stock, Overnight Shipping
1. Rate: 10G; Connector: Duplex LC
2. VCSEL+PIN; Low Power Consumption <1.5W
3. Applied in Data Center and Campus Networks
4. Fully Compatible with 100+ Vendors
5. XFP MSA Compliant
See more

Specifications

H3C XFP-SX-MM850 Compatible 10GBASE-SR XFP Transceiver Module (MMF, 850nm, 300m, LC, DDM)



The H3C XFP-SX-MM850 compatible optical transceiver is equipped with an LC duplex connector, reaching a link up to 300m over OM3/OM4. QSFPTEK manufactured 10G XFP transceiver module is compliant with XFP MSA, CPRI, eCPRI. Besides, DDM (digital diagnostics monitoring) function is supported on the 10G fiber optic transceiver to achieve real-time operating parameters monitoring. This 10G XFP transceiver caters to the data center, campus networks, the enterprise core layer, and distribution layer, etc.



Model Name: XFP-SX-MM850Vendor Name: QSFPTEK
Form Factor: XFPData Rate: 10Gbps
Wavelength: 850nmDistance: 300m@OM3
Connector: LC DuplexCable Type: OM3/OM4 MMF
Transmitter Type: VCSELReceiver Type: PIN
TX Power: -3.5~5.3dBmReceiver Sensitivity: <-13dBm
Power Consupumtion: <1.5WDDM: Support
Protocols: XFP MSA, CPRI, eCPRI Warranty: 3 Years



Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenarios
    Fully compatible with almost all H3C devices. Ideal for metro and campus networks.
  • 3. Protocols
    Compliant with XFP MSA, CPRI, eCPRI.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

Questions & Answers

more+
  • I need to set the work band to 1300nm, can this transceiver do it?
    The band error of the conventional 10G XFP 1310nm 10km optical module is ±20nm, So you can regard the conventional 1310nm and 1300nm wavelength types as the same module. If you really want to control the 1300nm band, you can ask your customer service to customize it.
  • Can I connect a 10G XFP SR to a 10G SFP+ SR?
    10G XFP SR and 10G SFP+ SR have the same transmission rate and wavelength, so they can be compatible in the same Ethernet network. This means that they can be used on both ends of a fiber link, as long as they match the same wavelength and transmission rate.
