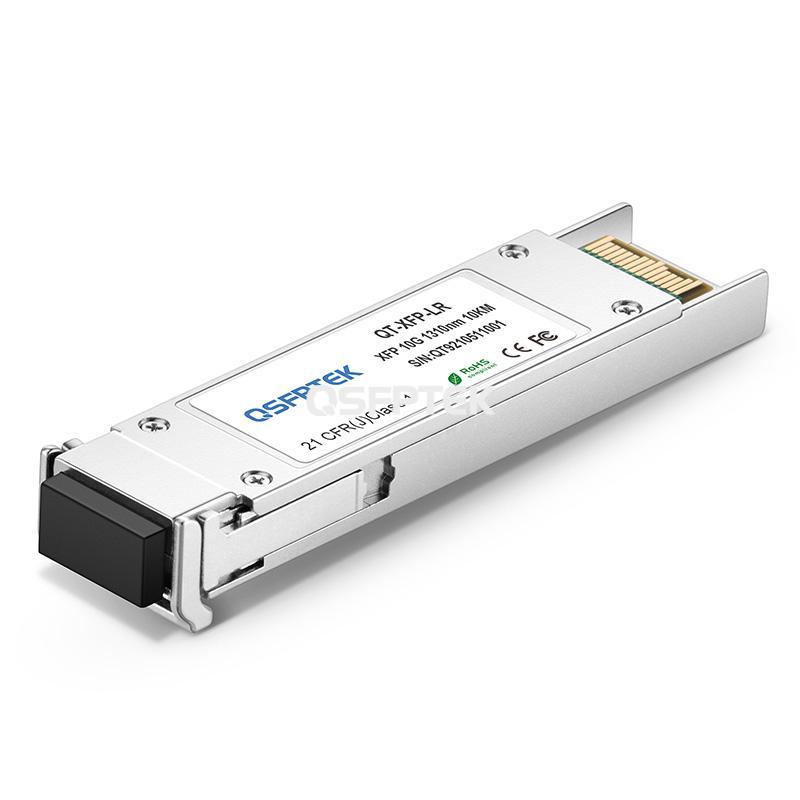

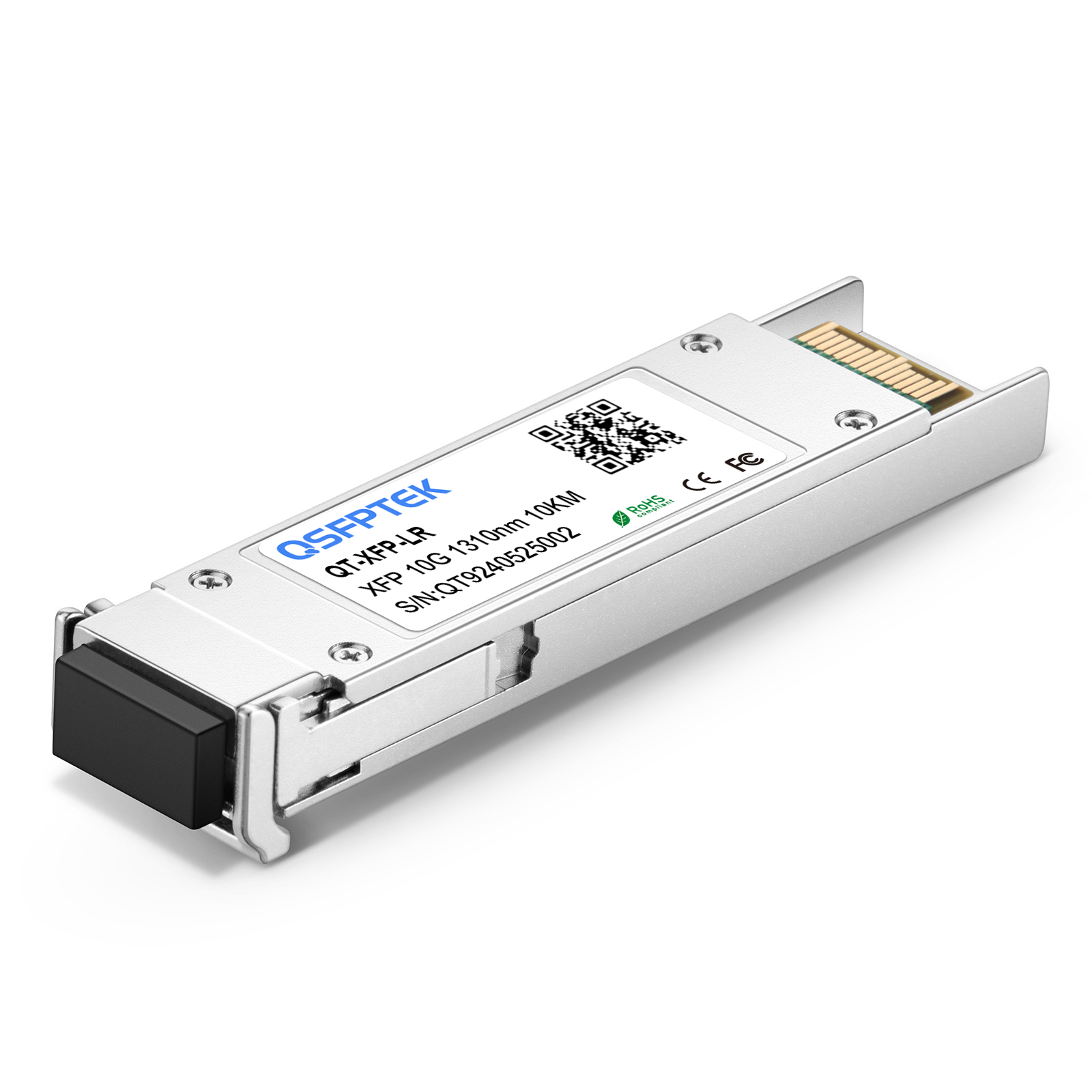

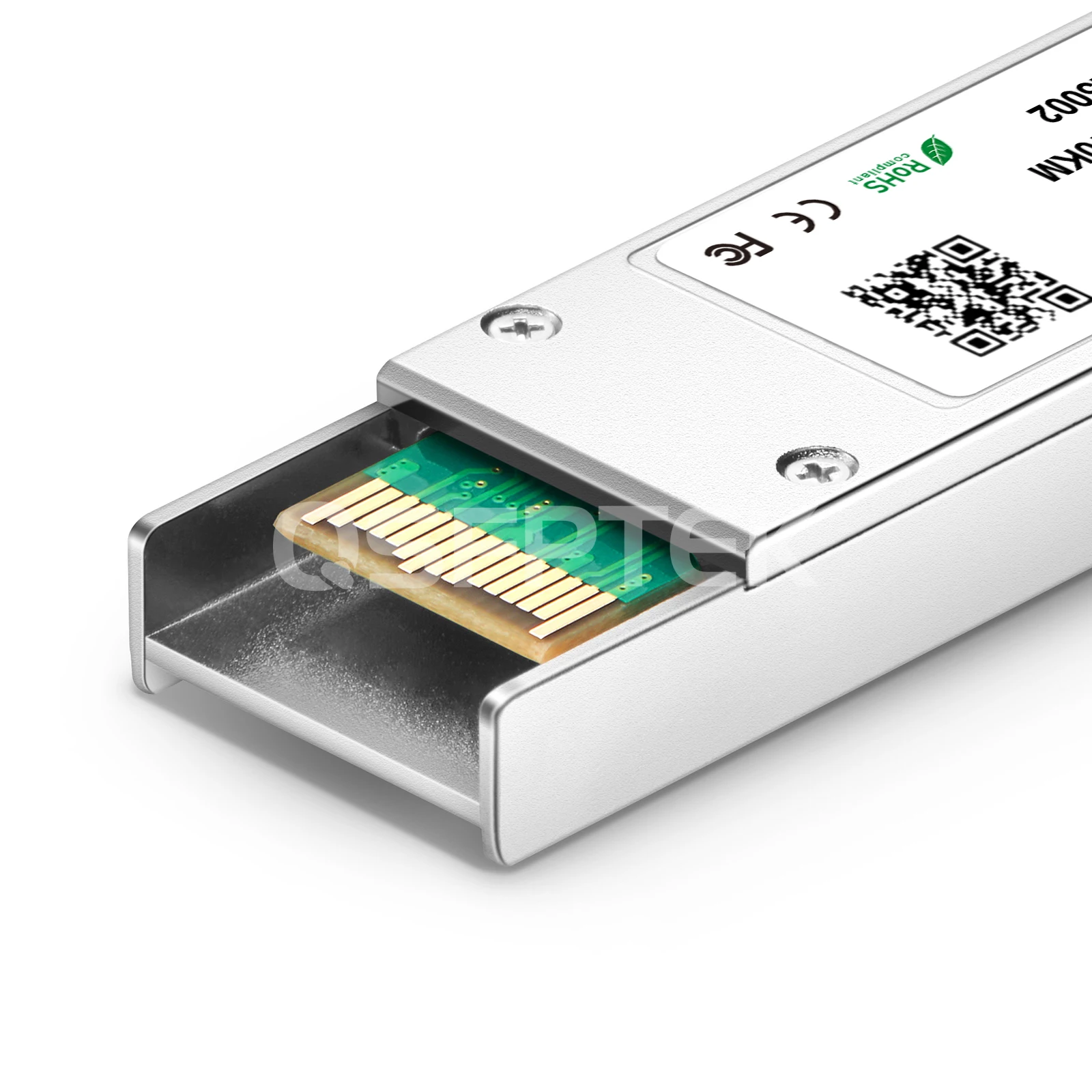

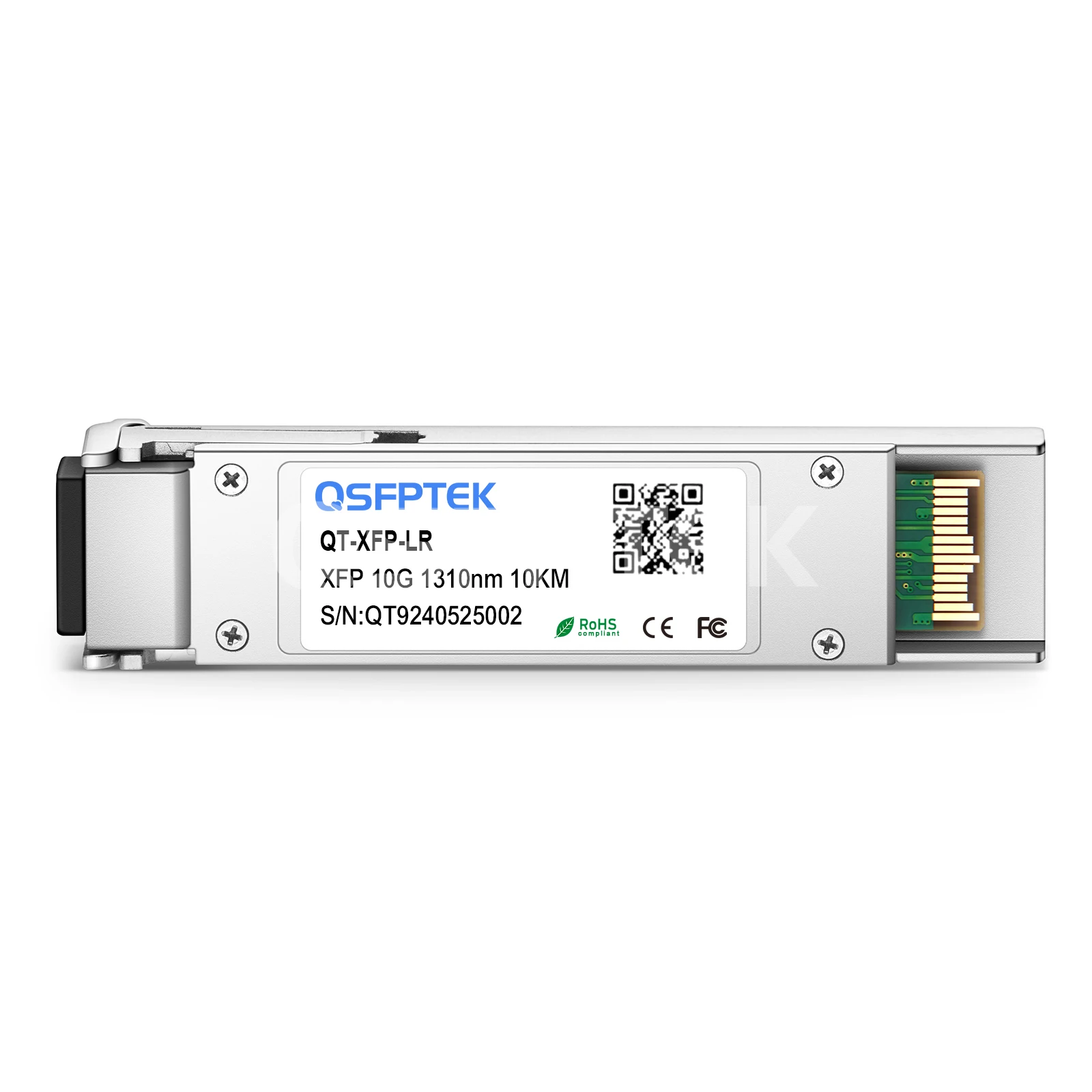

H3C XFP-LX-SM1310 Compatible 10GBASE-LR XFP 1310nm 10km Transceiver Module

Product No :98604
US$ 27.00  US$ 33.75
Compatible
Transceivers type
100 in stock

Free Shipping over US$ 84.9

US/EU Warehouses in stock

14-day Return and Refund

-
+
Add to Cart Bulk Order Quotes
1. Rate: 10G; Connector: Duplex LC
2. DFB+PIN; Low Power Consumption <2.5W
3. Applied in Data Center and Campus Networks
4. Fully Compatible with 100+ Vendors
5. XFP MSA Compliant
See more

Specifications

H3C XFP-LX-SM1310 Compatible 10GBASE-LR XFP Transceiver Module (SMF, 1310nm, 10km, LC, DDM)



The H3C XFP-LX-SM1310 compatible optical transceiver is equipped with an LC duplex connector, reaching a link up to 10km over OS2. QSFPTEK manufactured 10G XFP transceiver module is compliant with XFP MSA, CPRI, eCPRI. Besides, DDM (digital diagnostics monitoring) function is supported on the 10G fiber optic transceiver to achieve real-time operating parameters monitoring. This 10G XFP transceiver caters to the data center or campus network, etc.



Model Name: XFP-LX-SM1310Vendor Name: QSFPTEK
Form Factor: XFPData Rate: 10Gbps
Wavelength: 1310nmDistance: 10km@OS2
Connector: LC DuplexCable Type: OS2 SMF
Transmitter Type: DFBReceiver Type: PIN
TX Power: -6~0dBmReceiver Sensitivity: <-14.5dBm
Power Consupumtion: <2.5WDDM: Support
Protocols: XFP MSA, CPRI, eCPRI Warranty: 3 Years



Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenarios
    Fully compatible with almost all H3C devices. Suitable for data center and campus networks.
  • 3. Protocols
    Compliant with XFP MSA, CPRI, eCPRI.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

Questions & Answers

more+
  • I need to set the work band to 1300nm, can this transceiver do it?
    The band error of the conventional 10G XFP 1310nm 10km optical module is ±20nm, So you can regard the conventional 1310nm and 1300nm wavelength types as the same module. If you really want to control the 1300nm band, you can ask your customer service to customize it.
  • Can I connect a 10G XFP SR to a 10G SFP+ SR?
    10G XFP SR and 10G SFP+ SR have the same transmission rate and wavelength, so they can be compatible in the same Ethernet network. This means that they can be used on both ends of a fiber link, as long as they match the same wavelength and transmission rate.
