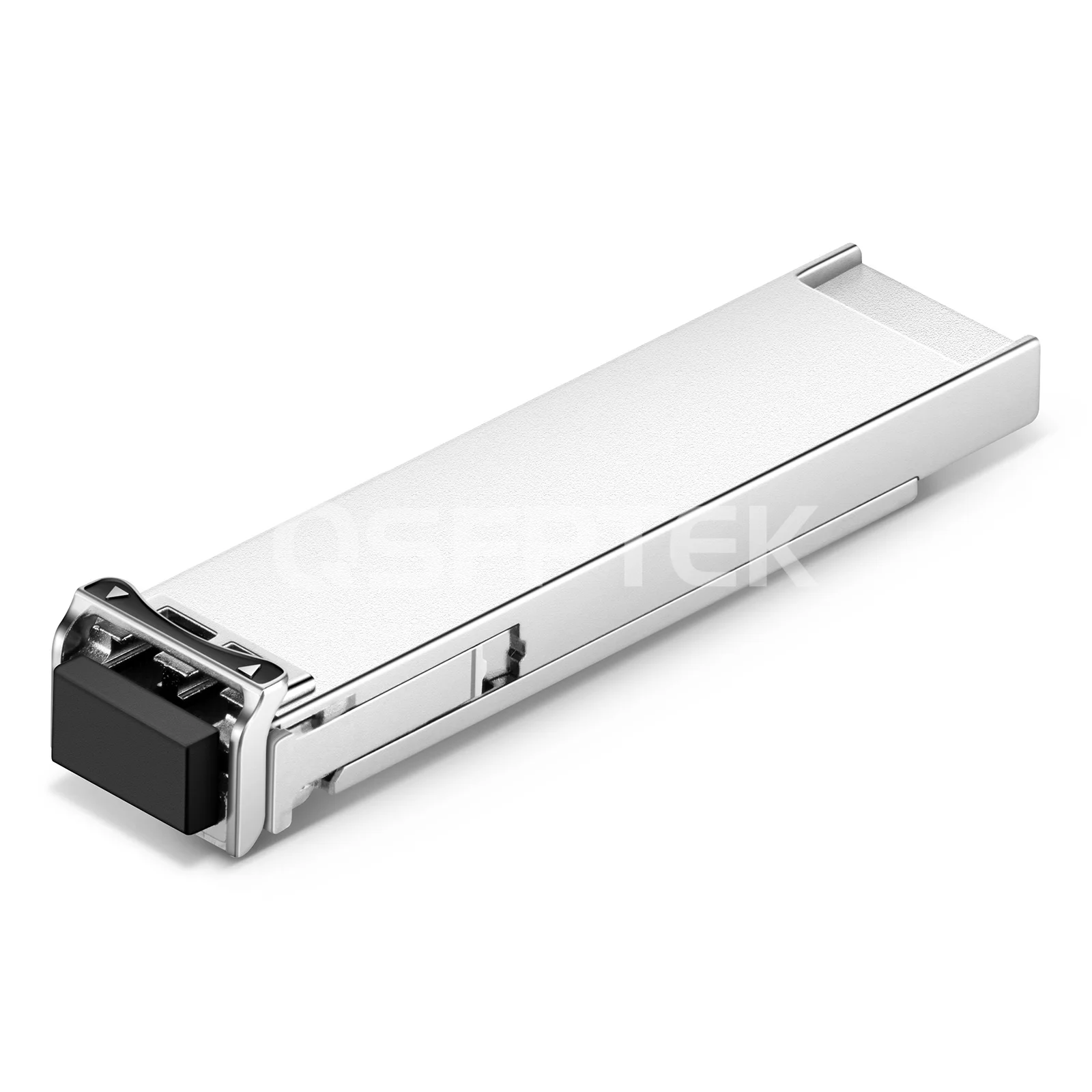

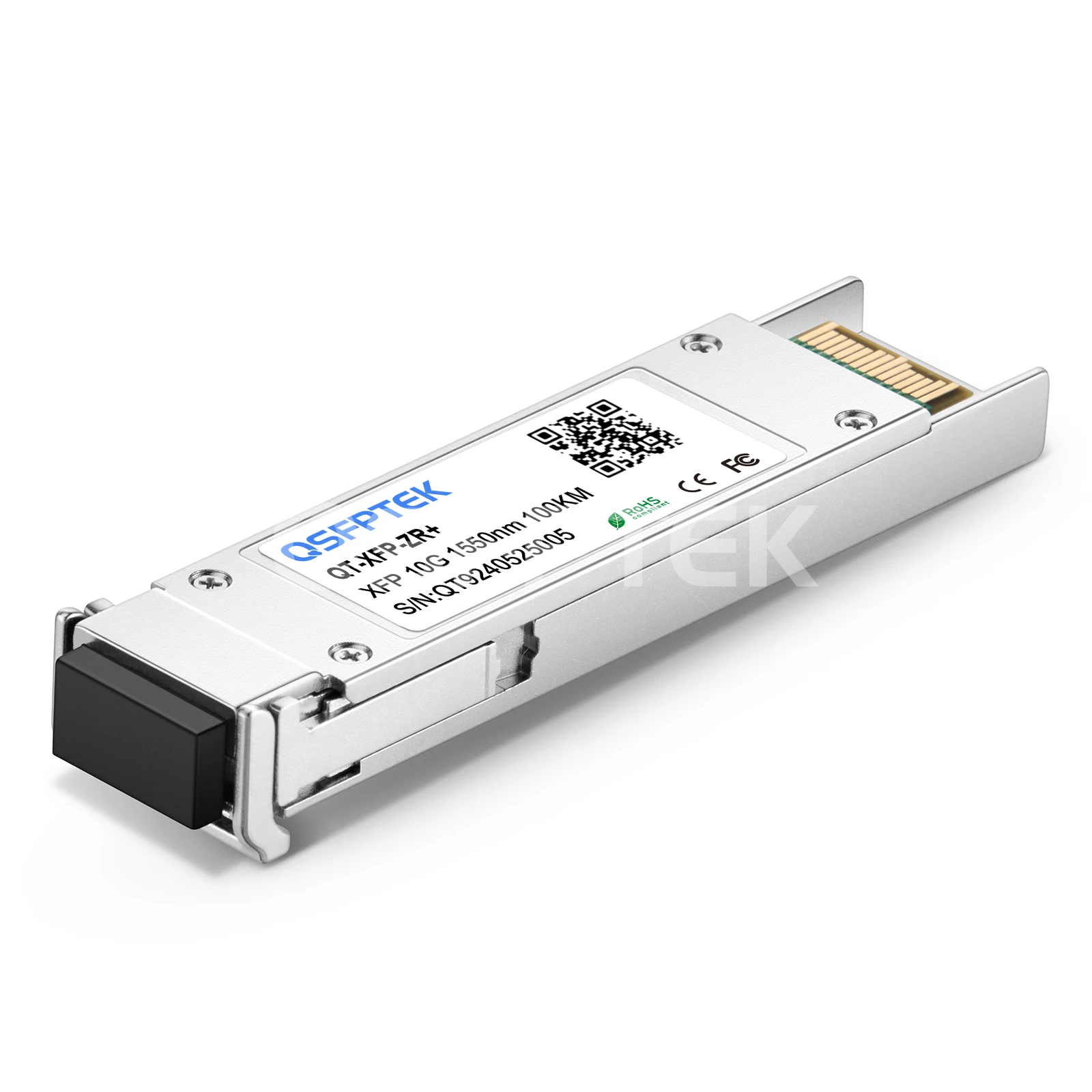

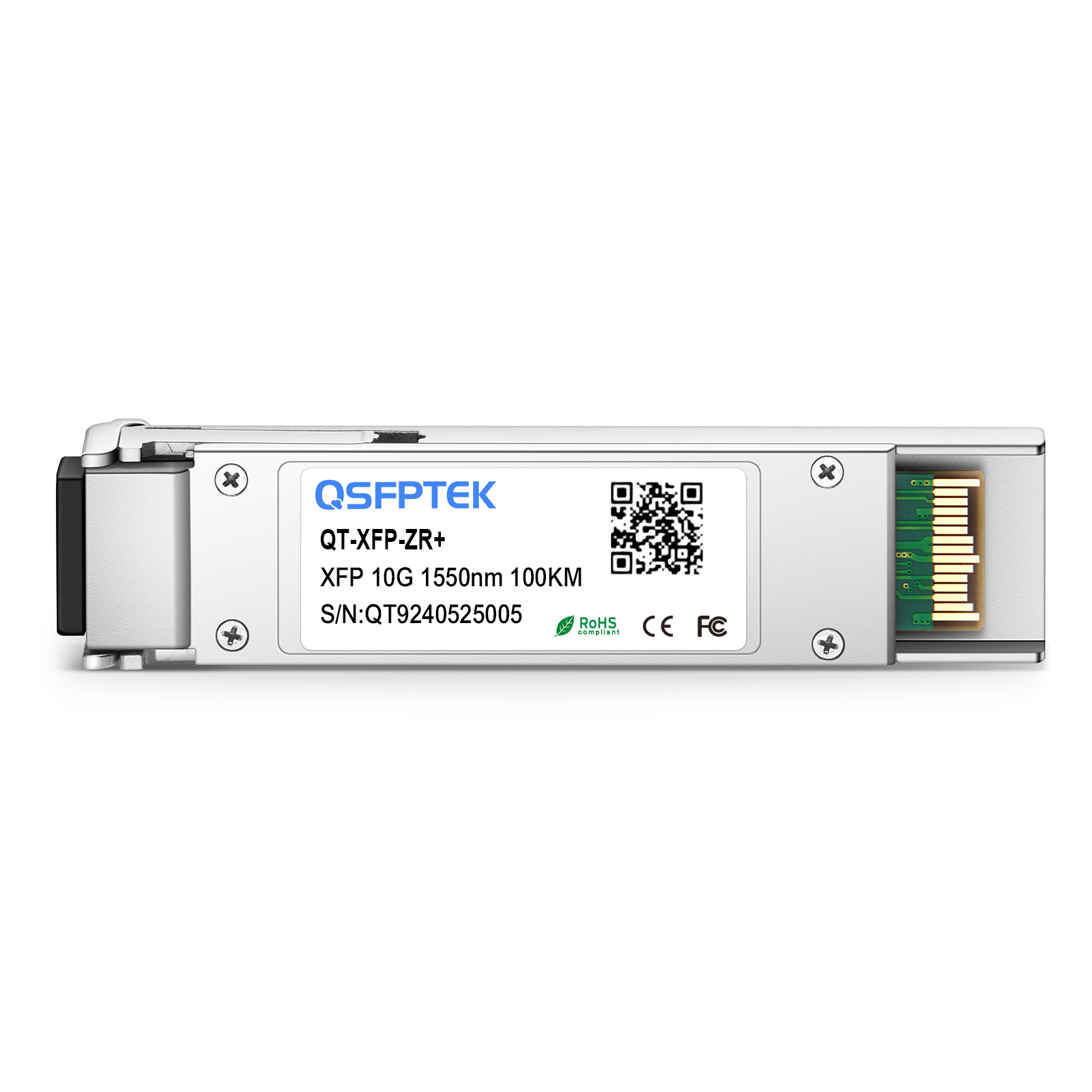

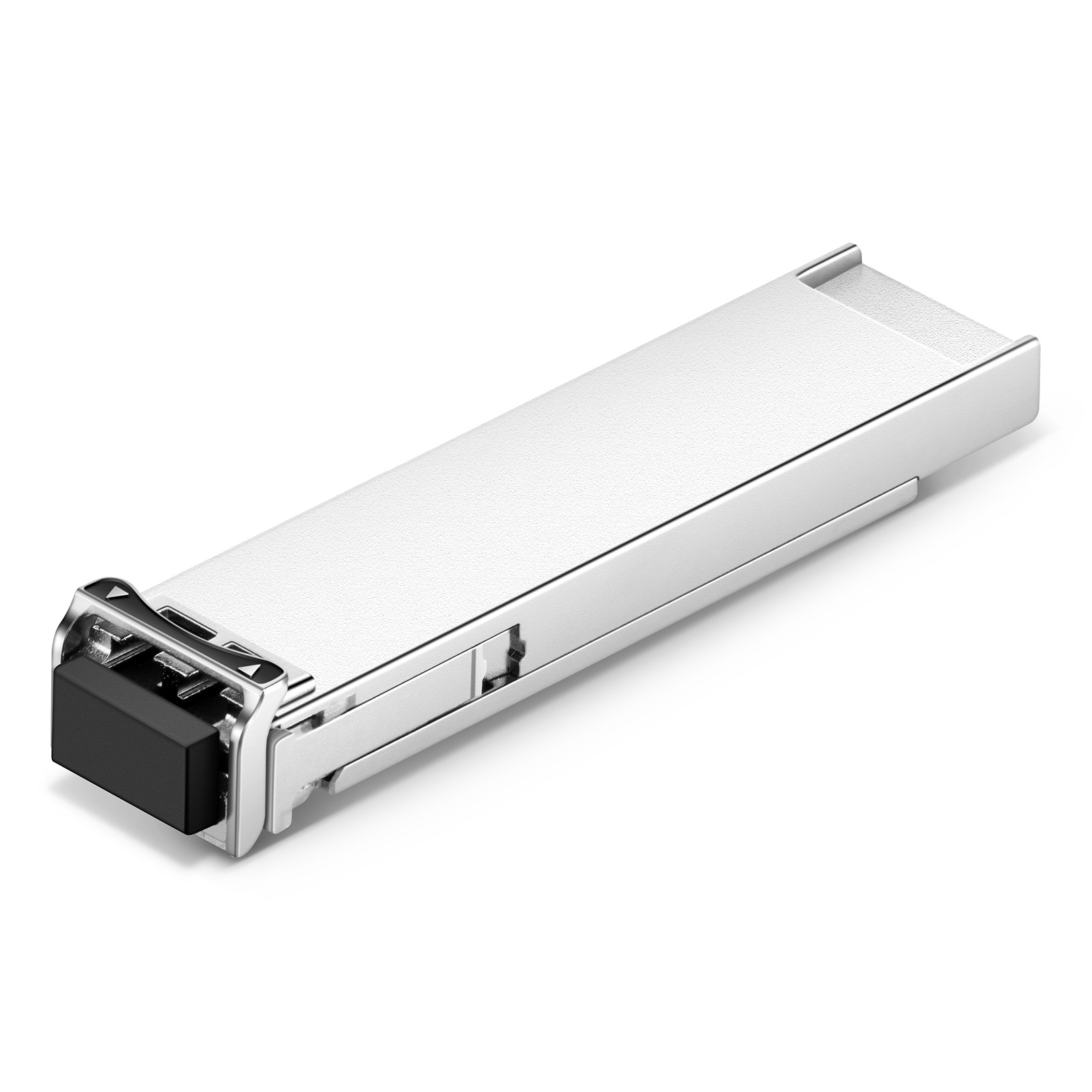

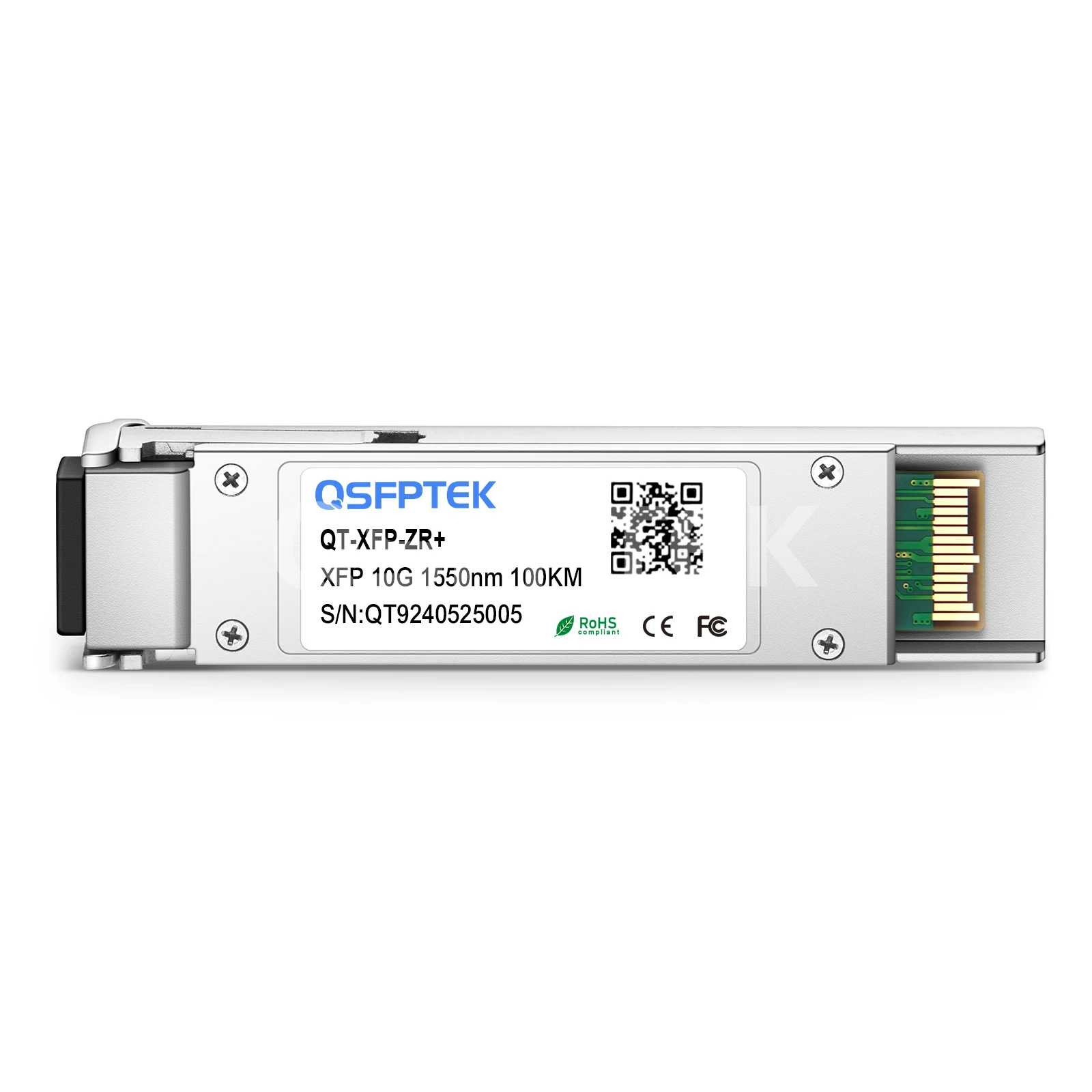

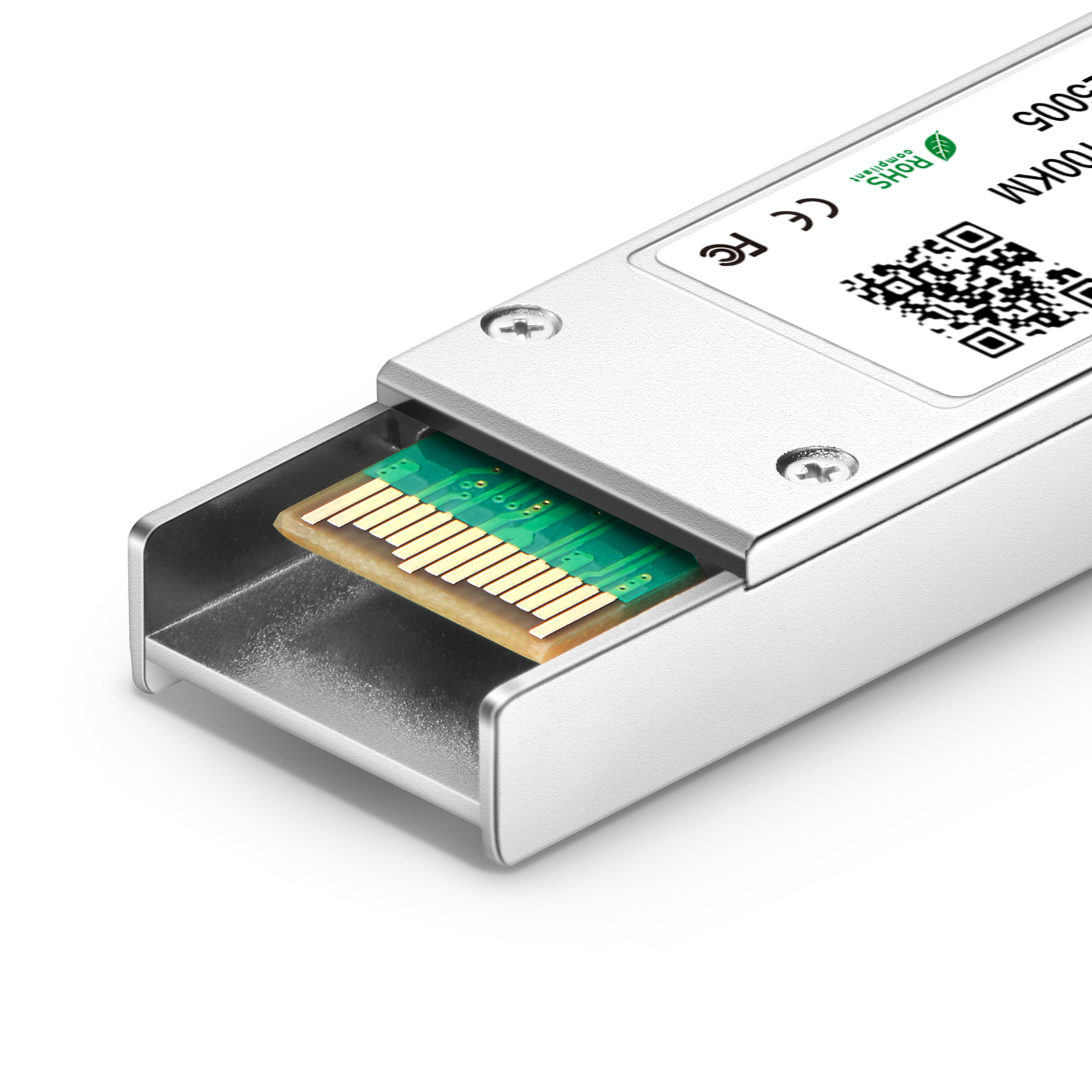

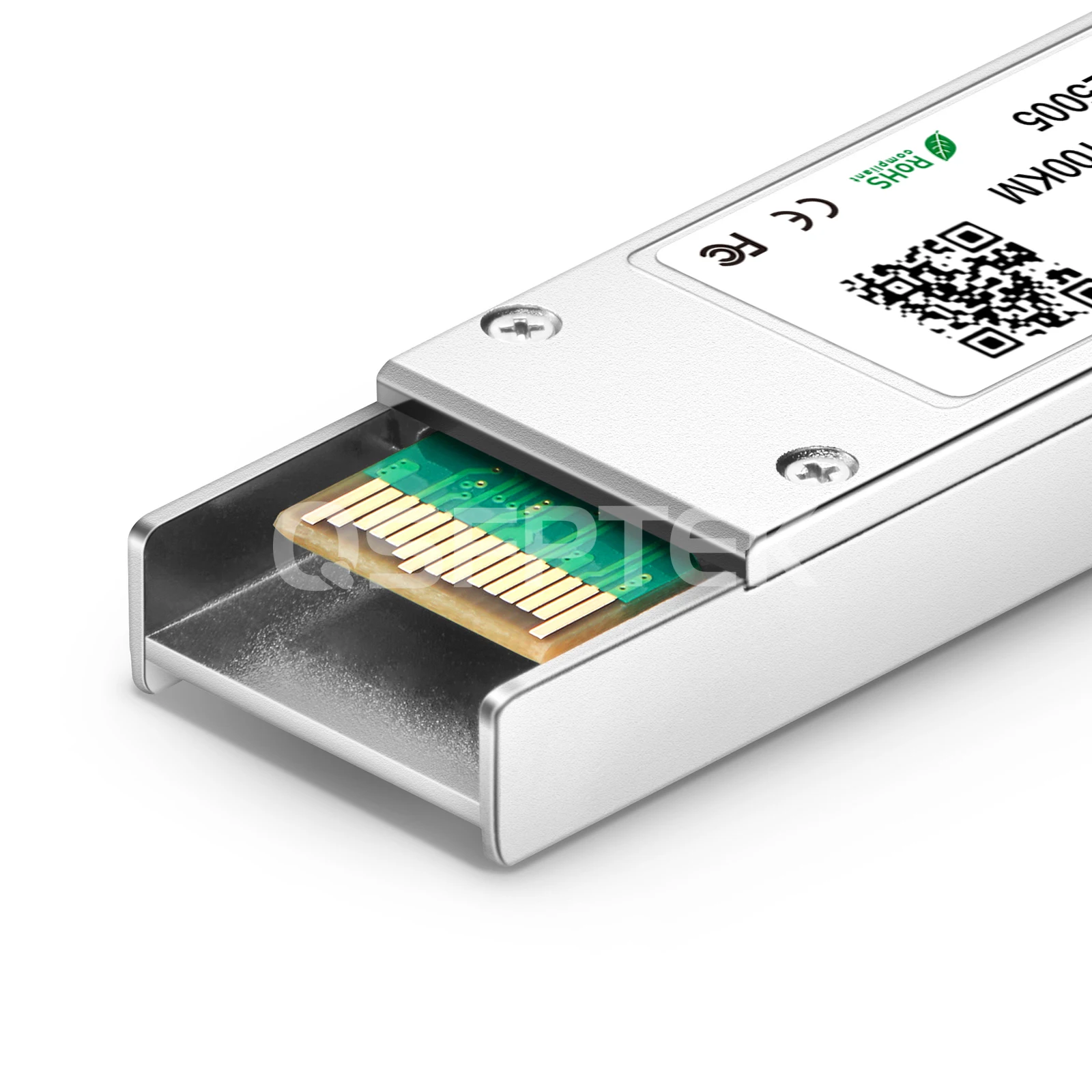

Huawei XFP-ZR100-SM1550 Compatible 10GBASE-ZR XFP 1550nm 100km Transceiver Module

Product No :67136

US$ 199.00 ~~US$ 248.75~~

Specifications

Huawei XFP-ZR100-SM1550 Compatible 10GBASE-ZR XFP Transceiver Module (SMF, 1550nm,100km, LC, DDM)

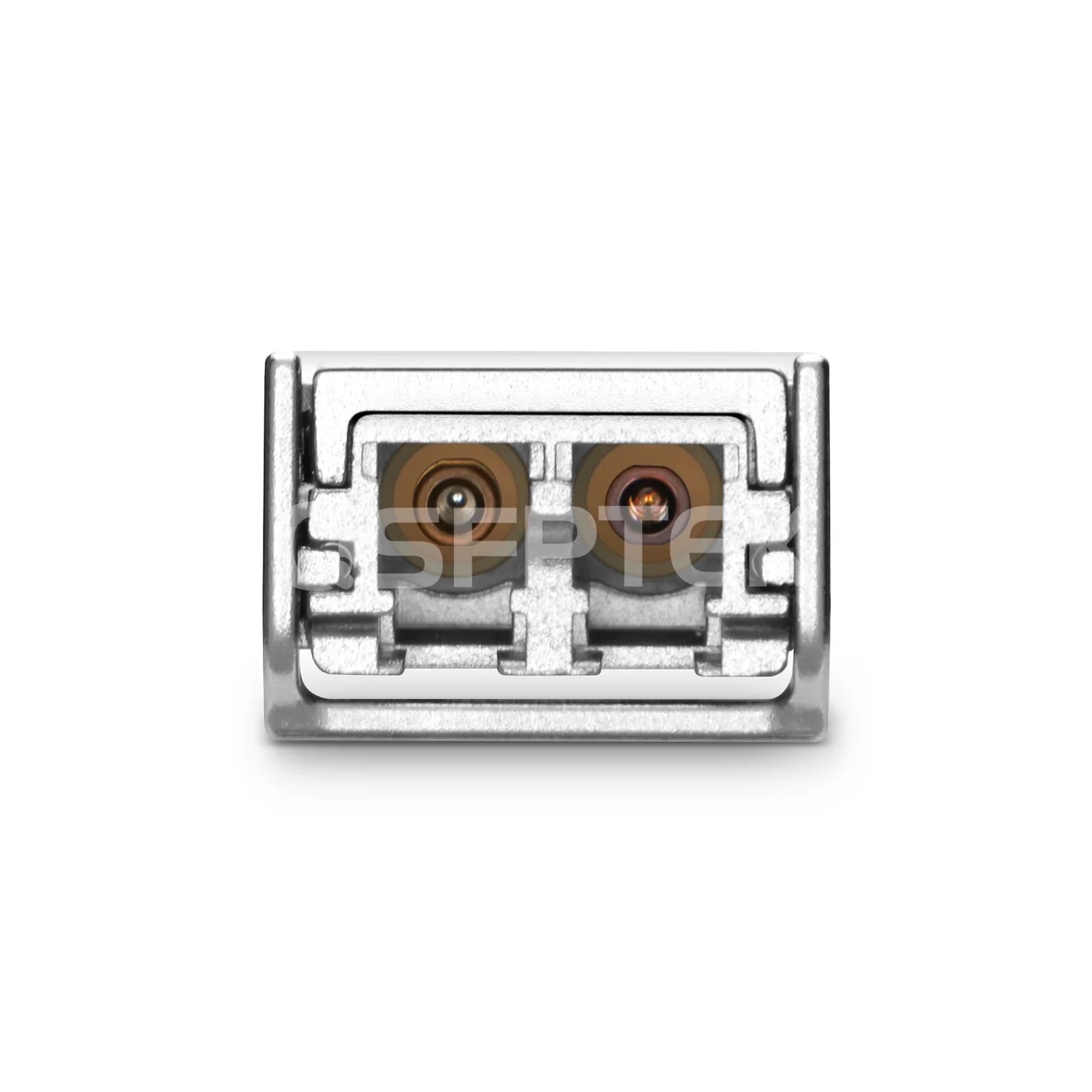

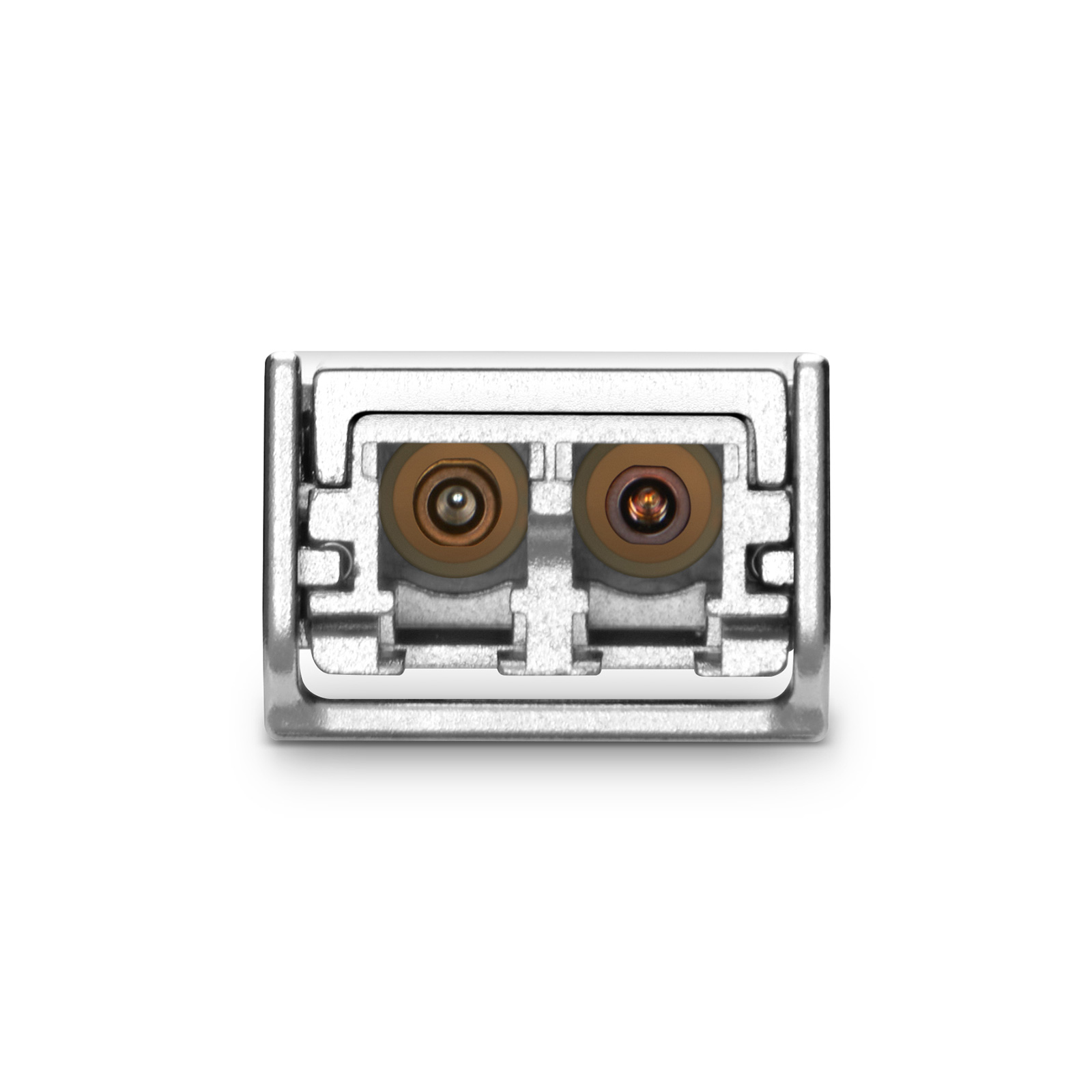

The Huawei XFP-ZR100-SM1550 compatible optical transceiver is equipped with an LC duplex connector, reaching a link up to 100km over OS2. QSFPTEK manufactured 10G XFP transceiver module is compliant with XFP MSA, CPRI, eCPRI. Besides, DDM (digital diagnostics monitoring) function is supported on the 10G fiber optic transceiver to achieve real-time operating parameters monitoring. This 10G XFP transceiver caters to long-haul or point-to-point network, etc.

Model Name: XFP-ZR100-SM1550	Vendor Name: QSFPTEK
Form Factor: XFP	Data Rate: 10Gbps
Wavelength: 1550nm	Distance: 100km@OS2
Connector: LC Duplex	Cable Type: OS2 SMF
Transmitter Type: EML	Receiver Type: PIN
TX Power: 0~5dBm	Receiver Sensitivity: <-25dBm
Power Consupumtion: <3.5W	DDM: Support
Protocols: XFP MSA, CPRI, eCPRI	Warranty: 3 Years

Features

1. High Reliablility and Best Price

Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
2. Wide Application Scenarios

Fully compatible with almost all Huawei devices. Suitable for metro or long-haul network.
3. Protocols

Compliant with XFP MSA, CPRI, eCPRI.
4. Quality Certifications

Backed by CE, FCC, ROSH, ISO9001.

1. High Reliablility and Best Price

Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.

2. Wide Application Scenarios

Fully compatible with almost all Huawei devices. Suitable for metro or long-haul network.

3. Protocols

Compliant with XFP MSA, CPRI, eCPRI.

4. Quality Certifications

Backed by CE, FCC, ROSH, ISO9001.

Applications

Questions & Answers

more+

I need to set the work band to 1300nm, can this transceiver do it?

The band error of the conventional 10G XFP 1310nm 10km optical module is ±20nm, So you can regard the conventional 1310nm and 1300nm wavelength types as the same module. If you really want to control the 1300nm band, you can ask your customer service to customize it.
Can I connect a 10G XFP SR to a 10G SFP+ SR?

10G XFP SR and 10G SFP+ SR have the same transmission rate and wavelength, so they can be compatible in the same Ethernet network. This means that they can be used on both ends of a fiber link, as long as they match the same wavelength and transmission rate.

Customer Reviews

Write a Review

John Fitzpatrick United States of America

2022-04-02

Our company bought a lot of Cisco compatible optics from QSFPTEK.COM in 2021, especially the 10G XFP LR4 modules, and half a year has passed so far. Obviously, they are still working great on my Cisco switches, and the cheap price of this module really saved us a lot of money compared to the original Cisco brand. I am very happy to work with QSFPTEK and bring real convenience to my company, and if I purchase for my data center in the future, I will still consider QQSFPTEK!

Transceivers typeXFP-10G-MM-SR

CompatibleCisco

0

0

Submit
Antonio Philbrick Australia

2022-04-01

After testing by our company, this XFP SR optical module has a very good performance on our Cisco 6500. At the same time, the technicians of QSFPTEK provided us with complete parameters, and then these optical modules will be arranged in the on-site topology by me. This cooperation is very good. If our company has new business next time, we will still choose QSFPTEK.COM

Transceivers typeXFP-10G-MM-SR

CompatibleCisco

0

0

Submit

Datasheet

QT-XFP-ZR+.pdf
