Home / Products / Transceivers / SFP Transceivers / 1G BIDI SFP / 99099

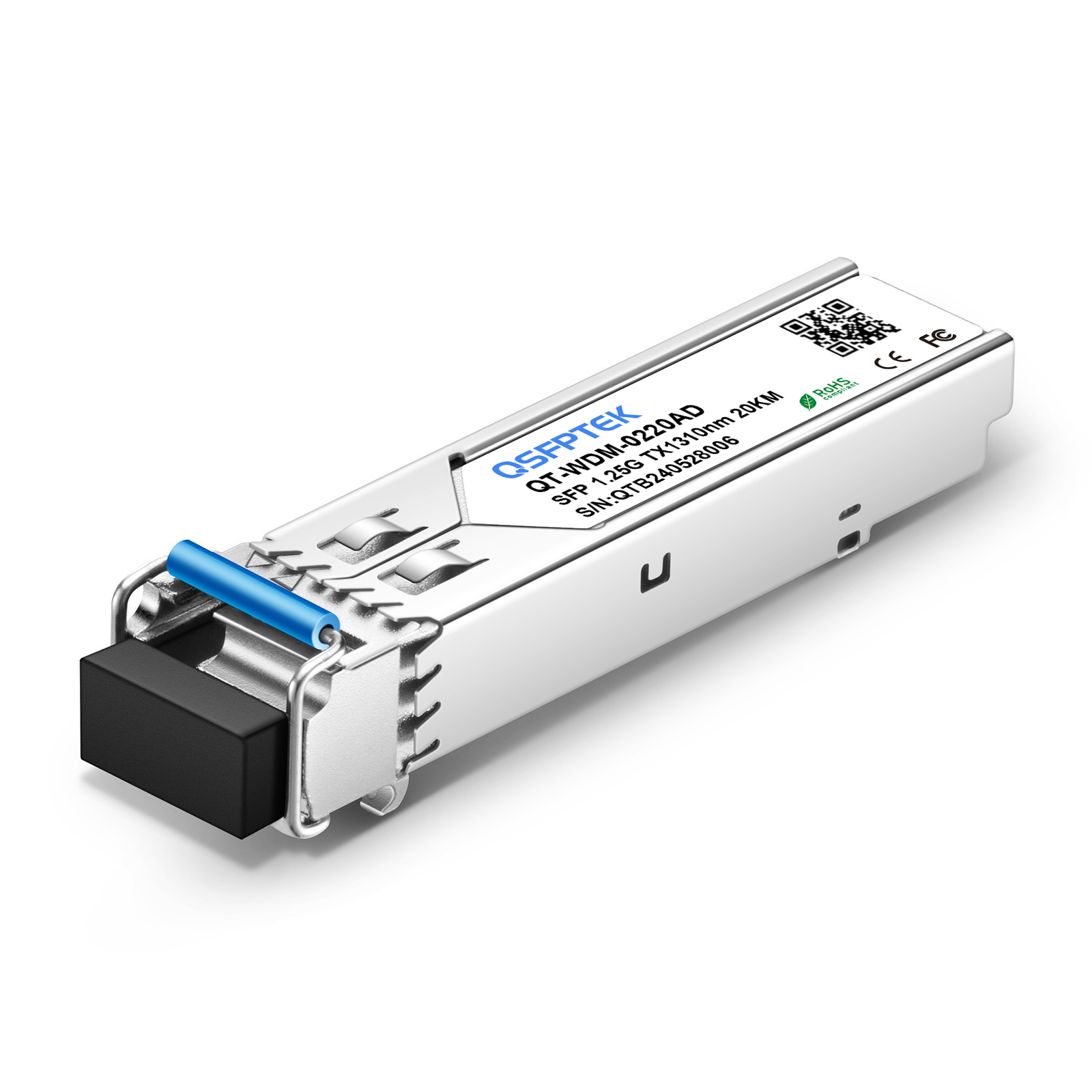

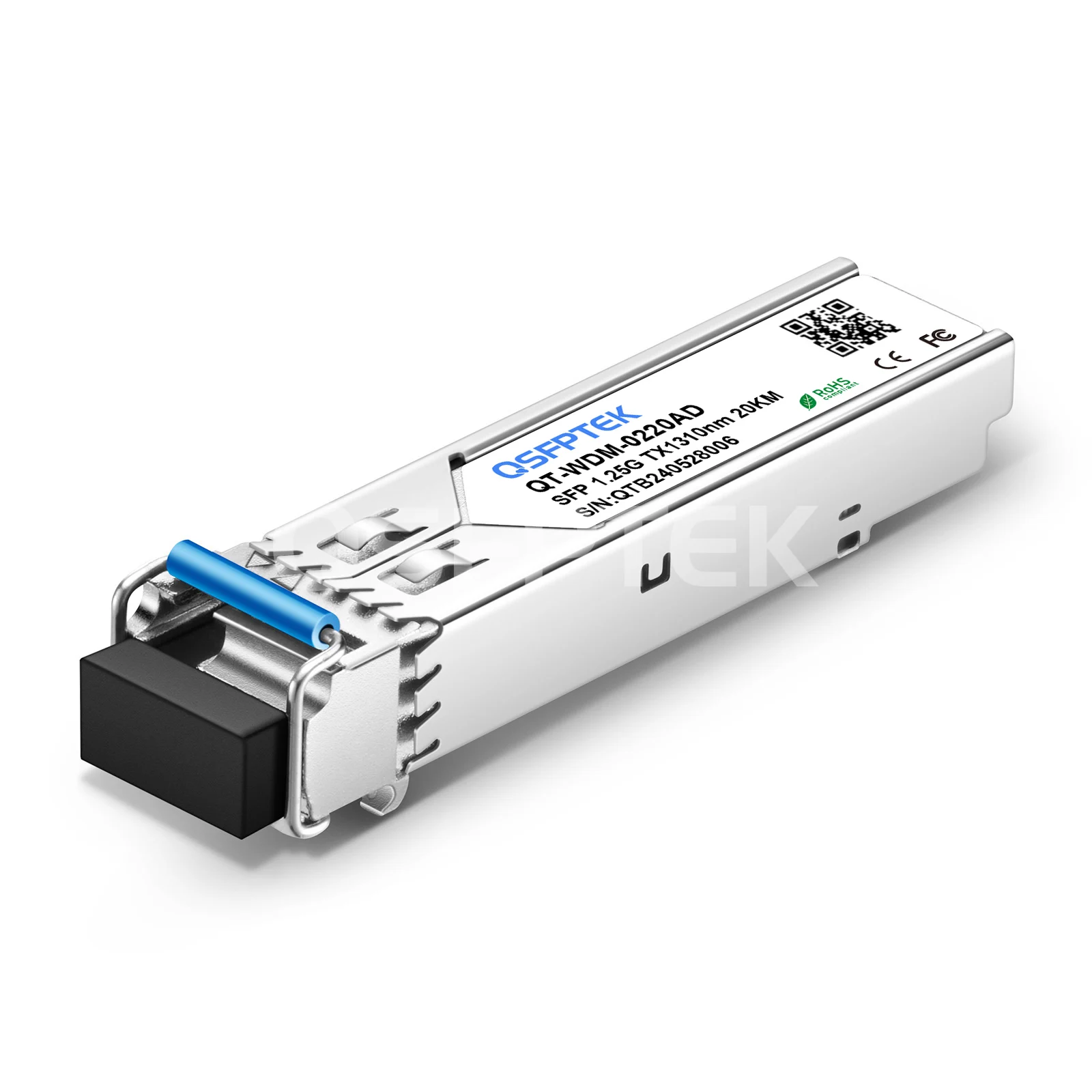

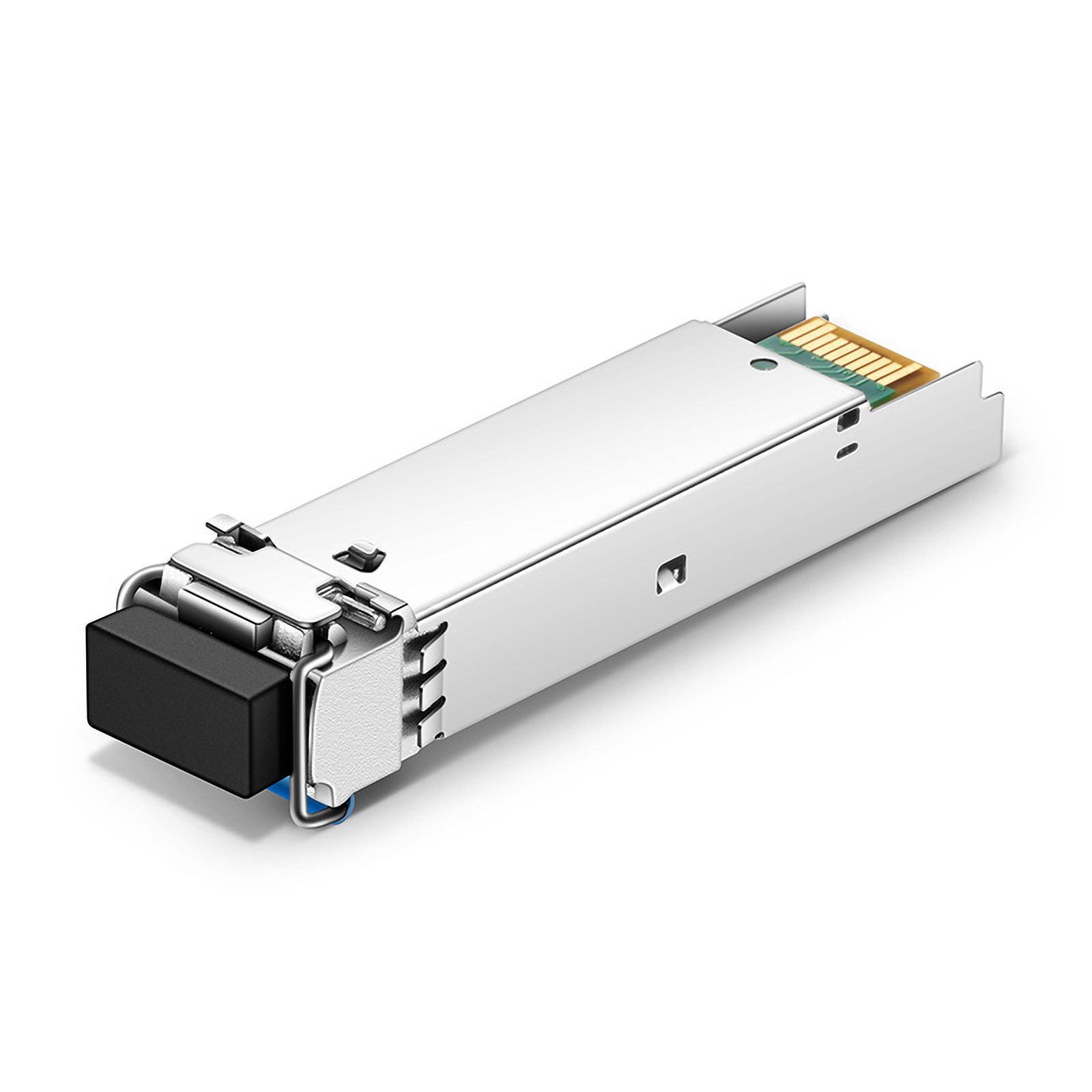

Brocade E1MG-1G-BXU-20 Compatible 1000BASE-BX BiDi SFP 1310nm-TX/1550nm-RX 20km SMF LC Transceiver Module

Product No :99099
5 Reviews
640 Solds
US$ 6.90  US$ 8.63
Compatible
Transceivers type
8706 in real-time stock, 08Jul, 2025

Free Shipping over US$ 79.8

Global warehouses in stock

30-day Return and Refund

-
+
Add to Cart Bulk Order Quotes

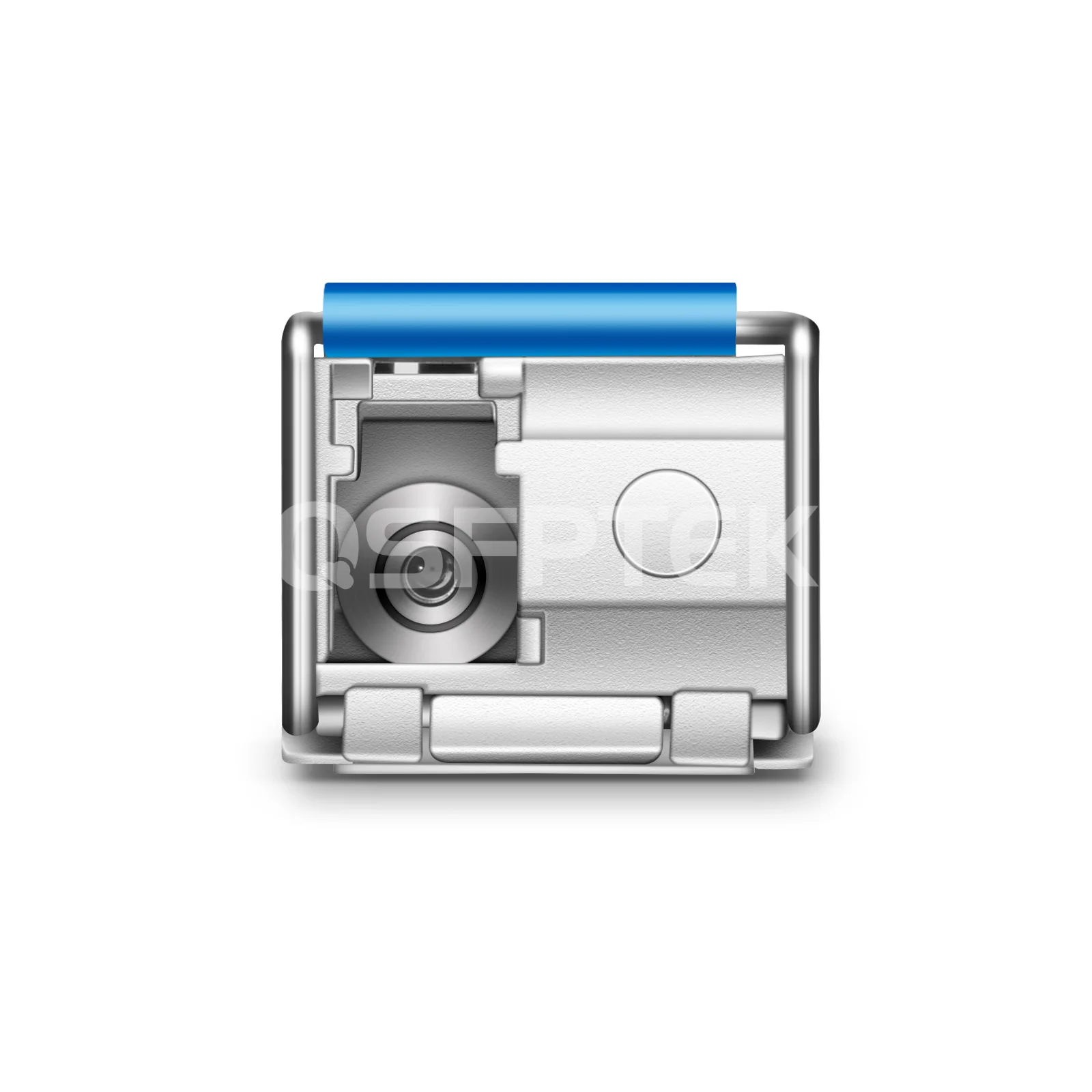

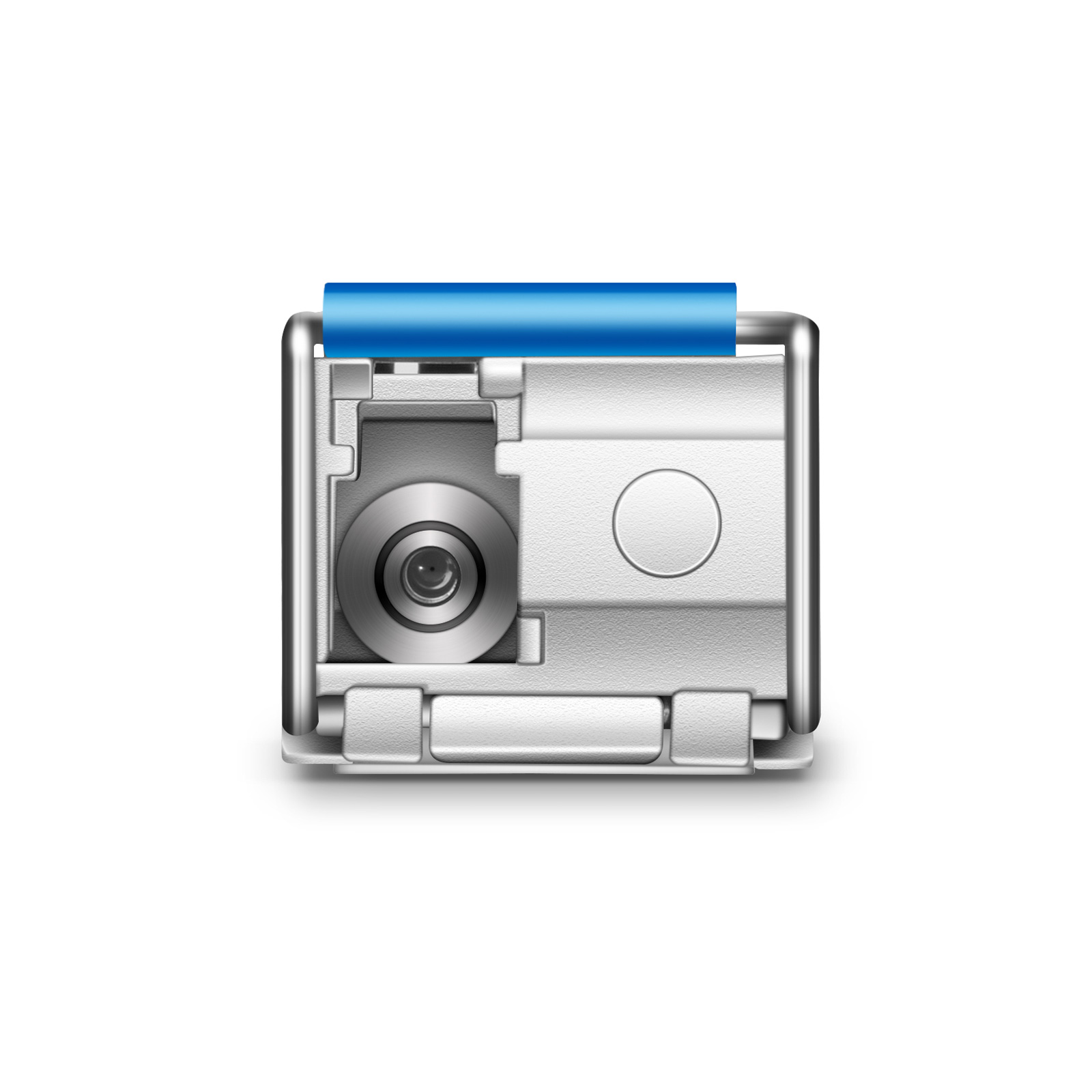

1. Connector: Simplex LC; with DDM
2. Low Power Consumption <1W
3. Ideal for Campus Network, Enterprise LAN Networks and other optical links
4. Compatible with 200+ Vendors
5. Hot Pluggable SFP MSA Compliant
See more

Specifications

Brocade E1MG-1G-BXU-20 Compatible 1000BASE-BX BiDi SFP 1310nm-TX/1550nm-RX 20km Transceiver Module



The Brocade E1MG-1G-BXU-20 compatible SFP optical transceiver module is equipped with an LC simplex connector, reaching a link up to 20km. This 1G BiDi SFP transceiver, featured with carrying information in both directions via a single strand, can double your network capacity and save your cable resources. QSFPTEK manufactured 1G SFP optical transceiver is compliant with MSA, SFF-8472. Besides, DDM (digital diagnostics monitoring) function is supported on the 1G fiber optic transceiver to achieve real-time operating parameters monitoring. It's also fully compatible with almost all OEM brand devices.

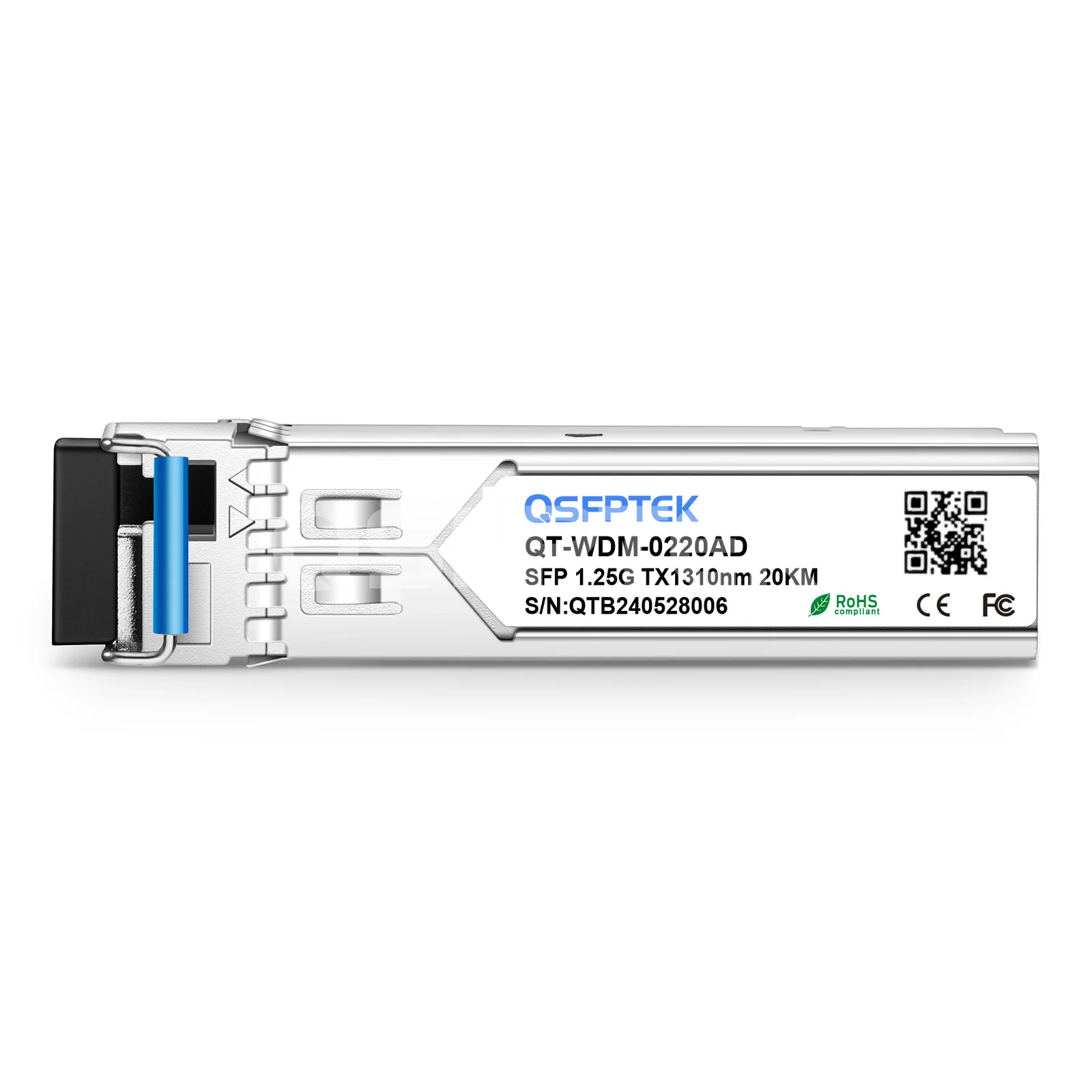

Part Number: QT-WDM-0220AD Vendor Name: QSFPTEK
Form Factor: SFP Data Rate: 1.25Gbps
Wavelength: 1310nm-TX/1550nm-RX Distance: 20km
Connector: LC Simplex Cable Type: OS2 SMF
Transmitter: FP Receiver Type: PIN
TX Power: -9~-3dBm Receiver Sensitivity: <-22dBm
Power Consumption: <1W Modulation Format: NRZ
DDM: Support Bit Error Ratio (BER): 1E-12
Protocols: Fast Ethernet, Gigabit Fibre Channel, MSA Compliant Warranty: 5 Years
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Double Your Network Capacity
    One strand is used to carry information in both directions.
  • 3. EMC Support
    Anti Electro-Static Discharge and Radiation Resistant.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

1G Bidirectional (BiDi) SFP Module Interconnection



LC 1G BiDi SFP



Related Products:

S5300-24S8T6X, 24-Port Gigabit Ethernet Managed L3 Switch, 24x 1G SFP, 8x 1G RJ45, with 6 x10GE SFP+ Uplinks, Support Stacking

LC to LC OS2 Simplex Fiber Optic Patch Cable for Bidirectional Fiber Optic Transceiver

Product details

Save 50% On Fiber Resources



BiDi SFP module allows data transmitting and receiving over one single fiber, greatly saving network fiber resources and costs.



duplex SFP vs simplex SFP





Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.



LC 1G BiDi SFP compatibility test on multiple switches





Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing to ensure compatibility in the target switch environment and guarantee perfect operation.



QSFPTEK Test Rack





Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices.



QSFPTEK Performance test lab





20km 1G BiDi SFP Model Contrast Table



Part Number

QT-WDM-0220AD

QT-WDM-0220BD

QT-WDM20-1413D

QT-WDM-0220ASD

QT-WDM-0220BSD


Form Factor

SFP

SFP

SFP

SFP

SFP

Data Rate

1.25 Gbps

1.25 Gbps

1.25 Gbps

1.25 Gbps

1.25 Gbps

Wavelength

TX1310nm

TX1550nm

TX1490nm

TX1310nm

TX1550nm

Connector

LC Simplex

LC Simplex

LC Simplex

SC Simplex

SC Simplex

Cable Type

LC Simplex OS2 SMF

LC Simplex OS2 SMF

LC Simplex OS2 SMF

SC Simplex OS2 SMF

SC Simplex OS2 SMF

Max Distance

20km

20km

20km

20km

20km

Temperature Range

0 to +70℃

0 to +70℃

0 to +70℃

0 to +70℃

0 to +70℃
