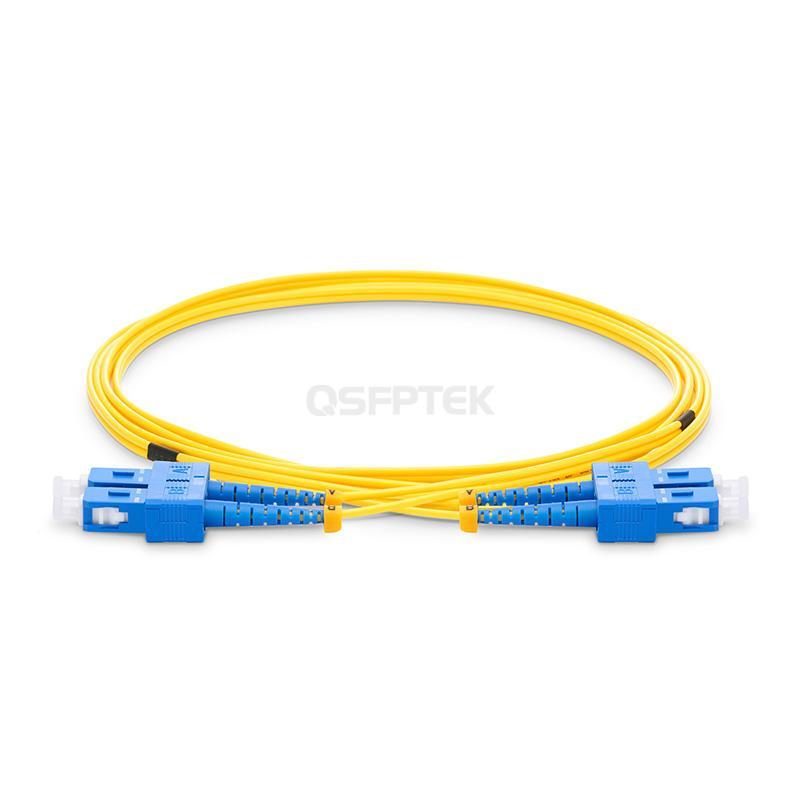

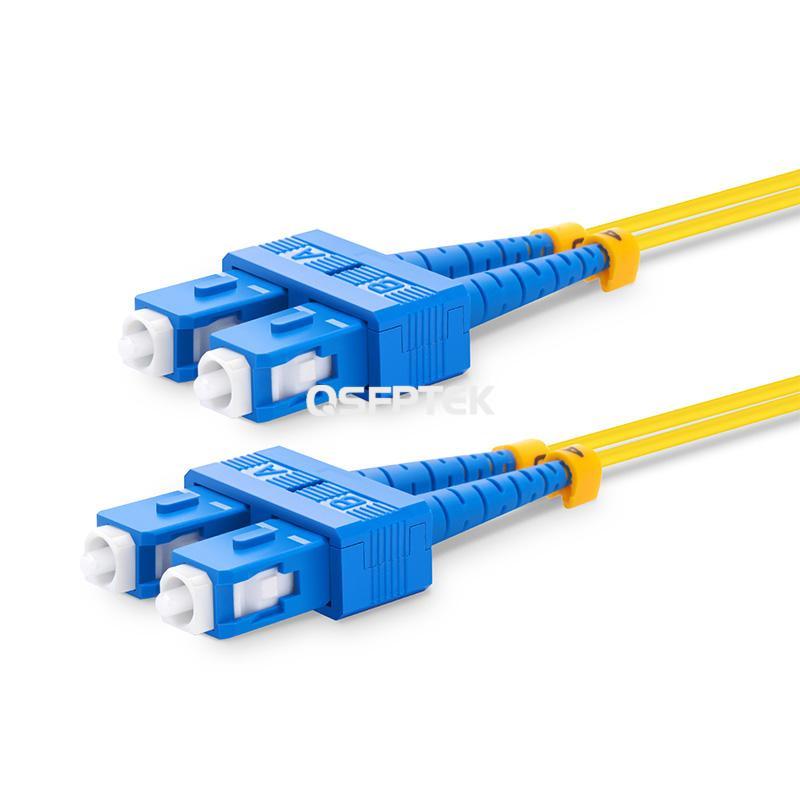

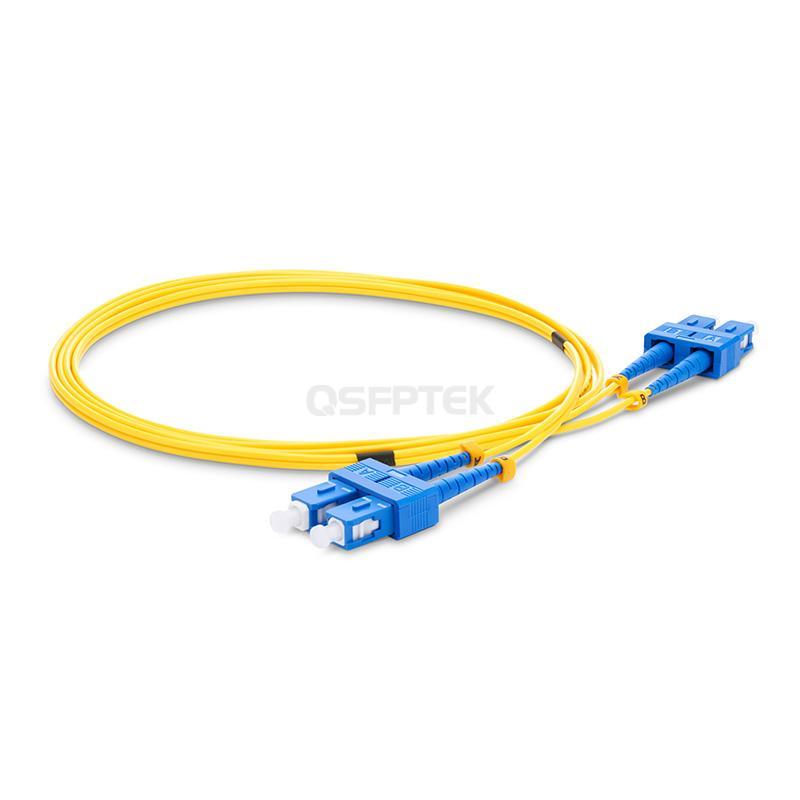

SC UPC to SC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 2m

Product No :99399

US$ 3.10

Series

LC to LC OS2 LC to SC OS2 SC to SC OS2

Length

0.5m 1m 2m

3000 in stock

Bulk Order Quotes Shop Online

1. Ultra-low Inset loss ≤0.25dB
2. G.652D, 10mm Min. Bend Radius
3. Durable for Indoor Use (e.g. Data Centers, Enterprise Networks, etc)
4. High Temperature Stability
5. Compliant with ROSH 2.0 and MCD

Specifications

SC UPC to SC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable (0.5m/1m/1.5m/2m/3m/5m/7m/10m)

The 9/125μm OS2 SMF fiber optic patch cable, featured with ultra-low insert loss (0.36dB/km via 1310nm and 0.22dB/km via 1550nm), is specially optimized for 1G/10G/40G/100G/400G Ethernet connections. This single-mode fiber optic cable is widely applied in high-density application scenarios such as data centers, enterprise networks, telecommunication rooms, server rooms, etc., which helps to save rack space by a wide margin and maintain a neat cabling center.

Fiber Count	2 Fibers	Fiber Type	OS2 SMF 9/125μm
Connector Type	SC UPC to SC UPC	Wavelength	1310nm/1550nm
Armoured	No	Cable Material	PVC
Insert Loss	0.25dB	Return Loss	≥50dB
Approximate Diameter	2.0mm	Length	0.5m/1m/1.5m/2m/3m/5m/7m/10m
Min. Bend Radius (Fiber Cable) Dynamic	10mm	Min. Bend Radius (Fiber Cable) Static	10mm
Operating Temperature	-20~+70°C	Storage Temperature	-40~+80°C

Features

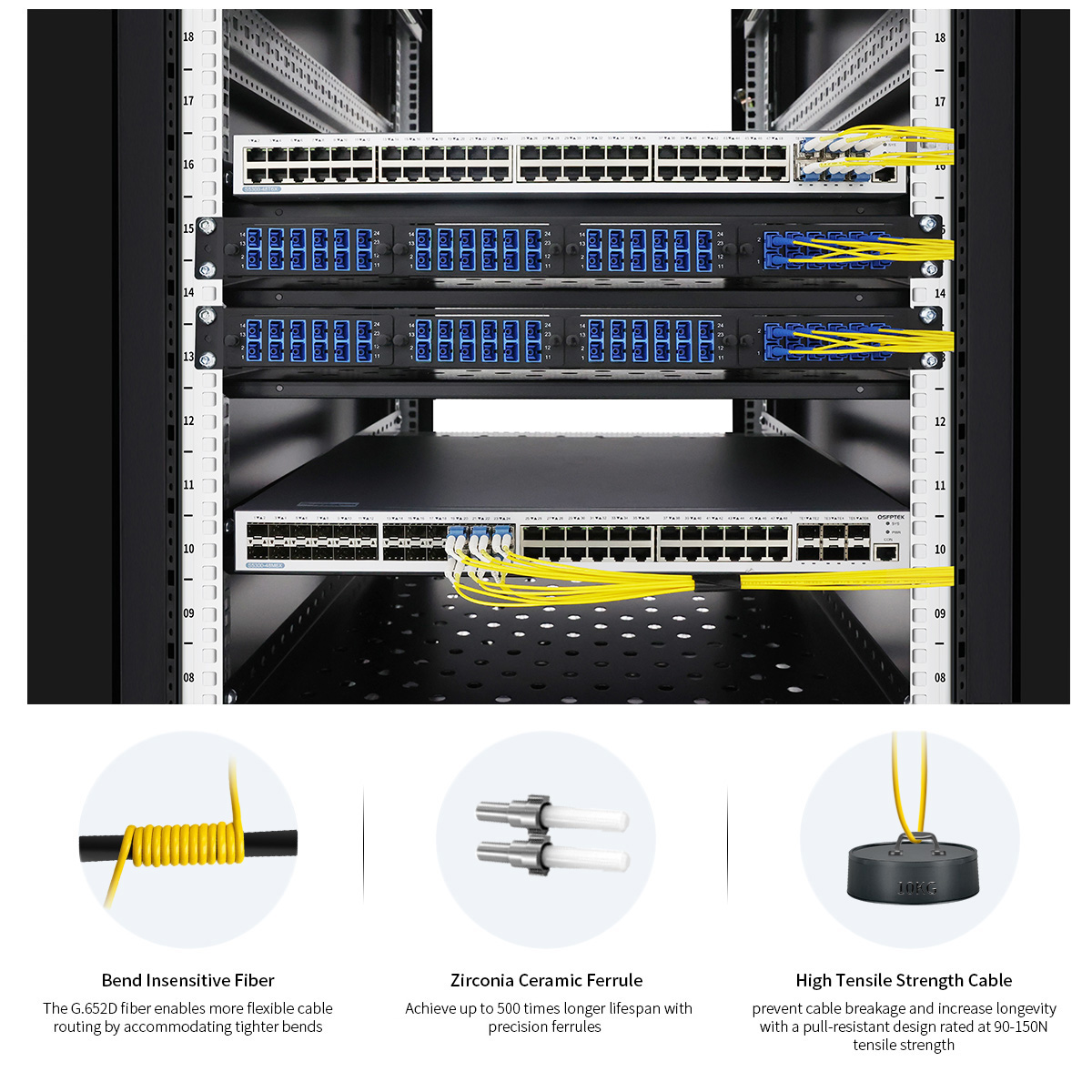

Wide Application

SC to SC OS2 Single-mode fiber is specially designed for reliable, long-distance, Ethernet connectivity between switches, servers, routers, Firewalls, SFP+ transceivers, media converters, patch panels, and other SMF optical equipment.

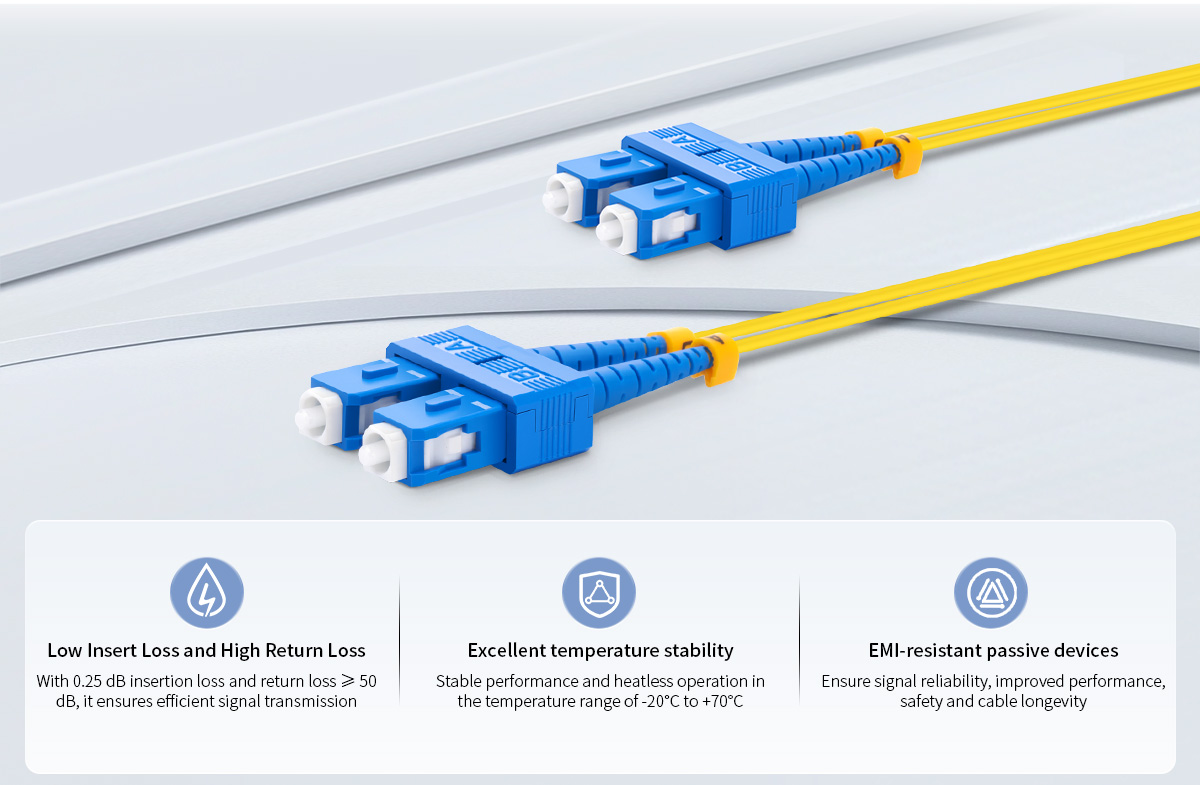

Exceptional Transmission Performance

Low insertion loss less than 0.25dB, return loss more than 50dB. Carrier-grade cable assemblies reduce bending loss to ensure good transmission performance.
Rigorously Quality Test

Each OS2 Single-mode fiber is individually and rigorously tested to be within accurate optical insertion loss.
Quality Certifications

Conforms with TIA/EIA-604, ITU-652.D, and IEC-61754 standards and complies with RoHS specifications.

Applications

Questions & Answers

more+

I want to transfer the duplex cable to a simplex cable, what should I do?

You can remove the buckle on the connector of the LC duplex fiber cable so that you can get the simplex cable immediately.
