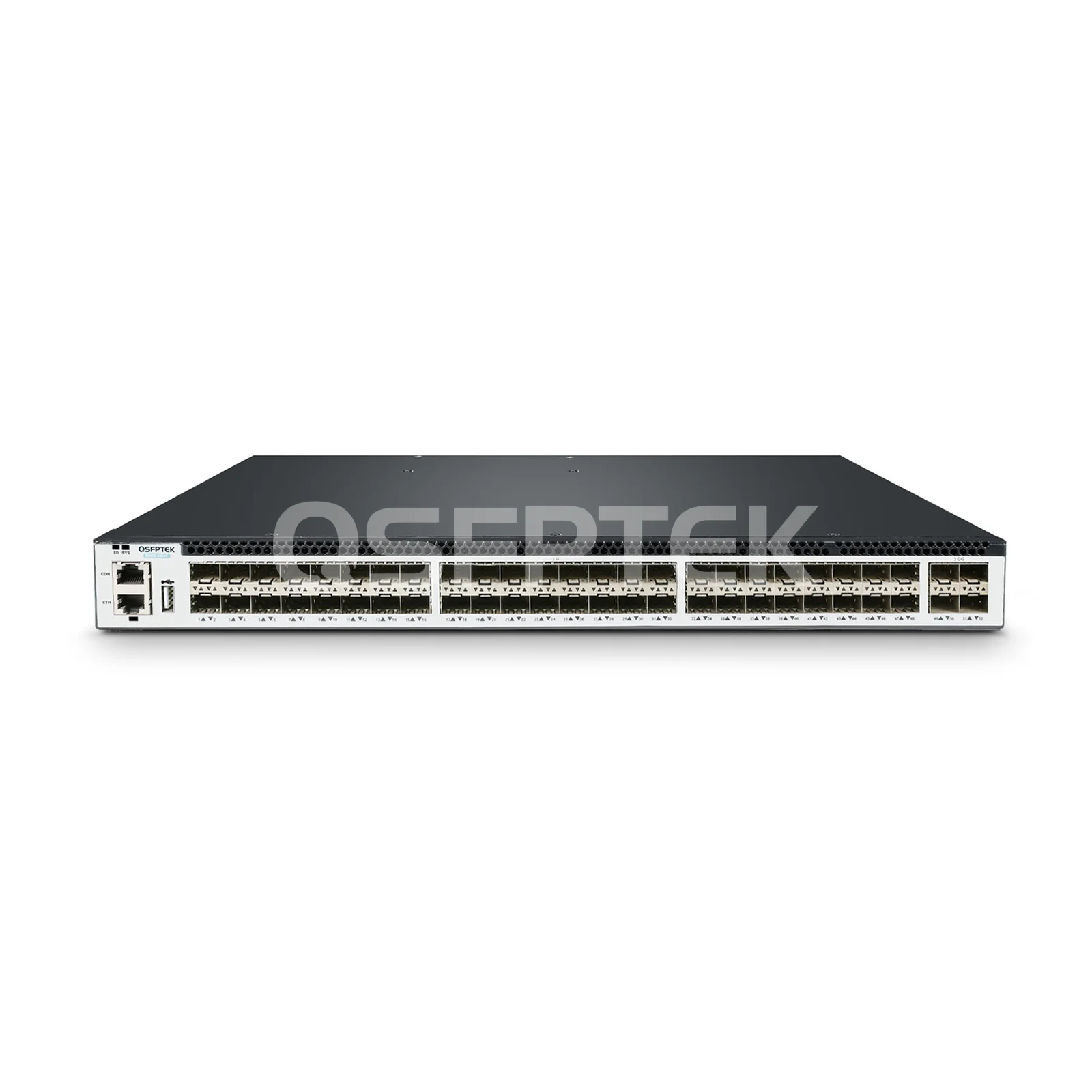

S5600-48S4X, 48-Port Gigabit Ethernet L3+ Switch, 48x 1G SFP, with 4x 10G SFP+ Uplinks, Support MLAG, VXLAN

Product No :100499
US$ 1362.90  US$ 1399.00
100 in stock
20 in the U.S. Warehouse, 20 in the EU Warehouse | Free Shipping | 5-Year Warranty | 14-Day Return & Exchange ;jsessionid=E623AB702A4492D6459CBCC008BFACED
-
+
1. 48x 1G SFP ports and 4x 10G SFP+ uplink ports
2. 2 hot-swap AC power supplies (1+1 redundancy), 3 built-in smart fans
3. RDMA reduces latency and CPU consumption
4. Support data center features including MLAG/VXLAN/EVPN/VARP/PFC
5. Support CLI/WEB/SNMP/SSH2.0/SSL for easy management
6. Anti-attack from DDoS and IEEE 802.1x, Radius, Tacacs+ for Security+
7. Supports Port Isolation, and ACL, QoS, DHCP Snooping for Access and Traffic Control
8. Support LACP/VRRP/ERPS/MSTPhigh-reliability/BFD/Smart Link for high-reliability
See more

Specifications

S5600-48S4X, 48-Port Gigabit Ethernet L3+ Switch, 48x 1G SFP, with 4x 10G SFP+ Uplinks, Support MLAG, VXLAN



QSFPTEK S5600-48S4X L3+ aggregation switch is designed with 48× 1G SFP and 4× 10G SFP+ Uplink Ports. It is equipped with  2 hot-swap AC power supply (1+1 redundancy) and 3 built-in smart fans to ensure good redundancy and heat dissipation.



The S5600-48S4X managed switch can be simply managed by supporting SNMP v1/v2/v3, WEB, and CLI management ports for high flexibility. Perform as a layer 3+ managed switch, S5600-48S4X  supports advanced features including MLAG, PFC, VXLAN, EVPN, and VARP, which make it widely used for large-scale enterprises, cloud networking, medical networks for effective and reliable network solutions.



Part Number S5600-48S4X Vendor Name QSFPTEK
Ports 48x 1G SFP | 4x 10G SFP+ Packet Buffer 9 MB
Switching Capacity 176 Gbps Forwarding Rate 132 Mpps
MAC Address 98304 ARP Table 12288
VLAN IDs 4K Jumbo Frame 9600 bytes
IPv4 Routes 57344 IPv6 Routes 4096
FLASH 8 GB RAM 2 GB
Latency 660ns Airflow Front-to-Back
Power Supply 2 hot-swap AC power supplies (default), DC optional Fan Number 3 built-in smart fans
Max. Power Consumption 70 W MTBF 189,901 hours
Operating Temperature 0° to 45°C (32° to 113°F) Weight 6.25 kg
Dimensions (H x W x D) 43.6 x 440 x 370 mm
(1.73 x 17.5 x 14.6″)
Warranty 5 Years


Quality Testing Program
Quality Certifications

Features

  • Convenient and Secure Management
    Supports SNMP v1/v2/v3, CLI, web management, Telnet and FTP connection, OAM, SSH2.0, SSL, etc. to make management more convenient. Support QoS, ACL, and DHCP to ensure high security.
  • Complete Layer 2/3 Functionality
    Supports enhanced L2 and L3 features, including L2 switching, L2 multicast, QoS, advanced L3 routing, OSPF, BGP, Bidirectional Forwarding Detection (BFD), VRRP, and L3 multicast, etc.
  • Multiple Data Center Features
    Supports data center features including MLAG/VXLAN/EVPN/VARP/PFC.
  • Mature IPv6 Technology
    Supports IPv4/IPv6 dual stack, IPv6 RIPng, and IPv6 over IPv4 TUNNEL. It can be deployed on a pure IPv4/IPv6 network, or a shared IPv4/IPv6 network.

Product details

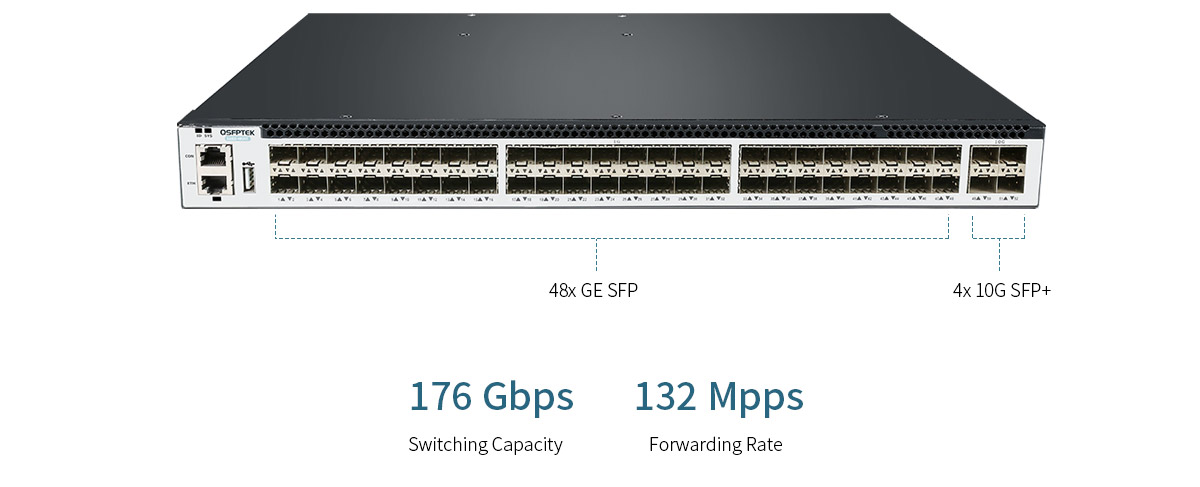

High-density All-optical Gigabit Access Capability with 4x 10GE Uplink

S5600-48S4X 48-port switch provides 48*GE SFP downlink ports, allowing for high-density Gigabit access. 4*10GE uplink ports provide 10G high bandwidth to the backbone through the 10G SFP+ SR/LR modules. Its 176 Gbps switching capacity and 132 Mpps forwarding rate also help to ensure smooth and reliable data transfers. This can be used as an ideal access or aggregation layer switch for campus and enterprise networks.

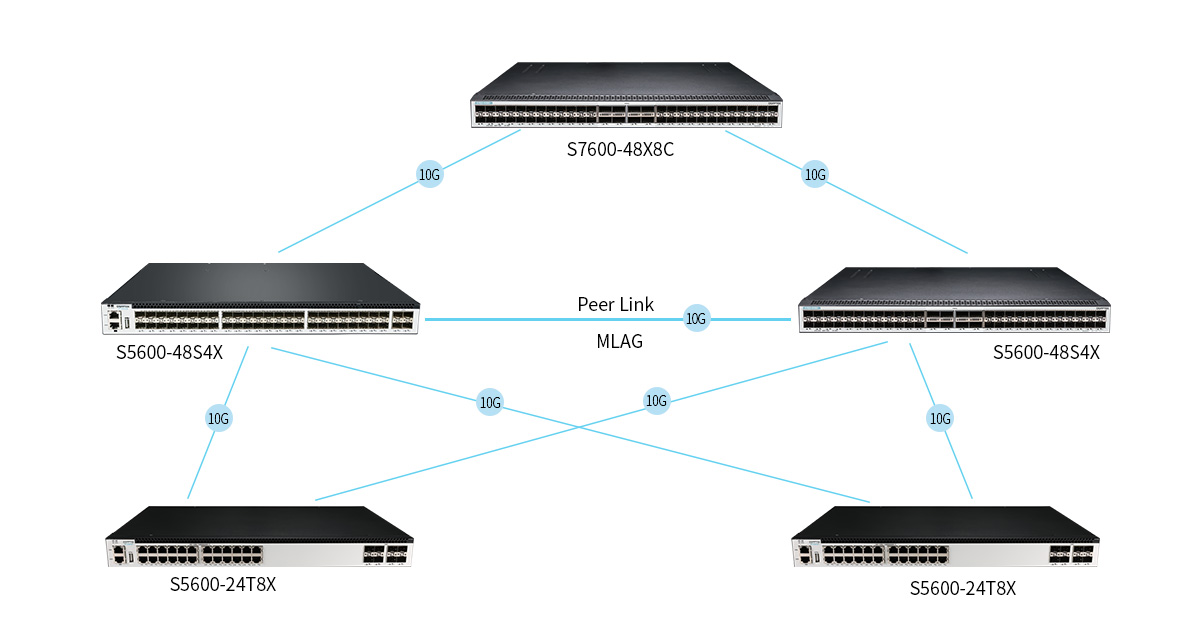

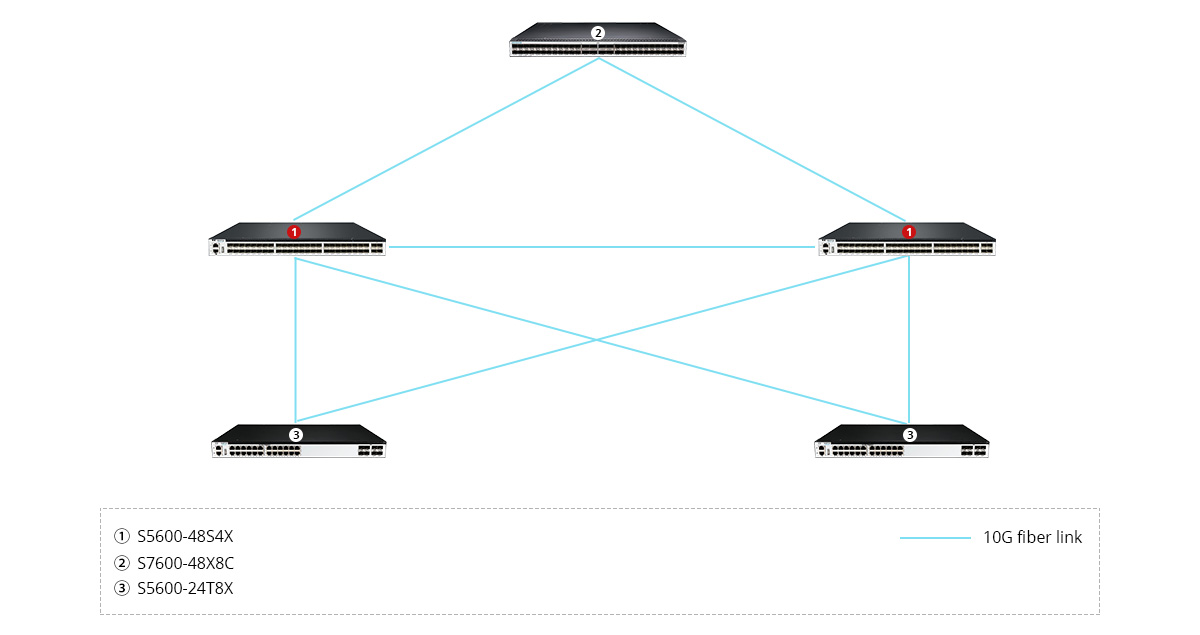

MLAG Ensures High-Reliability

S5600-48S4X switch supports data center service MLAG (Multi-Chassis Link Aggregation), which enables links of multiple switches to aggregate into one to implement device-level link backup. Switches in an MLAG pair share traffic and back up each other. When one of the switches fails, the other one can provide redundancy. And switches in an MLAG system can be upgraded independently without interruption. When one switch upgrading, the other switches in the MLAG system will take over traffic forwarding, enhancing network reliability.






ECN and PFC Ensure Lossless Transmission of End-To-End Data

RDMA(Remote Direct Memory Access) provides high throughput and ultra-low latency, with low CPU overhead. Once end-to-end network connectivity is established, PFC(Priority Flow Control) or ECN (Explicit Congestion Notification) can be enabled to ensure lossless transport for RoCE traffic.

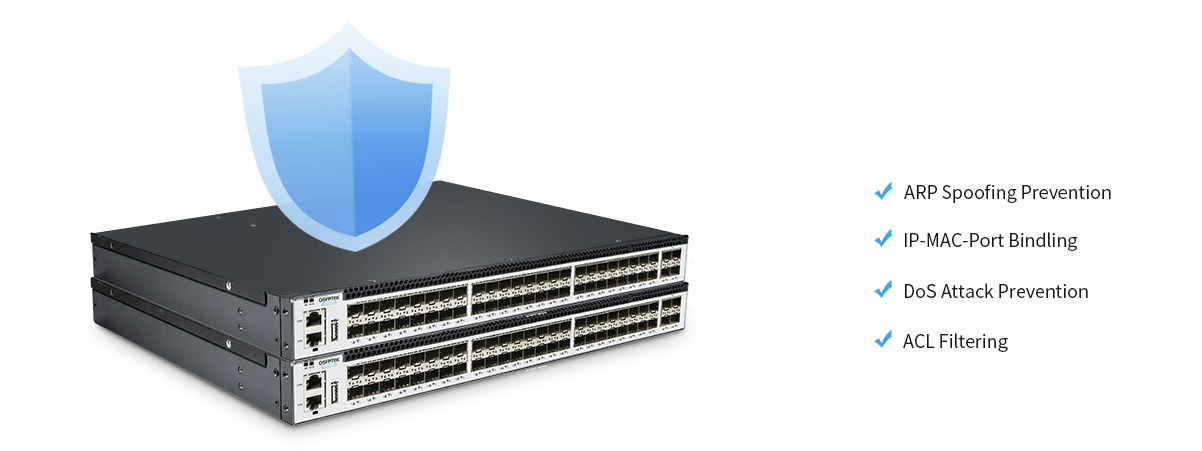

Advanced Security Feature for Enterprise

S5600-48S4X is equipped with advanced security features perfect for enterprises to neutralize threats such as ARP spoofing prevention, IP-MAC-Port Binding to prevent Man-in the middle attacks, and DoS attack prevention.

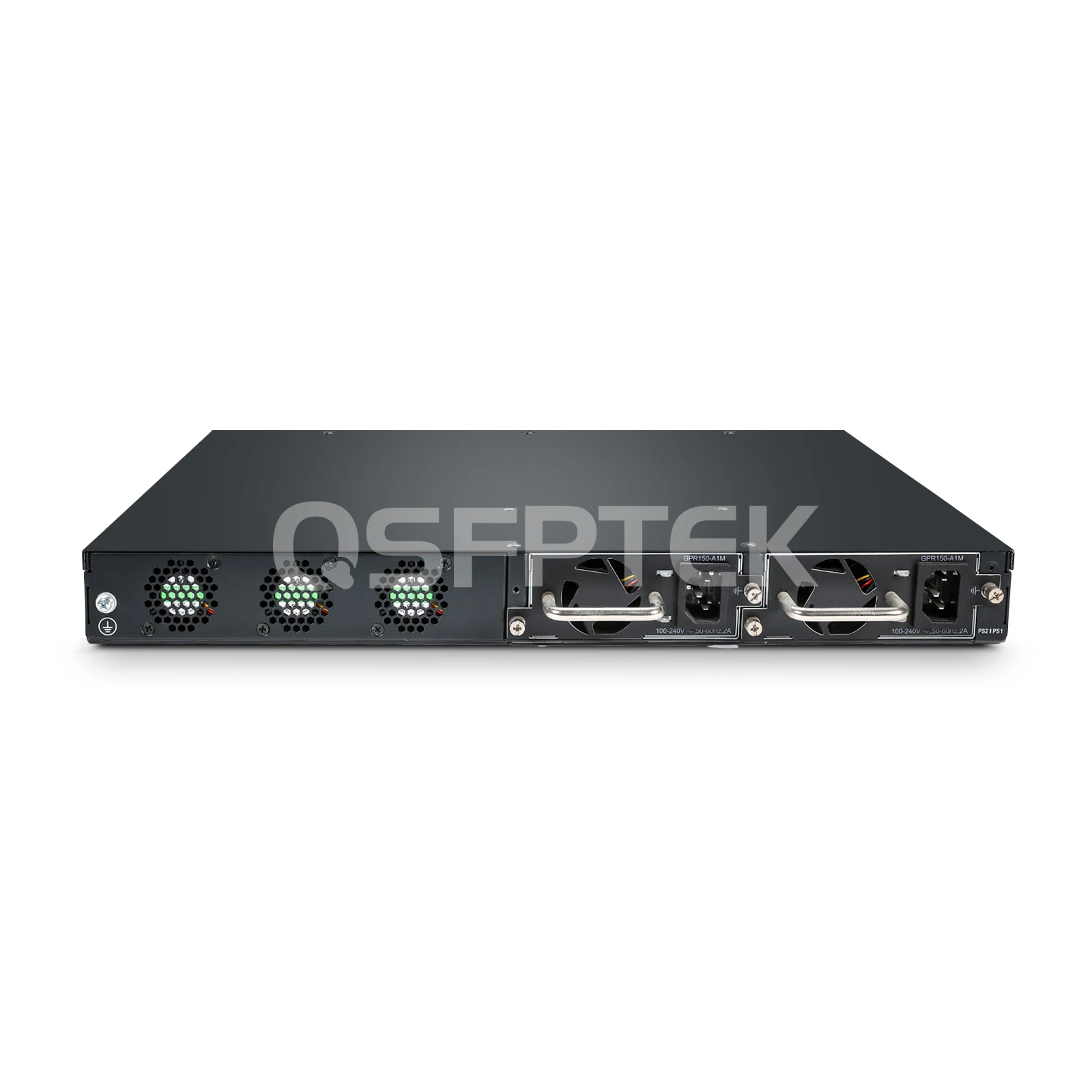

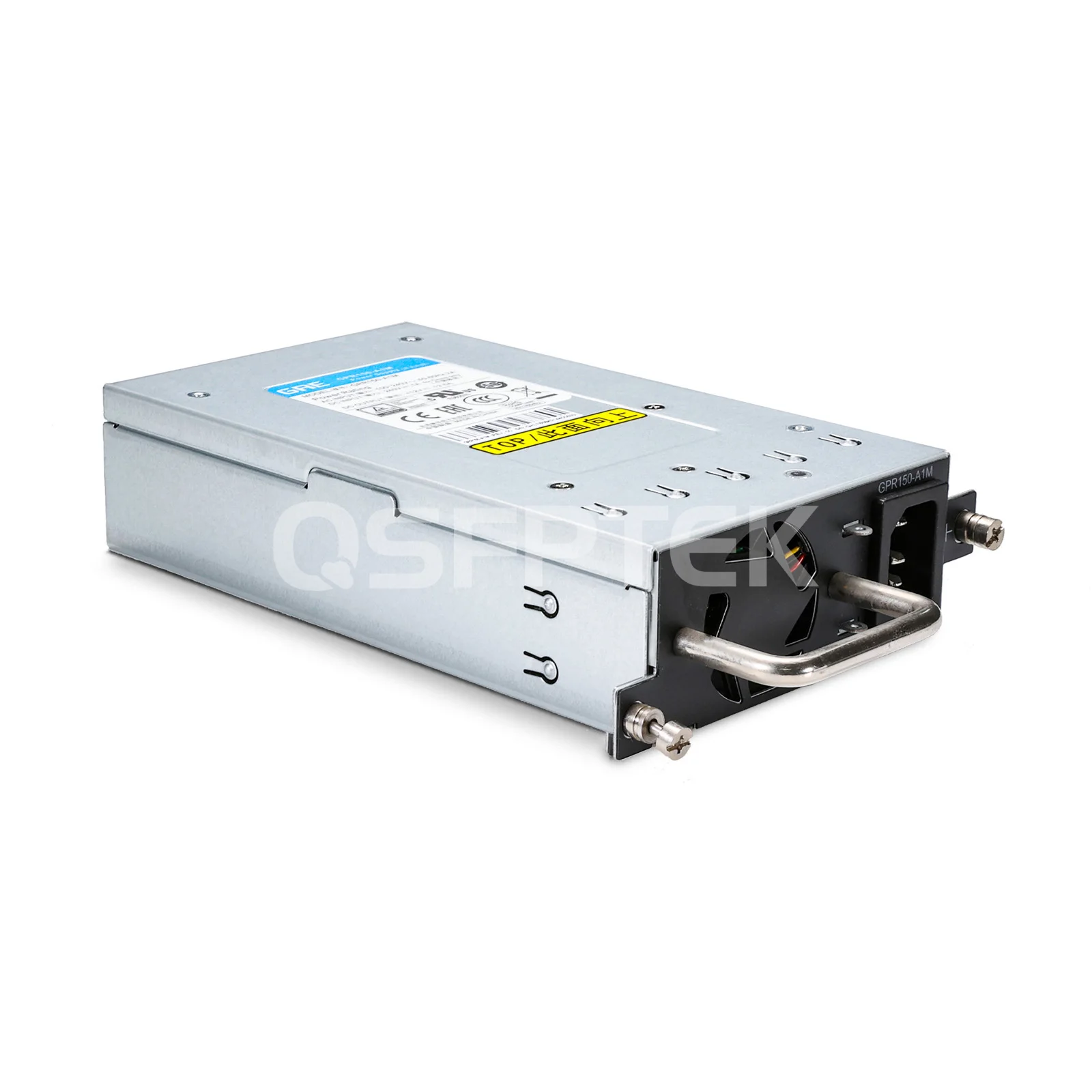

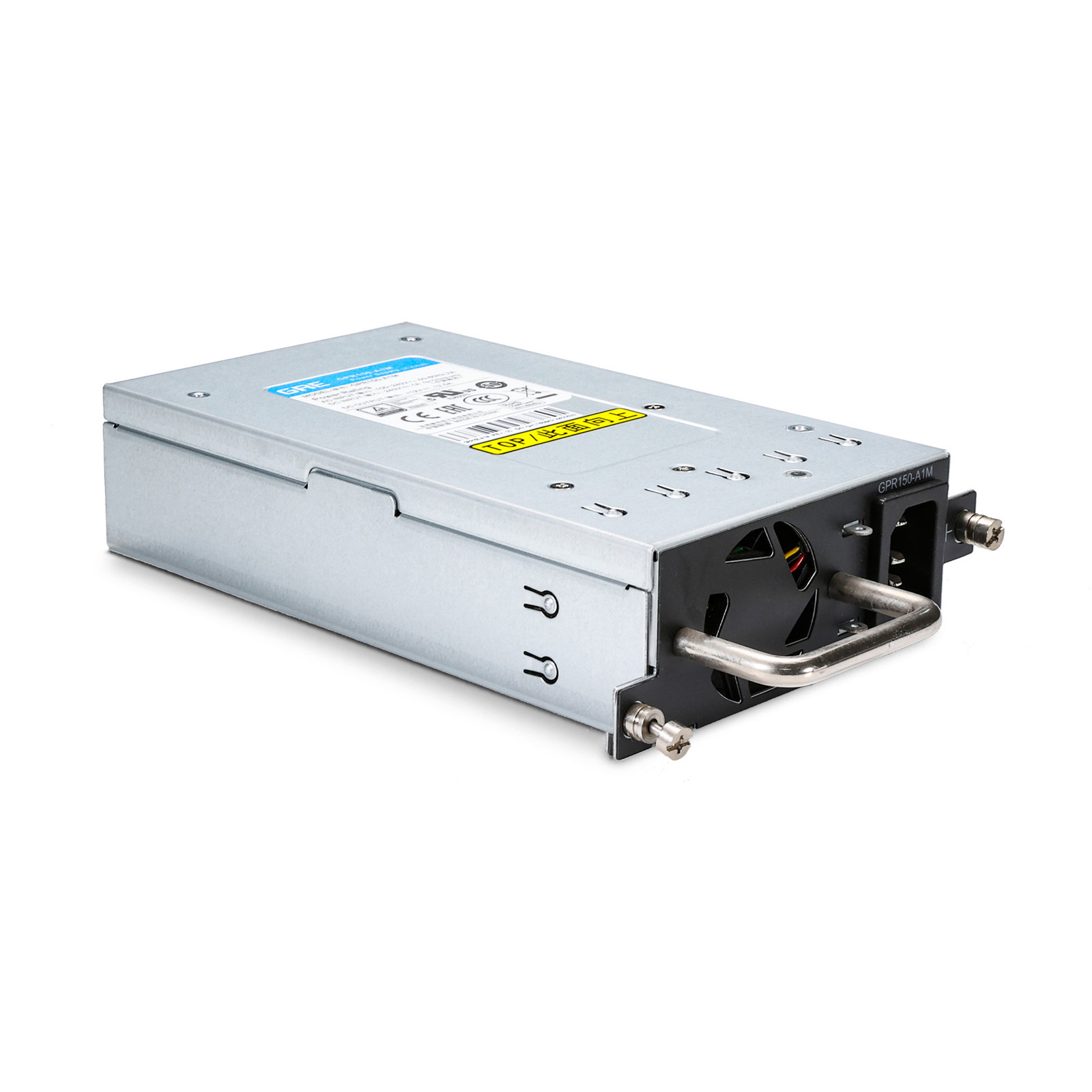

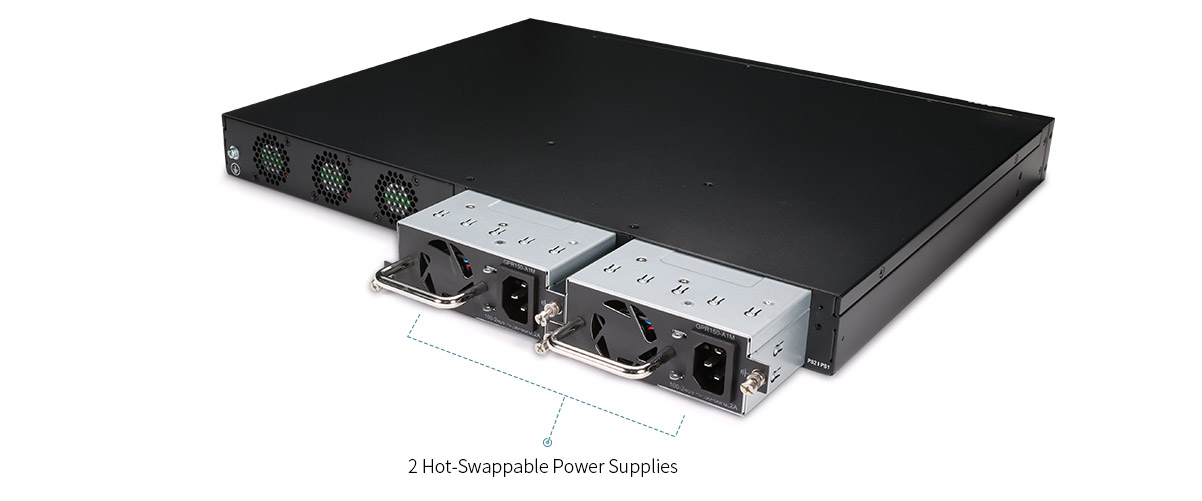

Hot-Swappable Power and Intelligent FAN Design, Energy-saving Technology

S5600-48S4X switch features front-to-back airflow that optimizes air circulation inside the rack. This design meets heat dissipation requirements in equipment rooms. The hot-pluggable power modules mean they can be replaced without affecting switch operation, ensuring uninterrupted service transmission. Real-time power consumption monitoring technology reduces power consumption and O&M costs.








S5600 Series L3+ Switches



Model

S5600-48T4X S5600-4T12X S5600-48S4X S5600-24T8X
RJ45 Ports 48x 10/100/1000BASE-T 4x 10/100/1000BASE-T 24x 10/100/1000BASE-T
Fiber Ports 4x 10G SFP+ 12x 10G SFP+ 48x 1G SFP | 4x 10G SFP+ 8x 10G SFP+
Management Layer L3+ Managed L3+ Managed L3+ Managed L3+ Managed
1+1 Hot-Swap Power Supplies 1 Built-in AC Power Supply
Fan 3 Built-in Fans 2 Built-in Fans 3 Built-in Fans 3 Built-in Fans
MLAG
Data Link Layer VXLAN, QinQ, VPLS, L2VPN VXLAN, QinQ, VPLS, L2VPN VXLAN, QinQ, VPLS, L2VPN VXLAN, QinQ, VPLS, L2VPN
Routing RIP v1/v2, OSPF, BGP, IS-IS, L3VPN RIP v1/v2, OSPF, BGP, IS-IS, L3VPN RIP v1/v2, OSPF, BGP, IS-IS, L3VPN RIP v1/v2, OSPF, BGP, IS-IS, L3VPN
Security IGMP snooping, MLD Snooping, Dot1x, Port Security IGMP snooping, MLD Snooping, Dot1x, Port Security IGMP snooping, MLD Snooping, Dot1x, Port Security IGMP snooping, MLD Snooping, Dot1x, Port Security
IPv6 IPv6 Static routings, RIPng, BGP4+, OSPFv3, IS-IS, VRRPv3 IPv6 Static routings, RIPng, BGP4+, OSPFv3, IS-IS, VRRPv3 IPv6 Static routings, RIPng, BGP4+, OSPFv3, IS-IS, VRRPv3 IPv6 Static routings, RIPng, BGP4+, OSPFv3, IS-IS, VRRPv3
Reliability MLAG, VRRP, MPLS LDP, BFD, SDN MLAG, VRRP, MPLS LDP, BFD, SDN MLAG, VRRP, MPLS LDP, BFD, SDN MLAG, VRRP, MPLS LDP, BFD, SDN



Questions & Answers

more+
  • What's the airflow of the S7600-48X8C switch's fan?
    The switch comes with 2+2 redundant intelligent fans for front-to-back air flow. In addition, these 4 fans all support hot swapping.
  • Can the S7600-48X8C support advanced features such as VXLAN/EVPN?
    Yes, the switch supports VXLAN and EVPN. You can check all the functions it supports through the datasheet.
  • What is MLAG? What are the advantages of MLAG?
    MLAG can build an Active-Active system to improve the reliability of the network links from single board grade to device grade. MLAG uses a peer link between to devices to aggregate two devices and make them as one device logically. Ports of two different devices join the aggregate ports together and all ports can transmit the data traffic.
