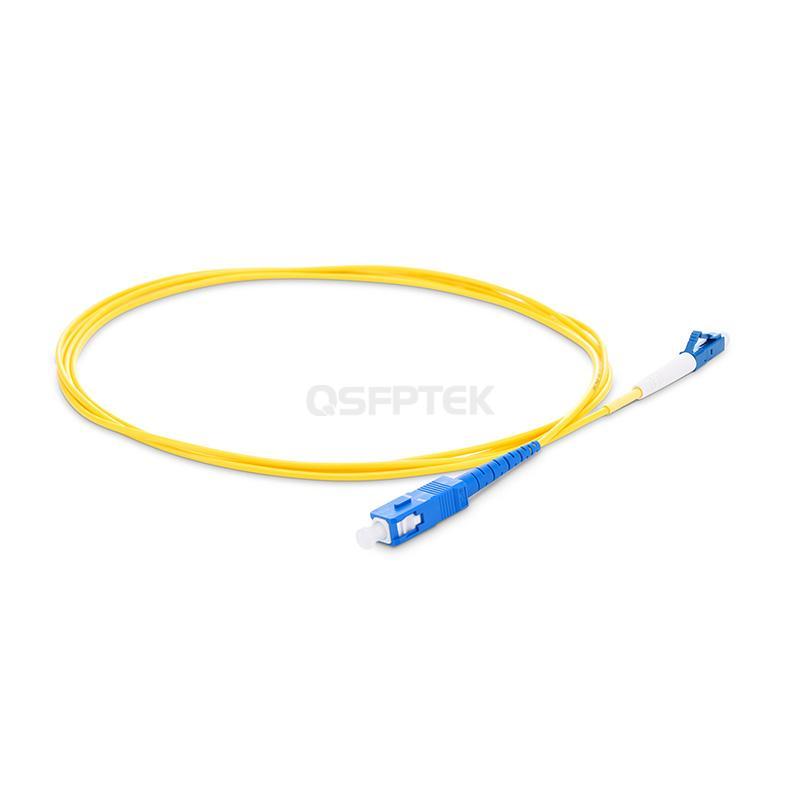

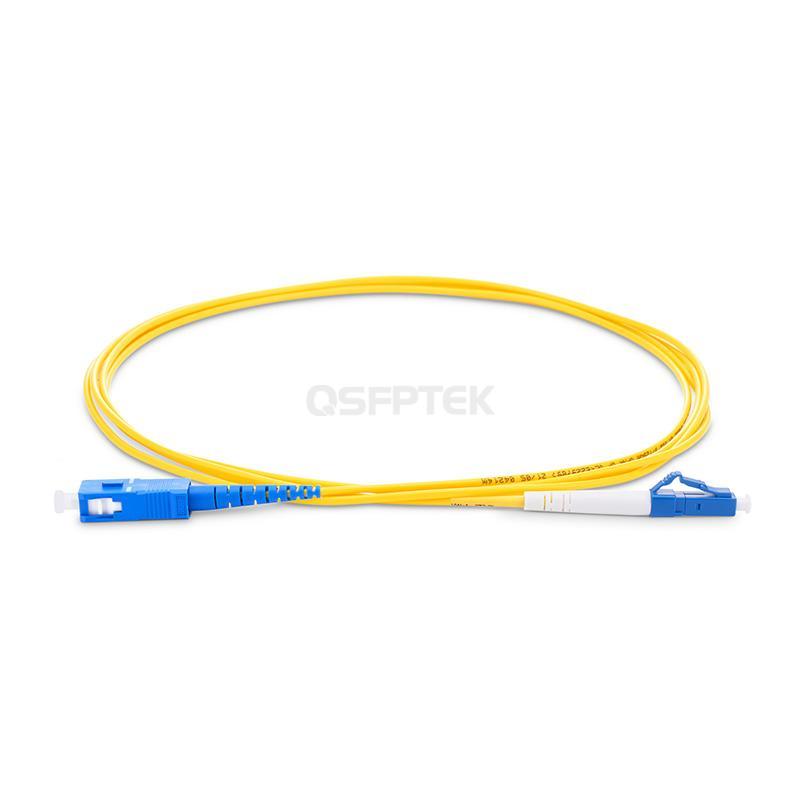

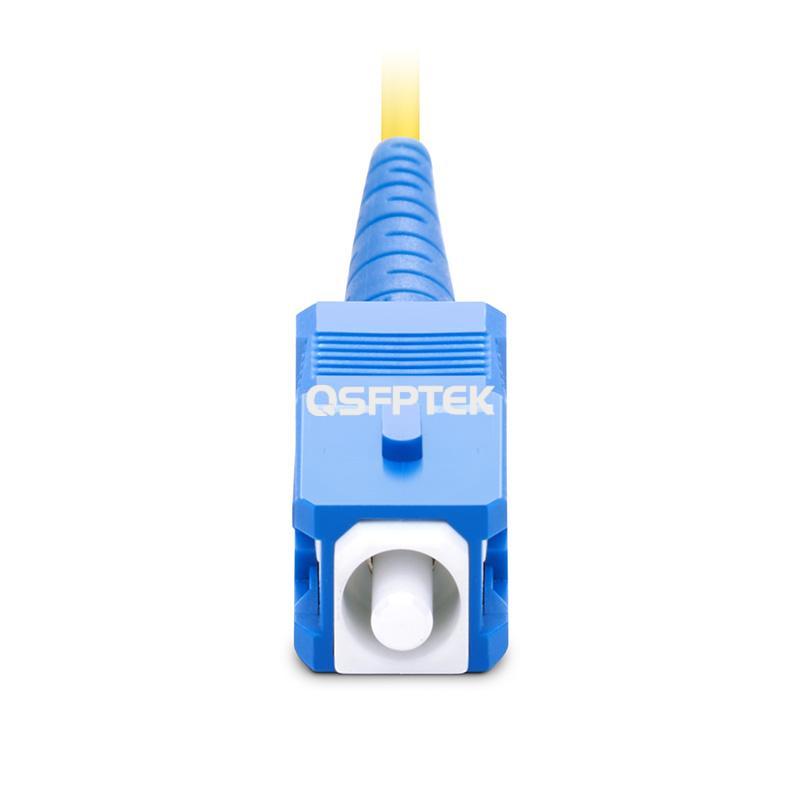

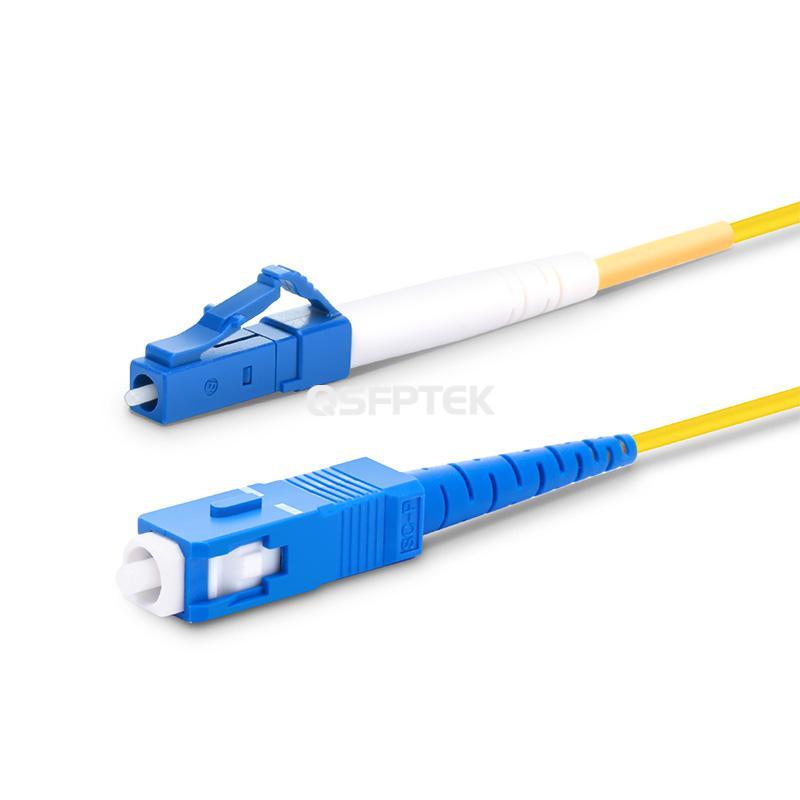

LC UPC to SC UPC Simplex OS2 2.0mm PVC Fiber Optic Patch Cable 1m

Product No :99408
US$ 1.36  US$ 1.69
1124 in stock

425 In US Warehouse

699 In EU Warehouse

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

;jsessionid=48E1A386B4198FC7385019DB6815EE9D
-
+
1. Ultra-low Inset Loss≤ 0.25dB
2. G.652D, 10mm Min. Bend Radius
3. Durable for Indoor Use (e.g. Data Centers, Enterprise Networks, etc)
4. High Temperature Stability
5. Compliant with IEC-61754 and TIA-604
See more

Specifications

LC UPC to SC UPC Simplex OS2 2.0mm PVC Fiber Optic Patch Cable (0.5m/1m//2m/3m/4m/5m/6m/7m/8m/10m/12m/15m/20m)



The 9/125μm OS2 SMF fiber optic patch cable, featured with ultra-low insert loss (0.36dB/km via 1310nm and 0.22dB/km via 1550nm), is specially optimized for 1G/10G/40G/100G/400G Ethernet connections. This single-mode fiber optic cable is widely applied in high-density application scenarios such as data centers, enterprise networks, telecommunication rooms, server rooms, etc., which helps to save rack space by a wide margin and maintain a neat cabling center.



Fiber Count

1 Fiber

Fiber Type

OS2 SMF 9/125μm

Connector Type

LC UPC to SC UPC

Wavelength

1310nm/1550nm

Armoured

No

Cable Material

PVC

Insert Loss

0.25dB

Return Loss

≥50dB

Approximate Diameter

2.0mm

Length

0.5m/1m//2m/3m/4m/5m/6m/7m/8m/10m/12m/15m/20m

Min. Bend Radius (Fiber Cable) Dynamic

10mm

Min. Bend Radius (Fiber Cable) Static

10mm

Operating Temperature

-20~+70°C

Storage Temperature

-40~+80°C



Quality Testing Program
Quality Certifications

Features

  • Wide Application
    LC to SC OS2 Single-mode fiber is specially designed for reliable, long-distance, Ethernet connectivity between switches, servers, routers, Firewalls, SFP+ transceivers, media converters, patch panels, and other SMF optical equipment.
  • Exceptional Transmission Performance
    Low insertion loss less than 0.25dB, return loss more than 50dB. Carrier-grade cable assemblies reduce bending loss to ensure good transmission performance.
  • Rigorously Quality Test
    Each OS2 Single-mode fiber is individually and rigorously tested to be within accurate optical insertion loss.
  • Quality Certifications
    Conforms with TIA/EIA-604, ITU-652.D, and IEC-61754 standards and complies with RoHS specifications.

Product details

Excellent Transmission Stability Ensured by Superior Craftsmanship



With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission



Excellent Transmission Stability Ensured by Superior Craftsmanship


Reliable Transmission Quality with Carrier-Grade Cables



Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.



Reliable Transmission Quality with Carrier-Grade Cables


Addressing Various Indoor Installation Requirements



Perfect for network cabinet connectivity, ceiling wiring, and under-floor wiring within the data center environment.



Addressing Various Indoor Installation Requirements

Questions & Answers

more+
  • I want to transfer the duplex cable to a simplex cable, what should I do?
    You can remove the buckle on the connector of the LC duplex fiber cable so that you can get the simplex cable immediately.
  • I have bought a 10G BIDI transceiver from your website,can you recommend a network cable?
    Certainly! For a 10G BIDI (Bi-Directional) transceiver, you need choose OS2 simplex cable, various length for your optiona such as 3m,5m,7m.
  • How fast can data be transmitted using OS2 fiber cable?
    OS2 fiber patch cords have the capability to accommodate Ethernet links with speeds of up to 100G.
