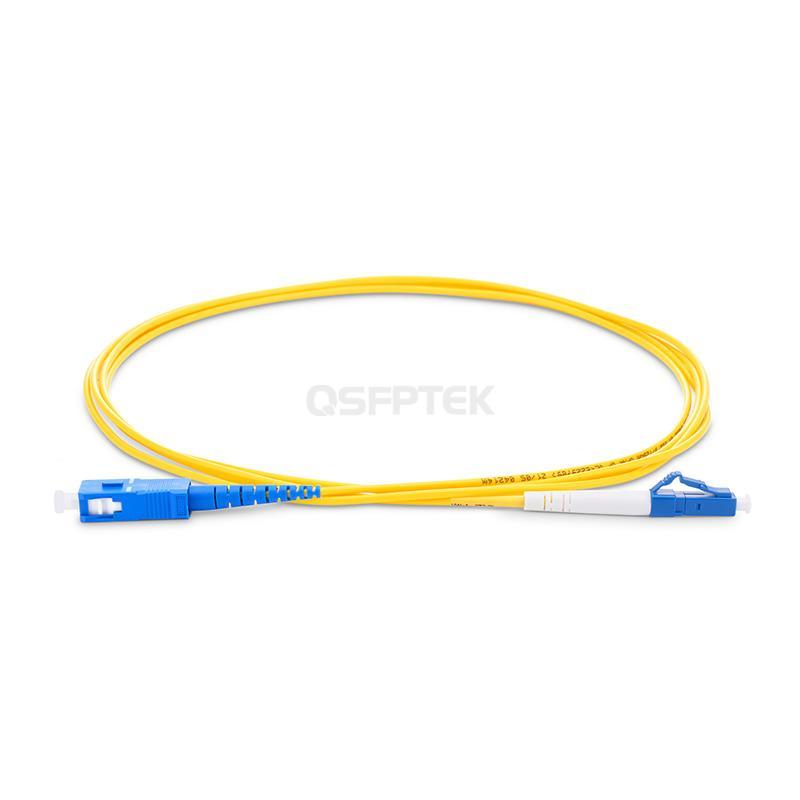

LC UPC to SC UPC Simplex OS2 2.0mm PVC Fiber Optic Patch Cable 2m

Product No :99409

US$ 1.80

Series

LC to SC OS2 simplex

3000 in stock

Bulk Order Quotes Shop Online

1. Ultra-low Inset Loss≤ 0.25dB
2. G.652D, 10mm Min. Bend Radius
3. Durable for Indoor Use (e.g. Data Centers, Enterprise Networks, etc)
4. High Temperature Stability
5. Compliant with IEC-61754 and TIA-604

See more +

Specifications

LC UPC to SC UPC Simplex OS2 2.0mm PVC Fiber Optic Patch Cable (0.5m/1m/1.5m/2m/3m/5m/7m/10m)

The 9/125μm OS2 SMF fiber optic patch cable, featured with ultra-low insert loss (0.36dB/km via 1310nm and 0.22dB/km via 1550nm), is specially optimized for 1G/10G/40G/100G/400G Ethernet connections. This single-mode fiber optic cable is widely applied in high-density application scenarios such as data centers, enterprise networks, telecommunication rooms, server rooms, etc., which helps to save rack space by a wide margin and maintain a neat cabling center.

Fiber Count	1 Fiber	Fiber Type	OS2 SMF 9/125μm
Connector Type	LC UPC to SC UPC	Wavelength	1310nm/1550nm
Armoured	No	Cable Material	PVC
Insert Loss	0.25dB	Return Loss	≥50dB
Approximate Diameter	2.0mm	Length	0.5m/1m/1.5m/2m/3m/5m/7m/10m
Min. Bend Radius (Fiber Cable) Dynamic	10mm	Min. Bend Radius (Fiber Cable) Static	10mm
Operating Temperature	-20~+70°C	Storage Temperature	-40~+80°C

Features

Wide Application

LC to SC OS2 Single-mode fiber is specially designed for reliable, long-distance, Ethernet connectivity between switches, servers, routers, Firewalls, SFP+ transceivers, media converters, patch panels, and other SMF optical equipment.
Exceptional Transmission Performance

Low insertion loss less than 0.25dB, return loss more than 50dB. Carrier-grade cable assemblies reduce bending loss to ensure good transmission performance.
Rigorously Quality Test

Each OS2 Single-mode fiber is individually and rigorously tested to be within accurate optical insertion loss.
Quality Certifications

Conforms with TIA/EIA-604, ITU-652.D, and IEC-61754 standards and complies with RoHS specifications.

Wide Application

LC to SC OS2 Single-mode fiber is specially designed for reliable, long-distance, Ethernet connectivity between switches, servers, routers, Firewalls, SFP+ transceivers, media converters, patch panels, and other SMF optical equipment.

Exceptional Transmission Performance

Low insertion loss less than 0.25dB, return loss more than 50dB. Carrier-grade cable assemblies reduce bending loss to ensure good transmission performance.

Rigorously Quality Test

Each OS2 Single-mode fiber is individually and rigorously tested to be within accurate optical insertion loss.

Quality Certifications

Conforms with TIA/EIA-604, ITU-652.D, and IEC-61754 standards and complies with RoHS specifications.

Applications

Questions & Answers

more+

I want to transfer the duplex cable to a simplex cable, what should I do?

You can remove the buckle on the connector of the LC duplex fiber cable so that you can get the simplex cable immediately.

See more +
