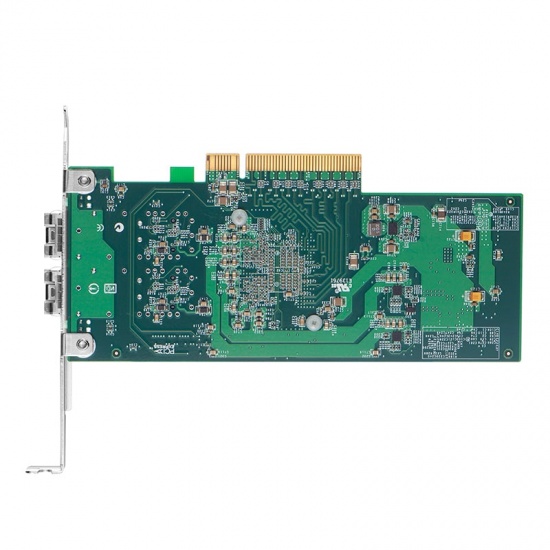

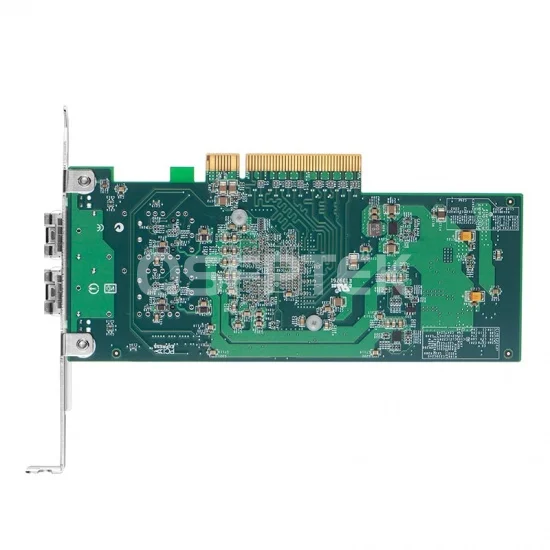

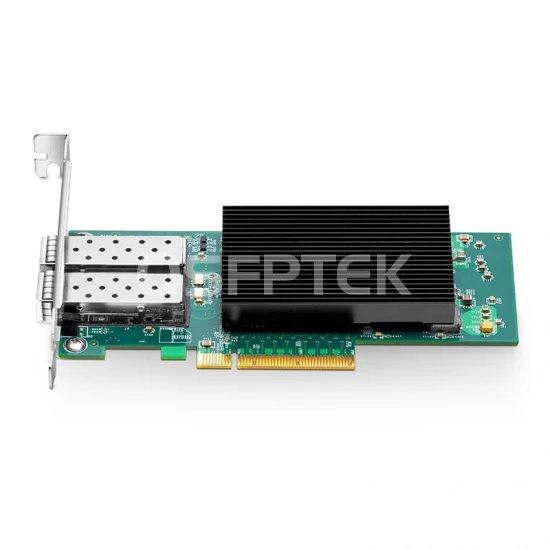

Intel XXV710-AM2 Network Interface Card, 25G Dual-Port SFP28, PCIe 3.0 X 8, Half & Full Bracket

Product No :100606
US$ 347.00  US$ 439.00
Accessory Series
100 in stock
;jsessionid=DE3AF2E385EC4B039DC2695B7AA39804
-
+
1. Features a PCIe 3.0 x 8 host interface and supports dual-port transmission at 25GbE
2. Advanced Traffic Steering improves TPS and reduces latency for cloud-based applications
3. Dynamic Device Personalization (DDP) increases packet processing efficiency
4. The Data Plane Development Kit (DPDK) is optimized for efficient packet processing
5. The device supports I/O virtualization innovations, including VMDq, PCI-SIG, and SR-IOV implementation
6. Unified Networking delivers LAN, iSCSI, NFS, and FCoE functionalities in a single, low-cost CNA
7. Network virtualization offloads, including Geneve, VXLAN, and NVGRE, are supported
See more

Specifications

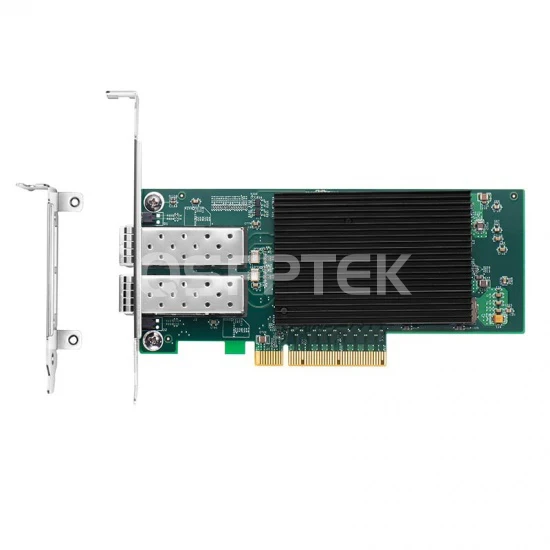

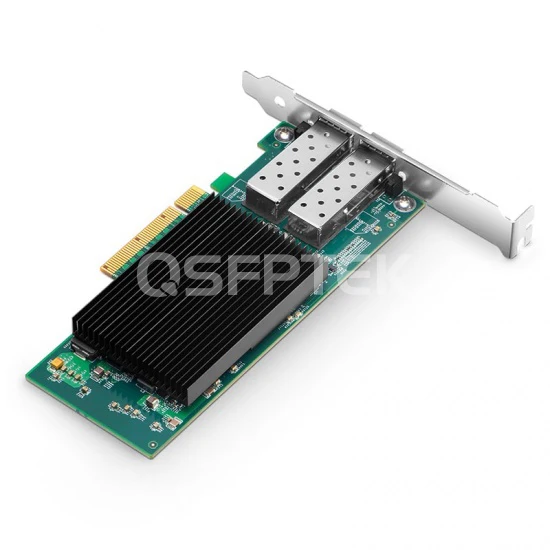

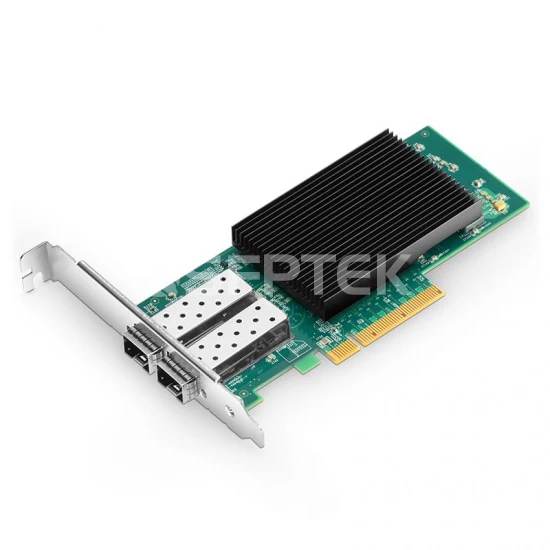

25G Dual Port SFP28 Intel XXV710-AM2 Ethernet Network Interface Card



The network interface card (NIC) with 2 25Gb ports is built on the Intel XXV710-AM2 controller to enhance server connectivity and network virtualization. The adapter utilizes a PCIe 3.0 x8 host interface, providing ample bandwidth for line rate traffic on 25Gb ports. In addition to supporting VMDq and SR-IOV, the NIC offers enhanced virtualization capabilities, making it an ideal choice for virtualized environments. Its design ensures broad interoperability, optimized performance, and improved flexibility for enterprise IT, cloud, and communication network solutions.



Ports

Dual

Controller

Intel XXV710-AM2

Supported Ethernet Speeds

1G/10G/25G

Host Interface

PCIe 3.0 x8

Cabling Type

SFP28 Transceiver, DAC and AOC

Link Rate

8.0 GT/s

Connectivity (VT-c)

Yes

OS Support

Windows, Linux, VMware, FreeBSD

Bracket Height

Half & Full

Max. Power Consumption

14W

Storage Humidity

90% max. non-condensing relative humidity at 35ºC

Storage Temperature

-40 °C to 70 °C (-40 °F to 158 °F)

Operating Humidity

85% max. non-condensing relative humidity

Operating Temperature

0 °C to 55 °C (32 °F to 131 °F)

Card PCB Dimensions (WxD)

160*68.8*1.6mm

RoHS R6 Compliant

Yes

Quality Testing Program
Quality Certifications

Features

  • Superior Compatibility
    Tested on multiple servers for high compatibility, available mainstream brands include Dell, HP, IBM, and Supermicro to allow convenient connectivity
  • Stable and Efficient Transmission
    Designed with cutting-edge Intel technology to deliver high performance, enable seamless 25G transmission for a cost-effective solution
  • Scalable Virtualization Technolog
    VLMB and VXLAN support advanced virtualization functionality, optimizing the operability and manageability of the network environment.
  • Quality Assurance
    Backed by CE, FCC, ROSH, ISO9001.

Product details

Flexible Server Connectivity with Intel XXV710-AM2 Chip



Boost agility in Cloud, Communications and Enterprise IT networks with the versatile and interoperable Intel XXV710-AM2 Chip.








Simplified I/O Virtualization with Intel VT



Intel VT eliminates VMM channels, and improves I/O performance, and availability while reducing overall cost.








Simplifying FC SAN Architecture with FCoE



FCoE allows direct FC communication over Ethernet, reducing the complexity and costs of SAN architecture.

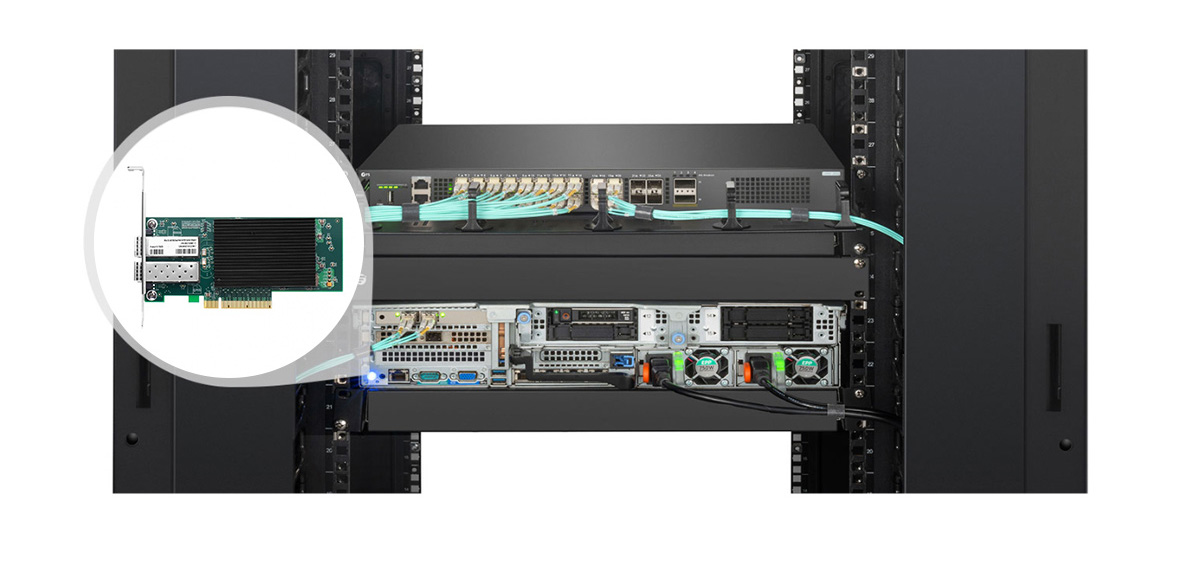

Intel Ethernet Adapters Compatible with Mainstream Servers



Intel Ethernet adapters work with Dell, HP, IBM, Supermicro, Inspur, Lenovo servers, and other mainstream devices.




;jsessionid=DE3AF2E385EC4B039DC2695B7AA39804

Questions & Answers

more+
  • Will this NIC work on Windows Server 2019?
    Yes, it works fine on Windows Server 2019.
  • Can this NIC be used on an AMD motherboard?
    Yes, this network card will work on any motherboard that has a PCle slot.
  • If this card can be used for Windows 10 operation system?
    Yes, these NICs support link aggregation with windows 10.
