1. Features a PCIe 4.0 x 16 host interface and supports single-port transmission at 100GbE. 2. Advanced Traffic Steering improves TPS and reduces latency for cloud-based applications. 3. Dynamic Device Personalization (DDP) increases packet processing efficiency. 4. The Data Plane Development Kit (DPDK) is optimized for efficient packet processing. 5. The device supports I/O virtualization innovations, including VMDq, PCI-SIG, and SR-IOV implementation. 6. Unified Networking delivers LAN, iSCSI, NFS, and FCoE functionalities in a single, low-cost CNA. 7. Network virtualization offloads, including Geneve, VXLAN, and NVGRE, are supported.See more

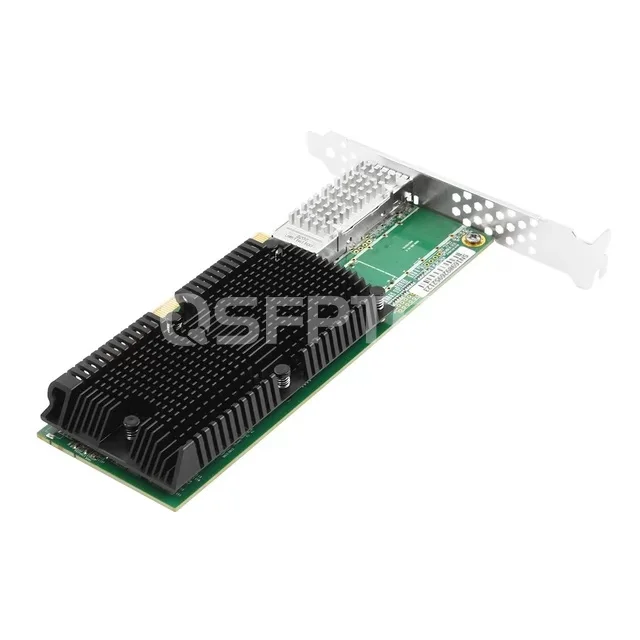

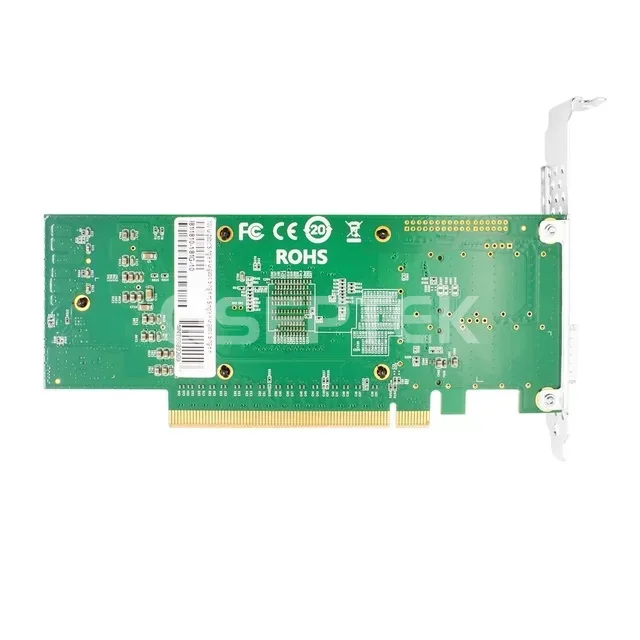

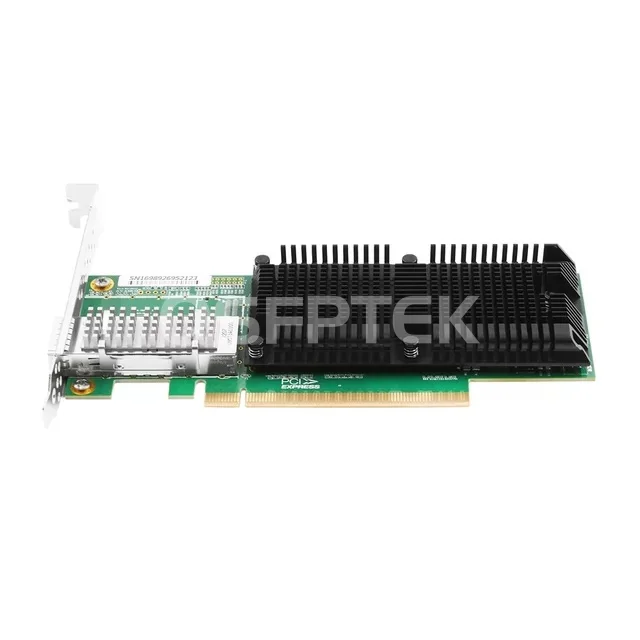

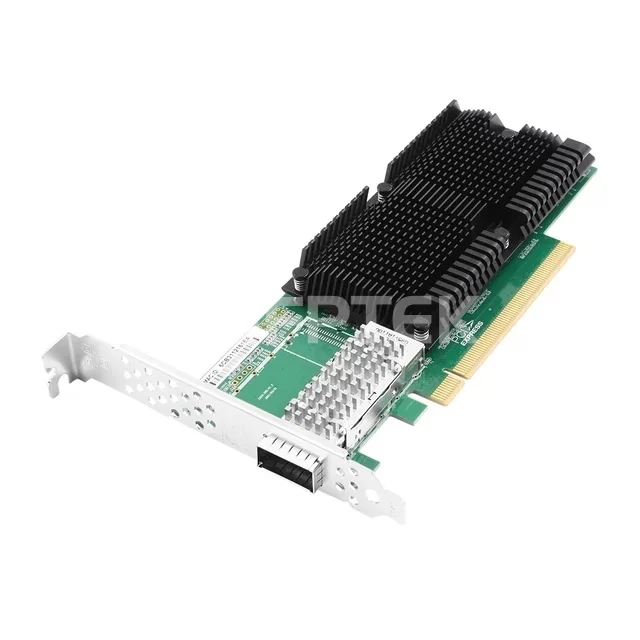

The network interface card (NIC) with 1 100Gb port is built on the Intel E810-CAM1 controller to enhance server connectivity and network virtualization. The adapter utilizes a PCIe 4.0 x16 host interface, providing ample bandwidth for line rate traffic on 40Gb ports. In addition to supporting VMDq and SR-IOV, the NIC offers enhanced virtualization capabilities, making it an ideal choice for virtualized environments. Its design ensures broad interoperability, optimized performance, and improved flexibility for enterprise IT, cloud, and communication network solutions.
|
Ports |
Single |
Controller |
Intel E810-CAM1 |
|
Supported Ethernet Speeds |
10G/25G/50G/100G |
Host Interface |
PCIe 6.0 x16 |
|
Cabling Type |
QSFP28 Transceiver, DAC and AOC |
Link Rate |
|
|
Connectivity (VT-c) |
Yes |
OS Support |
Windows, Linux, VMware, FreeBSD |
|

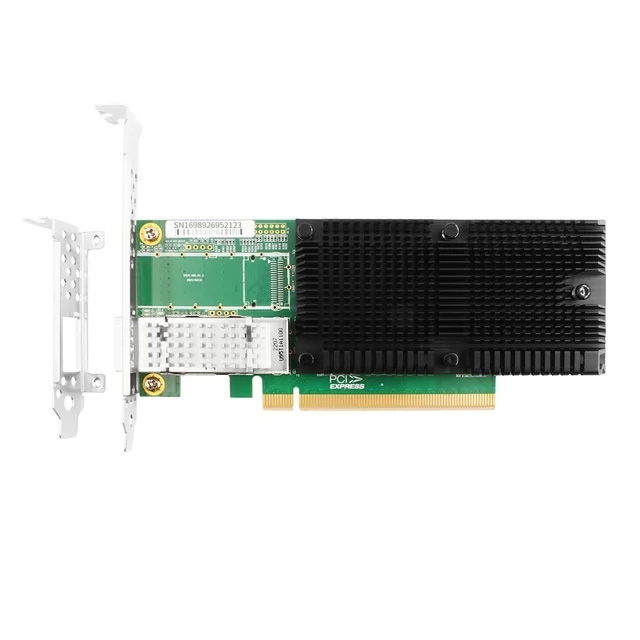

Bracket Height |
Half & Full |
Max. Power Consumption |
19.2W (DAC),27.1W(AOC) |
|
Storage Humidity |
90% max. non-condensing relative humidity at 35ºC |
Storage Temperature |
-40 °C to 70 °C (-40 °F to 158 °F) |
|
Operating Humidity |
85% max. non-condensing relative humidity |
Operating Temperature |
0 °C to 55 °C (32 °F to 131 °F) |
|
Card PCB Dimensions (WxD) |
165*69*1.6mm |
RoHS R6 Compliant |
Yes |
Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m Optical Transceiver Module
2m (7ft) MTP-12 (Female) to MTP-12 (Female) OM4 Trunk Cable, 12 Fibers, Type B, Plenum (LSZH)
Related Products:
LC UPC to LC UPC Duplex OM4 2.0mm PVC Multimode Fiber Optic Patch Cable 1m
Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m Optical Transceiver Module
2m (7ft) MTP-12 (Female) to MTP-12 (Female) OM4 Trunk Cable, 12 Fibers, Type B, Plenum (LSZH)
Related Products:

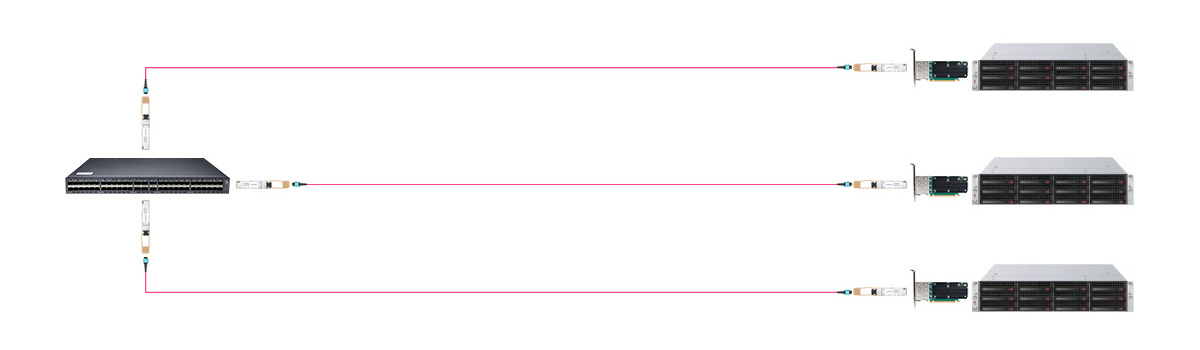

S7300-48X2Q4C, 48-Port Ethernet L3 Campus SFP+ Switch, 48x 10Gb SFP+, with 2x 40Gb QSFP+ and 4x 100Gb QSFP28 Uplinks, Stackable
Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m Optical Transceiver Module
2m (7ft) MTP-12 (Female) to MTP-12 (Female) OM4 Trunk Cable, 12 Fibers, Type B, Plenum (LSZH)
Boost agility in Cloud, Communications and Enterprise IT networks with the versatile and interoperable E810-CAM1 Chip.
Intel VT eliminates VMM channels, and improves I/O performance, and availability while reducing overall cost.
FCoE allows direct FC communication over Ethernet, reducing the complexity and costs of SAN architecture.
Intel Ethernet Adapters are compatible with various network operating systems including Windows, Linux, VMware, FreeBSD, and UEFI
Intel Ethernet adapters work with Dell, HP, IBM, Supermicro, Inspur, Lenovo servers, and other mainstream devices.
