Intel 82599ES Network Interface Card, 10G 2 × SFP+ Port , PCIe 2.0 X 8, Half & Full Bracket

Product No :100611
US$ 103.00  US$ 169.00
Accessory Series
100 in stock
;jsessionid=FF121E3B1D82DC10230E166EF23A00B4
-
+
1. Features a PCIe 2.0 x 8 host interface and supports dual-port transmission at 10GbE.
2. Advanced Traffic Steering improves TPS and reduces latency for cloud-based applications.
3. Dynamic Device Personalization (DDP) increases packet processing efficiency.
4. The Data Plane Development Kit (DPDK) is optimized for efficient packet processing.
5. The device supports I/O virtualization innovations, including VMDq, PCI-SIG, and SR-IOV implementation.
6. Unified Networking delivers LAN, iSCSI, NFS, and FCoE functionalities in a single, low-cost CNA.
7. Network virtualization offloads, including Geneve, VXLAN, and NVGRE, are supported.
See more

Specifications

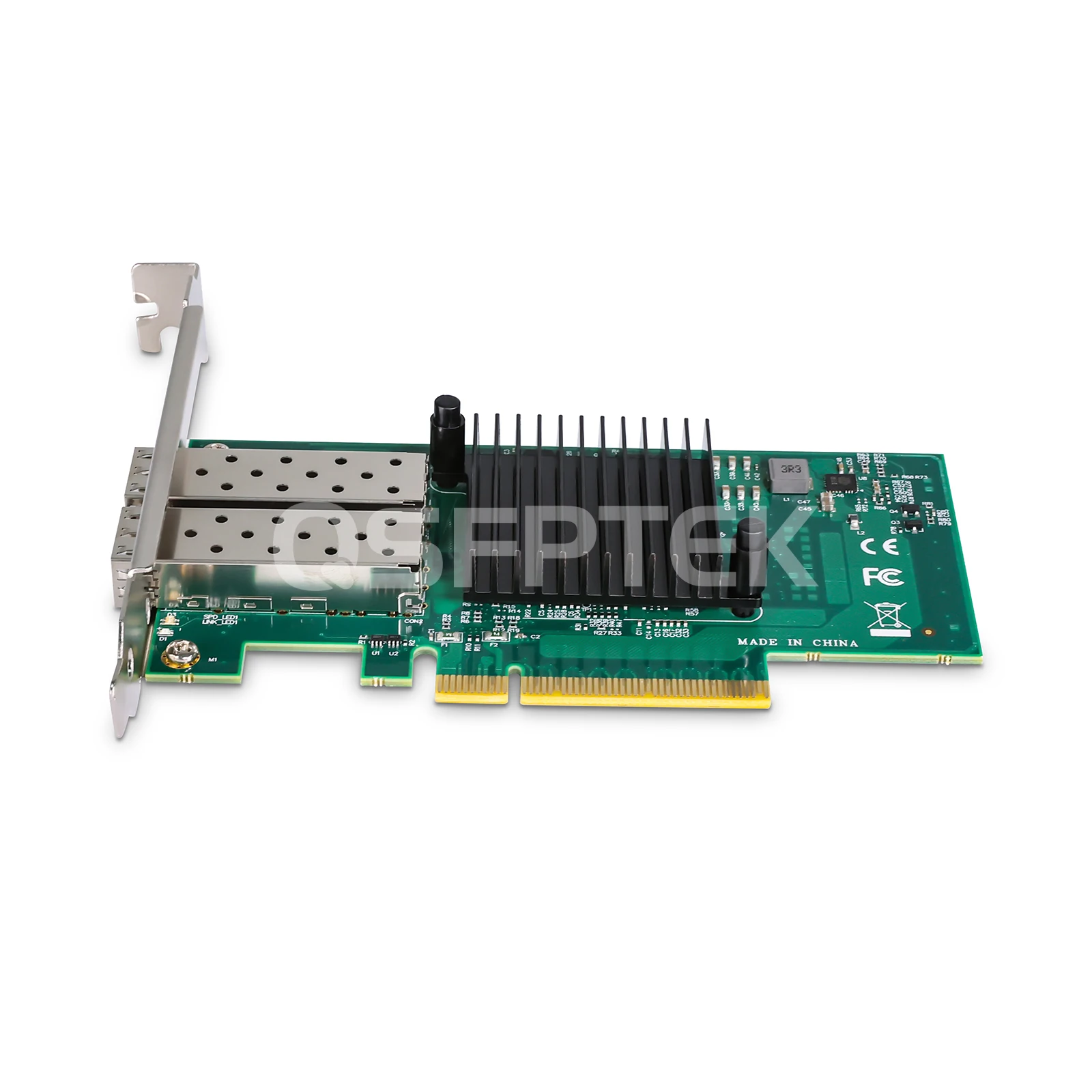

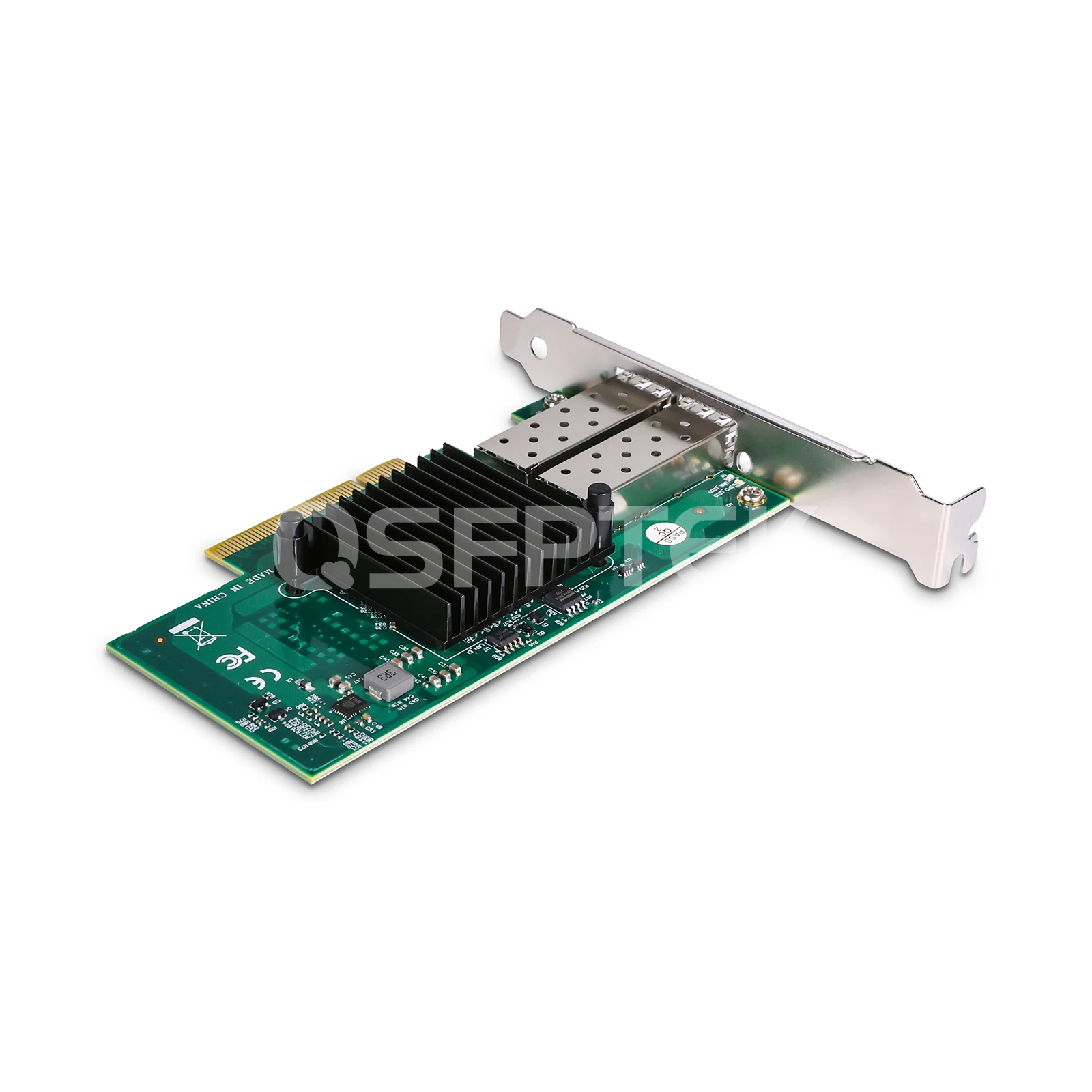

10G Dual Port SFP+ Intel 82599ES Ethernet Network Interface Card



The network interface card (NIC) with 2 10Gb ports is built on the Intel 82599ES controller to enhance server connectivity and network virtualization. The adapter utilizes a PCIe 2.0 x8 host interface, providing ample bandwidth for line rate traffic on 10Gb ports. In addition to supporting VMDq and SR-IOV, the NIC offers enhanced virtualization capabilities, making it an ideal choice for virtualized environments. Its design ensures broad interoperability, optimized performance, and improved flexibility for enterprise IT, cloud, and communication network solutions.



Ports

Dual

Controller

Intel 82599ES

Supported Ethernet Speeds

1G/10G

Host Interface

PCIe 2.0 x8

Cabling Type

QSFP+Transceiver, DAC and AOC

Link Rate

5.0 GT/s

Connectivity (VT-c)

Yes

OS Support

Windows, Linux, VMware, FreeBSD

Bracket Height

Half & Full

Max. Power Consumption

5.8W

Storage Humidity

90% max. non-condensing relative humidity at 35ºC

Storage Temperature

-40 °C to 70 °C (-40 °F to 158 °F)

Operating Humidity

85% max. non-condensing relative humidity

Operating Temperature

0 °C to 55 °C (32 °F to 131 °F)

Card PCB Dimensions (WxD)

139.99x68.45mm

RoHS R6 Compliant

Yes

Quality Certifications

Features

  • High reliability and performance
    Harness the power of Intel chips for guaranteed low latency, ensuring lightning-fast and responsive connections.
  • Simplified 10GbE designs
    Experience a simplified 10 Gigabit Ethernet design that delivers high performance and reduced complexity
  • Advanced Virtualization
    Enhanced virtualization support, including VMDq and SR-IOV, makes this network card the ideal choice for virtualized environments.
  • Quality Certifications
    Certified by CE, FCC, ROSH, ISO9001, etc.

Product details

Flexible Server Connectivity with Intel I350-AM2 Chip



Boost agility in Cloud, Communications and Enterprise IT networks with the versatile and interoperable Intel I350-AM2 Chip.








Simplified I/O Virtualization with Intel VT



Intel VT eliminates VMM channels, improves I/O performance, and availability while reducing overall cost.






Simplifying FC SAN Architecture with FCoE



FCoE allows direct FC communication over Ethernet, reducing the complexity and costs of SAN architecture.

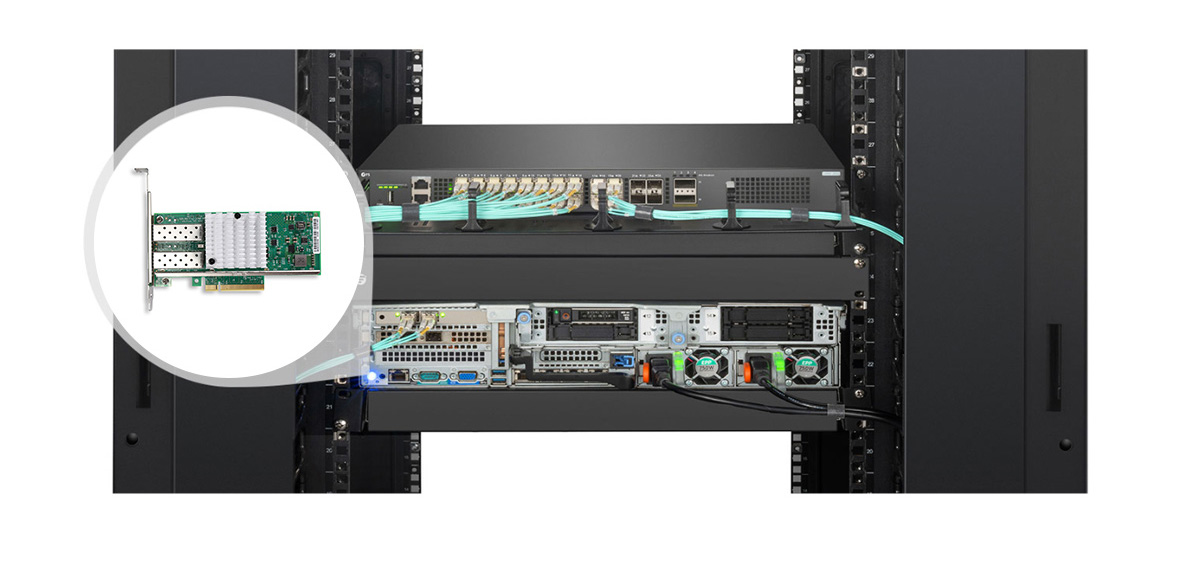

Intel Ethernet Adapters Compatible with Mainstream Servers



Intel Ethernet adapters work with Dell, HP, IBM, Supermicro, Inspur, Lenovo servers, and other mainstream devices.



Questions & Answers

more+
  • Will this NIC work on Windows Server 2019?
    Yes, it works fine on Windows Server 2019.
  • Can this NIC be used on an AMD motherboard?
    Yes, this network card will work on any motherboard that has a PCle slot.
  • If this card can be used for Windows 10 operation system?
    Yes, these NICs support link aggregation with windows 10.
See more

Customer Reviews

Write a Review
Write a Review

Total score

(1 Reviews)

5 stars

1 Reviews

4 stars

0 Reviews

3 stars

0 Reviews

2 stars

0 Reviews

1 stars

0 Reviews

  • Dominic J. Austria
    2023-07-21

    I made a purchase with high expectations for this card, hoping for excellent performance in my newly set up Debian 9 server. To my delight, it lived up to those expectations! I opted to connect it to my Windows 10 PC using SFP+ transceivers and fiber that I also acquired from QSFPTEK. Upon installation, the LED light on the back of the card promptly lit up, indicating a successful connection. And ever since then, I have maintained a stable and solid Ethernet link. I must admit, I am thoroughly impressed by this adapter. It not only met but exceeded my expectations, providing seamless connectivity and reliable performance for my server setup. I can confidently recommend this product to others seeking a similar solution. Kudos to the seller for offering such a fantastic product!
