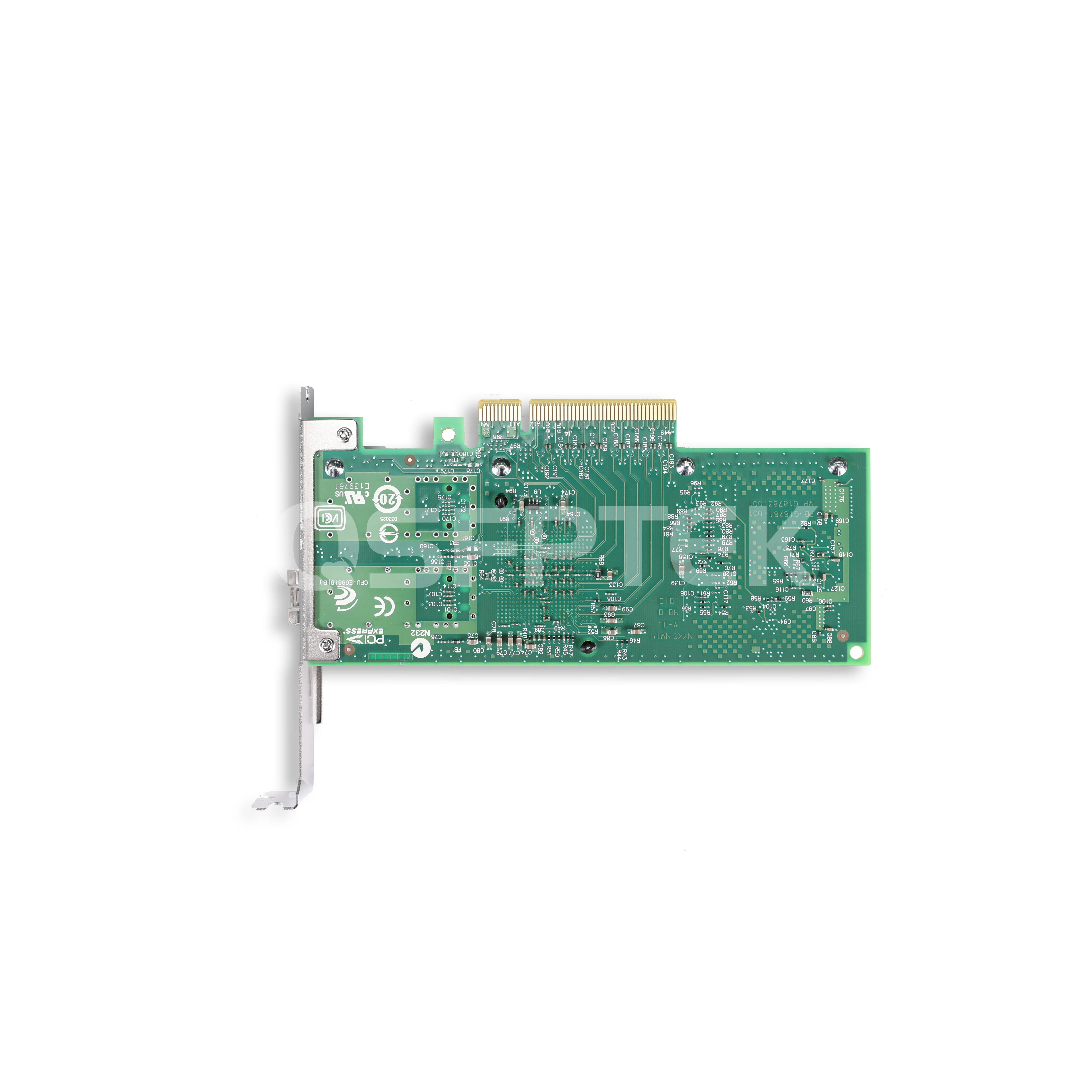

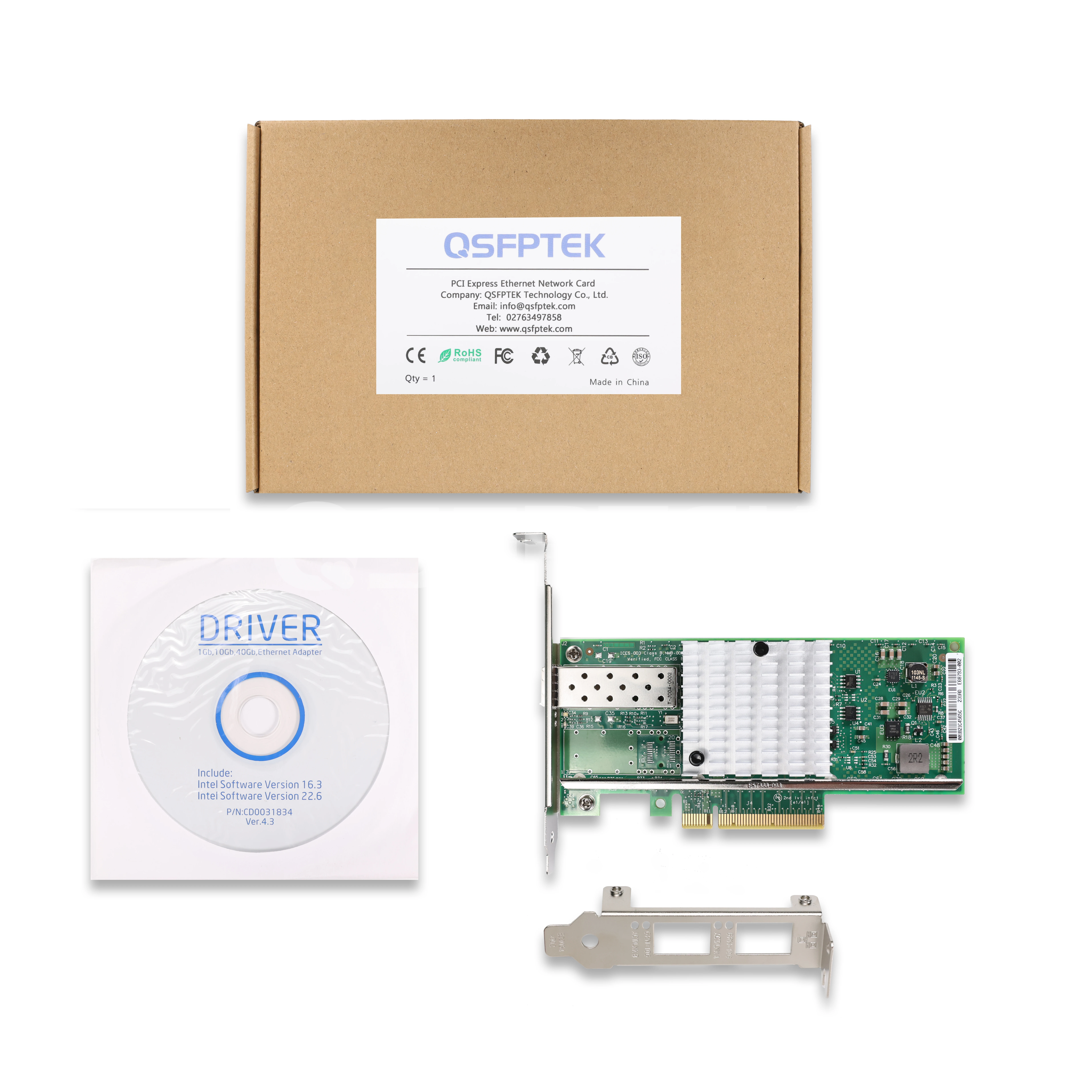

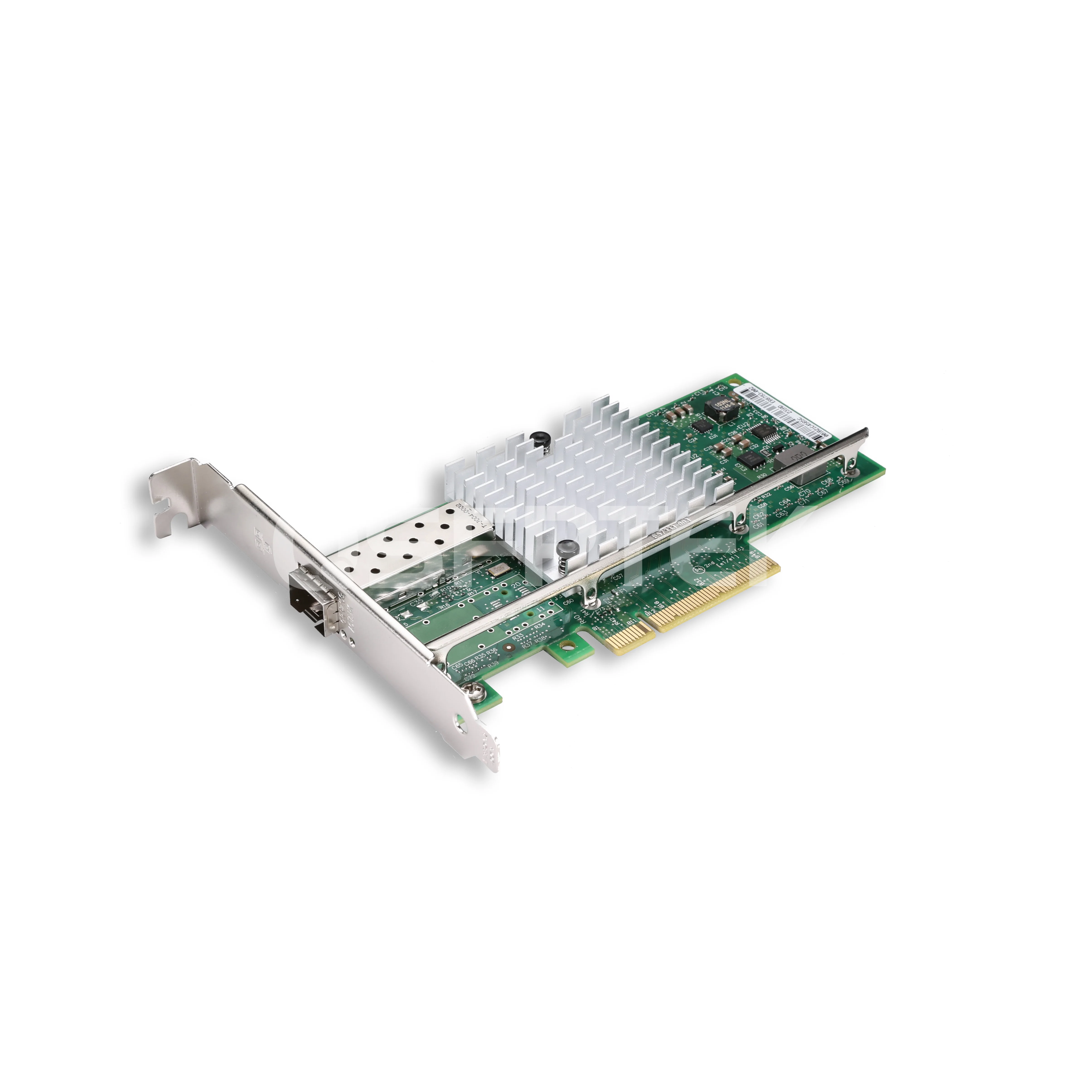

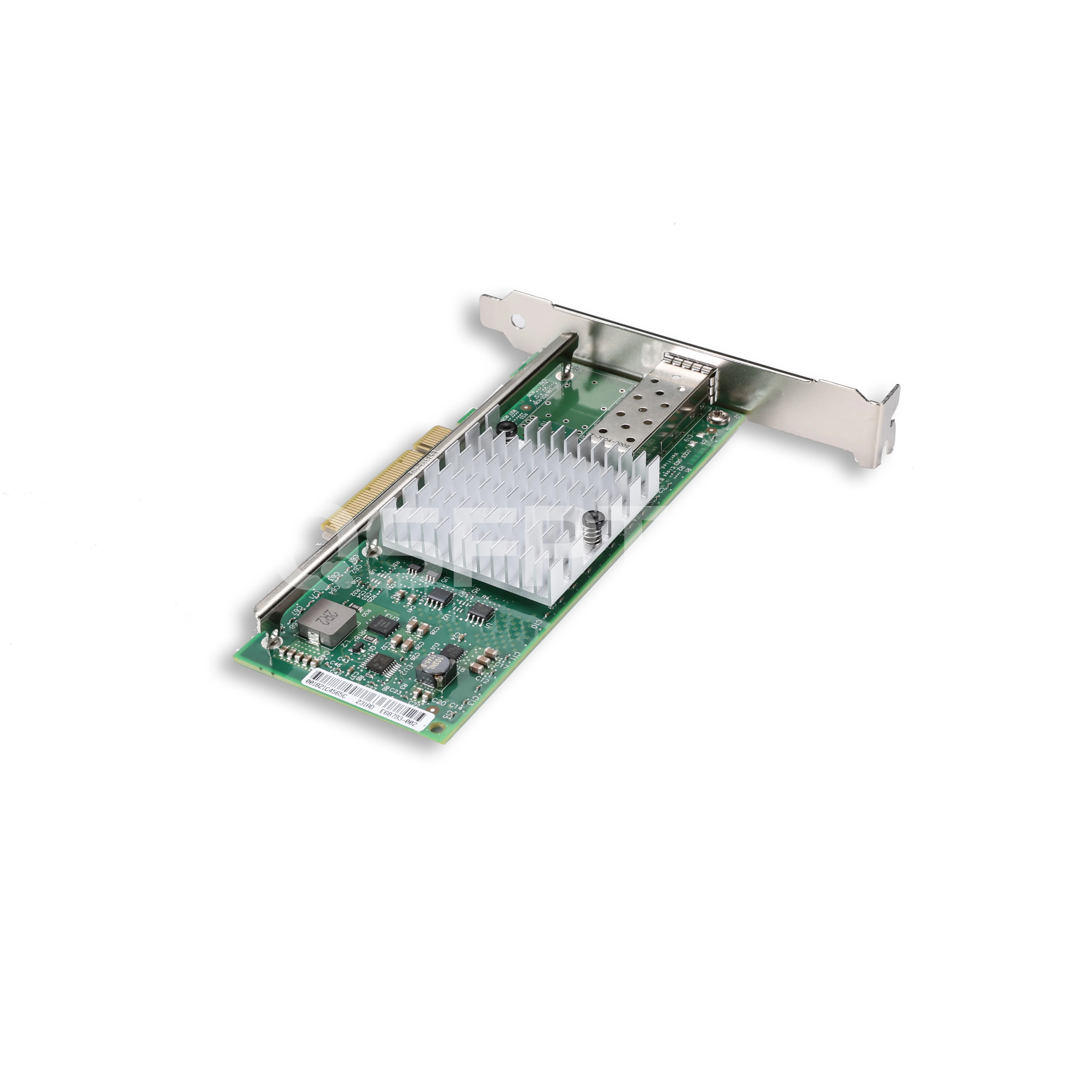

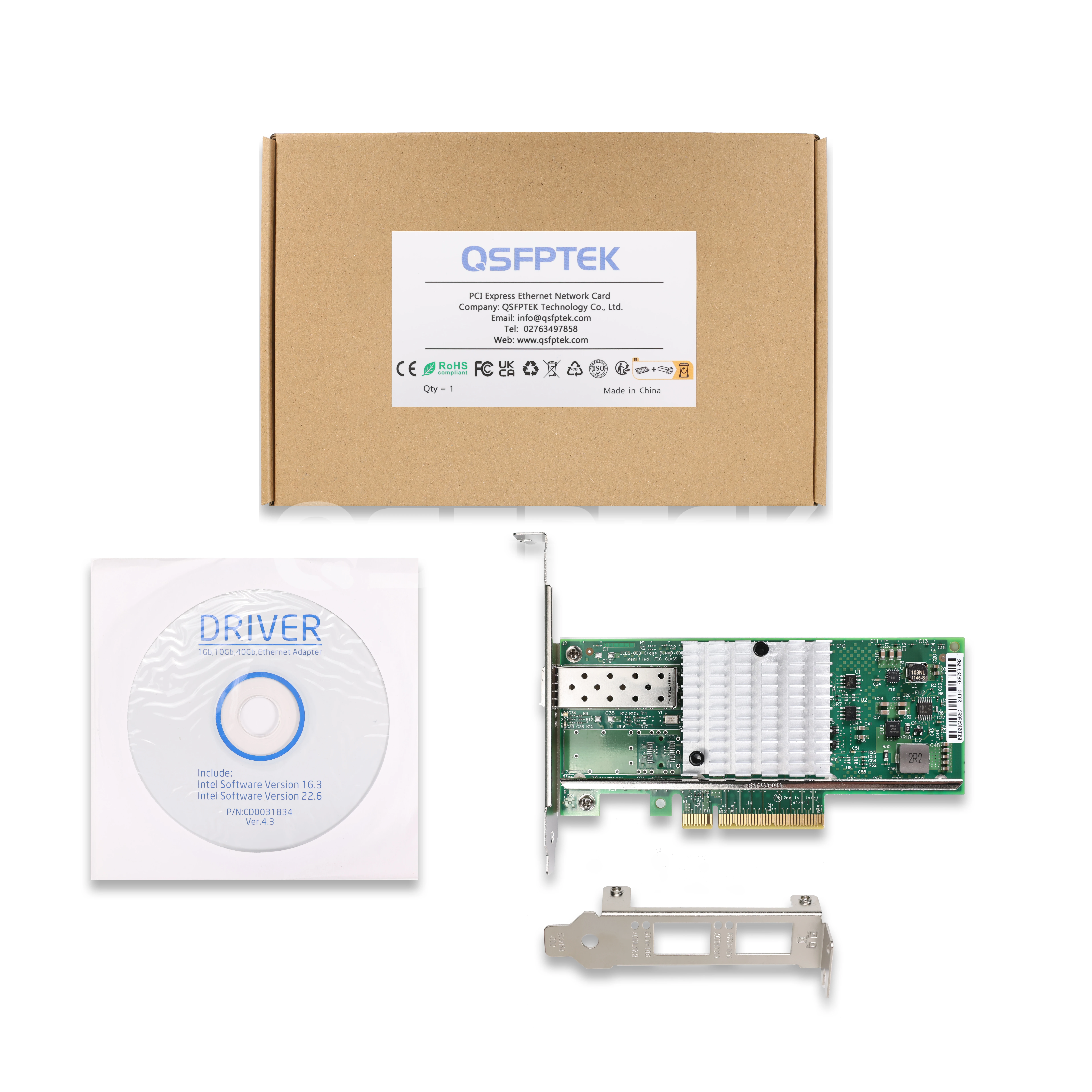

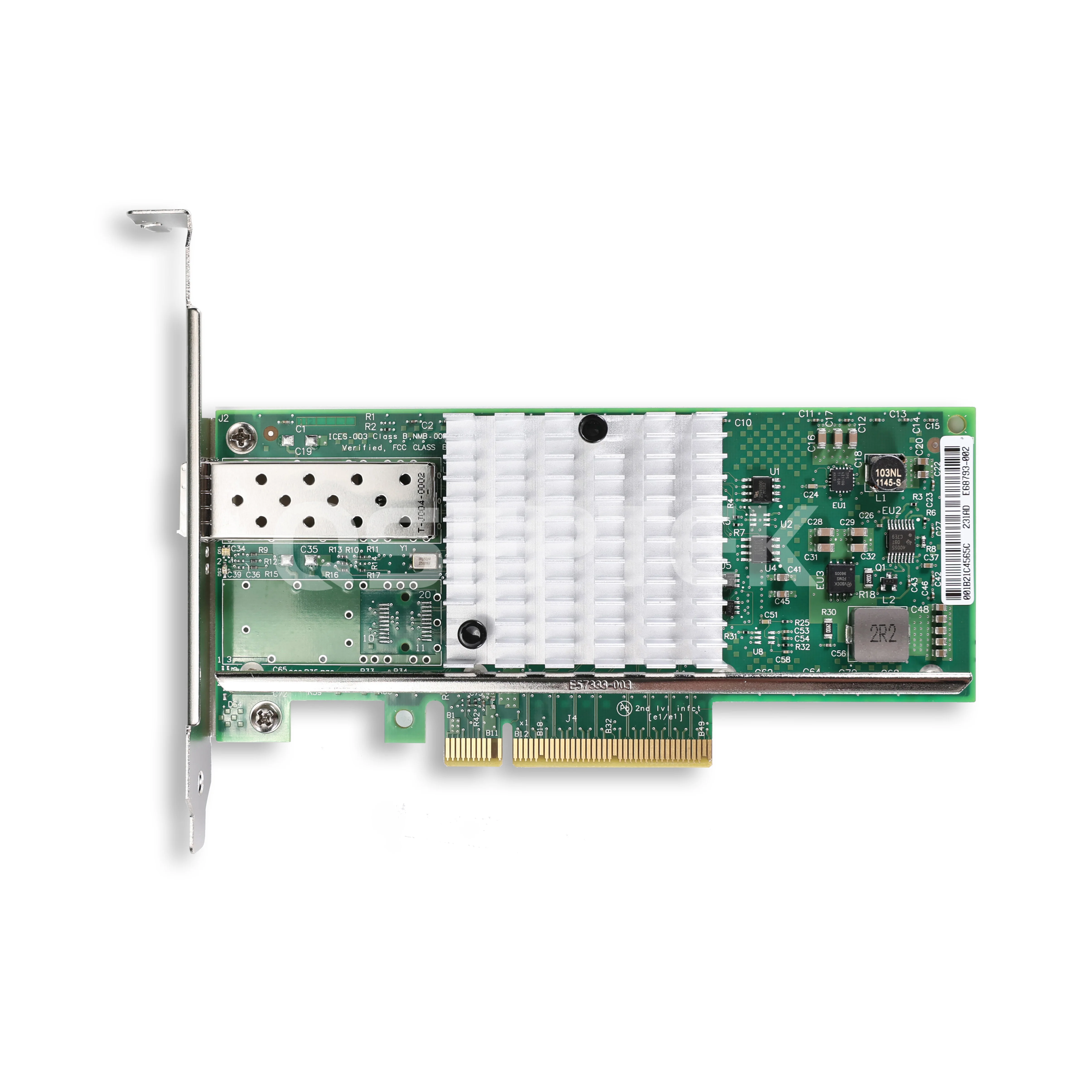

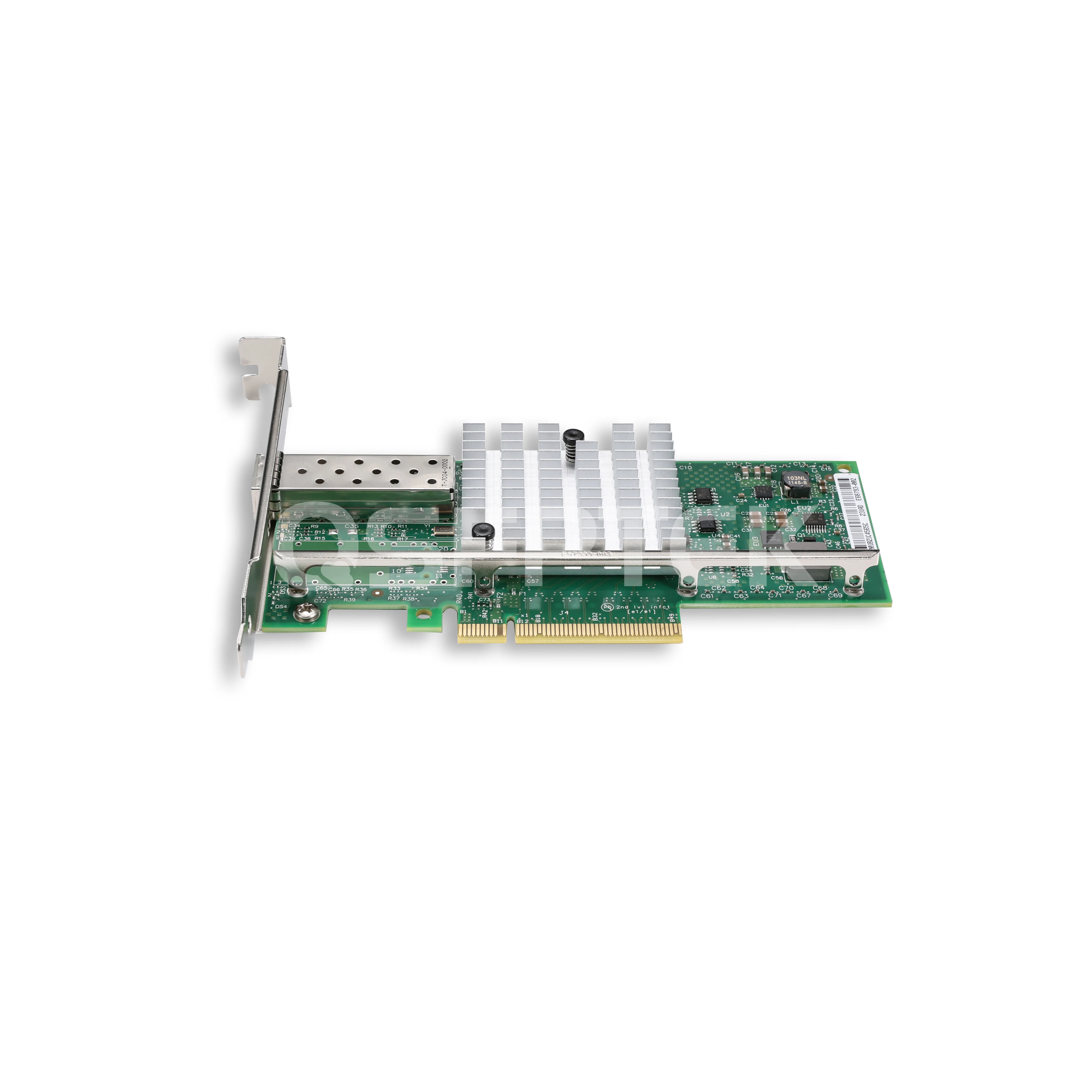

Intel 82599EN Based Network Interface Card, 10G Port SFP+, PCIe 2.0 X 8, Half & Full Bracket

Product No :100615
US$ 35.04  US$ 64.00
Accessory Series
Accessory Models
100 in stock
;jsessionid=2D4EB433ACB9D89A96841120FB3CA4B7
-
+
Add to Cart Bulk Order Quotes
1. Support for 64 virtual machines per port (64 VMs x 2 queues)
2. PCIe 2.0 x 8 Host Interface and 1GbE Port Transmission
3. Support for Data Center Bridging (DCB)(802.1Qaz, 802.1Qbb, 802.1p) Host Interface
4. Support for jumbo frames of up to 15.5 KB
5. 64-bit address support for systems using more than 4 GB of physical memory MAC FUNCTIONS
See more

Specifications

10G Single Port SFP+ Intel 82599EN Ethernet Network Interface Card

The network interface card (NIC) with a single 10Gb port is built on the Intel 82599EN controller to enhance server connectivity and network virtualization. The adapter utilizes a PCIe 2.0 x8 host interface, providing ample bandwidth for line rate traffic on 10Gb ports. The NIC offers enhanced virtualization capabilities, making it an ideal choice for virtualized environments. Its design ensures broad interoperability, optimized performance, and improved flexibility for enterprise IT, cloud, and communication network solutions.

Ports Single Controller Intel 82599EN
Supported Ethernet Speeds 10Gbps Host Interface PCIe 2.0 X 8
Cabling Type SFP Transceiver, AOC and DAC Link Rate 5.0 GT/s
Connectivity (VT-c) Yes OS Support Windows, Linux, VMware, FreeBSD
Bracket Height Half & Full Max. Power Consumption 4.8w
Storage Humidity 90% max. non-condensing relative humidity at 35ºC Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity 85% max. non-condensing relative humidity Operating Temperature 0 °C to 55 °C (32 °F to 131 °F)
Card PCB Dimensions (WxD) 168.9*68.9*1.6mm RoHS R6 Compliant Yes

Quality Certifications

Features

  • High reliability and performance
    Harness the power of Intel chips for guaranteed low latency, ensuring lightning-fast and responsive connections.
  • Simplified 10GbE designs
    Experience a simplified 10 Gigabit Ethernet design that delivers high performance and reduced complexity
  • Advanced Virtualization
    Enhanced virtualization support, including VMDq and SR-IOV, makes this network card the ideal choice for virtualized environments.
  • Quality Certifications
    Certified by CE, FCC, ROSH, ISO9001, etc.

Applications

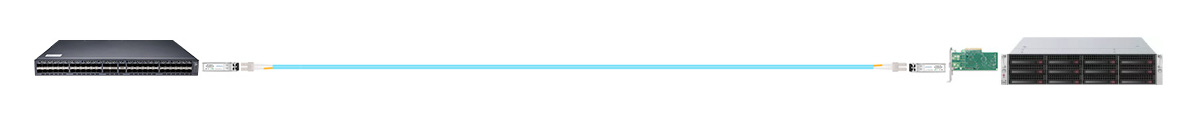

Scenario 1

Related Products:

S7300-48X2Q4C

Cisco SFP-10G-SR 10GBASE-SR SFP+ Transceiver Module

LC UPC to LC UPC Duplex Om3 2.0mm PVC Fiber Optic Patch Cable 0.5m

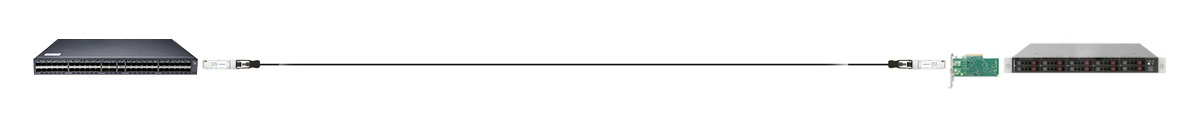

Scenario 2

Related Products:

S7300-48X2Q4C

1M Intel XDACBL1M Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable

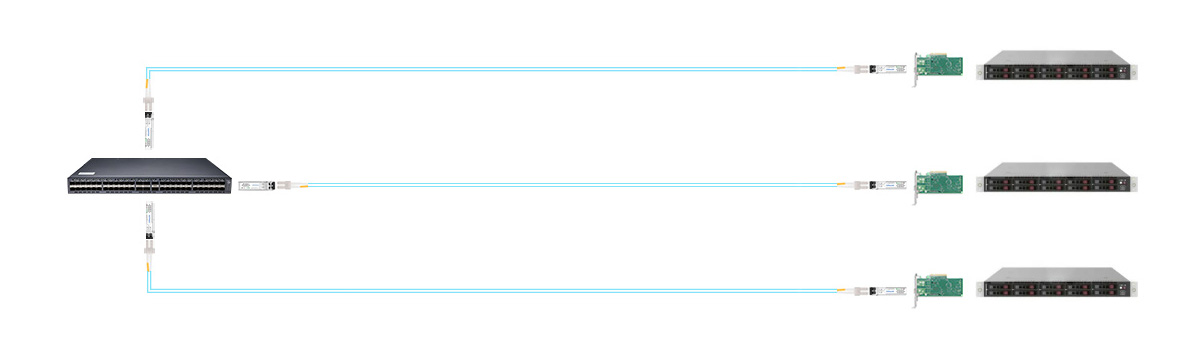

Scenario 3

Related Products:

S7300-48X2Q4C

Cisco SFP-10G-SR 10GBASE-SR SFP+ Transceiver Module - QSFPTEK

LC UPC to LC UPC Duplex Om3 2.0mm PVC Fiber Optic Patch Cable 0.5m

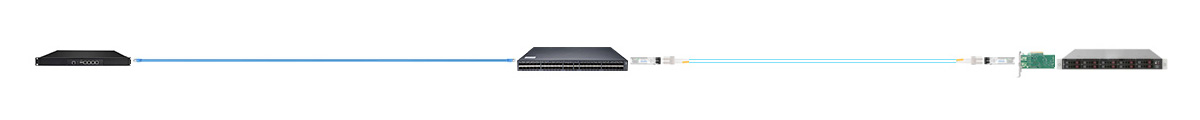

Scenario 4

Related Products:

S7300-48X2Q4C

Cisco SFP-10G-SR 10GBASE-SR SFP+ Transceiver Module - QSFPTEK

LC UPC to LC UPC Duplex Om4 2.0mm PVC Fiber Optic Patch Cable 1m







Product details

Flexible Server Connectivity with Intel 82599EN Chip



Boost agility in Cloud, Communications and Enterprise IT networks with the versatile and interoperable Intel 82599EN Chip







Simplified I/O Virtualization with Intel VT



Intel VT eliminates VMM channels, and improves I/O performance, and availability while reducing overall cost.



Simplifying FC SAN Architecture with FCoE



FCoE allows direct FC communication over Ethernet, reducing the complexity and costs of SAN architecture

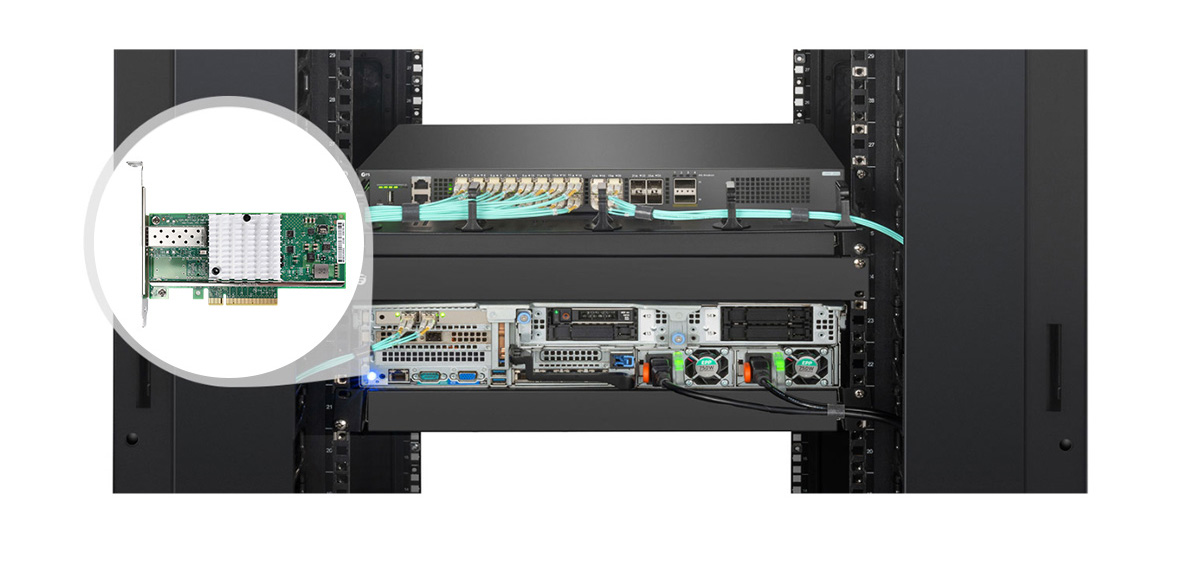

Intel Ethernet Adapters Compatible with Mainstream Servers



Intel Ethernet adapters work with Dell, HP, IBM, Supermicro, Inspur, Lenovo servers, and other mainstream devices.

Compatibility of Intel Ethernet Adapters with Major OS

Intel Ethernet Adapters are compatible with various network operating systems including Windows, Linux, VMware, FreeBSD, and UEFI







;jsessionid=2D4EB433ACB9D89A96841120FB3CA4B7

Questions & Answers

more+
  • Will this NIC work on Windows Server 2019?
    Yes, it works fine on Windows Server 2019.
  • Can this NIC be used on an AMD motherboard?
    Yes, this network card will work on any motherboard that has a PCle slot.
  • If this card can be used for Windows 10 operation system?
    Yes, these NICs support link aggregation with windows 10.
