Home / Products / Network switches / Media Converters / Copper to Fiber Media Converters / 100694

QT-10G-MC1S1T, 1x 100M/1G/2.5G/5G/10GBase-T RJ45 to 1x 10GBase-X SFP+ Slot 10 Gigabit Ethernet Media Converter, DC 5~12V

Product No :100694
US$ 79.90  US$ 99.00
Series
Models
100 in stock
;jsessionid=C989408D9E198E3C89EF0130C9466852
-
+
Add to Cart Bulk Order Quotes
1. The Auto-Negotiation 1x 100M/1G/2.5G/5G/10GBase-T RJ45 to 1x 10GBase-X SFP+ port supports MDI/MDI-X adaptive functionality with a speed of 10Gbps.
2. A High-performance QoS function is available on each port to enhance network performance.
3. The low-power consumption chip includes a built-in heat sink, ensuring efficient and long-lasting operation.
4. LEDs provide convenient status indications for Ethernet and fiber link connections.
5. The maximum transmission distance is determined by the inserted modules.
See more

Specifications

10 Gigabit Ethernet Network Media Converter (1x 100M/1G/2.5G/5G/10GBase-T RJ45 to 1x 10GBase-X SFP+)



The 10G Base-T to 10G Base-R fiber optic transceivers offer support for two different media network connections: 10GBase-T and 10GBase-FX. These transceivers employ a 10Gbase Ethernet PHY chip design, enabling seamless integration between the two network segments. They can be used as standalone units or integrated as embedded modules in 19-inch converter racks for centralized wiring closets. The manufacturing process follows standard procedures to ensure reliability and safety of the product.



This series of transceivers facilitates the conversion of data signals between twisted pair and optical fiber transmission media, providing a solution for users of long-distance and high-speed Ethernet networks to meet their demands. It is particularly well-suited for telecommunications, broadcasting, and broadband network users, delivering a dependable and secure high-speed Ethernet connection.



Ports

1 x 100M/1G/2.5G/5G/10GBase-T RJ45 Port

1 x 10GBase-X SFP+ Port

Standards and Protocols

IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz,

IEEE 802.3an, IEEE 802.3ae, IEEE 802.3x

Cable Type (Fiber)

Multimode 50/125µm, 62.5/125µm

Single-mode 9/125µm

Cable Type (Copper)

UTP Cat 5, 5e, 6 Cable (Maximum 100m)

EIA/TIA-568 100Ω STP (Maximum 100m)

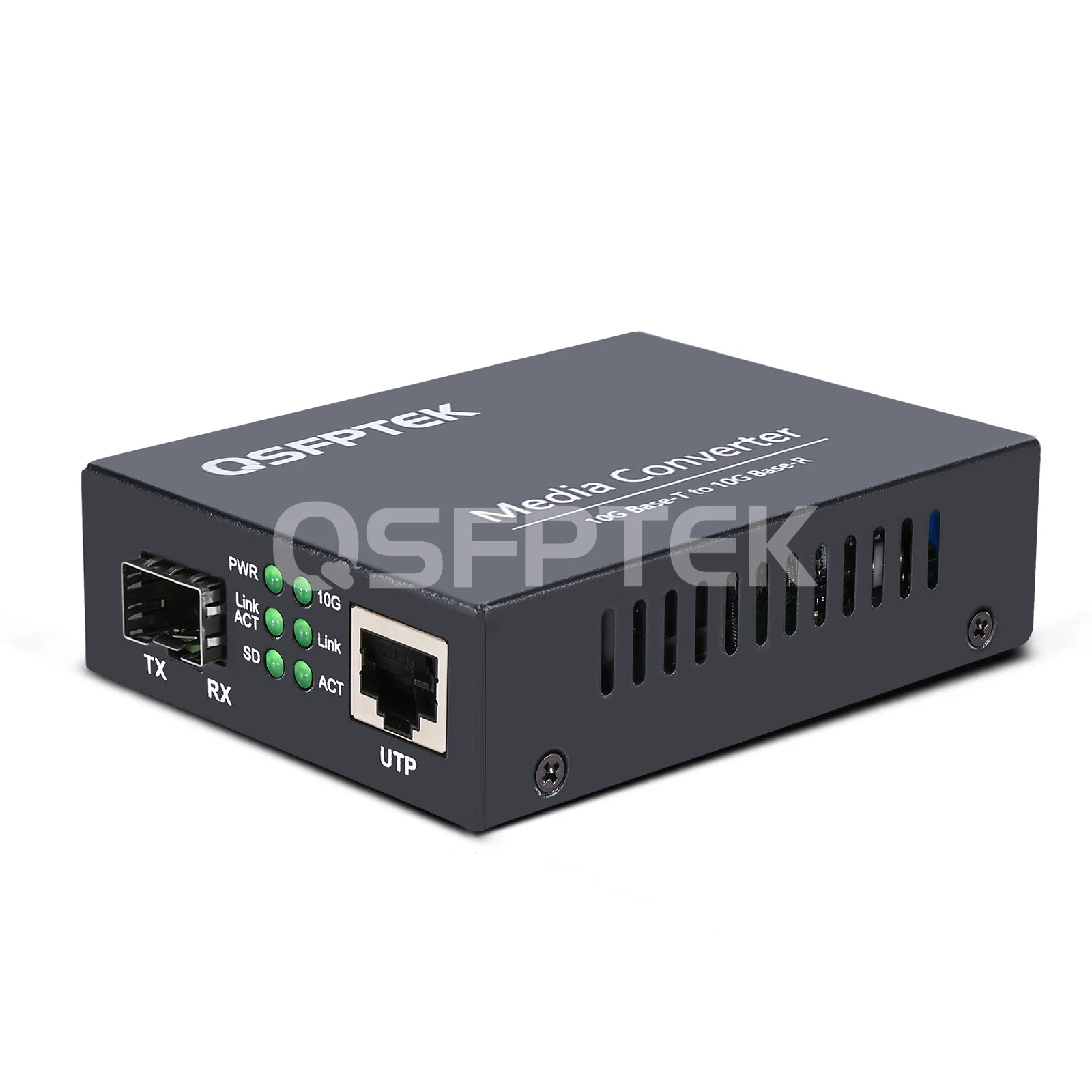

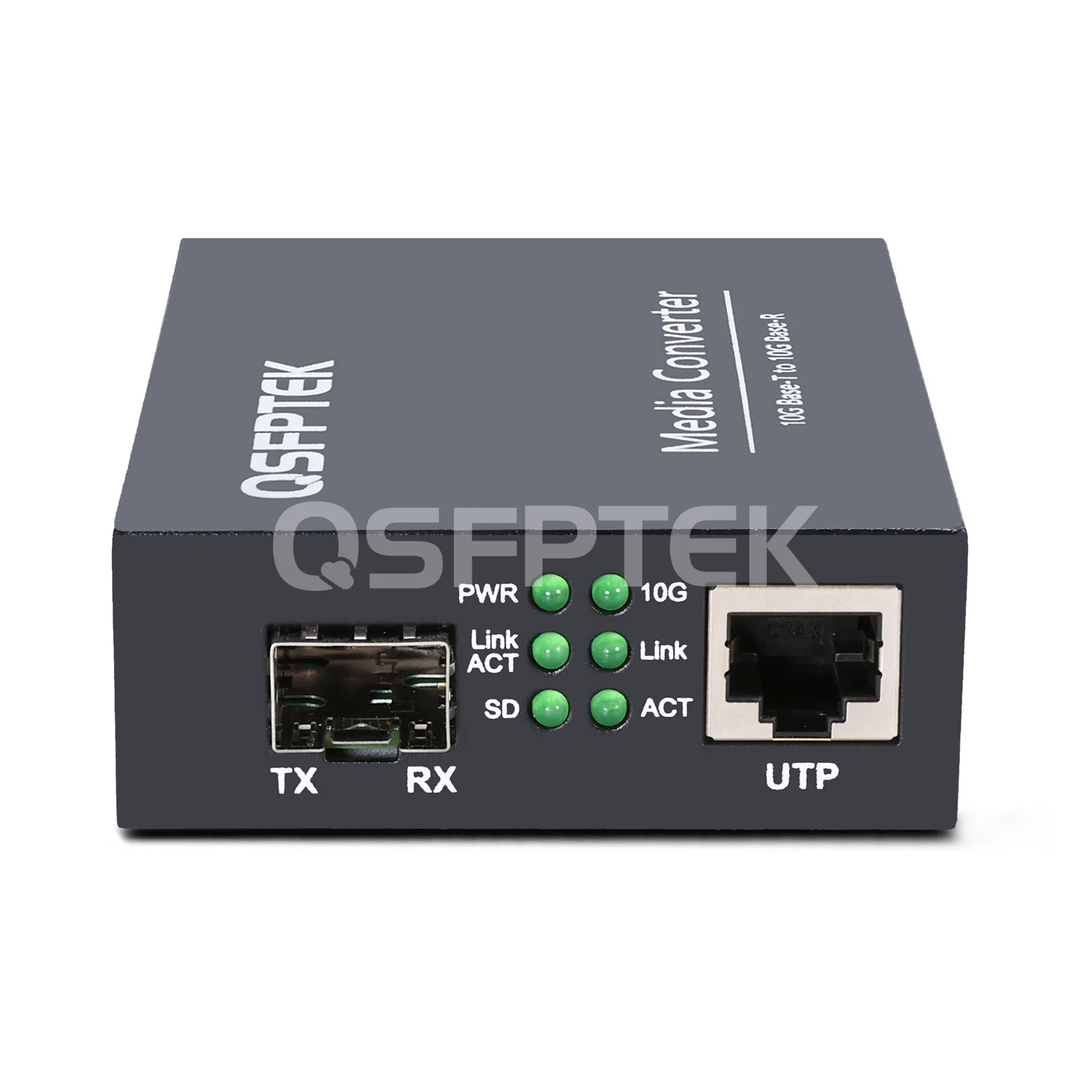

LED Indicators

TP/LNK, SPD, FX/LNK, PWR

DIP Switch

LFP/ ALS/ FX Speed/FX Reset

Power Consumption

Full-load<5W

Without Module≤2W

Jumbo Frame

16k

Operation Mode

10/100Mbps for Half/Full duplex

1000Mbps for Full Duplex

Dimensions (HxWxD)

94mm*70mm*26mm

MTBF (hrs)

>50,000Hrs

Latency

3us Ultra-low

Operating Temperature

0°C to 50°C

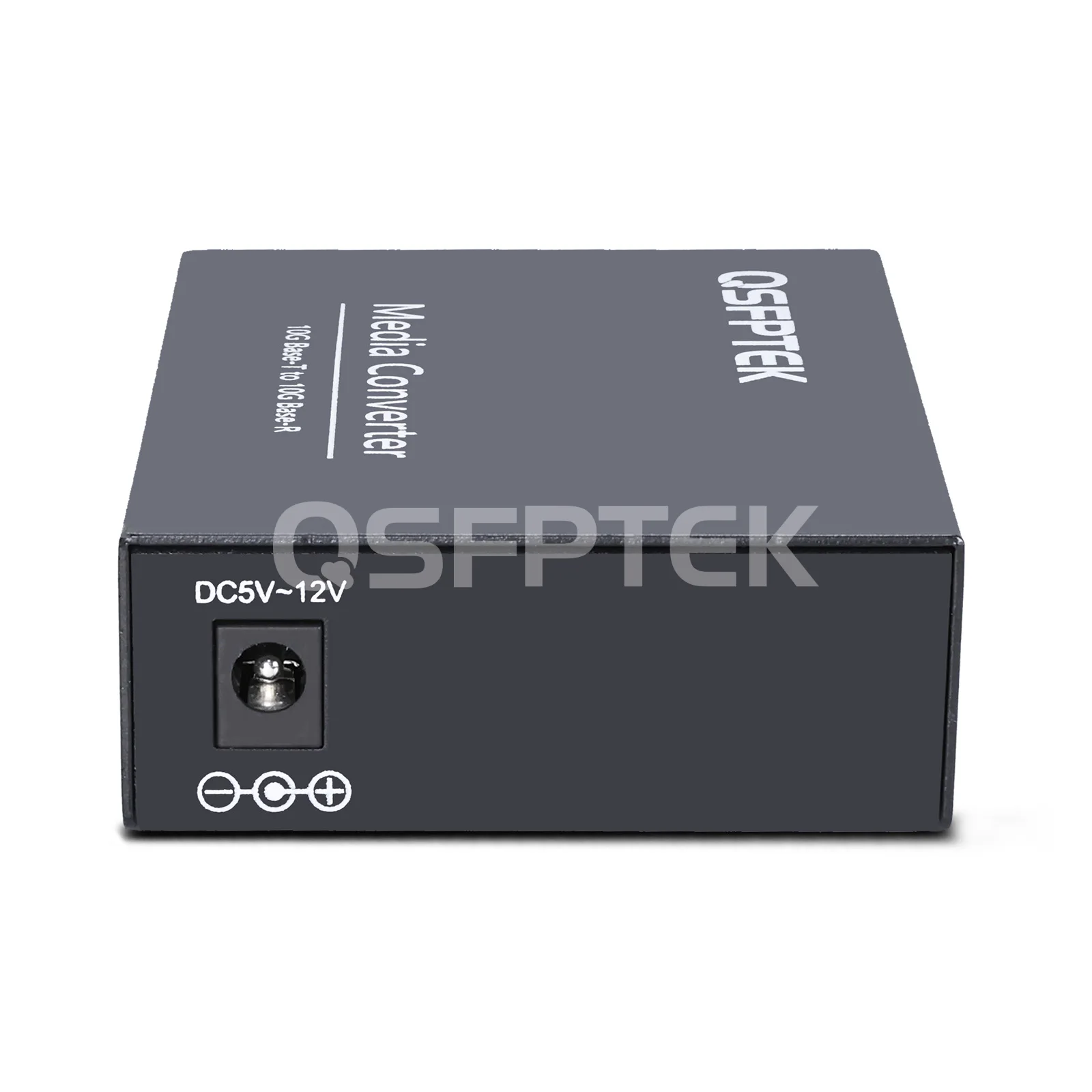

Input Power

DC 5-12V

Relative Humidity

5%~90% (Non-condensation)

Warranty

1 year



Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Features

  • Support IEEE802.1d Spanning Tree
    By supporting the IEEE 802.1d Spanning Tree protocol to prevent loops, provide fault tolerance and high availability to maintain the stability of the Ethernet network.
  • Ensure Stable Transmission
    Support IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x to ensure the interoperability, stability and performance of Ethernet networks.
  • Low power consumption
    Full load power consumption < 3W, which can save the cost of use and maintenance.
  • Plug-and-play
    Support plug and play, no additional configuration required.

Applications

Scenario 1:

Related Products:

S7300-48X2Q4C, 48-Port Gigabit Ethernet L3 Campus SFP+ Switch, 48x 10GE SFP+, with 2x 40GE QSFP+ and 4x 100GE QSFP28 Uplinks, Stackable

S7300-48TE4X2Q, 48-Port Multi-Gigabit Ethernet L3 Switch, 48x 100M/1000M/2.5GBASE-T, with 4x GE/10GE SFP+ and 2x 40GE QSFP+ Uplink, Support BGP

Media Converter 1x 100M/1G/2.5G/5G/10GBase-T RJ45 to 1x 10GBase-X SFP+ Slot 10 Gigabit, AC 100V~240V or DC 5~12V Optional

Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module

LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 10m

5ft (1.5m) Cat6 Network Ethernet Patch Cable Snagless Unshielded (UTP), PVC CM, Blue

Scenario 2:

Related Products:

S7300-48X2Q4C, 48-Port Gigabit Ethernet L3 Campus SFP+ Switch, 48x 10GE SFP+, with 2x 40GE QSFP+ and 4x 100GE QSFP28 Uplinks, Stackable

S7300-48TE4X2Q, 48-Port Multi-Gigabit Ethernet L3 Switch, 48x 100M/1000M/2.5GBASE-T, with 4x GE/10GE SFP+ and 2x 40GE QSFP+ Uplink, Support BGP

Media Converter 1x 100M/1G/2.5G/5G/10GBase-T RJ45 to 1x 10GBase-X SFP+ Slot 10 Gigabit, AC 100V~240V or DC 5~12V Optional

Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module

LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 10m

5ft (1.5m) Cat6 Network Ethernet Patch Cable Snagless Unshielded (UTP), PVC CM, Blue

Product details

Flexible signal extension and conversion



By utilizing media converters and fiber optic cables, the link can be extended to longer distances, allowing for the migration of the network to fiber while leveraging the existing copper cable infrastructure.

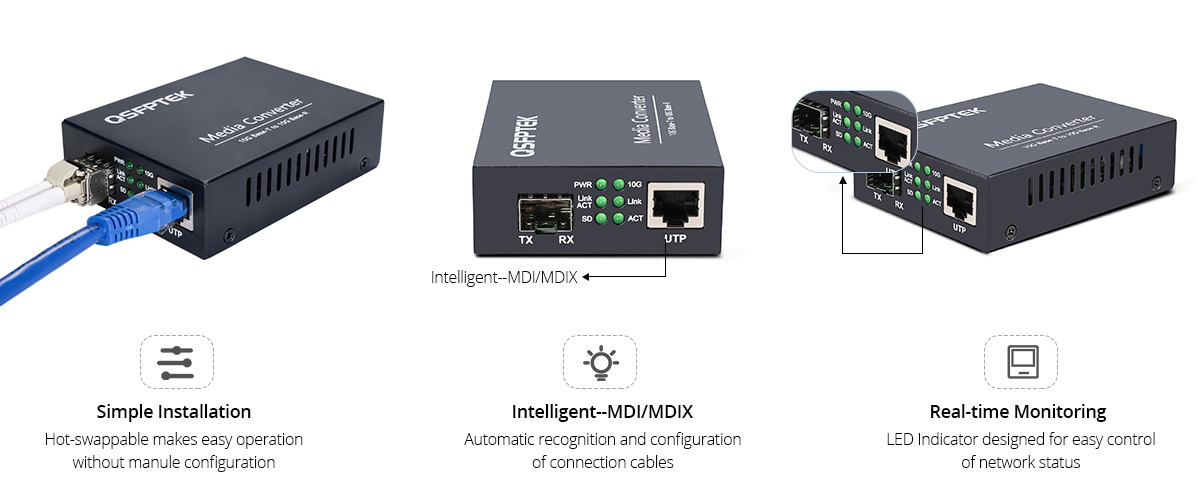

Easy and Efficient Operation



Hot-swappable design, plug-and-play. Easy to install and troubleshoot, no additional configuration is required for connectivity.





LFP Rapid Alarm Link Failure



LFP (Link Fault Pass-through) functionality enables quick detection of failed links within a short timeframe, minimizing potential losses caused by link failures.





Questions & Answers

more+
  • Can this transceiver be used with Cat6 cables?
    Certainly, as long as it has an RJ45 connector.
  • Can this media converter accurately transmit LACP packets?
    The media converter functions as a Copper-to-Fiber converter, extending transmission distances. LACP packets primarily handle link aggregation traffic within the device. In principle, transmission should proceed without any issues.
  • Can this be used with 1g bd sfp? such as T1310/R1490 Bidirectional SFP module.
    Yes, it is. The media converter can support a wide range of transceiver modules, including BIDI SFP, CWDM SFP, DWDM SFP.
