Home / Products / Fiber Optic Cables / Fiber Patch Cables / OS2 9/125 SMF Duplex / 100986

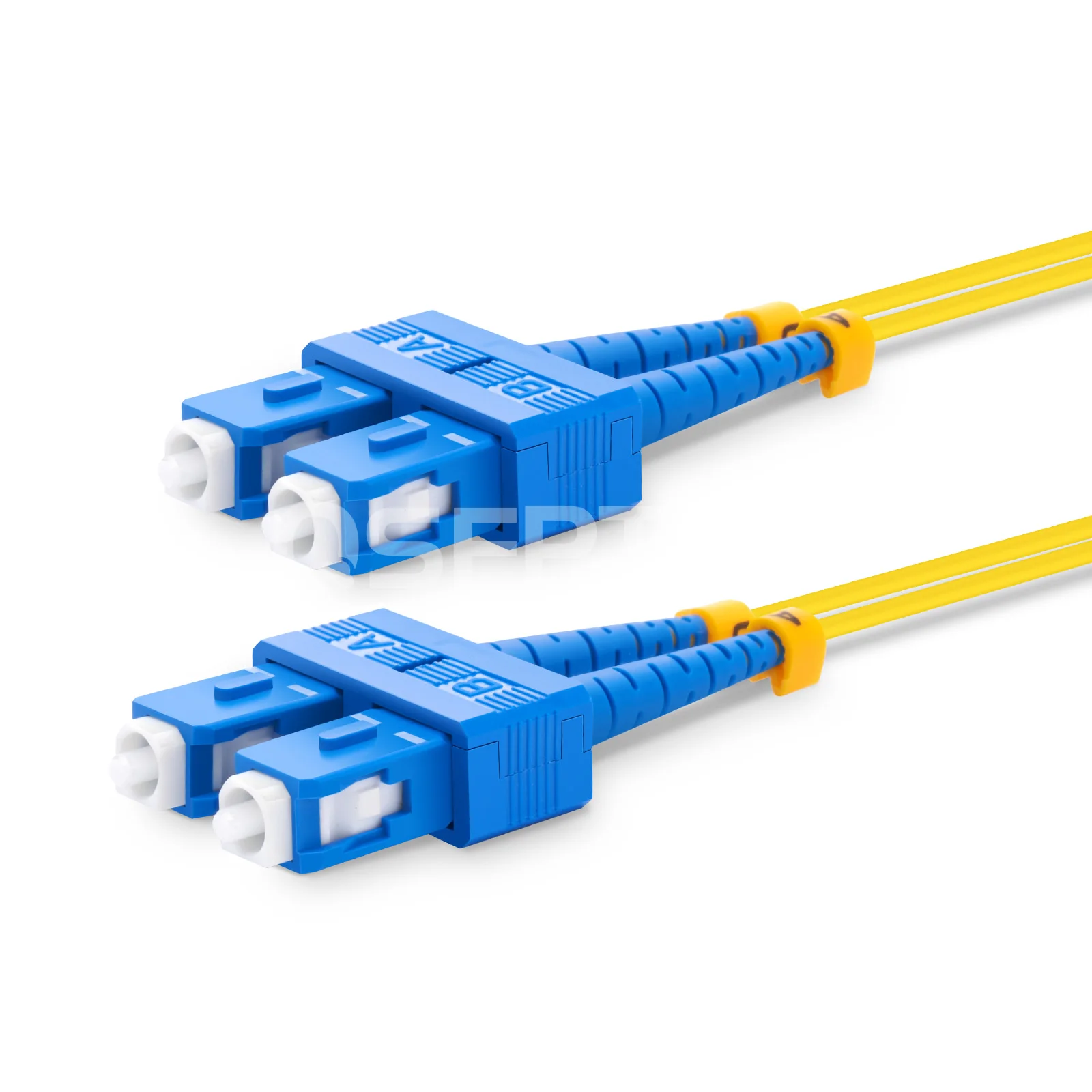

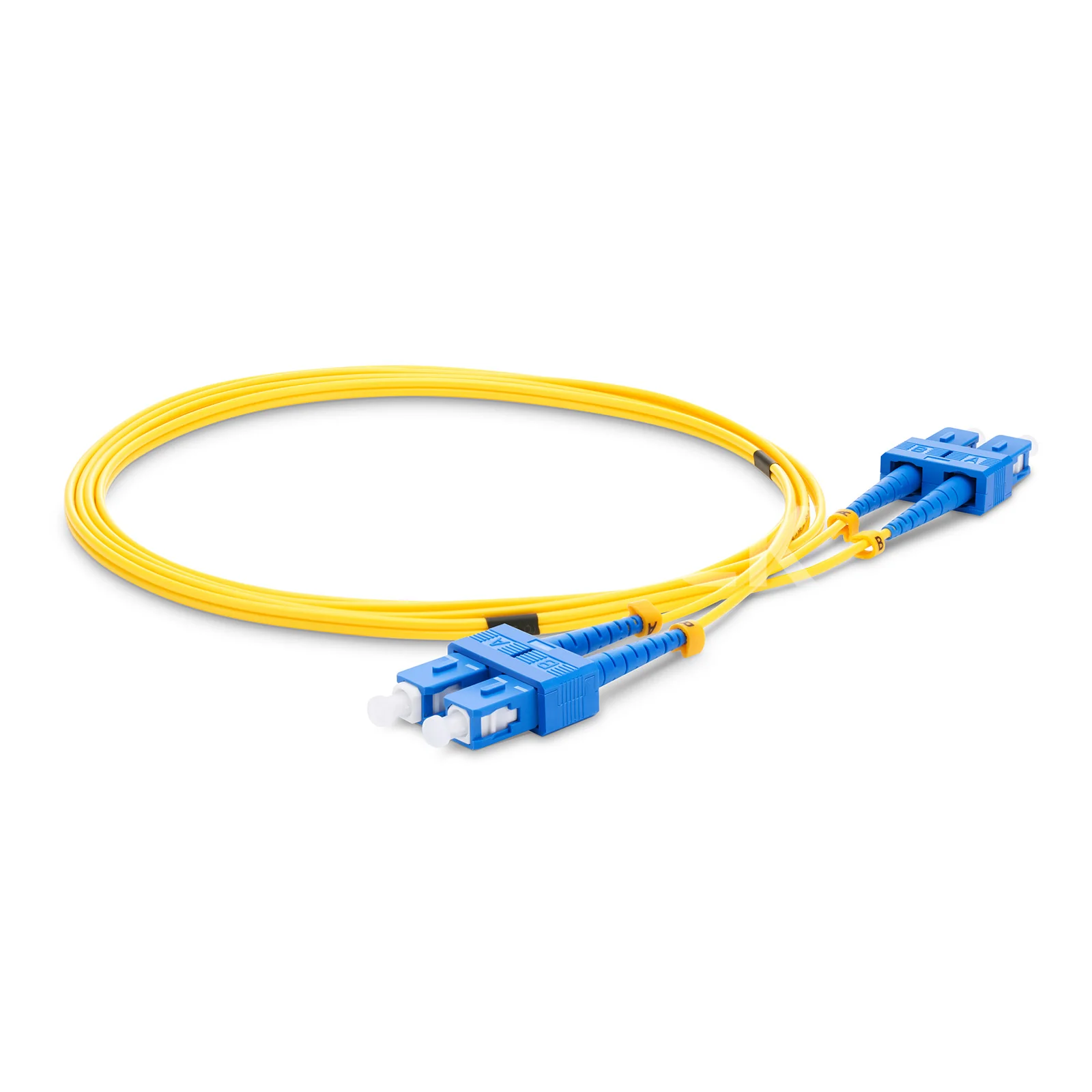

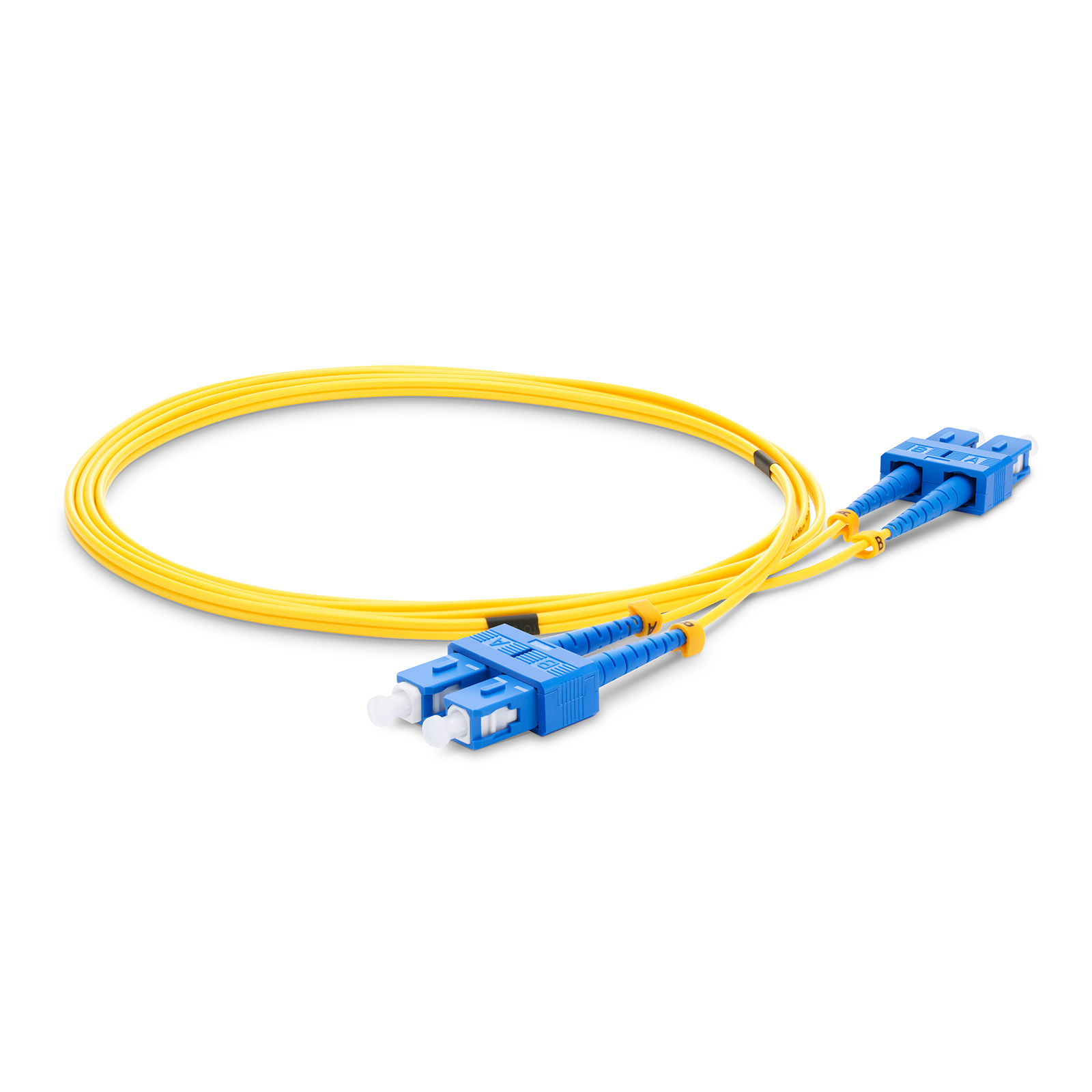

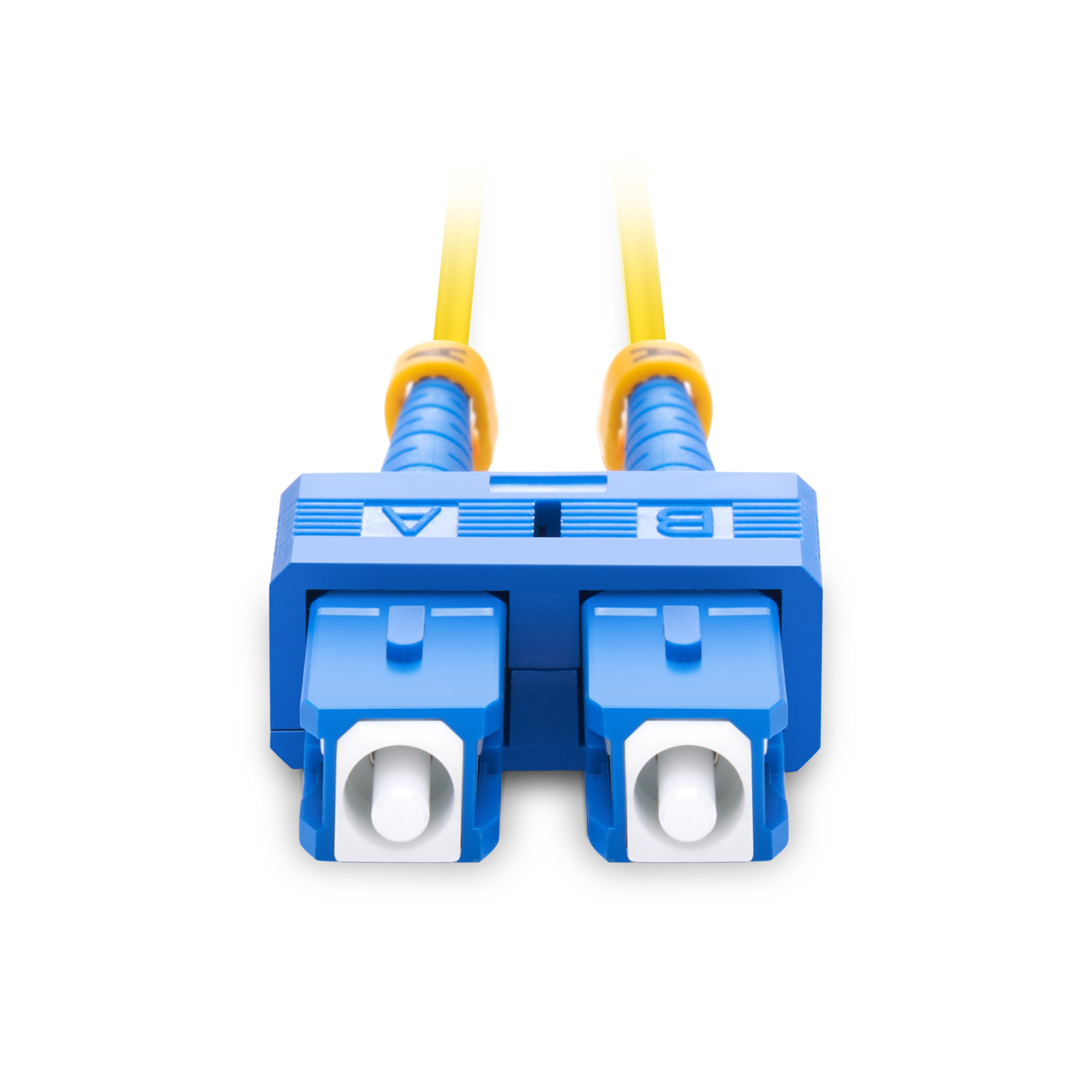

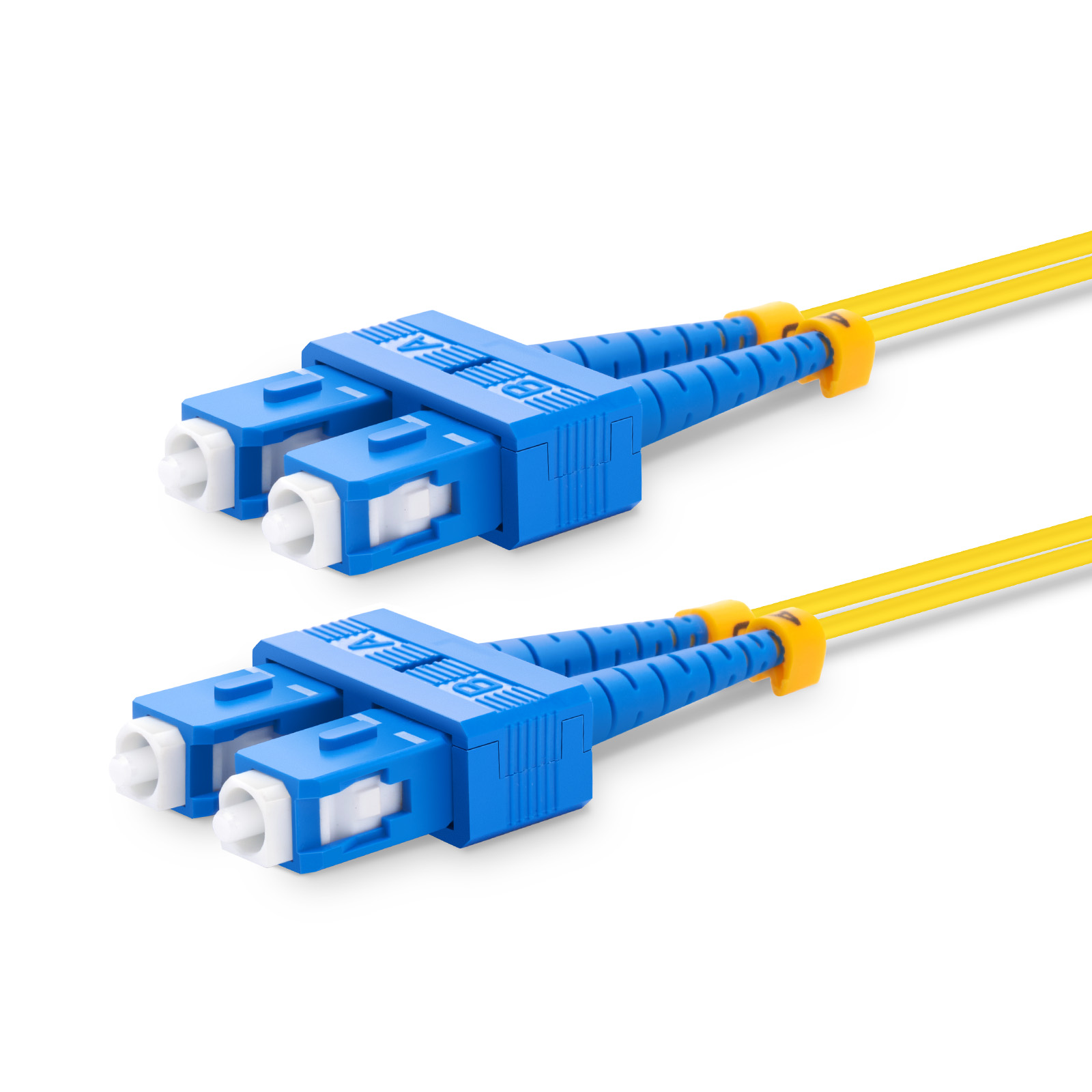

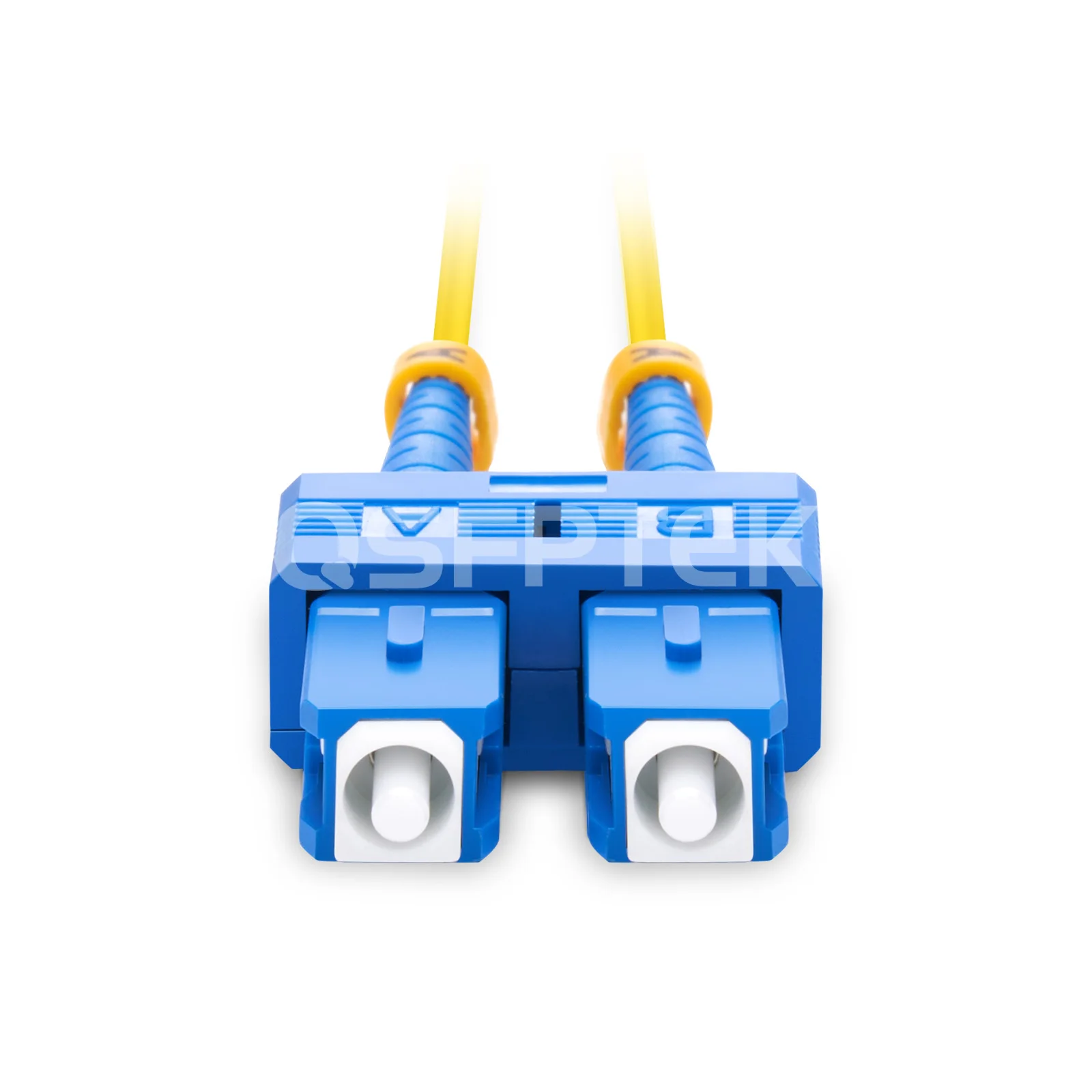

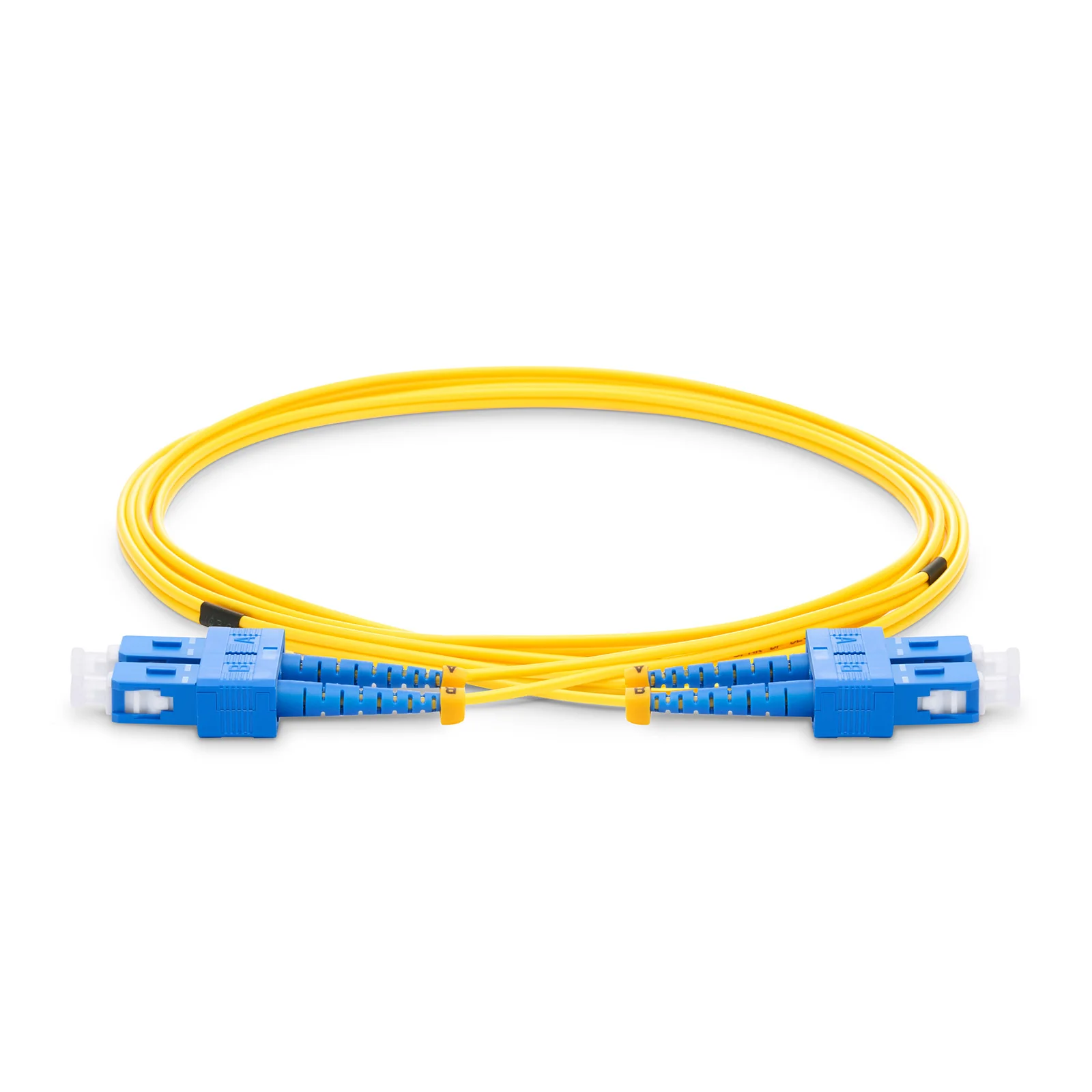

SC UPC to SC UPC Duplex OS2 2.0mm LSZH Fiber Optic Patch Cable 1m

Product No :100986
US$ 2.66  US$ 3.10
Series
Length
789 in stock

500 In US Warehouse

289 In EU Warehouse

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

-
+
Add to Cart Bulk Order Quotes
1. Ultra-low Inset loss ≤0.25dB
2. G.652D, 10mm Min. Bend Radius
3. Durable for Indoor Use (e.g. Data Centers, Enterprise Networks, etc)
4. High Temperature Stability
5. Compliant with ROSH 2.0 and MCD
See more

Specifications

SC UPC to SC UPC Duplex OS2 2.0mm LSZH Fiber Optic Patch Cable 1m



The 9/125μm OS2 SMF fiber optic patch cable, featured with ultra-low insert loss (0.36dB/km via 1310nm and 0.22dB/km via 1550nm), is specially optimized for 1G/10G/40G/100G/400G Ethernet connections. This single-mode fiber optic cable is widely applied in high-density application scenarios such as data centers, enterprise networks, telecommunication rooms, server rooms, etc., which helps to save rack space by a wide margin and maintain a neat cabling center.



Fiber Count

2 Fibers

Fiber Type

OS2 SMF 9/125μm

Connector Type

SC UPC to SC UPC

Wavelength

1310nm/1550nm

Armoured

No

Cable Material

LSZH

Insert Loss

0.25dB

Return Loss

≥50dB

Approximate Diameter

2.0mm

Length

0.5m/1m/1.5m/2m/3m/5m/7m/10m

Min. Bend Radius (Fiber Cable) Dynamic

10mm

Min. Bend Radius (Fiber Cable) Static

10mm

Operating Temperature

-20~+70°C

Storage Temperature

-40~+80°C









Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • Wide Application
    SC to SC OS2 Single-mode fiber is specially designed for reliable, long-distance, Ethernet connectivity between switches, servers, routers, Firewalls, SFP+ transceivers, media converters, patch panels, and other SMF optical equipment.
  • Exceptional Transmission Performance
    Low insertion loss less than 0.25dB, return loss more than 50dB. Carrier-grade cable assemblies reduce bending loss to ensure good transmission performance.
  • Rigorously Quality Test
    Each OS2 Single-mode fiber is individually and rigorously tested to be within accurate optical insertion loss.
  • Quality Certifications
    Conforms with TIA/EIA-604, ITU-652.D, and IEC-61754 standards and complies with RoHS specifications.

Applications

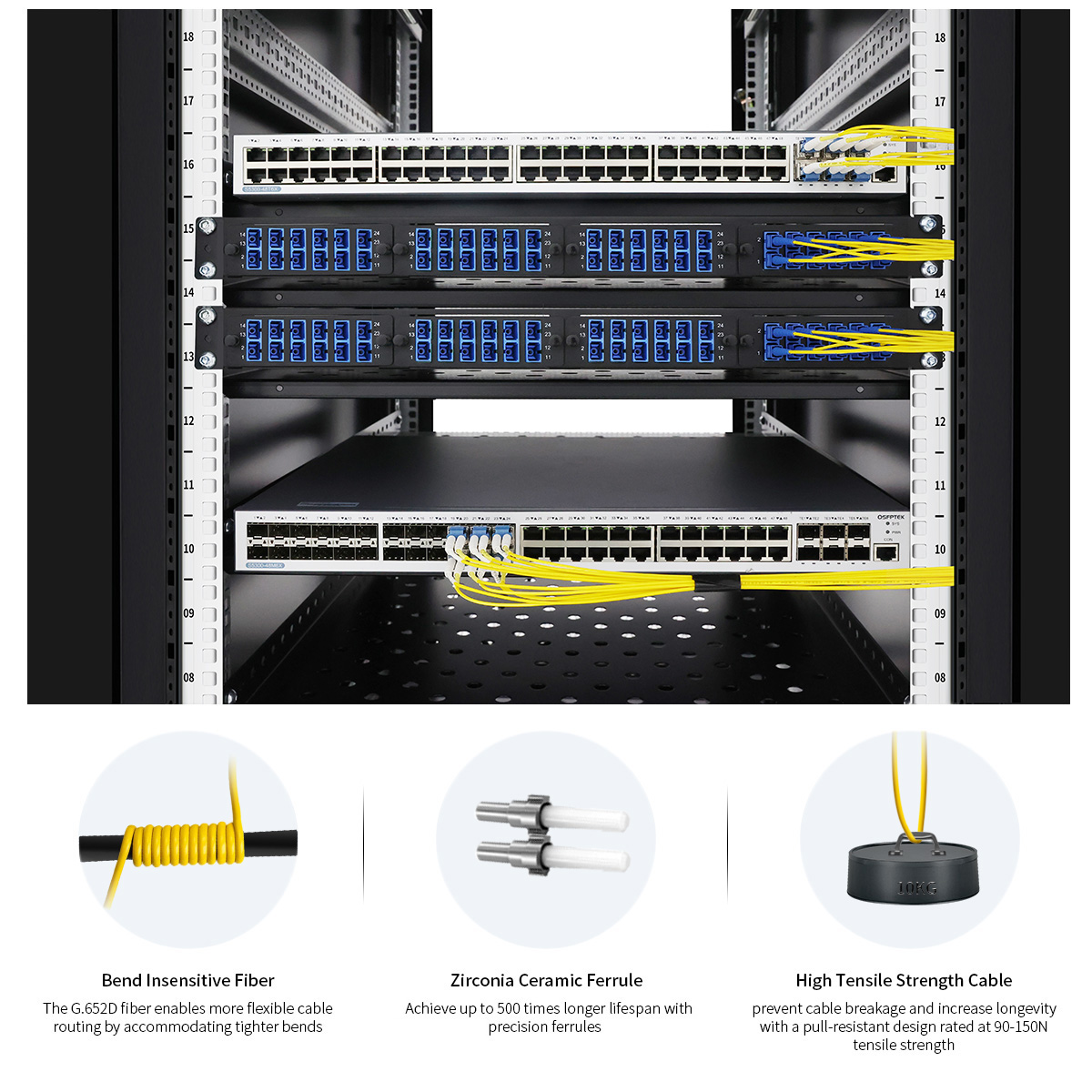

Scenario 1:



Related Products:

S5300-48T6X, 48-Port Gigabit Ethernet L3 Switch, 48 xGE RJ45, with 6 x10GE SFP+, Support Stacking

Cisco SFP-10GB-LR Compatible 10GBASE-LR SFP+ 1310nm 10km DOM LC SMF Transceiver

1U Horizontal Cable Management with 5 D-Rings, Rackmount, Single-Sided, 19-inch

SC UPC to SC UPC Duplex OS2 2.0mm LSZH Fiber Optic Patch Cable

S5300-48M6X, 48-Port Gigabit Ethernet L3 Switch, 24 xGE RJ45, 24 xGE SFP Ports, with 6 x10GE SFP+, Support Stacking

Product details

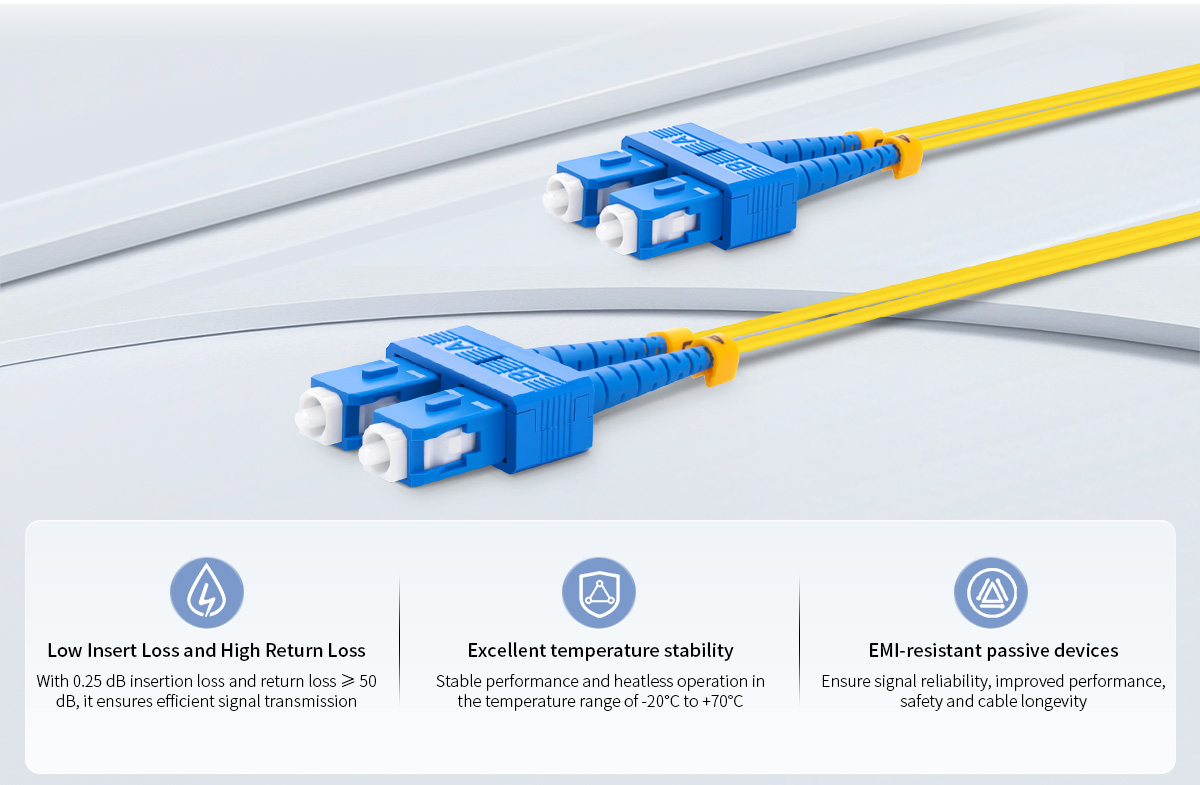

Excellent Transmission Stability Ensured by Superior Craftsmanship



With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission
