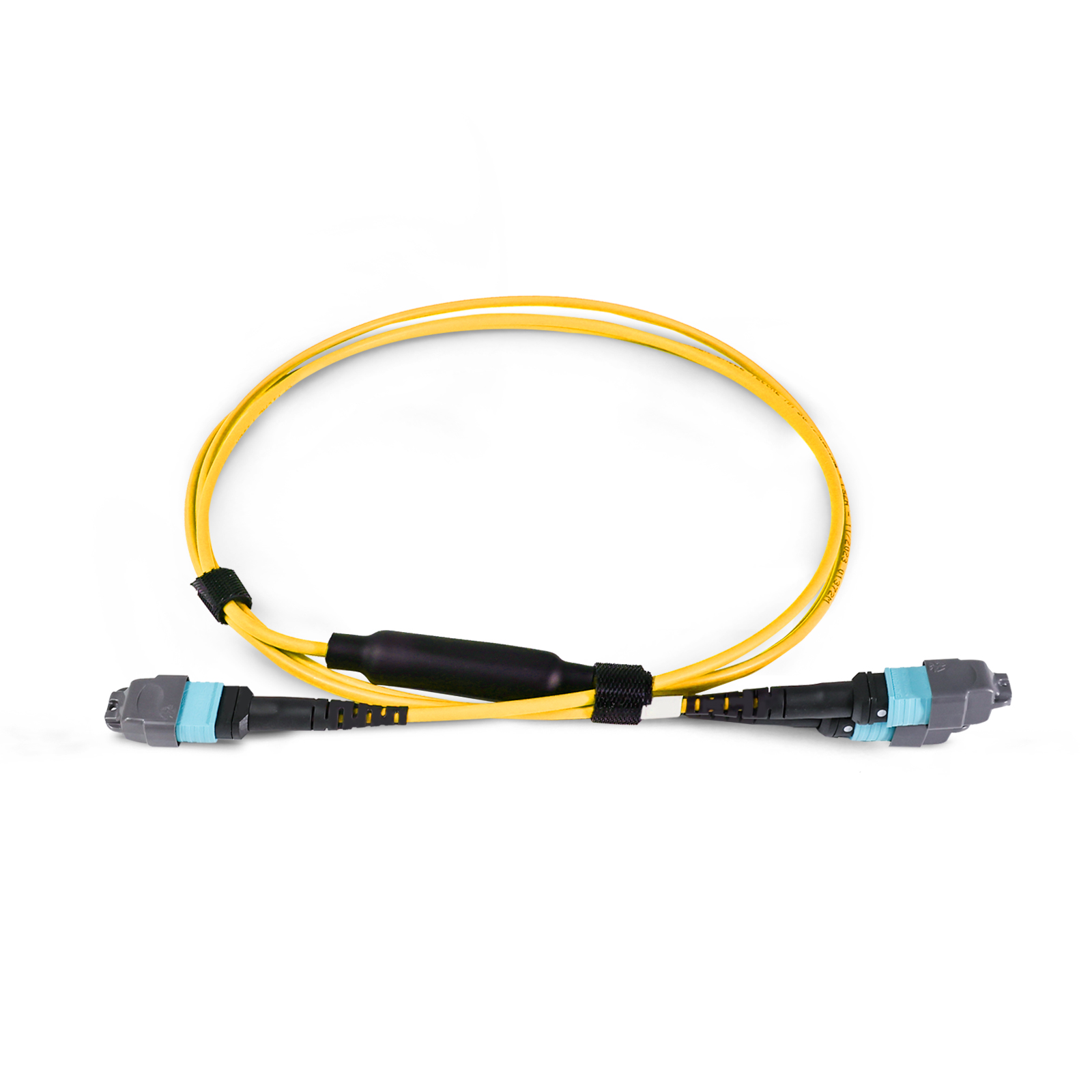

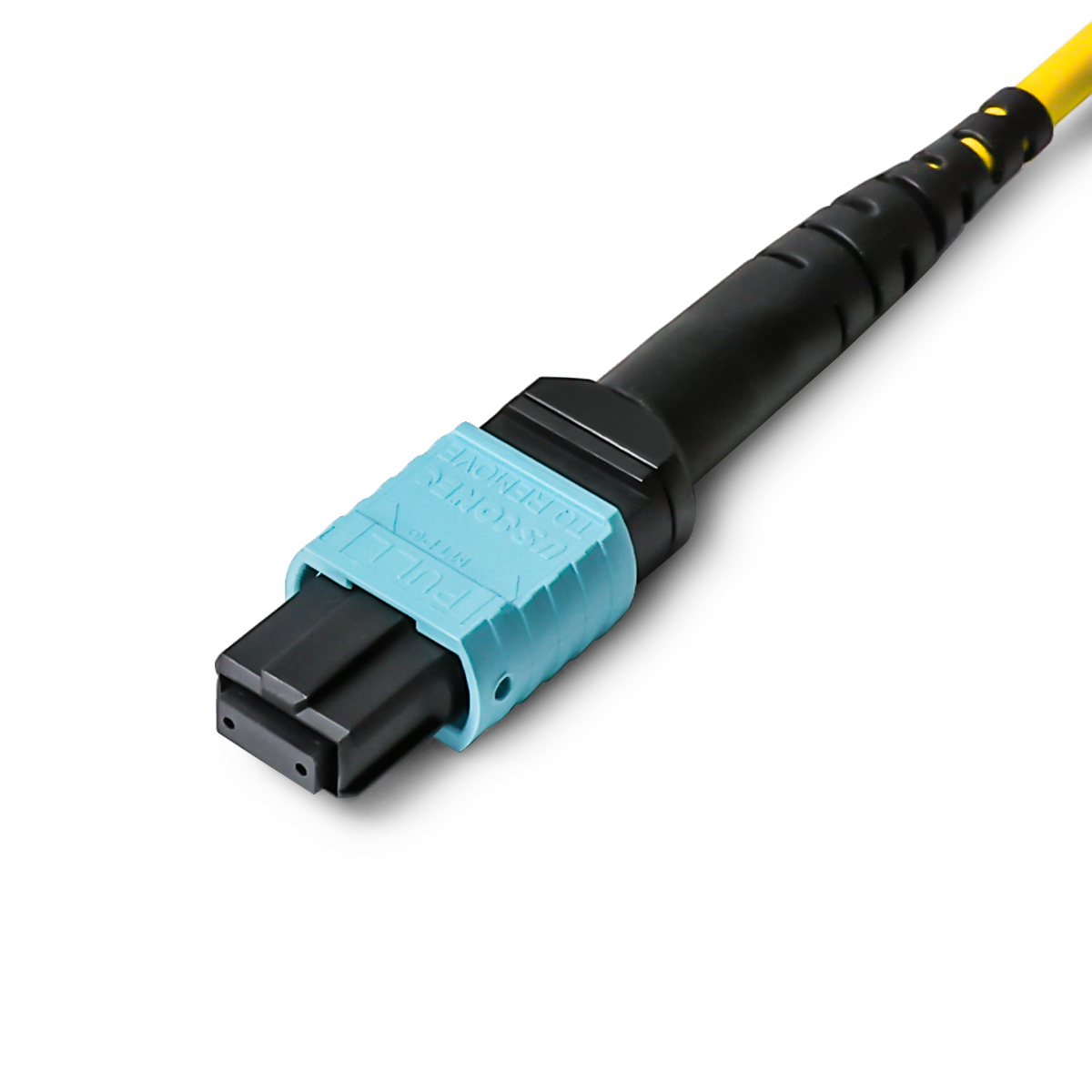

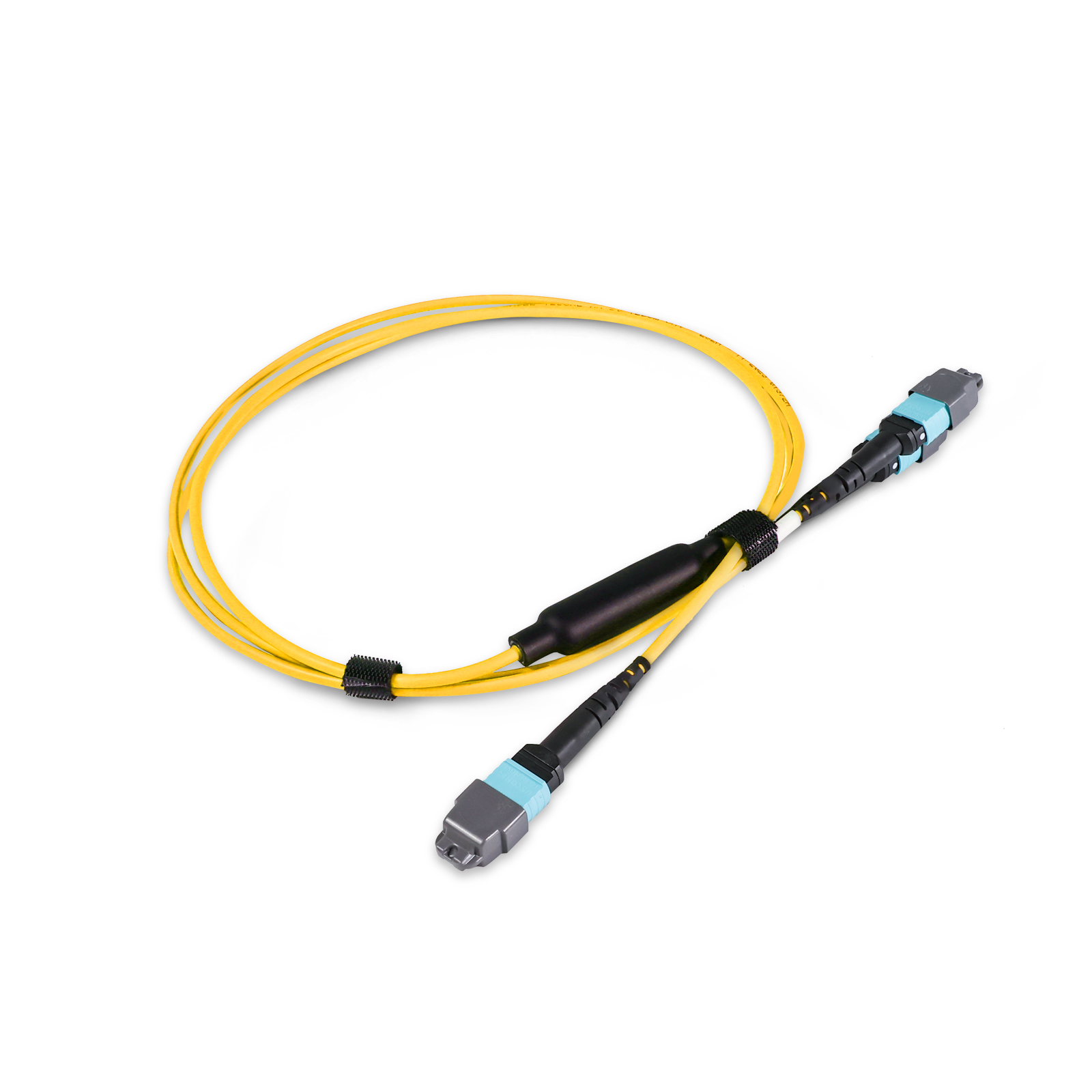

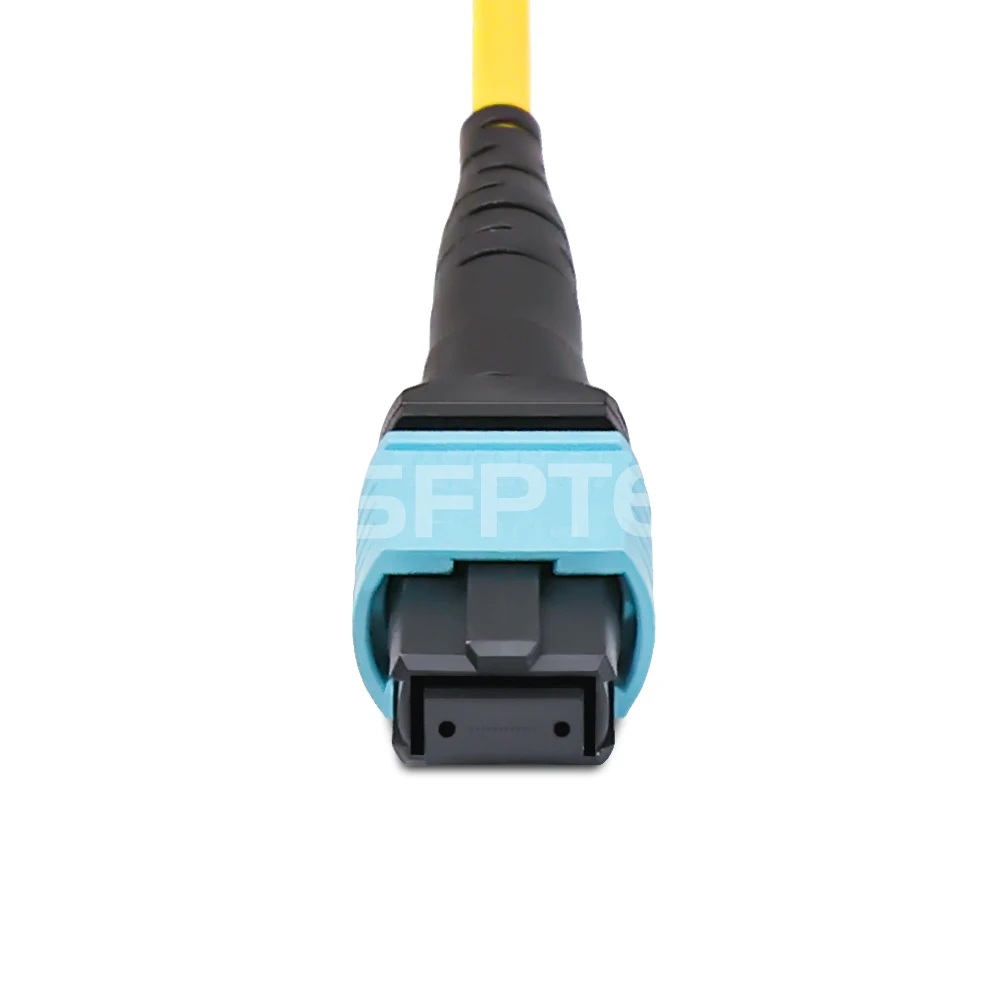

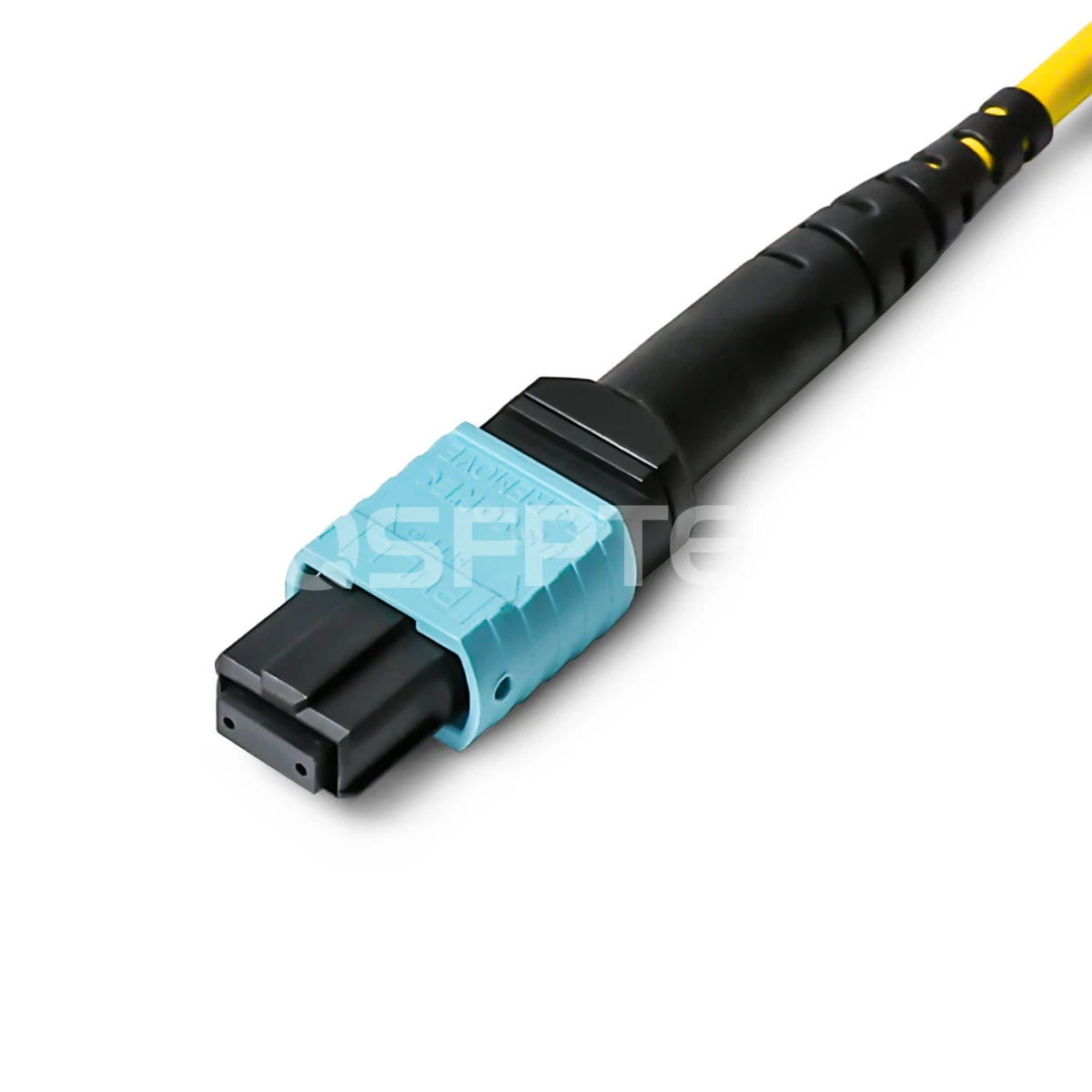

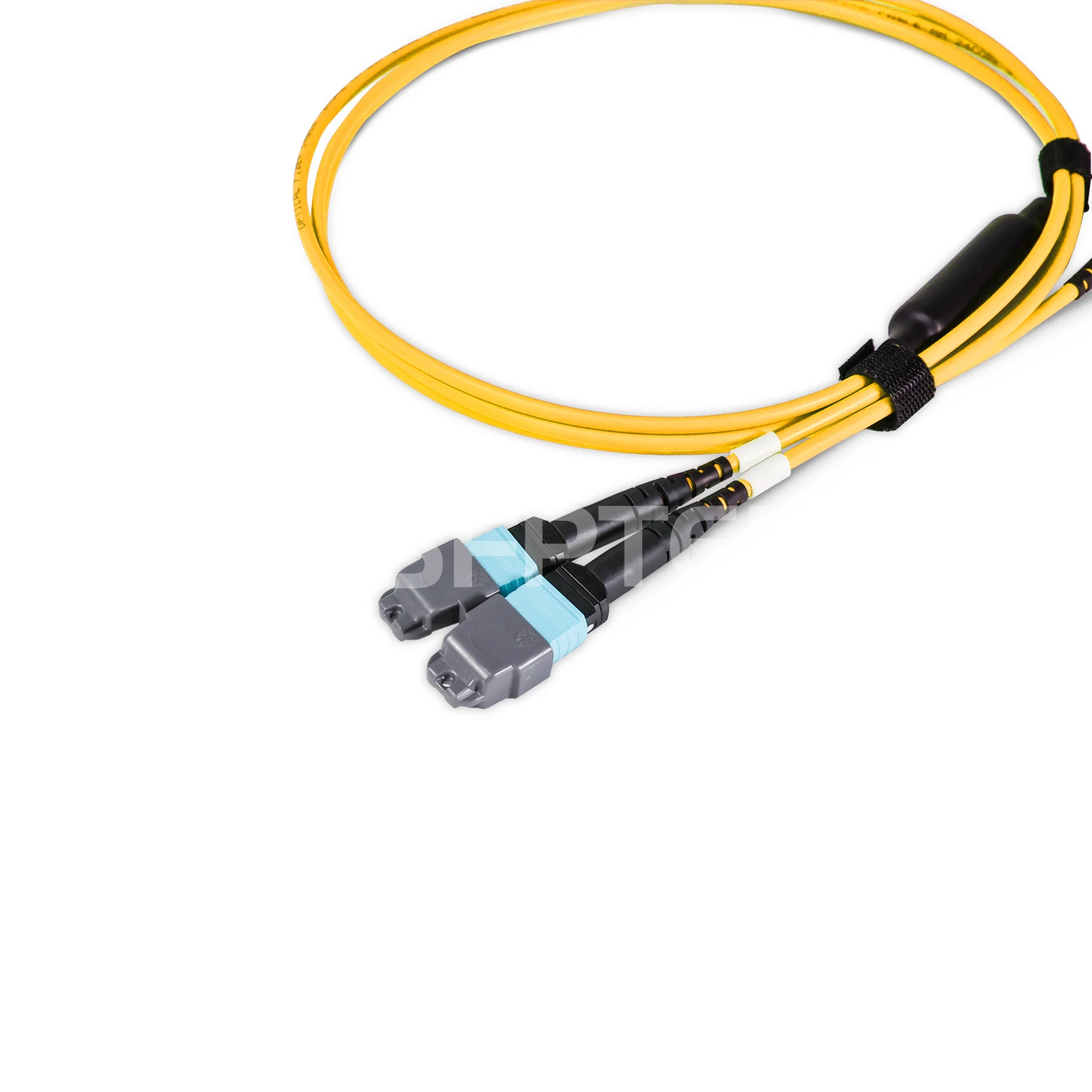

4m (13ft) 1× 24 MTP Female to 2× 12 MTP OS2 9/125 Single Mode Elite Conversion Cable, 24 Fibers, Type B, LSZH

Product No :102429
US$ 121.47  US$ 128.99
Length
853 in stock

412 In US Warehouse

441 In EU Warehouse

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

;jsessionid=D106EB8CDB0D84AC9D61E3D27F49DE34
-
+
1. With 0.35dB Low Insertion Loss.
2. Flexible 10mm Min. Bend Radius.
3. LSZH Jacket, flame-retardant and environmentally friendly.
4. Provides a cost-effective and efficient 40G/100G network connection solution.
5. Available in OS2 and OM4.
See more

Specifications

4m (13ft) 1× 24 MTP Female to 2× 12 MTP OS2 9/125 Single Mode Elite Conversion Cable, 24 Fibers, Type B, LSZH



The MTP conversion cable is crafted to offer an adaptable multi-fiber cabling system utilizing MTP products. In contrast to MTP harness cables, MTP conversion cables terminate with MTP connectors at both ends, introducing greater flexibility to the existing 24-fiber cabling system.



These 40/100G MTP conversion cables eradicate the inefficiencies associated with unused fibers in the current 40G transmission and upcoming 100G transmission. Opting for MTP conversion cables proves to be a more cost-effective and less loss-prone alternative when compared to the procurement and installation of separate conversion cassettes.



Fiber Connector MTP Gender Female
Fiber Count 24 Fibers Fiber Type OS2 9/125μm
Polish Type UPC to UPC Wavelength 1310/1550nm
Insertion Loss ≤0.35 Return Loss ≥60dB
Attenuation at 1310nm ≤0.32dB/km Attenuation at 1550nm ≤0.18dB/km
Cable Diameter 3.0mm Breakout Length 0.5m
Minimum Bend Radius 10mm Cable Jacket LSZH
Operating Temperature -10°C to 70°C (14 to 158°F) Storage Temperature -40°C to 85°C (-40 to 185°F)
Quality Testing Program
Quality Certifications

Features

  • 10mm Min. Bend Radius
    Allow tighter cable bends for slack storage and routing.
  • 0.35dB Max. IL
    Always provide stable signal and realize flexible system design.
  • LSZH Jacket
    Low smoke, low toxicity, low corrosion, and high flame retardant.

Product details

Excellent Transmission Stability Ensured by Superior Craftsmanship



With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.




Robust Cabling for Diverse Environments



Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience. And they can enable seamless conversion from 24 to 12 fibers connectivity, ensuring 100% fiber utilization across various environments.




Maintain Performance by Cleaning Fiber



Ensure high reliability and performance connections by maintaining clean fiber end-faces.
