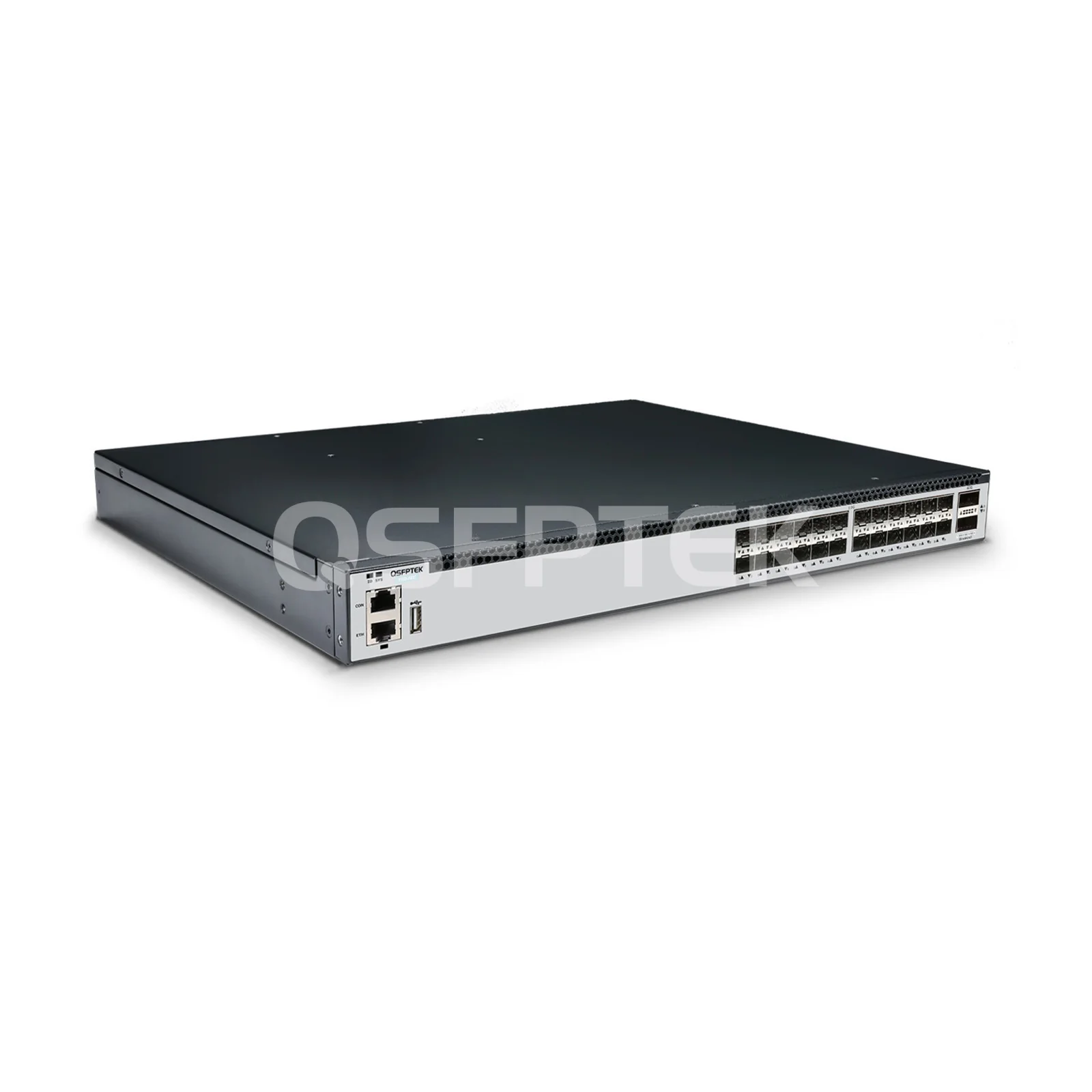

S7600-24X2Q 24-Port Ethernet L3+ 10G Switch, 24x 10Gb SFP+, with 2x 40Gb QSFP+ Uplinks, Support MLAG, VXLAN

Product No :100500
US$ 1431.90  US$ 1899.00
50 in stock
• Support data center features incl. MLAG/VXLAN/EVPN/VARP/PFC
• Support RDMA for lower latency, lower CPU load and higher bandwidth
• 1+1 AC Hot-swappable Power Supplies, 2+1 Built-in Fans
• Support CLI/WEB/Telnet/SSH/SSL/SNMP for Flexible Management
• Support 802.1x, Radius, Tacacs+, ACL, QoS, DDOS, DHCP for High Security
• Support MSTP/ERPS/VRRP/LACP for High Reliability
See more

Specifications

24-Port Ethernet L3+ Switch, 24x 10Gb SFP+, with 2x 40Gb QSFP+ Uplinks, Support MLAG, VXLAN, S7600-24X2Q



The QSFPTEK S7600-24X2Q 24-port 10Gb Ethernet switch comes with 24x 10Gb SFP+ and 2x 40Gb QSFP+ uplinks ports (each QSFP+ port can be split to 4x 10G ports), providing converged 10G and 40G fiber links. It delivers 640 Gbps switching capacity and 480 Mpps forwarding rate to meet high-performance aggregation layer requirements.



As a layer 3+ managed switch, it supports full layer 3 features (static routing, RIP, OSPF, BGP, etc.) and advanced data center features such as MLAG for high-reliability and VXLAN, NVGRE, GENEVE tunnel technology for virtual networking.



S7600 series switches support remote direct memory access (RDMA), which over other network APIs for lower latency, CPU load and higher bandwidth. This 24 port 10Gb switch caters to the Ethernet aggregation platform to HCI (Hyper-Converged Infrastructure), Metro, Data Center, and Enterprise application.



Ports 24x 10G SFP+ | 2x 40G QSFP+ Packet Buffer 9MB
Switching Capacity 640 Gbps Forwarding Rate 480 Mpps
MAC Address 98,304 ARP Table 12,288
VLAN IDs 4K Jumbo Frame 9,600
IPv4 Routes 57,344 IPv6 Routes 4096
FLASH 8GB (eMMC) RAM 2GB
Latency Min: 660ns Airflow Front-to-Rear
Power Supply 2 (1+1 Redundancy) Hot-swap Fan Number 3 (2+1 Redundancy) Built-in
Power Consumption 59W (full-load); 44W (no-load) MTBF > 206,988 Hours
Operating Temperature 0ºC - 45ºC Weight 5.95kg
Dimensions (HxWxD) 43.6x440x370mm Warranty 5 Years
Quality Certifications

Features

  • Convenient and Secure Management
    Support SNMP v1/v2/v3, CLI, web management, Telnet and FTP connection, OAM, SSH2.0, SSL, etc. to offer easy management. Support QoS, ACL, and DHCP to ensure high security.
  • Complete Layer 2/3 Functionality
    Support complete L2 and L3 features, including L2 switching, L2 multicast, QoS, advanced L3 routing, OSPF, BGP, Bidirectional Forwarding Detection (BFD), and L3 multicast, etc.
  • Multiple Data Center Features
    Support data center features including MLAG/VXLAN/EVPN/VARP/PFC.
  • Energy-efficient Technology
    Intelligent FAN design and real-time power consumption monitoring technology for power and O&M cost savings.

Product details

High-Performance L3+ 10G Aggregation Switch with 40G Uplinks



S7600-24X2Q has 24x 10G SFP+ ports and 2x 40G QSFP+ uplinks, providing converged fiber connections downlink to 10G access and uplink to 40G core.

With a switching capacity of 640 Gbps and a forwarding rate of 480 Mpps, it also meets high-performance requirements at the layer 3+ aggregation platform

to next-generation Enterprise, Data Center, Metro and HCI networks.

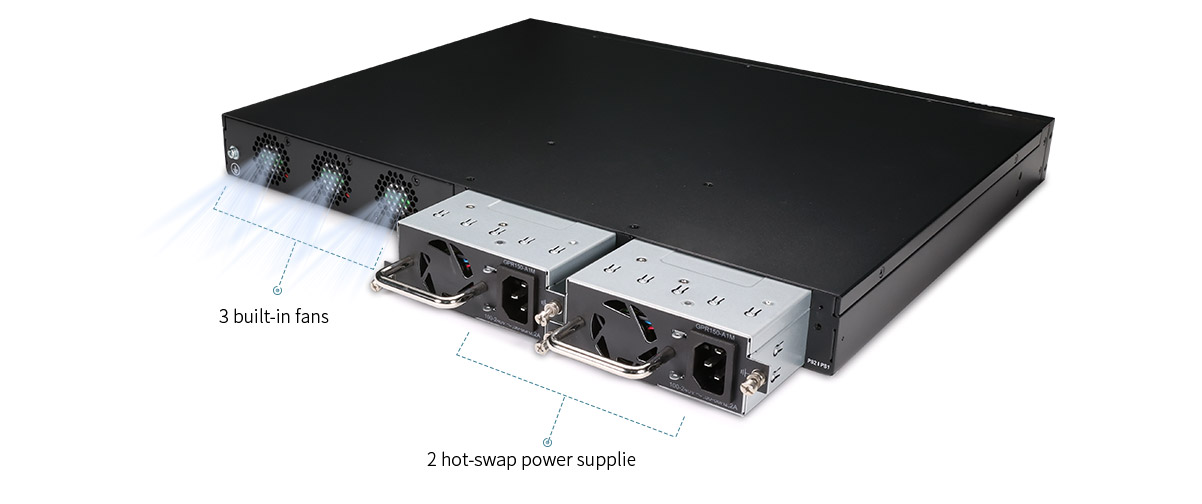

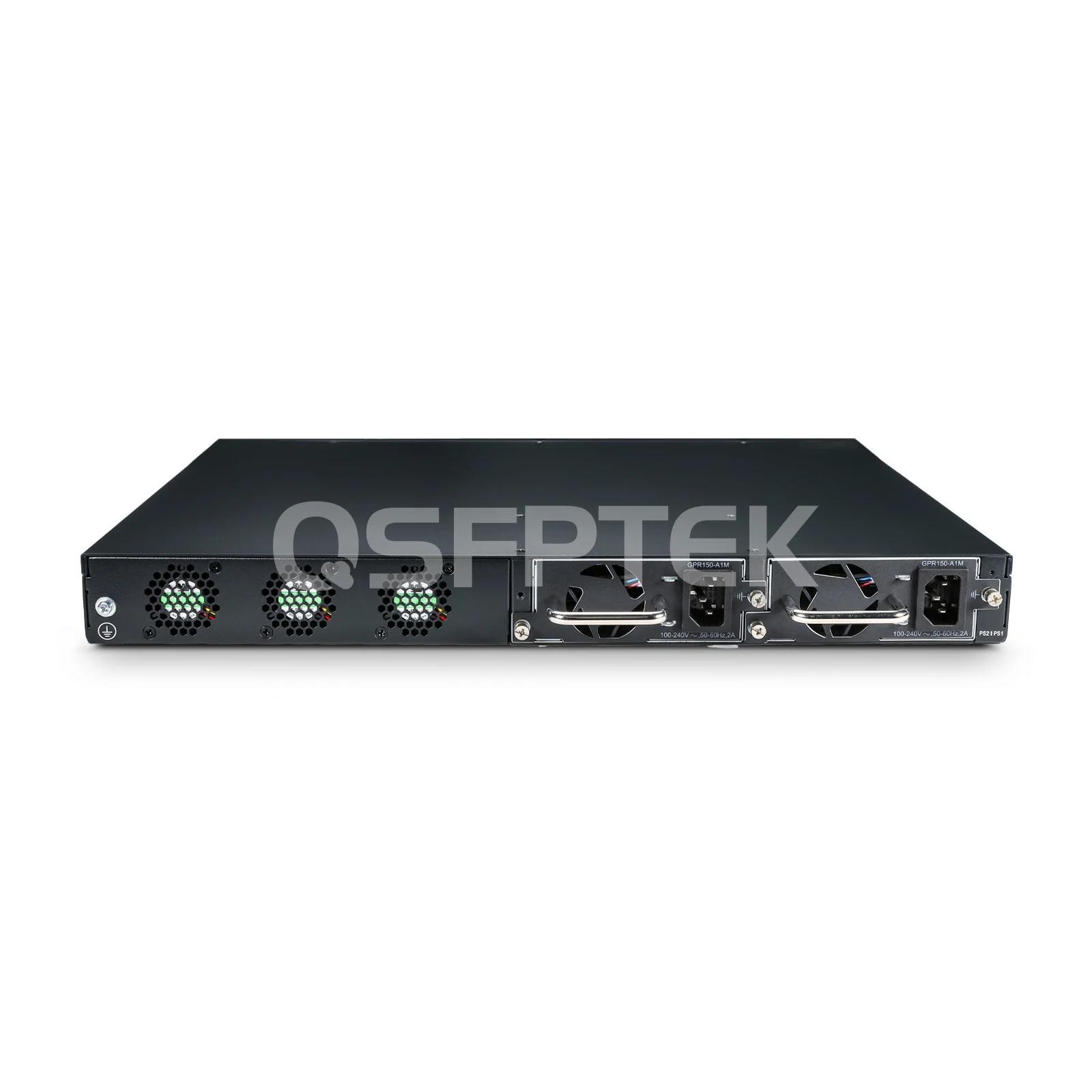

1+1 Hot-Swappable Power Supplies and 2+1 Built-in Fans for Hardware Redundancy

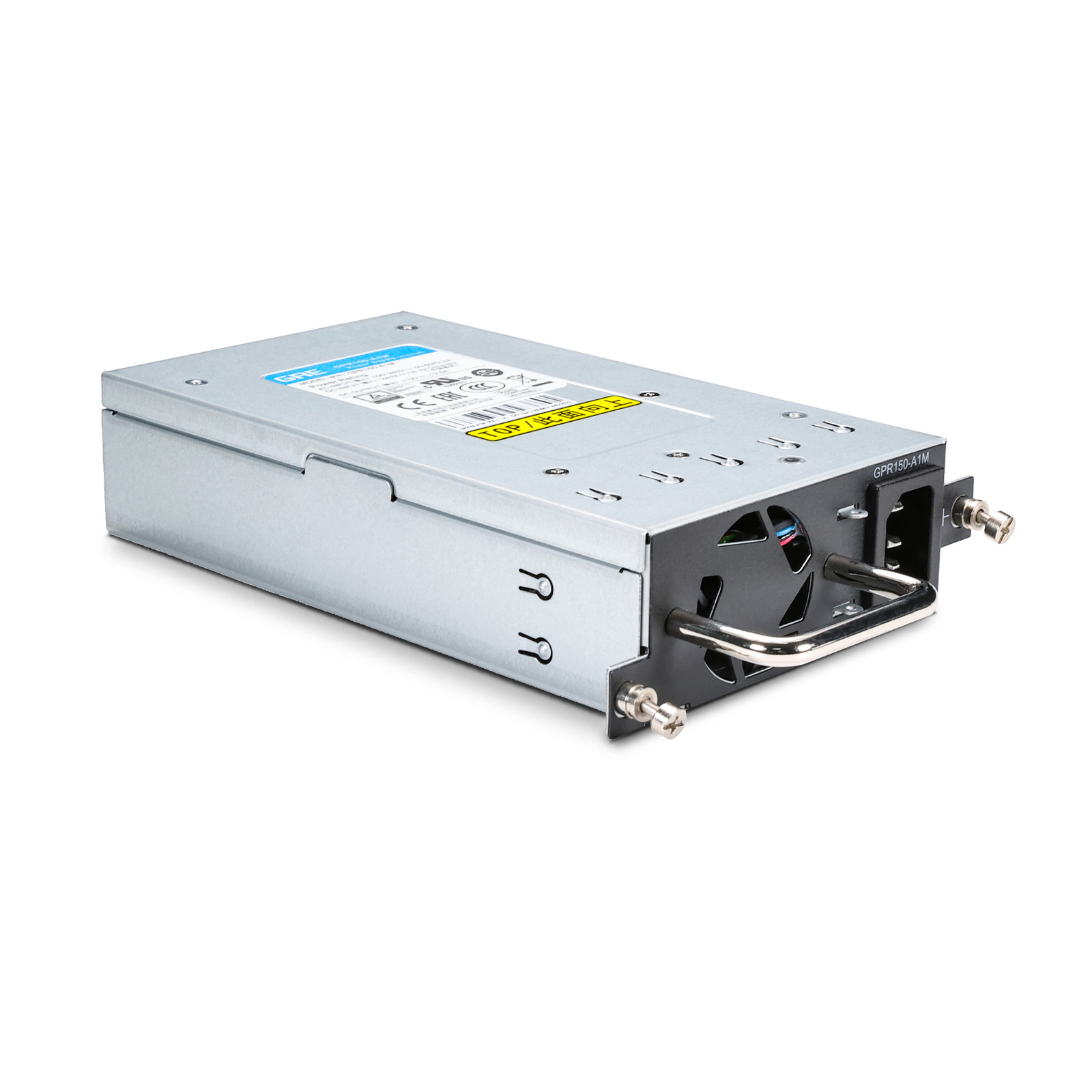

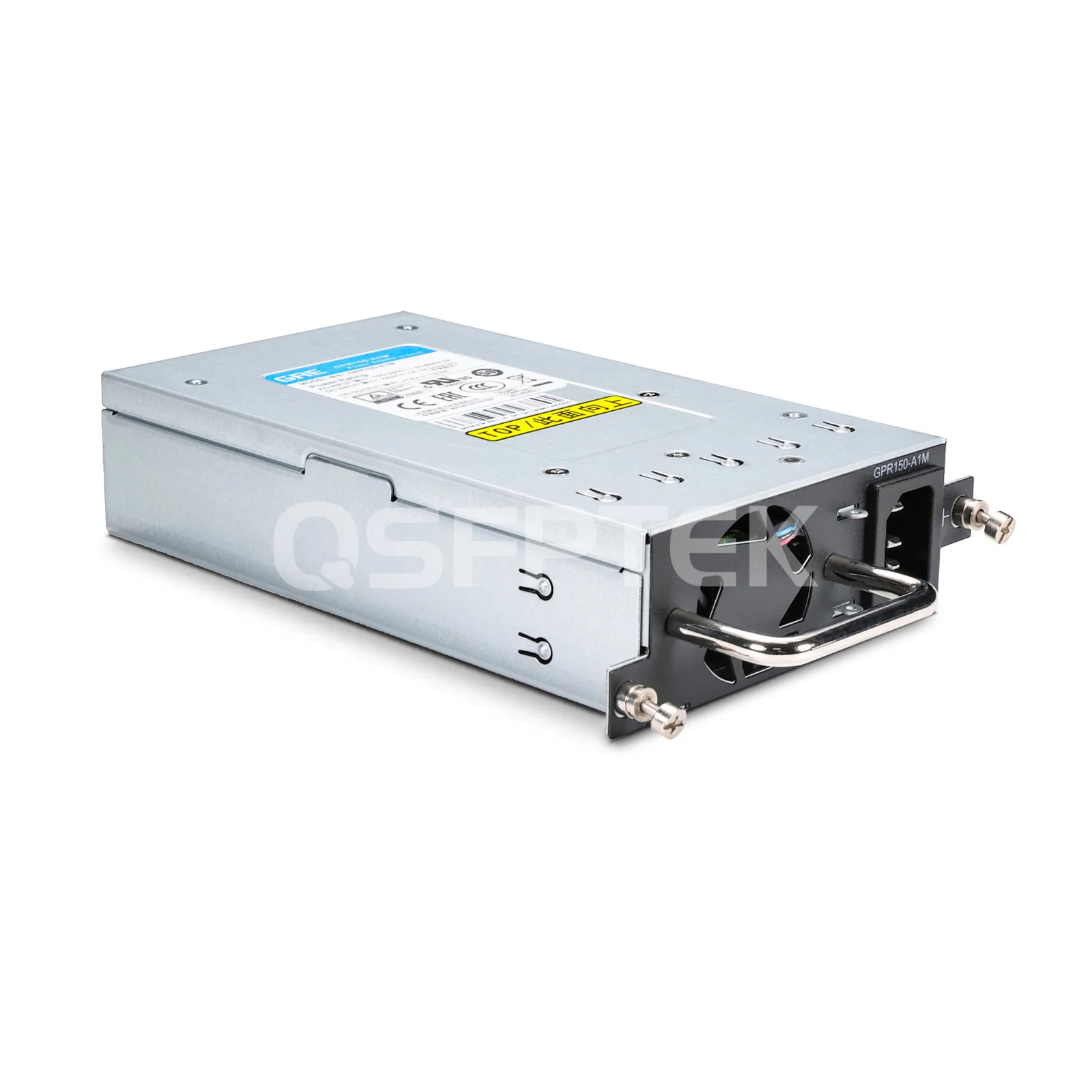

Hot-swappable 1+1 redundant power supplies allow power supplies to be replaced without shutting down the system.

The front-to-rear airflow of 2+1 fans can automatically adjust speed to control noise and power consumption.








ECN and PFC Ensure Lossless Transmission of End-To-End Data



RDMA (Remote Direct Memory Access) provides high throughput and ultra-low latency with low CPU overhead.

Once end-to-end network connectivity is established, PFC (Priority Flow Control) and ECN (Explicit Congestion Notification) can be enabled to ensure lossless transport for RoCE traffic.

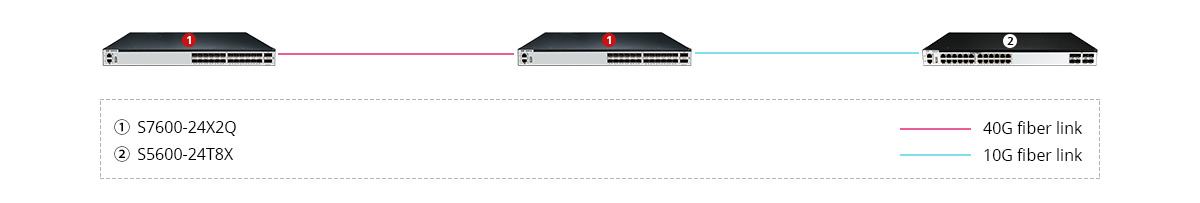

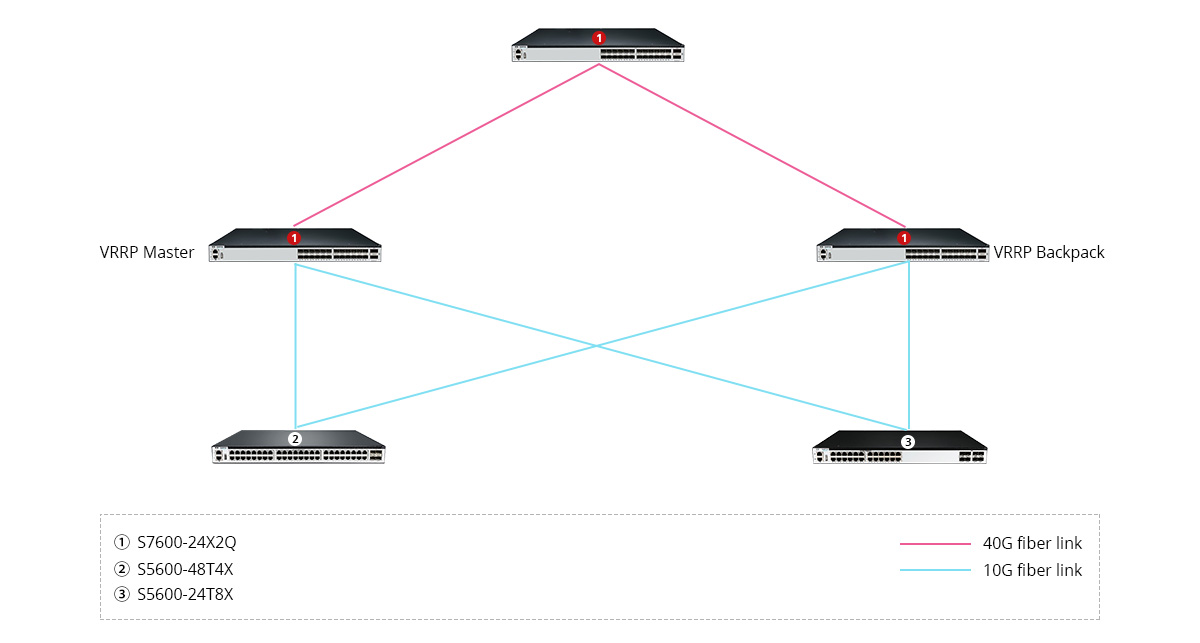

Applied for Traditional 3-Tier Architecture as Aggregation Layer Switch



S7600-24X2Q can be used as an aggregation switch in the traditional 3-tier architecture to downlink 10G access layer switches and uplink 40G core layer switches.










MLAG Ensures Equipment Reliability and Link Redundancy



MLAG (Multi-Chassis Link Aggregation) aggregates links across different devices to achieve device-level redundancy and high-reliability network solution.













Questions & Answers

more+
  • Do your S5600 or S7600 series switches support NG-mVPN?
    Sorry, Our S5600 and S7600 series switches support BGP EVPN, L2VPN, and L3VPN, but don't support NG-mVPN.
  • What is the difference between S7600-48Y8C and S7600-48X8C?
    The main difference between the two is that the downstream port of 48Y8C is SFP28 port, which supports 10G/25G, while the downstream port of 48X8C is SFP+ port. The rest of the features and functions are basically the same.
  • What is MLAG? What are the advantages of MLAG?
    MLAG can build an Active-Active system to improve the reliability of the network links from single board grade to device grade. MLAG uses a peer link between to devices to aggregate two devices and make them as one device logically. Ports of two different devices join the aggregate ports together and all ports can transmit the data traffic.
