Home / Products / Fiber Optic Cables / MTP/MPO Cables / MTP Conversion Cables / 102497

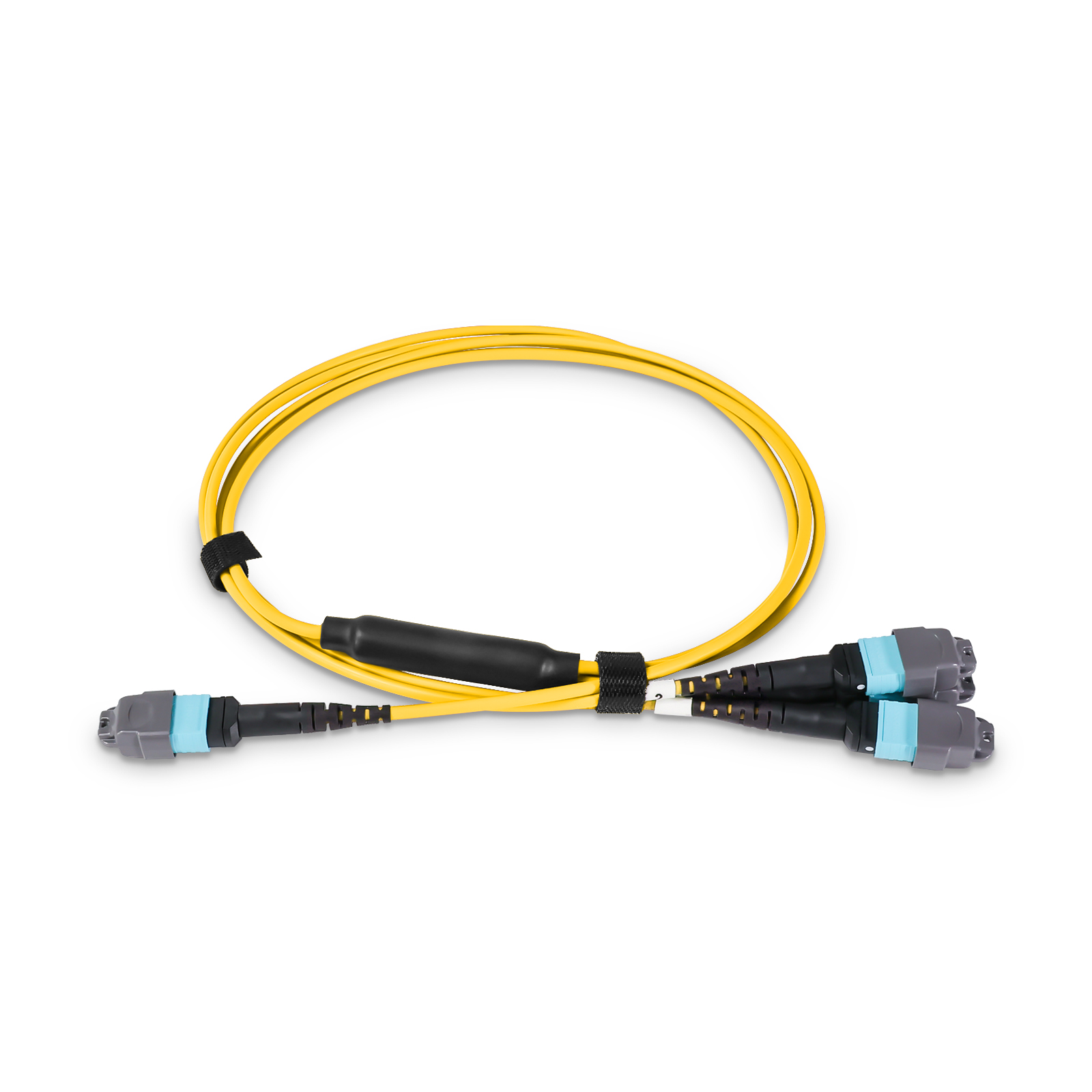

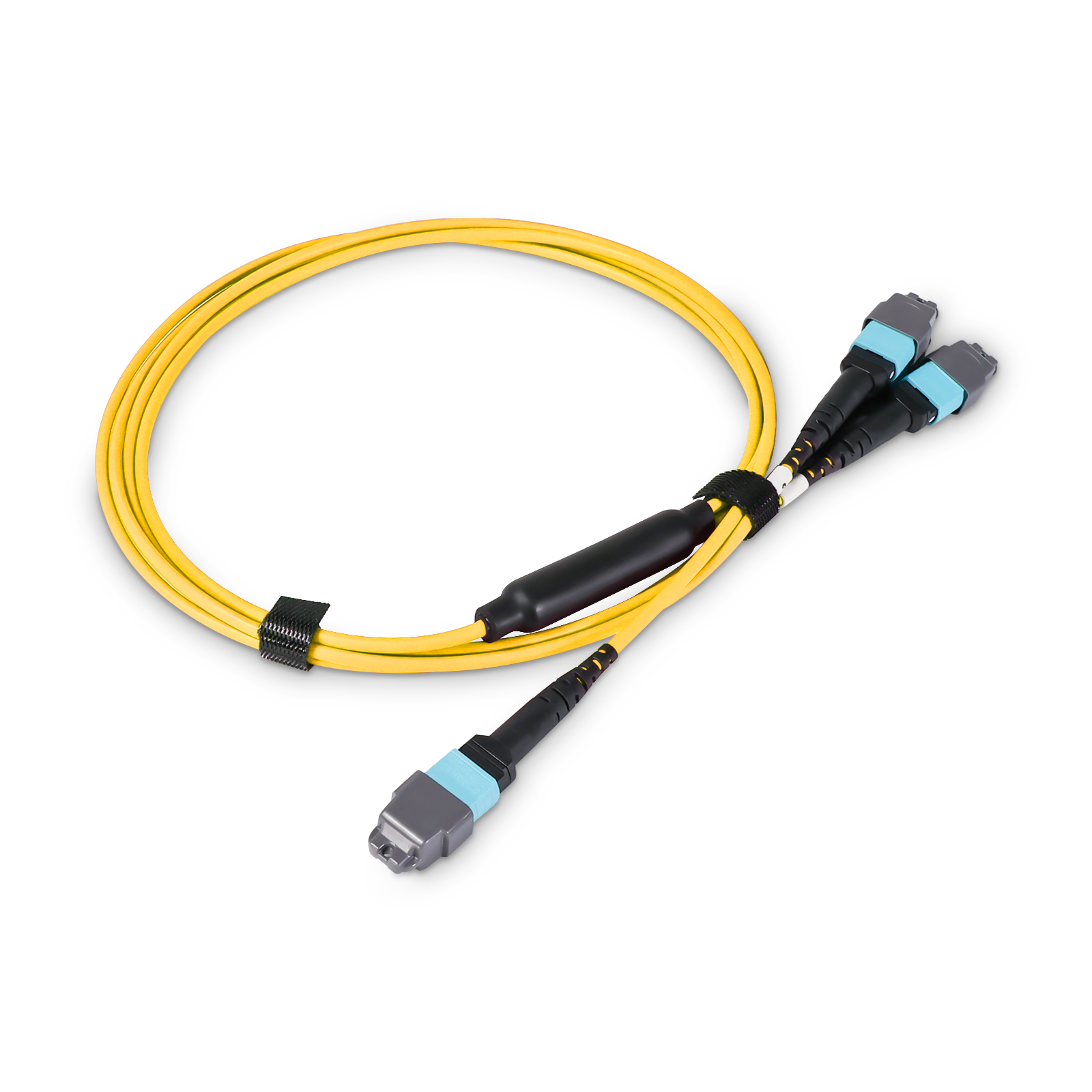

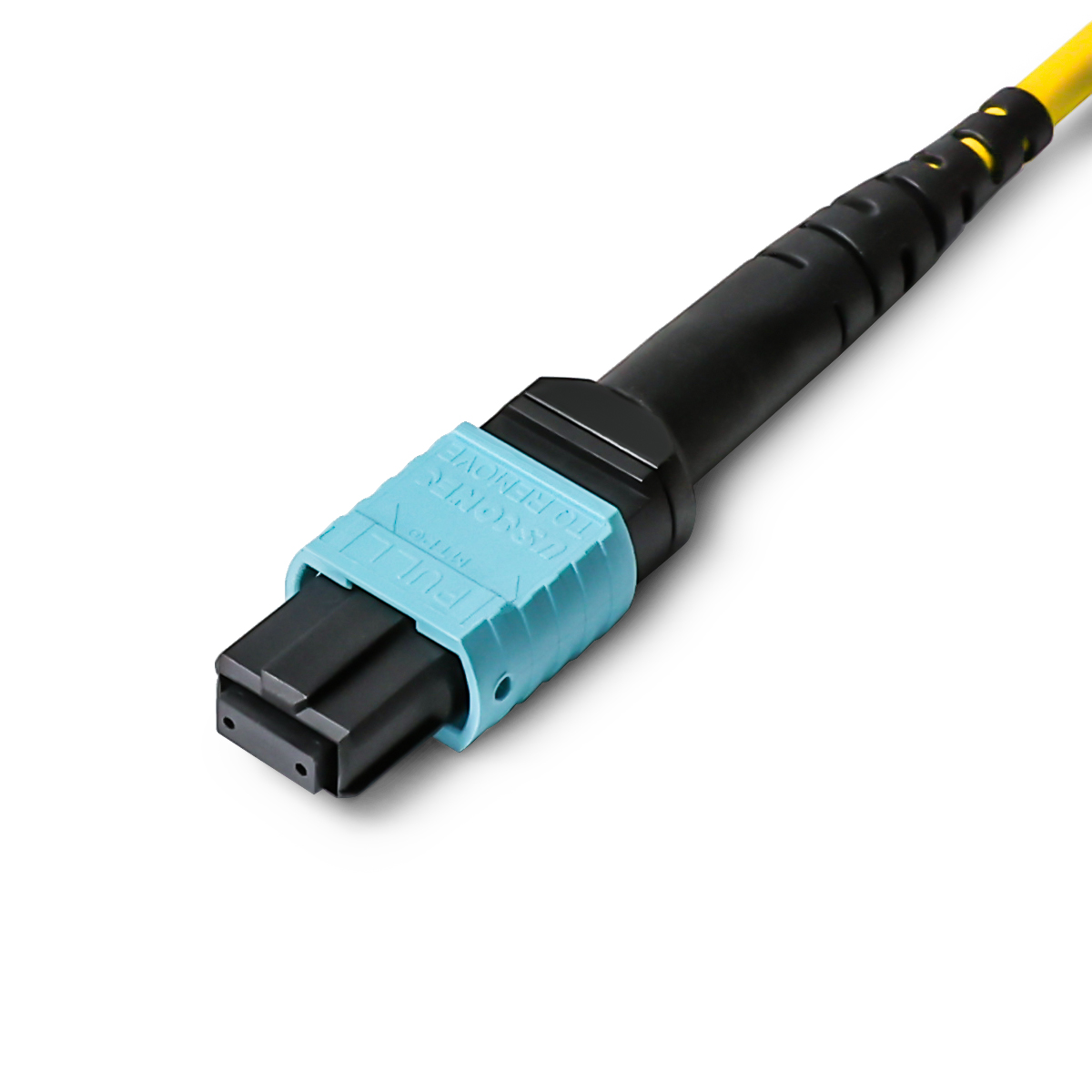

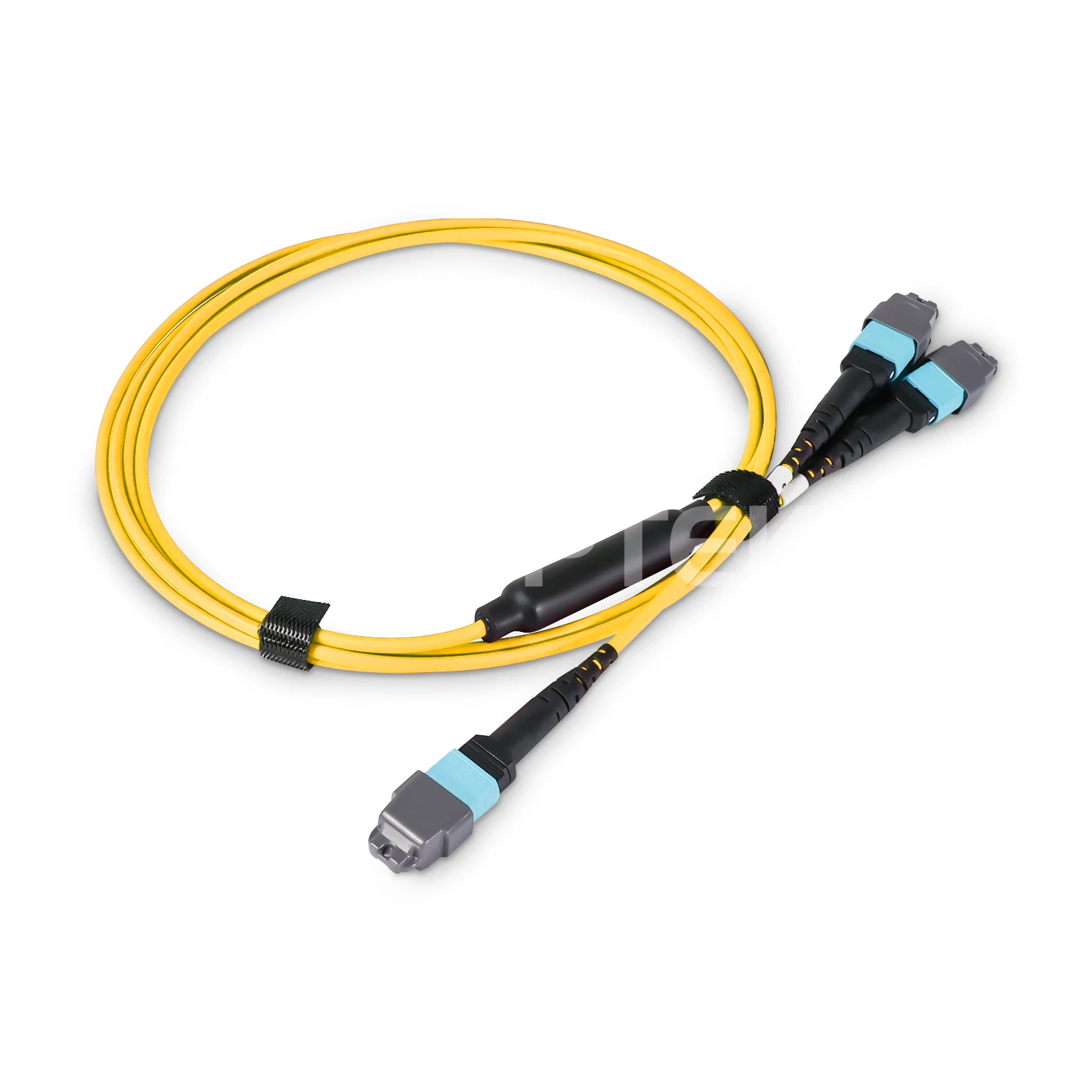

1m (3ft) 1× 24 MTP Female to 3× 8 MTP OS2 9/125 Single Mode Elite Conversion Cable, 24 Fibers, Type B, LSZH

Product No :102497
US$ 140.23
Series
Length
26 in real-time stock, 01Jul, 2025

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

-
+
Add to Cart Bulk Order Quotes
1. With 0.35dB Low Insertion Loss.
2. Flexible 10mm Min. Bend Radius.
3. LSZH Jacket, flame-retardant and environmentally friendly.
4. Provides a cost-effective and efficient 40G/100G network connection solution.
5. Available in OS2 and OM4.
See more

Specifications

1m (3ft) 1× 24 MTP Female to 3× 8 MTP OS2 9/125 Single Mode Elite Conversion Cable, 24 Fibers, Type B, LSZH



The MTP conversion cable is crafted to offer an adaptable multi-fiber cabling system utilizing MTP products. In contrast to MTP harness cables, MTP conversion cables terminate with MTP connectors at both ends, introducing greater flexibility to the existing 24-fiber cabling system.



These 40/100G MTP conversion cables eradicate the inefficiencies associated with unused fibers in the current 40G transmission and upcoming 100G transmission. Opting for MTP conversion cables proves to be a more cost-effective and less loss-prone alternative when compared to the procurement and installation of separate conversion cassettes.

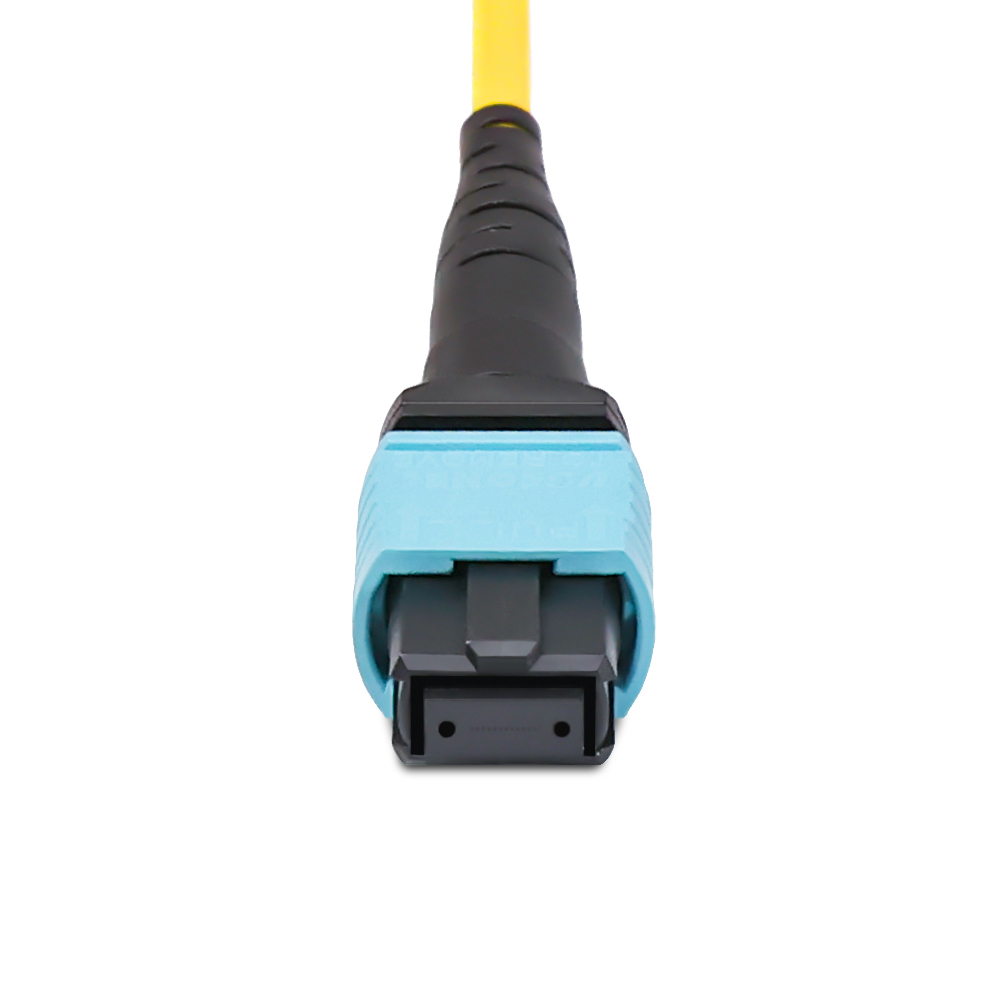

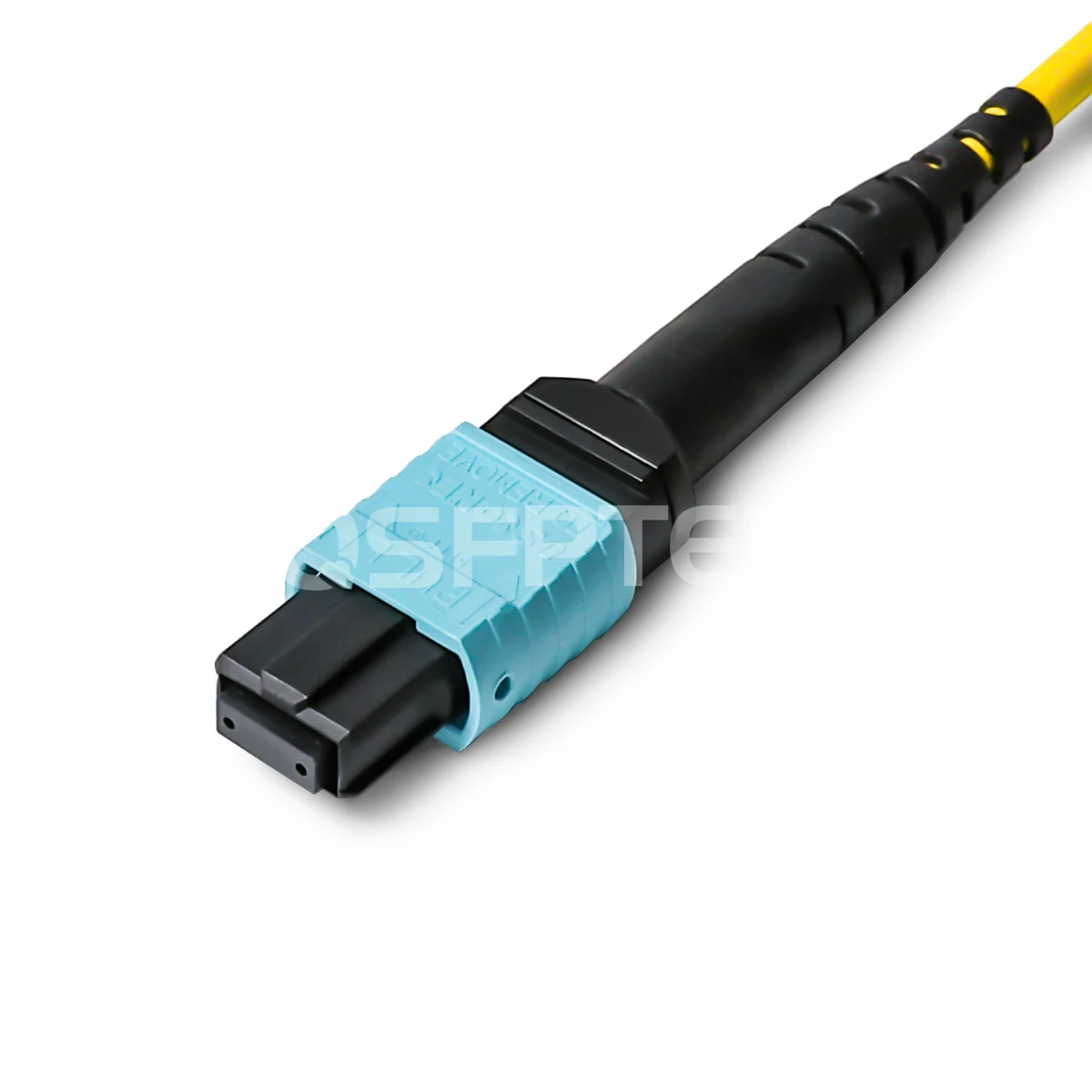

Fiber Connector MTP Gender Female
Fiber Count 24 Fibers Fiber Type OS2 9/125μm
Polish Type UPC to UPC Wavelength 1310/1550nm
Insertion Loss ≤0.35 Return Loss ≥60dB
Attenuation at 1310nm ≤0.32dB/km Attenuation at 1550nm ≤0.18dB/km
Cable Diameter 3.0mm Breakout Length 0.5m
Minimum Bend Radius 10mm Cable Jacket LSZH
Operating Temperature -10°C to 70°C (14 to 158°F) Storage Temperature -40°C to 85°C (-40 to 185°F)
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 10mm Min. Bend Radius
    Allow tighter cable bends for slack storage and routing.
  • 0.35dB Max. IL
    Always provide stable signal and realize flexible system design.
  • LSZH Jacket
    Low smoke, low toxicity, low corrosion, and high flame retardant.

Applications

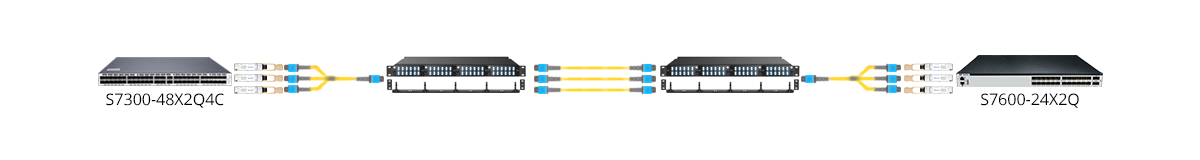

Connection 1:

Related Products:

Cisco QSFP-4X10G-LR-S Compatible 40GBASE-PSM4 QSFP+ 1310nm 10km MTP/MPO Optical Transceiver Module

S7300-48X2Q4C, 48-Port Gigabit Ethernet L3 Campus SFP+ Switch, 48 x10GE SFP+, with 2 x40GE QSFP+ and 4 x100GE QSFP28 Uplinks, Support Stacking

1U 19" Modular Rack Mount Enclosure Unloaded, Holds up to 4 Fiber Adapter Panels

1U Horizontal Cable Management with 5 D-Rings, Rackmount, Single-Sided

Customized 8-24 Fibers MTP/MPO OS2 Single Mode Trunk Cable

S7600-24X2Q, 24-Port Ethernet L3+ Switch, 24x 10G SFP+, with 2x 40G QSFP+ Uplinks

Product details

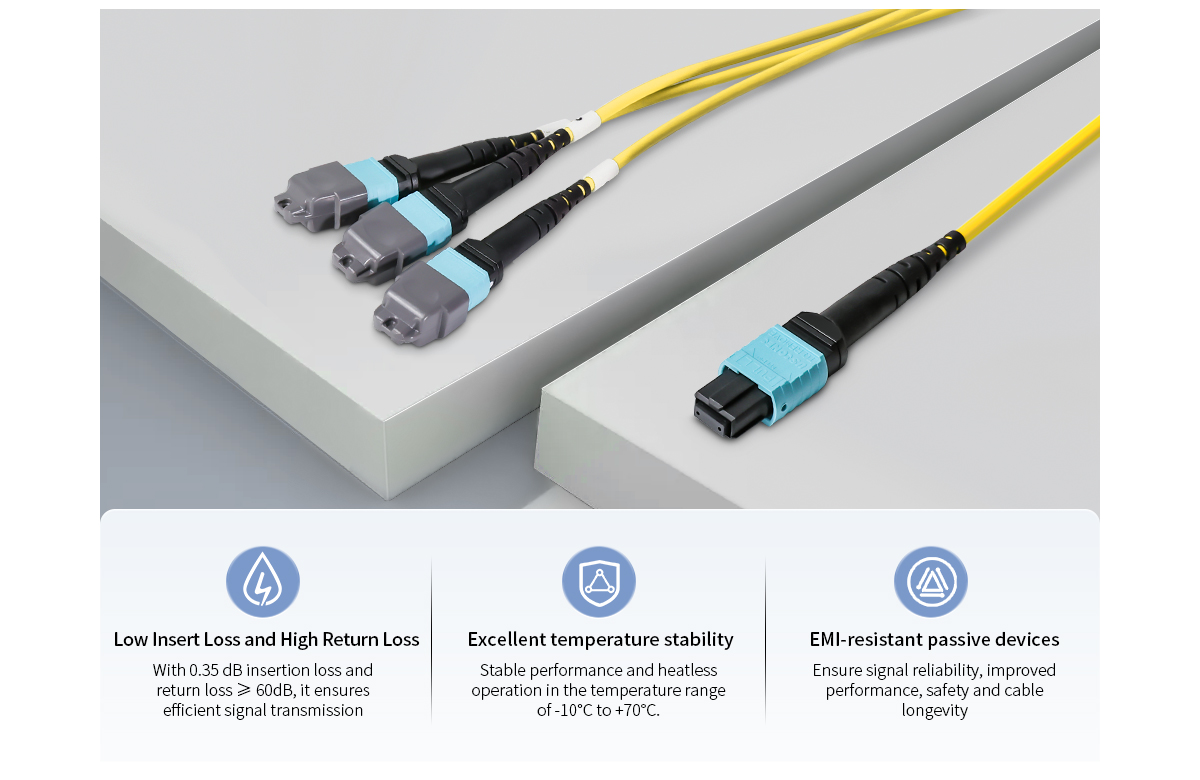

Excellent Transmission Stability Ensured by Superior Craftsmanship



With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.

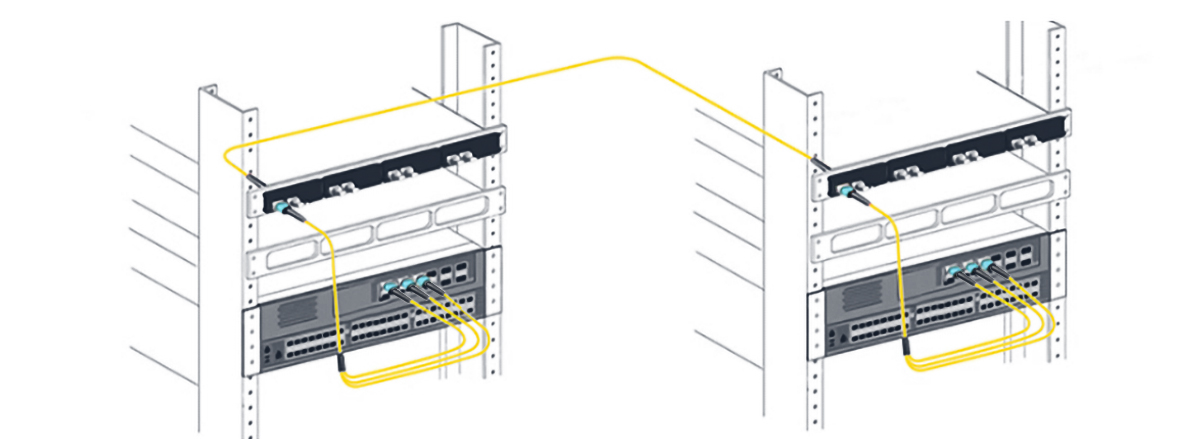

Robust Cabling for Diverse Environments

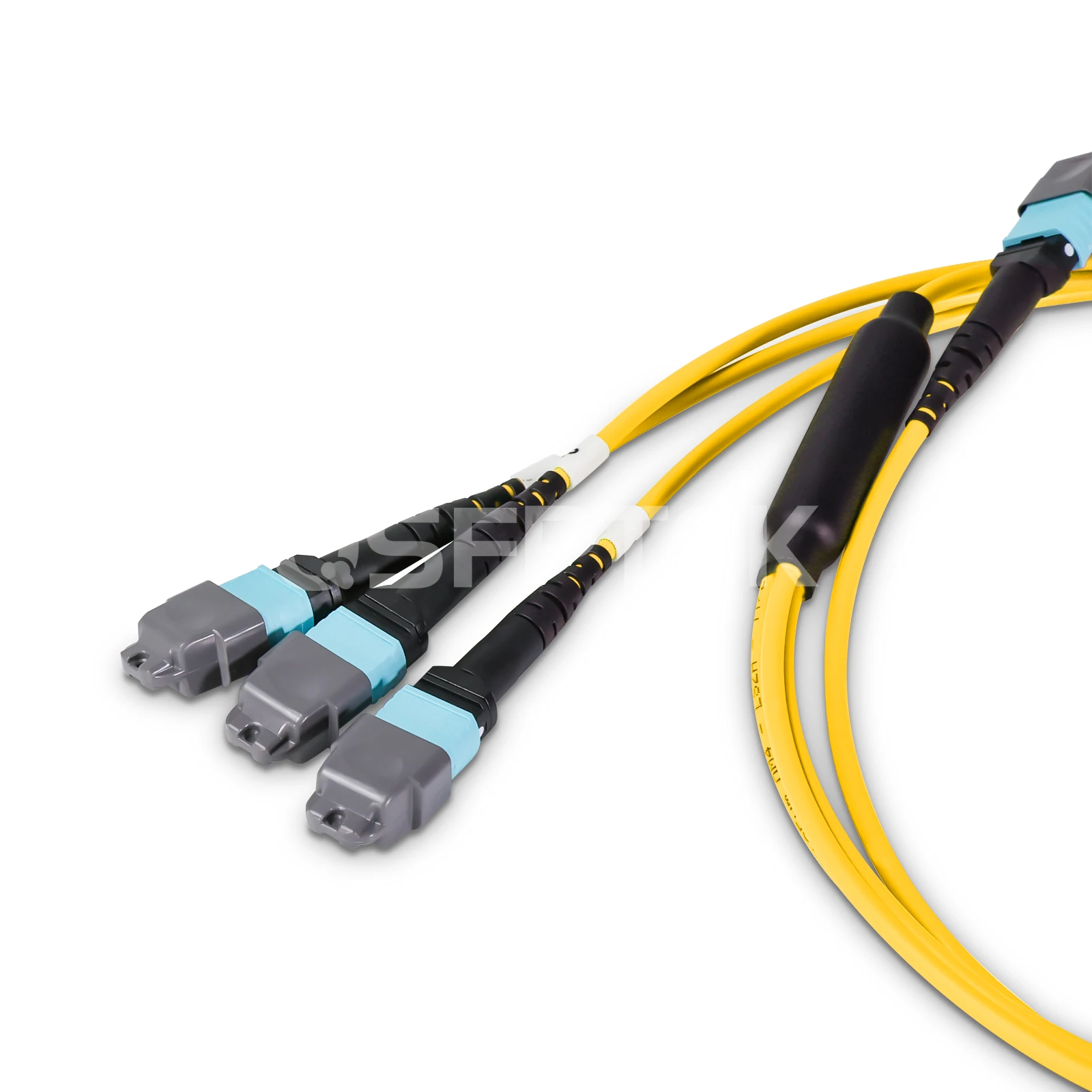

Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience. And they can enable seamless conversion from 24 to 8 fibers connectivity, ensuring 100% fiber utilization across various environments.

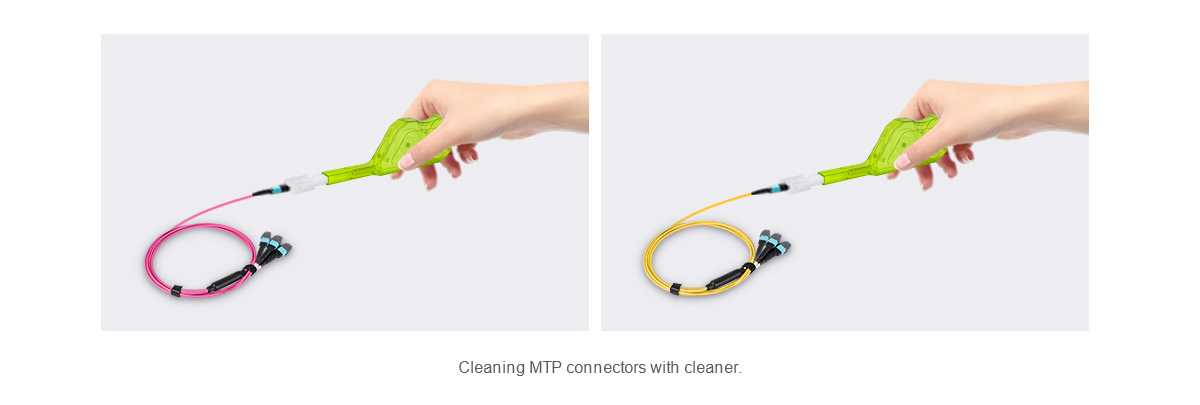

Maintain Performance by Cleaning Fiber



Ensure high reliability and performance connections by maintaining clean fiber end-faces.
